High Speed Coffee Stick Cartoning Machine For 10pcs 20pcs
Instant Coffee Stick Box Coffee Sachet Carton Packing Machine


Machine Application


Continuous cartoning machines are particularly suited to high speed lines, for generally solid and regular-shaped products that do not need special provisions for handling. Continuous operation enables progressive and delicate insertion of the products.
Given the high frequency that can be reached (from 30 to over 80 cartons per minute), in may cases it is recommended, or even essential for an automatic feed system to be used.
These cartoning machines are often equipped with accessory units, which, for example, fold and automatically insert the illustration leaflets, and apply codes by etching or ink.




This machine is widely used in folding box packaging of various products, such as food, medicine, cosmetics, chemicals, hardware, industrial products, etc.
Machine folding and sealing device can be customized according to box type, available for straight tuck box, reverse tuck box, lock bottom box, crash bottom box, holster box, sleeve packaging box, five-panel hanger box, box with custom cutouts, box with thumb tabs, etc.




Machine Parameters




Model
DS-100A
DS-130A
DS-250A
Packing Speed
40~60 boxes/min
30~50 boxes/min
30~50 boxes/min
Box Size
L:60~180mm
L:60~220mm
L:80~180mm

W:65~80mm
W:65~130mm
W:20~90mm

H:15~60mm
H:20~90mm
H:90~150mm
Air Consumption
≥0.6 mpa, 20 m³/h
≥0.6 mpa, 20 m³/h
≥0.6 mpa, 20 m³/h
Power Supply
220V/380V, 50HZ
220V/380V, 50HZ
220V/380V, 50HZ
Machine Power
4.5KW
5.5KW
6.5KW
Machine Size
3600*1500*1800mm
4000*1500*1900mm
5700*1500*1900mm
Machine Weight
1000KG
1500KG
2000KG


Machine Features
1. Adopt human-machine operation system. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. Automatically stop when machine is overload.
2. Automatically display trouble and alarm. No product, no suction box. Automatically reject lacking of package product and leaflet.

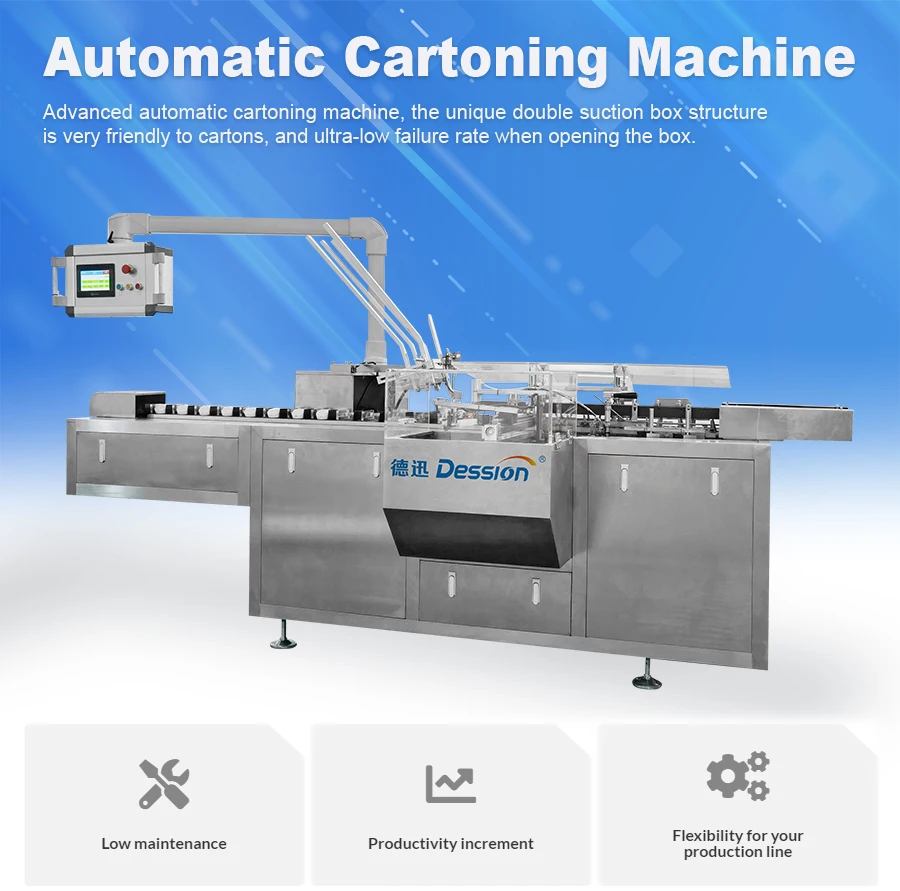

3. Optional single or double suction box structure, fewer open box failure rates.
4. Open mechanical structure design. Stable performance, simple operation and maintenance.
5. Full 304 stainless steel cover, safety door structure, low noise operation(70 decibels within 1 meter).
6. Compact design, smaller footprint. The product contact surface is made of food-grade materials.


Get Quotation


There are many types of automatic cartoning machines. It is necessary to determine the corresponding machine model according to product information and packaging requirements, and customize the mold according to the type and size of the box.
We need some information to give you an accurate quote.
1. What product do you need to pack? What is the package quantity?
2. What is your box type? Does it use glue to seal?
3. What is the size of the box? Including box length, width and height.
4. Do you need automatic feeding device? Does the machine need to be connected to other devices?







If you need to know more machine details and let us provide you with packaging solutions, please contact me. I will provide you with the most professional service and the most suitable machine for you.




Machine Details





Easy To Operate Control System
The machine is equipped with a multi-language intelligent touch screen, which can select multiple languages. Both machine control and parameter adjustment can be adjusted on it. Easy to operate.



No Product, No Suction Box
Infrared induction device, automatically identify the product and suction box, fill into the box and so on. No product, no suction box, less waste.

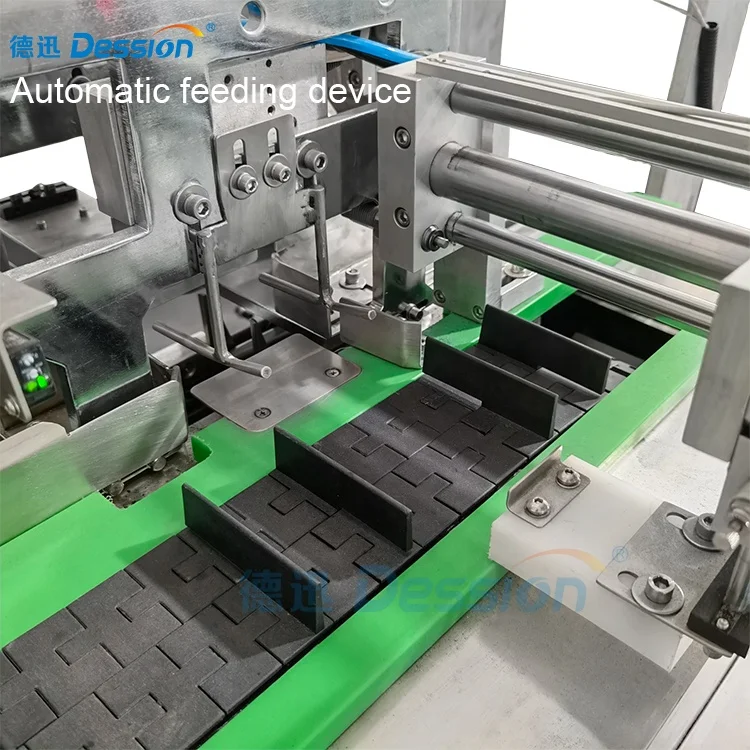

Product Feeding Device
Quickly open the box and fill the product into the box. Using pneumatic drive, the operation is fast and accurate, and the failure rate is reduced.

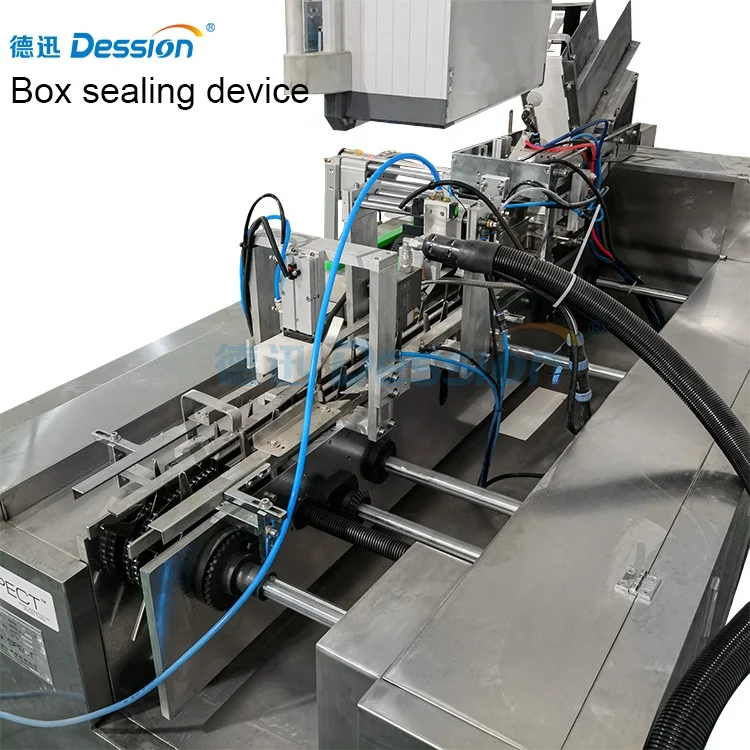

Box Sealing Device
After the product is filled into the box, the machine automatically completes the box sealing. Depending on the box type, you can choose either a folding seal or a glue seal.




Certifications


All machines on sale have CE certificate and ROHS certificate to ensure the safety of import, export and use of the machine.
As a company integrating R&D, production and sales, we have obtained 20+ patents, IOS9001 management certification and other qualifications.
It is an Alibaba Gold Merchant and an Alibaba Certified Strength Factory.




Why Choose Us


Customers are spread all over the world, and have been exported to more than 80 countries, and have been well received by customers.
With 10 years of experience in packaging machinery and a professional R&D and production team, we can provide you with the most professional packaging solutions.
Our experience, your success.






We provide complete machine installation and commissioning manuals and videos to ensure that the machine can be used as soon as you receive it.
Professional after-sales engineers escort customers, and the machine is guaranteed for life.
When customers encounter problems during use, we will reply and provide solutions within 24 hours.








Company Strength


Dession Machinery is a modern packaging equipment solution provider integrating R&D, production and sales. Since the establishment of the company, with the continuous exploration, research and application of advanced technology. The company has been developing for more than 10 years and has a team composed of professional technicians, engineers, sales and after-sales service personnel. We have developed many series of packaging machinery and related supporting equipment, which are widely used in food, medical supplies, hotel supplies, daily necessities, hardware accessories and other product packaging industries. All equipment has CE, ROHS certificates, quality inspection reports, etc. to ensure the quality of the equipment. Choose us, choose success.






FAQ


1.Does it support proofing service?
If it's necessary according to your requirements, we can make sample bags for your reference.
2.How to ensure the quality of the machine?
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
3.How to ensure that the customer receives the machine can be used normally?
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
4.What are the guarantees for after-sales service?
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc. Our engineer overseas door to door service is available.24 hours online technical service and solution can be offered.
