Product Description

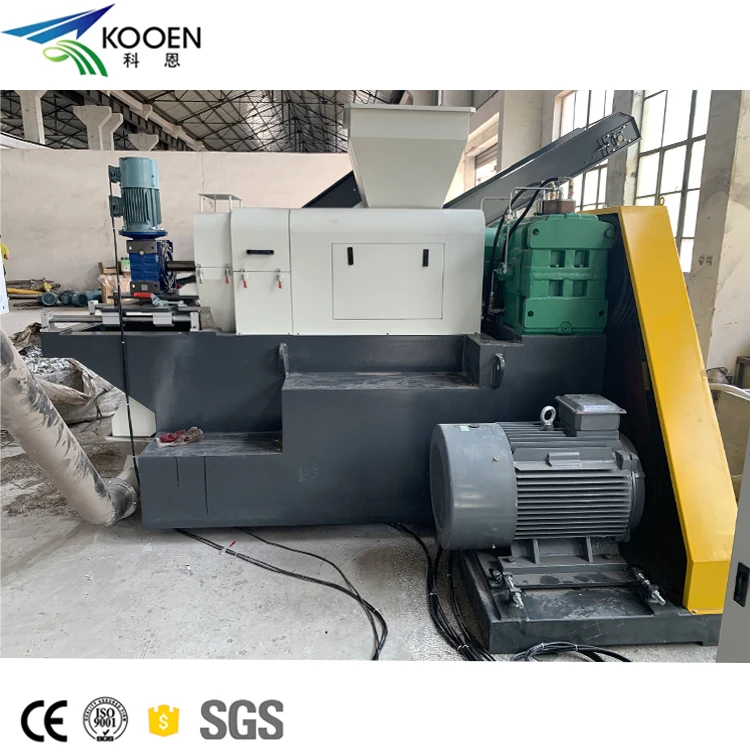

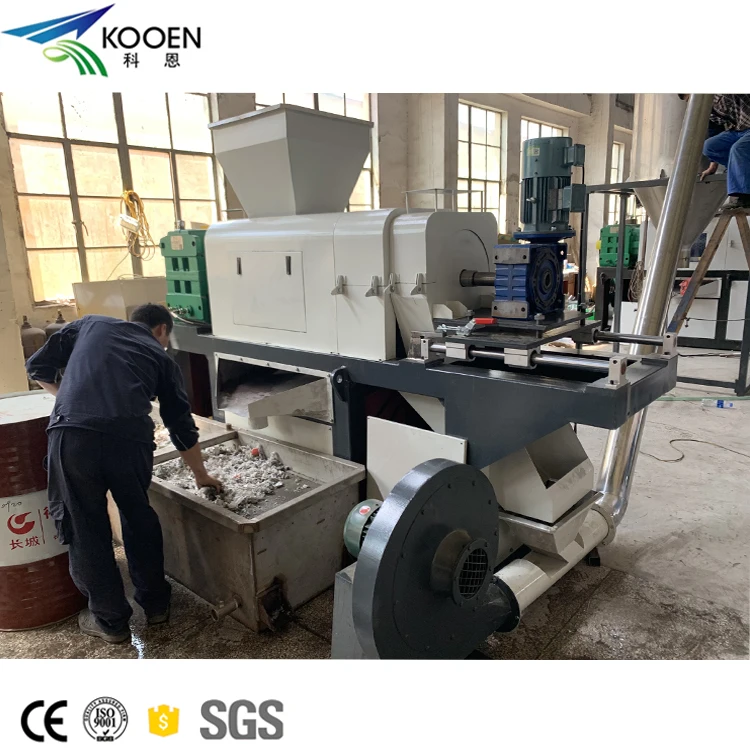

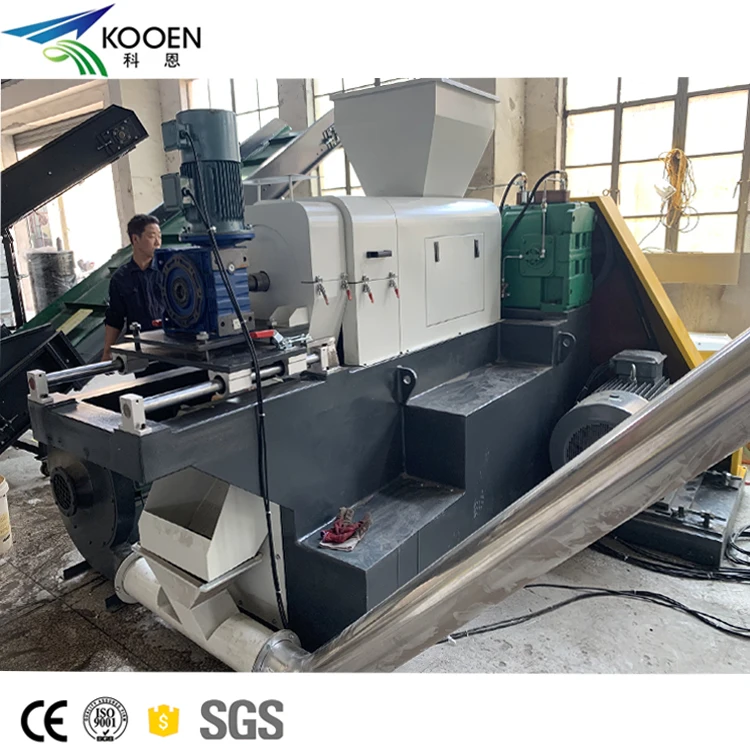

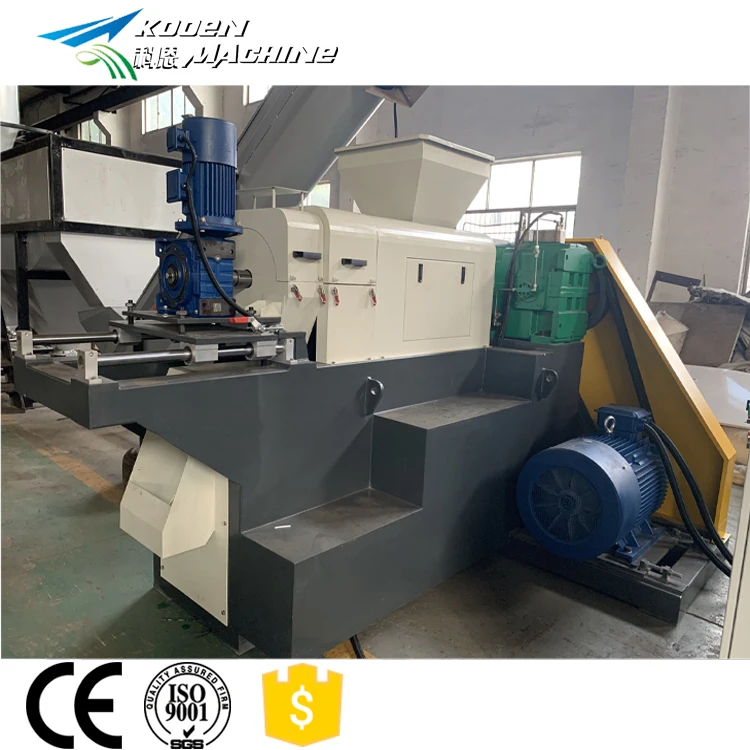

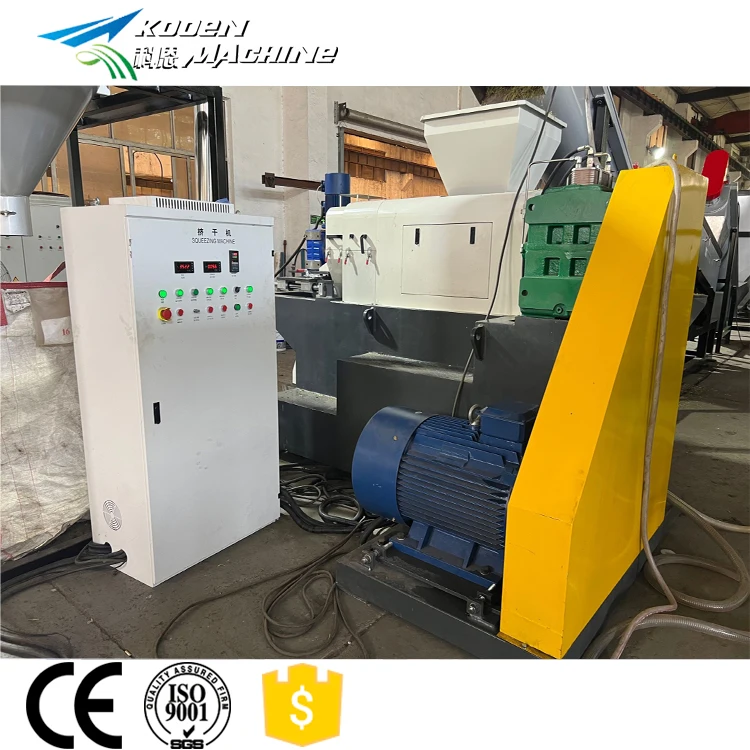

Plastic stretch film grinding washing drying recycling line with crusher friction washer squeezer machine
Main Parameter:
Model | Capacity(kg/hour) | Motor powder(KW) | Screw diameter(mm) | Rotation speed (rpm) | Cutting motor powder(KW) | Fan blow power(KW) |
KN-250 | 300 | 75 | 250 | 55 | 5.5 | 7.5 |
KN-300 | 500 | 90 | 300 | 55 | 5.5 | 7.5 |
KN-350 | 800-1000 | 132 | 350 | 55 | 5.5 | 7.5 |
Usage:
This is new type film-squeezing machine which is designedby our company.It use squeezing&dehydration principle,after raw material(Ldpe agriculture film,LLDPE strength film,and pp woven/big bags,etc)crushing and washed,this squeezer machine can quickly and effectively remove the water.It is easy to increase the subsequent granulating line production capacity.
This is new type film-squeezing machine which is designedby our company.It use squeezing&dehydration principle,after raw material(Ldpe agriculture film,LLDPE strength film,and pp woven/big bags,etc)crushing and washed,this squeezer machine can quickly and effectively remove the water.It is easy to increase the subsequent granulating line production capacity.
Main spefication of our plastic squeezer machine
Main motor power:75/90/132kw
High torque, low noise, hard surface gear box connected with cooling cycling system outside
Rotation speed:55rpm
Screw diameter:250/300/350mm
Material:38CrMoAl Nitrified
CNC treatment
CNC treatment
Material:38CrMoAl Nitrified
CNC treatment
Material:38CrMoAl Nitrified
CNC treatment
Cutter
Cutting hood material:stainless steel
Cutting motor and cutting shaft connect directly
Material: stainless steel
Fan motor power:5.5kw
1. Low power consumption.
Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine +
drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity
Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine +
drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity
Our company also offer plastic horizontal/vertical dewatering machine/ plastic centrifugal dryer(details see below):
horizontal dewatering machine
More photos:
Main power 37kw/45kw/75kw/110kw
Rotation speed 1500rpm
Bearing brand SKF or NSK
Capacity（kg/h) 300-2000kg/h
Thickness of inside sieve:3mm
Inside equipped with device,automatic cleaning inner sieve
Main shaft through dynamatic balance treatment
Final products(PET/HDPE rigid flakes)humidity below1%;pe/pp film humidity below 5%
Main shaft Made of stainless steel
Usage:This horizontal dewatering machine (centrifugal dryer)can delete the water of PP PE film/flake,PET flake and make them dry.The high rotation speed (reach 1500 rpm)can delete 98% of water in film .
More photos:
Vertical dewatering machine
Main motor power 5.5kw/7.5kw/11kw/15kw/18.5kw
The power of motor for process 1.5kw
Rotating speed 1200rpm
Screen diameter 2.5mm
The drum through static and dynamic balance correction;basic is cast iron,stable gravity.
Dehydration barrel supported by three springs connecting rod,with function of anti-shock and automatic correction.
Capacity 300-1000kg/h
Made of stainless steel
Usage:this vertical dewatering machine mainly used for process rigid plastic flakes ,such as pet flakes,pe /pp flakes ,etc.The high rotation speed (reach 1200rpm)can delete 98% of water in flakes.
More photos:
Related products
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
//www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/pet-bottle-washing-line/ （Website link）
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ （Video link）
//www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/（Video link）
//www.kooenmachine.com/squeezer-machine/ （Website link）
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/（Video link）
//www.kooenmachine.com/shredder-machine-crusher-machine/ （Website link）
//www.kooenmachine.com/shredder-machine-crusher-video/ （Video link）
Our Company
Exhibition
Service
For choosing proper machine and saving your time, please read these bellow guides carefully:
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
Waste plastic recycling PP PE PET film bags bottle washing line plastic recycling plant cost of plastic recycling machine
More details, please log on our web: www.kooenmachine.com
More details, please log on our web: www.kooenmachine.com
Похожие товары

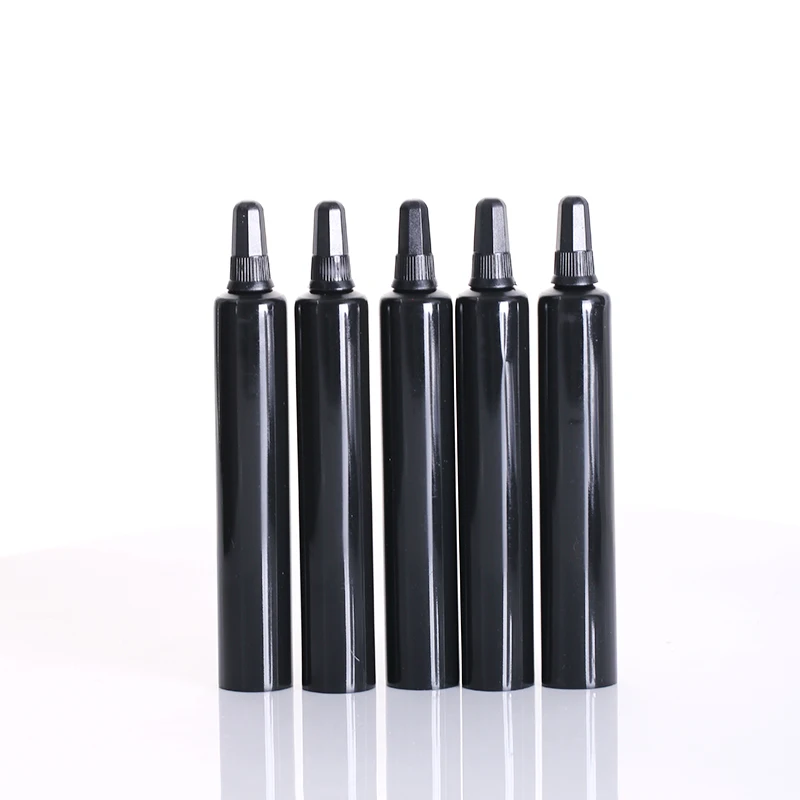

Гелевая лакокрасочная трубка, 20 мл, противоскользящий клей с зазором, аксессуар для фототерапии, Бесплатный клей для мытья, игольчатый шланг, бутылка с крышкой

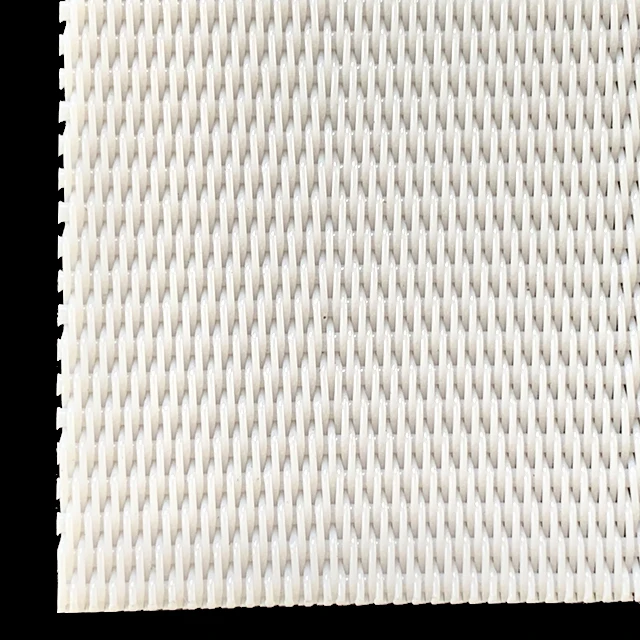

Полиэфирный пресс, фильтрующая лента, ленточный конвейер для обезвоживания осадка, машина для обезвоживания осадка
1,99 $

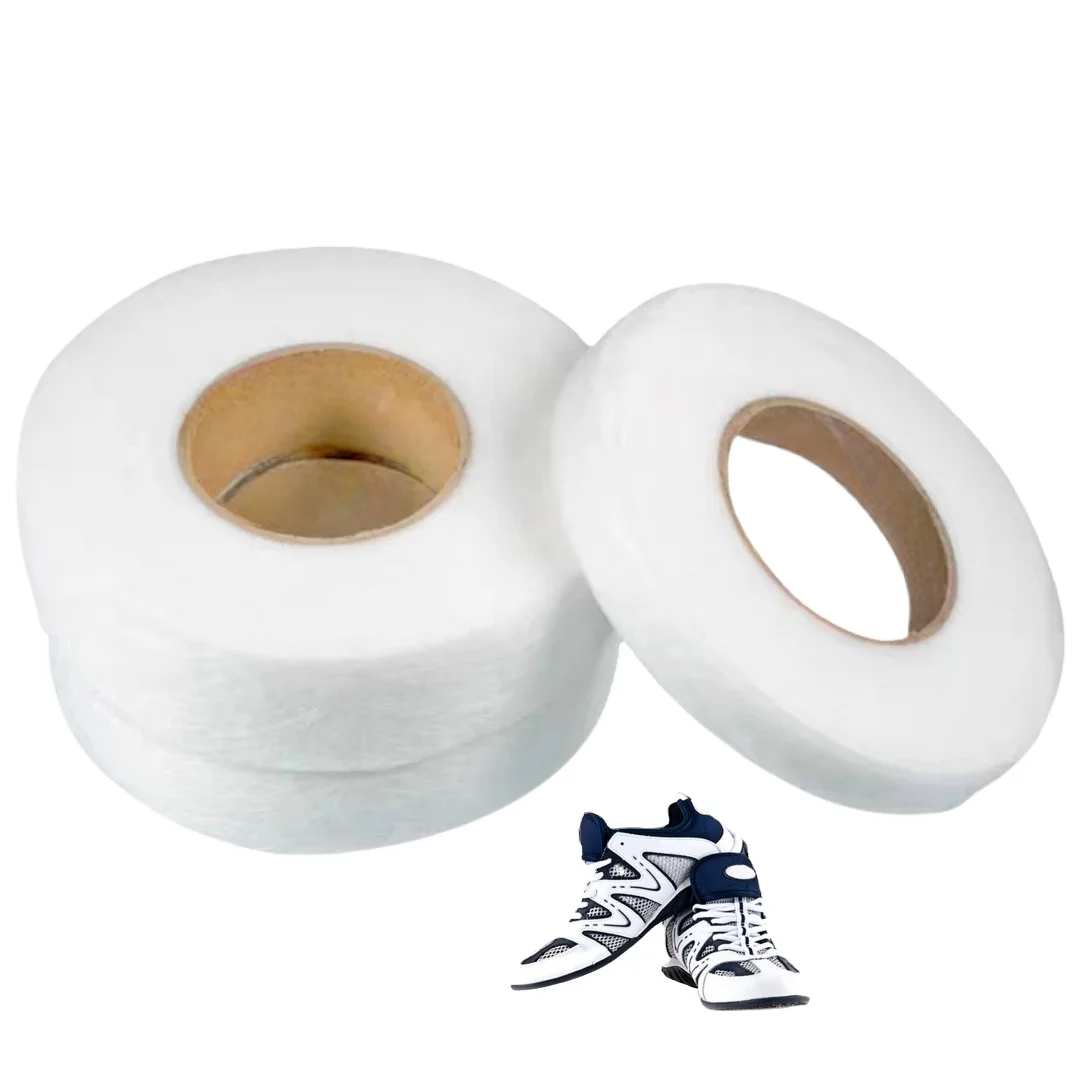

Горячая Стильная белая сетчатая Па термоплавкая клейкая лента термоплавкая клейкая пленка для обуви
0,24 $ - 0,36 $
Винтажная монета Cthulhu Mythos двухсторонняя металлическая коллекция памятные
1,00 $ - 1,50 $

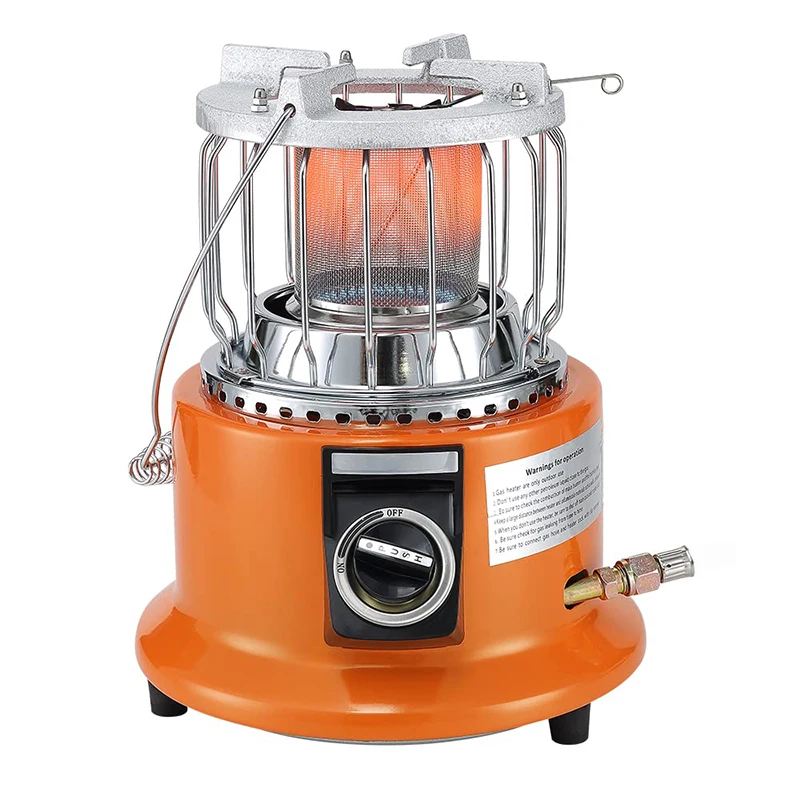

Портативное оборудование Kingpool для рыбалки пешего туризма выживания пропановый газовый нагреватель миниатюрный кемпинга на открытом воздухе газовая палатка нагреватели
10,00 $ - 18,00 $

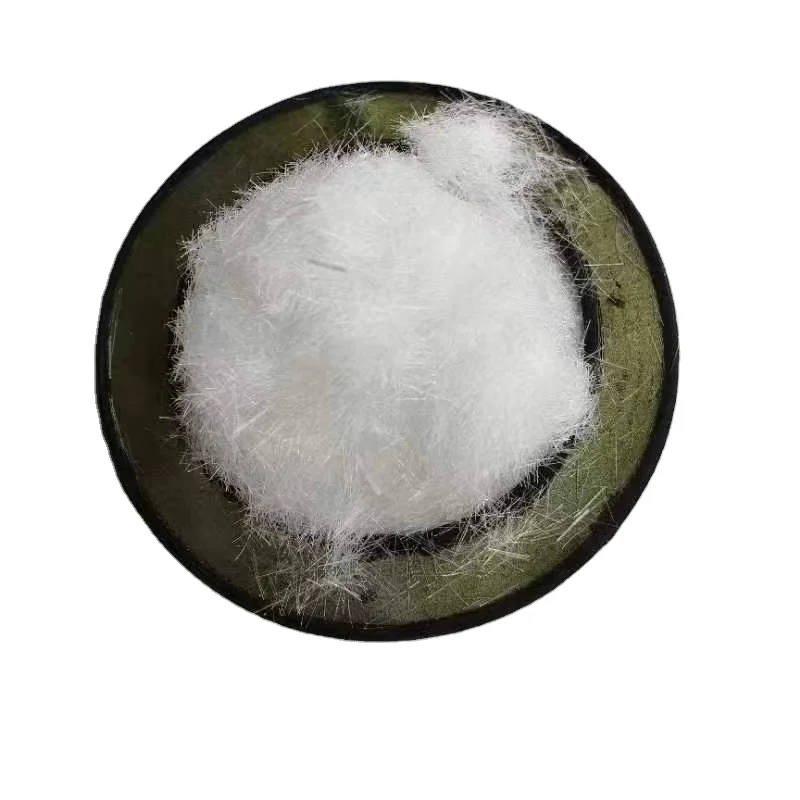

Строительные добавки, полипропиленовое волокно
1,10 $ - 1,50 $

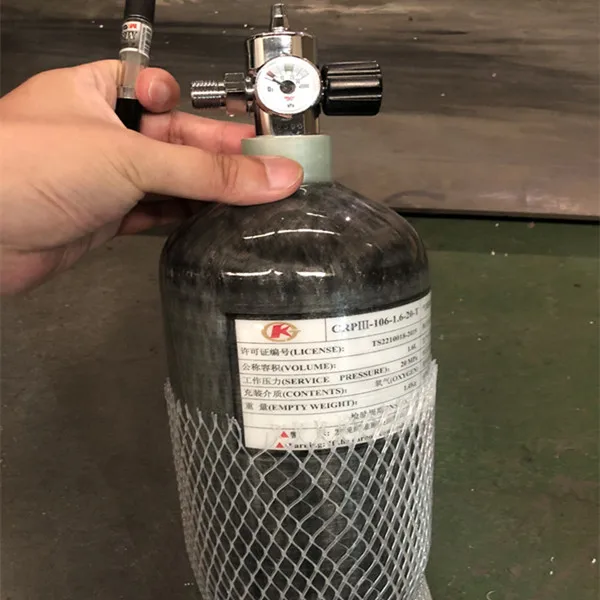

Композитный цилиндр высокого давления M18 * 1,5 30mpa 4500psi, Воздушный бак из углеродного волокна для подводного плавания с фабрики KJ
