wholesale cheap price 2 wire networking conventional fire alarm control panel fire alarm system

1.Controlling panel

Conventional fire alarm controlling panel: 2 zone,4 zone,8 zone,16 zone,welcome to negociate.

4,8,16 Class B Initiating Device Circuits (IDCs)

All zones accept conventional detectors and any normally open contact device

Four Class B Notification Appliance Circuits (NACs)

One Form-A Alarm Relay

One Form-A Trouble Relay

One Form-A Supervisory Relay

3.0 amps of system power

Max 30 conventional detectors in one zone.

Auto/Manual mode setting enable walk test.

Each Zone can be disabled,

Sound output can be disabled.

Manual active sound output enabled.

Able to report short and broken circuit of detection zones.

Designed with standby batteries and space provision for two sealed lead-acid batteries.

Testing and disable functions.

Can connect max 32 repeater panels by RS485 communication port

Dimensions : 14.57" (37 cm) long X 17.32" (44 cm) high X 3.94"(10cm).

Weight: 6.6kg (without battery).

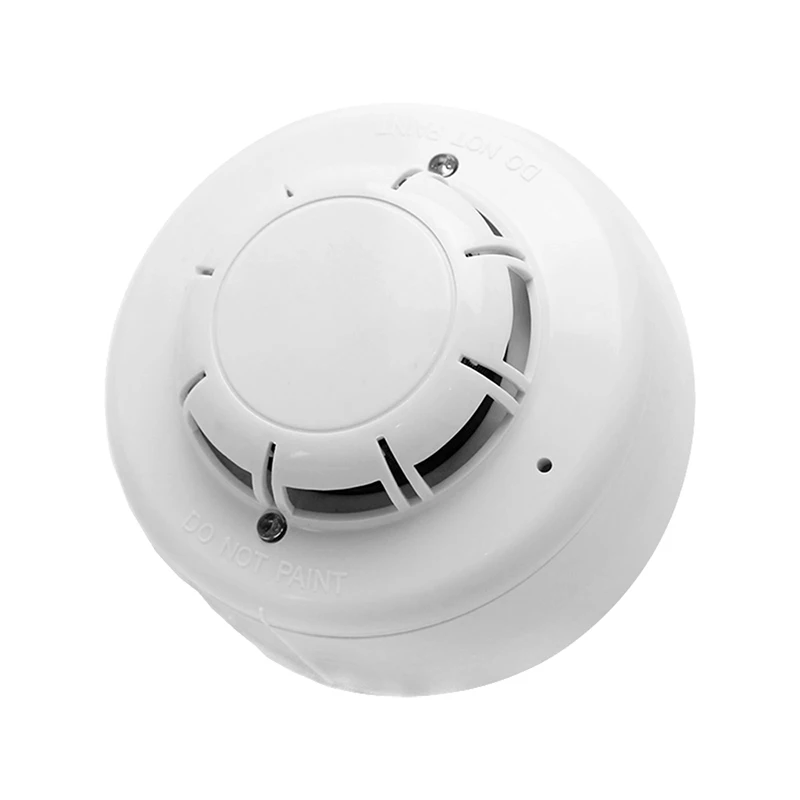

2.Two wire smoke detector

2 wired Networking : similar Zeta

CPU processing adopted
Auto reset/reset after power off
Infrared photoelectric sensor
LED alarm
Best adaptability with environment
High density SMT design,high steady,sensentivity adjusted
Unique structure with dustproof, anti-fly, anti-light design
There have two type bases for your reference.
2-wire (Applicable to the fire alarm system)
Alarm type: Current output/LED alarm indication
Detecting area:20 square meter
Sensitivity grade:1class
Alarm output:Current output/REMOTE LED
Sensitity:Users can adjust it according to requirements

3. Two wire heat detector

2 wire Network Heat detector

Operating voltage: 9-36V
Surveillance current::≤50uA
Alarm current::≤50mA
Temperature range::-10°C~85°C
Detection temperature: 57°C
Installation method: Ceiling installation
Alarm Means: Network output/sound flash alarm
Alarm reset: automatic reset

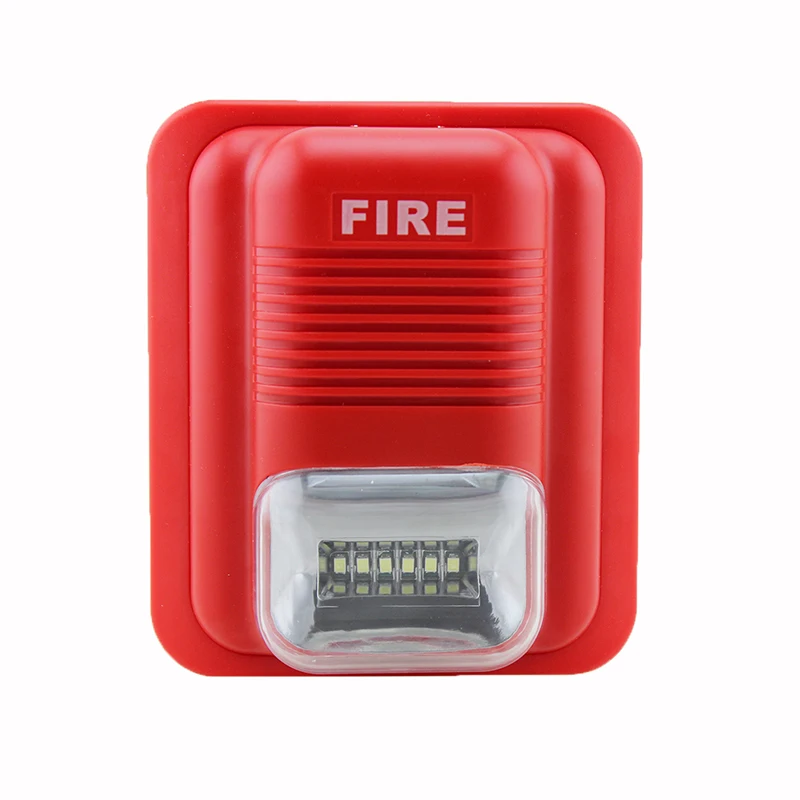

4. Strobe siren

LED FLASH AND SOUND SIREN

Color:red
Operating temperature:-10℃+55℃
Humidity:≤95%.
Operating voltage:DC24V
Operating current:80mA to 150mA
Flash intensity:≥1.2WS
Flash period:≤1.5S
Flash rate:76times/minute
Life span:≥40000 times
Max alarm SPL:90dB

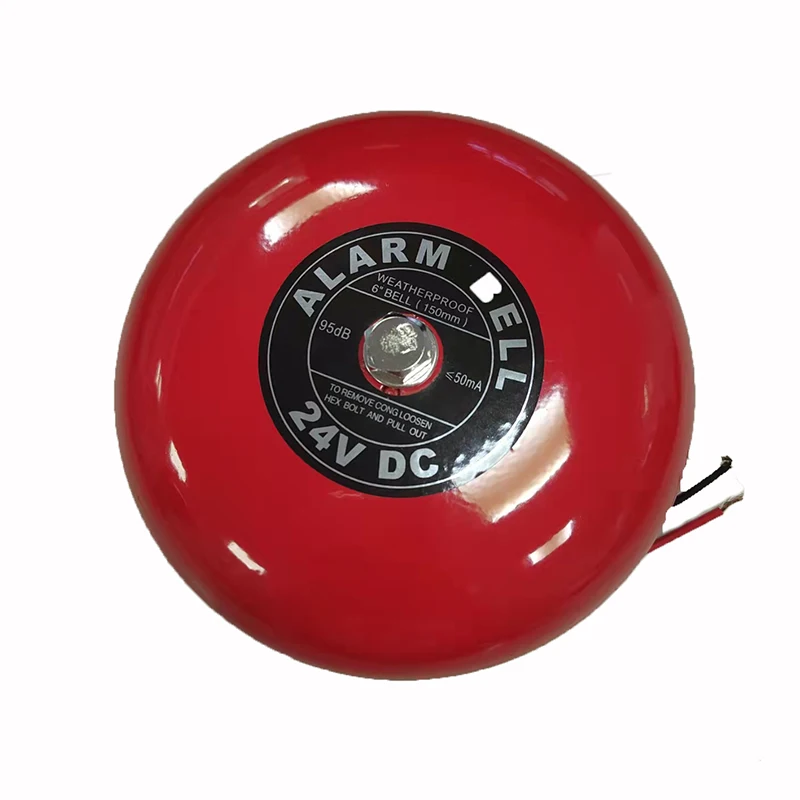

5. Alarm Bell

6 inch fire alarm bell

Water proof	Yes
Operating voltage	AC220V/DC24V
Operating current	≤25mA
Alarm sound	≥95dB

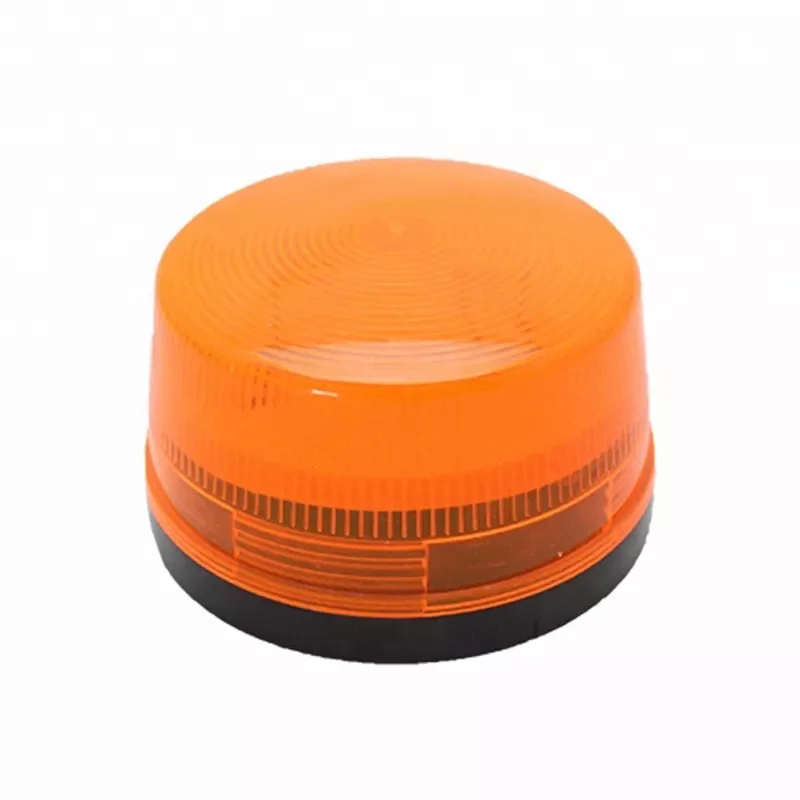

6. Strobe light

1.operating voltage:DC12V/24V
2.operating current:30mA≤current≤80mA
3.strobe speed:60±5 times/minute
4.life span :more than 1000Hr(continuously working at standard power supply)
5.lamp Shade's Color: Red, yellow, blue, orange optional
6.Base:double column, with waterproof apron and rubber plug
7.Waterproof grade: IP66
8.light source: LED
