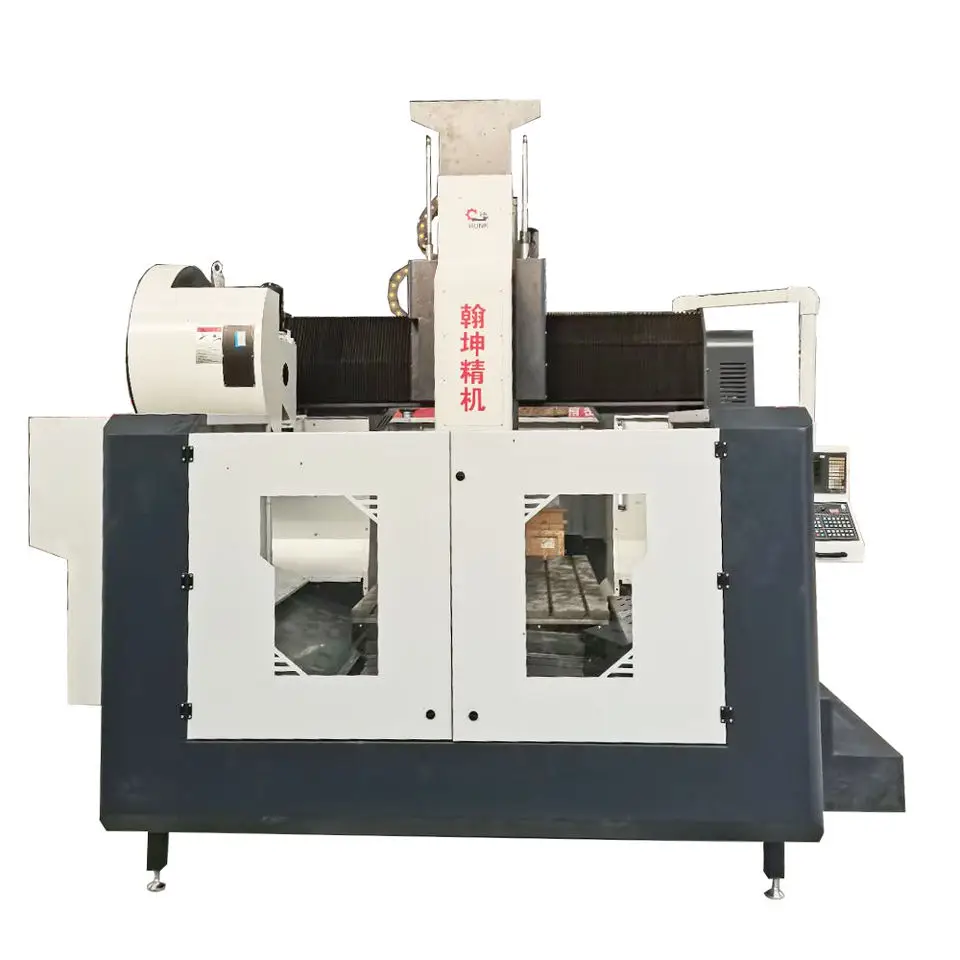

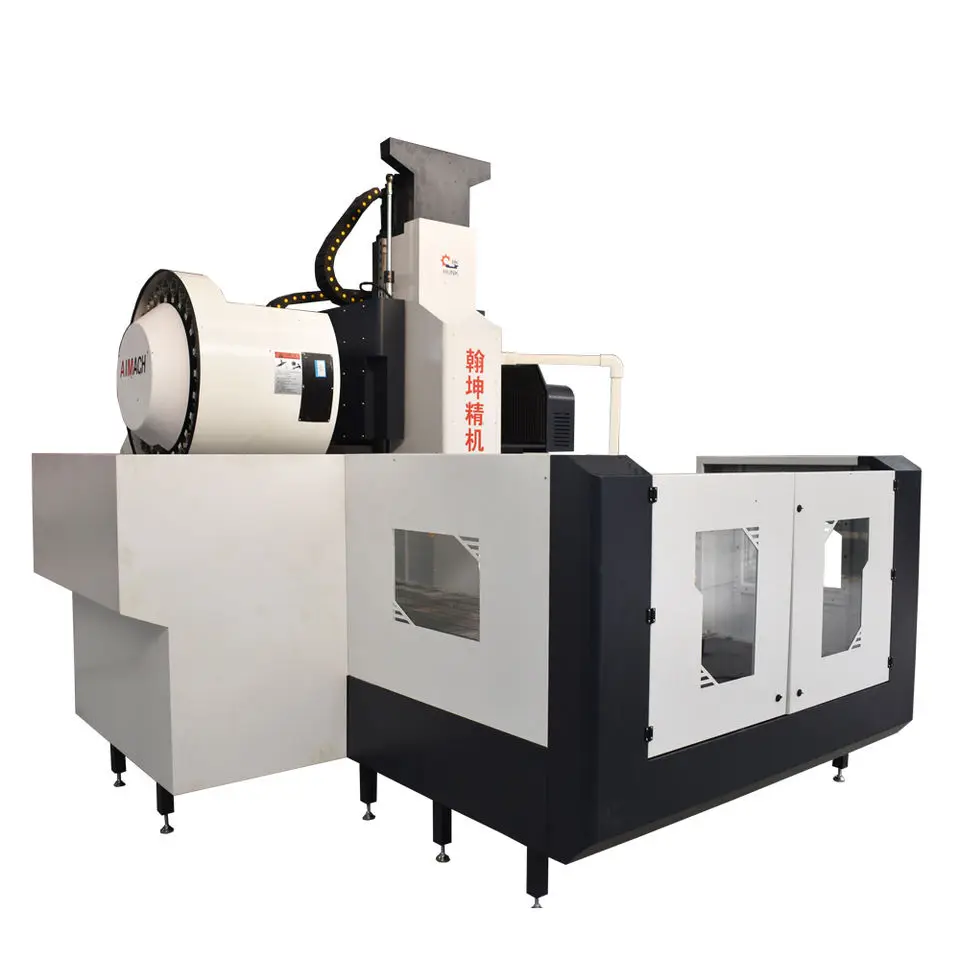

Сверхмощный токарный станок с ЧПУ фрезерный GMC2016 3 оси портального типа CNC обрабатывающий центр для продажи
- Категория: >>>
- Поставщик: Jinan Hankui International Trade Co. Ltd.
Сохранить в закладки 1600602262506:
Описание и отзывы
Характеристики
Product Description
Introduction:
The gantry machining lathe is a kind of gantry frame type machining center with fixed beam and removable workbench. On the basics of strong rigidity and good stability of traditional gantry, it absorbs the advanced design concept. By using the methods of finite element to analyze mechanics, and distribute the rebar and mass reasonably, it can make the whole lathe’s rigidity strong and make static precision and dynamic performance stable and reliable. It is of the advanced level among similar lathe, and it is a kind of advanced equipment with high efficiency, high precision and high reliability. The structure and technology of lathe is maturity, it’s quality is stable.
Application:
it can process the milling, drilling, boring, reaming and tapping of parts precisely and efficiently. It can also realize clamping parts all at once, and can finish the parts processing of top, forward, backward, left, and right side, which especially adapt to the processing of parts, mould, and complex surface. It is widely used in general machinery, aviation, aerospace, automotive, nuclear industry, energy, mould, locomotive, heavy duty machine, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.
Specification
Item | Unit | GMC2016 | GMC2518 | GMC3022 |
Worktable size | mm | 2000*1300 | 2500*1600 | 3000*2000 |
T slot size | mm | 7-22-150 | 8-22-150 | 9-22-180 |
Max.load | Kg | 4000 | 5000 | 6000 |
X axis travel | mm | 2000 | 2500 | 3000 |
Y axis travel | mm | 1600 | 1800 | 2000 |
Z axis travel | mm | 800 | 1000 | 1000 |
Distance from spindle nose to table | mm | 50-970 | 250-1250 | 250-1250 |
Distance from two column | mm | 1650 | 1800 | 2200 |
Spindle speed | rmp | 6000 | 6000 | 6000 |
Spindle tapper | BT50 | BT50 | BT50 | |
Motor power | kw | 15/18.5 | 22 | 22 |
X/Y rapid travel speed | m/min | 20 | 20 | 20 |
Z rapid travel speed | m/min | 15 | 15 | 15 |
Cutting feed | mm/min | 5-8000 | 5-8000 | 5-8000 |
Guide way | X/Y/Z axis linear guide way | X/Y/Z axis linear guide way | X/Y/Z Linear guide way | |
X/Y/Z positioning accuracy | mm | 0.022 | 0.022 | 0.022 |
X/Y/Z Repositioning accuracy | mm | 0.012 | 0.012 | 0.012 |
Tool magazine | 24 | 24 | 24 | |
Max.diameter/length | mm | 250/400 | 300/500 | 300/500 |
Tool Max.weight | kg | 15 | 15 | 15 |
N.W | t | 22 | 26 | 30 |
Dimension(L*W*H) | mm | 5500*3500 | 6500*4000 | 7500*4500 |
Main Features
More detail images
The Standard Accessories List
NO | specifications | Amount/Note |
1 | The operating instructions of lathe The schematic diagram of electrical The specification of lathe electrical The inspection certificate of lathe precision The operate of the system/maintenance,programming manual | 1 set 1 set 1 set 1 set 1set |
2 | TThe Z axis/Ω 190 6000r | ROYAL/posen/health of razor |
3 | The bearing of X axis / 40 tac90bsuc | NSK (precision) |
The bearing of X axis / 40 tac90bsuc | NSK (precision) | |
The bearing of X axis / 40 tac90bsuc | NSK (precision) | |
4 | The ball screw of X axis | HIWIN (WIN/PMI) C3 level |
The ball screw of Y axis | HIWIN (WIN/PMI) C3 level | |
The ball screw of Z axis | HIWIN (WIN/PMI) C3 level | |
5 | The roller linear guide of the type of Z/Y/Z overloading | HIWIN |
6 | The spindle unclamping cylinder | Made by personal |
7 | The electrical components | Schneider |
8 | The electric valve (pressure) | The dirk |
9 | The knife library / 24 sets | Okada |
10 | Heat exchanger | Dior |
11 | Automatic lubrication system | River valley |
12 | Isolation transformer | Green power |
13 | Spiral chip removal machine | Jin feng |
14 | The electrical of low voltage lathe | Schneider |
Packing
Company Profie
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
