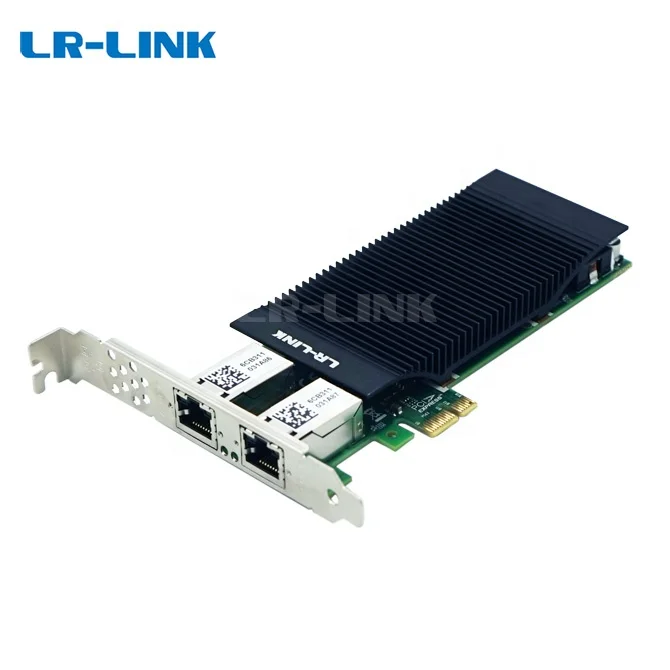

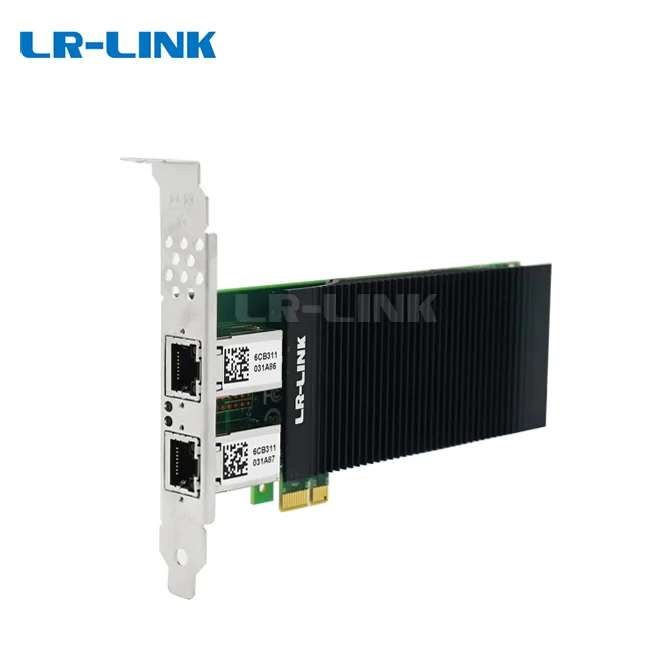

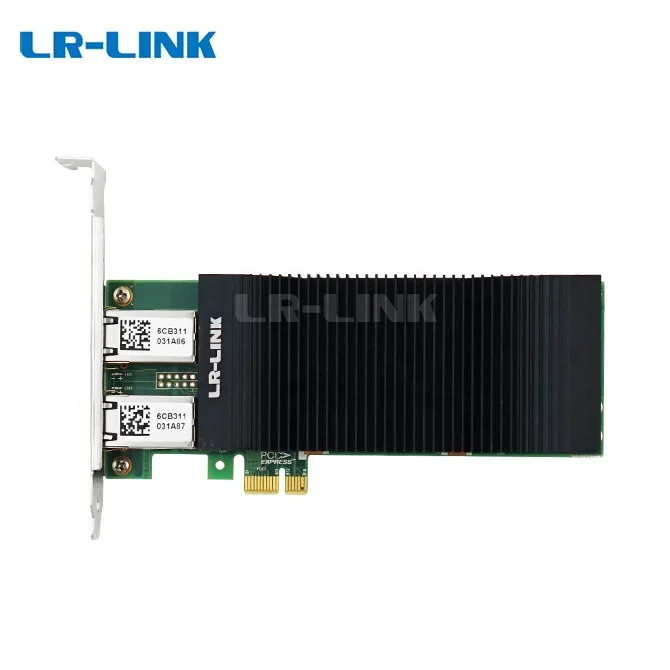

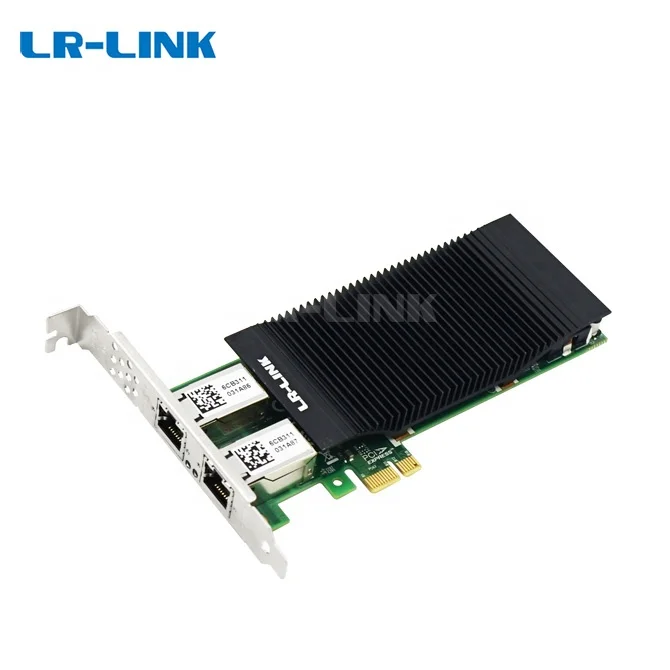

Lrlink Industry LRES2033PT-POE Dual Port Ethernet Network Card 1Gigabit Vision Frame Grabber
LRES2033PT-POE is a PCIe x1 PoE 1G dual-port copper vision frame grabber card based on the
Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is
compatible with x4, x8, x16. The grabber card is designed mainly used on industrial field vision
inspection server and equipment,vision field client, fast moving Ethernet data transmission
equipment etc. It's also suitable for ordinary servers.
The grabber card’s controller has integrated hardware acceleration capability to perform
TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing
technology can be divided into accelerators and release CPU resources to handle with other
applications. The adapter is based on Intel I350 dual gigabit ethernet MAC+PHY dual port
controller
Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is
compatible with x4, x8, x16. The grabber card is designed mainly used on industrial field vision
inspection server and equipment,vision field client, fast moving Ethernet data transmission
equipment etc. It's also suitable for ordinary servers.
The grabber card’s controller has integrated hardware acceleration capability to perform
TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing
technology can be divided into accelerators and release CPU resources to handle with other
applications. The adapter is based on Intel I350 dual gigabit ethernet MAC+PHY dual port
controller
1. Single-port PoE output power consumption up to 30W.
2. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2,Class 3;
3. The adapter card adopts a wider RJ45 pitch design;
4. The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solve the problem of unstable connection between network port and cable in industrial places.Compatible with common cable access at the same time;
5. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
6, Be carefully selected thickened gold RJ5 connector to ensure a more secure and reliable connectivity;
7. 2*8-pin RJ45 head design can save the motherboard's valuable PCIe slot resources.
2. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2,Class 3;
3. The adapter card adopts a wider RJ45 pitch design;
4. The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solve the problem of unstable connection between network port and cable in industrial places.Compatible with common cable access at the same time;
5. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
6, Be carefully selected thickened gold RJ5 connector to ensure a more secure and reliable connectivity;
7. 2*8-pin RJ45 head design can save the motherboard's valuable PCIe slot resources.
Features | ||||||||
Controller | Intel I350 | |||||||
Cable medium | Copper cable | |||||||
Cable Types | Cat 5E and Cat6：1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6：100Base-T up to 100m (POE power supply requirements Cat5) | |||||||
Bracket | Full height & half height | |||||||
Thermal design power consumption (max) | 5W | |||||||
Single-port PoE output power consumption(max) | 30W | |||||||
Connector | 2*1G RJ45 | |||||||
PCIe Bus Type | PCIe v2.1 x1 , compatible withx4, x8 , x16 | |||||||
Rate | 10/100/1000Mbps | |||||||
Power Supply | Power form PCIe up to 60W | |||||||
Operating system support | Windows XP/Visat/7/8/8.1/10/11 Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 3.x/4.x/5.x or later | |||||||
Technical Features | ||||||||
IEEE Standard | IEEE802.3at -2009 PoE standard IEEE802.3af -2003 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) | |||||||
Jumbo frame packet | Yes | |||||||
VMDq | Yes | |||||||
WOL | No | |||||||
PXE | Yes | |||||||
DPDK | Yes | |||||||
iSCSI | No | |||||||
FCoE | No | |||||||
Environment Features | ||||||||
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) | |||||||
Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) | |||||||
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ | |||||||
LED Indicators | ||||||||
LED | POE, Green | |||||||
1000Mbps, Green bright + Green flashing 10/100Mbps, Orange bright + Green flashing | ||||||||
Physical Features | ||||||||
PCB Size (mm) | 160*68.8*1.6 | |||||||
Order Information | ||||||||
M/N | Description | |||||||

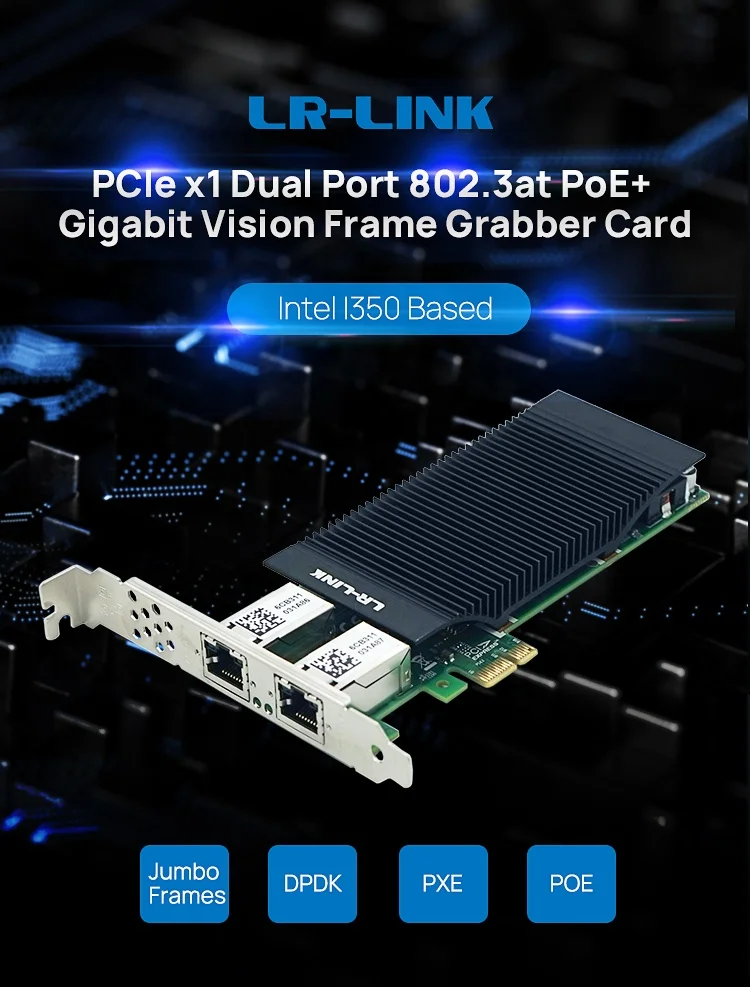

LRES2004PT-PoE | PCIe x1 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card | |||||||
PS: The above details is just for reference,if there is any change,no inform will have. | ||||||||
1. Who are we?
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card
4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
Похожие товары

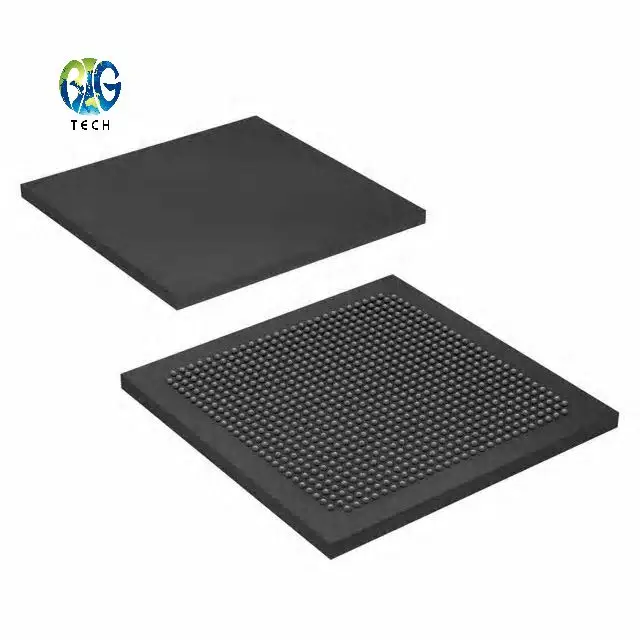

BOM электронные компоненты интегральная схема Встроенная IC FPGA 486 I/O 780FBGA EP1M350F780C7

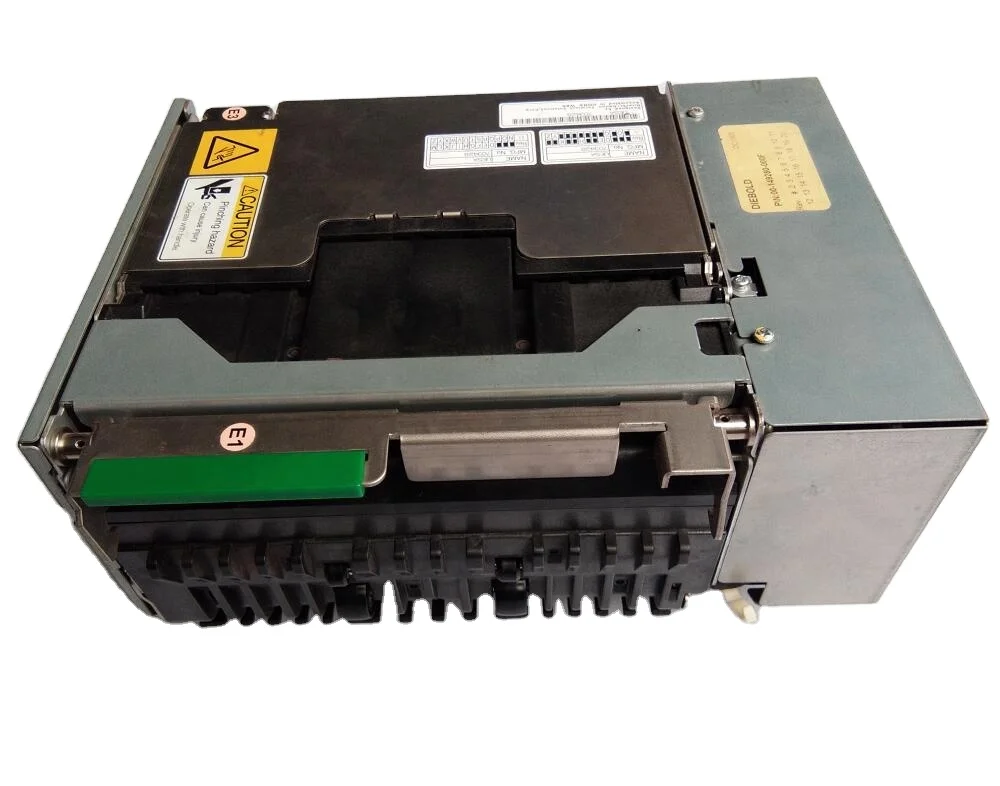

Запчасти для Hitachi ATM Hitachi UR2 UESA 703428,Diebold Opteva 368 DC1305 00-149280-000F 00149280000F
100,00 $
Стразы с прямой основой бумажная лента 24 28 32 см в ширину утюг на стразами клейкая пленка для переноса изображения рулонная бумага для одежды рубашки для рукоделия
0,85 $ - 0,90 $

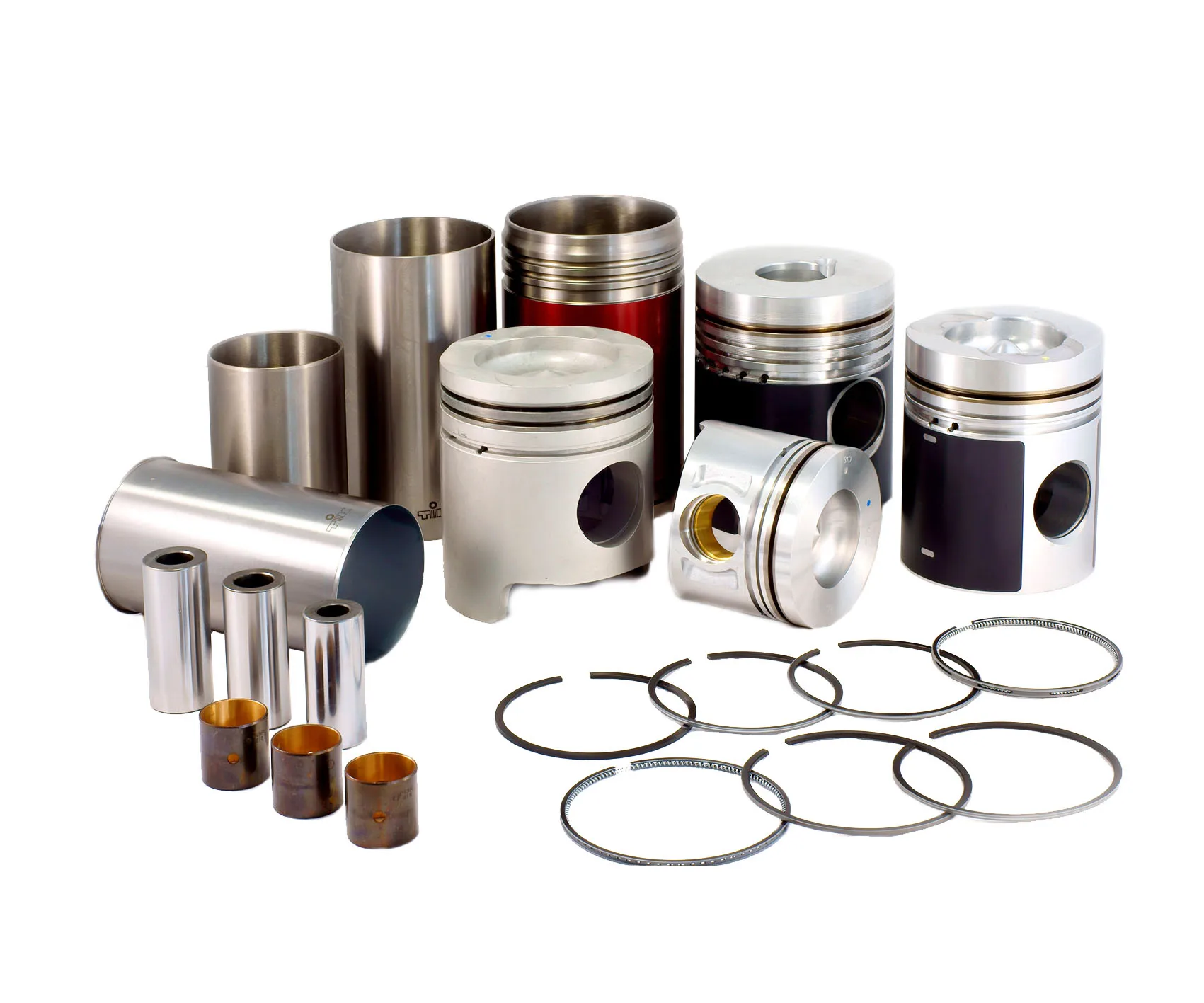

L38 Новинка 13101-87207/13101-87208 для поршня DAIHATSU
Тканевый костюм священника Solivari Dalmatic Tasmania

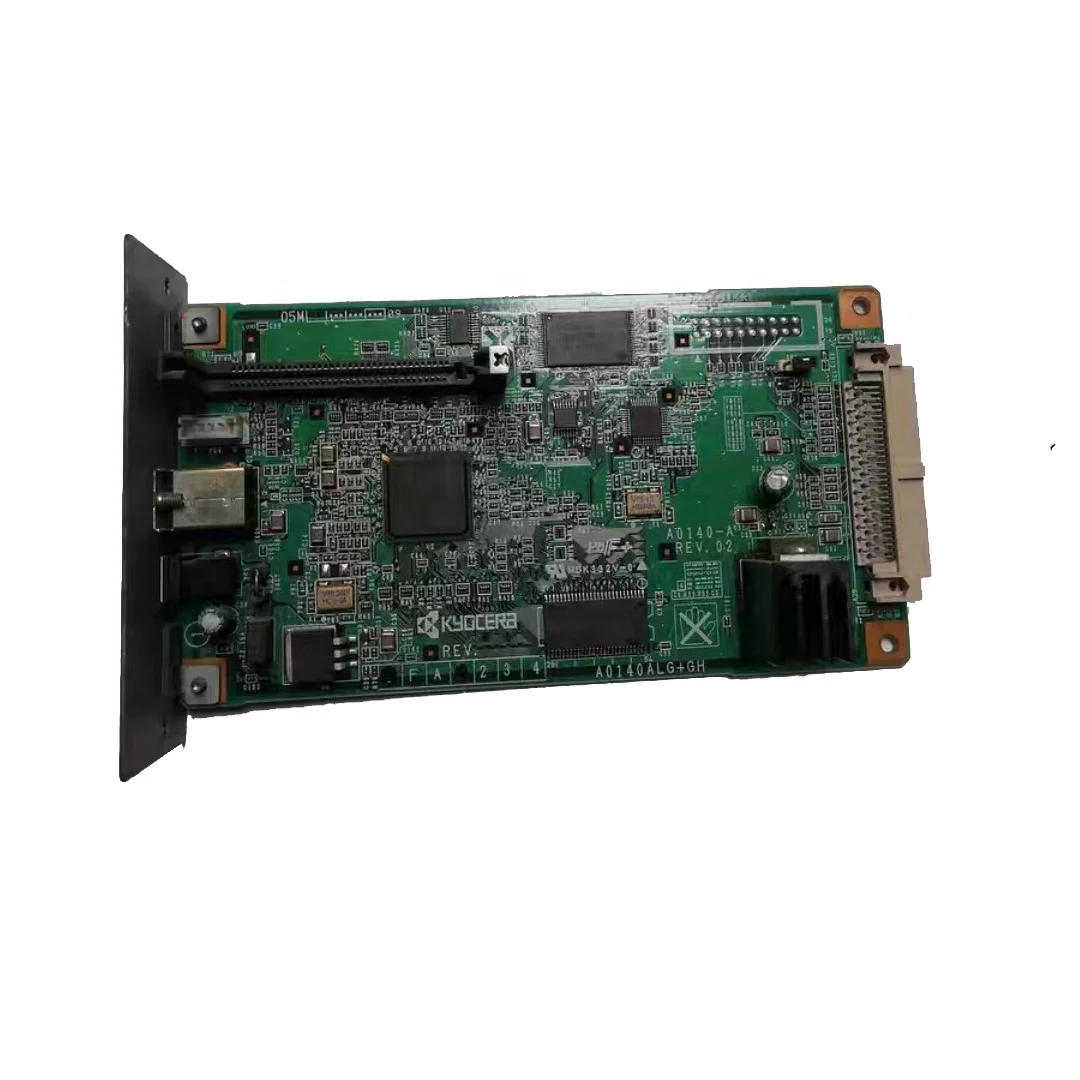

Оригинальный использованный принтер карты для Kyocera KM1635 1648 2035 серии офисный копир
