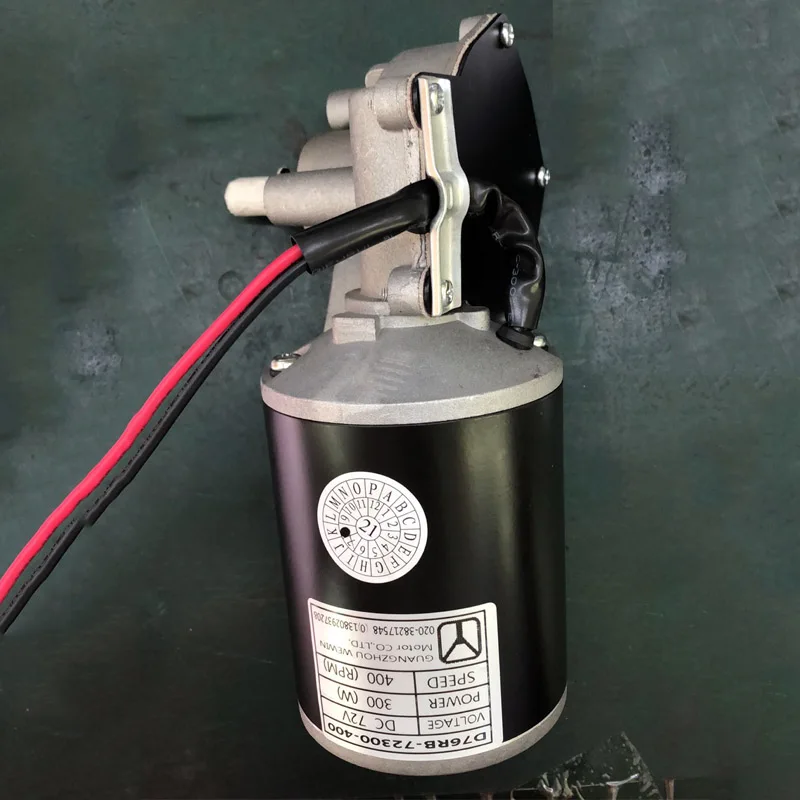

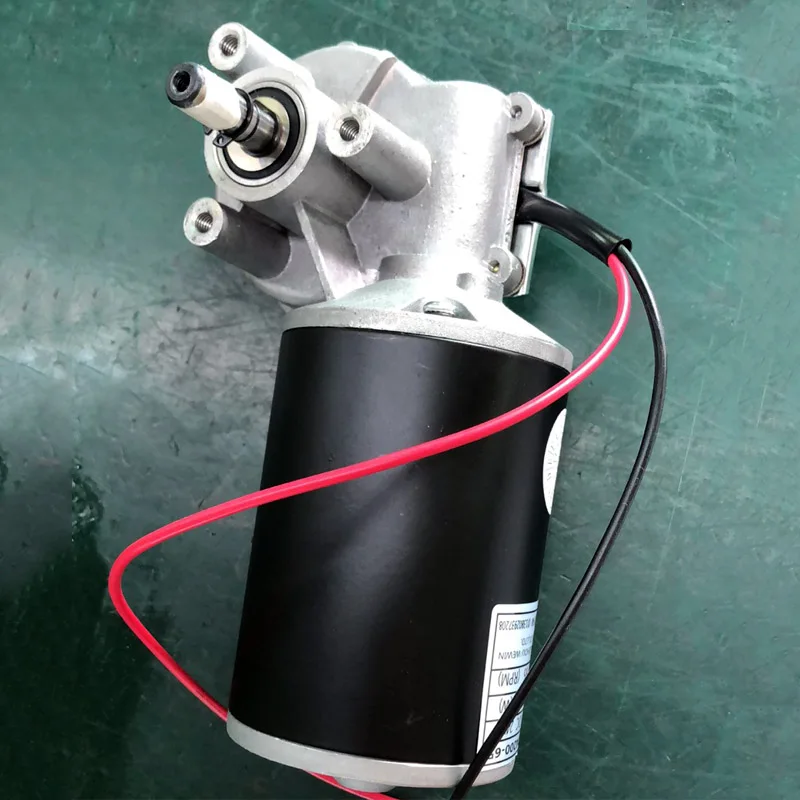

Reversible 12V 24V 36 72 Volt 400 Rpm High Torque Dc Motor for Home Automation Machine
NOTE:
1.Please inform the application of your brushed dc gear motors.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
Product Paramenters
Motor diameter | 49mm 59mm 63mm 76mm 88mm 110mm |
Voltage | 12V 24V 36V 48V 72V 90V 110V |
Power | 300W (MAX 1000W) |
No load speed | 400±5RPM |
Load speed | 380±5RPM |
No load current | ≤1.2A |
Load current | ≤4.5A |
Load torque | ≥4.5Nm |
Motor Type | 400 rpm high torque dc motor |
Material of gear | Plastic / Brass Gear |
Noise | Low noise less 60db |
Gear ratio | 75:1 60:1 47:1 20:1 |
Gear Modulus | 75:1 M=0.8 60:1 47:1 M=1.25 20:1 M=1 |
Motor length | ≤77mm |
Speed sensor | Hall sensor ,encoder,opto sensor |
Factory Address | Guangzhou Huadu |
Motor Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self Locking Motor, Forward & Reverse 4.Competitive factory price 5.Sample order are welcome |
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
Products Type | Voltage (V) | Power (W) | No Load | Load | Gear Ratio | Motor Length (mm) | ||||||
Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (N.M) | ||||||||
D76L/RB-1260-45 | 12 | 60 | 45±3 | ≤1.2 | 40±3 | ≤3.5 | ≥5.0 | 1:65 | 77 | |||
D76L/RB-1260-45 | 24 | 80 | 45±3 | ≤1.4 | 40±3 | ≤4.5 | ≥5.2 | 1:65 | 85 | |||
D76L/RB-48120-45 | 48 | 120 | 45±3 | ≤1.5 | 40±3 | ≤5.5 | ≥6.0 | 1:75 | 97 | |||
D76L/RB-1260-32 | 12 | 60 | 32±3 | ≤1.2 | 30±3 | ≤3.5 | ≥5.0 | 1:75 | 77 | |||
D76L/RB-2480-32 | 24 | 80 | 32±3 | ≤1.4 | 30±3 | ≤4.5 | ≥5.2 | 1:75 | 85 | |||
D76L/RB-2460-50 | 24 | 60 | 50±3 | ≤1.2 | 45±3 | ≤3.5 | ≥4.5 | 1:60 | 77 | |||
D76L/RB-4260-65 | 42 | 60 | 65±3 | ≤1.2 | 60±3 | ≤3.5 | ≥5.0 | 1:60 | 77 | |||
D76L/RB-1245-150 | 12 | 45 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 77 | |||
D76L/RB-2445-180 | 24 | 45 | 180±5 | ≤1.2 | 130±5 | ≤4.5 | ≥4.5 | 1:20 | 77 | |||
Recommend Products
D63 Series Motor
Motor Power:
30W,45W 80W,100W,120W(Max)
No-load Speed:
35 RPM,65 RPM,130 RPM,150 RPM,180 RPM,
210 RPM,270 RPM,300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Modulus:
75:1 60:1 47:2 20:1
Gear Ratio:
75:1 M=0.8
30W,45W 80W,100W,120W(Max)
No-load Speed:
35 RPM,65 RPM,130 RPM,150 RPM,180 RPM,
210 RPM,270 RPM,300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Modulus:
75:1 60:1 47:2 20:1
Gear Ratio:
75:1 M=0.8
647:2 M=1.25
60:1 20:1 M=1
60:1 20:1 M=1
D49R/L Series Motor
Motor Power:
10W,15W,20W,25W,30W,40W,50W (Max)
No-load Speed:
15 RPM,35 RPM,70 RPM,100 RPM,150 RPM,180 RPM,200 RPM,300 RPM(Max)
Torque:5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Madulus:
70:1 M=0.8
56:1 56:2 M=1
10W,15W,20W,25W,30W,40W,50W (Max)
No-load Speed:
15 RPM,35 RPM,70 RPM,100 RPM,150 RPM,180 RPM,200 RPM,300 RPM(Max)
Torque:5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Madulus:
70:1 M=0.8
56:1 56:2 M=1
D59R/L Series
Motor Power:
20W,30W,40W,50W,60W,80W(Max)
No-load Speed:
15 RPM,30 RPM,60 RPM,80 RPM,130 RPM,150 RPM,180 RPM,210 RPM,250 RPM(Max)
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
20W,30W,40W,50W,60W,80W(Max)
No-load Speed:
15 RPM,30 RPM,60 RPM,80 RPM,130 RPM,150 RPM,180 RPM,210 RPM,250 RPM(Max)
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
D76R/L Series
Motor Power:
45W,65W,80W,100W,140W,150W,180W,200W(Max)
No-load Speed:
25 RPM,40 RPM,60 RPM,90 RPM,120 RPM,150 RPM,180 RPM,220 RPM,300 RPM(Max)
Torque:12N.m-18N.m
Steel Sheel Length:
77-97mm
Gear Ratio:
75:1 60:1 47:2 20:1
Gear Modulus:
75:1 M=0.8
45W,65W,80W,100W,140W,150W,180W,200W(Max)
No-load Speed:
25 RPM,40 RPM,60 RPM,90 RPM,120 RPM,150 RPM,180 RPM,220 RPM,300 RPM(Max)
Torque:12N.m-18N.m
Steel Sheel Length:
77-97mm
Gear Ratio:
75:1 60:1 47:2 20:1
Gear Modulus:
75:1 M=0.8
47:2 M=1.25
60:1 20:1 M=1
60:1 20:1 M=1
D88R(72) Series
Motor Power:
100W,120W,150W,200W,300W,500W,600W(Max)
No-load Speed:
20 RPM,100 RPM,180 RPM,200 RPM,220 RPM(Max)
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Modulus:
82:1 34:1
Gear Ratio:
82:1 M=1
34:1 M=1.25
100W,120W,150W,200W,300W,500W,600W(Max)
No-load Speed:
20 RPM,100 RPM,180 RPM,200 RPM,220 RPM(Max)
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Modulus:
82:1 34:1
Gear Ratio:
82:1 M=1
34:1 M=1.25
D88-D110 NMRV040 Gear Motor
Torque:50-100Nm
WEWIN could efficiently give solutions for meeting customers’requirements on different torques by adopting high quality brushed dc motor with gearbox, which are customized and providing corresponding encoders and brakes for choice.
WEWIN could efficiently give solutions for meeting customers’requirements on different torques by adopting high quality brushed dc motor with gearbox, which are customized and providing corresponding encoders and brakes for choice.
Details Images
1.Motor Plastic Gear
The plastic gear with low noise,low cost,long life within the torque range.
2.Copper Gear
The copper gear with high torque and high temperature resistance,and the life can be longer if the lubrication effect can be garanteed,So the cost higher than plastic gear .
3.Electronic Rotor
Pure copper coil configuration,reducing resistance and high conductivity to ensure motor efficiency,stable and safe operation.
4.Magnet
Thickened magnets,strengthen the magnetic filed,high torque and strong anti-interference.

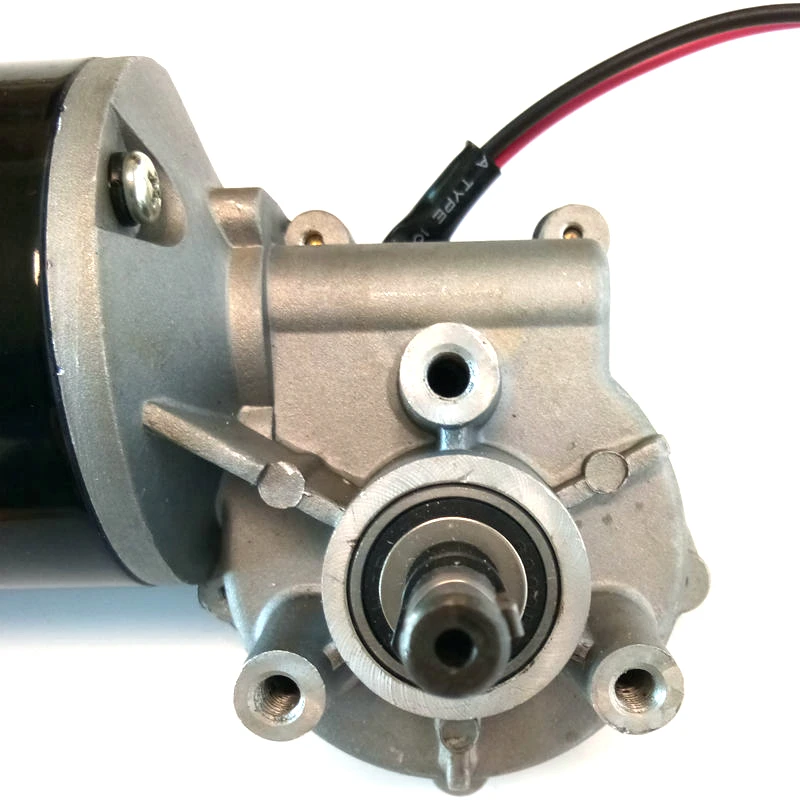

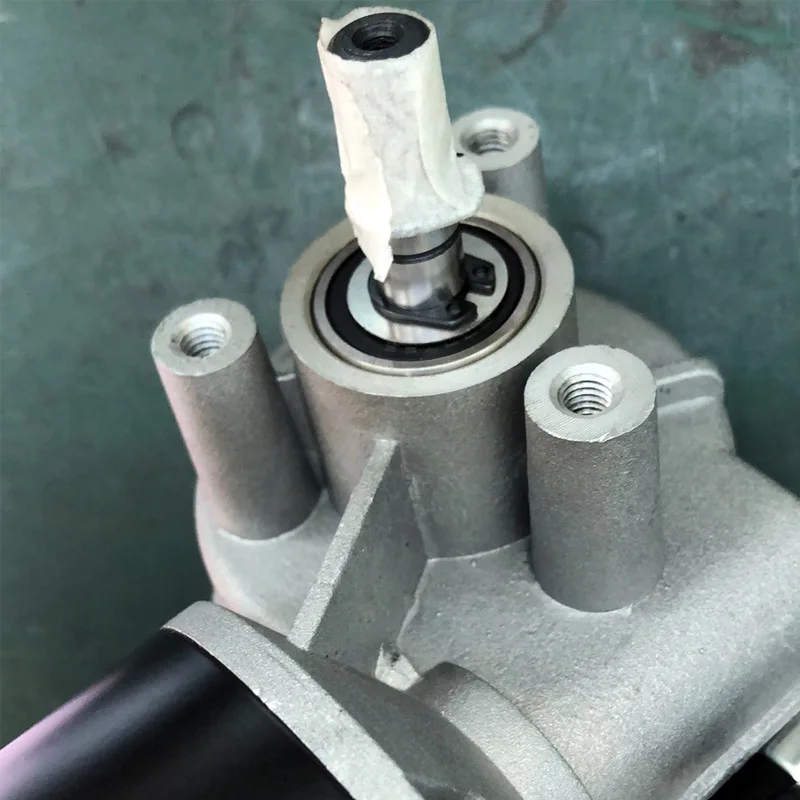

5.Worm Gearbox
All made of high quality metal,it has good impact resistance, durability and reducing noise.Thus prolong the life of the motor gearbox. Right angle & Left angle gearbox optional
6.High Quality Carbon Brush
If the gear dc motor has brake,it could still rotate when the brake stops.
7.Hall Sensor Encoder
The sensor could record the speed if gear motor dc has encoder.
8.Gear Brake
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Manufacturing Technique
1.CNC Machining
2.Lathe
3.Milling
4.Hobbing
5.Hydraulic Press
6.Winding
7.Spot Welding
Scan the QR code and get the factory panorama
8.Gearbox Die Casting
9.Manual Assembly
10.QC
11.Life Tester
12.Torque Tester
13.Temperature & Humidity Chamber
14.Packing
Certifications
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production, we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production, we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Motor Usage
More Motor Applications:
24v motor garage door opener ,gate operator, sliding door,roller shutter door, automatic door motor,food waste gear motor,tennis ball motor,sewing machine,vending machine,welding machine ,food processor blender machine,office intelligent equipment,smart home lifting cabinet, floor polisher,truck lift,stair lift,hospital bed ,hydraulic pump electric forklift.
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor: worm gear motor and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, Send your specification,and our team will help you find the right model you are looking for.
Q4：What is your payment term?
A4：Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T deposit in advance ,balance before shipment.
Q5：How to delivery?
A5： By sea - Ship out by buyer's appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Ship out bybuyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q6：How long is your delivery time?
A6：Usually it takes about 35 days if buyer accept our standard output shaft.If the output shaft is customized,the production timedepends on what the customization shaft it is.
Похожие товары

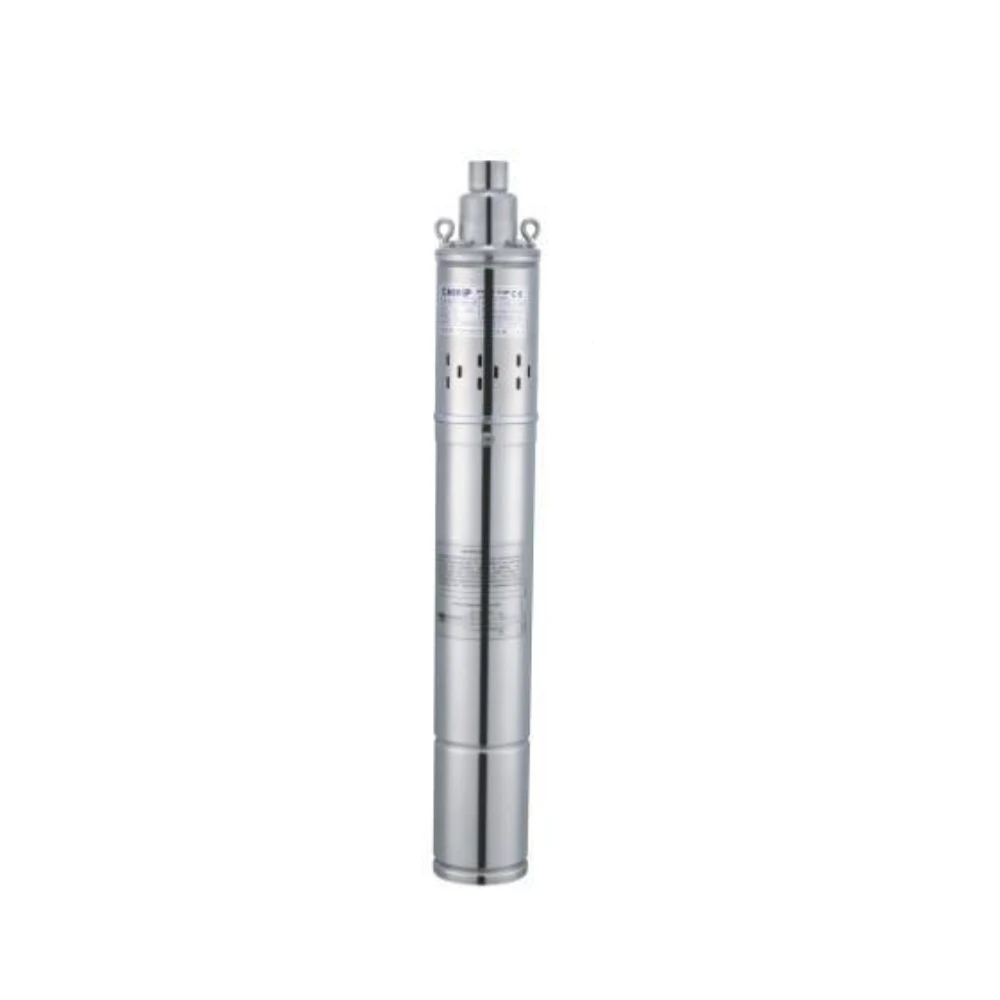

3QGD 0.37KW 0.5HP 1.2m 3/h S.S сельскохозяйственный оросительный однофазный глубокий скважинный погружной водяной насос
30,00 $ - 100,00 $
Чехлы S23, гибридные Чехлы из ТПУ и поликарбоната для телефонов Samsung Galaxy S23 S22 U ltra Plus, армированные чехлы
1,35 $ - 1,65 $
HFC-365mfc Pu сырья двухкомпонентная полиуретановая пена
2,00 $
Сафьяновая кожа коровы натуральная кожа любые цвета доступны по индивидуальному заказу из коровьей кожи; Кожаные туфли
2,80 $ - 3,00 $

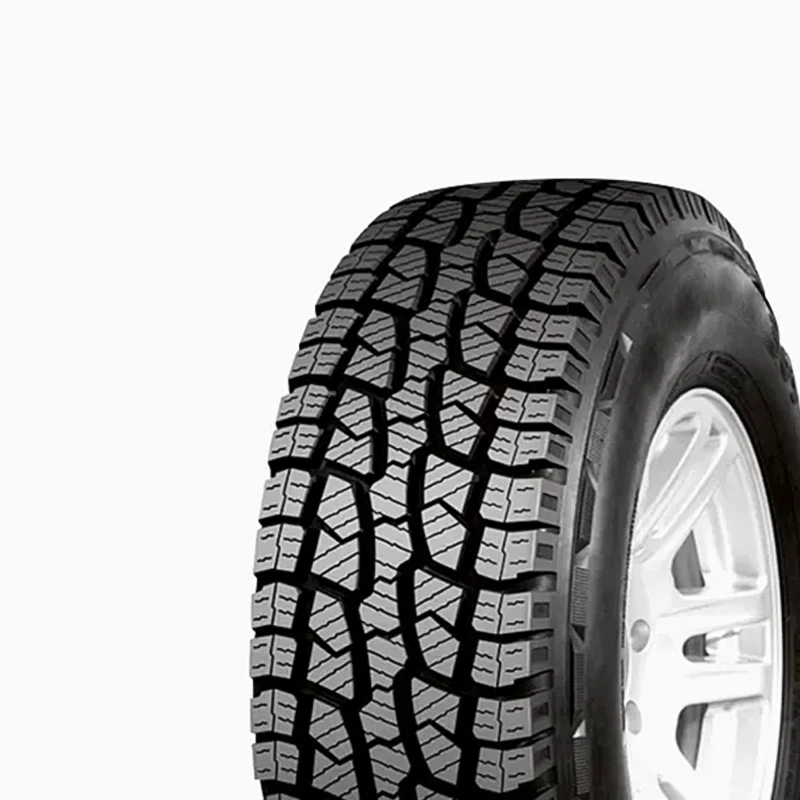

Высококачественная шина для внедорожника 245/70R17 для всех дорожных условий A/T SL369, прочная и долговечная установка
46,90 $ - 59,90 $

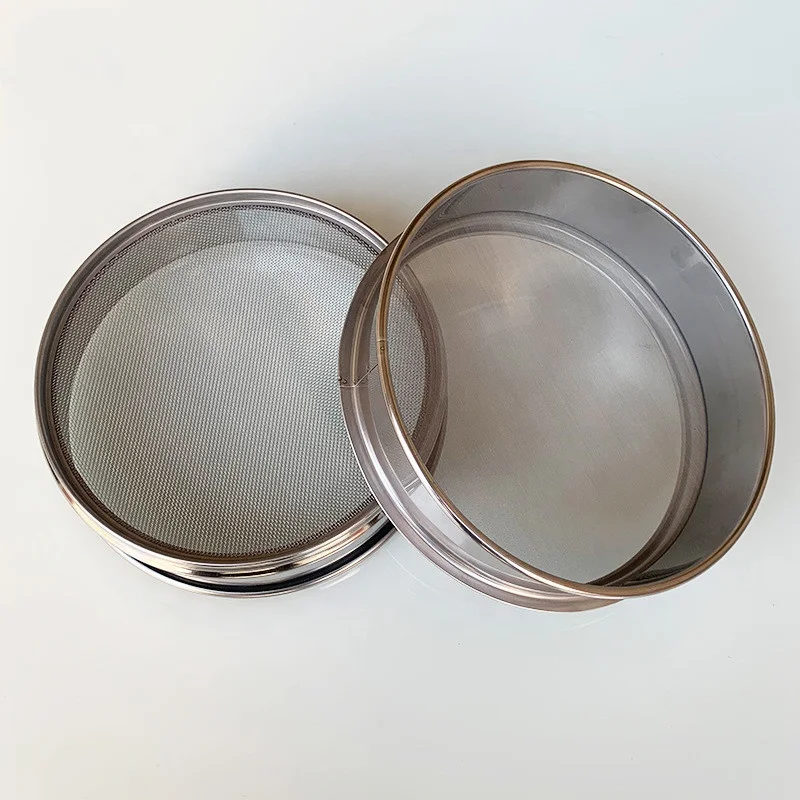

Многоцелевое сито из нержавеющей стали 304 для пищевых продуктов лабораторное фильтрующая
3,80 $ - 8,00 $

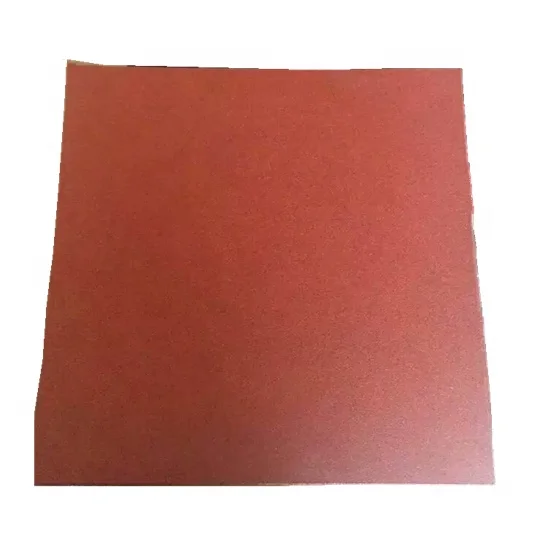

Гибкий и прочный резиновый настил
