Электронные компоненты по хорошей цене усилитель микросхемы IC 5 Вт усилителя mix2915 для Bluetooth колонки WIFISpeaker
- Категория: >>>
- Поставщик: Shenzhen Jingying Electronic Technology Co. Ltd.
Сохранить в закладки 1600609718223:
Описание и отзывы
Характеристики
Product Description

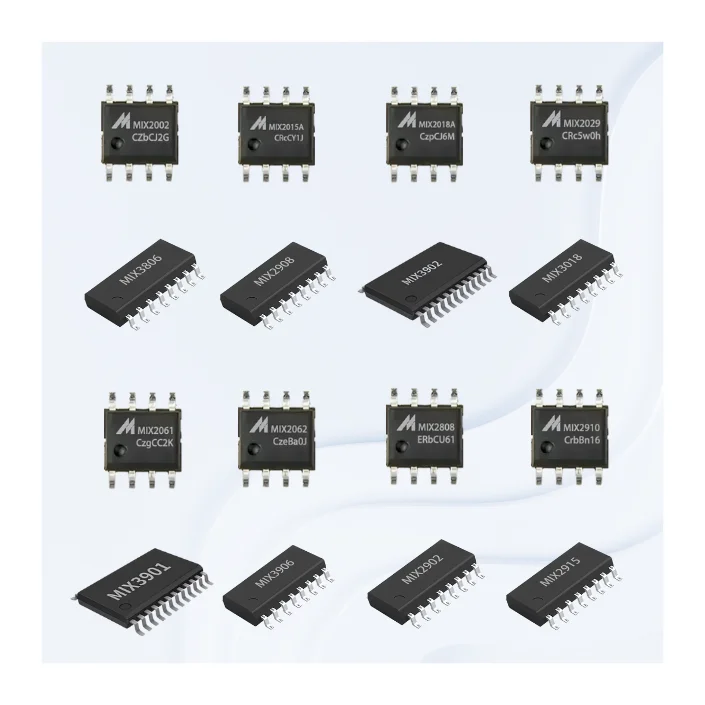

Our amplifier IC chips can be applied to a wide range of products
Specification
MIX2915
9.0W built-in boost mono anti-breakup Class F audio amplifier
Description
The MIX2915 is a high efficiency, filterless mono with anti-breakout class F audio power amplifier with built-in boost function.
The MIX2915's differential input architecture and extremely high PSRR effectively improve the MIX2915's ability to suppress RF noise. The anti-break function solves the problem of inconsistent output amplitude of different sound sources, and at the same time brings perfect music enjoyment without distortion. The filterless PWM modulation structure and gain are internalized to reduce external components, PCB area, and system cost, and simplify the design. The built-in boost module is designed so that the output power remains constant. Up to 90% efficiency, fast start-up times, and a tiny package size make the MIX2915 the best choice for Bluetooth speakers and other portable audio products.
The MIX2915 has a shutdown function, which greatly extends the standby time of the system. Overtemperature protection enhances the reliability of the system. Pop sound suppression improves the auditory perception of the system and simplifies system debugging.
The MIX2915 is available in an ESOP16 package with enhanced thermal dissipation
Features | ||
Class D output power | 9.0W (Boost to 7.3V, RL =3 Ω, THD+N=10%) | |
Class F output power | 8.7W (Boost to 7.3V, RL =3 Ω, THD+N=10%) | |
Supply input voltage | 3.0V to 6.0V | |
Low distortion and low noise | ||
Built-in boost function, constant output power | ||
Built-in anti-break function | ||
Power-on POP sound suppression function | ||
Shutdown current less than 1uA | ||
Overheat protection function | ||
Applications | ||
Bluetooth Speaker | Card Speaker | |
Backpack speaker | ||
Typical Application Circuits Pin Configuration
Company Profile

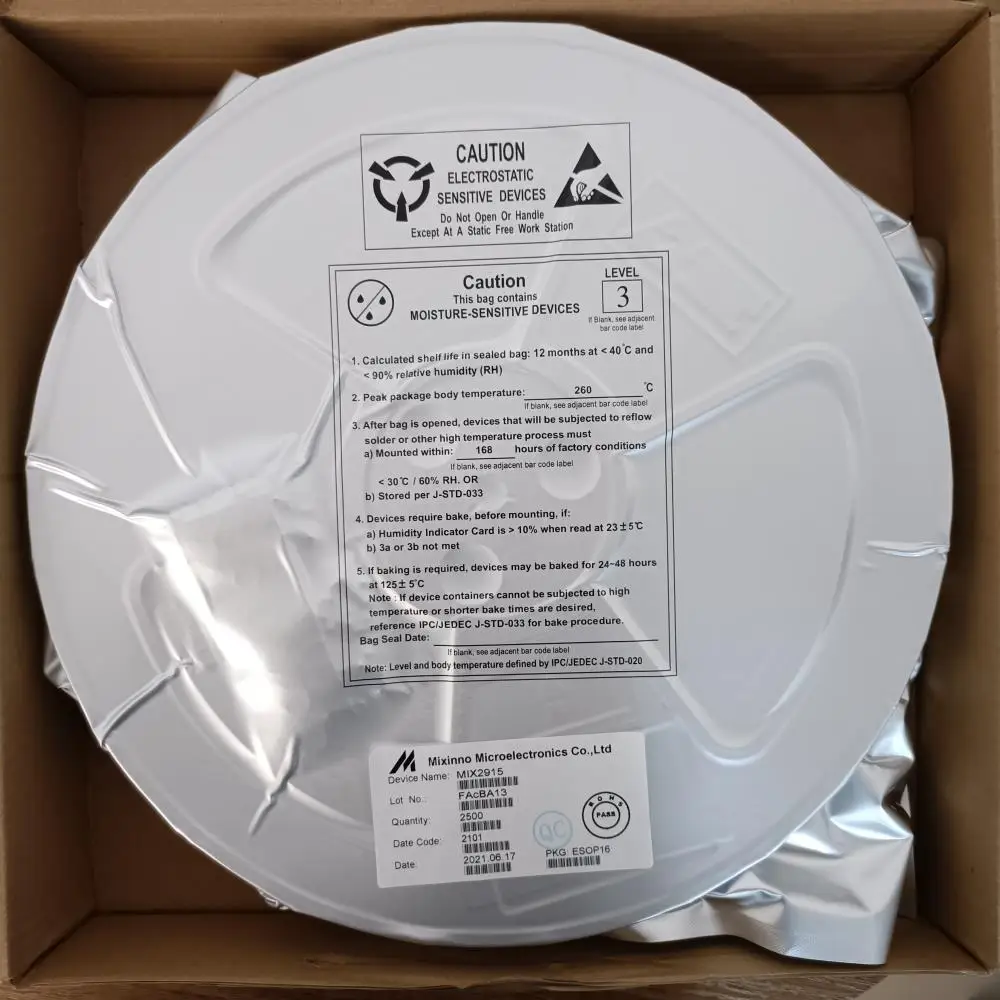

Warehouse real shooting.
Shenzhen Jingying Electronic Technology Co., Ltd. is a professional high-tech company focusing on the sales of audio amplifier IC chips (Class AB, Class D, Class F series products) and power management chips.
The company is mainly engaged in two categories of products:First, agent sales of amplifier IC chips, focusing on the field of audio amplifier sales, product advantages: high efficiency,high performance , environmentally friendly materials;Second, the agent sales of power management chips, product advantages: high voltage, large current. The company has large warehousing and large inventory, we can respond to customer needs in a timely manner.
After the accumulation of the market, it has become a number of well-known enterprises in the industry to establish long-term and stable close cooperative relations, to provide customers with cost-effective system solutions and value-added services.
SHIPMENT
If you need any favorable or fast shipping welcome to contact us.
FAQ
1. Who are we?
Headquartered in Guangdong, China, since 2017, we have sold to Western Europe (10.00%), Eastern Europe (15.00%), South America (12.00%), North America (25.00%), Southeast Asia (18.00%), China (20.00%). Our office has a total of about 51+ people.
2. How can we guarantee quality?
Before mass production, there is always a pre-produced sample. Be sure to carry out a final inspection before shipment.
3. What can you buy from us?
Audio amplifier IC chip product line (Class AB, Class D, Class F series) and power management chip
4.Why do you buy from us and not from other vendors?
Quality first, reasonable price, efficient production is our consistent purpose.
5. What services can we provide?
Accepted terms of delivery. FOB,EXW；
Accepted payment currencies: USD, CNY；
Accepted payment methods. T/T,PayPal;
Languages: English, Chinese；
Headquartered in Guangdong, China, since 2017, we have sold to Western Europe (10.00%), Eastern Europe (15.00%), South America (12.00%), North America (25.00%), Southeast Asia (18.00%), China (20.00%). Our office has a total of about 51+ people.
2. How can we guarantee quality?
Before mass production, there is always a pre-produced sample. Be sure to carry out a final inspection before shipment.
3. What can you buy from us?
Audio amplifier IC chip product line (Class AB, Class D, Class F series) and power management chip
4.Why do you buy from us and not from other vendors?
Quality first, reasonable price, efficient production is our consistent purpose.
5. What services can we provide?
Accepted terms of delivery. FOB,EXW；
Accepted payment currencies: USD, CNY；
Accepted payment methods. T/T,PayPal;
Languages: English, Chinese；
Похожие товары
Черное долговечное подставное зеркало для домашнего магазина
27,00 $ - 40,00 $
Шкаф для ювелирных изделий с зеркальной подставкой
Простой стиль высококачественный фарфоровый набор для кофе и чая зеленого
Бестселлер, европейский стандарт, сквозь корпус, серая волокнистая цементная панель, цементная доска Fibro
3,99 $ - 5,56 $
Мраморная фигурка, обнаженная статуя мальчика и девочки, скульптура для украшения сада

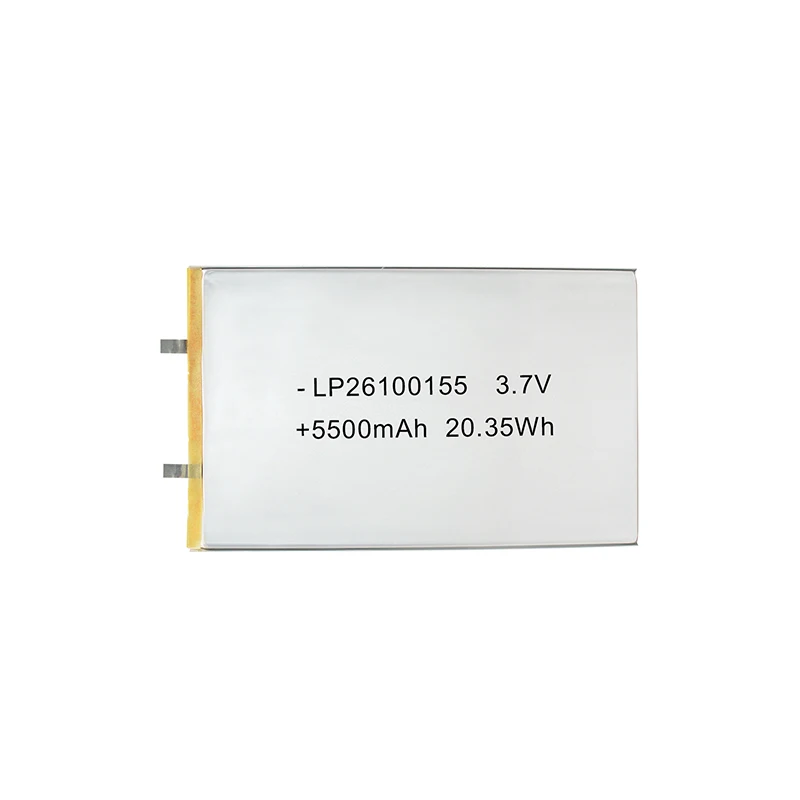

Микро OEM ультратонкий 26100155 литий-ионный полимерный перезаряжаемый элемент 3 7 V 400Mha 850Mah 1500Mah 7000Mah 5500Mah литий-полимерные
