Seestar TUYA CCT 24 Вт 220 мА SST 24W220 PCNI DW AC неизолированный PF> 0 50 без мерцания Светодиодный драйвер для светодиодной осветительной панели

Сохранить в закладки 1600609755887:


Цена:421,07-432,93 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Company Profile




Company Information


Shenzhen Seestar Technology Co.,Limited  located in Shenzhen China since 2009,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of LED drivers,Dip switching power supplies, that owe 6000 square meters manufacturing area.We have experienced R&D team and advance R&D test equipments.
Product involved in constant current TUV BIS OVP street/flood light driver,panel/down light driver,T5 T8 driver,LED bulb driver,IP65 led driver for wall light ,etc.,we can offer OEM / ODM service. Seestar products have been passed CE ROHS TUV,SAA BIS certification,the product sells all around Europe,Northern America, Southeast Asia and Latin America.





Why Choose Us ?
Powerful High-tech machines , more than 3000 square metre Dust-free and RoHs workshop, monthly making the 500K-800K pcs 10-72W dip switch TUV NEW ERP CB SAA Flicker free led drivers for panel light /down light /wall light /ceiling light . 15 pcs of SMT machines, Crest Welders, EMC/EMI Tester/ Surge Protection Machines, Over Temperature Machines, Hi-pot Testers etc.


Production Line

Producton line in seestar factory,have a daily capacity of 100,000pcs.

Crest Welder

We have automatic quick working production equipment like crest welder.

EMC Analyzers

Most of our products have passed EMI and EMS,CE,SAA,RHOS,TUV,BIS.



R&D Center

13 engineers to tell you the solutions products at the soonest.

SMT Room

SMT,a more advanced production technology,put us in an industry leader.

Packing well

Our products have been exported to over 20 countries in Europe, America, Asia,Middle East.
\t



Product Description






On promotion Seestar tuya CCT Factory Price 24W   H Pf 0.50 Non Isolated  LED Driver Flicker Free for panel light Ceiling light

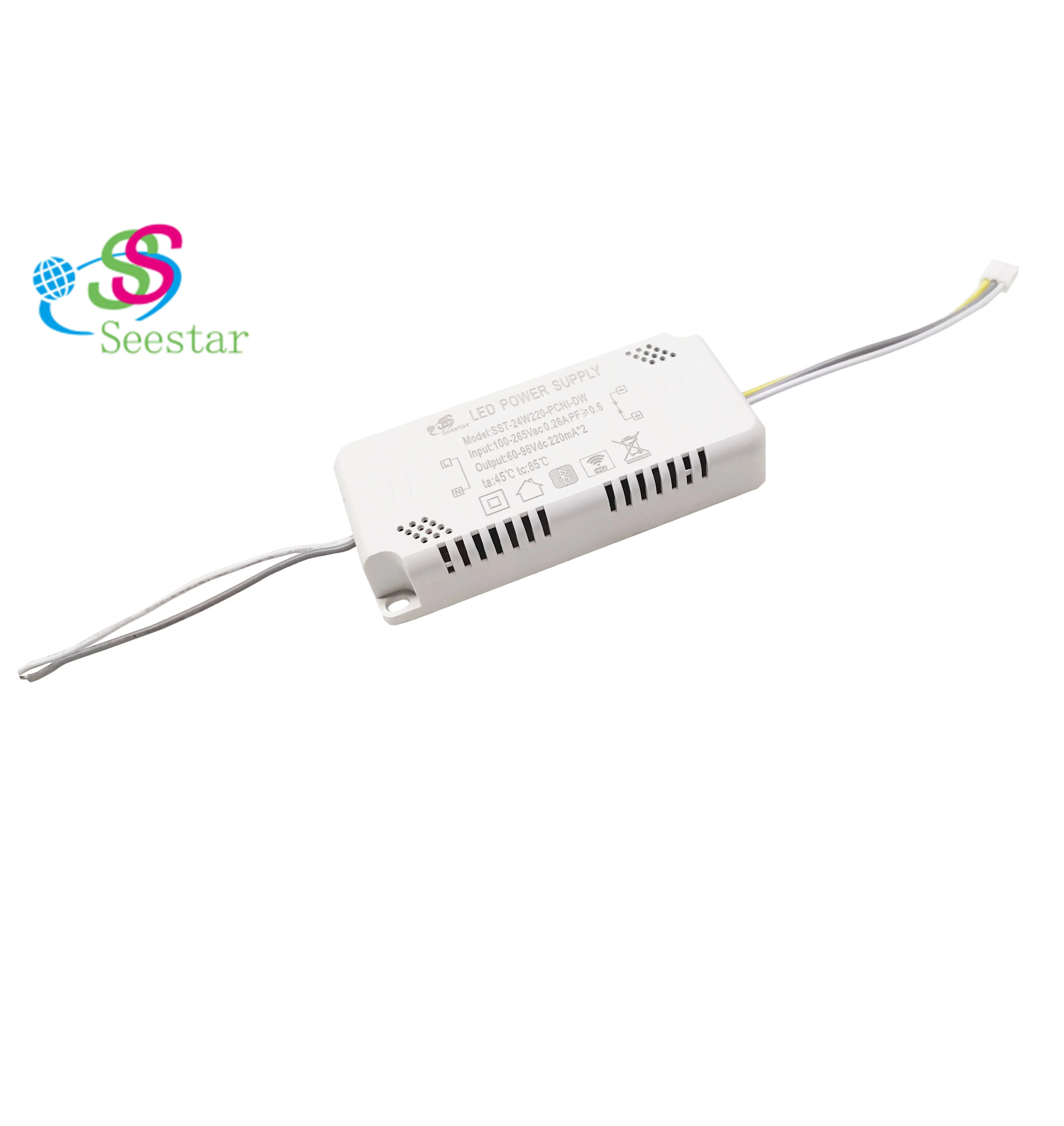

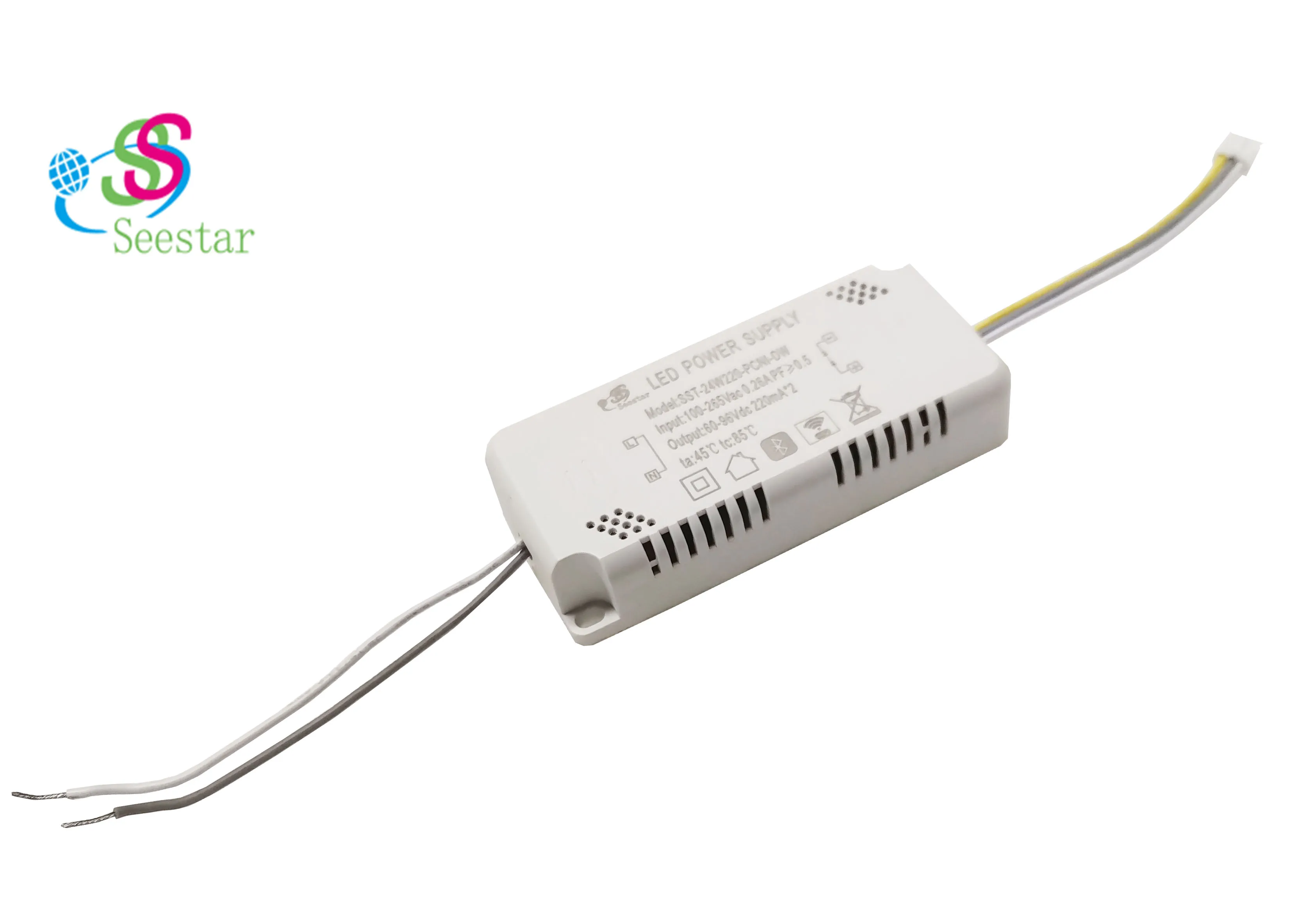

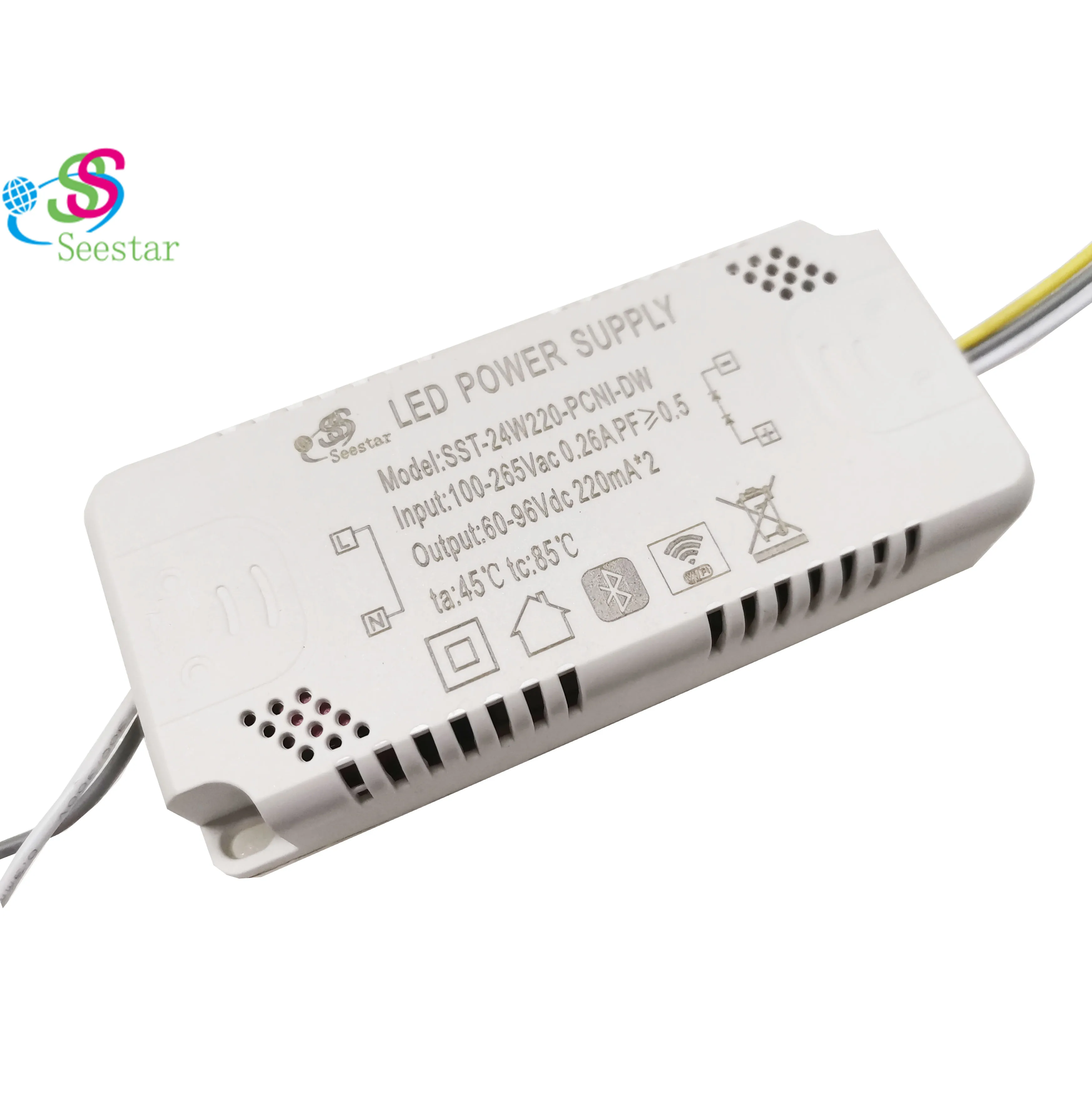

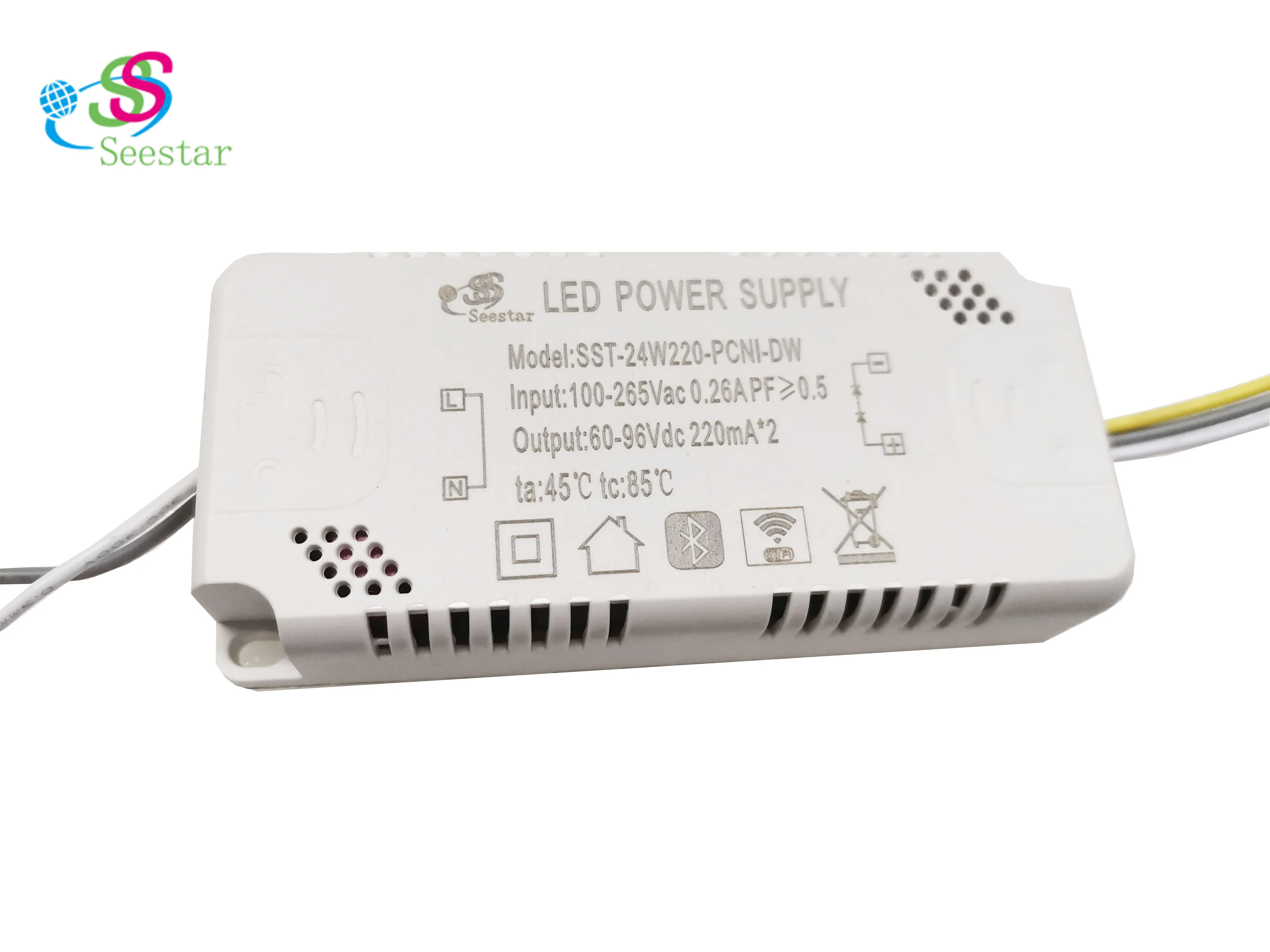

MODEL : SST-24W220-PCNI-DW
1.Non Isolated, PF > 0.50
2.Input Voltage:110-240V
3.Output Voltage: 40-100V
4.Power: 24W
5. Output Current: 220mA +_3%
6. Flicker free
7.Pf>0.50 , Efficiency>88-90%
9.Size : 89*42*19 mm









Material:
New Arrival
SST-24W220-PCNI-DW
Non isolated , TUYA CCT
Non Isolated TUYA CCT
Power:24W
Input:AC110-240V
Output:DC40-100V
Current:220mA
PF:>0.5
Effi:92%

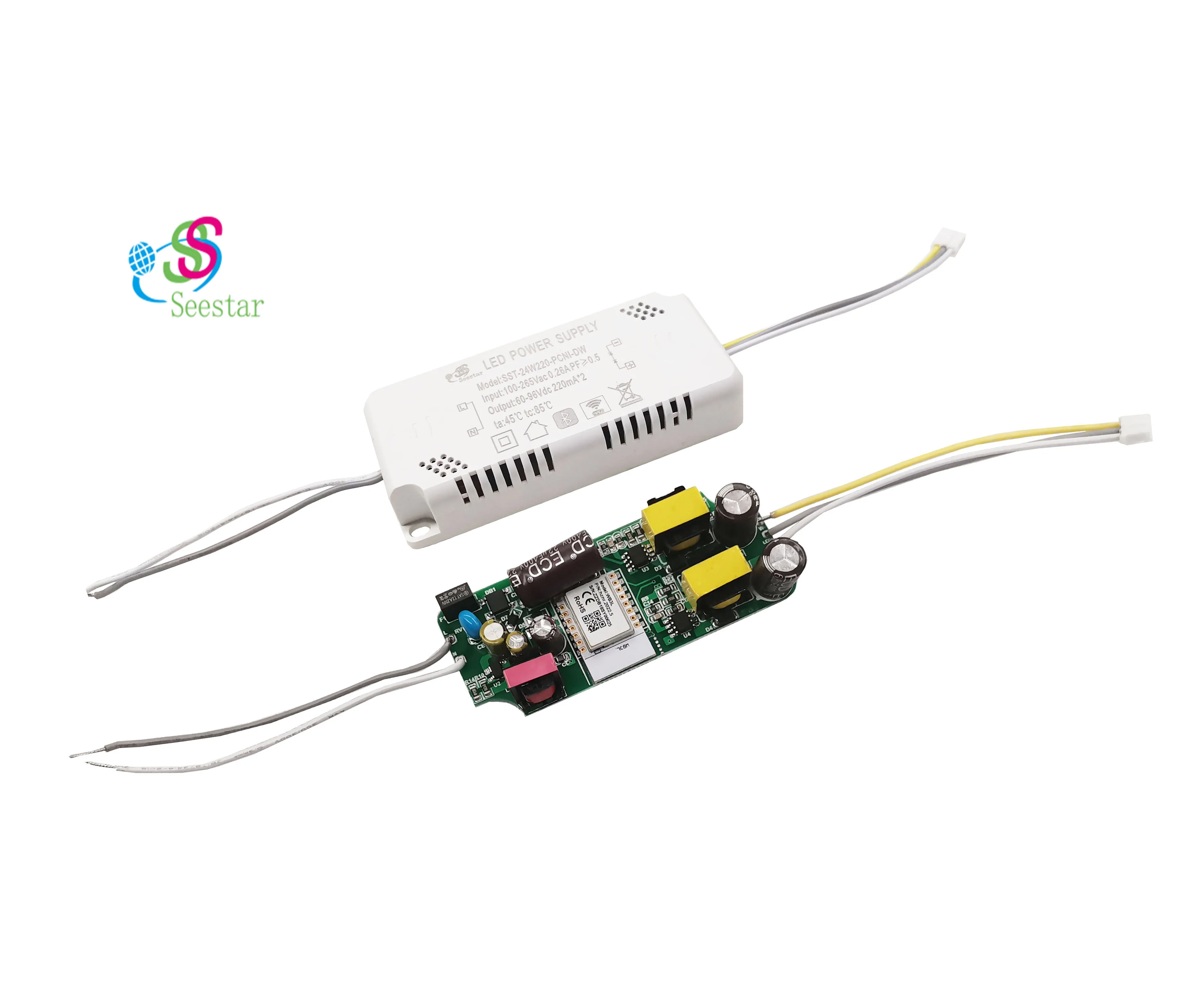

Bare Board size :83*35*15mm
Housing :89*42*19mm
customized for the ceiling lights .


Product benefits
1).High power factor
2).Isolated and No flicker
3).5 years guarantee
4).Slim housing for narrow installations
5).High efficiency and reliability

Application
1)Suitable for LED luminaires and LED modules
2)Applicable for luminaires of protection classes I and II
3)Suitable for build-in luminaries with adjustable current setting
4) For indoor SELV installations
5) Offices, shopping centers, hospitals, restaurants, hotels





Packing & Delivery


Packages:

All LED drivers will be fully protected with foams,stacking in the cartons.



Shippping:

Sampele order: send by Express ,such as DHL / Fedex / UPS / TNT /Aramex or others.

Bulk Order : Send the packed well  led drivers Cartons by Sea / air / Truck .




FAQ


Q1. When was the Seestar Company established ?

A: Seestar was established in 2009 ,we are focusing the led drivers flied for more than 12 years . Seesatr drivers have been sold to more than 100 countries and regions around the world.



Q2.What are the main led drivers of the Seestar ?

A: The main led drivers Seestar currently have are :

1) 4-24W New ERP standard TUV /CE/CB/SAA Patent Ultrasonic housing for down light & panel light .

2)10-72W Dip Switching New ERP certificated led driver in High PF, THD <10% , Flicker free for panel light

3 )10-240W OVP IP65 6KV THD <10% led driver for street light &flood light

4) 2W-24W IP65 New ERP led driver for wall light

5) ETL 24W-96W constant voltage led driver in Dimming & Non Dimming for mirror lights

6) 80W2.4G smart led driver for Disinfection ceiling lamp with fan in all the global certifications .



Q3. What certifications and products does Seestar have?

A: We mainly have TUV CE, CB, SAA, C-Tick, ETL, BIS ,CCC and other certificates issued by SGS from Switzerland. Many products to Australia, South Korea, and Thailand can be converted into the customer's own country certificate through our CB certificate .



Q4. How long is Seeatr product warranty?

A: Normally it is 3 year warranty for our products . We will do the very strict quality control for the goods , pre-production
samples will be done the aging inspection before mass production , P-D-C-A quality system is running well in our factory.



Q5. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on led driver?

A: Yes,for bulk order,it is acceptable.Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: How about Seestar lead time ?

A: Seestar Lead time is about 15-25 Days , for some stocks goods ,our lead time is 2 days .



Q8: How do I purchase a product that leads?

A: Pls tell us the products you are interested in that we will send you a quote in 10 minutes .Welcome contact us on line , Wechat /Whats app /Skype : 008613924674701 .
