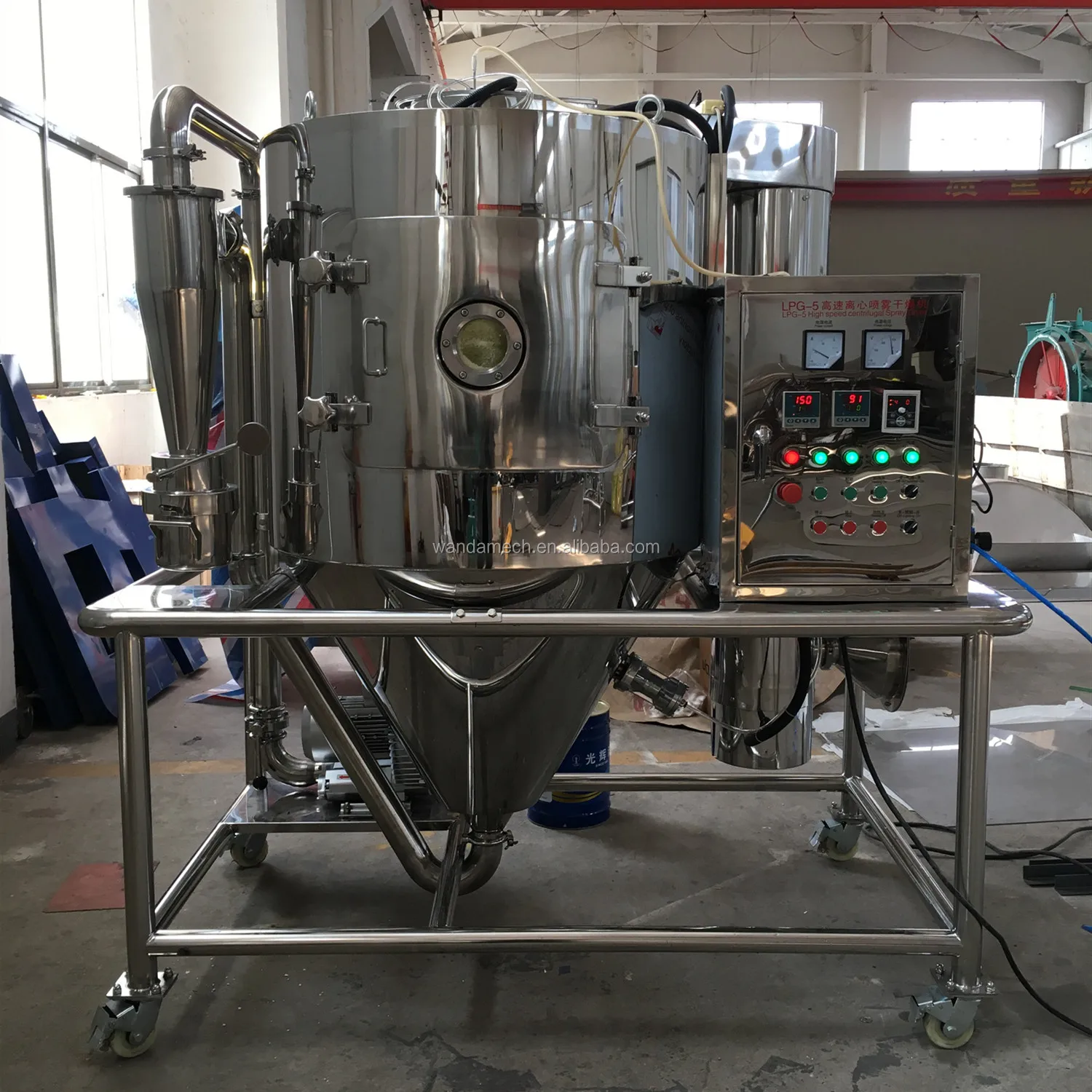

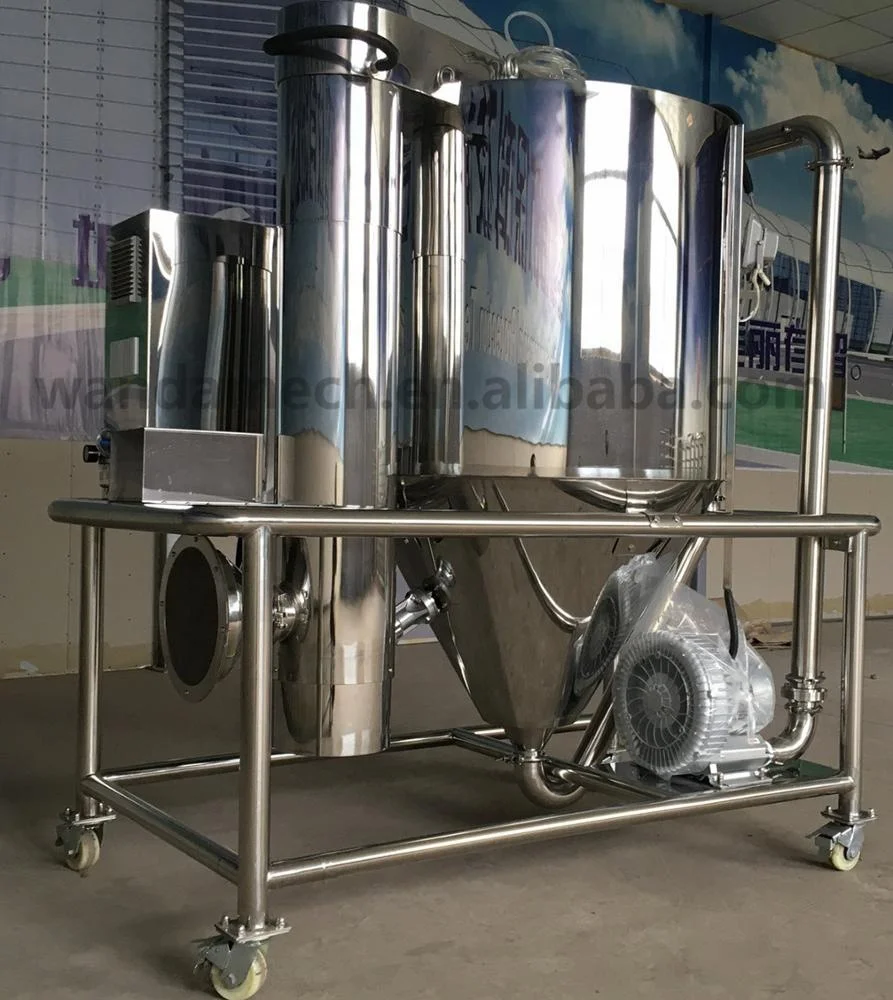

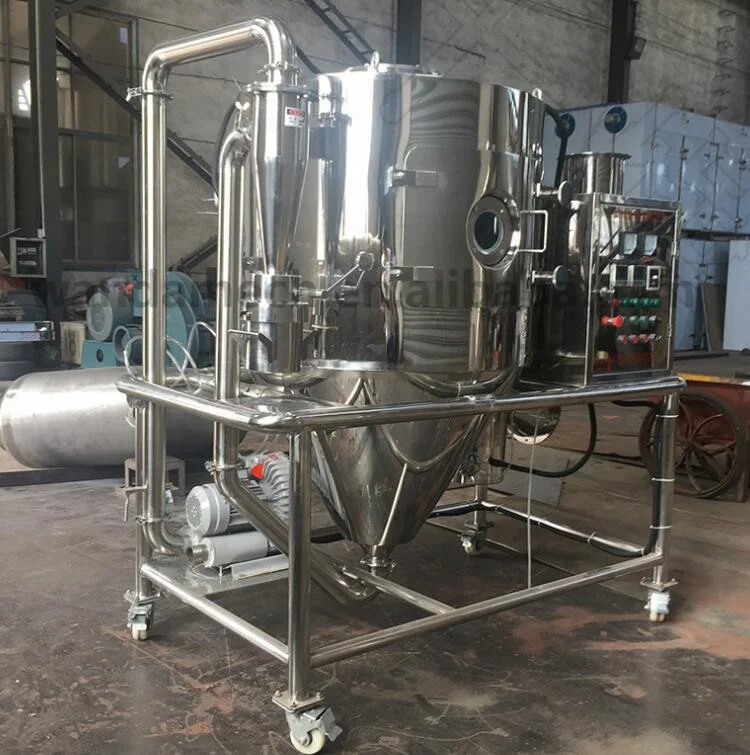

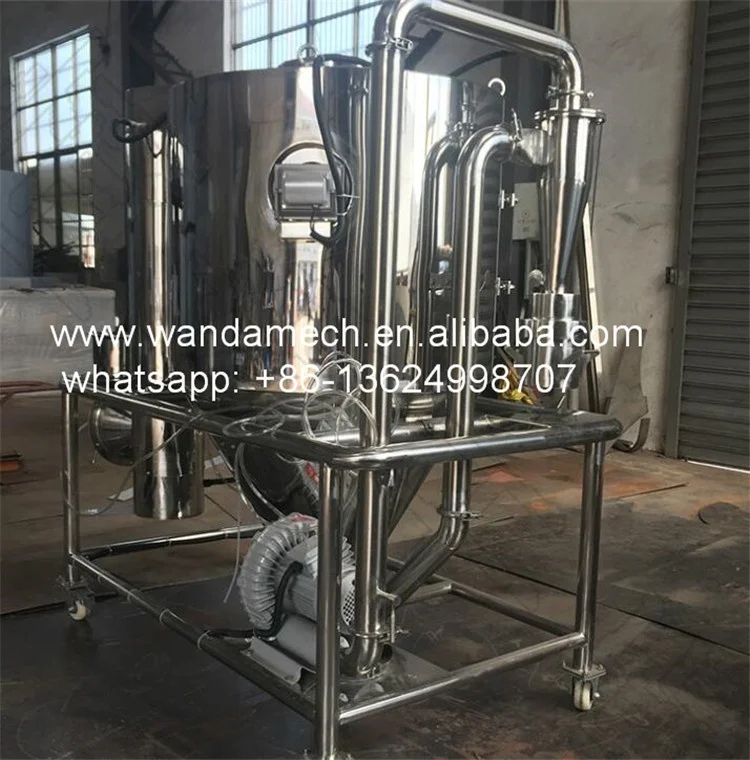

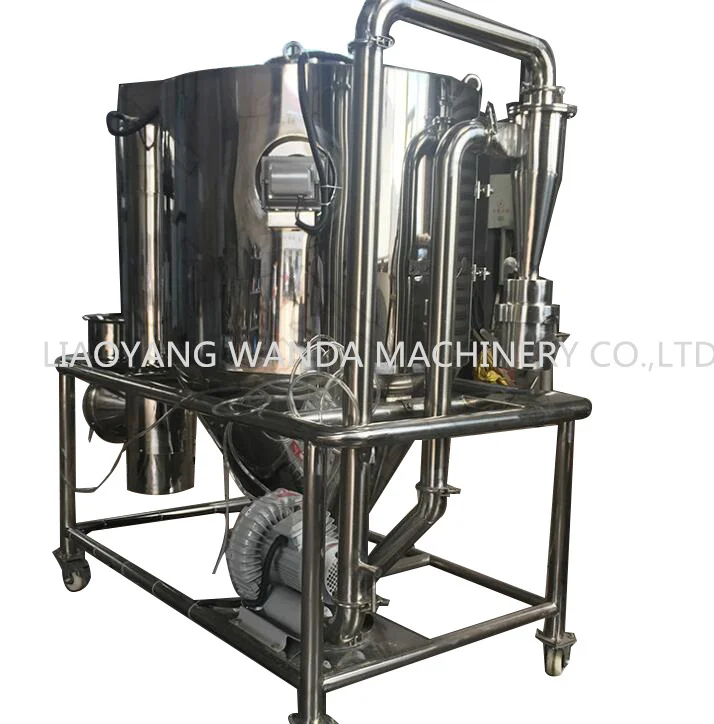

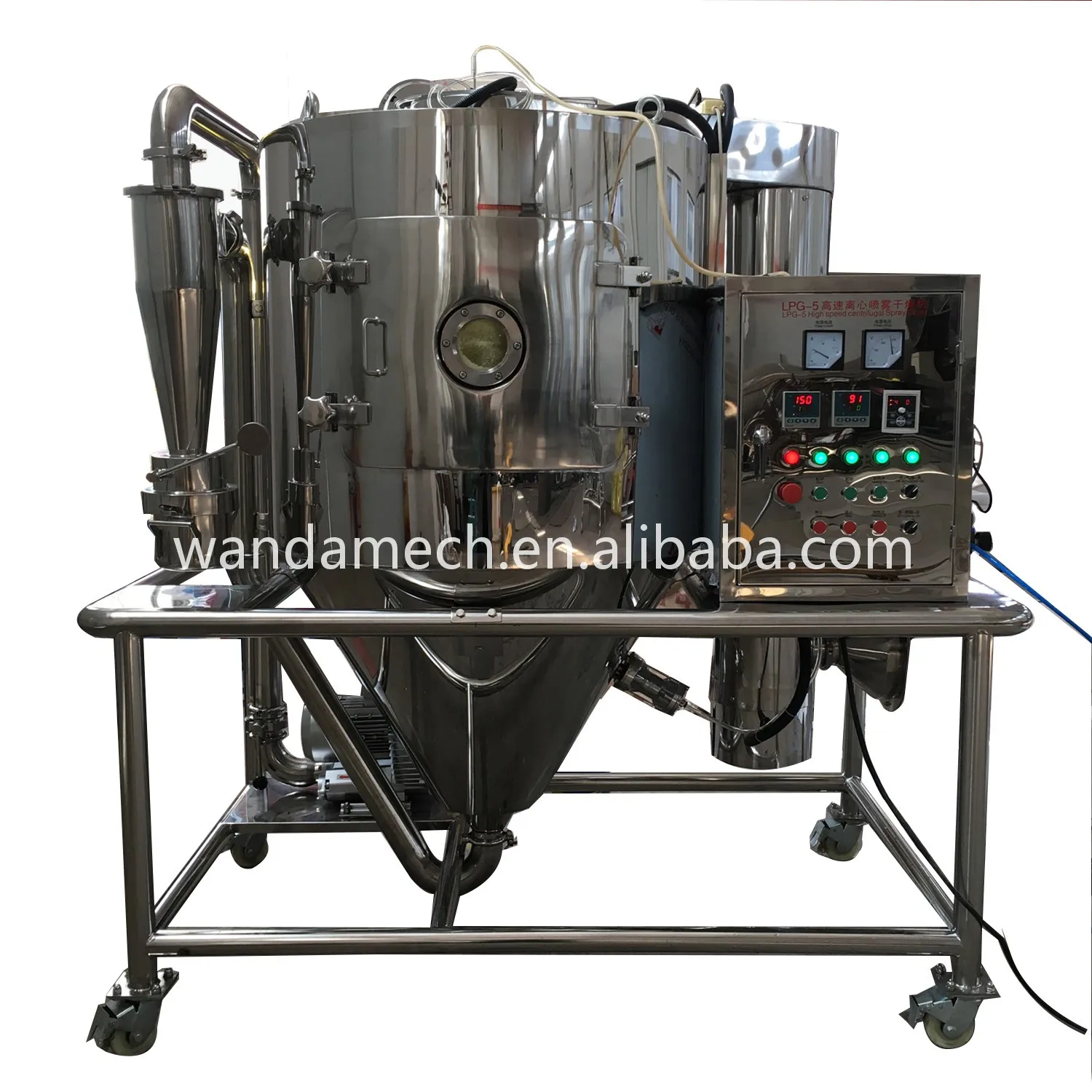

2021New lpg 5 lab type centrifugal atomizer spray dryer Full automatic spray dryer

1. Newly design for energy saving and high effeciency

2. GMP stardand,meet food grade requirement

4. PLC control, automatic operation, temperature adjustable

5. Operation stable and simple

6. High drying speed

7. Enough spare parts supply

Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.  Description of LPG Spray Dryer

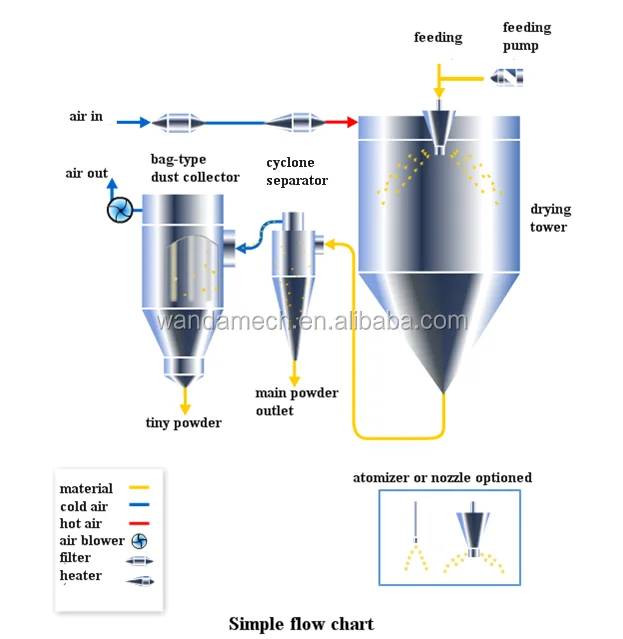

Principle of LPG Spray Dryer

After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. The waste gas will be discharged from exhaust fan.

Drawing of LPG Drying Machine

 Features of LPG Spray Dryer

At a high speed of drying, after spraying of the material liquid, the surface area will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

This is especially suitable for drying the heat sensitive materials. Its final products own good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality.

The production procedures are simple and the operation and control are easy.The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time. After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out control and management.

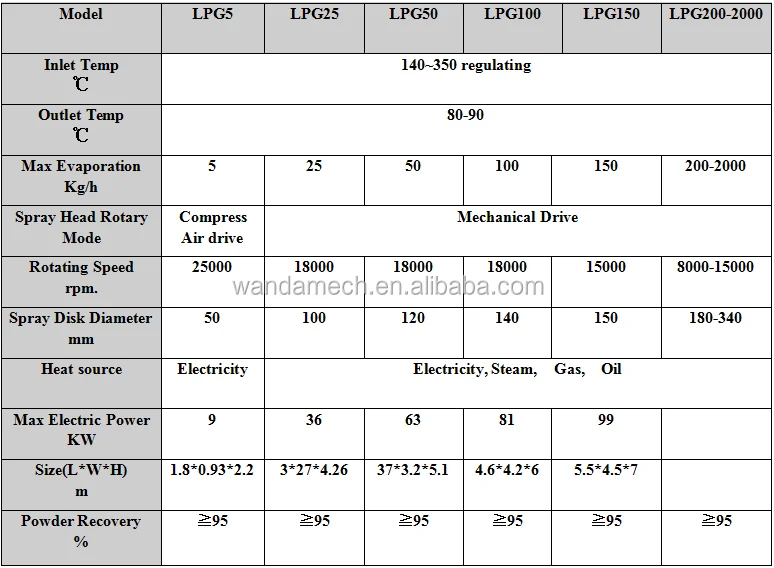

Technical Parameter of  LPG  Dryer

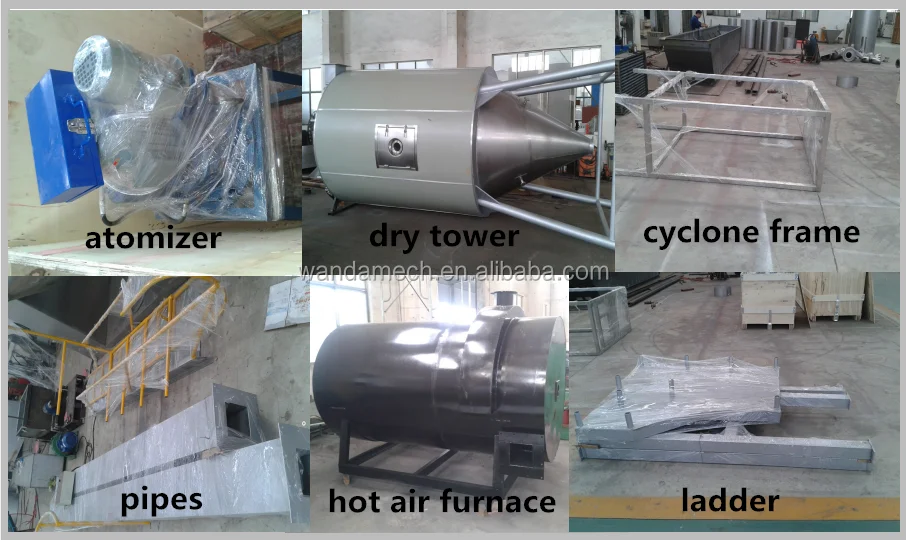

Important Parts of LPG Spray Dryer

Pre-Service:

1. 24 hours onlinne consult and service

2. Introduce the product to the customer in detail, answer the question raised by customer carefully;

3. Make different plans for choice according to the needs and requirements of customers;

Sale Service:

1. Ensure product with high quality before delivery;

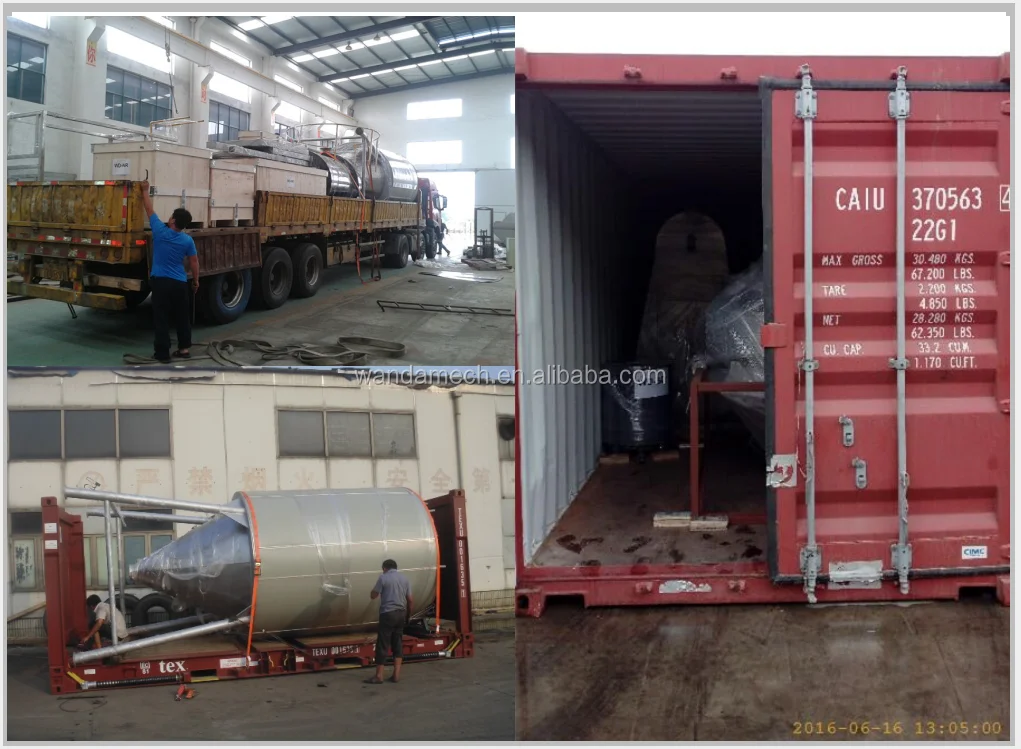

2. Packing and shiping carefully;

3. Delivery on time;
4. Provide full set of documents as customer’s requirements.

After-sale Service:

1. Help to install and debug the equipment;

2. Provide 24 hours techincal support by e-mail or phone;

3. Keep sufficient replaceable spare parts;

4. Help customers slove any other questions about products or other aspect;

5. Establish long-term and friendly relationship.

Service Commitment:

1. We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain        inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing         the check and accept together with you.

Why choose us:

1. Internatinonal quality certification product;

2. Suitable price;

3. Support by an outstanding level of customer service;

4. Follow strict quality and standard;

5. Calling or door-to-door service;

6. Uphold the principle of "customer supreme"

7. Export to Europe,USA,the southeast Aisa, good customer feedback.

LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, chemical and packaging machinery.

 Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products.

Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.

Other feature products

About FAQ:

In order to quota you the best price, please let us know the following information:

1. What’s your raw material?

2. Material related characteristic? Does it viscous or corrosive, strong basicity or highly acid?

3. What’s the capacity per hour? water evaporation?

4. Water content? solid content percentage?

5. What kind of heat source? steam? electric? or fuel gas or thermal oil?

6. Heating temperature? is it heat sensivity material? air in temperature and air out temperature requirement?

7. Do you need all parts of stainless steel or only the parts contacting product is stainless steel?

8. What kind of voltage of your country?

Frequency Asked Questios:

Q: Can I visit your company?

A: Of course. There are many foreign customers come to visit our company. Our company is in Liaoyang, you can come by air. Welcome to visit us.

Q: What’s the quality of your machine?

A:  Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. You can rest assured with the quality absolutely.

Q: What to do if the machine has problems?

A: We provide 24 hours online service, so you can feel free to contact us with e-mail or phone.

Q: How long is the warranty?

A: We will provide one-year warrantee to make sure your machine runs consistently.
