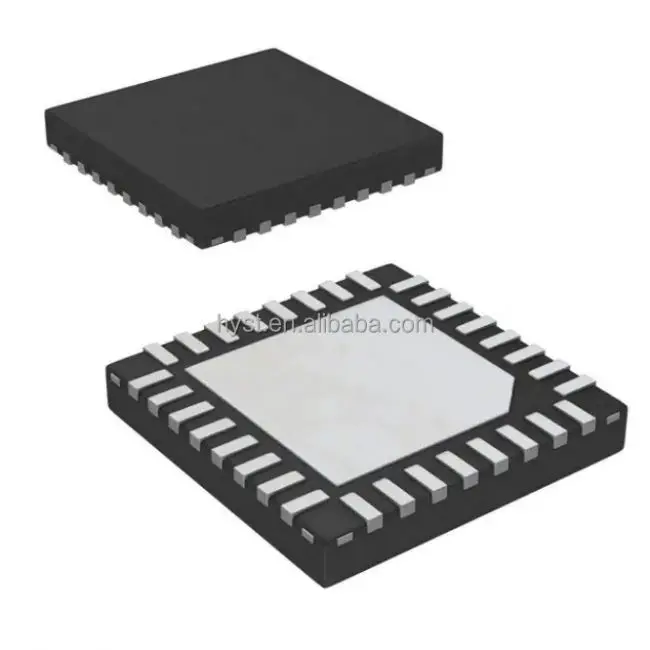

Микросхема интегральной схемы Оригинал BGM7LLMH4C15EE6340XUSA1 BGM7LLMH4-ic AMP LTE 700MHZ-2. РЧ-усилители
0,73 $ - 1,08 $
300M 4G беспроводной маршрутизатор G4304K 4g wifi роутер с антенной 5
- Категория: >>>
- Поставщик: Shenzhen Yuexin Information Technology Co. Ltd.
Сохранить в закладки 1600611642158:
Описание и отзывы
Характеристики
Products Description

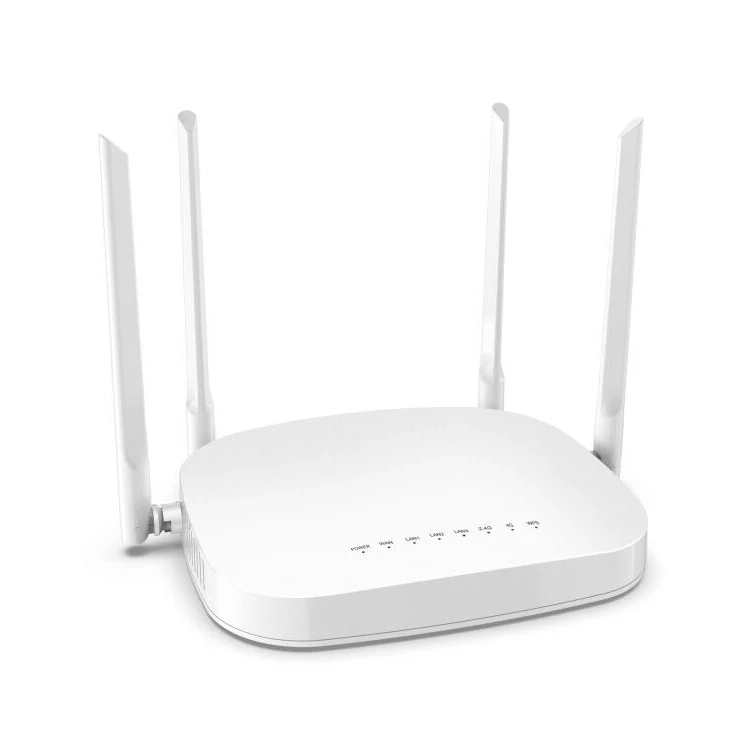

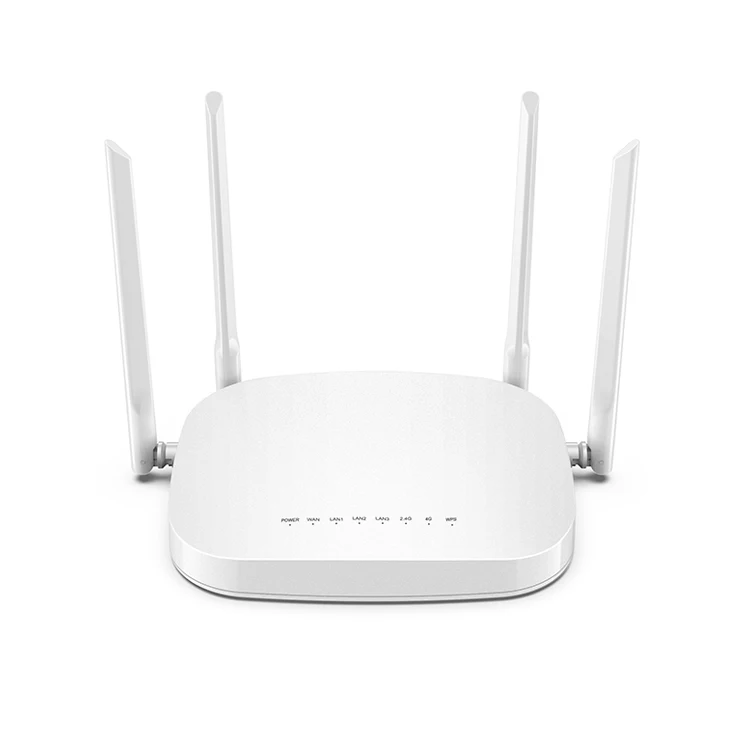

300M 4G Router G4304K
G4304K is a cost-effective wireless communication product based on 4G network requirements. The WiFi wireless speed is up to
300Mbps, which can meet the needs of stable, secure and simple Internet access for small networks such as offices and homes. It
can also be applied to the Internet of Things communication industry. Provide users with wireless long-distance data monitoring,
acquisition and transmission functions. Full Netcom 4G network access, full line compatible with 4G/3G/2G network, equipped with 2 10/100M adaptive Ethernet LAN interfaces, connected to internal LAN; 1 10/100M adaptive Ethernet WAN interface, available Wired broadband access
300Mbps, which can meet the needs of stable, secure and simple Internet access for small networks such as offices and homes. It
can also be applied to the Internet of Things communication industry. Provide users with wireless long-distance data monitoring,
acquisition and transmission functions. Full Netcom 4G network access, full line compatible with 4G/3G/2G network, equipped with 2 10/100M adaptive Ethernet LAN interfaces, connected to internal LAN; 1 10/100M adaptive Ethernet WAN interface, available Wired broadband access
Featur
Industrial design, 300M wireless
Using professional wireless processor, wireless speed up to 300Mpbs, barrier-free
transmission distance of about 100 meters, independent professional power amplifier and low noise amplifier, stable and smooth belt machine 30, not stuck, not dropped
Simple to set up, flexible and versatile
transmission distance of about 100 meters, independent professional power amplifier and low noise amplifier, stable and smooth belt machine 30, not stuck, not dropped
Simple to set up, flexible and versatile
Support 4G mode, routing mode, AP mode, built-in quick setup wizard, guide customers to
complete the configuration easily. The default 4G access mode, plug-and-play; routing mode, support for wired broadband access; AP mode, easily convert the wired network into a wireless WiFi network. Support 4G and wired broadband access modes, support mobile Unicom Telecom 4G/3G/2G network card, 4G Internet access advantage in places where wired bandwidth cannot reach, 4G and wired automatic switching, never-ending
complete the configuration easily. The default 4G access mode, plug-and-play; routing mode, support for wired broadband access; AP mode, easily convert the wired network into a wireless WiFi network. Support 4G and wired broadband access modes, support mobile Unicom Telecom 4G/3G/2G network card, 4G Internet access advantage in places where wired bandwidth cannot reach, 4G and wired automatic switching, never-ending
Multiple security policies to ensure network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID hiding and wireless blacklist to effectively prevent network, and ensure user network data security at all times.
A variety of status statistics, always know the working status of the device
Built-in traffic statistics, support for traffic plan settings, easy to understand monthly
traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.
traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.
Uninterrupted product feature updates and performance optimization
The R&D team with the spirit of craftsman has been constantly updating the functions to
meet the needs of various network environments in a simple and efficient manner. The refined performance optimization ensures the best quality network products and enhances the user experience.
meet the needs of various network environments in a simple and efficient manner. The refined performance optimization ensures the best quality network products and enhances the user experience.
Specification
Product parameter | ||
Hardware Configuration | ||
Main chip | MTK7628KN 300M high performance enterprise chip | |
Concurrent Clients | 580MHz | |
Wireless technology | 802.11b/g/n 300M MIMO technology | |
Flash memory | 2MB | |
RAM | 8MB | |

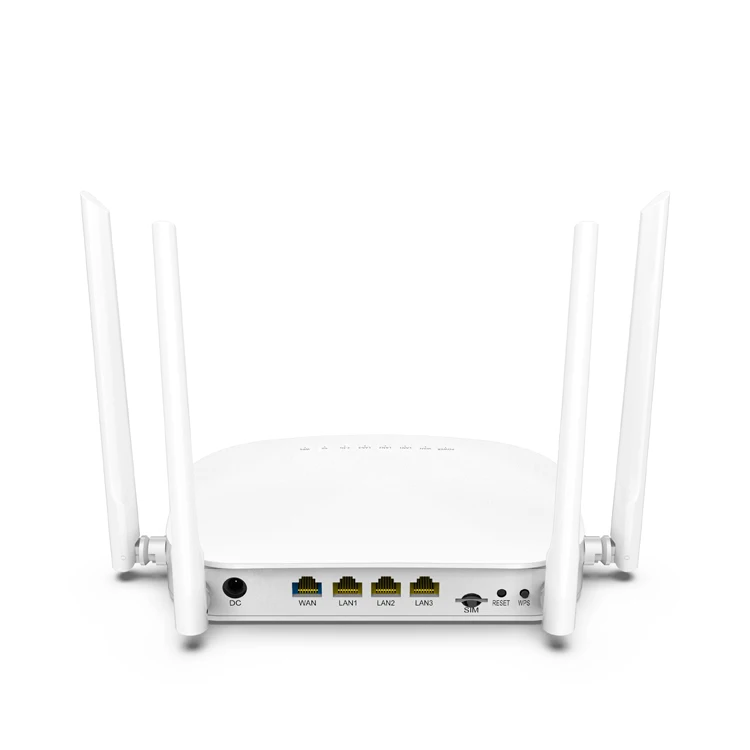

Device interface | WAN 10/100Mbps Adaptive Network Interface*1 LAN 10/100Mbps adaptive network interface*2 SIM card, big card | |
Sky line | 5dBi snap-on glue stick antenna 4G 2T2R 5dBi snap-on glue stick antenna *2 WiFi 2T2R 2.4G 5dBi snap-on glue stick antenna *2 | |
Power consumption | ＜10W | |
Press | 1 RESET reset button, long press for 3 seconds to restore factory settings | |
Indicator light | 6 groups: POWER, WIFI, 4G, WAN, LAN1, LAN2 | |
Size and Weight | N/A，N/A | |
4G characteristics | 4G：2T2R 5dBi | |
Network standard / GNSS | EC20 CE FHKG | |
LTE-FDD(supports hierarchical reception) | B1/B3/B5/B8 | |
LTE-TDD(supports hierarchical reception) | B38/B39/B40/B41 | |
WCDMA | B1/B8 | |
TD-SCDMA | B34/B39 | |
CDMA | BC0 | |
GNSS function | GPS、GLONASS、BeiDou/Compass，Galileo,QZSS | |
Transmit power | LTE CAT4 | |
Frequency | 4G LTE FDD：B1/B3/B5/B8 4G LTE TDD:B34/B38/B39/B40/B41 3G B1/B5/B8 | |
GSM | 900MHz/1800MHz | |
GNSS function | GPS, GLONASS, BeiDou/Compass, Galileo, QZSS | |
Transmit power | Class 4 (33dBm±2dB) for GSM900 Class 1 (30dBm±2dB) for DCS1800 Class E2 (27dBm±3dB) for GSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class 3 (24dBm+2/-1dB) for CDMA BC0 Class 3 (24dBm+1/-3dB) for WCDMA bands Class 2 (24dBm+1/-3dB) for TD-SCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands | |
LTE features | Maximum support 3GPP R8 non-CA Cat 4 FDD and TDD Support 1.4MHz~20MHz RF bandwidth Downlink support MIMO LTE-FDD: Maximum downlink rate 150Mbps, maximum uplink rate 50Mbps LTE-TDD: Maximum downlink rate 130Mbps, maximum uplink rate 35Mbps | |
UMTS features | Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA Support QPSK, 16-QAM and 64-QAM modulation DC-HSDPA: Maximum downstream rate 42Mbps HSUPA: Maximum upstream rate 5.76Mbps WCDMA: Maximum downlink rate 384Kbps, maximum uplink rate 384Kbps | |
TD-SCDMA features | Support CCSA Release 3 TD-SCDMA Maximum downlink rate 4.2Mbps, maximum uplink rate 2.2Mbps | |
CDMA features | Support for 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev.A EVDO: Maximum downlink rate 3.1Mbps, maximum uplink rate 1.8Mbps 1 X A d va n c e d: maximum downlink rate 3 0 7 . 2 K b p s, maximum uplink speed 307.2Kbps | |
Details Images
Related Products
Company Profile
Our Advantages
Product packaging
FAQ
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .
Q: What about the lead time?
A: Sample needs 1-3 working days, mass production time based on order quantity.
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q: Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, SF Express or your designated forwarder. It usually takes 7-12days to arrive(Depends on the shipping method you choose) . Airline and sea shipping also optional.
Q: What is your payment term?
A: We have Ali- pay, T/T, Visa, payment terms options, you can choose the one which is convenient or effective for you !
Q: Can you customized logo and packaging?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .
Q: What about the lead time?
A: Sample needs 1-3 working days, mass production time based on order quantity.
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q: Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, SF Express or your designated forwarder. It usually takes 7-12days to arrive(Depends on the shipping method you choose) . Airline and sea shipping also optional.
Q: What is your payment term?
A: We have Ali- pay, T/T, Visa, payment terms options, you can choose the one which is convenient or effective for you !
Q: Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable.
Похожие товары
AUVO Прямая поставка с завода 4-гексил резорцинол порошок CAS 136-77-6 чистый 4-гексилрезорцинол
Порошок карри фирмы Parrot, 100 г, 250 г, 1 кг
1,00 $

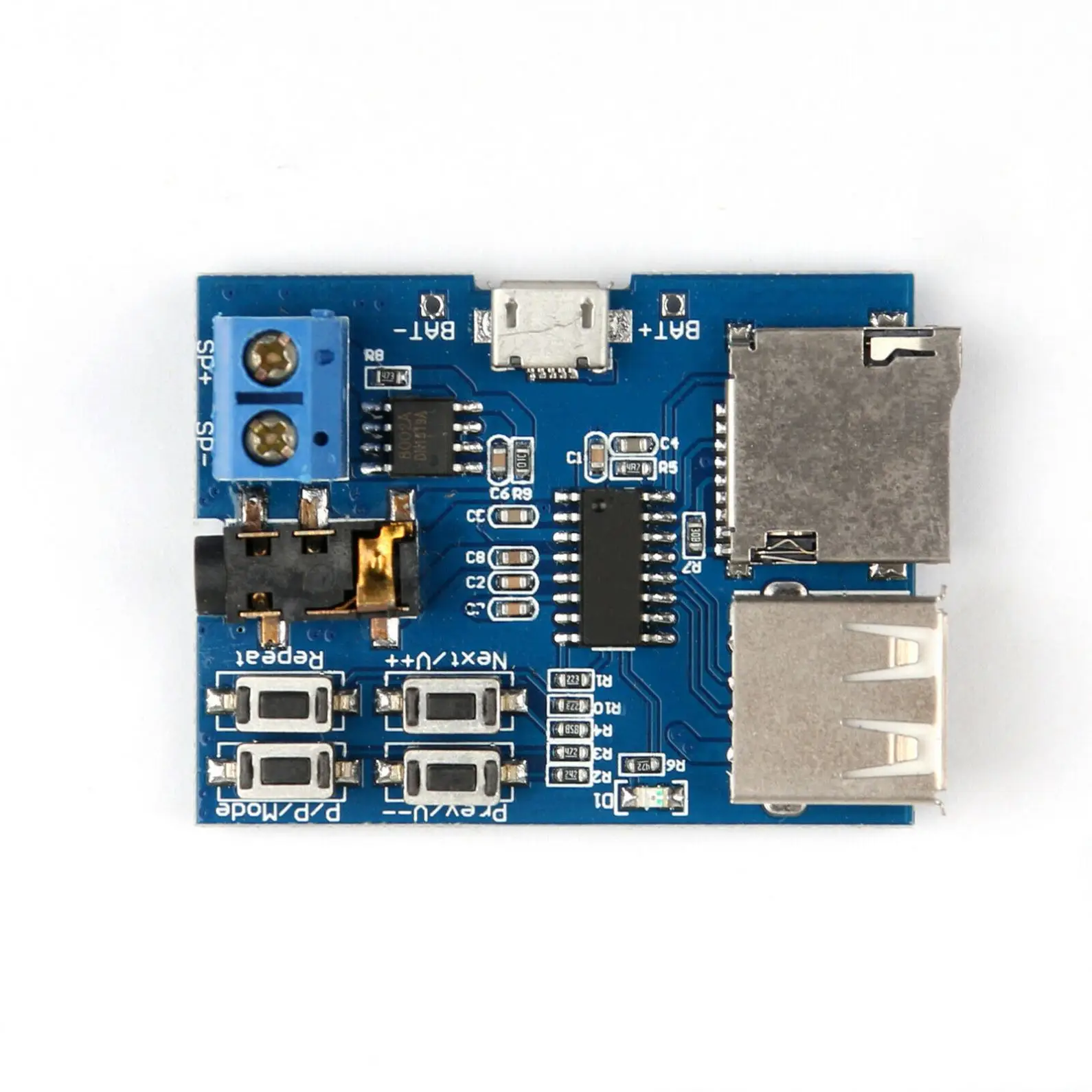

OEM PCBA завод 1 шт. TENSTAR ROBOT card TF U disk MP3 формат декодер плата модуль усилитель декодирование аудио плеер
