Shenzhen Dayang Special Glass Co.Ltd is a serious professional construction glass manufacturer and exporter in China, with skillful workers and advanced production machineries, we produce complete range of customized construction glass including flat and curved safety tempered glass and laminated glass, energy efficient low-e glass and insulated glass, decorative silkscreen printed glass, 3 D digital printing glass, acid etched glass and sandblasted glass, new technology anti-reflective glass, anti-slip glass, U glass, PDLC smart switchable glass, and the glass produced as per clients demand.
We are verified onsite by world-leading inspection company- TÜV Rheinland:
More verified information, please check our main site: Shenzhen Dayang Special Glass Co.Ltd.
Product Description
Shenzhen Dayang Special Glass Co.Ltd produce different types of customized thickness and size curved tempered glass, which is produced by heating annealed float glass to over 600 Celsius degree, and curve it to the mold shaping by computer control, and then cooling it rapidly, it has all the characteristics of the flat safety tempered glass.
We can process any surface shape multi-curved tempered glass, double curved tempered glass, triple curved tempered glass, trapezoid curved tempered glass, spherical curved tempered glass, pyramidal curved tempered glass, S-shape curved tempered glass, cylindrical curved tempered glass, positive and negative curved tempered glass.
Specification:
Curved tempered glass is available for different shape, but also can meet the stress requirement which makes different building design possible.
Features:
Good accuracy in arc, less light aberration.
Application: curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve structure,
glass enclose etc.
(1). Curved Tempered Glass:5-19mm (the first line)
Max Size: (Arc.*H)2800*2650 Min Size: 600*200
Radius can be different on one piece glass;
(2). Curved Tempered Glass:5-19mm (the second line)
Max Size: (Arc.*H)2400*4000 Min Size:600*400
Radius can be different on one piece glass;
2. Single Curved Tempered Glass
Curved tempered glass is curved to shape by fast cooling down.
Features:
Good accuracy in arc, less light aberration.
Tempered curved glass: curtain wall with curved structure, skylight, sightseeing elevator, indoor glass partition with curve
structure, glass enclose etc.
(1) Curved Tempered Glass:4-19mm (small radius curved tempered glass- the first line)
Max Size: ( Arc.*H)2800*2650 Min Size: 600*200
Radius: 4-8mm R>=450
10-12mm R>=800
15-19mm R>=1100
(2) Curved Tempered Glass:4-19mm (big size curved tempered glass--the second line)
Max Size: ( Arc.*H) 3300*6500mm Min Size:600*400
Radius: 5-8mm R>=1100
10-12mm R>=1100
15-19mm R>=1300

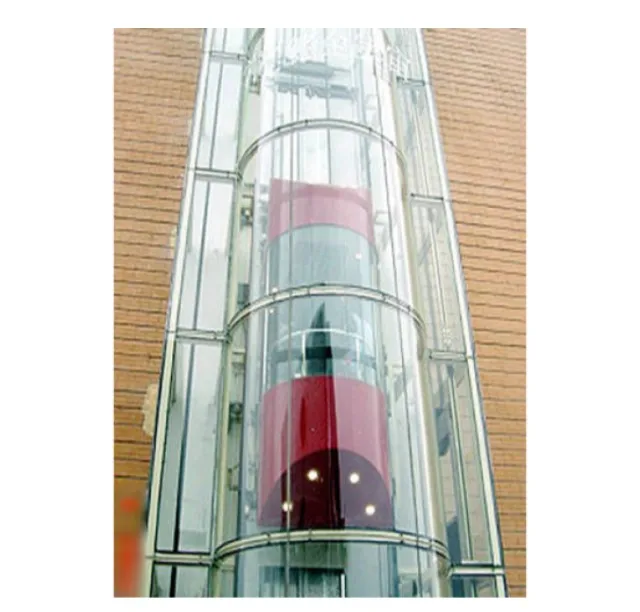

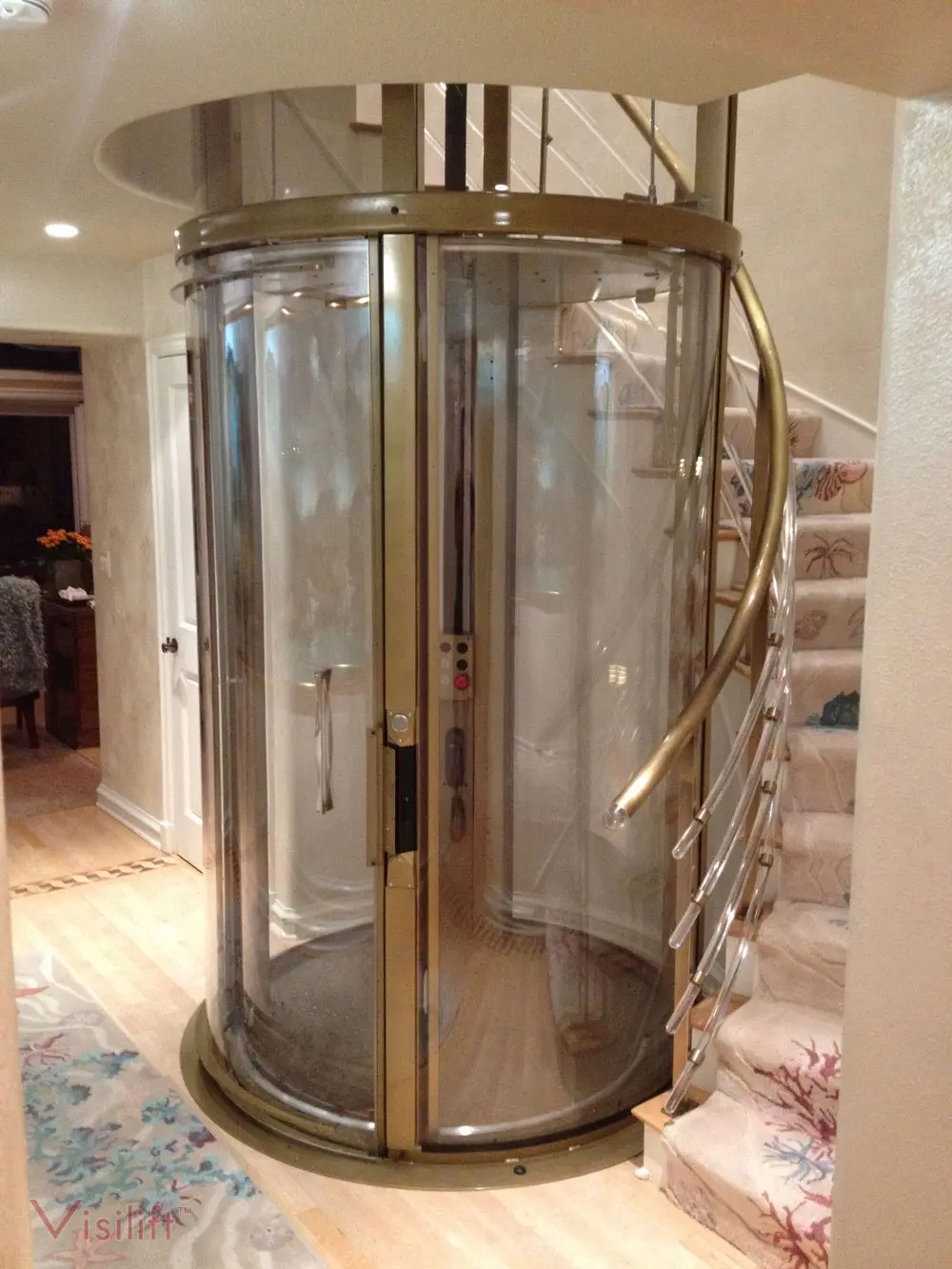

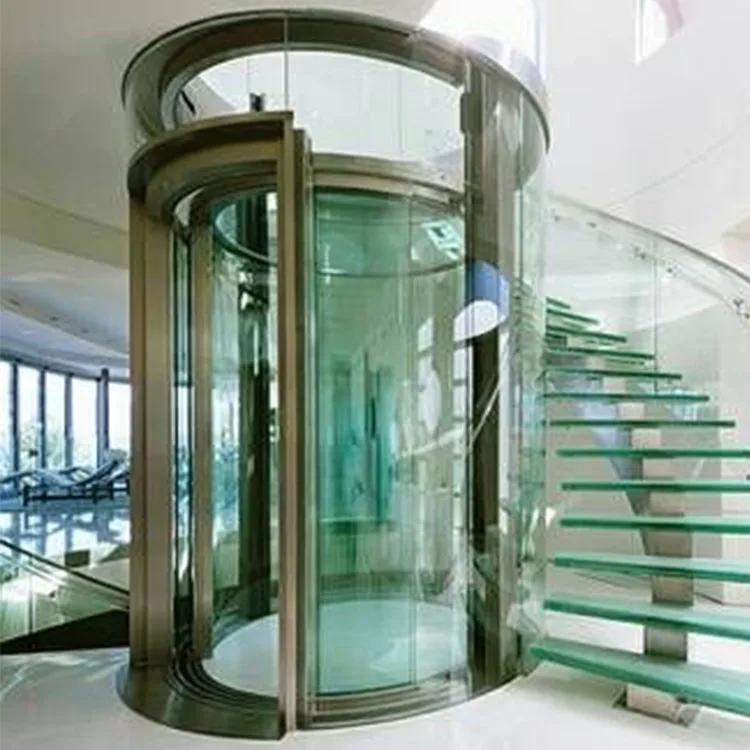

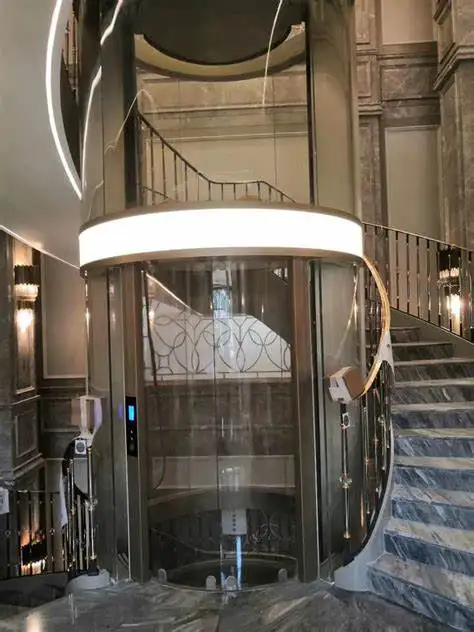

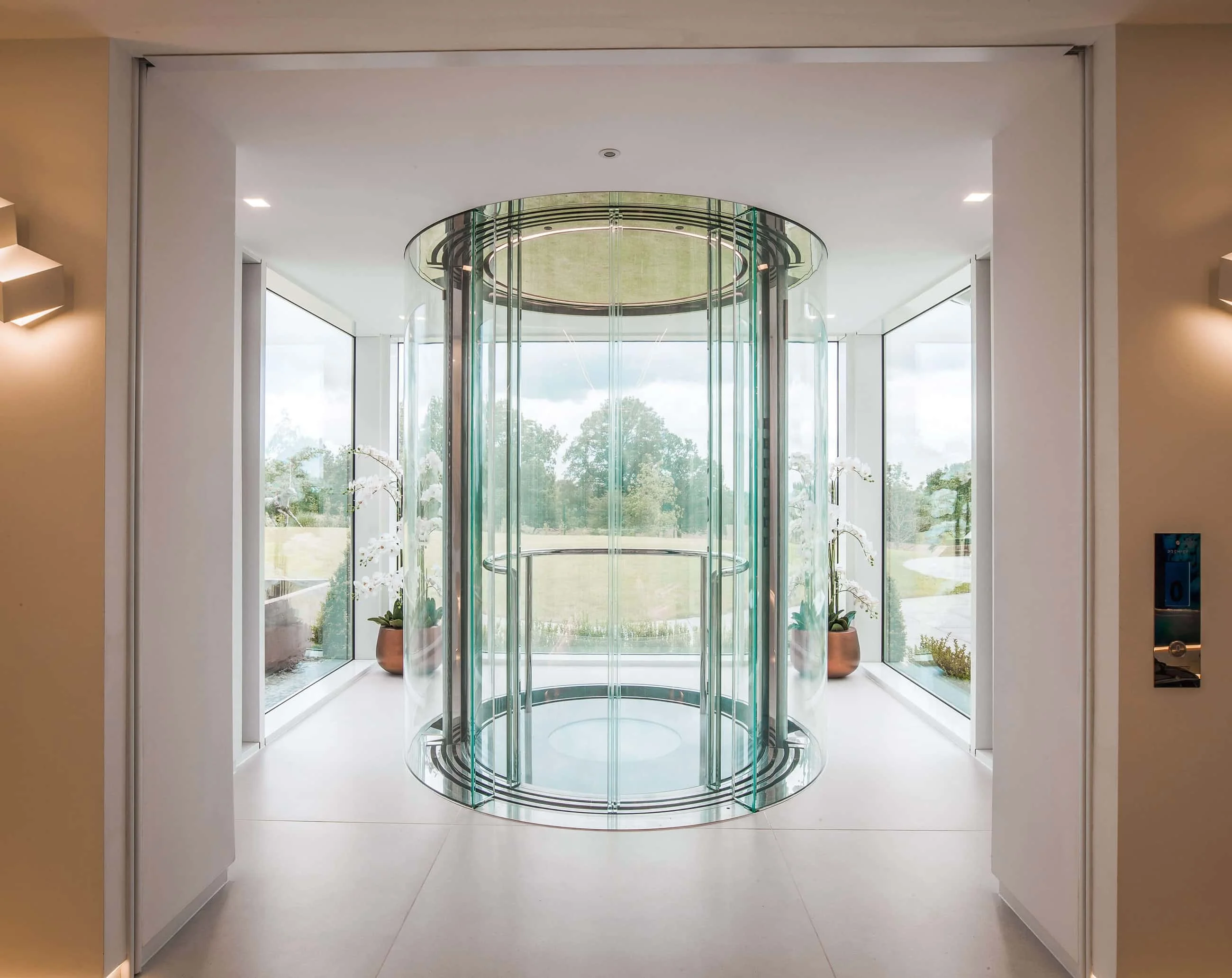

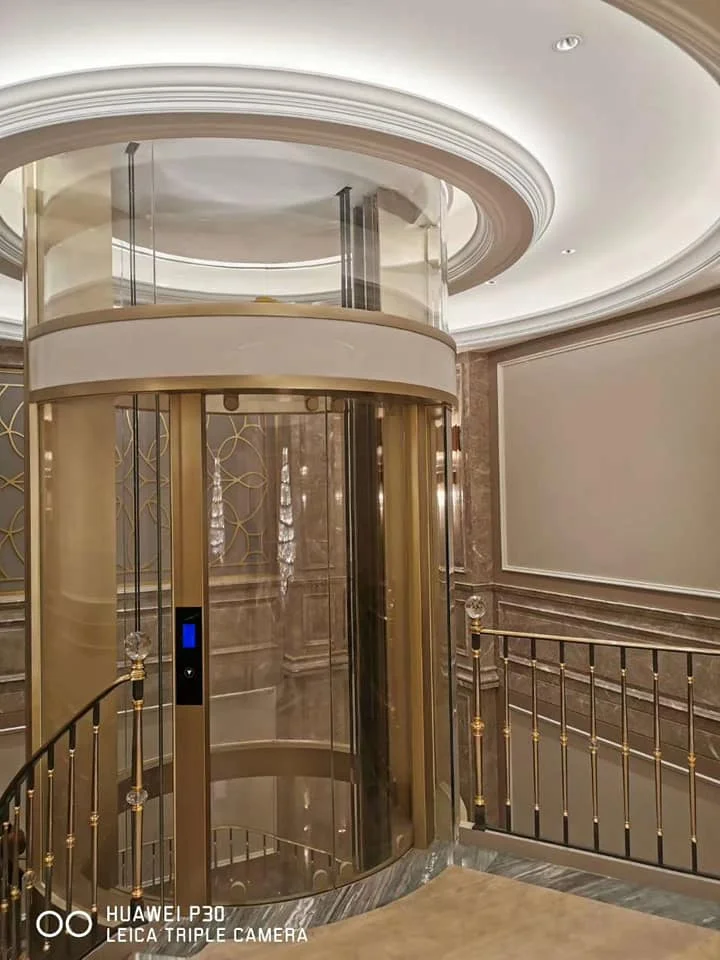

Application In Lift:
Characteristic
Curved Tempered Glass has good thermal stability, can withstand the temperature difference of 3 times that of ordinary glass, and can withstand the temperature difference of 280 ~ 320 ℃. Tempered glass's resistance to rapid cooling and heating is 3 to 5 times higher than that of ordinary glass. It can generally withstand a temperature difference of more than 250 degrees, and has a significant effect on preventing thermal cracking. It is a kind of safety glass. To ensure the safety of qualified materials for high-rise buildings.
The curved tempered glass produced by Dayang Glass has good safety, good impact strength performance, high thermal stability, wind pressure resistance and deflection performance. Curved tempered glass also has the following advantages same as tempered glass:
High strength: the strength is 4-5 times that of ordinary glass;
Large deflection: 3-4 times the deflection resistance of ordinary glass
Thermal stability: has good thermal stability, can withstand the temperature difference of 200 ℃
High strength: the strength is 4-5 times that of ordinary glass;
Large deflection: 3-4 times the deflection resistance of ordinary glass
Thermal stability: has good thermal stability, can withstand the temperature difference of 200 ℃
Dayang Glass provide quality customize and process service, we welcome to customize you size, color, shape etc, flat and curved shape are all available. The max size we can produce is 3300mmx12000mm, minimum radius we can do is 400mm and maximum arc length is 5000mm. Process service such as edgeworks, drill hole, safety corner ect process can customize according customers requirement.
Production process
Packing & Delivery
Stick a protective film on each glass plate according to customer needs.
Before packaging, each glass panel must be inspected.
Use brand new, durable and seaworthy plywood panel.
Each crate will be secured with metal straps.
Before packaging, each glass panel must be inspected.
Use brand new, durable and seaworthy plywood panel.
Each crate will be secured with metal straps.
Our Factory
Shenzhen Dayang Special Glass Co., Ltd engaged in the research, development, sale and service of building glass such as tempered glass, laminated glass, curved glass, insulated glass, energy-saving glass, complex glass, ceramic frit glass, art stained glass, magic switchable glass and film, etc.. Locating in Shenzhen (near by Hongkong) which has convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we are able to fulfill your demands and ensure full customer satisfaction.
Certifications
Why choose Dayang Glass?
1. Professional architectural and furniture glass manufacturer.
2. Dayang Technical team is led by technicians with more than 20-year working experience; completing more than 500 projects, customers spreading all over the world.
3. Production capacity: Flat glass maximum size: 20000*3300mm, curved glass maximum size: 3200*6500mm.
4. Our products meet every kinds of criteria: SGCC, IGCC, CE, BS, AS/NZS etc.; we can provide test report of fireproof glass and bulletproof glass; supporting third-party testing.
5. Warranty period is more than 20 years; complaint rate is under 0.1% which is lower than peers in the industry; no damage for package.
6. Short delivery time, the products can be shipped out within 24 hours; glass patching only needs 1-3days, stay ahead in the industry.
7. Our company has deep cooperation with professional freight forwarders all over the world, which can provide you the lowest transportation cost and the shortest transportation time.
8. Free samples are available.
3. Production capacity: Flat glass maximum size: 20000*3300mm, curved glass maximum size: 3200*6500mm.
4. Our products meet every kinds of criteria: SGCC, IGCC, CE, BS, AS/NZS etc.; we can provide test report of fireproof glass and bulletproof glass; supporting third-party testing.
5. Warranty period is more than 20 years; complaint rate is under 0.1% which is lower than peers in the industry; no damage for package.
6. Short delivery time, the products can be shipped out within 24 hours; glass patching only needs 1-3days, stay ahead in the industry.
7. Our company has deep cooperation with professional freight forwarders all over the world, which can provide you the lowest transportation cost and the shortest transportation time.
8. Free samples are available.
Похожие товары
Индивидуальная гидравлическая стеклянная кабина, жилые лифты, дом, вилочный лифт 2-5 уровня 3, 4 человека, домашние Лифты
345 272,96 ₽ - 388 432,08 ₽
Настраиваемый стеклянный лифт небольшой лифт для продажи жилой Лифт открытый панорамный обзорный Лифт
Новые уличные Желтые Дешевые стеклянные лифты, панорамные частные Лифты
379 800,26 ₽ - 817 865,33 ₽
1-3 человека домашний лифт 10 м 250 кг небольшой домашний Лифт жилой 3-этажный домашний Лифт
183 426,26 ₽ - 312 903,62 ₽
Быстрая доставка, завод Foshan, Высококачественные коммерческие пневматические вакуумные пассажирские стеклянные лифты, Лифты
161 738,81 ₽ - 215 687,71 ₽
Панорамный Лифт из высококачественного стекла
946 336,00 ₽ - 1 028 625,34 ₽

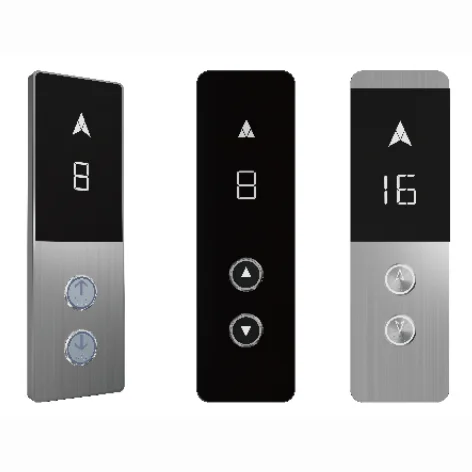

Панель управления лифтом
