Products Description
Holographic mesh screen Features

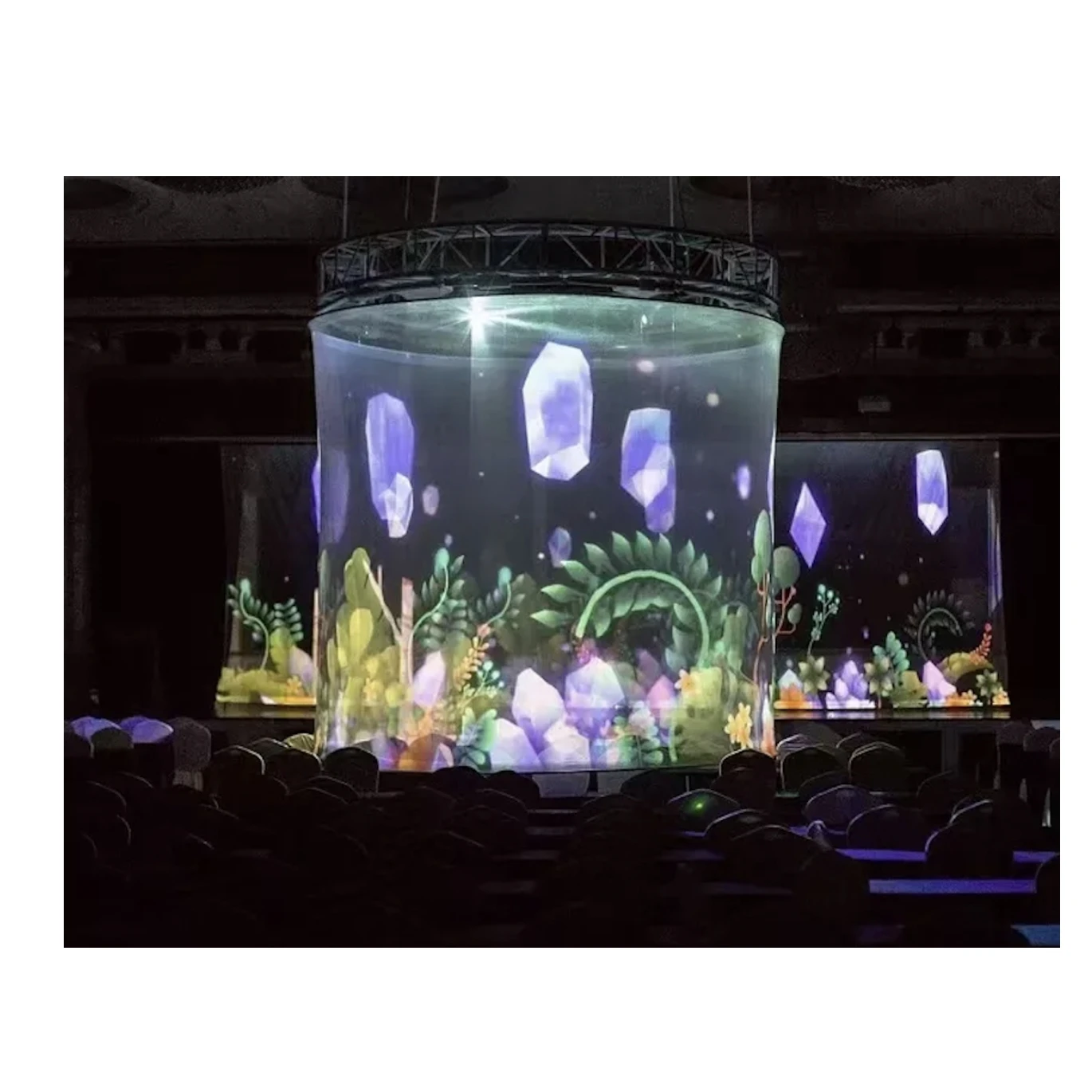

The holographic mesh screen is the optical illusion of a free-floating invisible holographic screen to any desired length once set up in an environment with controlled lighting.
The system works with a see-through screen, that has the capability of transforming the black into transparent, the video image comes from a projector installed at the back of the screen.This Projection Glass Screen or Back Projection Screen can also include a touch screen function that can be adapted to the screen for interactive content.
Holographic mesh is highly suitable for large stages, requiring less depth than other projection systems of similar dimensions.
Holographic mesh is highly suitable for large stages, requiring less depth than other projection systems of similar dimensions.

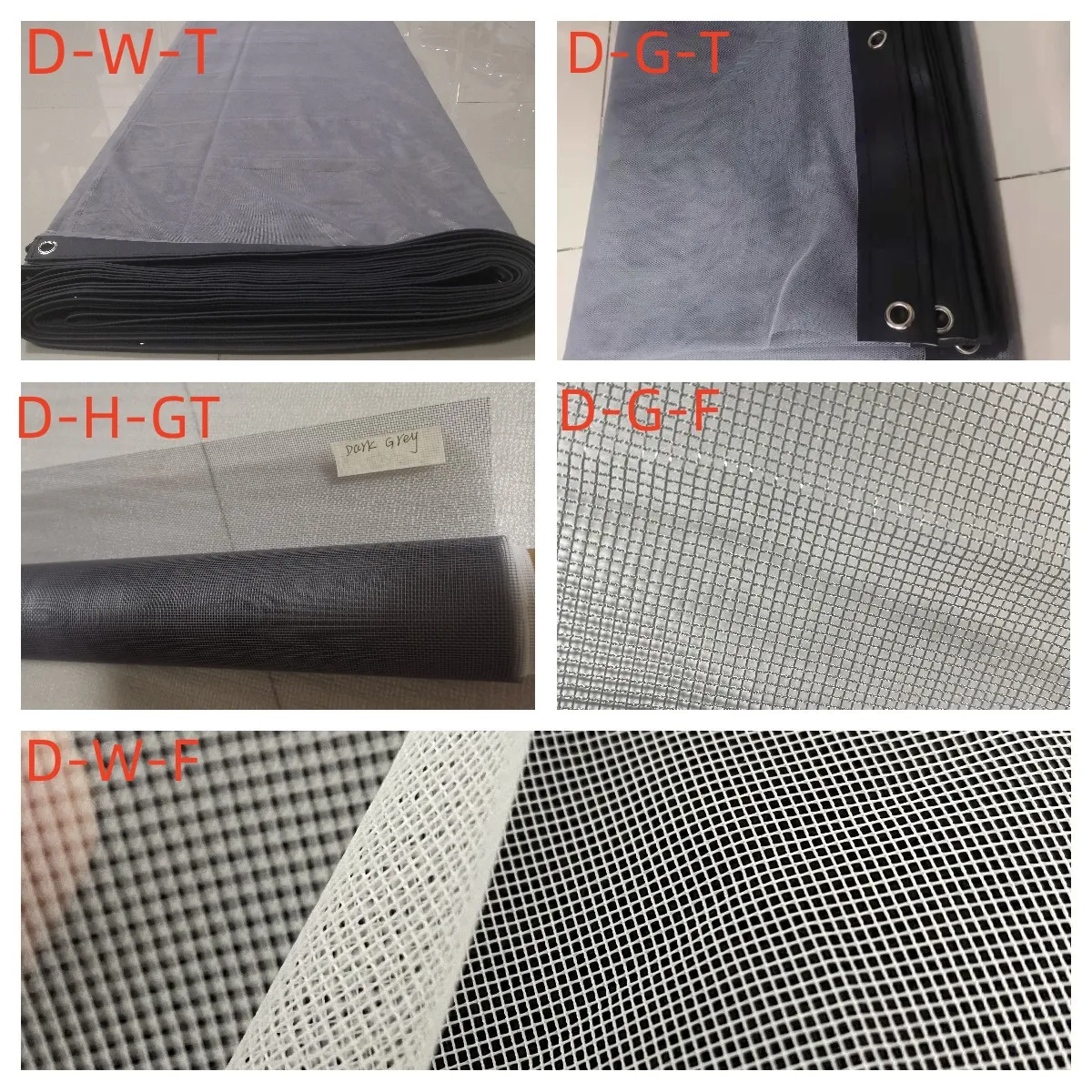

Holographic screen category and specification
model | D-W-T | D-G-T | D-H-GT | D-G-F | D-W-F |
color | grey/white | grey | grey/white | grey | white |
width | 2.75 | 3 | 3 | 5.85 | 5.85 |
length | 100 | 100 | 50 | 250 | 250 |
thickness | 89UM | 89UM | 89UM | 100UM | 89UM |
transparency | 75% | 85% | 80% | 75% | 80% |
projection | rear/front | rear/front | rear/front | rear/front | rear/front |
view angle | 170° | 170° | 170° | 135° | 170° |
hardness | 2H | 2H | 3H | 2H | 2H |
tensile force | 2600.LBS% | 2600.LBS% | 2600.LBS% | 2600.LBS% | 2600.LBS% |
projection | rear/front | rear/front | rear/front | rear/front | rear/front |
material | mesh grid nylon; square hole | mesh grid polyester; hexagon hole | mesh grid glass fiber; square hole | mesh grid polyester； square hole | mesh grid polyester； square hole |
features | ·soft, inelastic； ·can be spliced and stitched, gap < 1mm; ·can make it into a large size; ·foldable; | ·soft, slightly elastic； ·high transparency; ·can make multi-layer projection; ·can make hexagonal square holes; ·foldable; | ·rigid, inelastic； ·can be suspended; ·shipment length is limited, < 3m; ·can't make black board or hole; ·unfoldable; | ·soft, slightly elastic； ·can be suspended or electronic; ·foldable; | ·soft, slightly elastic； ·can be suspended or electronic; ·foldable; |
FAQ
1. Do holographic projections works in daylight?
No, it does not work in direct sunlight, it requires a low level of light, semi or dark place.
2. Can holo net/holo gauze mesh be used with rear projection?
Yes, it can. However, the image will be nowhere near as bright as if you are front projecting.
3. What size do holo net /holo gauze mesh screens come in?
HoloNet or Holo Gauze screens can be adjusted to practically any size.
4. What equipment do I need to install a holographic stage?
There are three elements required during the installation: the HoloNet, the projector, and a black background behind the net.
5. How does holo gauze or holo net mesh work?
The Holo-Gauze or HoloNet are terms that refer to the same type of screen used in Holographic Projections, ones it is installed it
should be practically invisible to the naked eye on which the projection is made.
6. What is a hologram?
In a few words, hologram technology is an optical illusion. But going deeper, At the point when a laser shaft is separated to make
a visualization, the light waves in the two pieces of the pillar are going in indistinguishable manners. In this way, as you move
your head around, the holographic picture seems to change similarly to the picture of a genuine article changes. Also, that is the
reason 3D images seem, by all accounts, to be three-dimensional.
7. What is a 3D projection holo net?
3D Projection HoloNet is a flexible mesh with a strong capability to reflect light, it also calls Holo Gauze or Holographic
Screen. The difference that is commonly said on the internet the screen is not for 3D content it is for 2D video content that is
carefully developed to achieve a “Holographic Effect“. This technique should not be confused with the reflection system or
Pepper’s Ghost effect that is not the same and require a much bigger and more complex
installation.
8. What is the hologram mesh stage?
Hologram Mesh Stage or Holographic HoloNet refers to the type of screen that is being used to do a Holographic projection. The
words Mesh, Net, or Gauze is referring to the same type of screen which can be also stretchable, it becomes very popular because
of its durability, practicality for installation, and reduce the amount of equipment that it requires to create an easy to scale
hologram on the stage.
9. What is a holographic screen?
The Holographic Screen is a physical surface (rigid or flexible) that allows it to filter the light and hide the black color. When
the setup is correct, it can display an object (real human, animations) free of background so the eye will see it in suspension
floating freely on that surface.
No, it does not work in direct sunlight, it requires a low level of light, semi or dark place.
2. Can holo net/holo gauze mesh be used with rear projection?
Yes, it can. However, the image will be nowhere near as bright as if you are front projecting.
3. What size do holo net /holo gauze mesh screens come in?
HoloNet or Holo Gauze screens can be adjusted to practically any size.
4. What equipment do I need to install a holographic stage?
There are three elements required during the installation: the HoloNet, the projector, and a black background behind the net.
5. How does holo gauze or holo net mesh work?
The Holo-Gauze or HoloNet are terms that refer to the same type of screen used in Holographic Projections, ones it is installed it
should be practically invisible to the naked eye on which the projection is made.
6. What is a hologram?
In a few words, hologram technology is an optical illusion. But going deeper, At the point when a laser shaft is separated to make
a visualization, the light waves in the two pieces of the pillar are going in indistinguishable manners. In this way, as you move
your head around, the holographic picture seems to change similarly to the picture of a genuine article changes. Also, that is the
reason 3D images seem, by all accounts, to be three-dimensional.
7. What is a 3D projection holo net?
3D Projection HoloNet is a flexible mesh with a strong capability to reflect light, it also calls Holo Gauze or Holographic
Screen. The difference that is commonly said on the internet the screen is not for 3D content it is for 2D video content that is
carefully developed to achieve a “Holographic Effect“. This technique should not be confused with the reflection system or
Pepper’s Ghost effect that is not the same and require a much bigger and more complex
installation.
8. What is the hologram mesh stage?
Hologram Mesh Stage or Holographic HoloNet refers to the type of screen that is being used to do a Holographic projection. The
words Mesh, Net, or Gauze is referring to the same type of screen which can be also stretchable, it becomes very popular because
of its durability, practicality for installation, and reduce the amount of equipment that it requires to create an easy to scale
hologram on the stage.
9. What is a holographic screen?
The Holographic Screen is a physical surface (rigid or flexible) that allows it to filter the light and hide the black color. When
the setup is correct, it can display an object (real human, animations) free of background so the eye will see it in suspension
floating freely on that surface.
Installation
Packing & Delivery
Professional carton package for saving transportation, and it can be shipped by air or sea.
Shipping way:
Be sent by DHL/ FedEx / UPS express. Lead time is about 7 days, 4-7 days on Shipping.
Shipping way:
Be sent by DHL/ FedEx / UPS express. Lead time is about 7 days, 4-7 days on Shipping.
Price
Unit price is various according to different models and product quantities.
for example：
unit price / area(m2) ：30$
area(m2) : 4
price: 4 x 30$ = 120$
2. Before placing an order, please contact customer service to confirm the size.
For a fixed width:
If the width is 1.52 meters, then 1 square meter area is 1.52m * 0.66m, 2 square meter area is 1.52 * 1.32, and so on.
For a random width,:
The square meter area is width * length.
