Порошковое покрытие покрасочная
- Категория: Metal Coating Machinery >>>
- Поставщик: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Сохранить в закладки 1600612860232:
Описание и отзывы
Характеристики
Product Description

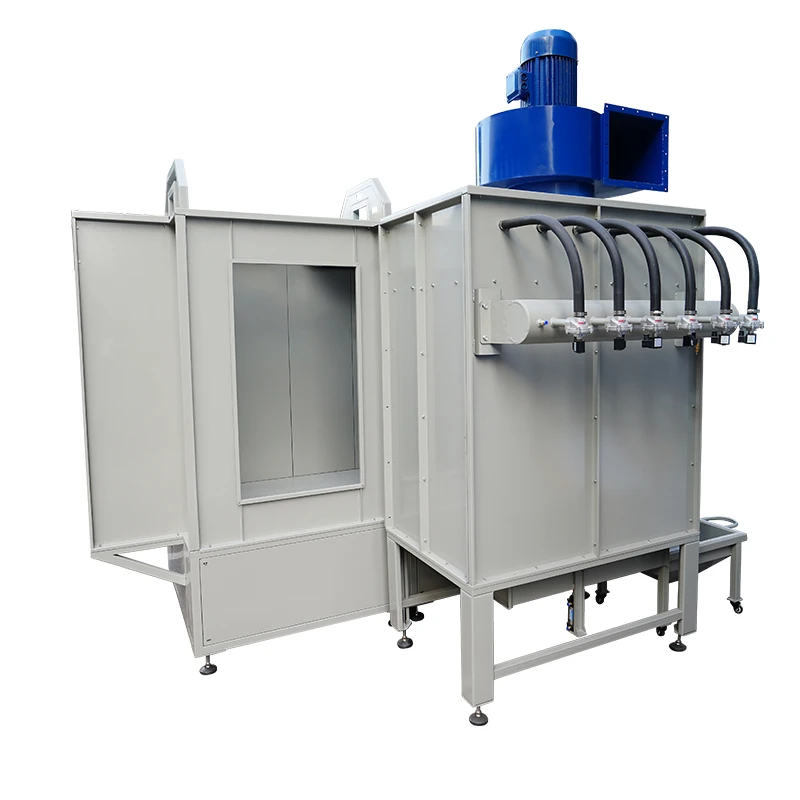

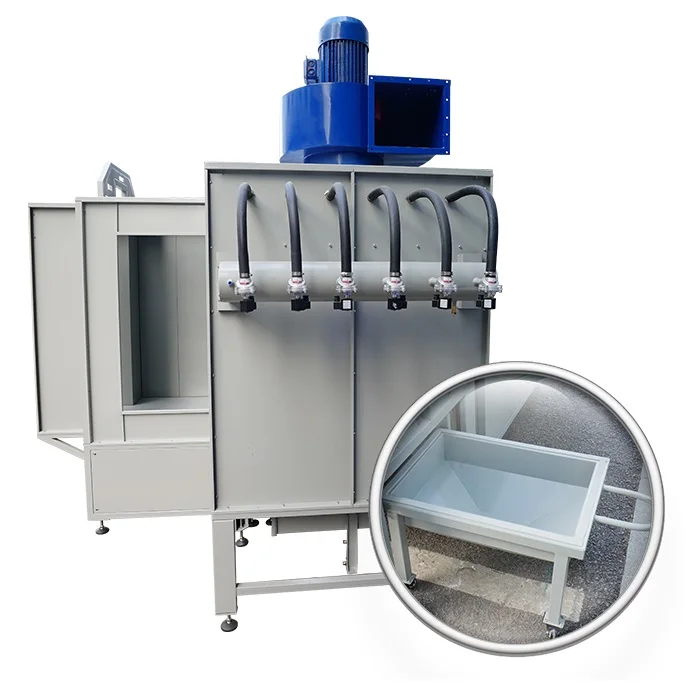

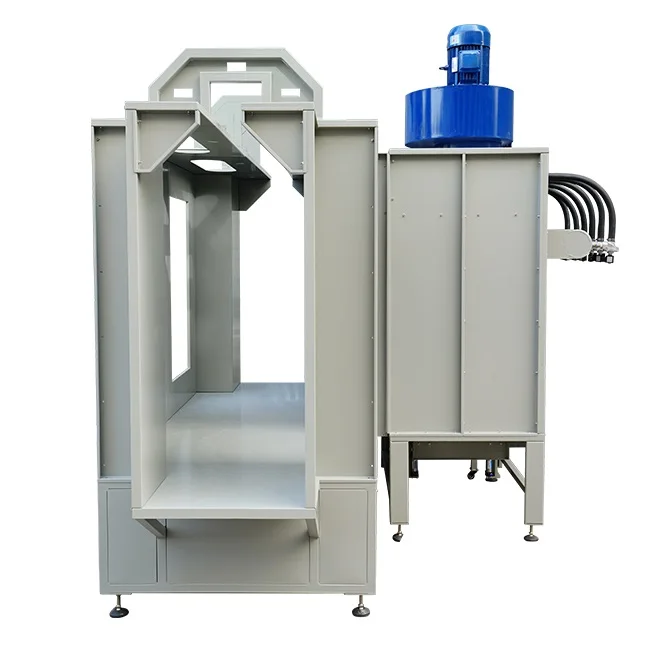

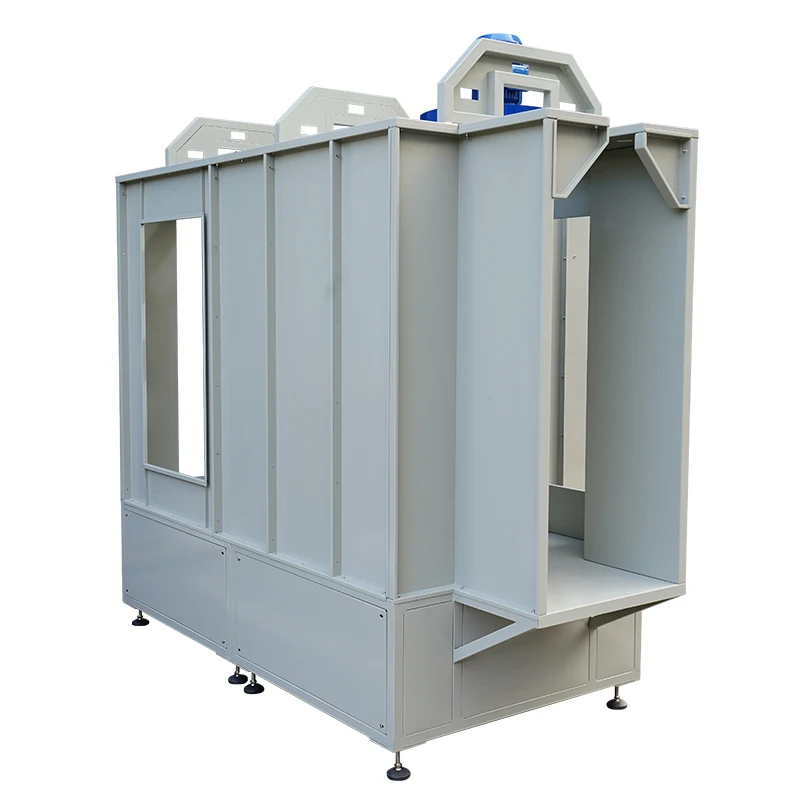

Powder Coating Spray Paint Booth
This tunnel powder booth is designed for the double-sided manual coating with a conveyor system. Can be used as simple automatic system as well.
Details Images
High recovery rate
Generally, the interior is made of 1.2mm cold-rolled plate and steel, which has high recovery efficiency.
Generally, the interior is made of 1.2mm cold-rolled plate and steel, which has high recovery efficiency.
Easy color change
Use bend joint welding to make the outdoor body panels tighter. Optional multi-tube multi cyclone separator makes color change easier and faster.
Use bend joint welding to make the outdoor body panels tighter. Optional multi-tube multi cyclone separator makes color change easier and faster.
Environmental protection standards
The ultra-fine dust passes through the filter core and the automatic backflushing system to achieve higher environmental
protection requirements. The surface of the chamber is smooth and smooth, and the joints of the plates are injected with
high-quality sealant, which is convenient for cleaning powder.
The ultra-fine dust passes through the filter core and the automatic backflushing system to achieve higher environmental
protection requirements. The surface of the chamber is smooth and smooth, and the joints of the plates are injected with
high-quality sealant, which is convenient for cleaning powder.
Support customization
The distance between the workpiece entry opening and the workpiece can be adjusted, the shape is beautiful, and any size can be customized.
The distance between the workpiece entry opening and the workpiece can be adjusted, the shape is beautiful, and any size can be customized.
Model | COLO-S-3212 |
Operating Dimensions | Width620*Depth2920*Heght1500mm |
Overall dimensions | Width1200*Depth3000*Heght2033mm |
Weight | 500kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 4kw |
Filter Count | 6 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Application
COLO-S-3212 Tunnel Powder Coating Booth is the best choice for conveyorized coating applications, double working stations allows operators to paint both sides of parts simultaneously. It supports continuous production of a wide range products, such as rims, fire extinguisher, LPG cyclinder, aluminum profiles, window frame, metal doors, etc.
Recommend Products
Company Information
PROFESSIONAL MANUFACTURER OF SURFACE FINISHING MACHINERY
Kafan is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
FAQ
Q: How do I choose a suitable powder coating booth for my workparts?
A: Depends on your maximum product size, required productivity, single color or multi color,
We can recommend you COLO standard spray booth or designed as your requests.
Q: What the spray booth filter material & size?
A: 100% polyester. We have three standard sizes of filter elements: 325mm*600mm ; 325mm*900mm and 325*1200mm. Different booth have different size filters.
Q: What is the power capacity of a powder coating booth?
A: The power supply is related to the fan motor. The fan motor is determined by the opening size of the spray booth. That is to say, the power is determined by the size of the spray booth.
Q.What is the voltage of a powder coating booth?
A: We can customize 220V/380V, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
Q: Is it necessary to purchase a powder coating booth?
A: First, the booth will absorbs oversprayed powder through the filters, keep your workshop clean. Second the collected powder can be recycled to save cost.
Q: Do I need to assemble the standard powder spray booth?
A: No, it is completely shipped, just need to connect the air tube with your air compressor. And connect the wire with your electricity.
Q: What is the delivery time?
A: Standard powder coating ovens requires 10-15 working days; custom-made curing ovens will tables around 20-35 workdays from the design to the end of the manufacturing process.
Q: How long it will arrive to my country?
A: Shipping time will vary depending on your actual seaport.
A: Depends on your maximum product size, required productivity, single color or multi color,
We can recommend you COLO standard spray booth or designed as your requests.
Q: What the spray booth filter material & size?
A: 100% polyester. We have three standard sizes of filter elements: 325mm*600mm ; 325mm*900mm and 325*1200mm. Different booth have different size filters.
Q: What is the power capacity of a powder coating booth?
A: The power supply is related to the fan motor. The fan motor is determined by the opening size of the spray booth. That is to say, the power is determined by the size of the spray booth.
Q.What is the voltage of a powder coating booth?
A: We can customize 220V/380V, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
Q: Is it necessary to purchase a powder coating booth?
A: First, the booth will absorbs oversprayed powder through the filters, keep your workshop clean. Second the collected powder can be recycled to save cost.
Q: Do I need to assemble the standard powder spray booth?
A: No, it is completely shipped, just need to connect the air tube with your air compressor. And connect the wire with your electricity.
Q: What is the delivery time?
A: Standard powder coating ovens requires 10-15 working days; custom-made curing ovens will tables around 20-35 workdays from the design to the end of the manufacturing process.
Q: How long it will arrive to my country?
A: Shipping time will vary depending on your actual seaport.
Похожие товары

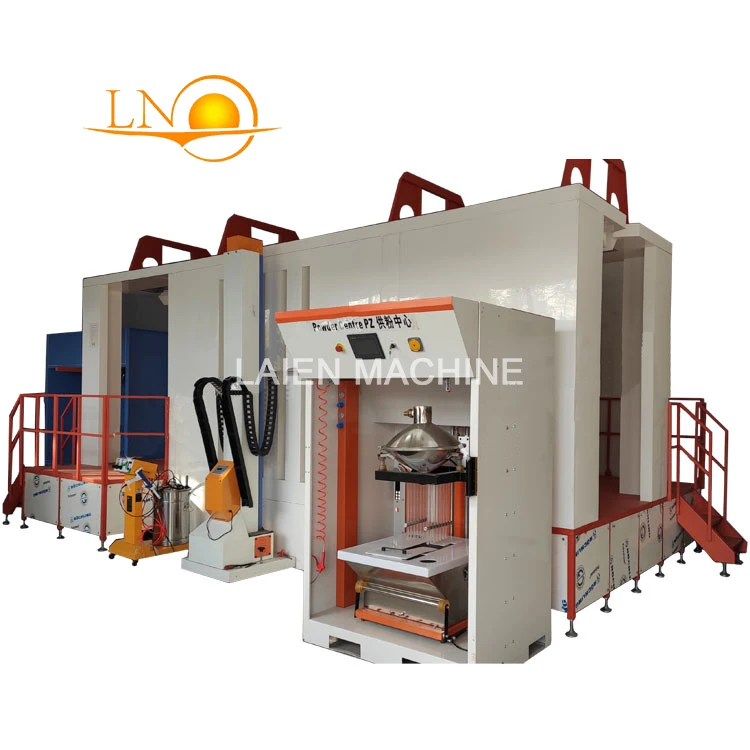

ЛАЙЕН автоматическая линия электростатической порошковой окраски, производственная линия для распыления порошка
9 000,00 $ - 10 000,00 $

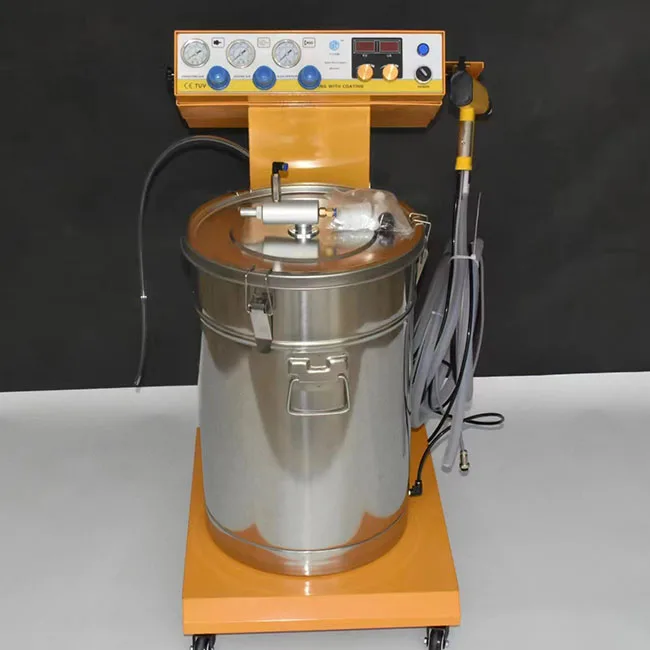

Электростатическое оборудование для живописи продажа
Optiselect GM03 1007748 # 1007749 150mm 300 mm powder coating gun extension bar / lance with round jet

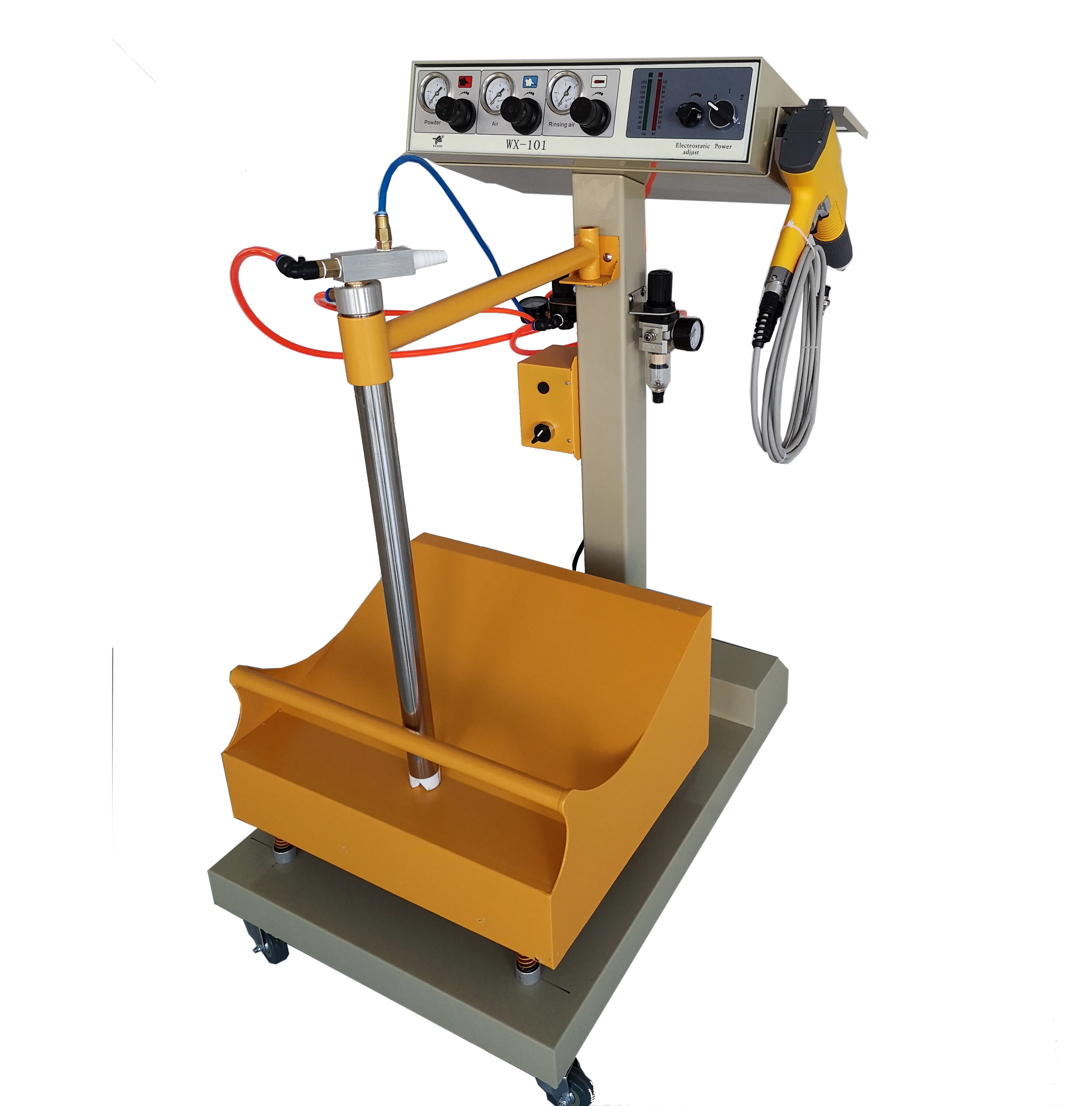

WX-301 порошковое покрытие оборудование для производства
199,00 $ - 229,00 $

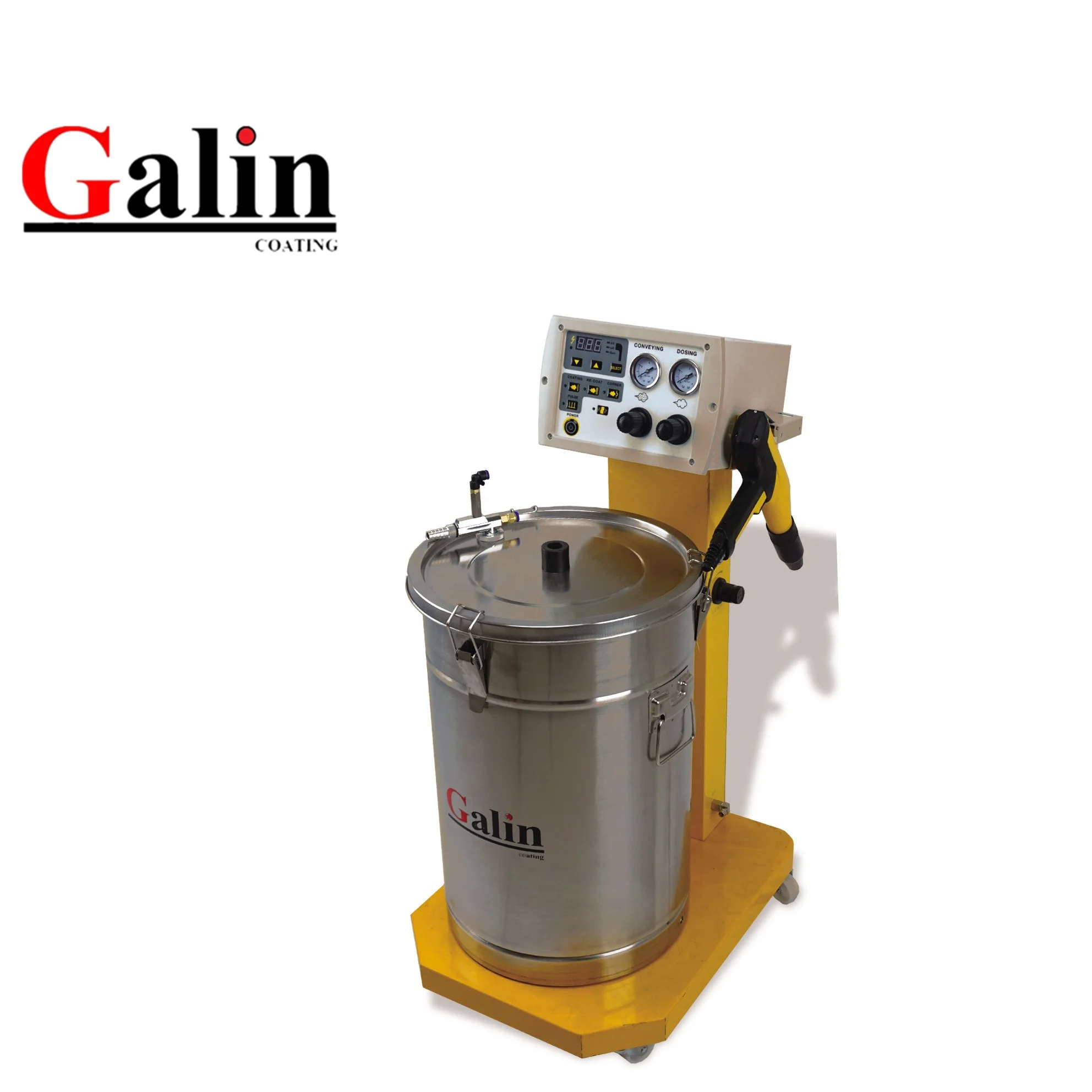

K1Y/Лаборатория/ручное/автоматическое/пистолет для порошкового покрытия с бункером флюдирования
580,00 $

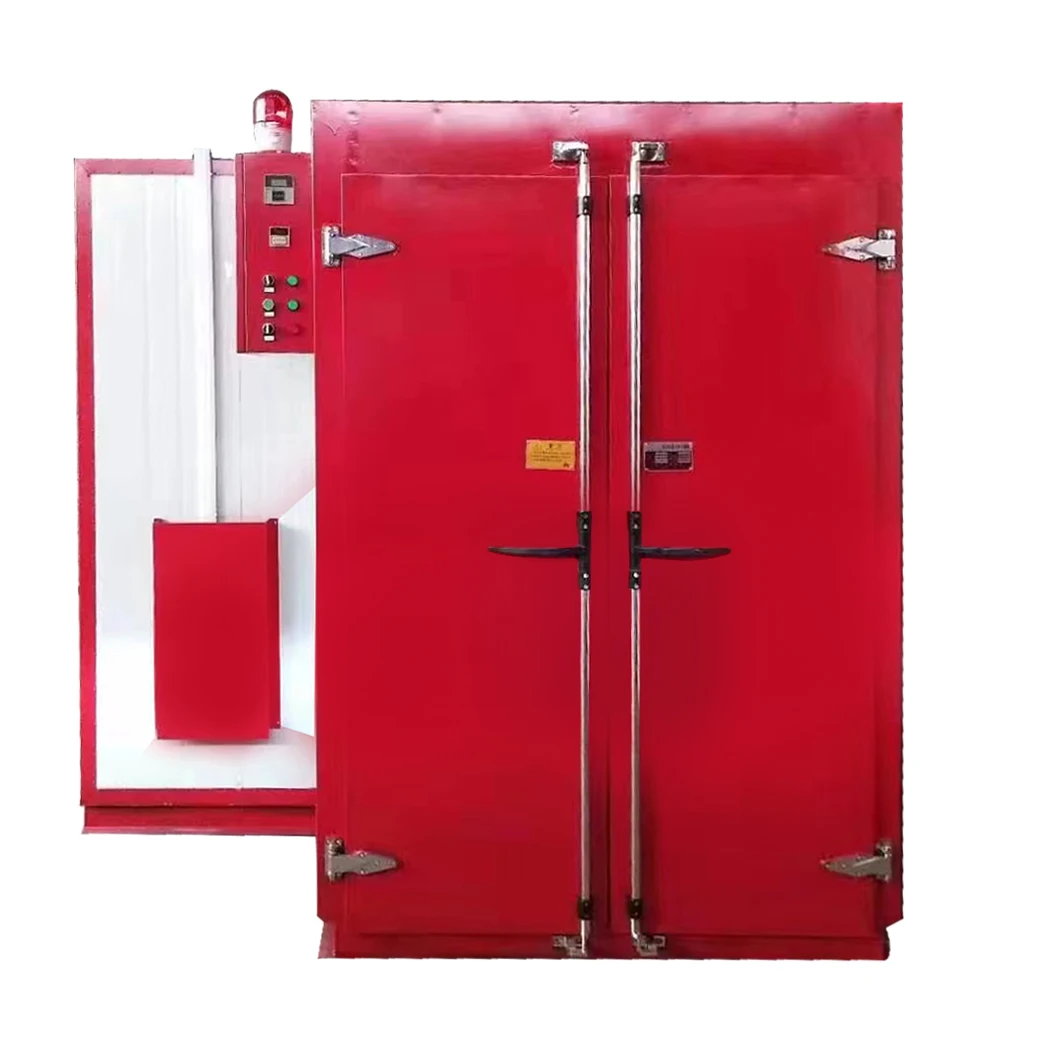

Высокотемпературная печь Прямая продажа с
1 100,00 $ - 1 500,00 $

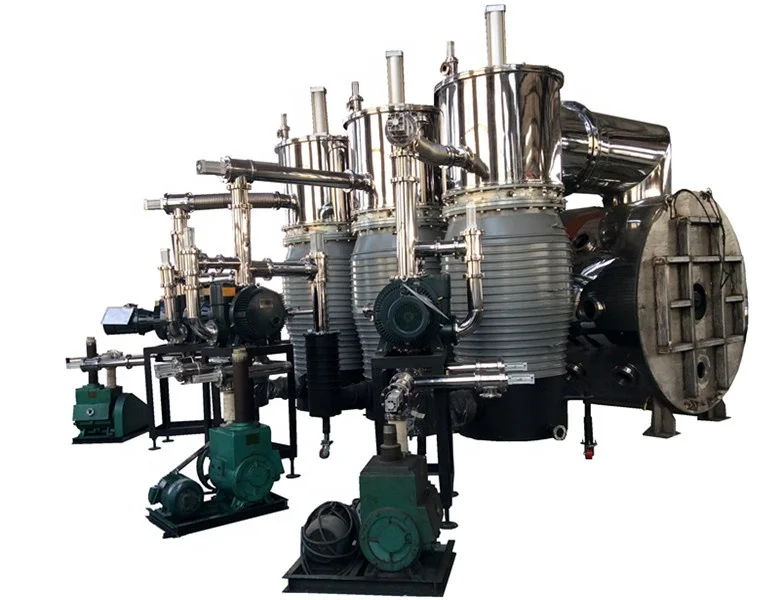

Оборудование/машина для нанесения покрытия большого типа PVD
