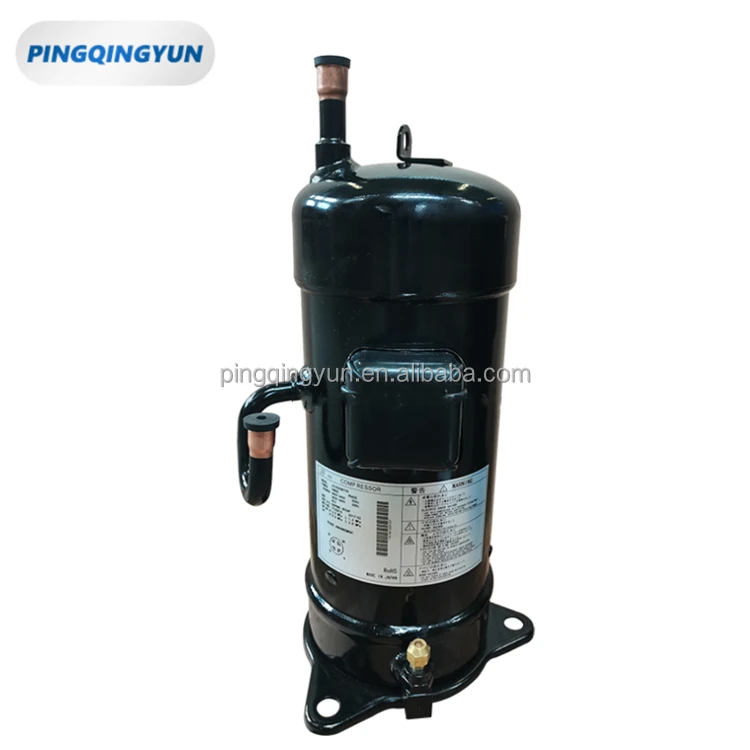

Горячая Распродажа JT100FCVDKT цифровой компрессор для холодильной
500,00 $ - 550,00 $
Ребристый Медный трубчатый радиатор QINGLI алюминиевый ребристый теплообменника холодильника
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Nanjing Bang Win Imp & Exp Co. Ltd.
Сохранить в закладки 1600613248898:
Описание и отзывы
Характеристики
Product Series
Finned Heat Exchanger Tubes
maximum working temperature | 150°C |
atmospheric corrosion resistance | medium |
mechanical resistance resistance | low |
fin materials | aluminium, copper |
tube materials | any theoretical limit |
maximum working temperature | 180°C |
atmospheric corrosion resistance | high |
mechanical resistance resistance | low |
fin materials | aluminium, copper |
tube materials | any theoretical limit |
maximum working temperature | 260°C |
atmospheric corrosion resistance | medium |
mechanical resistance resistance | medium |
fin materials | aluminium, copper |
tube materials | any theoretical limit |
maximum working temperature | 400°C |
atmospheric corrosion resistance | low |
mechanical resistance resistance | medium |
fin materials | aluminium, copper, carbon steel |
tube materials | any theoretical limit |
maximum working temperature | 285°C |
atmospheric corrosion resistance | hign |
mechanical resistance resistance | hign |
fin materials | aluminium |
tube materials | any theoretical limit |

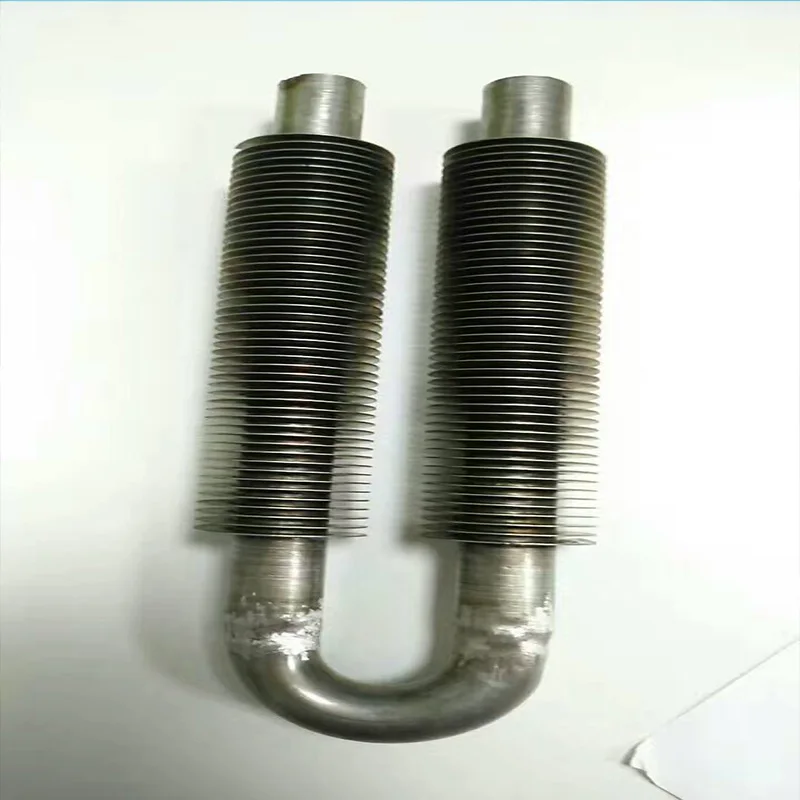

U Tubes
■BANGWIN’ in-house u bent tube manipulation facility enables us to offer rapid turnaround times on your requirements for u bent
heat exchanger tubes in any material.
heat exchanger tubes in any material.
■Our competitive prices, rapid quotations and bespoke packing ensure we consistently deliver the highest quality of service.

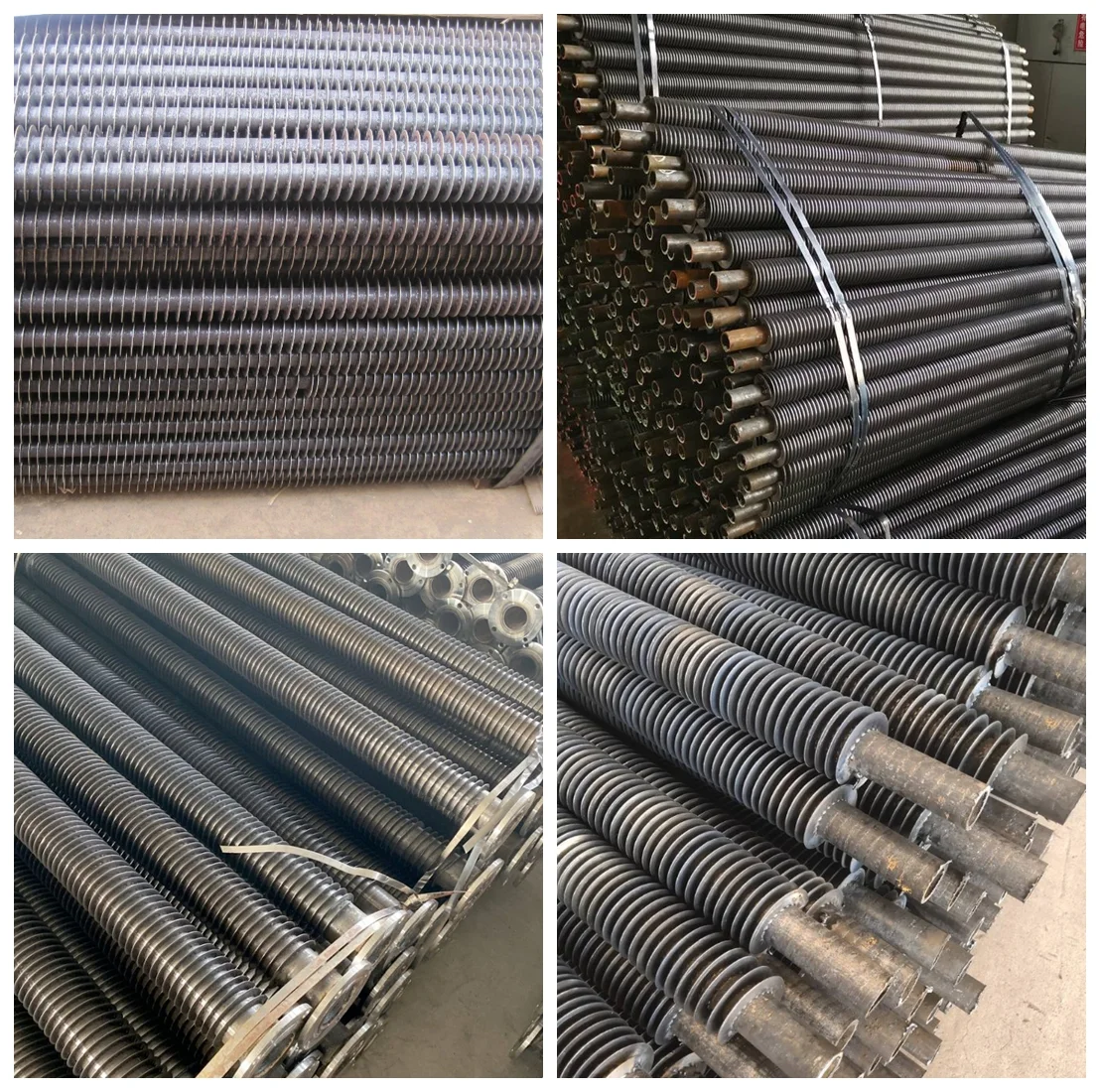

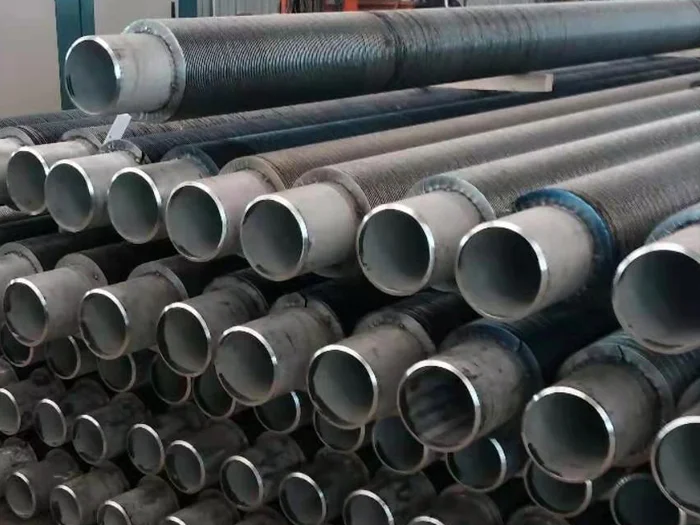

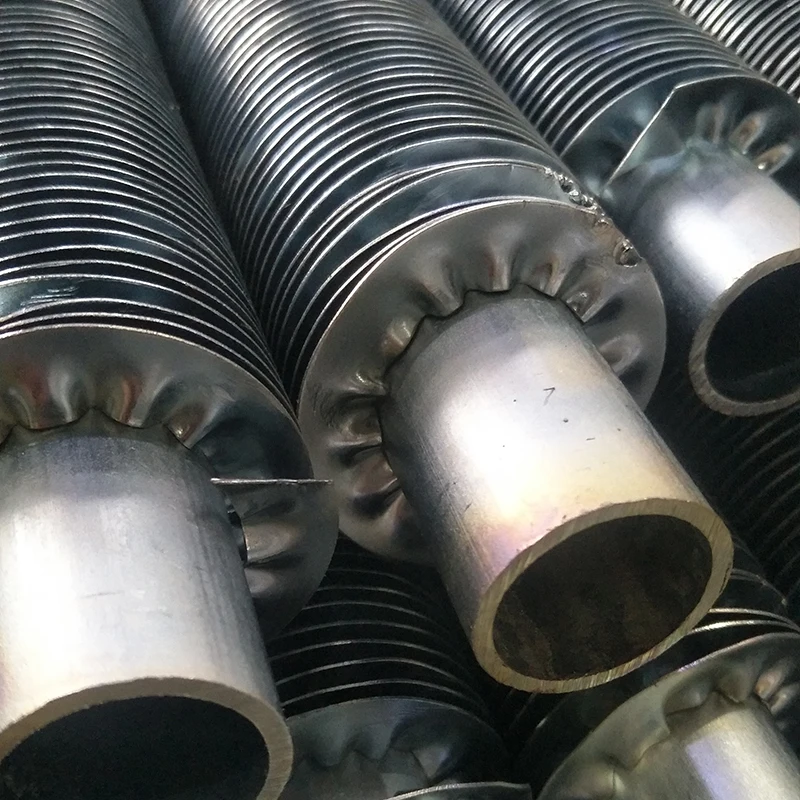

Welded Finned Tubes
BANGWIN can supply either solid or serrated welded finned tubes. These tubes are manufactured specifically to suit the high
temperature environment found in furnaces/boilers and waste heat recovery equipment.
Our high frequency serrated fin is a metal strip that has been serrated or cut and then helically wound around the specified tube.
The fin is welded to the tubular base using the high frequency weld process.
The fin can be applied to a wide variety of tubular material with configurations to suit your requirements.
temperature environment found in furnaces/boilers and waste heat recovery equipment.
Our high frequency serrated fin is a metal strip that has been serrated or cut and then helically wound around the specified tube.
The fin is welded to the tubular base using the high frequency weld process.
The fin can be applied to a wide variety of tubular material with configurations to suit your requirements.
tube sizes | 3/4" O.D. TO 8" NPS (8.625" O.D.) |
fin heights | 3/8" TO 1 1⁄2" |
fin thickness | 20 ga. (.035") to 12 ga. (.102") segmented width: 4.5mm or 8mm |
segment width | 4.5mm OR 8mm |
fin pitch | 1 to 7 fins per inch |
material | any material or combination that can be resistance or arc welded |
Integral Low Fin Tubes
Integral low fin tube has the advantage that it can improve the thermal performance of a heat exchanger without the necessity forchanging shell size, flow arrangement or the repositioning of piping. The external surface of the tube is increased by theformation of "low fins" by direct extrusion from the material of the base tube.
tube sizes available | tube od: 12.7mm, 15.88mm 19.05mm, 25.04mm tube thickness: >=1.25mm tube length: up to 12,500mm |
fins/inch available | 16, 19, 26, 28, 32 & 36 fins/inch dependent on material and client requirements |
materials available | 1) carbon & low alloy steel 2) stainless steel: type 304, 304l, 316, 316l and 321 plus duplex. 3) copper base alloys: i.e. alloy443, 687, 706, 715 etc. 4) titanium & high nickel alloys |
typical extended surface ratios (finned/outside bare surface) | 19.05mm od with 19 fins/inch: 270% 25.4mm od with 26 fins/inch: 330% |
Factory pictures
FAQ
1. Who are we?
we are based in jiangsu, china, start from 2009,sell to mid east(80.00%),south america(10.00%),south asia(10.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
always a pre-production sample
before mass production;always final inspection before shipment;
before mass production;always final inspection before shipment;
3.What can you buy from us?
cooling tower,closed circuit cross flow cooling tower,closed circuit counter flow cooling tower,steel open cooling tower,frp cooling tower,cooling tower parts,and else you need;
4. Why should you buy from us not from other suppliers?
BANGWIN adopts the advanced design concept of american cti, absorbs advanced experience at home and abroad, and continues to develop
high-quality, efficient, first-class, reliable and durable heat exchange and refrigeration products.We provide professional design, installation, use, maintenance, repair, transformation, technical support for system upgrades and has passed the certification of gb/t9001-2008, is09001-2008 quality management system;
high-quality, efficient, first-class, reliable and durable heat exchange and refrigeration products.We provide professional design, installation, use, maintenance, repair, transformation, technical support for system upgrades and has passed the certification of gb/t9001-2008, is09001-2008 quality management system;
5. Whether you have the ability to accept the product customization?
Products can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.
if you want know more，contact us
Gaoyuu Sales Director
Mobile:+ 86-18936889762
Whatsapp: + 86-18936889762
Wechat: 18936889762
Skype:+ 86-18936889762
Email:gaoyuu@njbangwin.com
Похожие товары

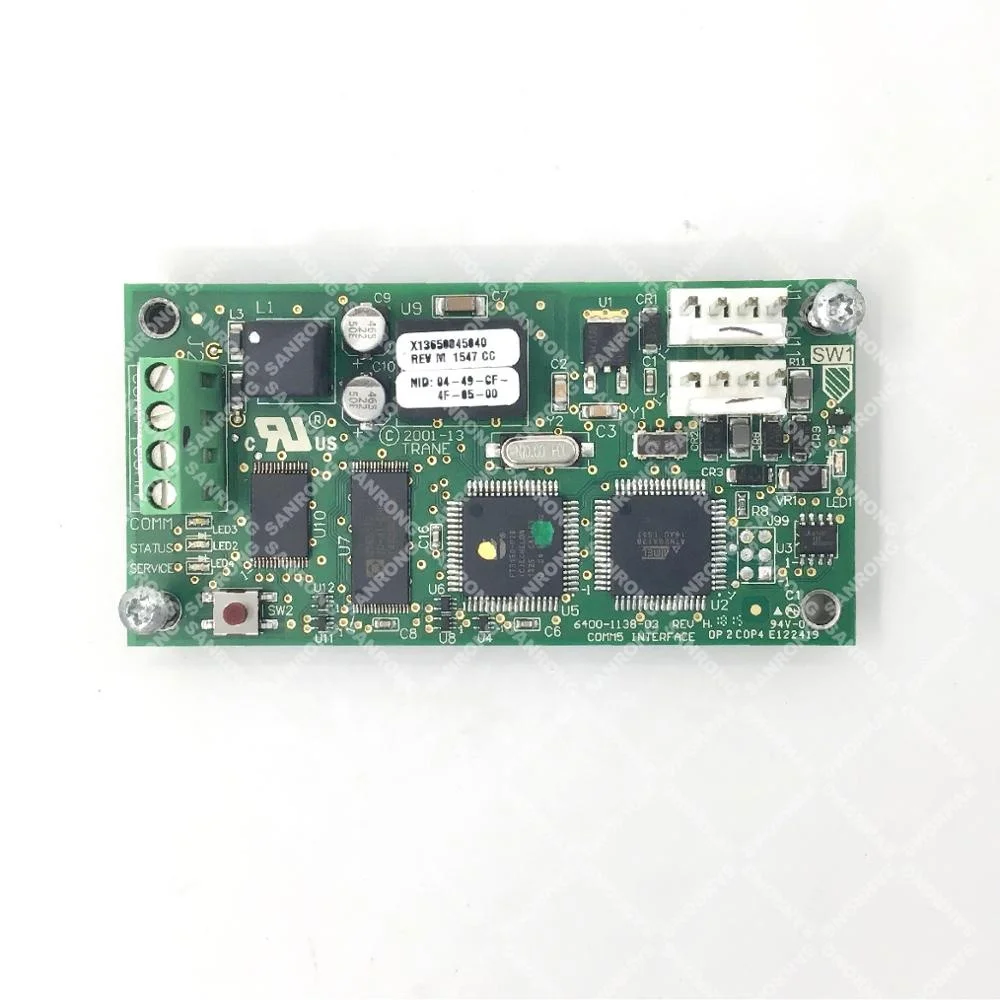

Модуль интерфейса Trane COMM5 MOD02418

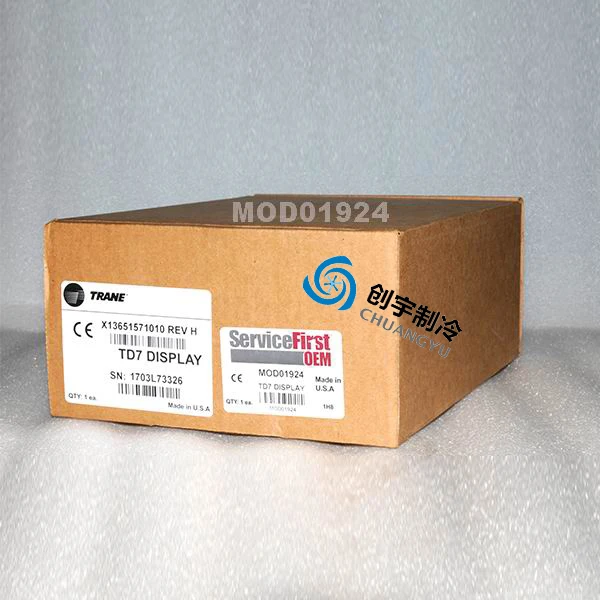

Запасные части для чиллера TRANE дисплей сенсорного экрана mod0707 X13651571010
Компрессор Danfoss 3HP Maneurop MT36-4VM MT36-5VM MT36-5VI MT36JG4FVE MT36JG4EVE MTZ36JG4BVE
330,00 $ - 360,00 $
Компрессор возвратно-поступательного движения 9HP Maneurop инверторный компрессор Danfos воздушный
200,00 $

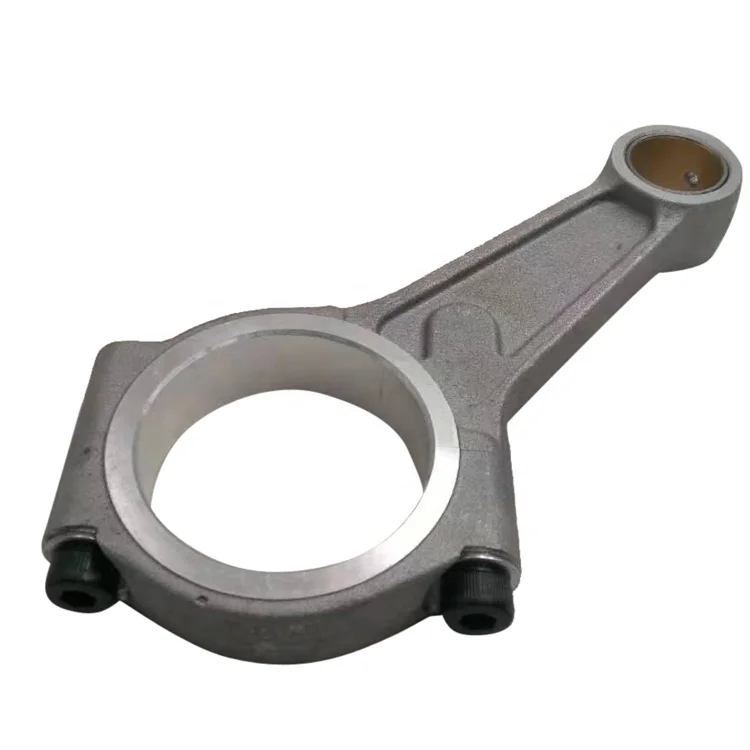

Производитель запчастей для холодильника серии Dorin H алюминиевый шатун 54 98x86 58x21 94
