Signalwell DDS578 три фазы 4 провода 5-100A 380V цифровой измеритель мощности потребление электроэнергии 35 мм DIN рейка
16,60 $ - 23,80 $
Однофазный трехпроводной электронный разъем XTM315PB измеритель активной энергии с ЖК дисплеем
- Категория: Energy Meters >>>
- Поставщик: Xintuo New Energy Co. Ltd.
Сохранить в закладки 1600613382387:
Описание и отзывы
Характеристики
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | Xintuo |
Model Number | XTM315PB |
Display Type | Digital Only |
Phase | Single Phase |
Measuring Energy Range | 0-999kwh |
Accuracy Class | 1.0 |
Output Voltage | 80-260V |
Operating Temperature | -10-60degree |
Dimensions | 8.96cm*4.96cm*2.43cm |
Communication | RS485 Port MODBUS-RTU Protocol |
Type | Energy Digital Kwh Meter |
Product name | Single Phase Electronic KWh Meter |
Display | LCD |
Frequency | 50HZ/60HZ |
Certificate | ISO9001 |
Installation | 35mm Din Rail |
Name | Multifunction Meter |
Standard | IEC62053-21 |
Rated current | AC 1A/ 5A |
Supply Ability
Supply Ability 10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details Transparent polybag, paper box or foam box, carton or pallet.
Port NINGBO/SHANGHAI
Lead Time: 5 days after order confirmation
Products Description

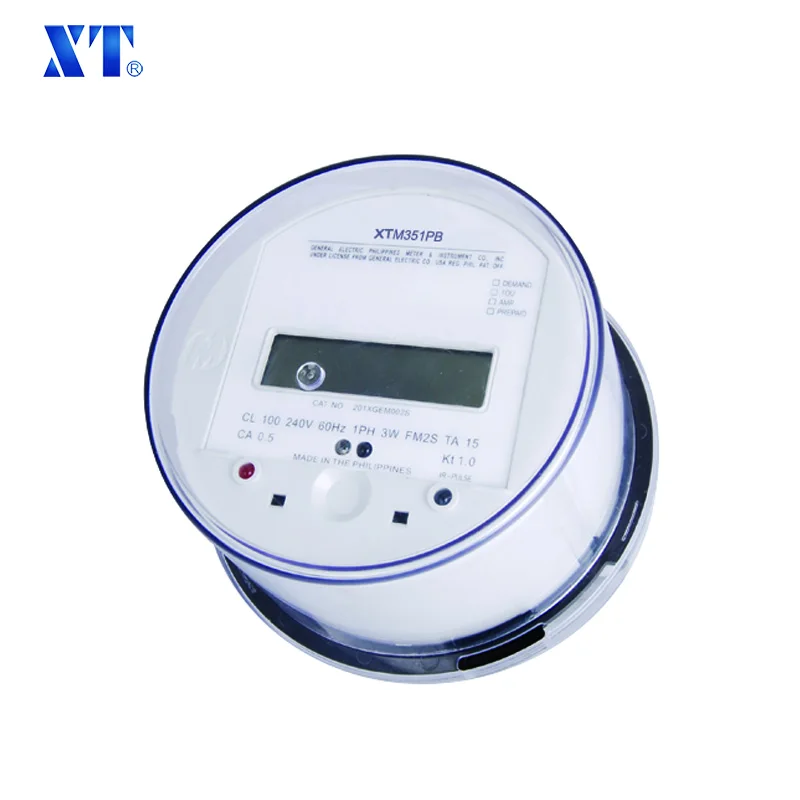

ENERGY METER EXPERT / Single phase three wire electronic socket installed active energy meter LCD display
General:
Model XTM351PB single phase three wire electronic socket installed active energy meter is a kind of new style single phase threewire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced techniqueof digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phaseactive energy meter stipulated in international standard IEC 62053-21 and standard ANSI C12.10-1997. It can accurate and directlymeasure 50Hz or 60Hz active energy consumption from three phase AC electricity net, it is use for setting indoor or outdoor meterbox. This meter has 7 digits LCD displays shows power. And there is far infrared communicatio n module in it, can read the meterand set the system parameters conveniently, it has following features: good reliability, light weight, specious nice appearance,convenient installation, etc.
Model XTM351PB single phase three wire electronic socket installed active energy meter is a kind of new style single phase threewire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced techniqueof digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phaseactive energy meter stipulated in international standard IEC 62053-21 and standard ANSI C12.10-1997. It can accurate and directlymeasure 50Hz or 60Hz active energy consumption from three phase AC electricity net, it is use for setting indoor or outdoor meterbox. This meter has 7 digits LCD displays shows power. And there is far infrared communicatio n module in it, can read the meterand set the system parameters conveniently, it has following features: good reliability, light weight, specious nice appearance,convenient installation, etc.
Functions and features :
• Socket installed, the cover is made of PC material which is transparent and anti-UV molded overall, the terminal is made of black glass fiber whi ch can fire-retardant and enhanced PC material. It has following features: Good weatherability, anti-impact, specious appearance, etc. complying with standard ANSI C12.10-1997.
• 8 digits LCD display, may select 6+2 digits display (999999.91kWh, default) or 7+1 digits display, can be set by the port of farinfrared communication by users.
• There is a port of far infrared pulse output, use for checking conveniently.
• There is a port of far infrared state communication, standard configuration communication agreement complying with standard DL/T645-1997, may select other configuration communication agreement.
• LED instructions signal of energy impulse (red).
• Automatic detection of the flow of load current, and display on LCD (when display, that is meaning the direction of the flow of load current reverse).
• Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.• Directly connect oper ation, type 2S wiring, may select single phase two wire, Directly connect operation, type 1S wiring
(Product Configuration code is PA).
• Socket installed, the cover is made of PC material which is transparent and anti-UV molded overall, the terminal is made of black glass fiber whi ch can fire-retardant and enhanced PC material. It has following features: Good weatherability, anti-impact, specious appearance, etc. complying with standard ANSI C12.10-1997.
• 8 digits LCD display, may select 6+2 digits display (999999.91kWh, default) or 7+1 digits display, can be set by the port of farinfrared communication by users.
• There is a port of far infrared pulse output, use for checking conveniently.
• There is a port of far infrared state communication, standard configuration communication agreement complying with standard DL/T645-1997, may select other configuration communication agreement.
• LED instructions signal of energy impulse (red).
• Automatic detection of the flow of load current, and display on LCD (when display, that is meaning the direction of the flow of load current reverse).
• Single direction single component measure single phase three wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.• Directly connect oper ation, type 2S wiring, may select single phase two wire, Directly connect operation, type 1S wiring
(Product Configuration code is PA).
Technical parameters:
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2012,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter
4. why should you buy from us not from other suppliers?
DIN Rail Energy Meter
IC Card Pre paid Energy Meter
Single phase prepayment Energy Meter
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2012,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Meter
4. why should you buy from us not from other suppliers?
DIN Rail Energy Meter
IC Card Pre paid Energy Meter
Single phase prepayment Energy Meter
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Похожие товары
Дизель-генератор цифровой многофункциональный измеритель
13,00 $ - 20,00 $
Оптовая продажа dtsu666 h huawei умный датчик мощности 250a/50ma счетчик
122,00 $ - 128,00 $
Одиночной фазы Ватт meterdigital мощность MeterWith RS485 Modbus 230V/100A метр DDS519R пластик + металл счетчик
13,96 $ - 17,46 $

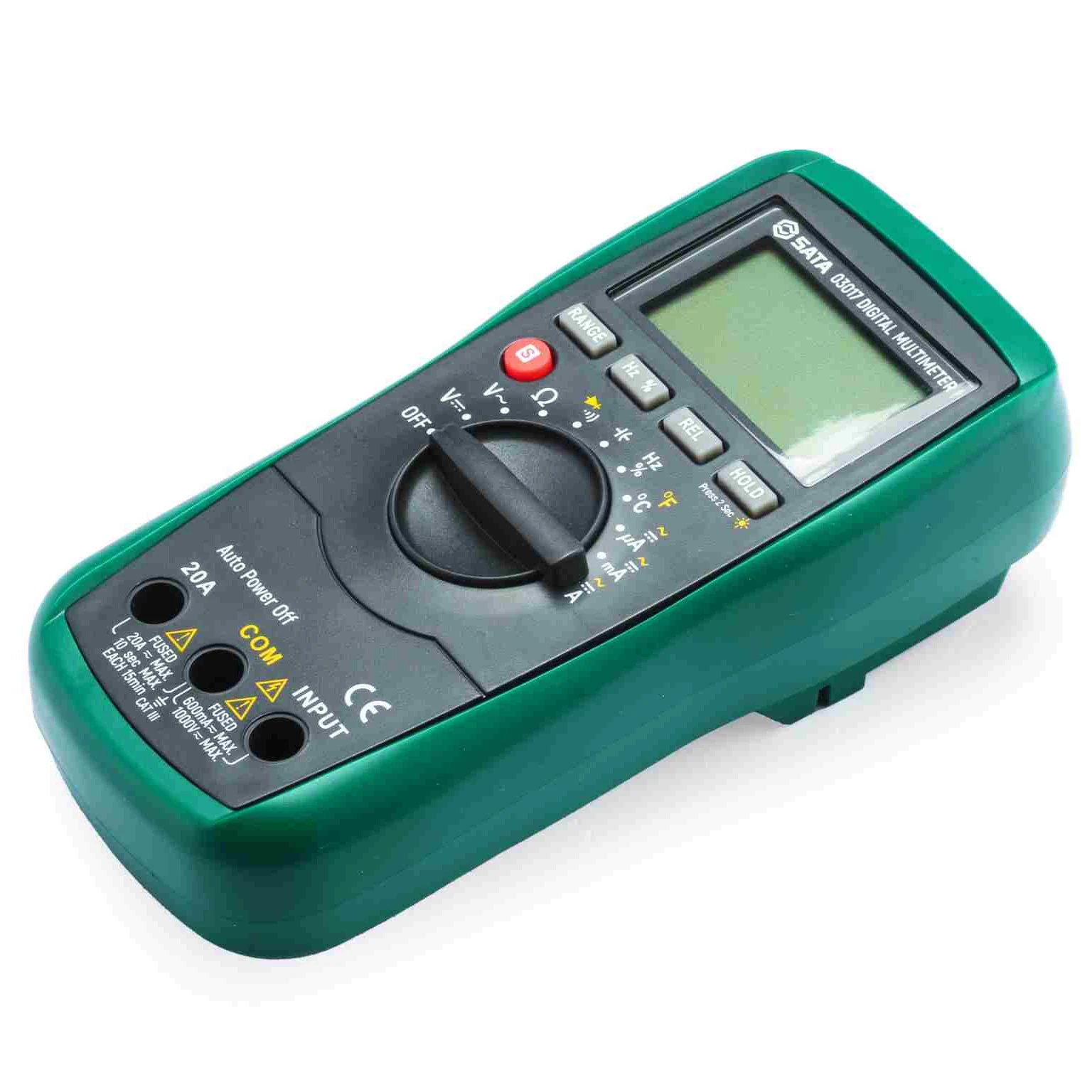

Цифровой мультиметр SATA 03017 с измерением
47,00 $ - 58,00 $

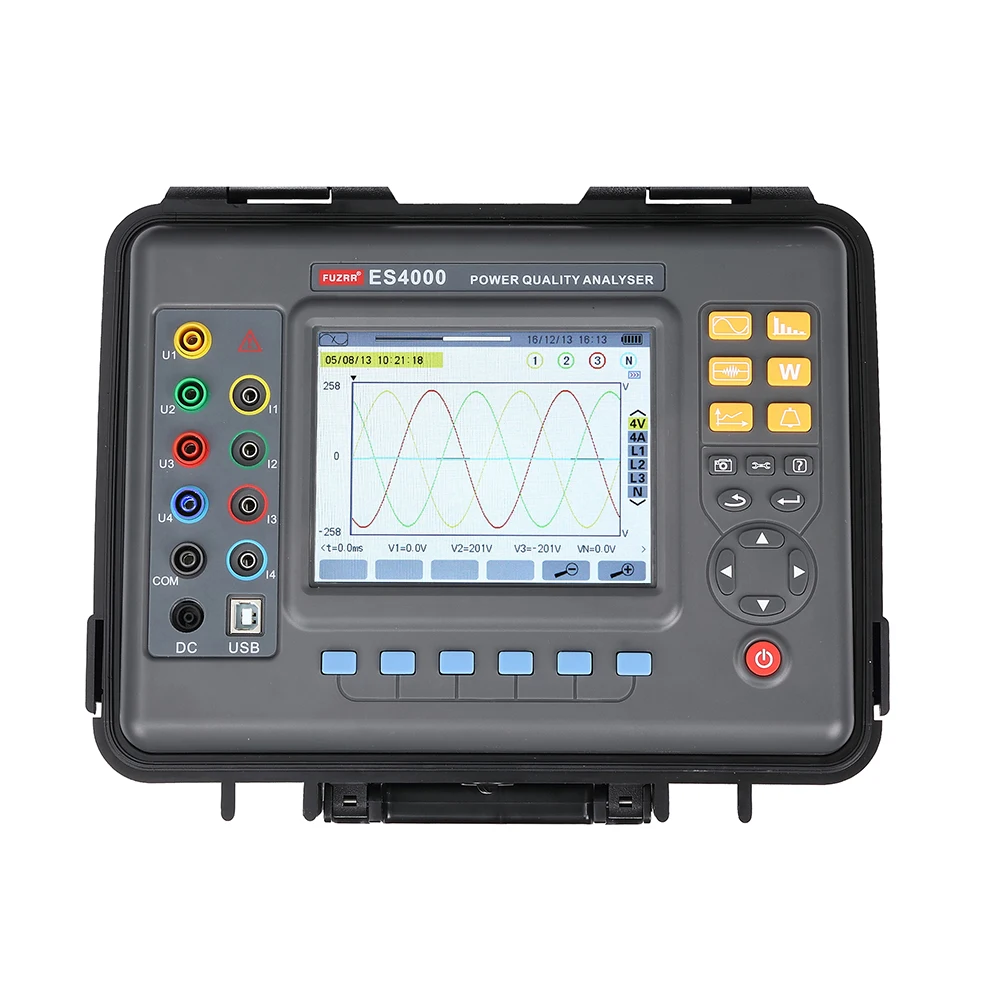

Трехфазный детектор напряжения ES4000, анализатор тока, трансформатор, анализатор параметров мощности
1 028,00 $ - 1 256,00 $

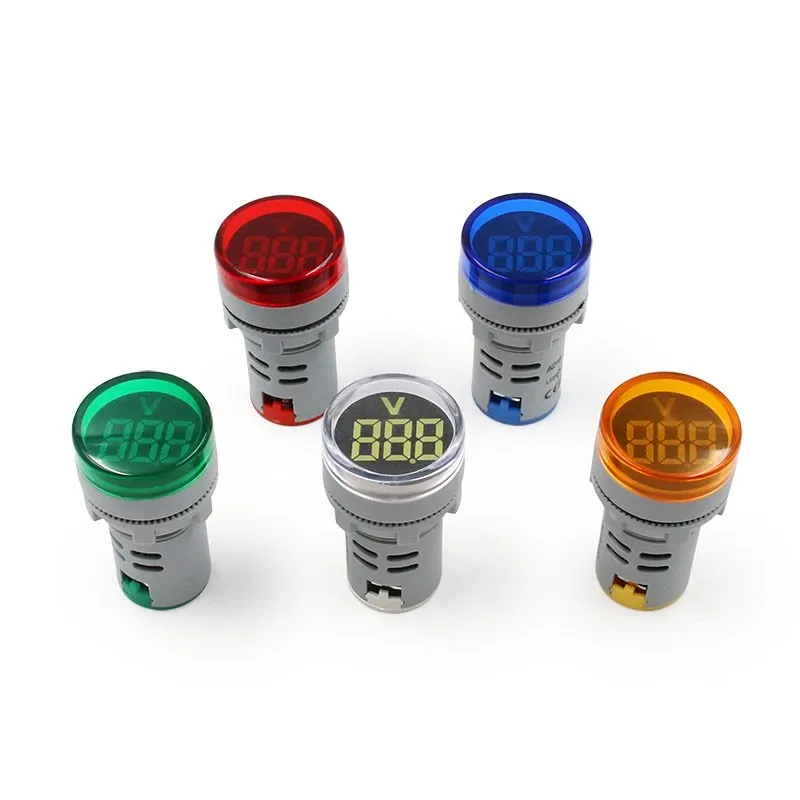

DIY Мини цифровой вольтметр 22 мм круглый 12-500 В переменного тока тестер напряжения измеритель монитор питания Светодиодный индикатор лампы
1,70 $ - 1,90 $

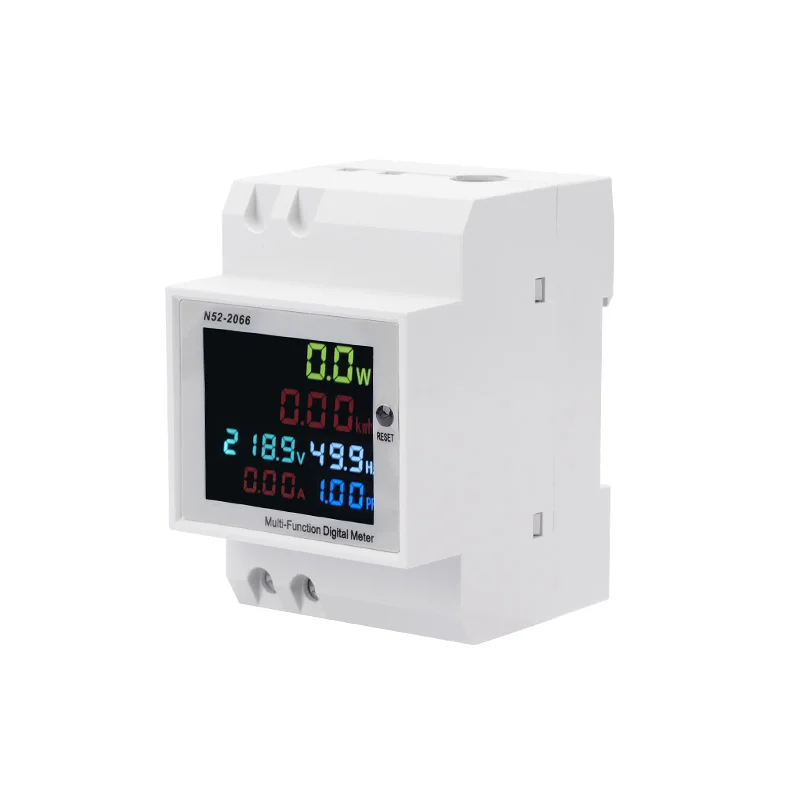

Многофункциональный измеритель мощности на DIN-рейку с
