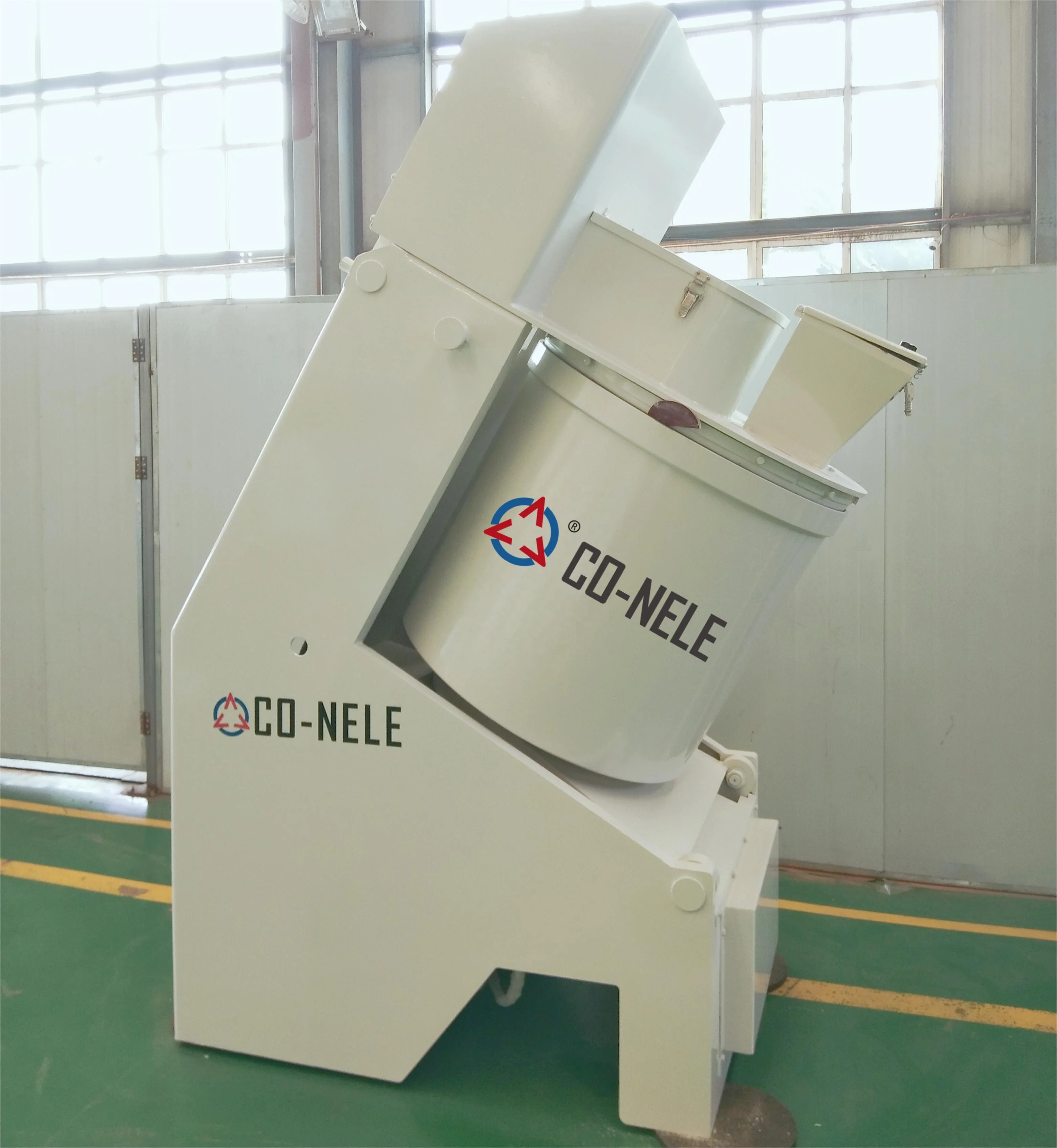

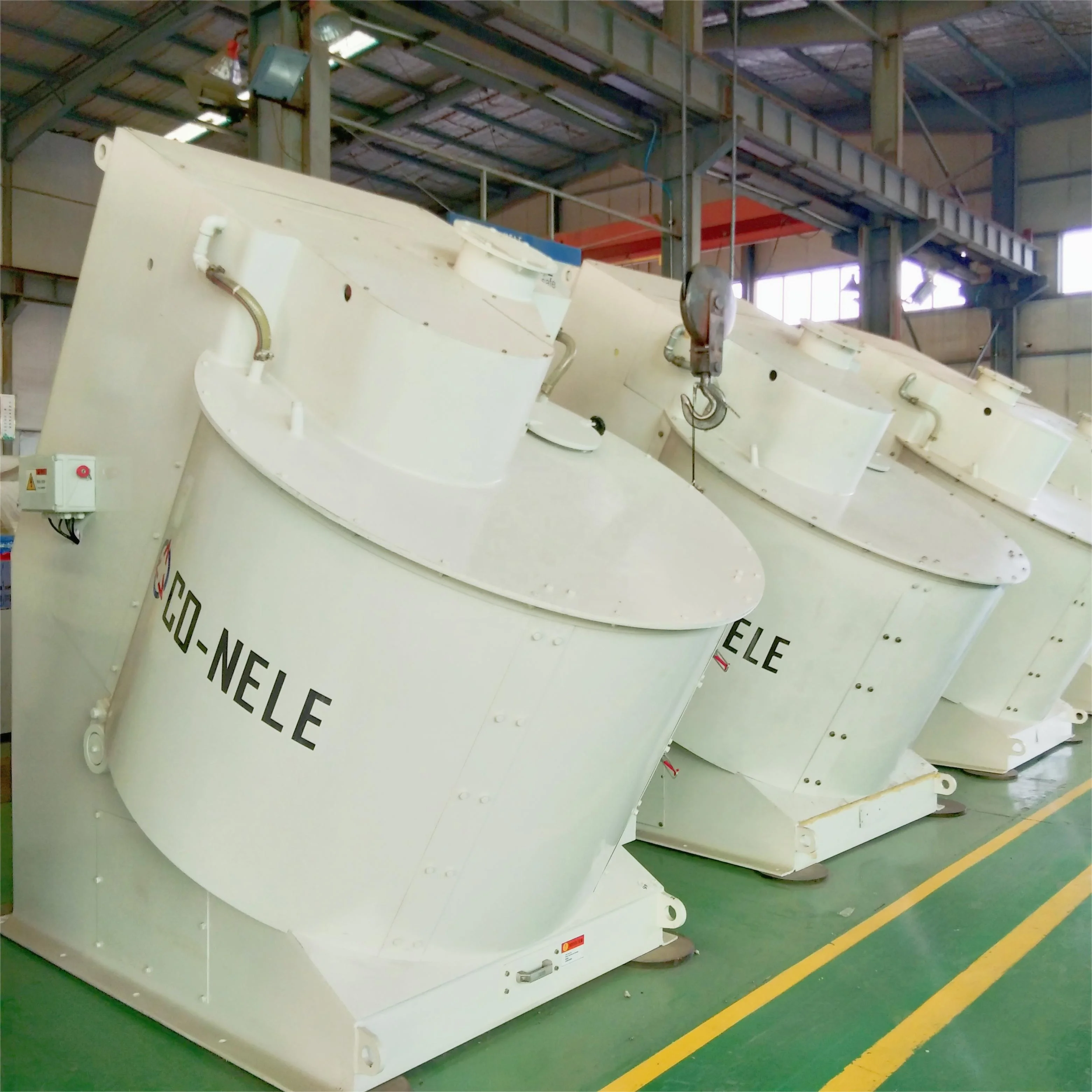

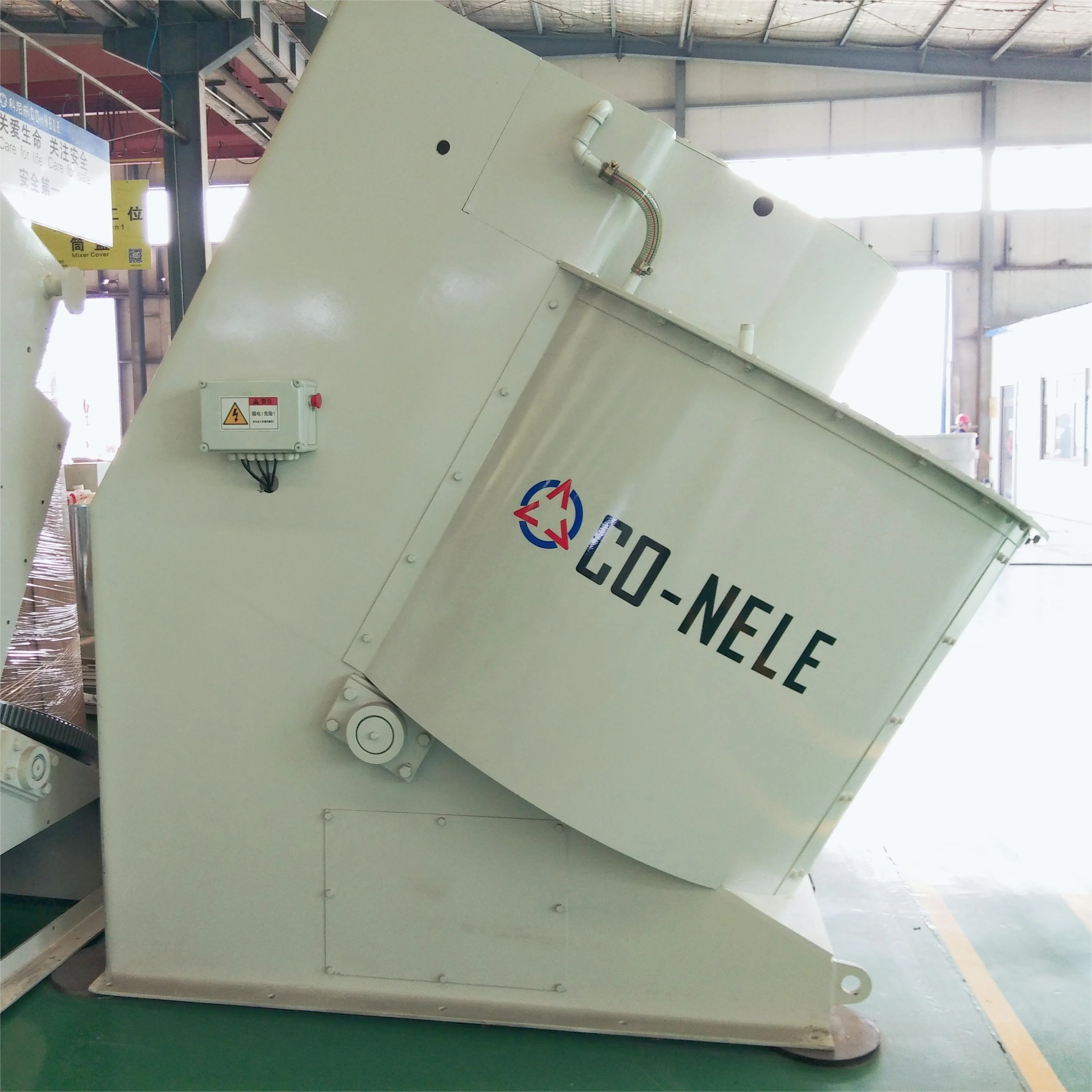

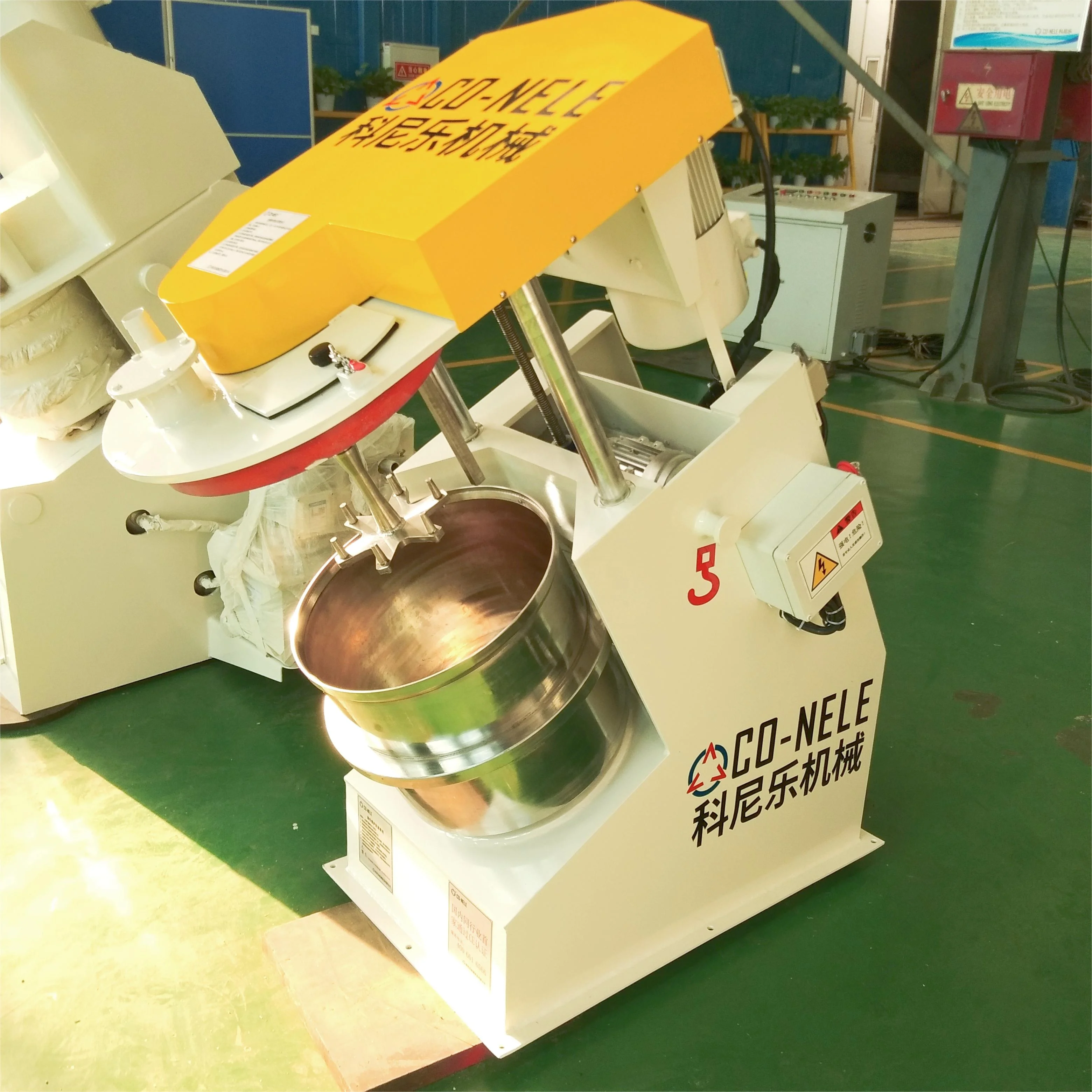

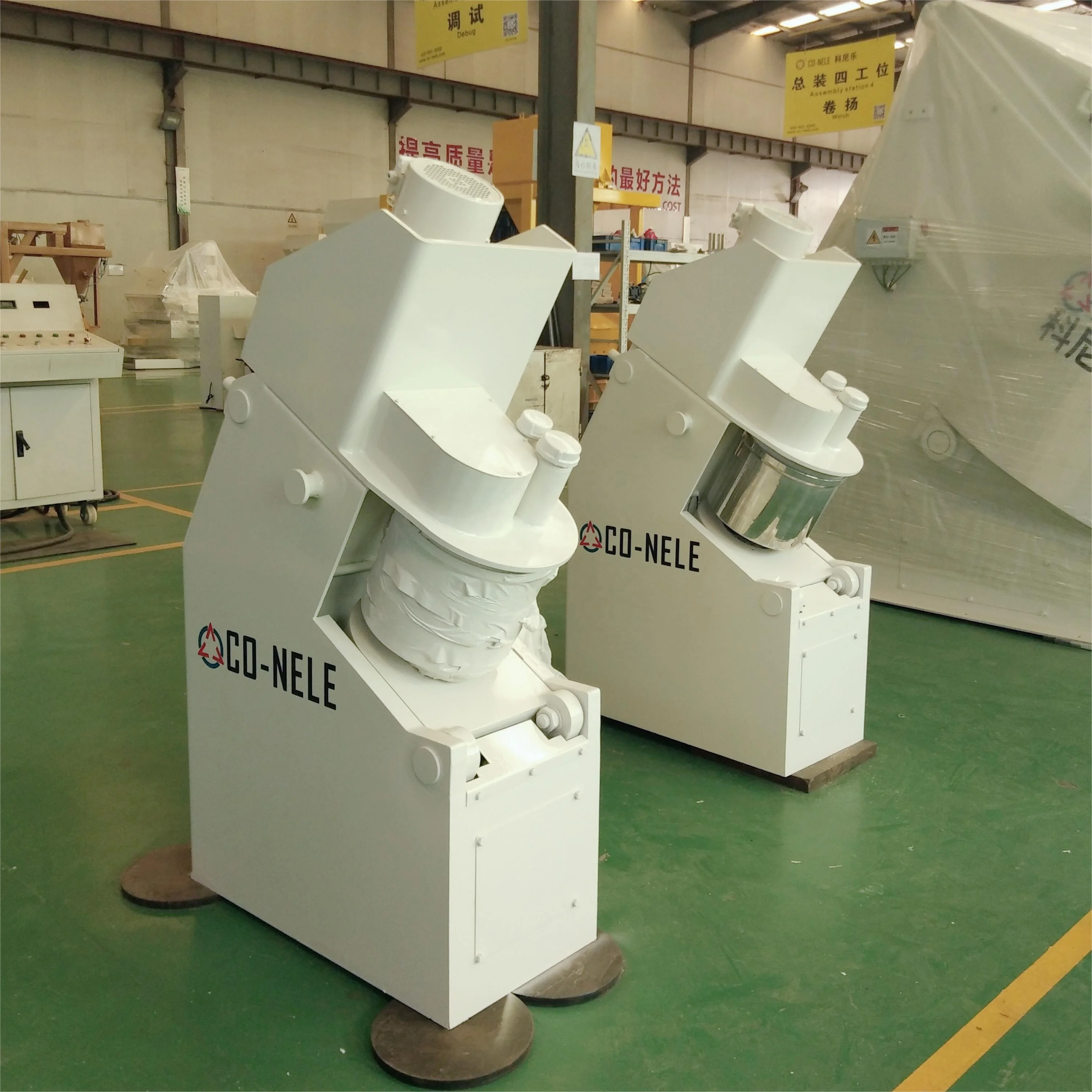

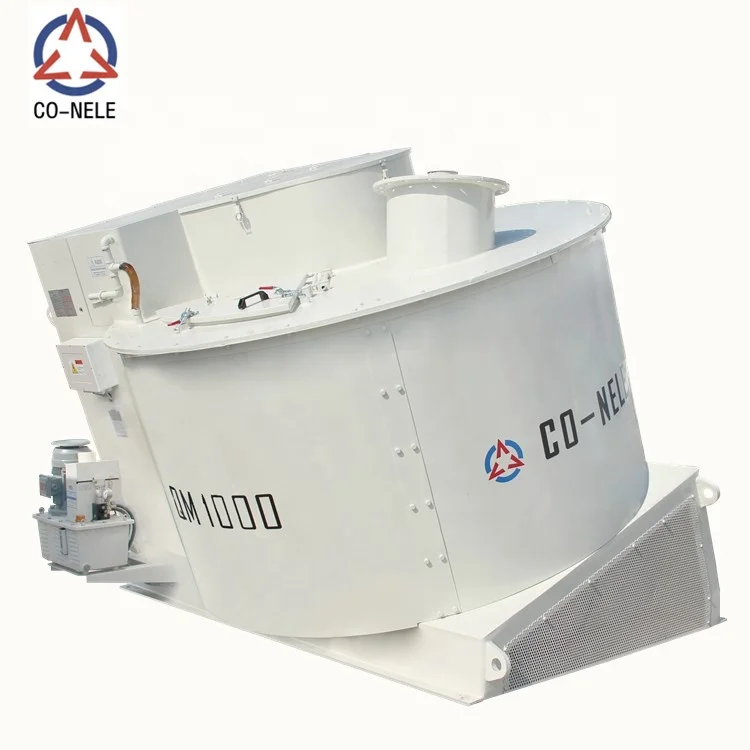

Высокооднородный CQM750 Интенсивный Смеситель для смешивания кирпичей
- Категория: >>>
- Поставщик: Qingdao Co-Nele Machinery Co. Ltd.
Сохранить в закладки 1600613406284:
Описание и отзывы
Характеристики
Product Description
Mixing System
The mixing pan can be arranged either horizontally or at an optimized angle of inclination to suit the particular requirements.
Mixer batchwise
Higher tool speeds can be used for example to: - optimally solubilize fibers - completely pulverize pigments, optimize mixing of fine fractions - manufacture suspensions with a high solid content.
Advantages of the mixing system
Higher tool speeds can be used for example to - optimally solubilize fibers - completely pulverize pigments - optimize mixing of fine fractions - manufacture suspensions with a high solid content Medium tool speeds are used to - achieve mixtures with a high mixture quality At lower tool speeds - lightweight additives or foams can be gently added to the mixture．
Granulating & Pelletizing technology
CO-NELE intensive mixers are designed as granulating and pelletizing mixers which produce predictable and reproducible grain sizes. Just one machine is needed to carry out the two process steps: mixing and granulating/pelletizing.
CO-NELE intensive mixers are designed as granulating and pelletizing mixers which produce predictable and reproducible grain sizes. Just one machine is needed to carry out the two process steps: mixing and granulating/pelletizing.
Versatile – Different consistencies can be processed in the mixer, from dry to plastic and pasty.
Fast and effective – Hiqh mixing qualities are obtained already after short mixing times.
Scale-up without limit – The linear transfer of the test results to industrial scale is possible.
The multi-functional mixing system can be used for many different applications, e.g. for mixing, granulating, coating, kneading,dispersing, dissolving, defibering and many more.
Applications
Brick
Refractory
Ceramic
Fertilizer
Glass
Carbon
Metallurgy
Foundry sand
Details
Name: Mixing device
Original: China(shandong)

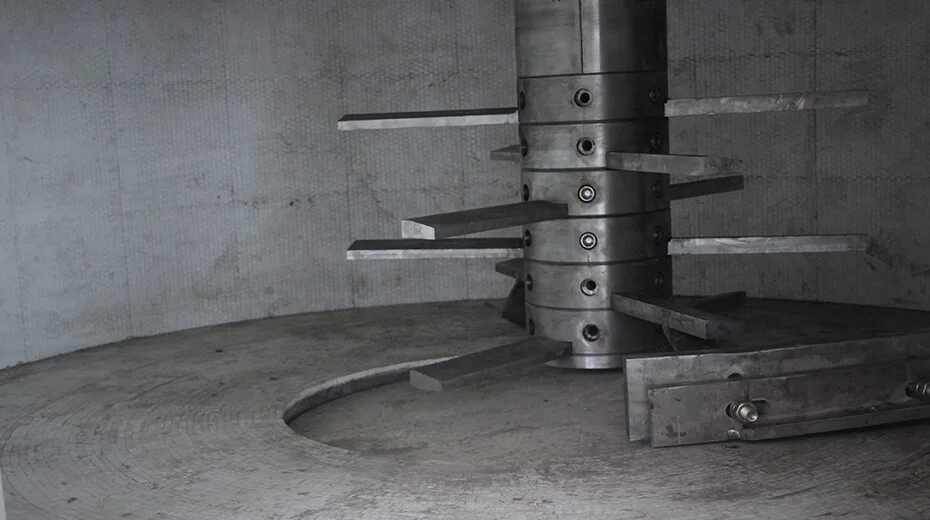

While the material rotating with the mixing drum, a force generated between the mixing drum and the mixing device that is rotating the same direction in the centrifugal position.
The wolfram carbide compounded liner ensures a durable quality and an easy maintaining. The shape and quantity of the mixing blade depends on the material to mix. The blades are also easy to replace.
Original: China(shandong)
While the material rotating with the mixing drum, a force generated between the mixing drum and the mixing device that is rotating the same direction in the centrifugal position.
The wolfram carbide compounded liner ensures a durable quality and an easy maintaining. The shape and quantity of the mixing blade depends on the material to mix. The blades are also easy to replace.
Name: Driving device
Original: China(shandong)
It can be selected for different demand of power, revolutions, direction of rotation and energy transfermode according to the task.
Friction gear or ring gear drived mixing drum.
The motor dirive the gearbox by vee belt Then the
gearbox drive the mixing device.
Original: China(shandong)
It can be selected for different demand of power, revolutions, direction of rotation and energy transfermode according to the task.
Friction gear or ring gear drived mixing drum.
The motor dirive the gearbox by vee belt Then the
gearbox drive the mixing device.
Name: Discharging device
Original: China(shandong)
Special sealing device is applied to the discharging gate to prevent from leaking.
Original: China(shandong)
Special sealing device is applied to the discharging gate to prevent from leaking.

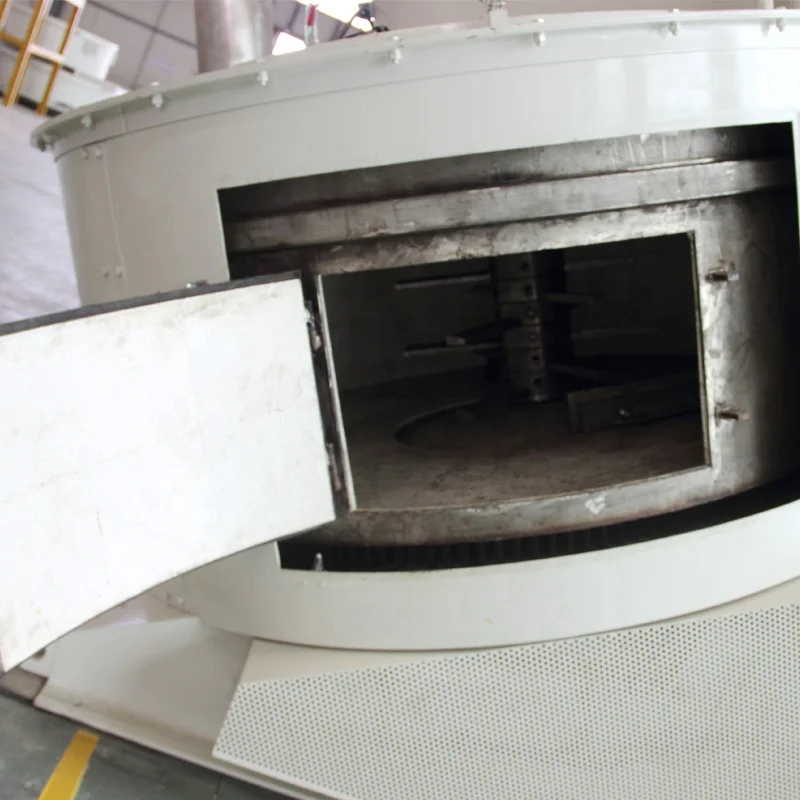

Name: Maintaining door, safe door, observing port
Original: China(shandong)
On the consideration of personnel safety and to the market demand, we adopt reliable high-sensitive security switches to be equipped on the maintaining door.
There is an observing port on the maintaining door, observing is possible without cutting off the power.
Original: China(shandong)
On the consideration of personnel safety and to the market demand, we adopt reliable high-sensitive security switches to be equipped on the maintaining door.
There is an observing port on the maintaining door, observing is possible without cutting off the power.
Specification
SPECIFICATIONS FOR CQM INTENSIVE LAND MIXER | ||||||||||||
Type | CQM10 | CQM40 | CQM50 | CQM100 | CQM150 | CQM200 | ||||||
Input capacity(L) | 15 | 60 | 75 | 150 | 225 | 300 | ||||||
Out capacity(L) | 10 | 40 | 50 | 100 | 150 | 200 | ||||||
Out mass(Kg) | 12 | 48 | 60 | 120 | 180 | 300 | ||||||
Main planet(nr) | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Type | CQM330 | CQM500 | CQM750 | CQM1000 | CQM1500 | CQM1500P | ||||||
Input capacity(L) | 500 | 750 | 1125 | 1500 | 2250 | 1800 | ||||||
Out capacity(L) | 330 | 500 | 750 | 1000 | 1500 | 1500 | ||||||
Out mass(Kg) | 400 | 600 | 900 | 1200 | 1800 | 1800 | ||||||
Main planet(nr) | 1 | 1 | 1 | 1 | 1 | 2 | ||||||
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Type | CQM2000p | CQM3000p | CQM4000p | CQM5000p | ||||||||
Input capacity(L) | 2400 | 3600 | 4800 | 6000 | ||||||||
Out capacity(L) | 2000 | 3000 | 4000 | 5000 | ||||||||
Out mass(Kg) | 2400 | 3600 | 4800 | 6000 | ||||||||
Main planet(nr) | 2 | 2 | 2/3 | 2/3 | ||||||||
Paddle(nr) | 2 | 2 | 2 | 2 | ||||||||
Company Profile
Qingdao CO-NELE Machinery Co.,Ltd is one of the national science & technology innovating enterprises since 1993. CO-NELE has obtained more than 80 national technology patents and more than 10,000 mixers. It has become the most comprehensive professional mixing company in China.

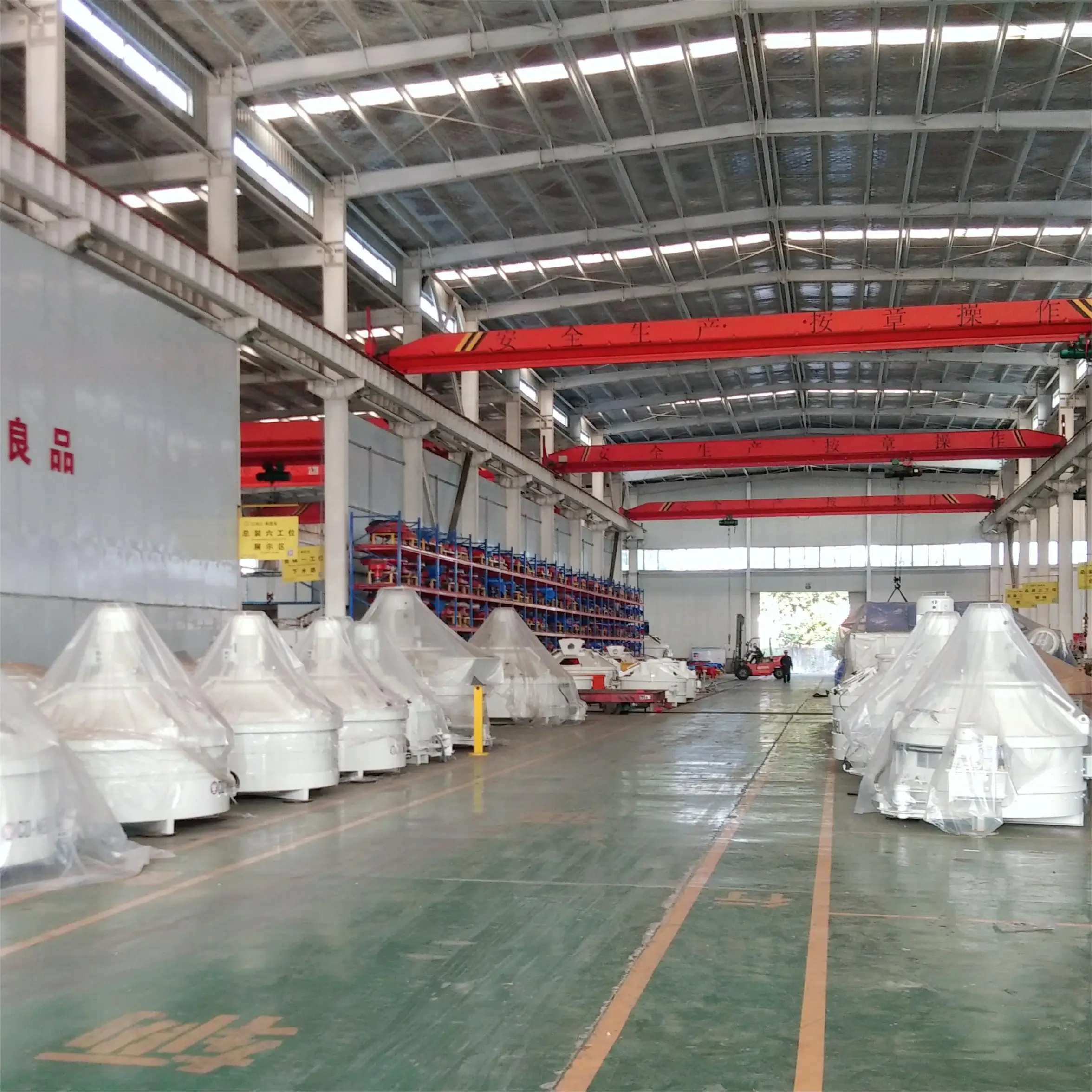

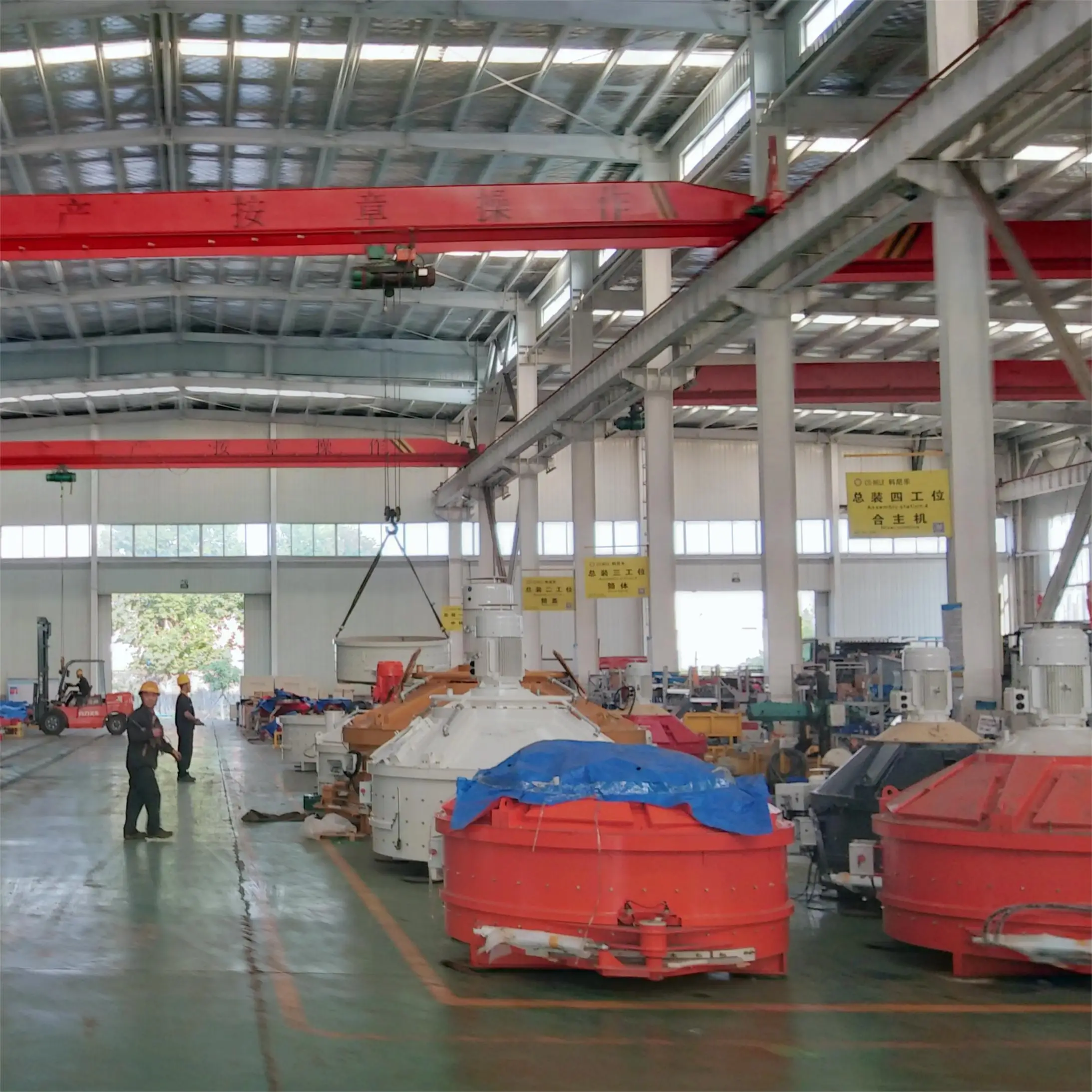

Our company is located in Qingdao city Shandong Province and our factory has two manufacturing bases. The plant construction area of 30,000 square meters. We provide high quality products throughout the country and also exports to more than 80 countries and regions from Germany, United States, Brazil,South Africa etc.
We have our own professionals and technicians to handle development,design,production, sales and service.Our products have passed the CE certification and obtained ISO9001,ISO14001,ISO45001 system certification.Planetary mixer has the first domestic market share.We have A-level unit of Mixing Machine Research Institute.
We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad.
After 26 years of industry accumulation, CO-NELE has obtained more than80 national technology patents and more than 10,000 mixers.It has become the most comprehensive professional mixing company in China.
We have our own professionals and technicians to handle development,design,production, sales and service.Our products have passed the CE certification and obtained ISO9001,ISO14001,ISO45001 system certification.Planetary mixer has the first domestic market share.We have A-level unit of Mixing Machine Research Institute.
We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the machine and perfrom the proper training abroad.
After 26 years of industry accumulation, CO-NELE has obtained more than80 national technology patents and more than 10,000 mixers.It has become the most comprehensive professional mixing company in China.
We supply following products with excellent quality and superior service:
(1)Planetary concrete mixer: MP50, MP100, MP150, MP250, MP330, MP500, MP750, MP1000, MP1500, MP2000, MP2500, MP3000 ,MP3500,MP4000,MP5000,MP6000.

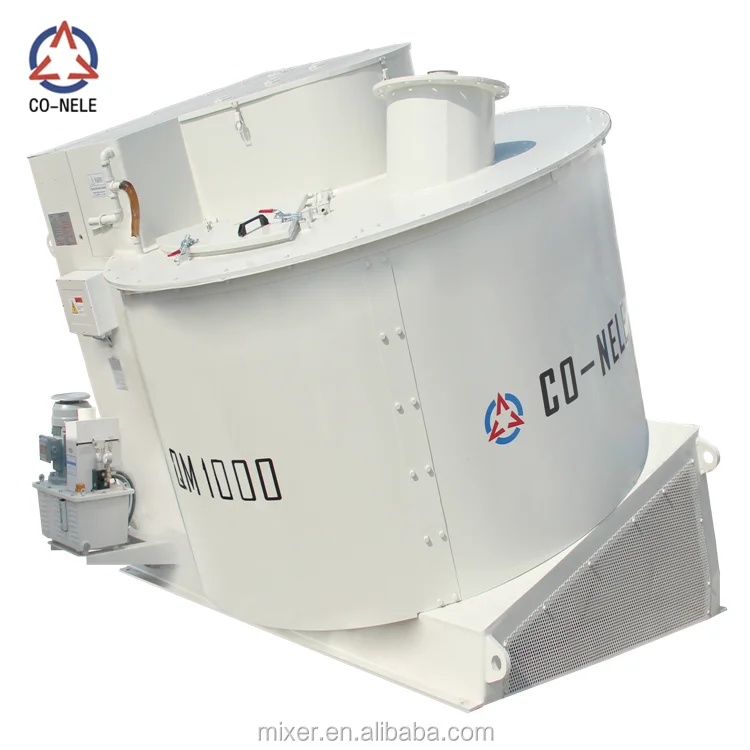

(2)Intensive Mixer:CQM5,CQM10,CQM25,CQM50,CQM75,CQM100,CQM250,CQM330, CQM500,CQM750,CQM1000,CQM1500,CQM2000,CQM2500,CQM3000.
(3)Twin-shaft concrete mixer: CHS750, CHS1000，CHS1500，CHS2000，CHS3000，CHS4000，CHS5000，CH6000，CHS7000
(4)Mobile concrete batching plant,Ready concrete batching plant,Refractory mixer.
If you are interested in our products, please contact us for more information.
(2)Intensive Mixer:CQM5,CQM10,CQM25,CQM50,CQM75,CQM100,CQM250,CQM330, CQM500,CQM750,CQM1000,CQM1500,CQM2000,CQM2500,CQM3000.
(3)Twin-shaft concrete mixer: CHS750, CHS1000，CHS1500，CHS2000，CHS3000，CHS4000，CHS5000，CH6000，CHS7000
(4)Mobile concrete batching plant,Ready concrete batching plant,Refractory mixer.
If you are interested in our products, please contact us for more information.
FAQ
1. who are we?
We are based in Shandong, China, start from 2004,sell to Domestic Market(50.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),South America(10.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Planetary concrete mixer,twin-shaft concrete mixer,refracroty mixer,concrete batching plant,intensive mixer
4. why should you buy from us not from other suppliers?
With over 26 years' focus on producing and designing mixer equipment, CO-NELE, the first and biggest manufacturer of planetary mixer in China, have gained over 80+ national patents.The first company who got CE certificate in the same industry in China.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Russian
We are based in Shandong, China, start from 2004,sell to Domestic Market(50.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),South America(10.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Planetary concrete mixer,twin-shaft concrete mixer,refracroty mixer,concrete batching plant,intensive mixer
4. why should you buy from us not from other suppliers?
With over 26 years' focus on producing and designing mixer equipment, CO-NELE, the first and biggest manufacturer of planetary mixer in China, have gained over 80+ national patents.The first company who got CE certificate in the same industry in China.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Russian
Похожие товары
Робот автоматическая машина для укладки глиняного кирпича с вакуумным Экструдером для туннельной кирпичной печи
2 700 155,00 ₽
QMY4-35C силикатного кирпича делая машину pondeuse parpaings машина изготовляющая кирпичи
356 420,46 ₽

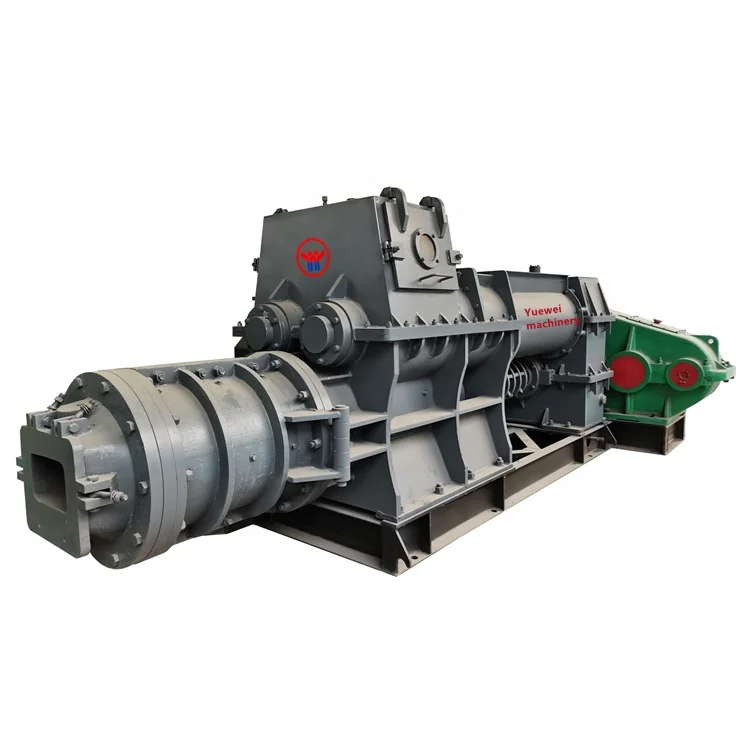

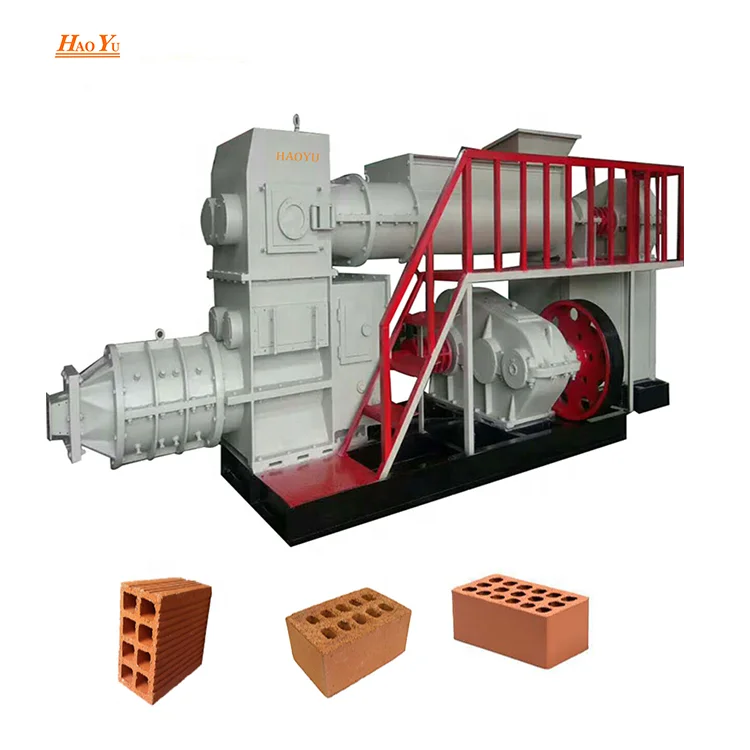

Вакуумный экструдер, производственная линия, твердая полая красная грунтовая грязь, автоматическая машина для производства глиняных кирпичей
