Для системы газового огнетушителя FM200 автоматический переключатель обслуживания газа Smart

Сохранить в закладки 1600614197865:


Цена:2 161,42-2 536,49 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description

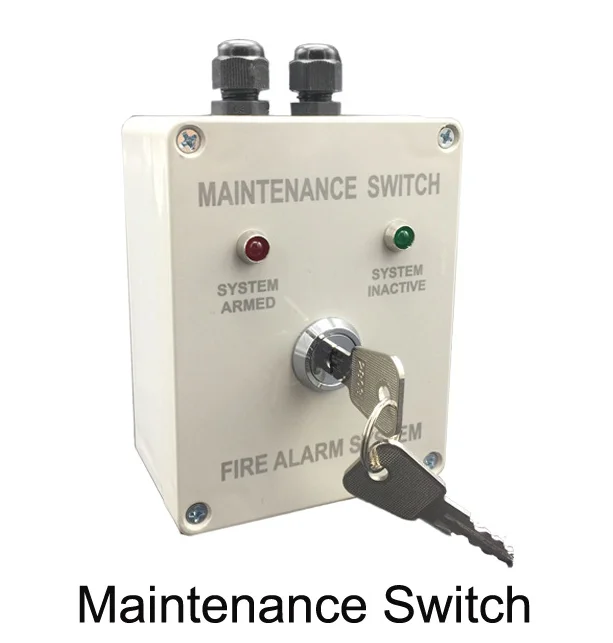

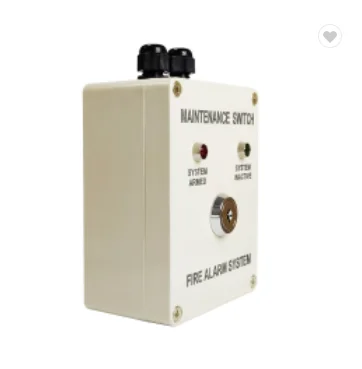

Conventional Maintenance Switch

This MAINTENANCE panel is a key switch, which disconnects actuation circuits in the system to prevent accidental discharge during maintenance operations. This panel have Two “LEDS”. It indicate “SYSTEMARMED” and “SYSTEMINACTIVE”.When the key is inserted and turned towards“SYSTEMINACTIVE”,the red LED illuminates and the green LED indicating“SYSTEMARMED”turnsoff.The key can only be removed in the“SYSTEMARMED”position.


Specification


item
value
Model Number:
HM304
Place of Origin:
China,Guangdong
Operating Voltage:
9 to 28 VDC  Non-polarized
Maximum Alarm Current:
≤20mA @ 30 VDC
Switch Contact Capacity:
5Amp @30VDC
Protection level:
IP65
Material:
ABS
Color
Grey
Operating Temperature:
-10°C to 50°C
Dimensions(MM)
115*90*54mm(L*W*D)
Weight
237g
