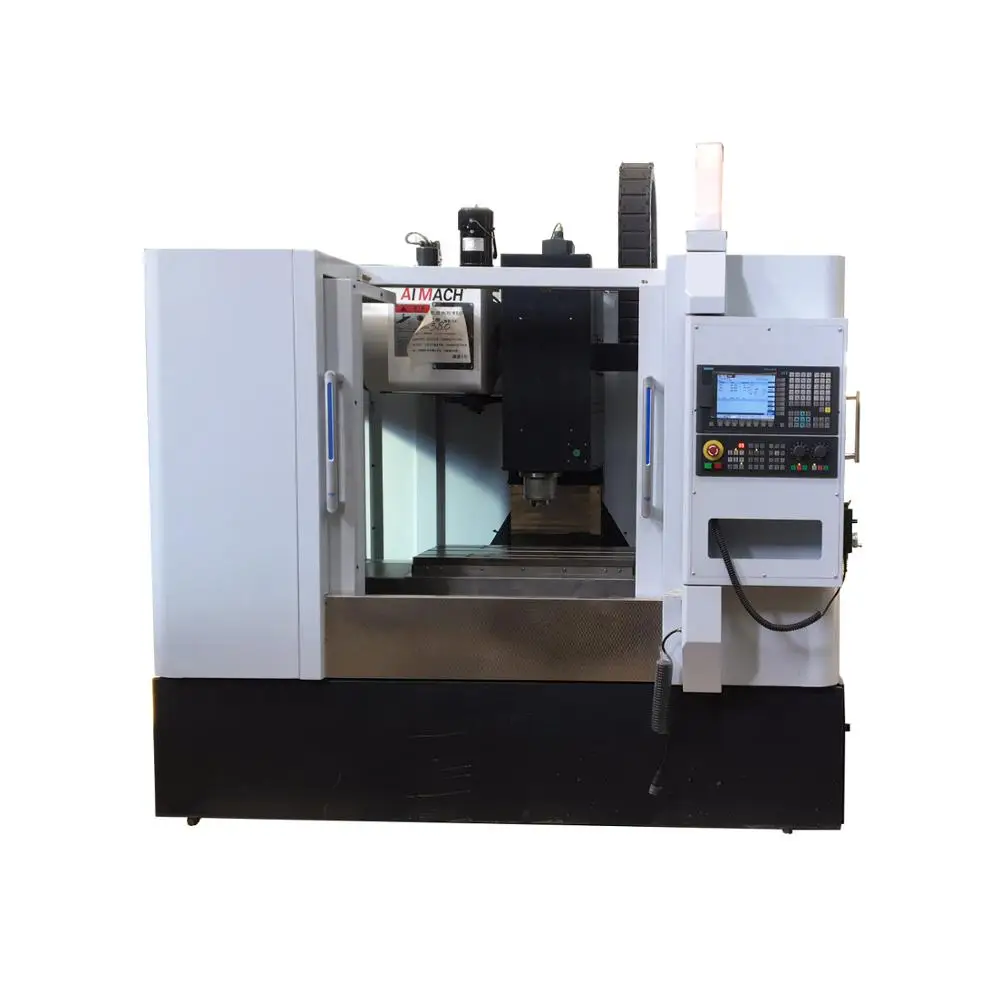

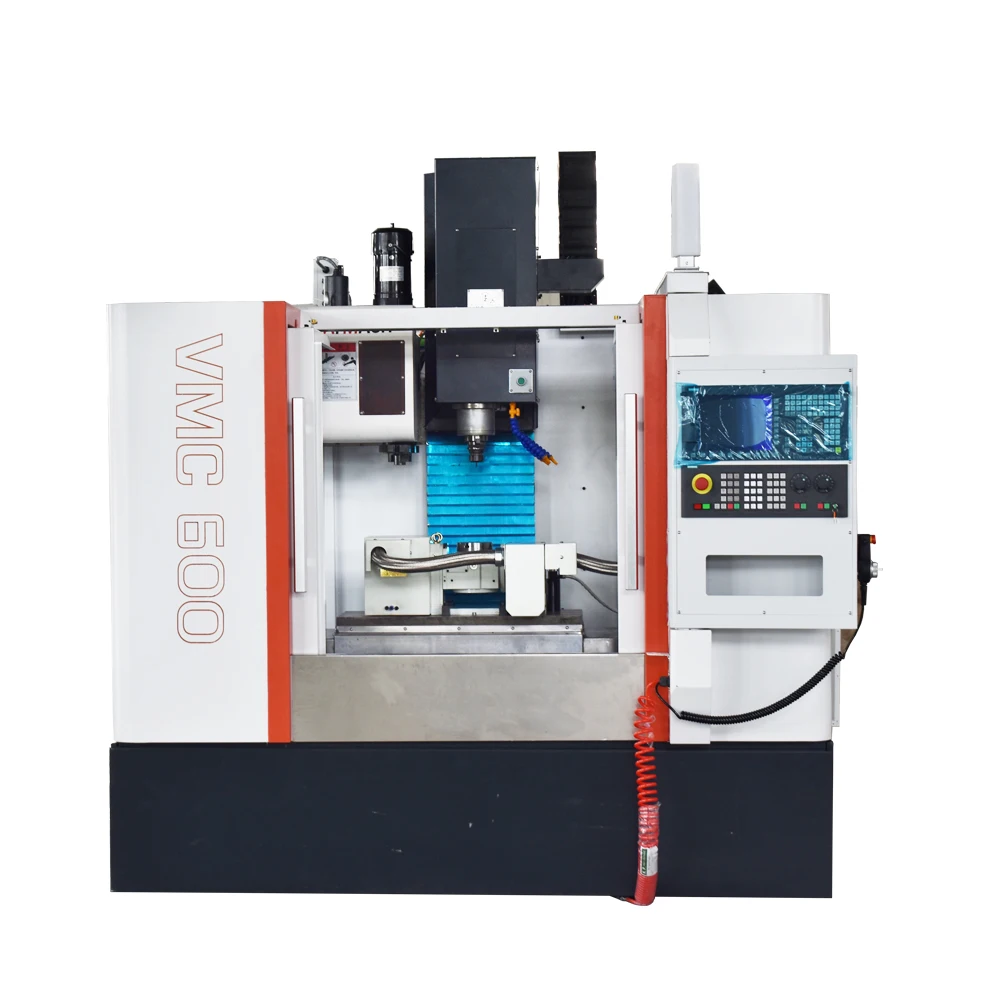

Сверхмощный небольшой фрезерный станок с ЧПУ прайс лист на VMC600 3 оси cnc обрабатывающий центр от производителя в Китае (стандарты CE сертификация
- Категория: >>>
- Поставщик: Jinan Hankui International Trade Co. Ltd.
Сохранить в закладки 1600614418138:
Описание и отзывы
Характеристики
Product Description

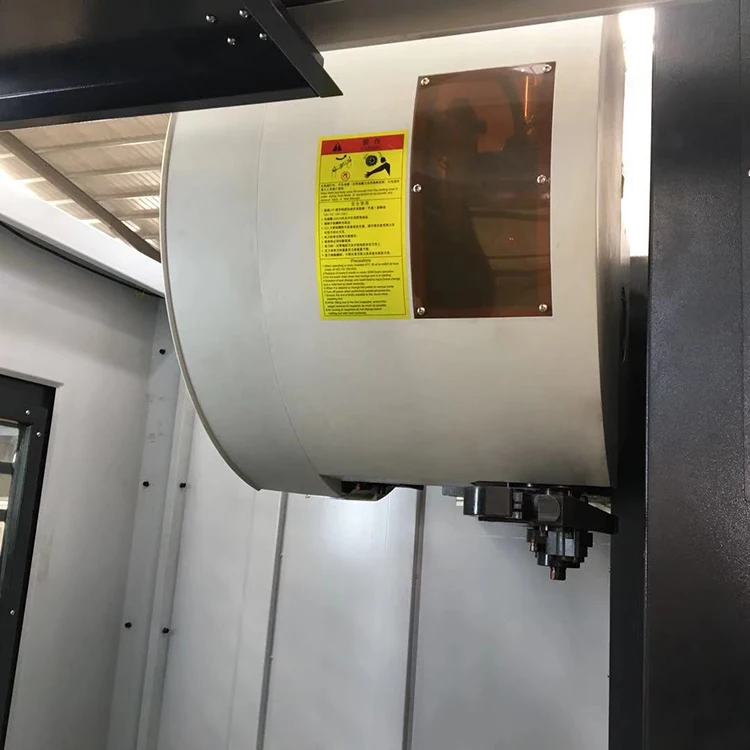

It is of semi closed loop vertical machining center with X, Y, Z axis controlled by servo motor directly. The three axis are all the steel ball rolling linear guide rail which is large load capacity, wide span and high precision. XY axis is 35mm overloading and Z axis is 45mm overloading .Compact and reasonable structure and dimensions. Spindle is driven by servo motor through
synchronous belt.
synchronous belt.
Specification
SPECIFICATIONS FOR 3 axis cnc machining center | ||||||
The Travel | X-axis travel | 600mm | ||||
Y-axis travel | 400mm | |||||
Z-axis travel | 500mm | |||||
Distance from Spindle center to table | 100-600mm | |||||
Distance from Spindle center to table | 430mm | |||||
Bench size | 800*360mm | |||||
Max. loading | 350kg | |||||
T-solt width | 14 | |||||
T-solt quantity | 3 | |||||
Spindle | Taper specifications | BT40 | ||||
Spindle speed (Optional) | 8000 RPM (optional) | |||||
Spindle motor | 5.5 KW | |||||
Rapid moving speed | X/Y -axis rapid moving speed | 10000mm/min | ||||
Z -axis rapid moving speed | 10000mm/min | |||||
The feed rate of cutting | 1-10000mm/min | |||||
Positioning accuracy | 0.01 | |||||
Repeat positioning accuracy | 0.007 | |||||
Max. tool Diameter | φ120/φ200mm | |||||
Max. tool length | 350mm | |||||
Max. tool weight | 8kg | |||||
Products Application
It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production.
It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft ,in order to meet the requirements of special parts.
Main Features
Standard configuration:
1)5.5kw servo motor, spindle speed 10000rpm, BT40;
2) 16(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
Optional configuration:
1)No tool magazine;
2) 16 tools, Umbrella-type tool magazine, BT40 spindle;
3) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
4) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock;
5) 4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock;
6)4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R;
7)5th axis (GSA Taiwan)CNCT-100/200/250/320;
Option Control system:
1) SIEMENS808D2
2) SIEMENS828D
3) MitsubishiM80B
4) MitsubishiM80A
5) Fanuc 0i-TF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
1)5.5kw servo motor, spindle speed 10000rpm, BT40;
2) 16(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
Optional configuration:
1)No tool magazine;
2) 16 tools, Umbrella-type tool magazine, BT40 spindle;
3) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
4) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock;
5) 4th axis (bar type, GAS Taiwan) CNC-170R/200R, with tailstock;
6)4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R;
7)5th axis (GSA Taiwan)CNCT-100/200/250/320;
Option Control system:
1) SIEMENS808D2
2) SIEMENS828D
3) MitsubishiM80B
4) MitsubishiM80A
5) Fanuc 0i-TF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
Our order

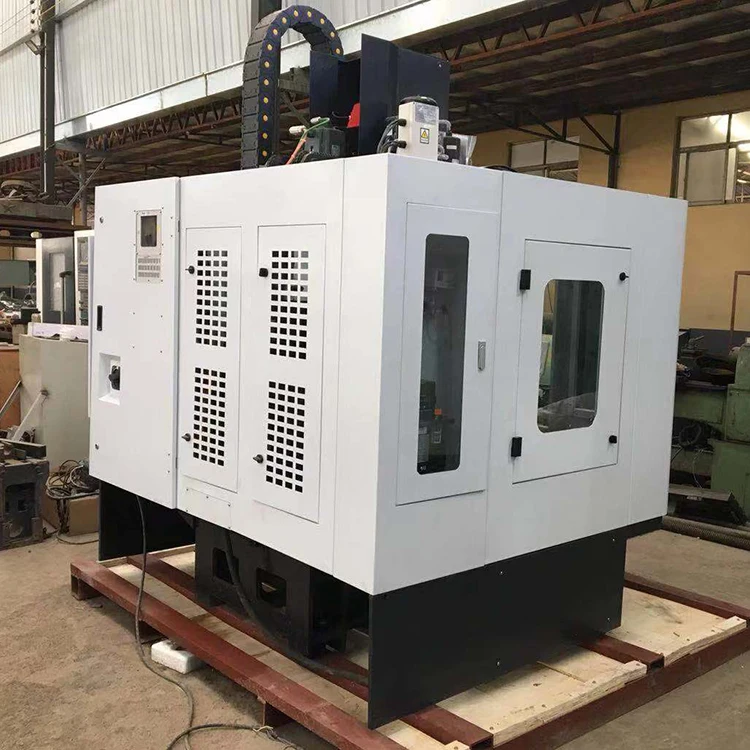

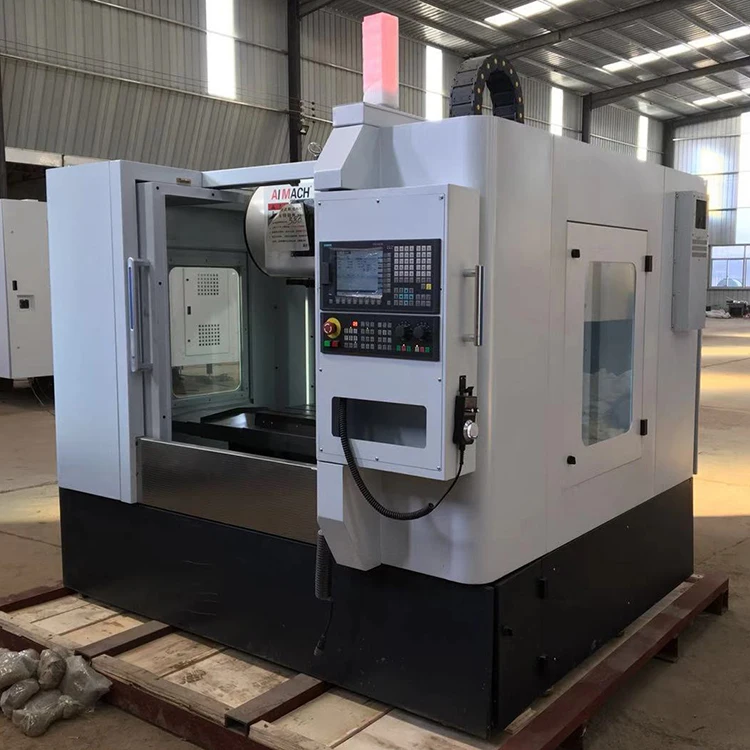

Testing and Packing
Company Profie
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Похожие товары

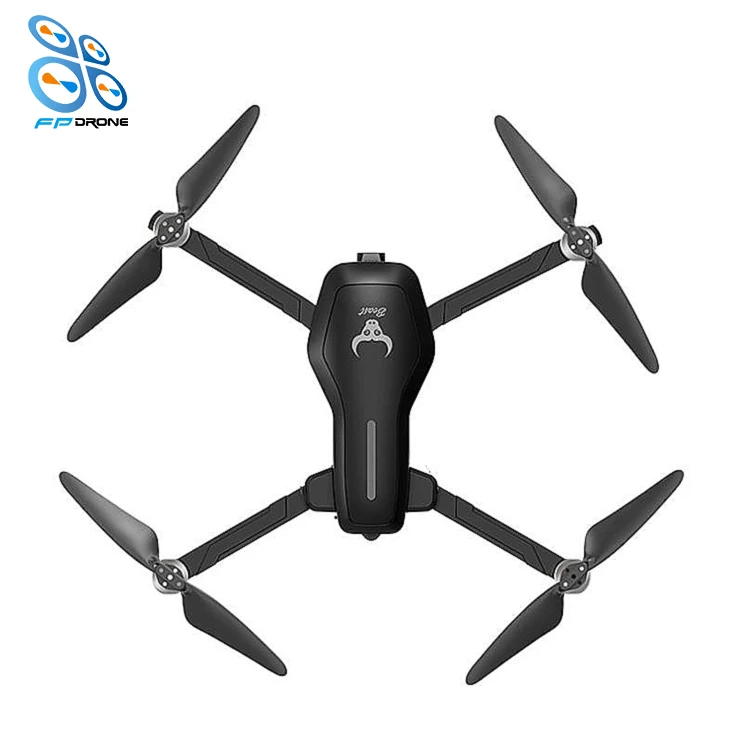

Складной Дрон sg906 pro 2 4k с камерой
117,00 $ - 122,00 $
Строительное оборудование для VOLVO VCADS PTT Premium tech Tool 2,8 грузовик диагностический инструмент с ноутбуком cf19
1 420,00 $ - 1 450,00 $
Стеклянная трубка для эфирного масла от производителя, мини-образец, флакон из янтарного стекла с внутренней заглушкой и винтовой крышкой
Жидкая эпоксидная смола BFE170 CAS 28064-14-4 фенольная новолак NPPN-638 хорошая цена на полупроводниковый проводящий
5,40 $ - 6,10 $
Однорядные цилиндрические роликовые подшипники N1052
0,01 $

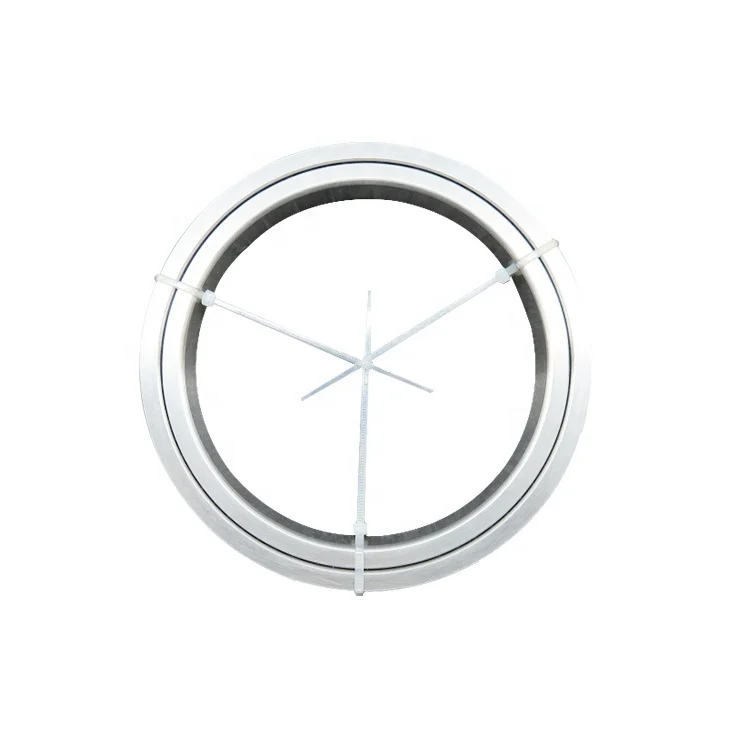

Китайские подшипники XRC30038, XRC34038, XRC40046, поперечный роликовый подшипник, Однорядный цилиндрический роликовый подшипник

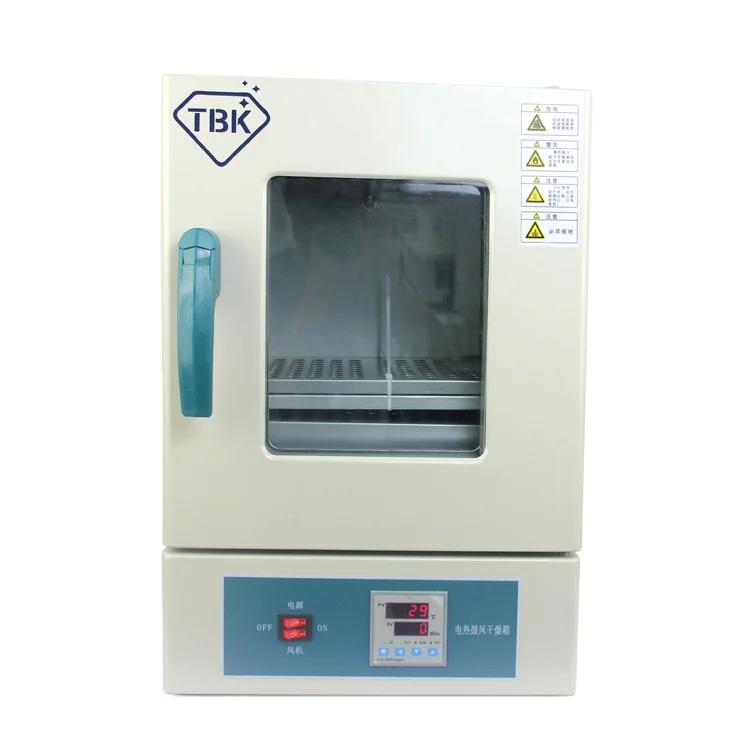

TBK 228 Электрический нагревательный сепаратор для мобильного телефона, планшетного компьютера, для ремонта ремонтного оборудования с ЖК-дисплеем
