Product Description

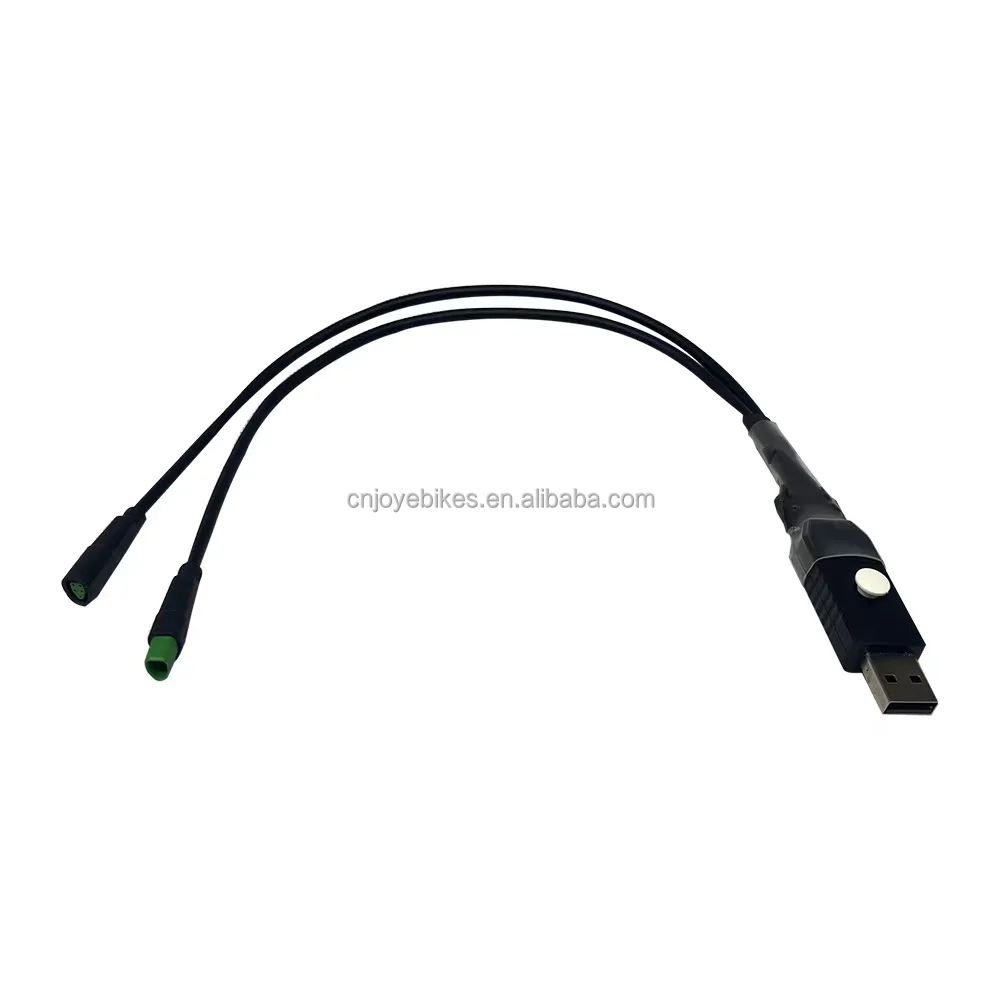

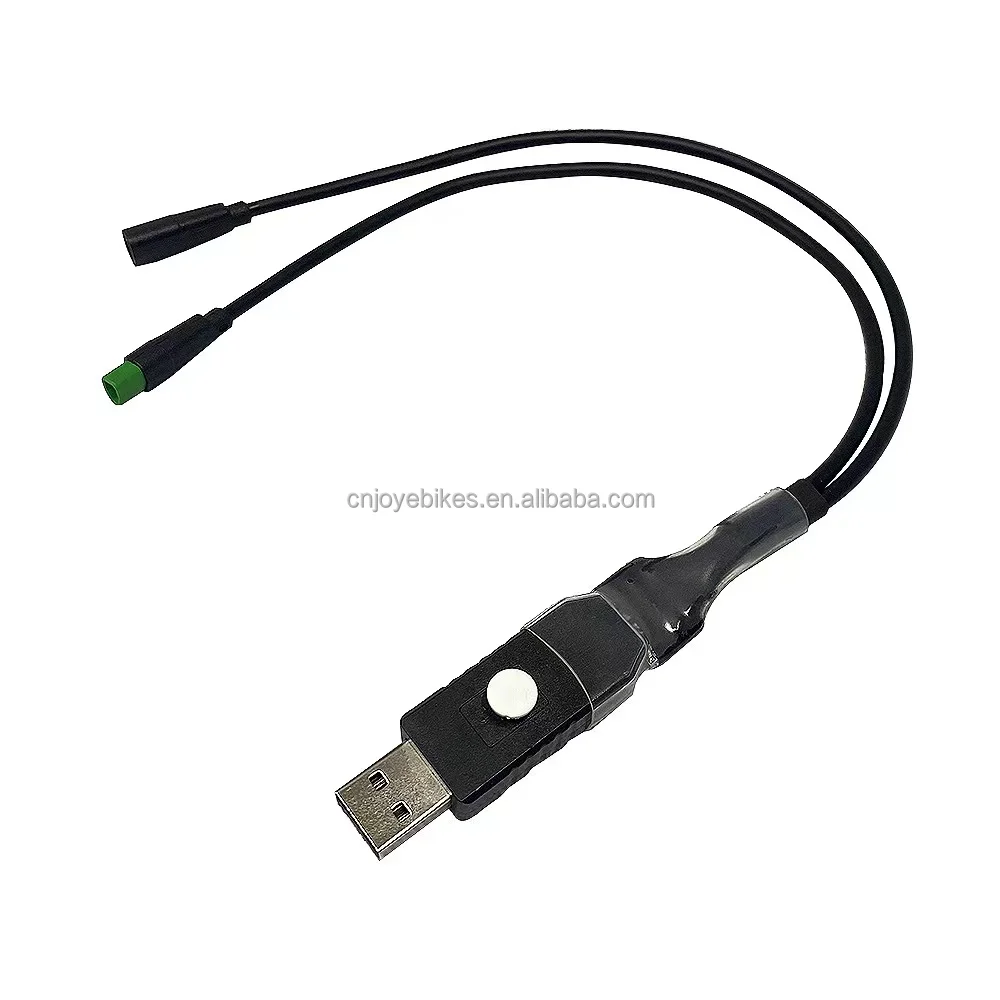

Joyebikes bafang USB programming cable for bafang CAN BUS M500/M510/M600/M620
This is the programming line specially used for the BAFANG CAN protocol motor. It can solve the problem of setting the wheel diameter and releasing the speed limit. When your M600 motor is limited by the factory to 32KM/H, do you feel that the speed is too slow to satisfy You, when you change to a new frame, because the size of the wheel diameter and the size set in the motor are different, and the speed displayed on the display is wrong, it always feels very disappointing, this programming line can solve
your troubles and make you happy stand up. This programming line is simple and easy to operate. When you have questions and do not understand, you can consult our sales staff and we will bring you professional explanations and introductions.
your troubles and make you happy stand up. This programming line is simple and easy to operate. When you have questions and do not understand, you can consult our sales staff and we will bring you professional explanations and introductions.
Product | BAFANG usb programming cable for bafang canbus M500/M510/M600/M620 | ||||
Function | adjust the pharameters, such as bicycle rim size, speed, voltage... | ||||
Color | black | ||||
Warranty | One year | ||||
Details Images
Notes:
This programming line is only suitable for bafang-CAN protocol motors after 2020, and motors produced before 2019 cannot be used. Some display screens are special.
When the programming line button is pressed, it is necessary to re-enter the instrument setting before the setting can be
successful.
Operation introduction:
1.First, the motor is connected and powered on
2.the motor is connected to the main line of the instrument

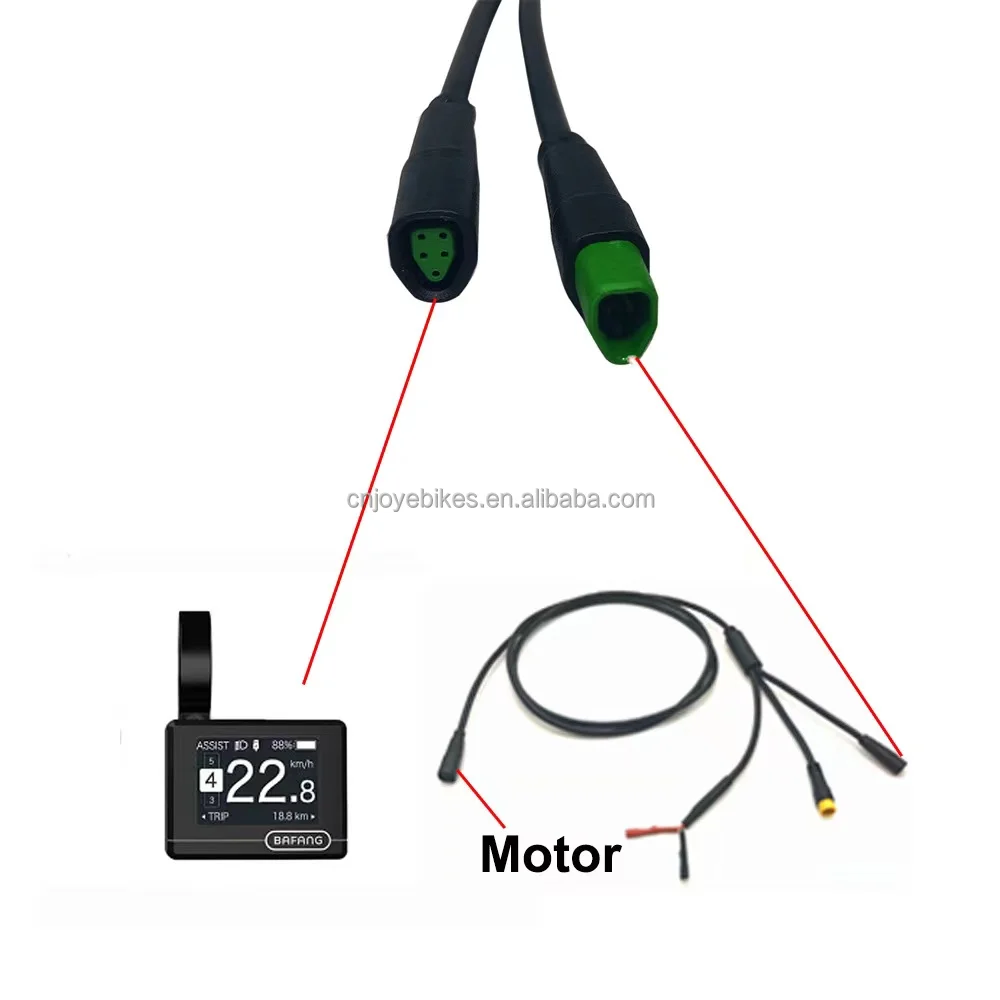

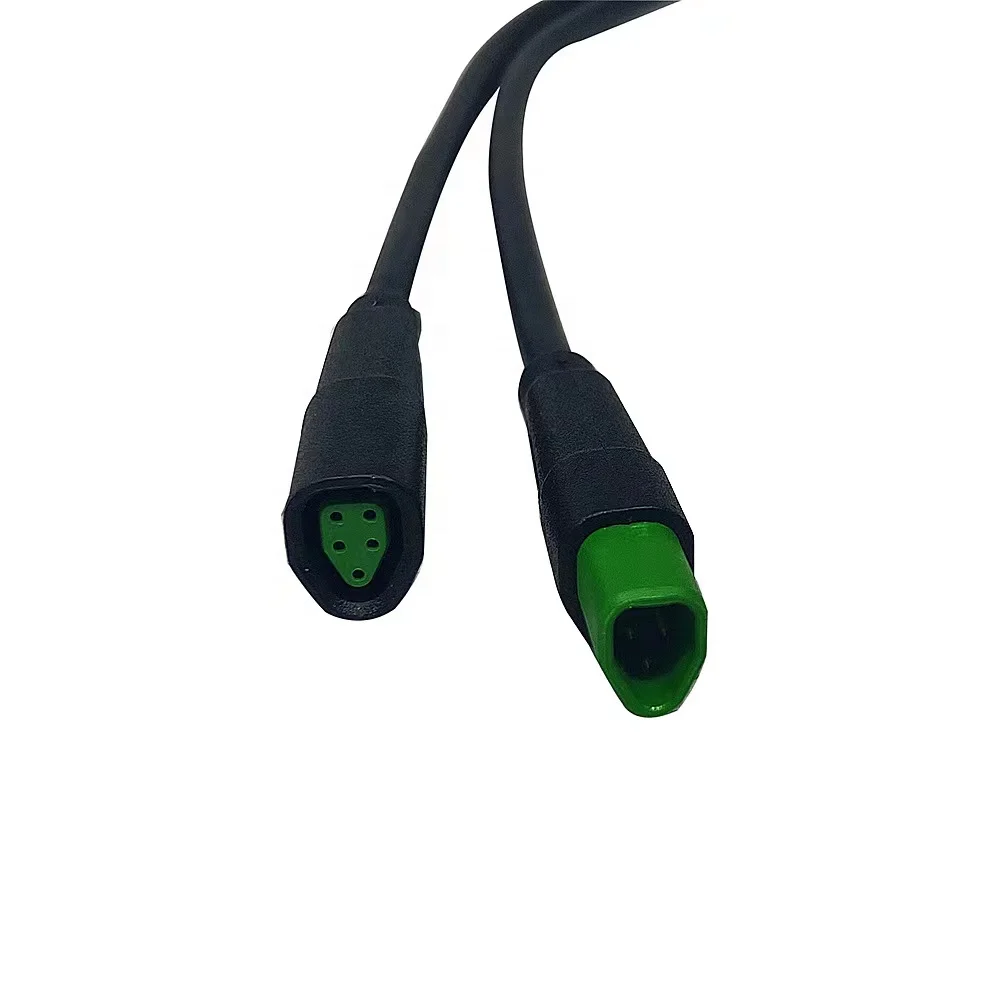

3.the interfaces at both ends of the programming cable are connected to the motor and the display screen respectively

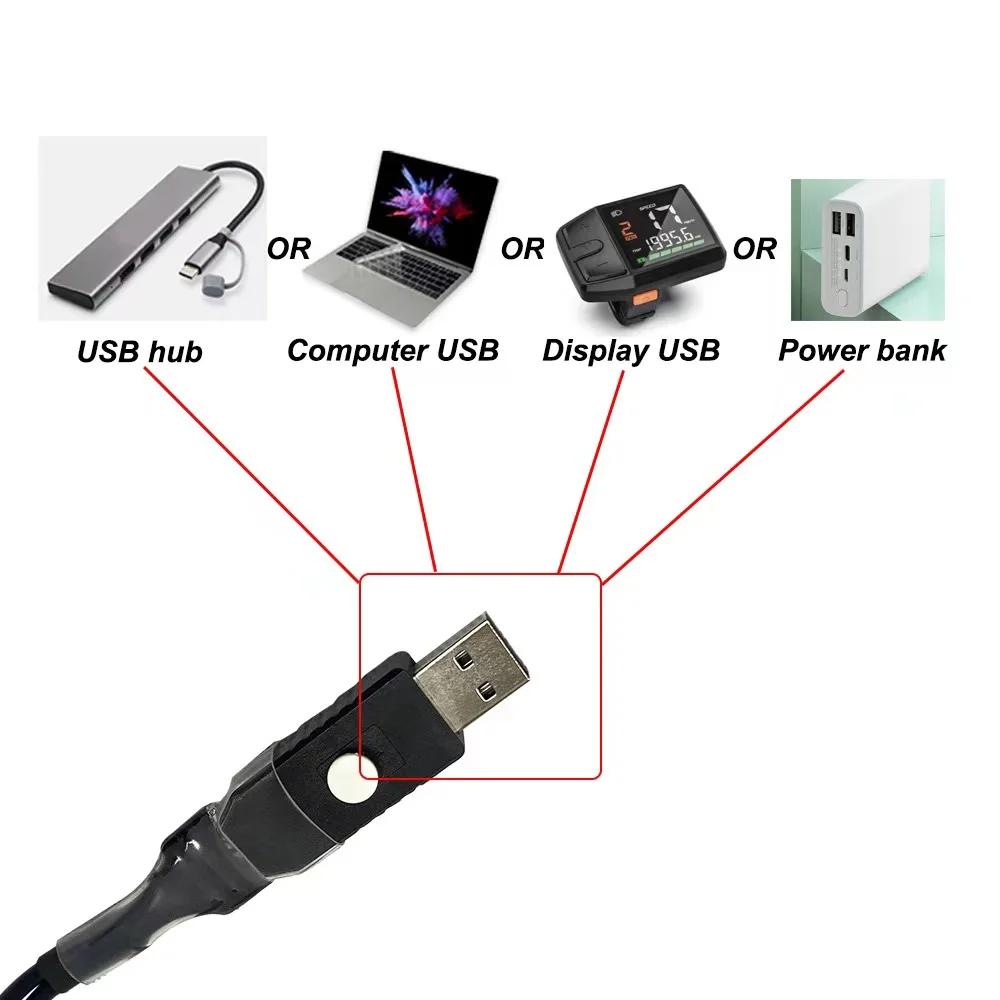

4.the USB plug of the programming cable is connected to the USB interface of the computer or display screen
5.The programming line indicator lights up to indicate that the connection is successful. For detailed tutorials, please see the video tutorials
6.If there is a 25 fault code after connecting, just press the module button to return to normal. For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change. At this time, you need to exit the setting and return to the main page of the display screen to re-enter the setting. Then you can see the wheel diameter you set.

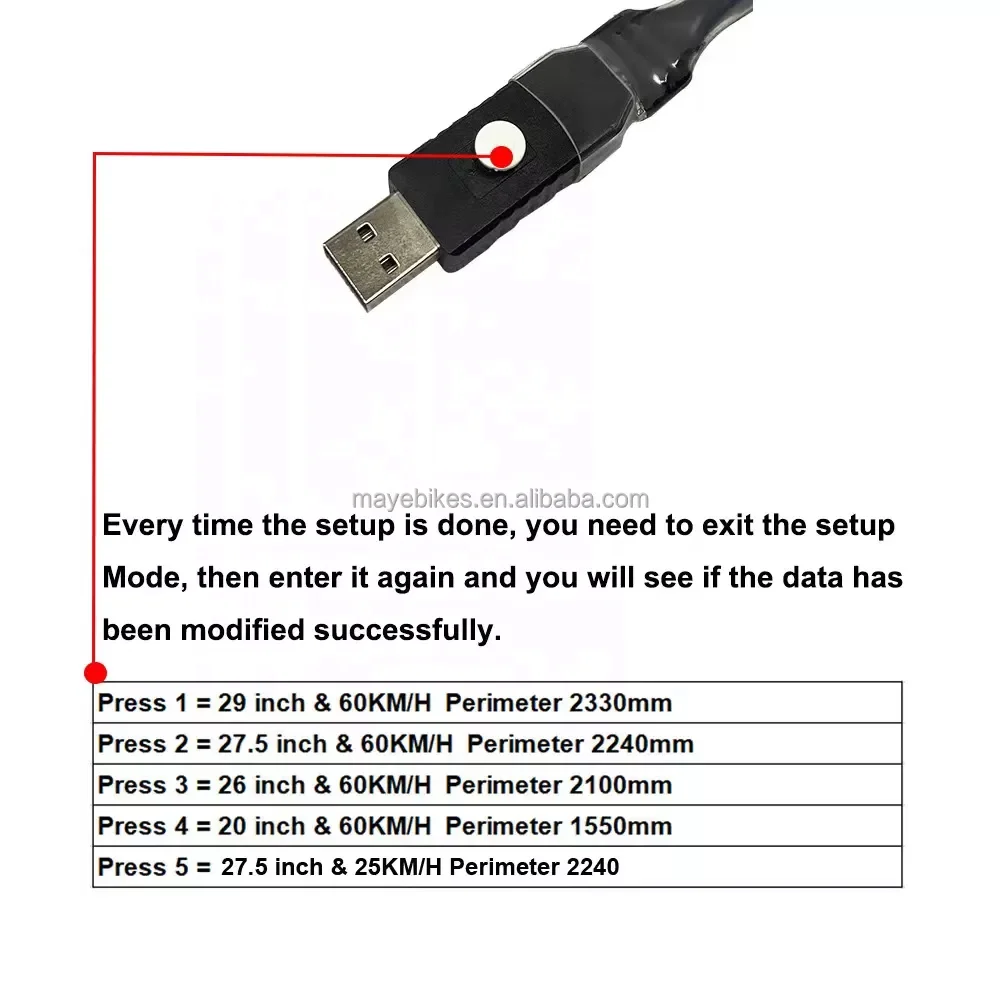

Introduction and operation of programming line buttons:
Press 1 time in a row: wheel diameter 29 inches 60KM/H -2330mm
Press 2 times in a row: wheel diameter 27.5 inches 60KM/H -2240mm
Press 3 times in a row: wheel diameter 26 inches 60KM/H -2100mm
Press 4 times in a row: wheel diameter 20 inches 60KM/H -1550mm
Press 5 times in a row: wheel diameter 27.5 inches 25KM/H -2240mm
If there is a 25 fault code after connecting, just press the module button to return to normal. For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change. At this time, you need to exit the setting and return to the main page of the display screen to re-enter the setting. Then you can see the wheel diameter you set.
When the programming line button is pressed, it is necessary to re-enter the instrument setting before the setting can be
successful.
Operation introduction:
1.First, the motor is connected and powered on
2.the motor is connected to the main line of the instrument
3.the interfaces at both ends of the programming cable are connected to the motor and the display screen respectively
4.the USB plug of the programming cable is connected to the USB interface of the computer or display screen
5.The programming line indicator lights up to indicate that the connection is successful. For detailed tutorials, please see the video tutorials
6.If there is a 25 fault code after connecting, just press the module button to return to normal. For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change. At this time, you need to exit the setting and return to the main page of the display screen to re-enter the setting. Then you can see the wheel diameter you set.
Introduction and operation of programming line buttons:
Press 1 time in a row: wheel diameter 29 inches 60KM/H -2330mm
Press 2 times in a row: wheel diameter 27.5 inches 60KM/H -2240mm
Press 3 times in a row: wheel diameter 26 inches 60KM/H -2100mm
Press 4 times in a row: wheel diameter 20 inches 60KM/H -1550mm
Press 5 times in a row: wheel diameter 27.5 inches 25KM/H -2240mm
If there is a 25 fault code after connecting, just press the module button to return to normal. For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change. At this time, you need to exit the setting and return to the main page of the display screen to re-enter the setting. Then you can see the wheel diameter you set.
