Сверхмощный токарный станок с ЧПУ CK40L Китай горизонтальный автоматический прайс лист
- Категория: >>>
- Поставщик: Jinan Hankui International Trade Co. Ltd.
Сохранить в закладки 1600614524021:
Описание и отзывы
Характеристики
Product Description
This product uses 45 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the linear guide rail. The structure and dimension of axis are compact and reasonable. Spindle is gear transmission and variable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once.
Standard configuration:
1） 5.5kw servo motor, max. spindle speed 3500rpm, spindle taper A2-5, spindle hole Φ56mm;
1） 5.5kw servo motor, max. spindle speed 3500rpm, spindle taper A2-5, spindle hole Φ56mm;
2） 8 station hydraulic tool turret, hollow 8" hydraulic chuck, with tail stock;
Optional configuration:
1) 8 station servo VDI(live tool) turret;
Optional configuration:
1) 8 station servo VDI(live tool) turret;
2) tool head,if more tool heads needed;
3) Servo 8 station tool turret;
4) 6000rpm spindle;

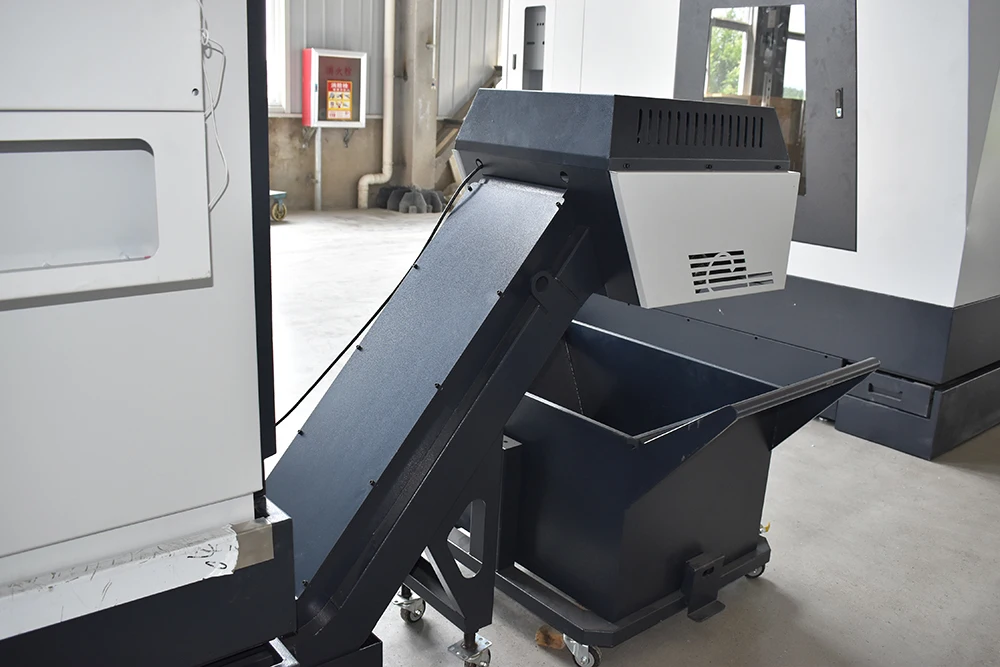

5) Chain Chip Conveyor;
6）12 station hydraulic tool turret;
7) spindle hole Φ66mm;
Option Control system:

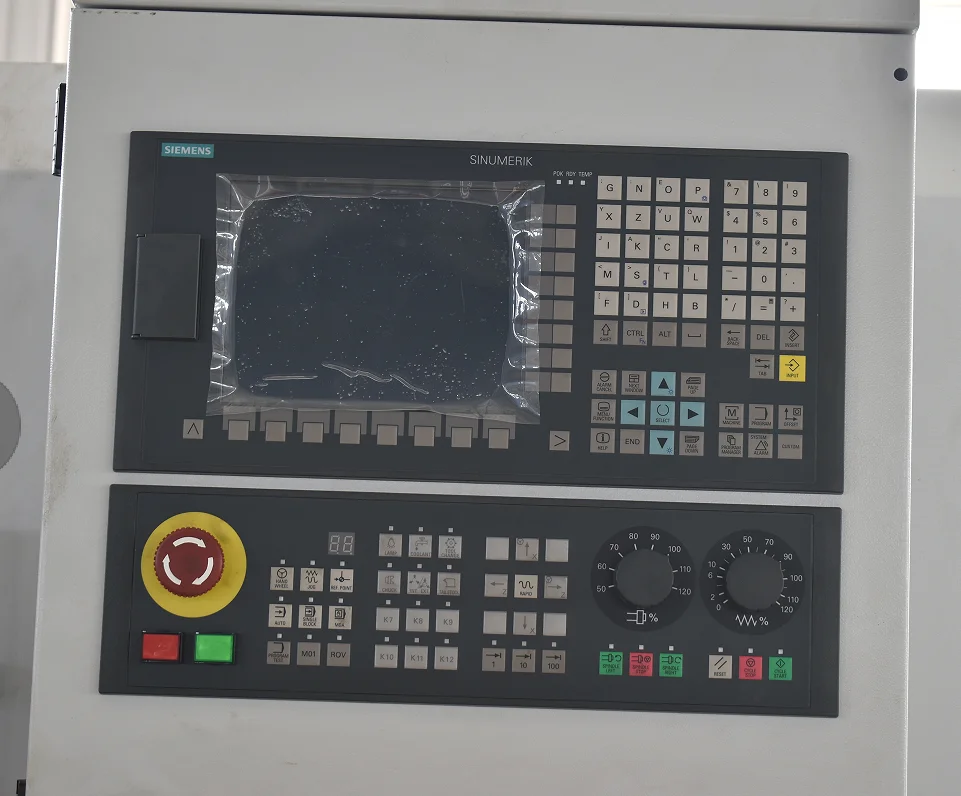

1)SIEMENS808D2
Option Control system:
1)SIEMENS808D2
2)SIEMENS828D
3)FANUC 0i-TF 5
4)MITSUBISHI E70
5)Syntec 21TM;

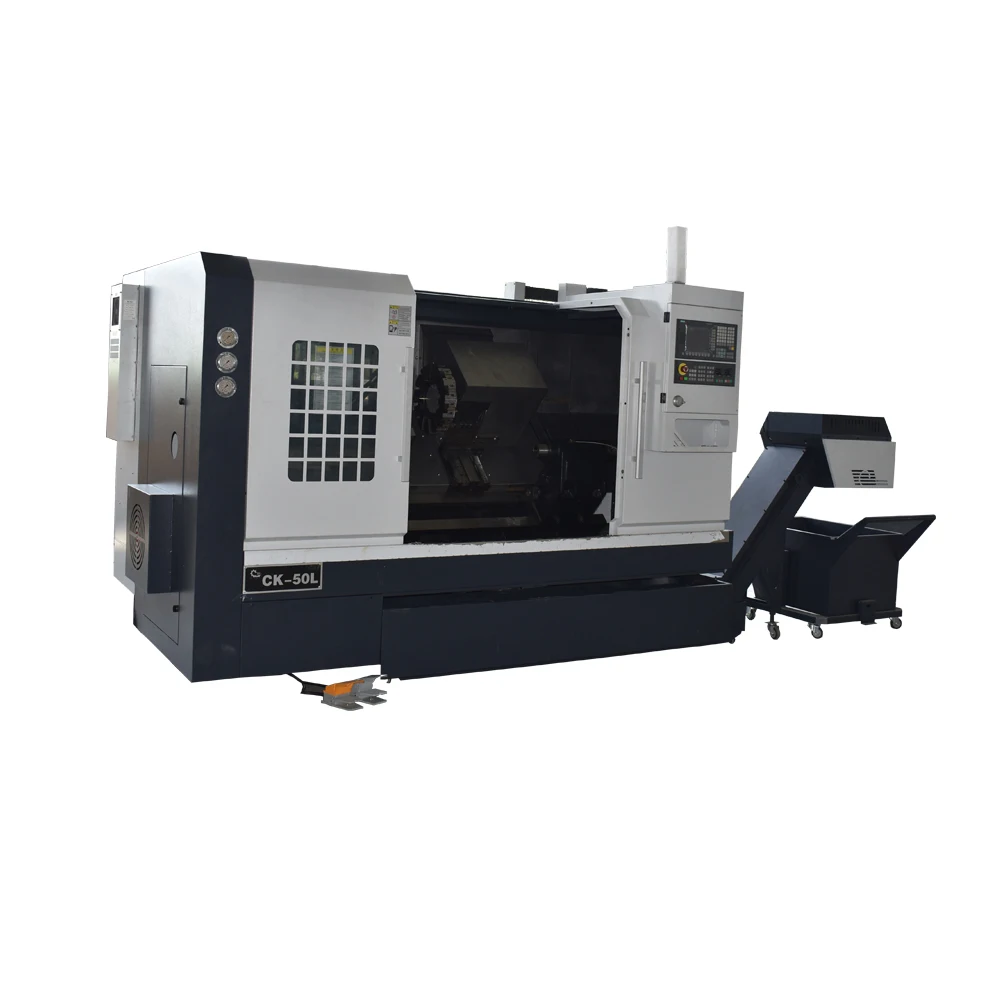

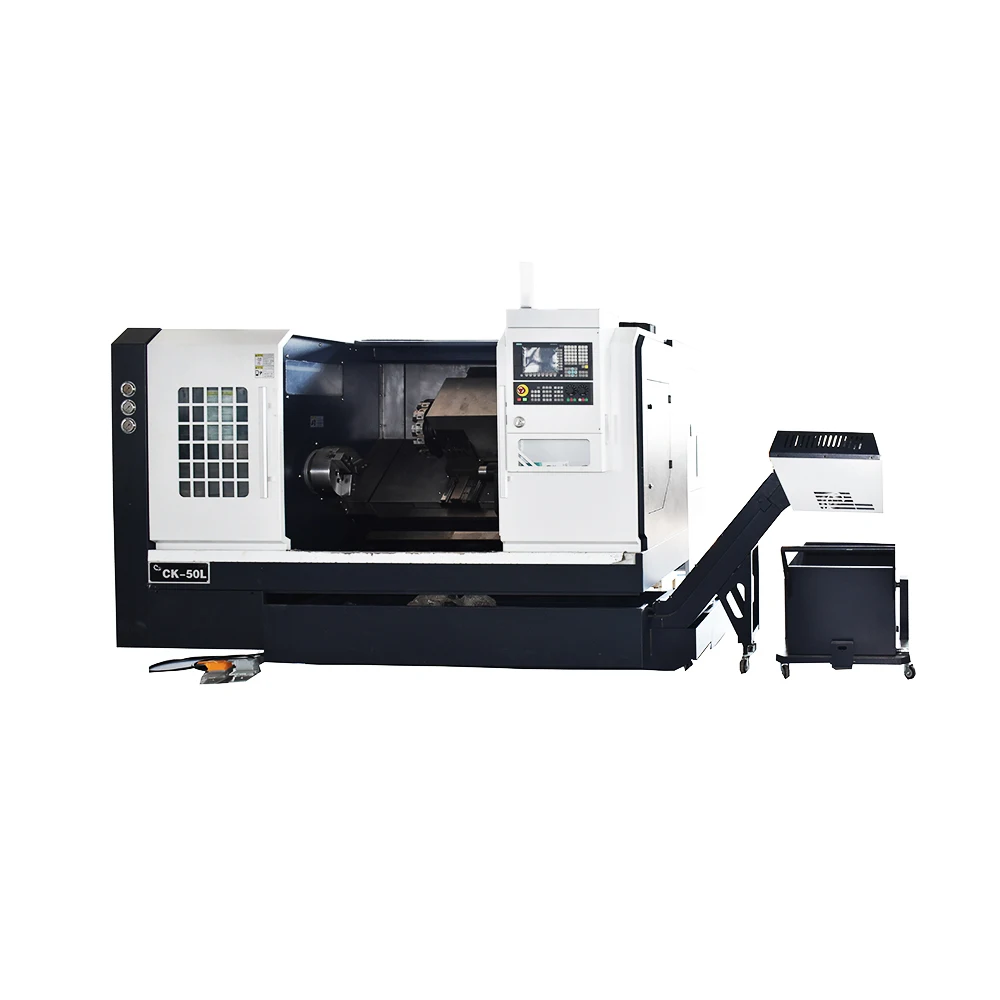

Products Images
Specification
ITEM | CK-32L | CK-36L | CK-40L | CK-50L | CK-63L | CK-80L | ||||||
Processing range | Max.swing over bed | 320 | 360 | 400 | 500 | 630 | 800 | |||||
Max.swing over slide | 160 | 160 | 220 | 320 | 500 | 640 | ||||||
Max. processing length | 350 | 350 | 450 | 550 | 890 | 890 | ||||||
Max. cutting dia.(disc type) | 200 | 254 | 360 | 420 | 630 | 800 | ||||||
Max. bar dia. | 40 | 45 | 51 | 65 | 75 | 90 | ||||||
spindle | Spindle speed | 4000 | 4000 | 3500 | 2500 | 2250 | 1500 | |||||
Spindle nose ISO form | A2-5 | A2-5 | A2-6 | A2-6 | A2-8 | A2-11 | ||||||
Thru-hole dia. | 56 | 56 | 66 | 76 | 86 | 112 | ||||||
Chunk dia. | 160（6“） | 160（6“） | 200（8“） | 200（8“） | 320（12“） | 380（15“） | ||||||
Motor power | 3.7(servo) | 3.7(servo) | 7.5(servo) | 11(servo) | 18.5(servo) | 22(servo) | ||||||
Body structure | Body structure | 30°integrated | 30°integrated | 45°integrated | 45°integrated | 30°integrated | 30°integrated | |||||
X axis travel | 200 | 200 | 210 | 260 | 410 | 410 | ||||||
Zaxis travel | 350 | 350 | 450 | 550 | 860 | 860 | ||||||
X/Z axis rapid speed | 24/24 | 24/24 | 24/24 | 18/18 | 18/18 | |||||||
Tool holder | type | 63-8T | 80-8T | 100-8T | 160-8T | 160-8T | ||||||
Tool size | 20*20 | 20*20 | 20*20 | 25*25 | 25*25 | 25*25 | ||||||
tailstock | Tailstock sleeve dia. | 52 | 52 | 75 | 150 | 150 | ||||||
Tailstock sleeve travel | 60 | 60 | 100 | 150 | 150 | |||||||
Tailstock sleeve taper | MT4 | MT4 | MT5 | MT5 | MT5 | |||||||
precision | Processing precision | IT6 | ||||||||||
Repositioning precision | X:0.006,Z:0.008 | X:0.006，Z:0.01 | ||||||||||
roughness | Ra.≤0.8 | Ra.≤1.25 | ||||||||||
dimension | N.W (KG) | 1500 | 1700 | 2700 | 3500 | 5500 | 5600 | |||||
Dimension (M) | 1.8*1.2*1.7 | 1.8*1.6*1.6 | 2.6*1.8*1.6 | 3.1*1.8*1.8 | 3.8*2.2*2.2 | |||||||

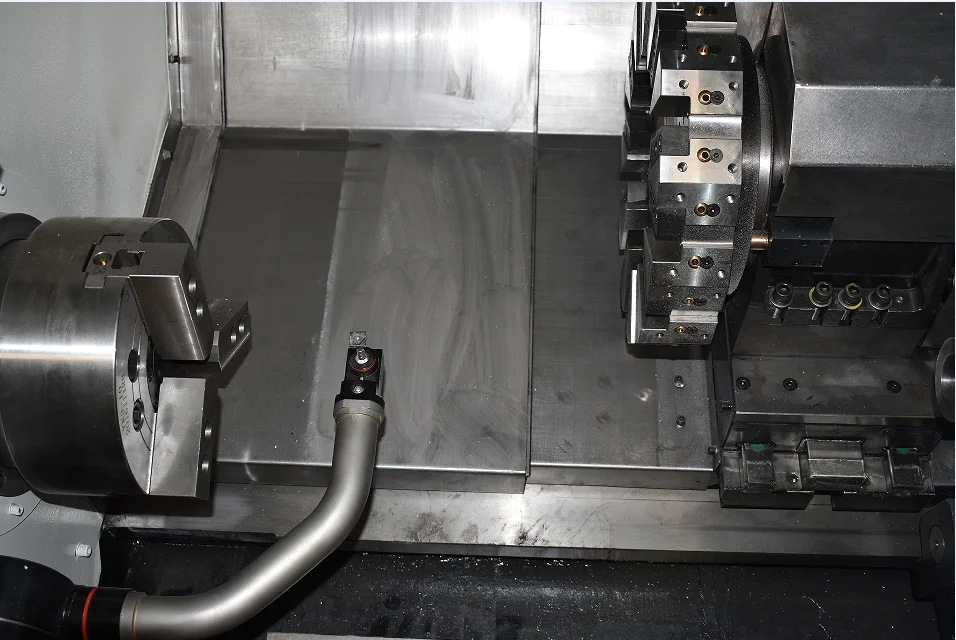

Main components
Products Application
It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
Company Profie
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Our order
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Похожие товары
Теплый сохранение детей Пикник контейнер для еды, сумка, мягкого нетоксичного ткань для приготовления еды Детская сумка для обеда
Игровой офисный стул с регулируемой спинкой и подлокотником
61,00 $ - 65,00 $

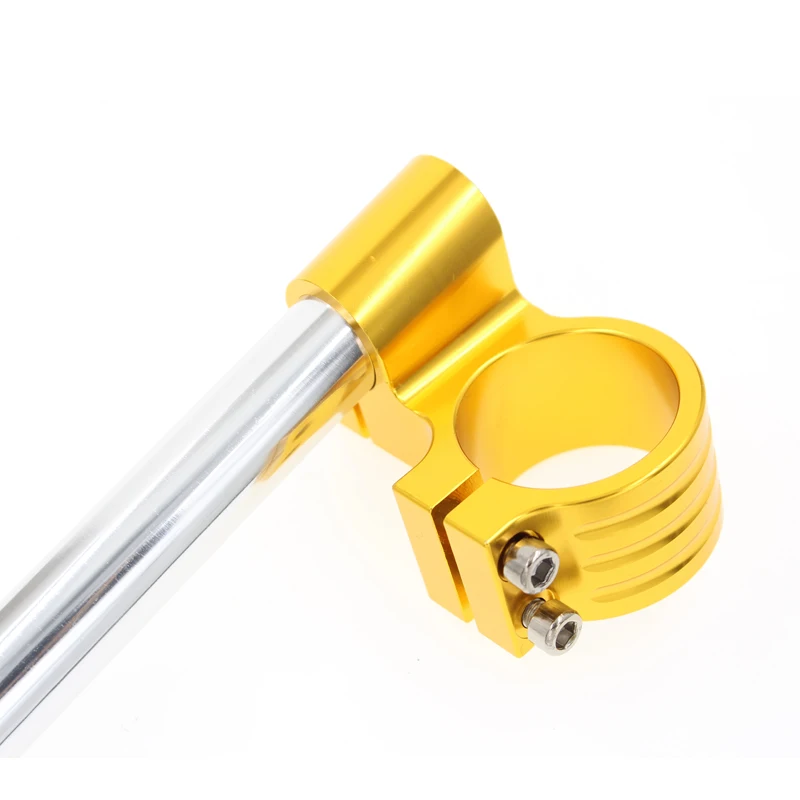

Зажим для Руля Мотоцикла FXCNC ons RC45 1994 50 мм
12,99 $ - 26,99 $

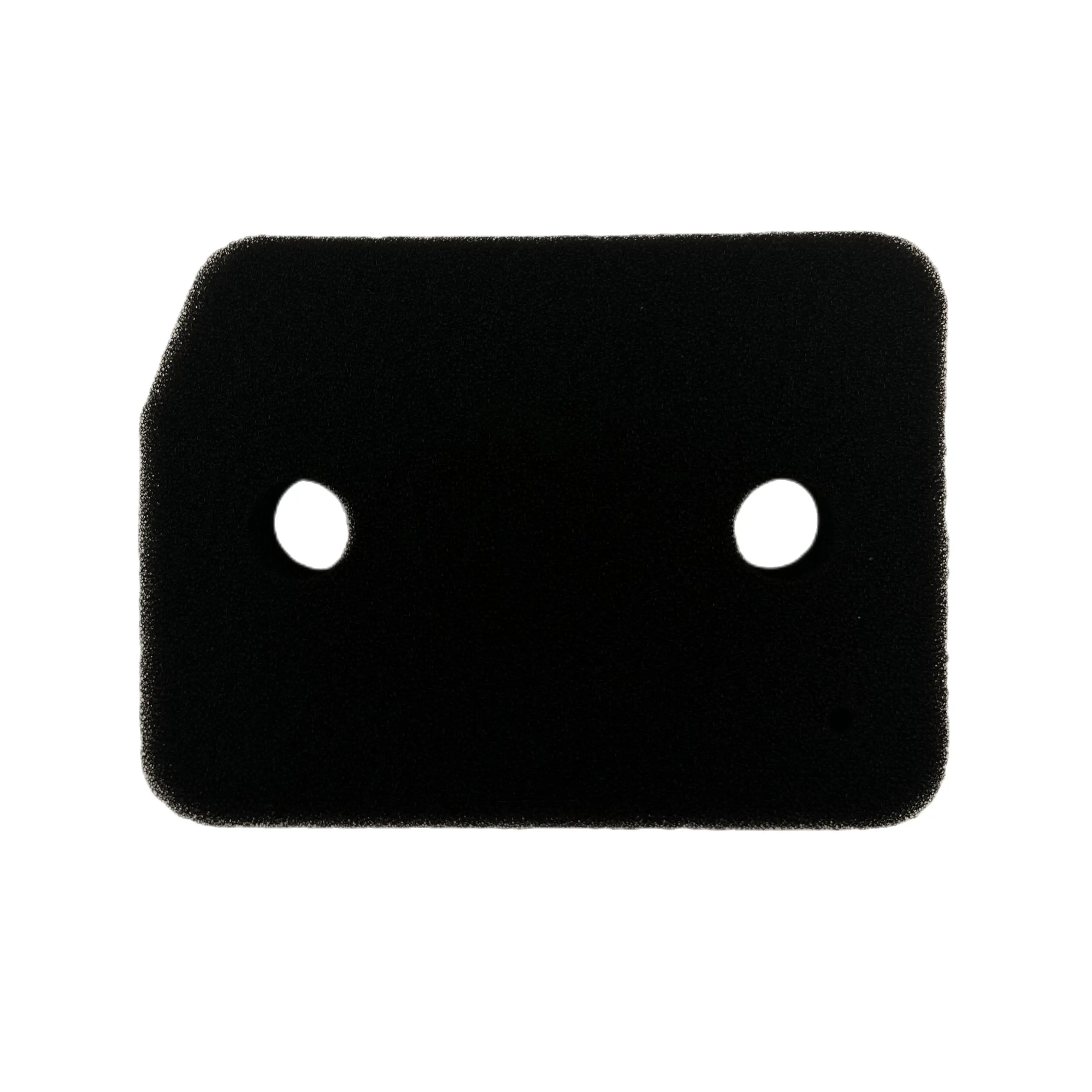

Запчасти для сушилки, пенный фильтр для сушки MIELE 9164761
0,90 $ - 1,20 $

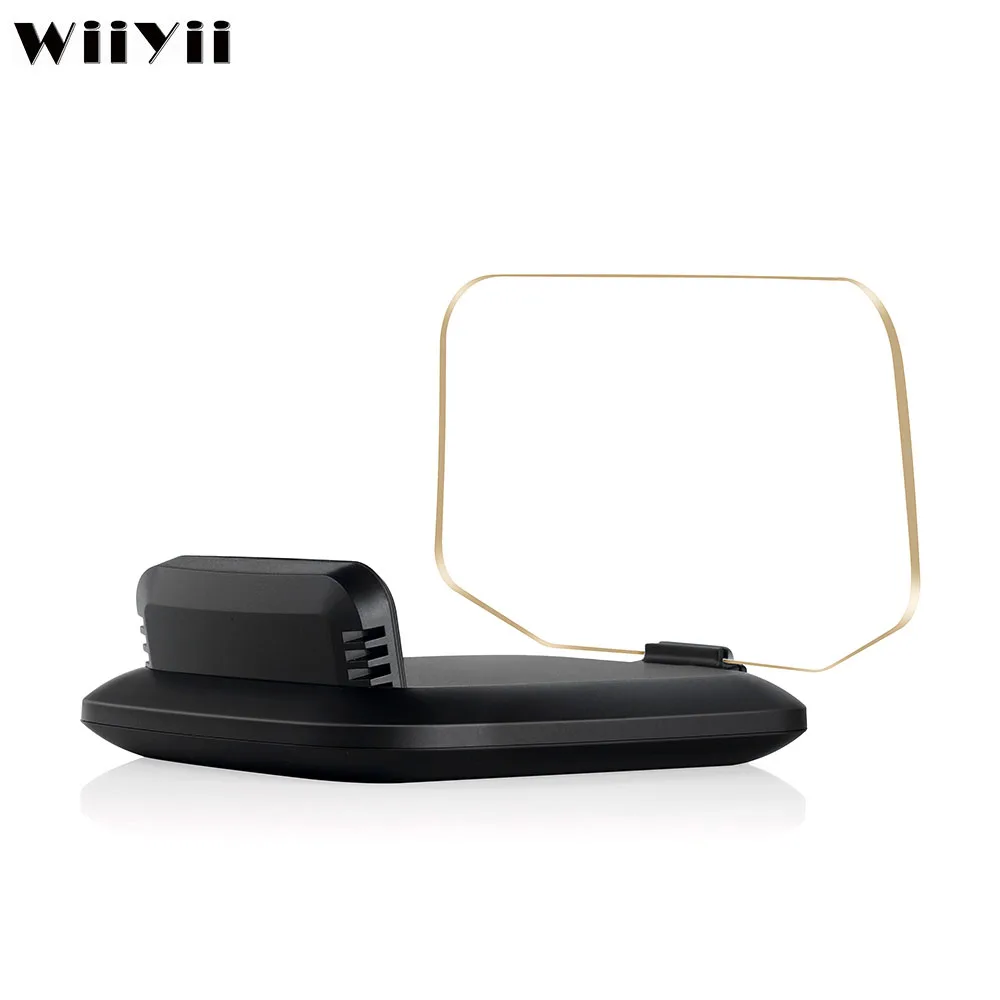

2022 Горячая распродажа! Навигация C1-BT автомобиля Plug and Play OBD2 + Автомобильный GPS hud Дисплей системы контроля давления в шинах Авто диагностический
