2022 Widely Used Semi Automatic Coffee Paprika Flour Auger Filler Dry Powder Bag Filling Machine Cocoa Powder Auger Dosing Screw Filling Machine
Products Description
This series semi automatic screw powder filling machine is convenience and well suited for filling tiny powder, ultra-fine powder, micro small granules and other similar materials which can complete the work of automatic positioning, filling and measuring of bags and bottles. It can be widely used in automatic quantitative filling, bag making and sealing packaging in various industries such as food, medicine and chemical products.
Each auger filler is building on the reliable heavy-duty stainless steel frame. All the contact parts are made by food grade materials of 304 stainless steel. Therefore, semi-automatic auger filling machine is your ideal choice for any customer that desires economical, low cost, repeatable and accurate filling of fine powders, small granules, and other similar products.

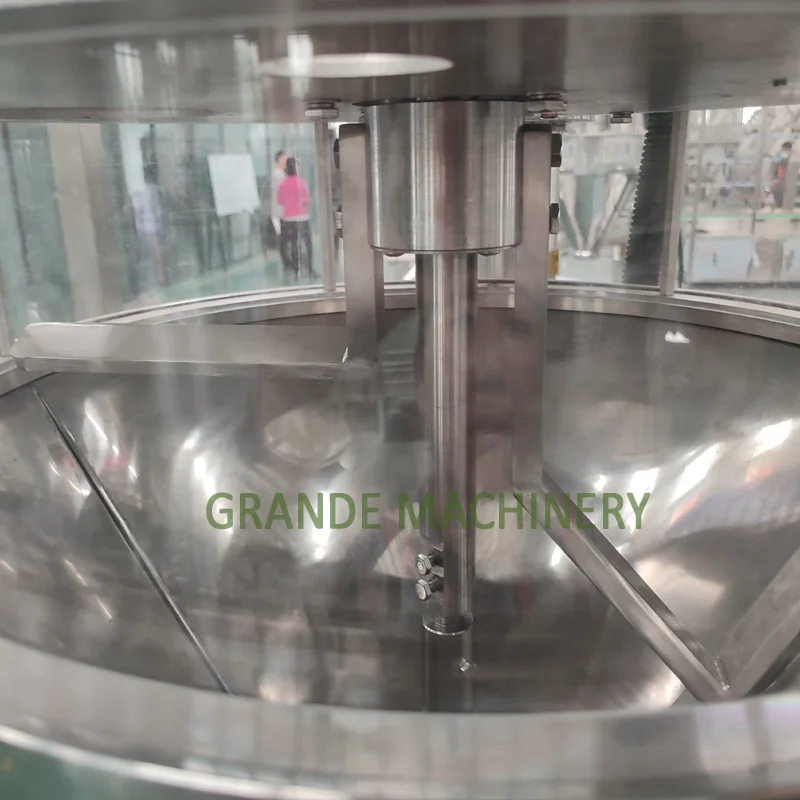

All of the semi-automatic auger fillers below is easily automated by adding screw conveyor feeder. The auger filler include a stirring bar to keep product constantly fed to the fill auger.
All of the semi-automatic auger fillers below is easily automated by adding screw conveyor feeder. The auger filler include a stirring bar to keep product constantly fed to the fill auger.
Machine Features
1. The packaging machine is a set of machine photoelectricity in one, LCD touch screen and PLC control system;2. With automatic measurement and filling, automatic adjustment of measurement errors and other functions.
3. Fast: the use of spiral under the material, light control technology.
4. High precision: the use of servo motor or stepper motor filling and electronic weighing feedback combined control principle.
5. Wide packaging range: the same equipment within 5-5000g through the display weighing interface to adjust and replace different specifications of the feeding spiral can be.
6. Wide range of application: powder, powder and granule mixed materials with certain fluidity are available.
7. The error caused by the material specific gravity and material level change can be automatically tracked and corrected.
8. Photoelectric induction under the material, only need manual bag, bag mouth clean, easy to seal.
9. Material contact parts are made of 304 stainless steel, easy to clean, to prevent cross-contamination.
Product Paramenters
Commodity | Semi Automatic Auger Powder Filing Machine | ||||
Model | GDF-2 | GDF-2C | GDF-3 | ||
Filling Weight | 5-5000g | 1-5kg | 5-5000g | ||
Filled Error | ≤ ±1% | ≤ ±0.3% | ≤ ±1% | ||
* Fill Speed | 0-50 fills/min | 0-15 fills/min | 0-70 fills / minute | ||
* Contact Materials | SUS 304 | SUS 304 | SUS 304 | ||
HMI | LCD Touch Screen | LCD Touch Screen | LCD Touch Screen | ||
Control System | PLC | PLC | PLC | ||
Filling Motor | Stepper/Servo Motor | Stepper/Servo Motor | Stepper/Servo Motor | ||
Hopper Volume | 50L | 50L | 50L | ||
Powder | 1.5kw | 1.5kw | 1.5kw | ||
Suitable Packing Materials | Bottle, jar, bags, pouch, can, etc | bags, pouches, etc | Bottle, jar, pouch, can | ||
Remarks: | The above models are just for your reference. According to your actual requests, we also have other models for your needs. Also we can assemble the auxiliary equipments according to your needs to cooperate with this semi automatic auger filling machine. | ||||
Scope of application:The packaging machine is suitable for the quantitative packaging of powdered materials in the pharmaceutical, chemical, food, agricultural and sideline products industries; such as: milk powder, starch, pesticides, veterinary drugs, premixes, additives, spices, feed, enzyme preparations, etc.
Other Optional Equipments:

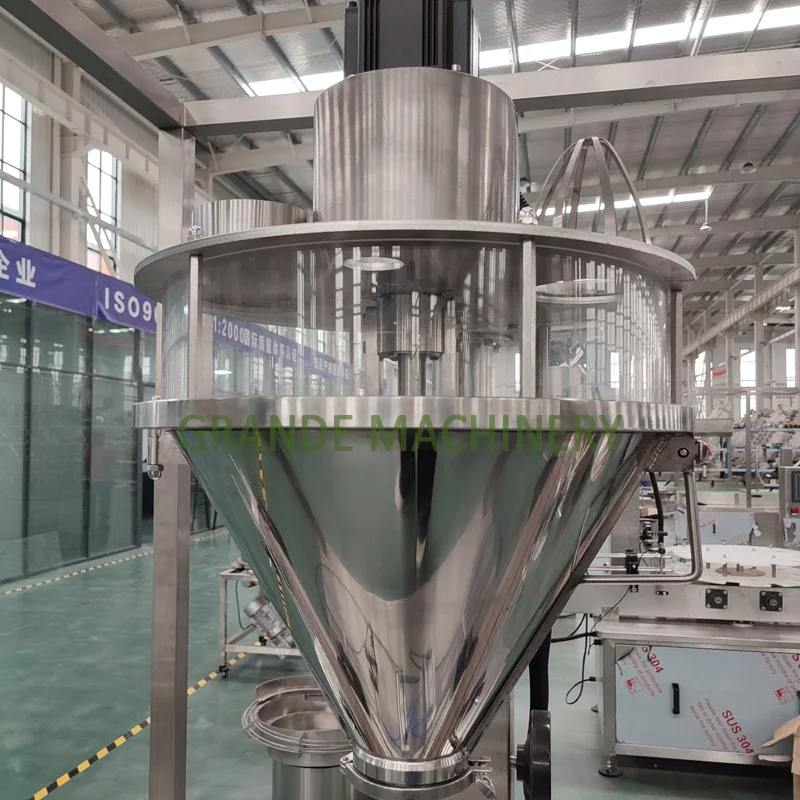

1. Monitorable Hopper:
A transparent window equipped on the hopper for powder levels monitor.

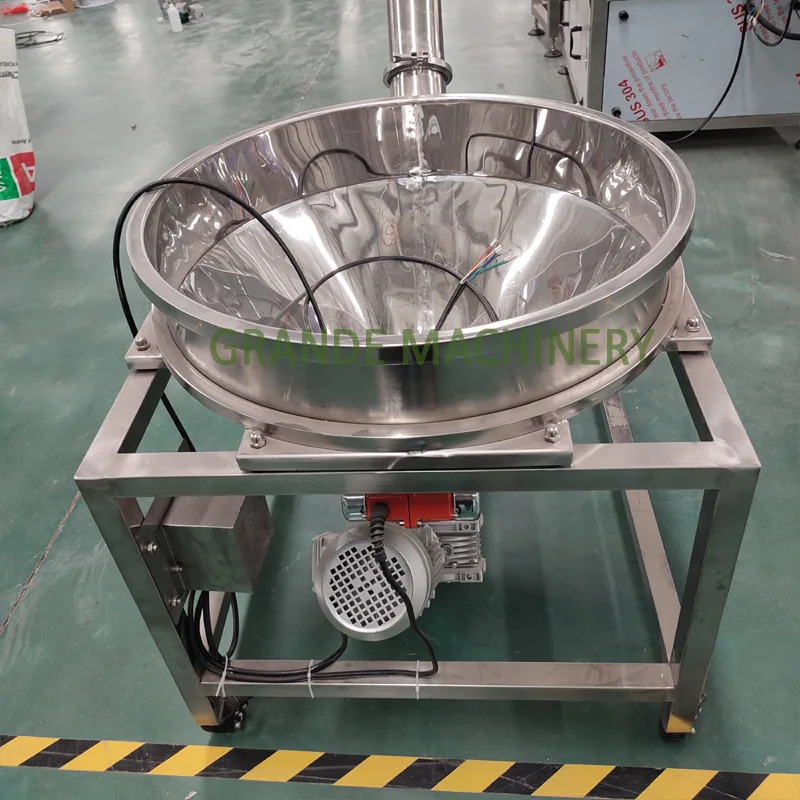

2. Easy Clean Hopper:
1. Monitorable Hopper:
A transparent window equipped on the hopper for powder levels monitor.
2. Easy Clean Hopper:
A custom split hopper that is easy to open and easy to clean.
3. Servo motor or Stepper motor:
Servo motor is fast 30% than stepper motor.

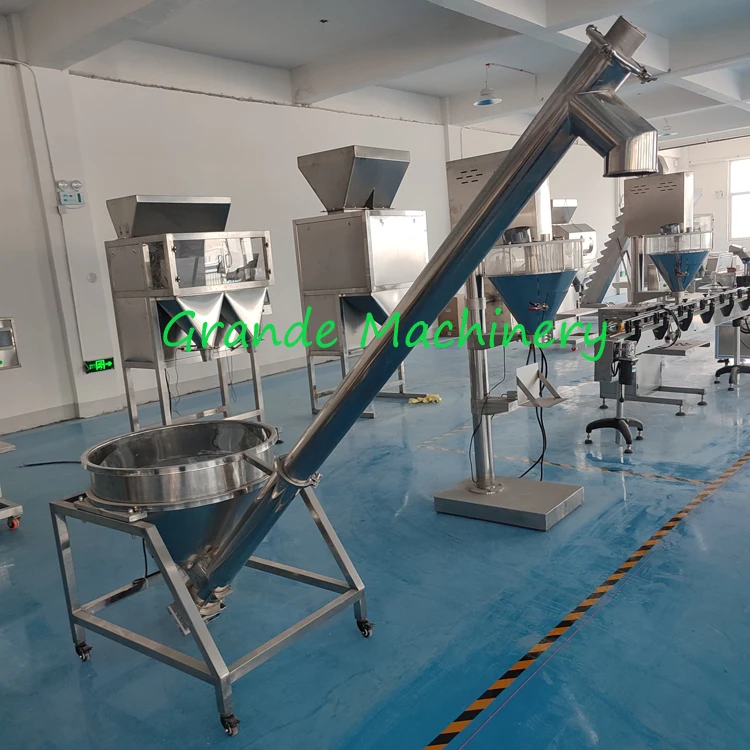

4. Screw Coveyor Feeder [6]:
Best for adding powder if filling range is more than 200g, to ensure best filling accuracy.
3. Servo motor or Stepper motor:
Servo motor is fast 30% than stepper motor.
4. Screw Coveyor Feeder [6]:
Best for adding powder if filling range is more than 200g, to ensure best filling accuracy.
The screw conveyor is optional for round hopper or a square hopper, and the length can be customized.
5. Sealing Machine
Used to seal the bags.
Can be equipped with feeding system, sealing machine to form
small production line
Square Elevator
Round Elevator
Remarks: Any questions about the powder filling machine, please feel free contact us. Except the semi auotmatic auger filler, we also have automatic type and other filling packing machine. We can design the machine according to your requests.
Company Profile
Henan Grande Machinery Equipment Co., Ltd. (hereinafter referred to as GRANDE) is a large-scale industrial group mainly specialized in food processing machines, packing machine and purification equipments, etc. With years of manufacturing and sales experience in machinery industry, GRANDE has achieved a good reputation for providing superior machines and best service concept of "Quality First, Service Foremost", and have been established a recognized brand in machinery industry. Grande’s Equipment has been exported to more than 100 countries.
