Products Description
Product description:

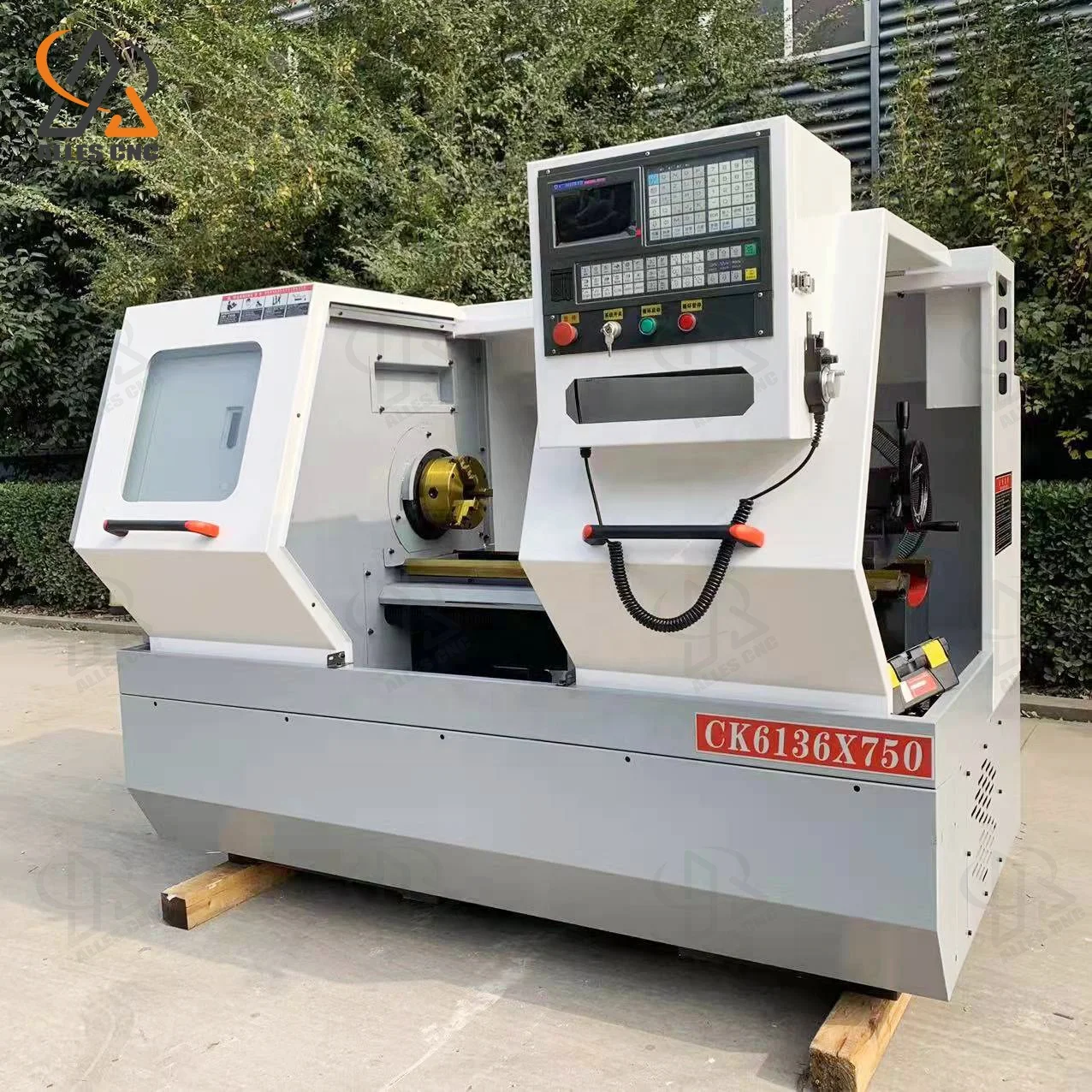

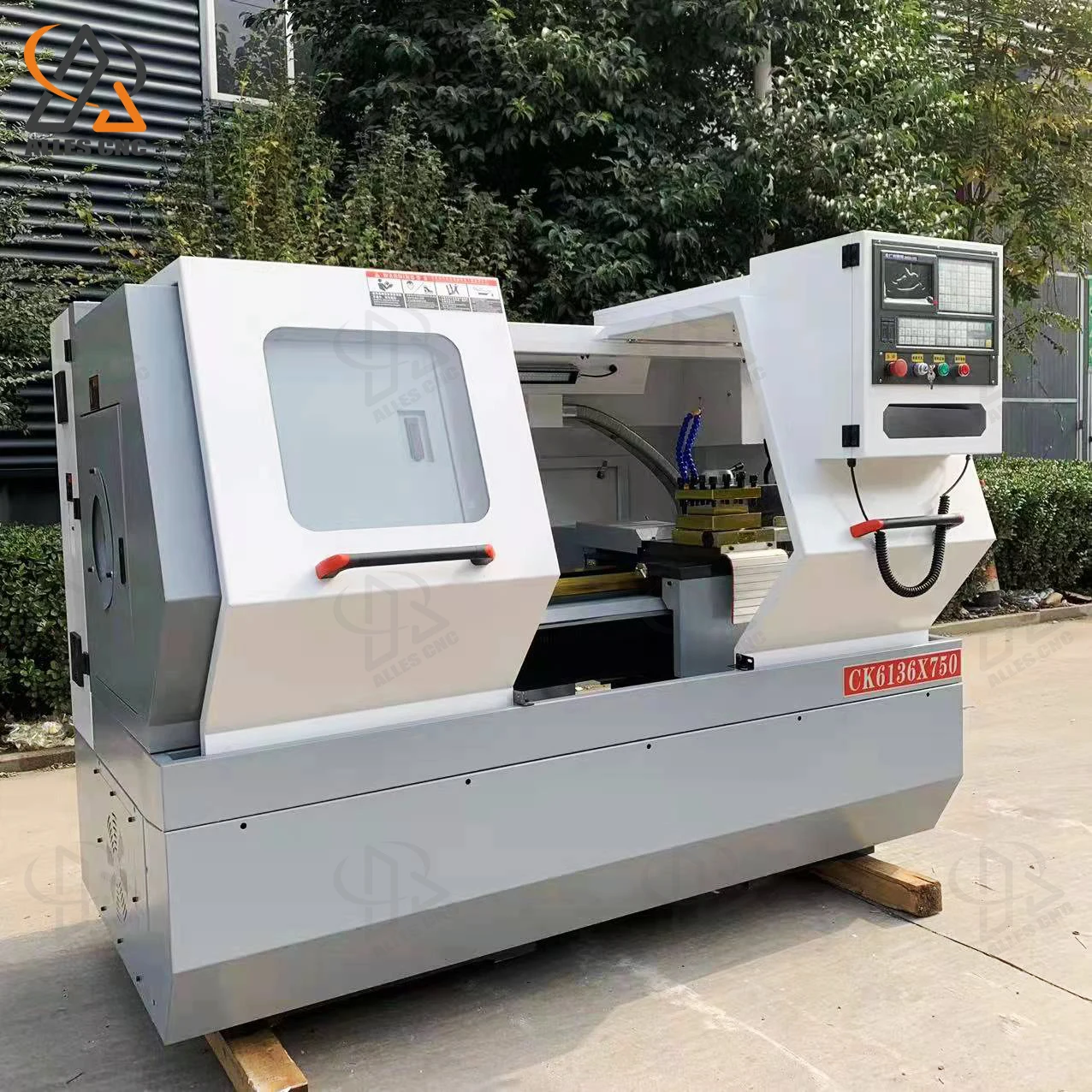

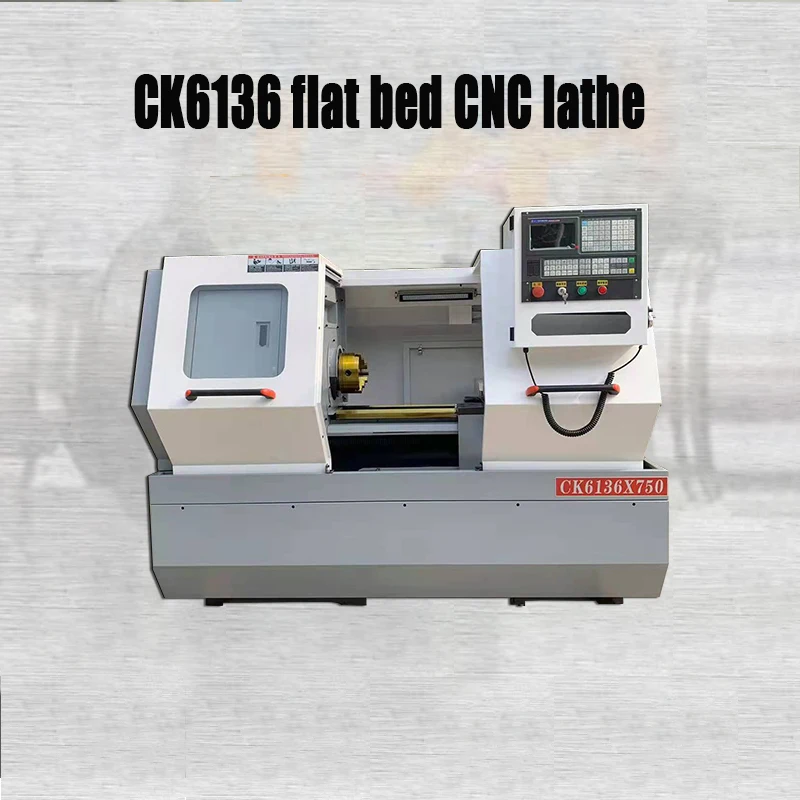

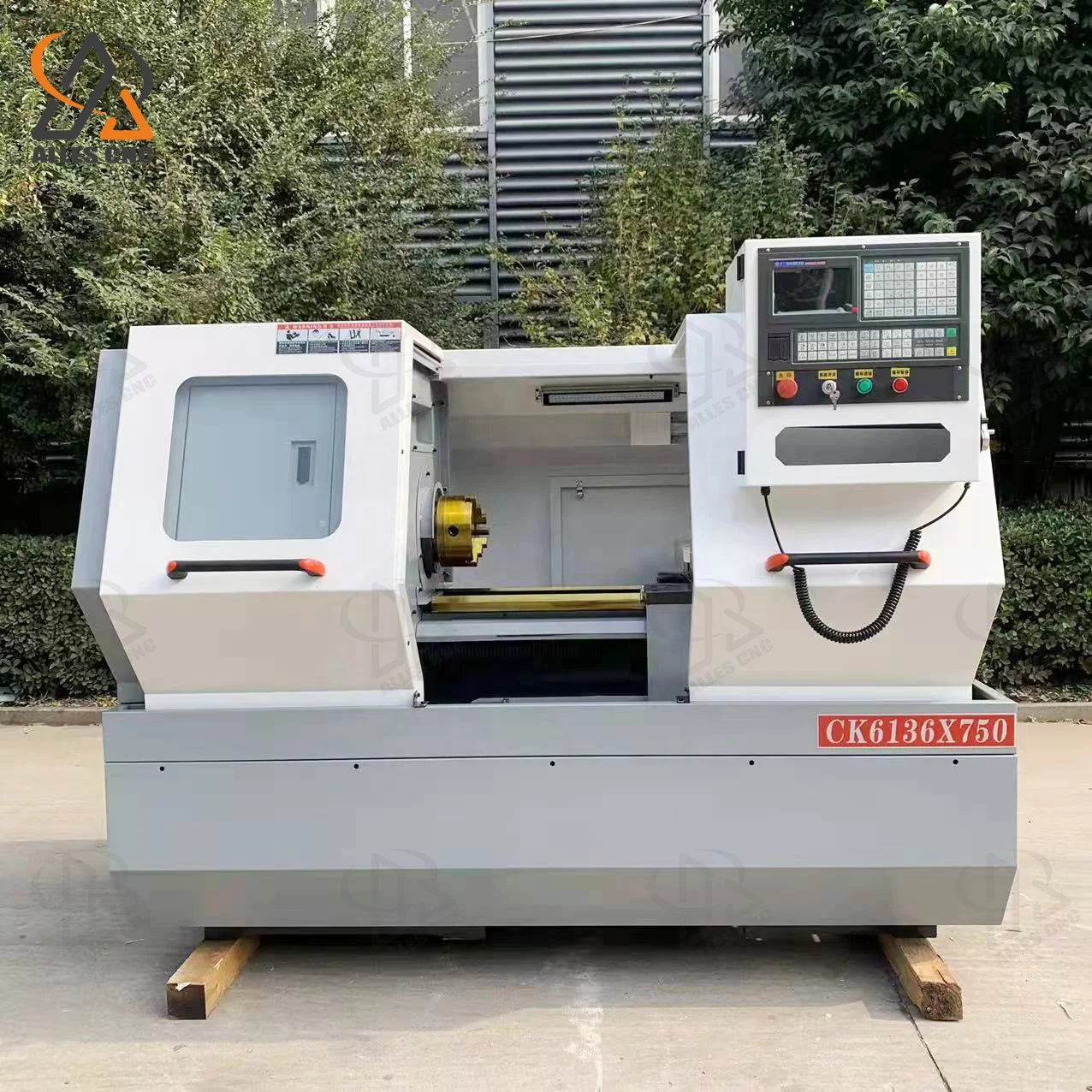

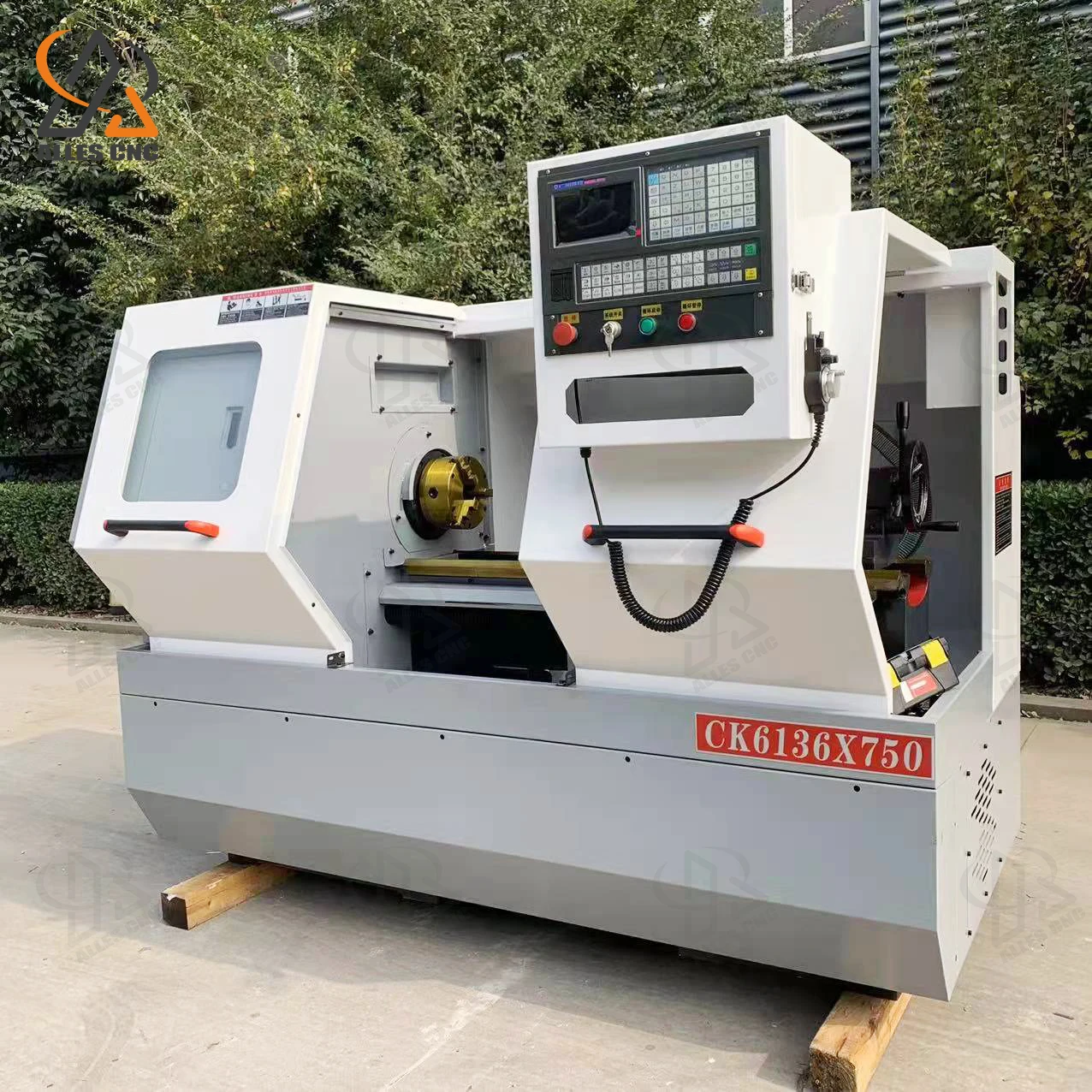

CNC lathe 6136 is an economical CNC lathe. This CNC machine is driven by a single-axis spindle, which has the advantages of high speed, low sound, fast processing speed and high precision.CK6136 high precision cnc lathe has mature product structure, stable and reliable performance and quality.
Product Paramenters
Item | Unit | ALCK6136X750 |
Max swing over bed | mm | Φ360 |
Maximum turning diameter on the tool post | mm | Φ200 |
Maximum workpiece length between two centers | mm | 750 |
Spindle through hole diameter | mm | Φ52 |
Spindle speed range (infinite): | r/min | 150-2000 |
Spindle end model ISO (GB) | A2-6 | |
The spindle front taper hole | No. 5 Morse | |
Spindle motor power | kw | 5.5 |
Spindle motor form | frequency conversion | |
CNC tool holder | Vertical four-station tool holder | |
Tool handle size | mm | 20×20 |
X stroke | mm | 200 |
Z stroke | mm | 750 |
Minimum setting unit | mm | 0.01 |
Tailstock sleeve diameter | mm | 60 |
Tailstock sleeve stroke | mm | 100 |
Cooling motor power | w | 125 |
Cooling water pump head | m | 5 |
Cooling water pump flow | L/min | 25 |
Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
Net weight | kg | 1600 |
Product advantages:
1. The machine tool has high precision, low noise, high precision and good stability.
2. The bed guide rail is finely ground after ultrasonic quenching, with high hardness and good rigidity.

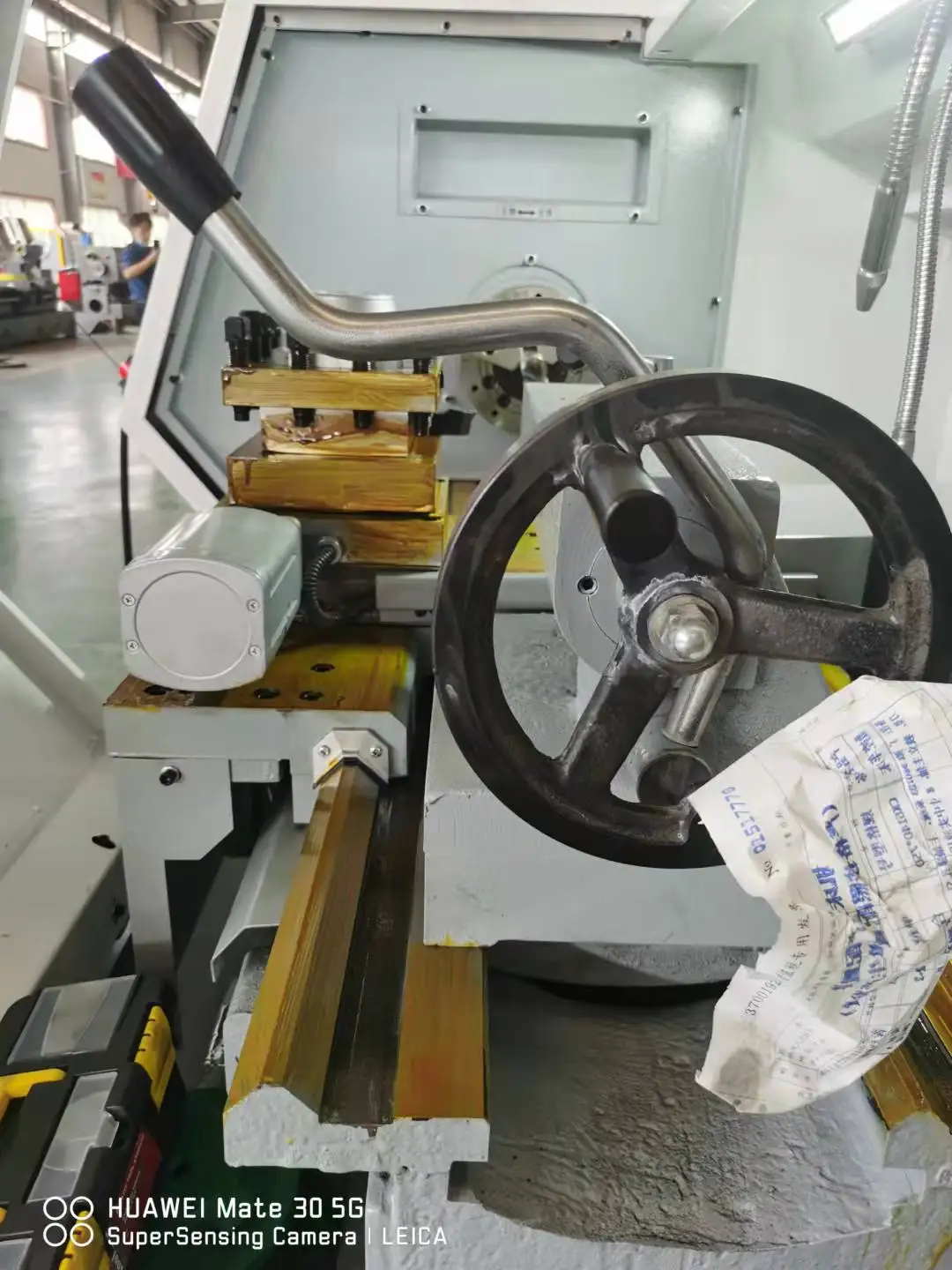

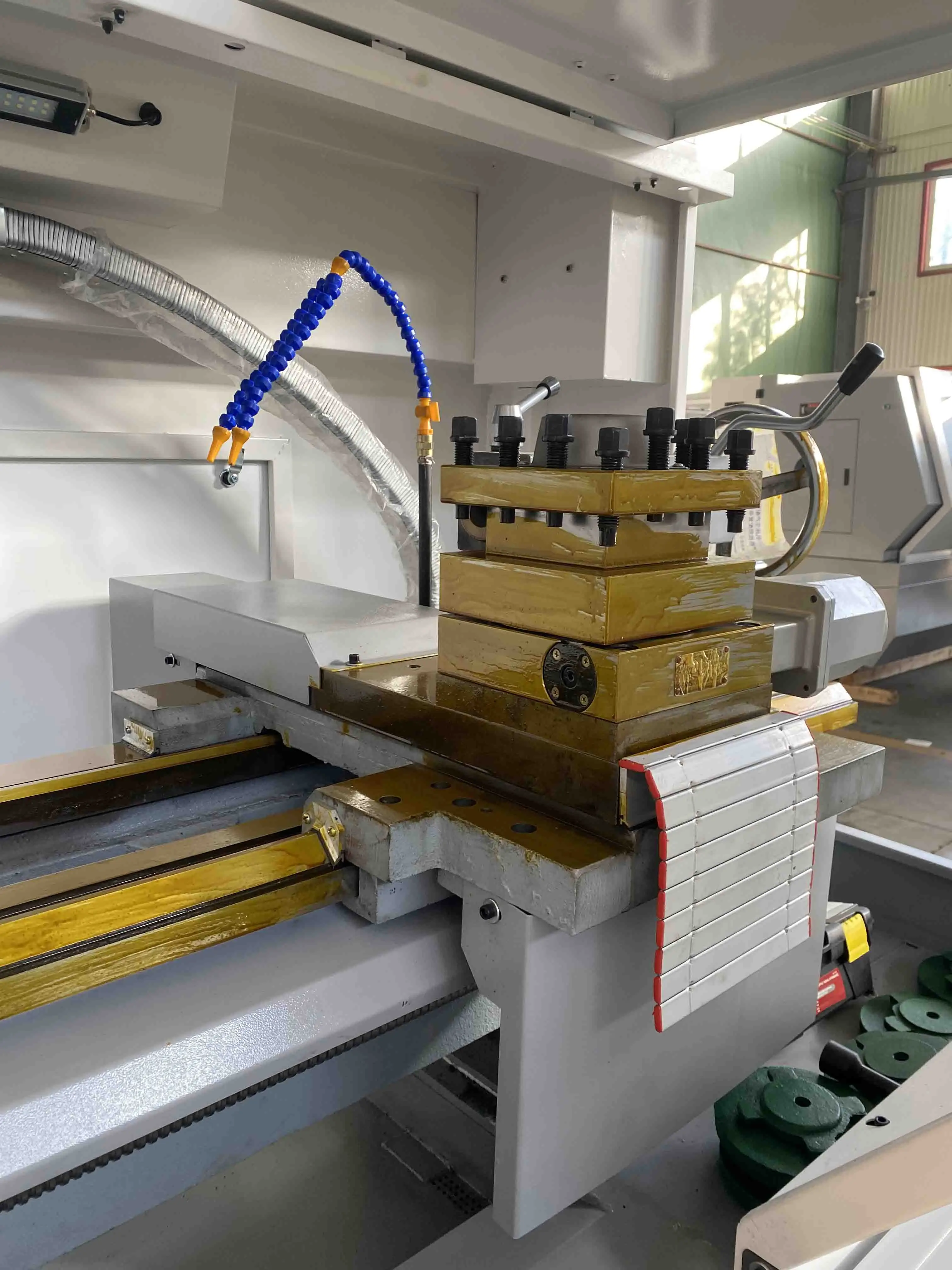

3. The electric four-position tool rest adopts precise step plate positioning, and the repeat positioning accuracy is high.
4. The tool holder adopts end toothed disc for precise positioning, with high repeat positioning accuracy and good rigidity.
2. The bed guide rail is finely ground after ultrasonic quenching, with high hardness and good rigidity.
3. The electric four-position tool rest adopts precise step plate positioning, and the repeat positioning accuracy is high.
4. The tool holder adopts end toothed disc for precise positioning, with high repeat positioning accuracy and good rigidity.
Details Images

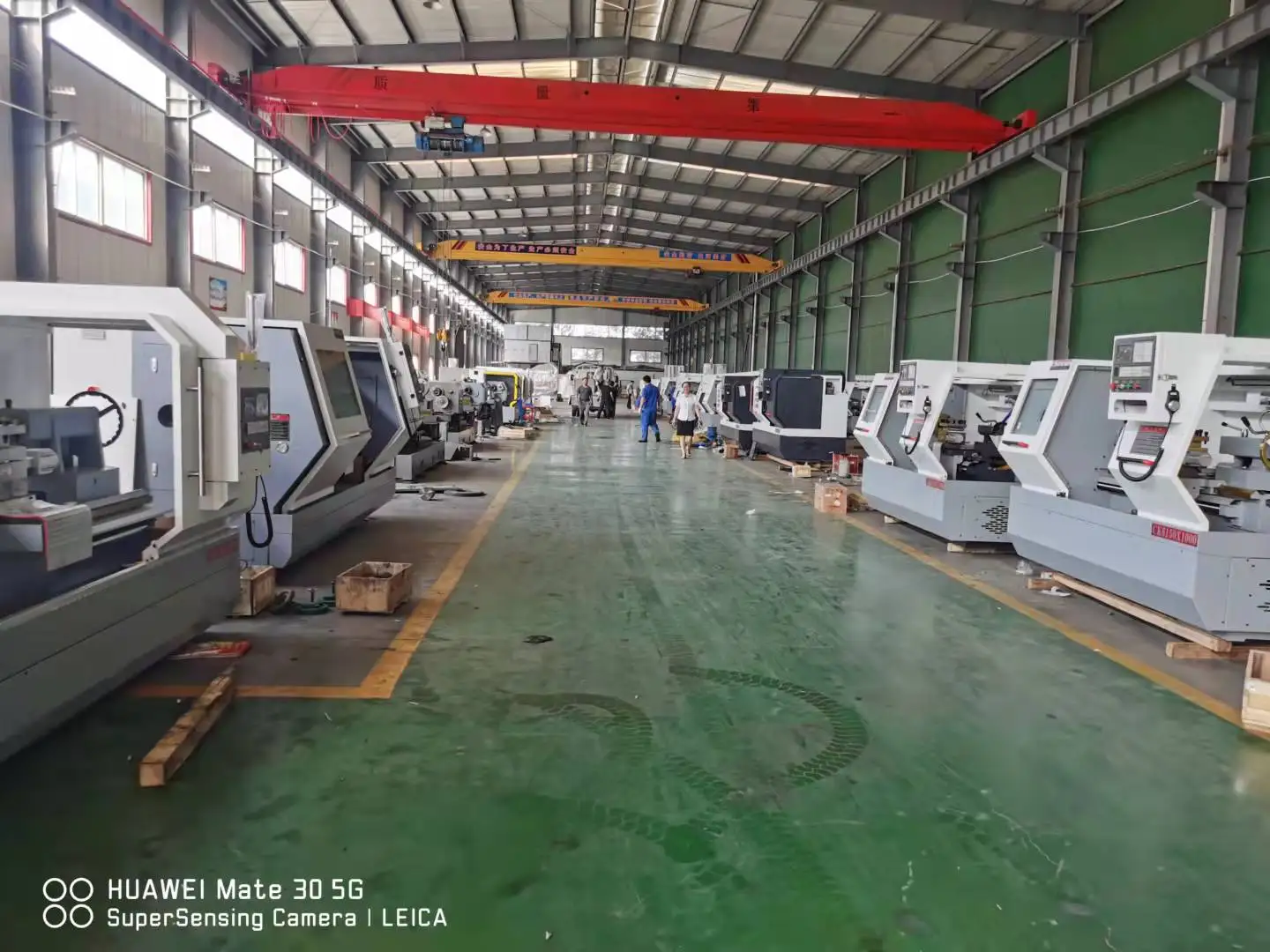

Why Choose Us
FAQ
Q: How about your after sale service? A: Our high efficiency CNC Lathe machine for sale quality Warranty time is 12 months and We
can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning
Video Q:How about your machine quality?We are worry about the quality. A: WODA is a mature brand in China. through our several
years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can
match all the CE standard or more strict standard.Our machines distribute worldwide to about 60 countries where there are metal
plate industry.And where there are our machines, there are good reputation and terminal user satisfaction. Q:Why Choose your
company? A:We can provide customized services according to customer requirements. We also have professional R &D team and fast
response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly
solve any problem you may have in the use.
can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning
Video Q:How about your machine quality?We are worry about the quality. A: WODA is a mature brand in China. through our several
years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can
match all the CE standard or more strict standard.Our machines distribute worldwide to about 60 countries where there are metal
plate industry.And where there are our machines, there are good reputation and terminal user satisfaction. Q:Why Choose your
company? A:We can provide customized services according to customer requirements. We also have professional R &D team and fast
response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly
solve any problem you may have in the use.
