Заводской микроволновый генератор частоты магнетронный источник питания 10 кВт энергии
- Категория: >>>
- Поставщик: Zhuhai Pindom Technology Co. Ltd.
Сохранить в закладки 1600615306501:
Описание и отзывы
Характеристики
Specification
item | Factory Microwave Frequency Generator Magnetron Power Supply 10KW Microwave Energy Generator | |||
Input voltage | Three-phase AC380V±10%, 50Hz±2Hz, Power not less than 10kW | Three-phase four-wire | ||
microwave power | ≥10kW | continuous wave | ||
microwave frequency | 2450MHz±30MHz | |||
microwave conversion rate | ≥65% | |||
Microwave power adjustment | 10%~100% continuous adjustment | |||
Output Interface | BJ26 | |||
control method | Local control/communication | |||
Anode parameters | DC-10kVMAX/1.6A | |||
Protect | Filament undercurrent and overcurrent; anode overvoltage and overcurrent; Ignition; magnetron over temperature; water flow protection; reflection protection | |||
volume | High frequency power supply: 440mm*170mm*680mm (excluding surface Board width, handle and exposed dimensions of rear panel water cooling interface) Microwave head (including circulator): 340mm*292mm*580mm | width*height*depth | ||
Use environment | Working temperature: -10~40℃ Storage temperature: -20~50℃ Humidity: 95% non-condensing Altitude: less than 3000m | Antifreeze is required below 0°C | ||
cooling method | High frequency power supply: water cooling Microwave head: water cooling + air cooling | High frequency power supply: flow rate ≥ 8L/min Microwave head: flow≥15L/min | ||
Product Description

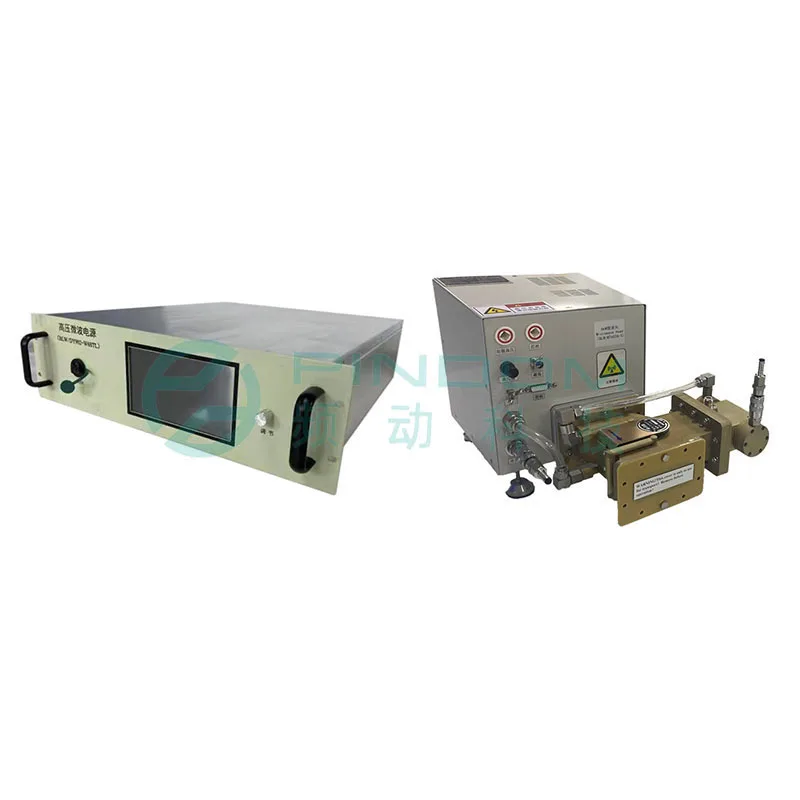

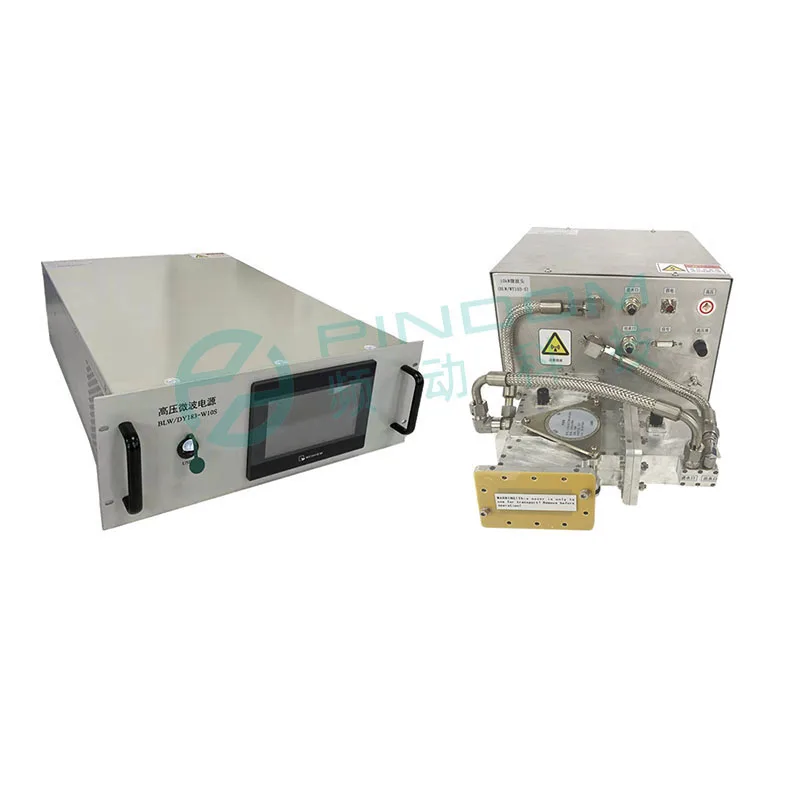

MB/WF103-S type 10kW microwave generator adopts continuous wave magnetron to realize microwave power of 10kW (Microwave frequency 2450MHz±30MHz), the system cooling is water cooling, mainly composed of high-frequency power supply, microwave head, The microwave system consists of three parts. The high-frequency power supply includes anode high-voltage power supply and control system, etc.; the microwave head includes magnetic Control tube, excitation cavity, filament power supply, etc.; microwave system includes circulator.
The microwave generator has ignition protection, magnetron over-temperature protection, water flow protection, anode over-voltage and over-current protection protection, filament overcurrent and undercurrent protection and other comprehensive protection functions. Microwave power regulation via local high frequency power touch It can be controlled by screen operation interface or remote communication RS485 mode, which can realize the microwave power in the range of 10%~100%.
Arbitrary adjustment within the range, narrow spectrum width (about 1.0M), with high reliability, safety, high efficiency,Features such as high stability and low EMI.
Arbitrary adjustment within the range, narrow spectrum width (about 1.0M), with high reliability, safety, high efficiency,Features such as high stability and low EMI.
2 Main features of the product
2.1 Control method

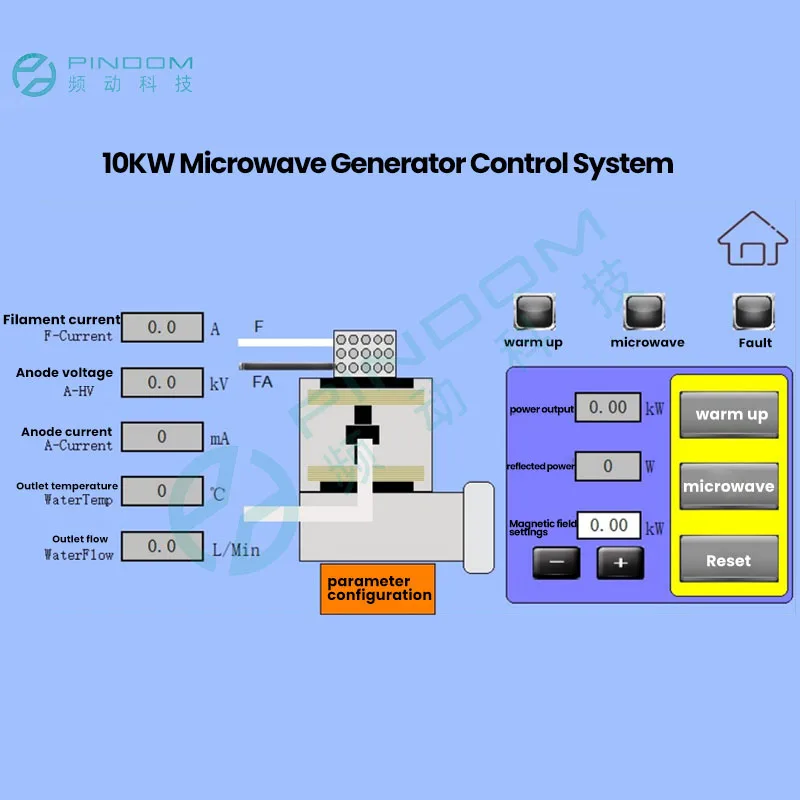

The diversification of microwave generator control methods can meet the needs of different users. This microwave generator.There are two control modes, which are local touch screen and remote RS485 communication, both of which can operate the microwave generator. Control, and reserved expansion port, according to the actual needs of customers to increase the control operation function, easy to use
2.2 Fire resistance
The stability of the high frequency power supply determines the stability of the working state of the magnetron. Therefore, the anode high voltage power supply requires higher. The mature series-parallel resonance method is adopted here, and it is a constant current source under a fixed input voltage, which can short-circuit the work. Therefore, it has a strong ability to resist short-circuit and ignition.
2.3 Quick Protection
The fast protection against faults of the high-frequency power supply minimizes the possibility of damage. This microwave generator uses.The protection measures are full hardware high-speed protection. Each fault protection of the equipment can cut off the power supply within 50μs
Output, the ignition protection can cut off the power output within 5μs.
The stability of the high frequency power supply determines the stability of the working state of the magnetron. Therefore, the anode high voltage power supply requires higher. The mature series-parallel resonance method is adopted here, and it is a constant current source under a fixed input voltage, which can short-circuit the work. Therefore, it has a strong ability to resist short-circuit and ignition.
2.3 Quick Protection
The fast protection against faults of the high-frequency power supply minimizes the possibility of damage. This microwave generator uses.The protection measures are full hardware high-speed protection. Each fault protection of the equipment can cut off the power supply within 50μs
Output, the ignition protection can cut off the power output within 5μs.
2.4 Modularity
When equipment fails, product repair time is related to the recovery of production line productivity. High-frequency power supply internal control.The function and power supply are highly modular, and the replacement is very convenient.
2.5 Spectral width

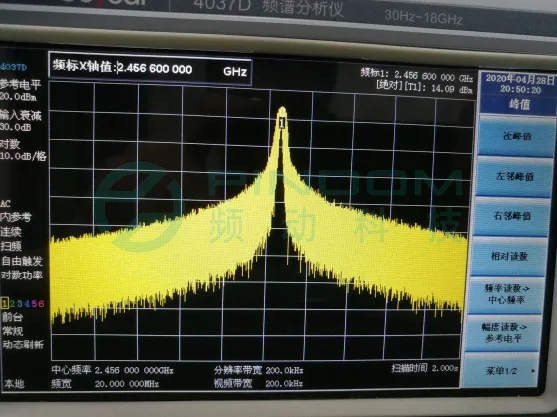

High-end applications in scientific research have higher requirements on the output spectrum width of magnetrons. The microwave generator in the microwave power.At 10kW, the output frequency is 2456MHz, and the spectrum width is about 1.0MHz
When equipment fails, product repair time is related to the recovery of production line productivity. High-frequency power supply internal control.The function and power supply are highly modular, and the replacement is very convenient.
2.5 Spectral width
High-end applications in scientific research have higher requirements on the output spectrum width of magnetrons. The microwave generator in the microwave power.At 10kW, the output frequency is 2456MHz, and the spectrum width is about 1.0MHz

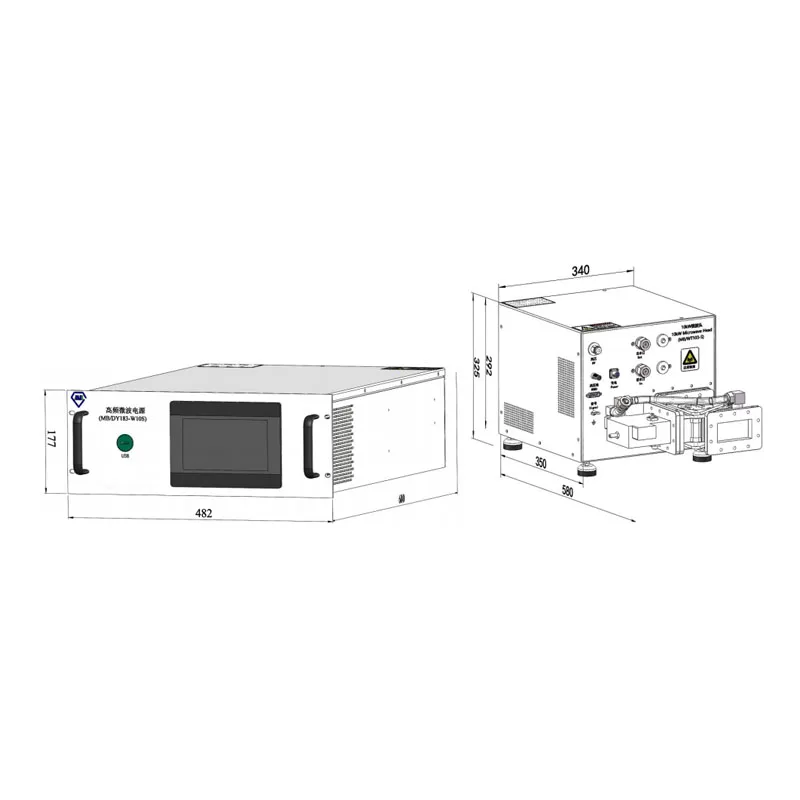

The dimensions of the high-frequency power supply (width*height*depth) are: 440*170*680mm (excluding the panel handle and the back Board exposed water interface), the power supply weighs about 40kg

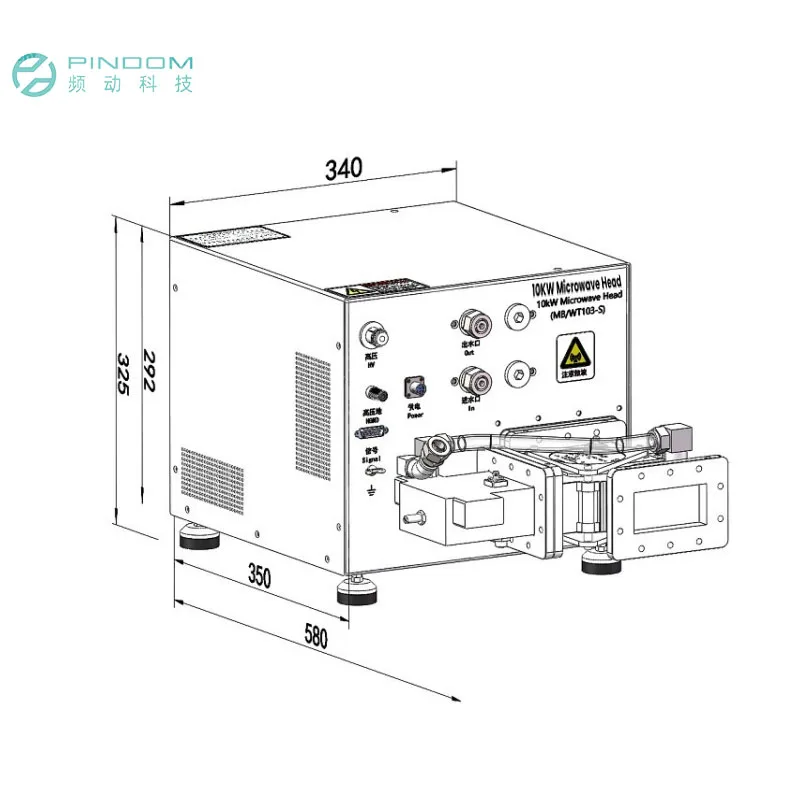

The maximum external dimensions (width*height*depth) of the microwave head and the microwave system are: 340*292*580mm, total.Weighs about 29kg.The dimensions of the microwave head (width*height*depth) are: 340*292*350mm (excluding exposed water interface),
The weight is about 25kg.
The maximum external dimensions (width*height*depth) of the microwave head and the microwave system are: 340*292*580mm, total.Weighs about 29kg.The dimensions of the microwave head (width*height*depth) are: 340*292*350mm (excluding exposed water interface),
The weight is about 25kg.
