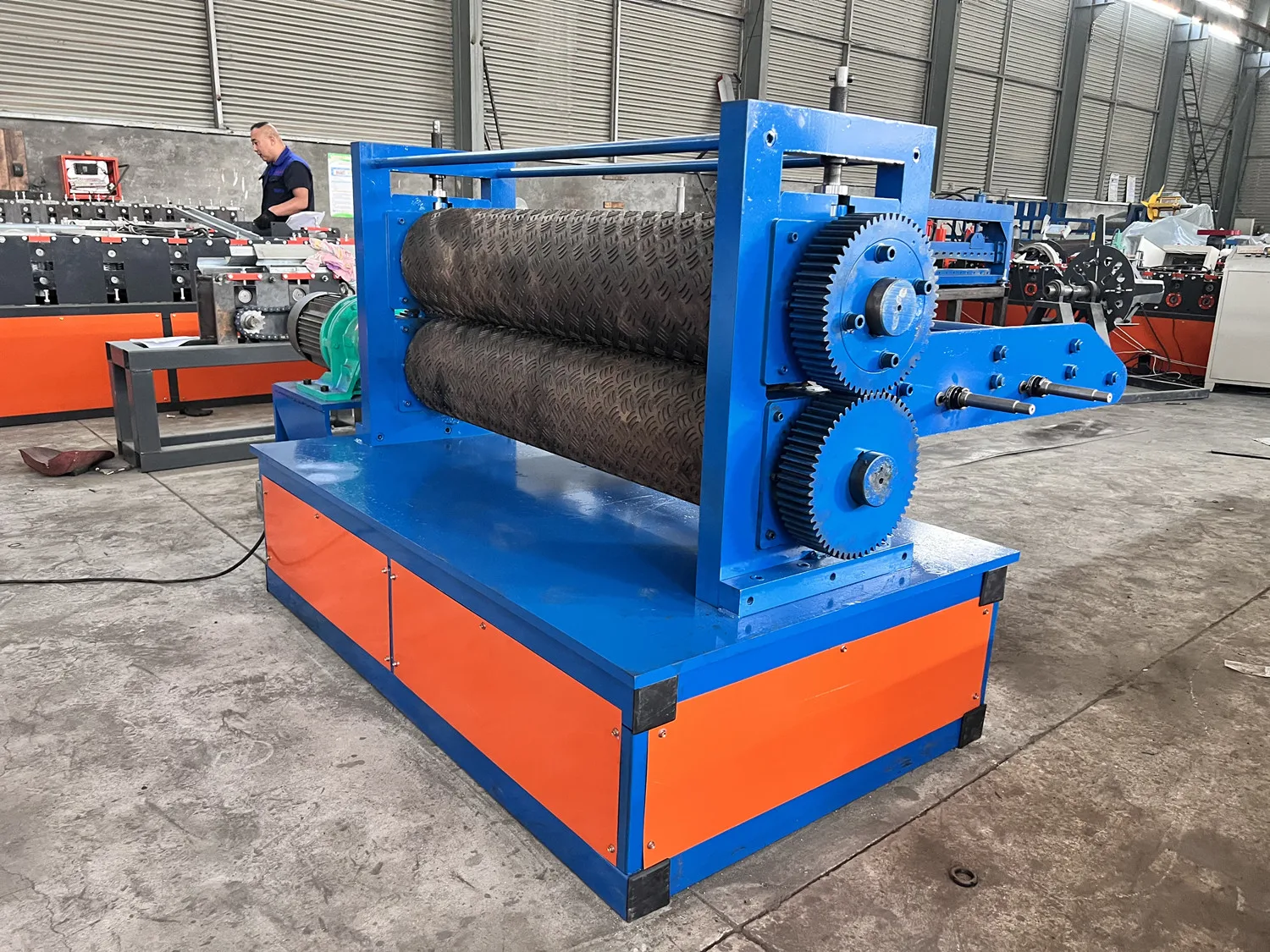

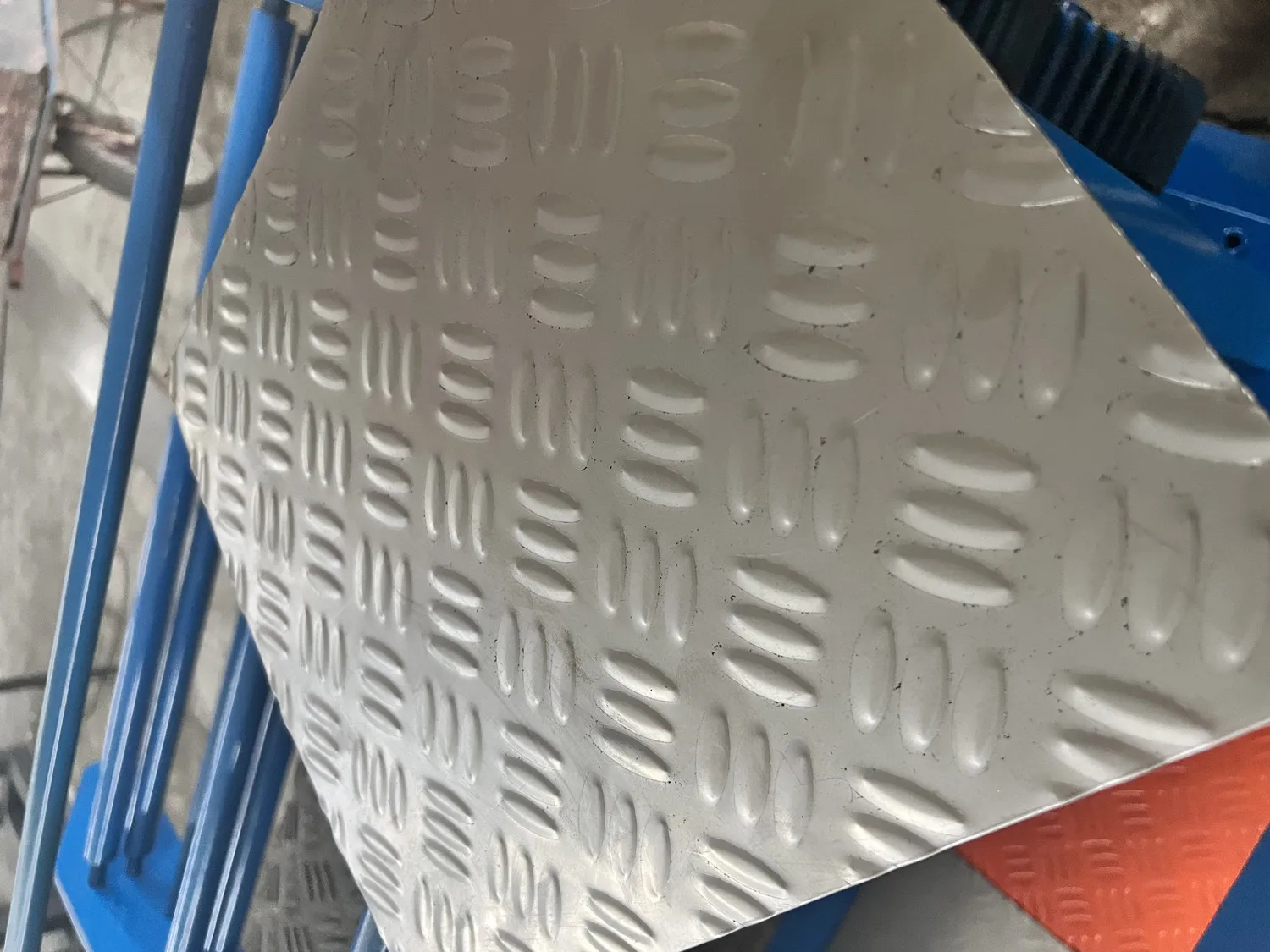

Нескользящий стальной лист шириной 1000 мм 1250 машина для тиснения Алмазный Узор металлическая плитка линия
- Категория: >>>
- Поставщик: Henan Wadjay Machinery Co. Ltd.
Сохранить в закладки 1600615891700:
Описание и отзывы
Характеристики
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line
Material of aluminum sheet, color steel sheet, heat zinc plated sheet, copper sheet, cold rolling steel sheet and stainless steel sheet, etc. The finished embossing coils are applicable for home appliances, freezer, ice house, building outer walls, corrugated roof, elevator, platform floor, garage gates, safe doors, stair anti-skidding, machinery manufacturing, etc. Embossed coil can make the substrate coil more beautiful and strength
Specification
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line

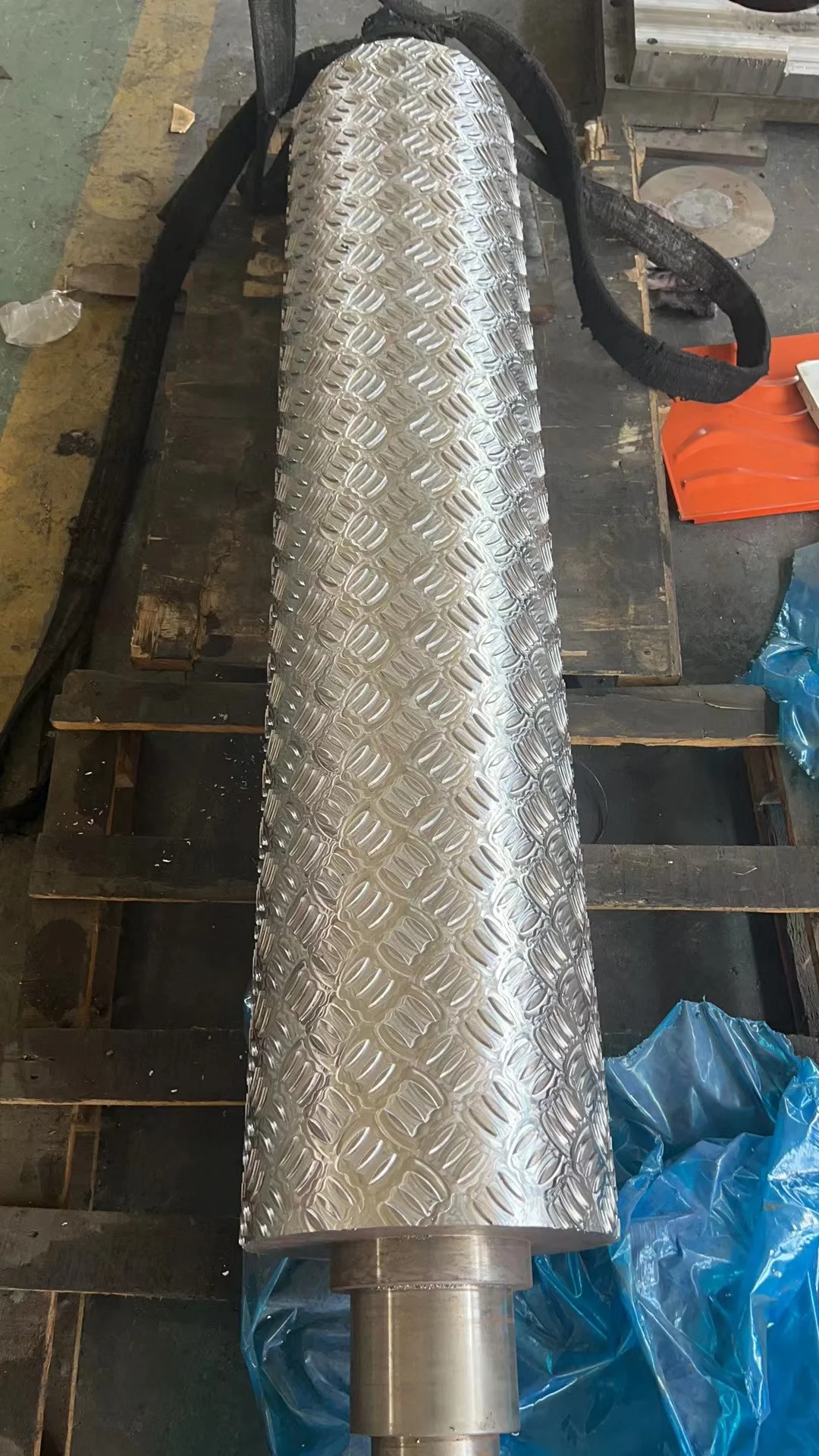

Embossing roller | ø440*1150 |
Bearing | Torrington spherical roller bearings ,TWB 3003136 |
Bearing box | 400*400*160mm |
Driving | 11kw AC motor |
reducer | BWED53-17*11-11KW 4P |
Speed | 1-10m/min |
Pressure mode | hydraulic system, ø150 oil cylinder 2pcs |
Hardness of embossing roller surface | HRC 58~62 |
Depth of hardness surface | 5-10mm |
Material of embossing roller | 60CrMnMo |
Product overview
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line:

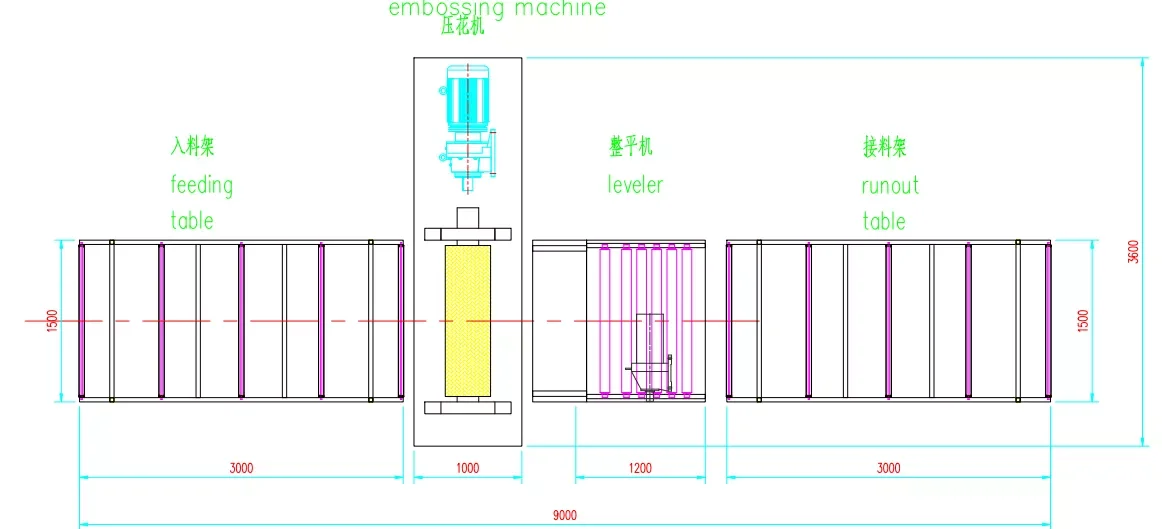

Feeding table-- Embossing Machine---Leveling Device- Runout table
its working flow is as following:
its working flow is as following:
Machine Details
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line

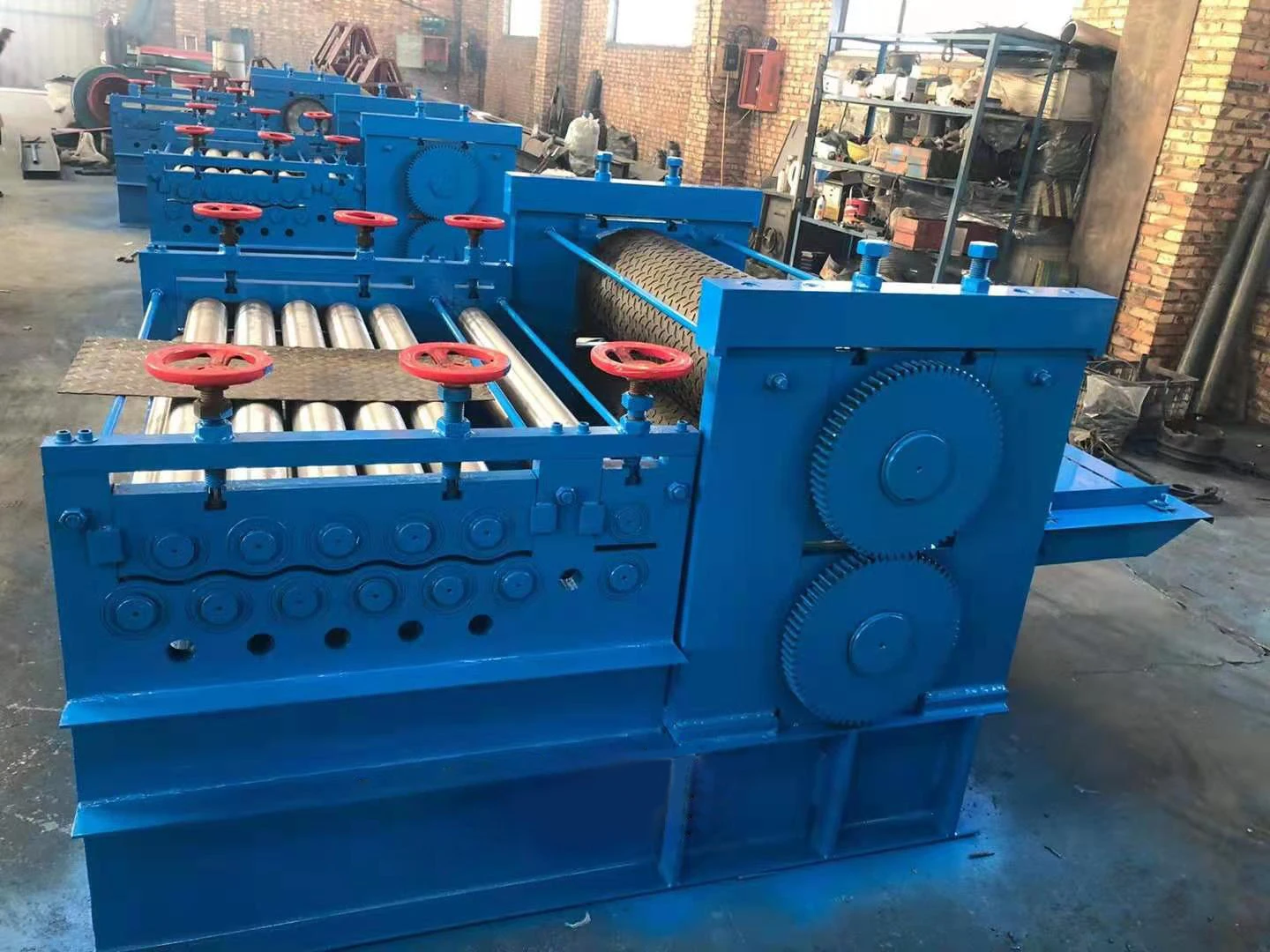

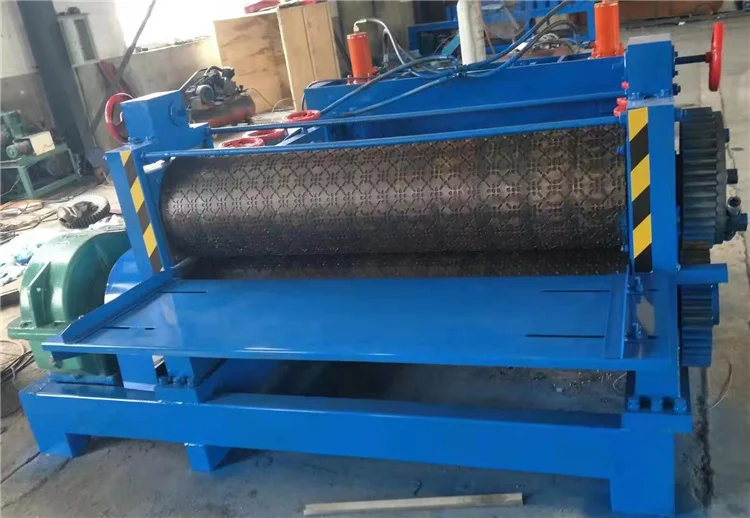

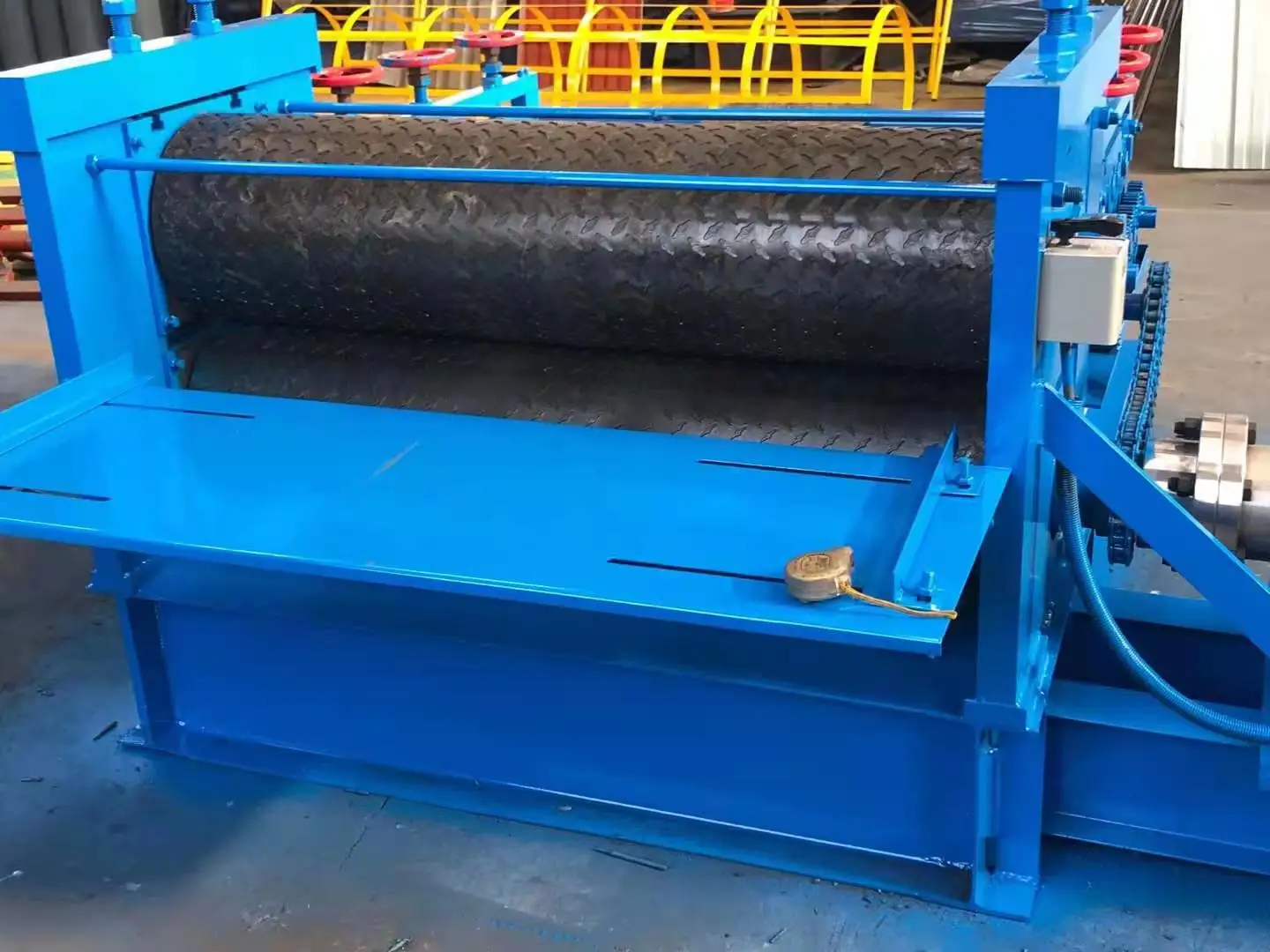

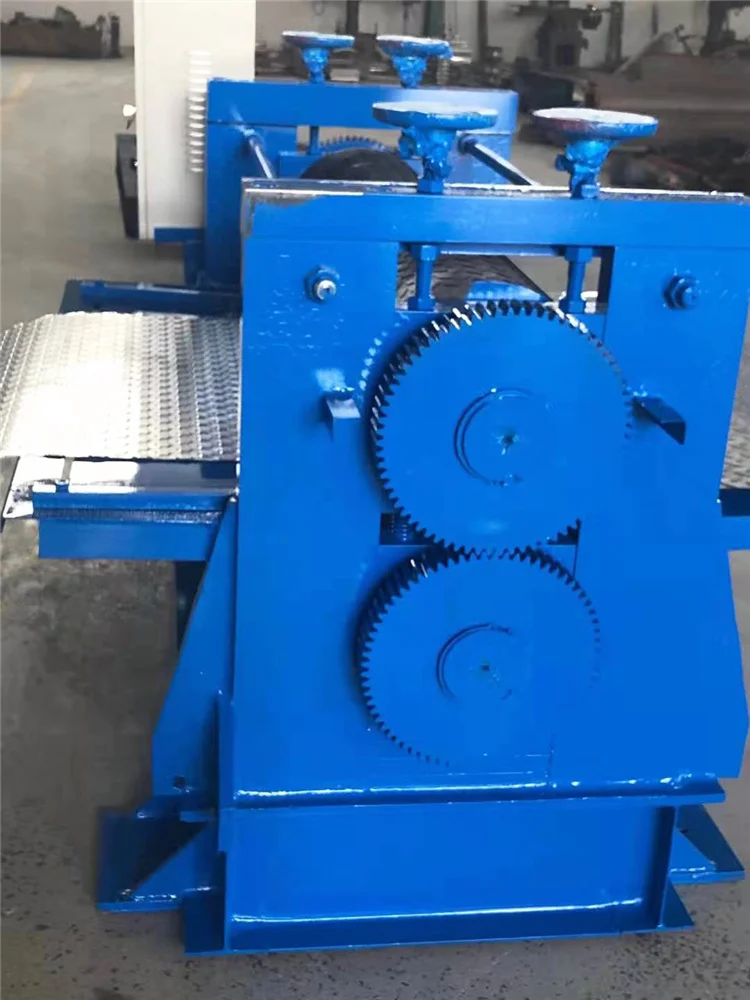

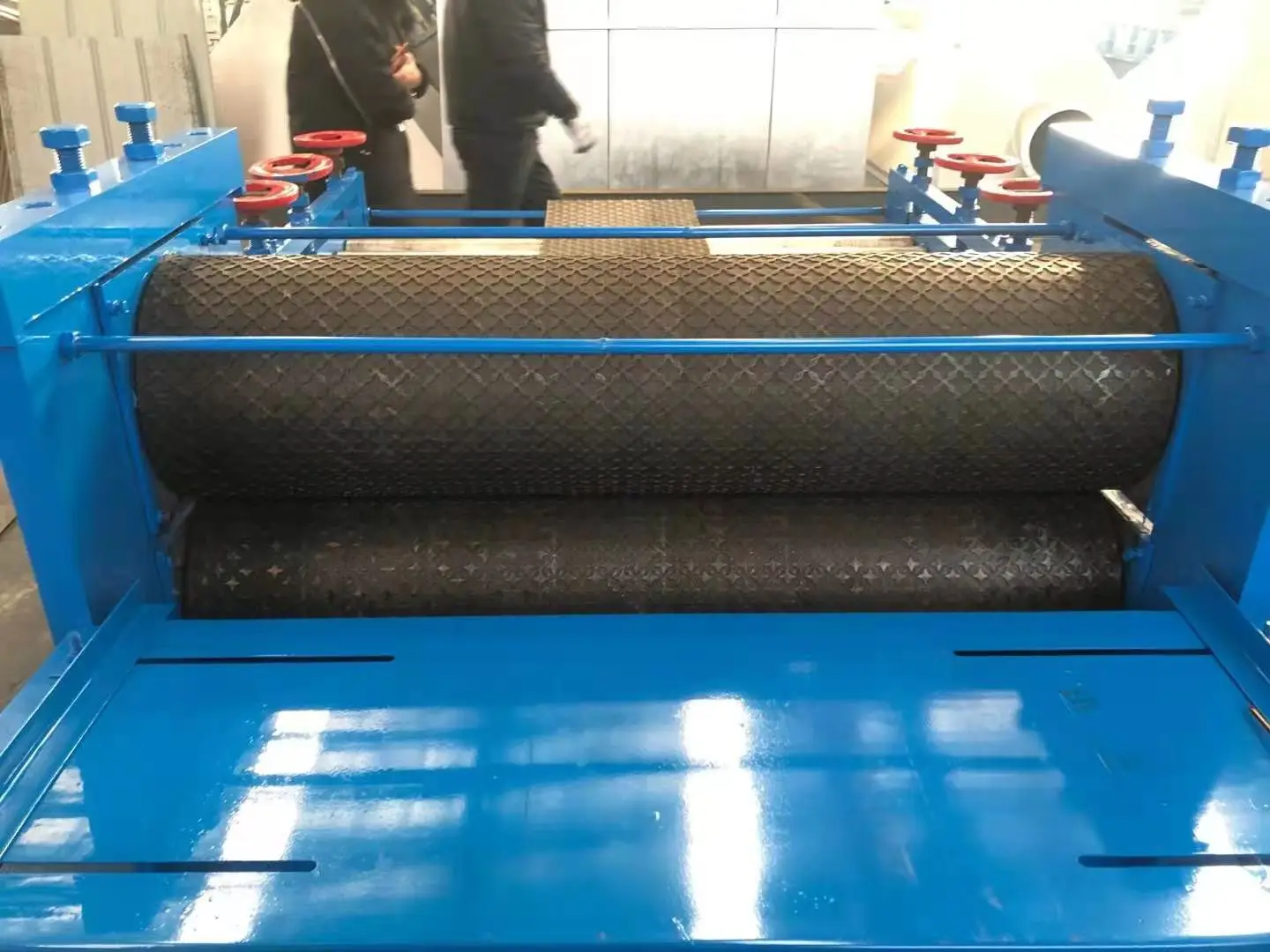

main frame
embossing machine are respectively installed at both ends of the machine base, the screw rods on one side are connected to the pulleys, the screw rods on the two sides are respectively sleeved with connecting collars, the collars are connected to the brackets, and the brackets pass through the side plates on both sides.
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line

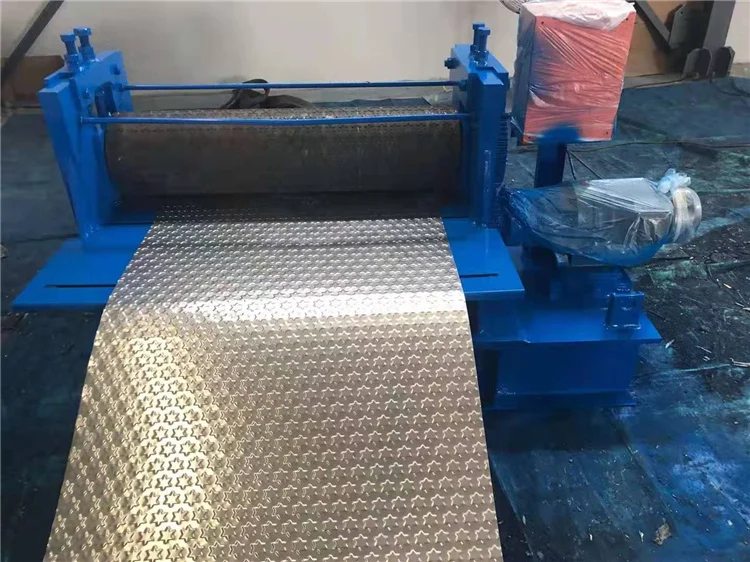

Loading parts
Numerical control feeding and stopping, sensitive induction and accurate feeding.
Avoid loose coils and loose coil devices to avoid loose coils in the feeding project.
Avoid loose coils and loose coil devices to avoid loose coils in the feeding project.
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line

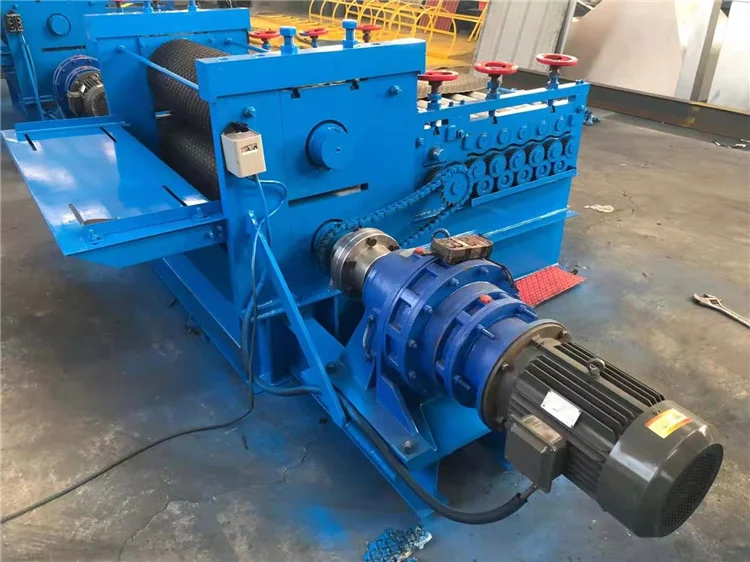

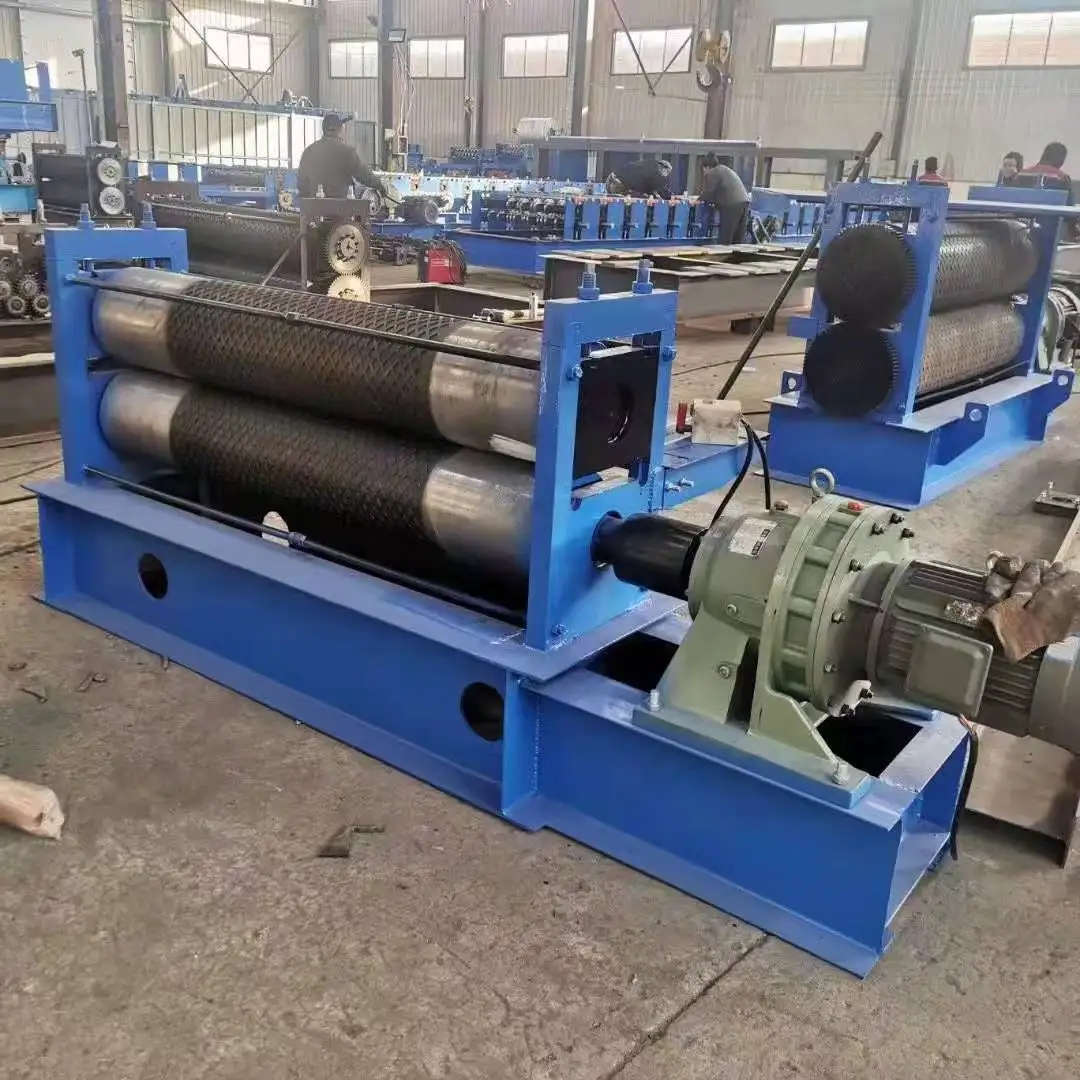

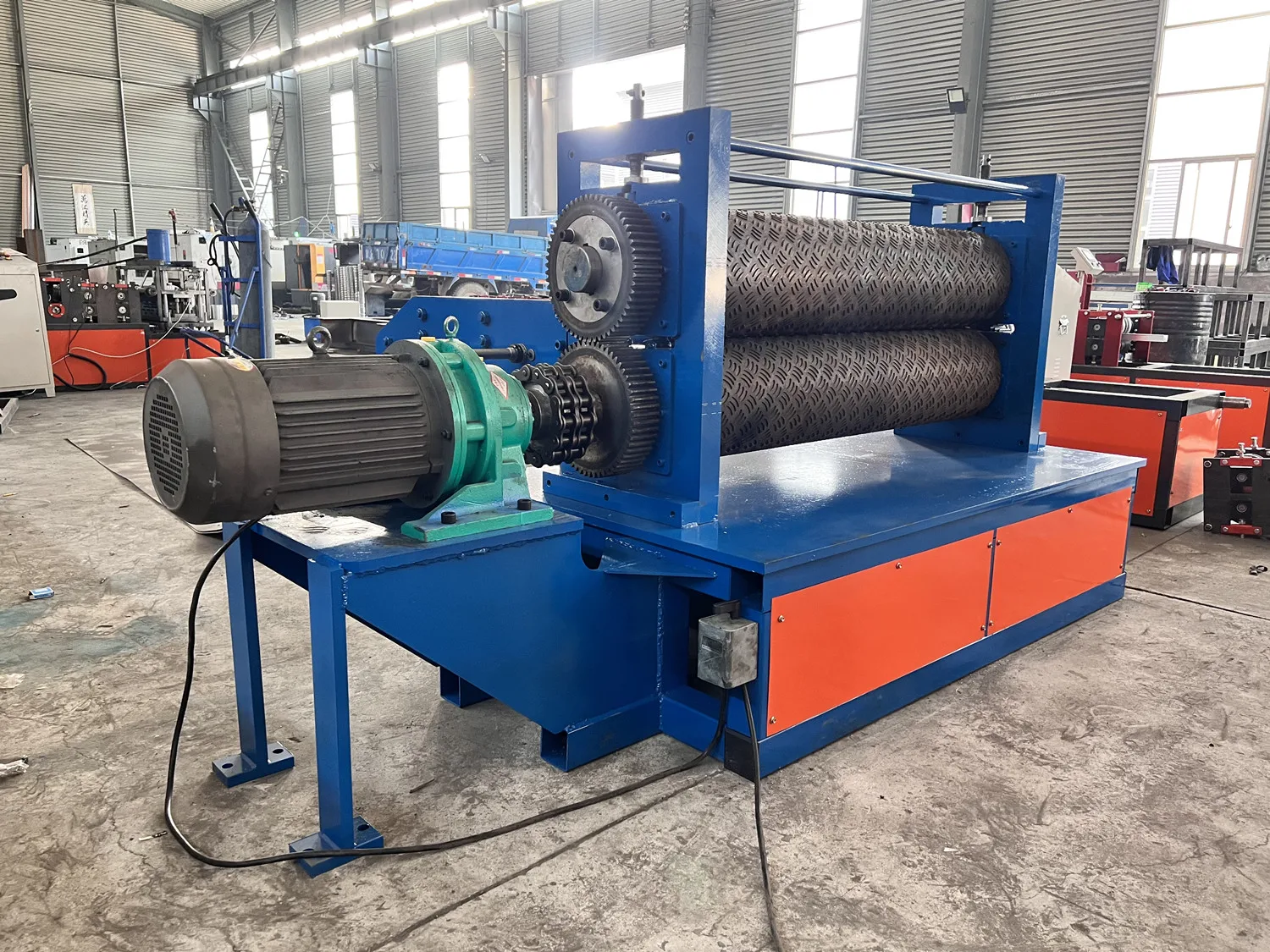

Motor and reducer
Geared motors are widely used in the steel industry, machinery industry, etc.

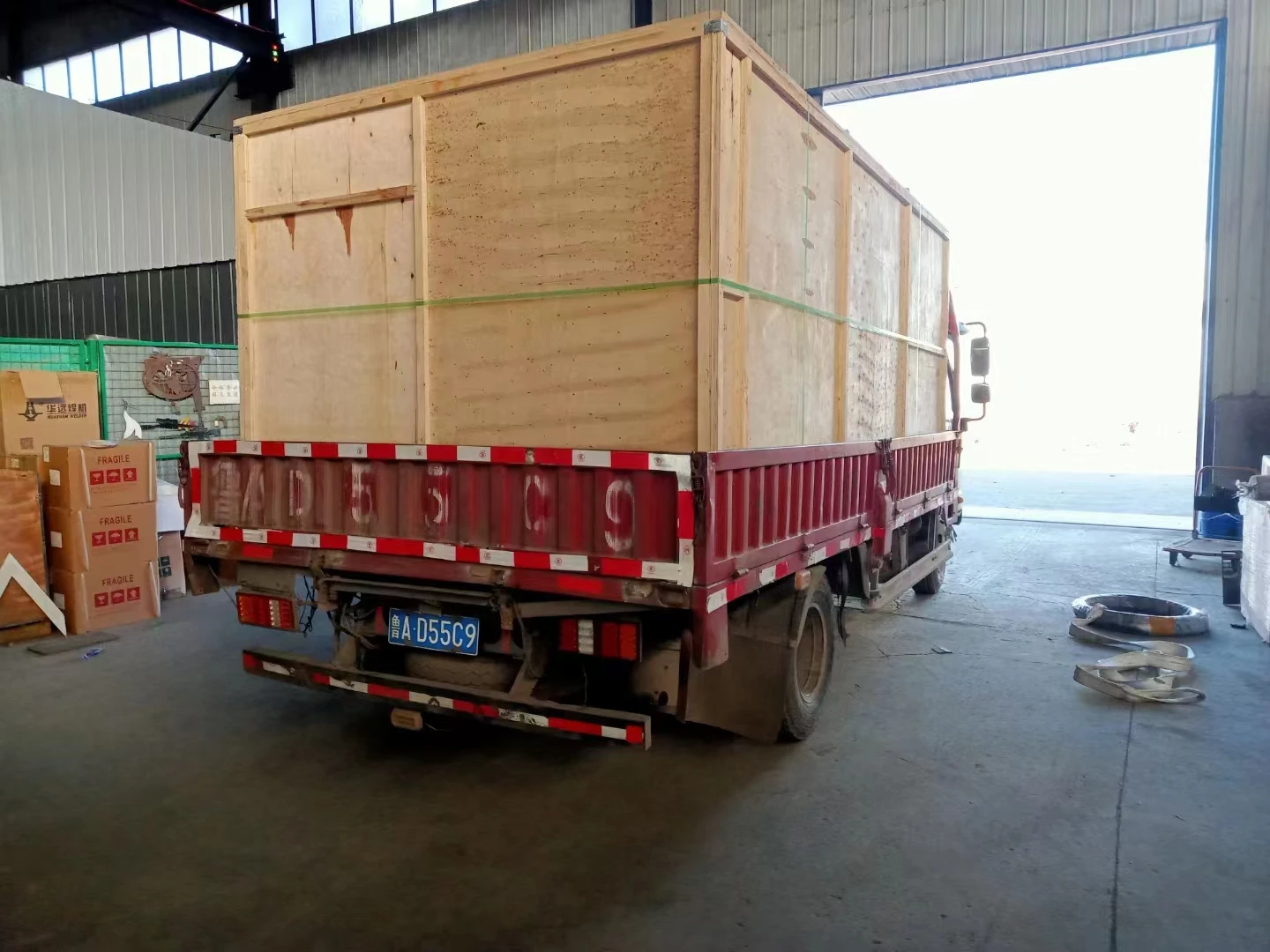

Shipping & Delivery
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line
1.Packing type:wooden case,also be packaged according to customer requirements.
2.We will send photos and videos for your reference before shipment.
Why Choose Us
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line
FAQ
Non slip 1000mm 1250mm width steel sheet embossing machine diamond pattern metal chequer plate embossing line
Q1.If machine can customize according to my demands?
Yes dear, we can customize machine according to your tile drawing or photo.
Q2.My place voltage is 220v,60hz,3phase ,if your machine fit?
yes dear,we can design machine according to your demands.
Q3.Machine production need how long?
Machine production need about 20 working days after getting deposit
Q4.What is the package? Is it suitable for shipment?
Machine delivery by container, we packed by protective film is enough.
Q5.How about your payment terms?
50% T/T as down payment, balance 50% by T/T before delivery. If others payment terms, we can discuss the details.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Yes dear, we can customize machine according to your tile drawing or photo.
Q2.My place voltage is 220v,60hz,3phase ,if your machine fit?
yes dear,we can design machine according to your demands.
Q3.Machine production need how long?
Machine production need about 20 working days after getting deposit
Q4.What is the package? Is it suitable for shipment?
Machine delivery by container, we packed by protective film is enough.
Q5.How about your payment terms?
50% T/T as down payment, balance 50% by T/T before delivery. If others payment terms, we can discuss the details.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
