Keda Series Amphibious Dredger Water Master Dredger for sand with Good Quality
Brief Introduction
Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc. Its features are as follows:
1. Disposal easily, no need for crane, can move on a road and get in and out of the water without too much cost;
2. Self-propulsion with propellers;
3. Work stable, with spuds and support legs to keep balance;
4. High efficiency, with submersible mud pump and cutter compound equipment ensuring high slurry density (around 25%);
5. One person operation. Workers with excavator operation skills can operate easily after a little training;
6. Can be used in closed channel, shallow areas, industrial pond, reservoir etc. where other dredgers can not work;
7. Lights on dredger are available to make sure constant work for maximum efficiency.
Parameter

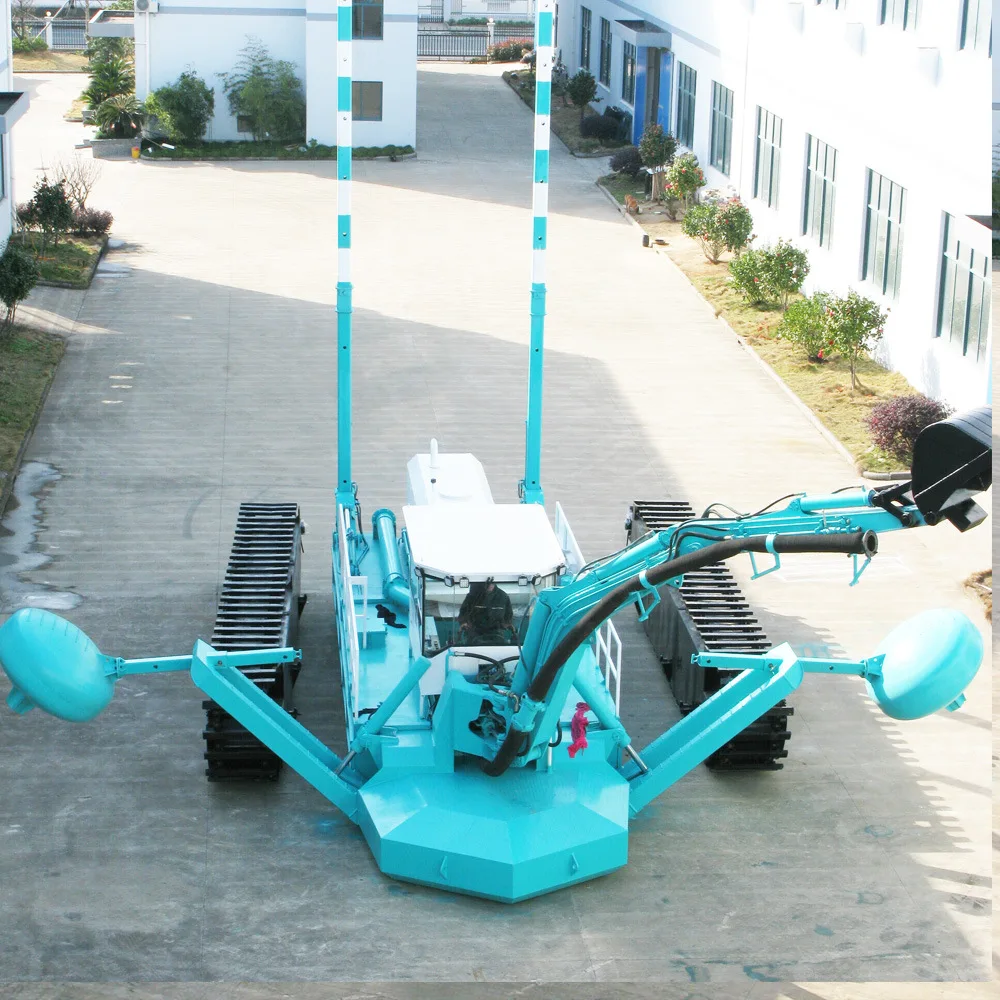

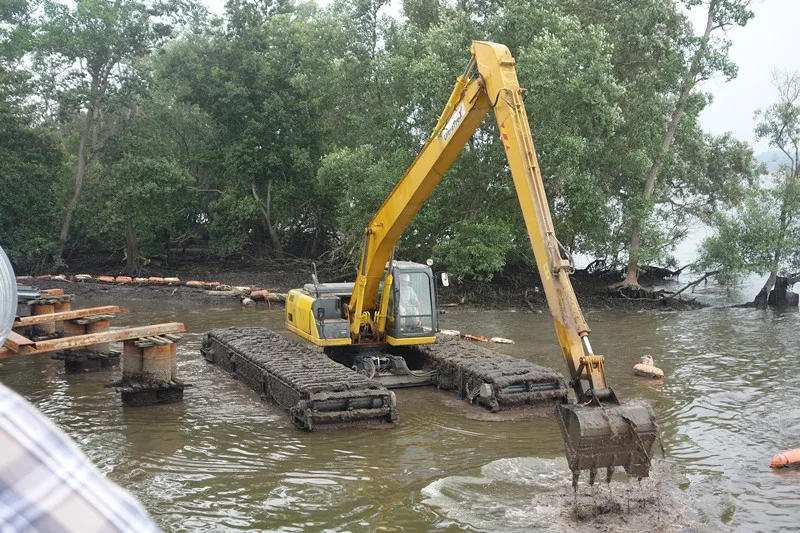

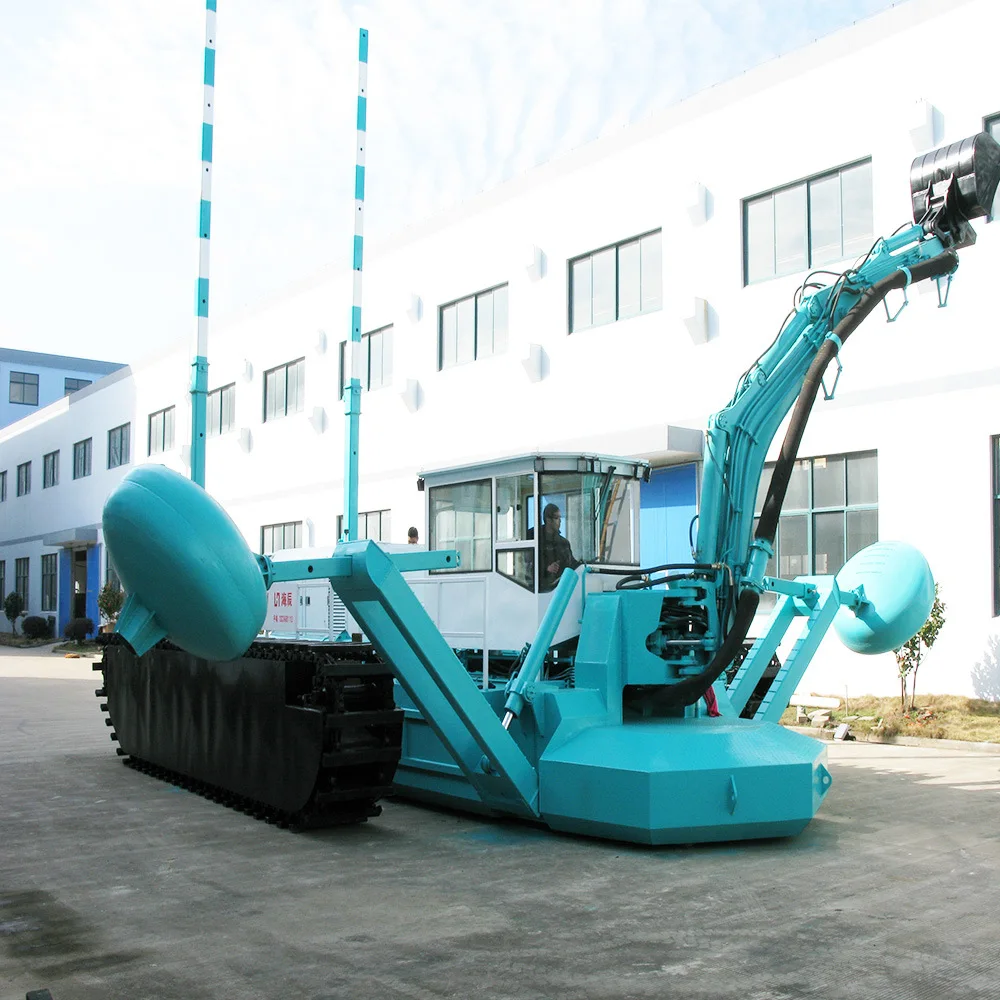

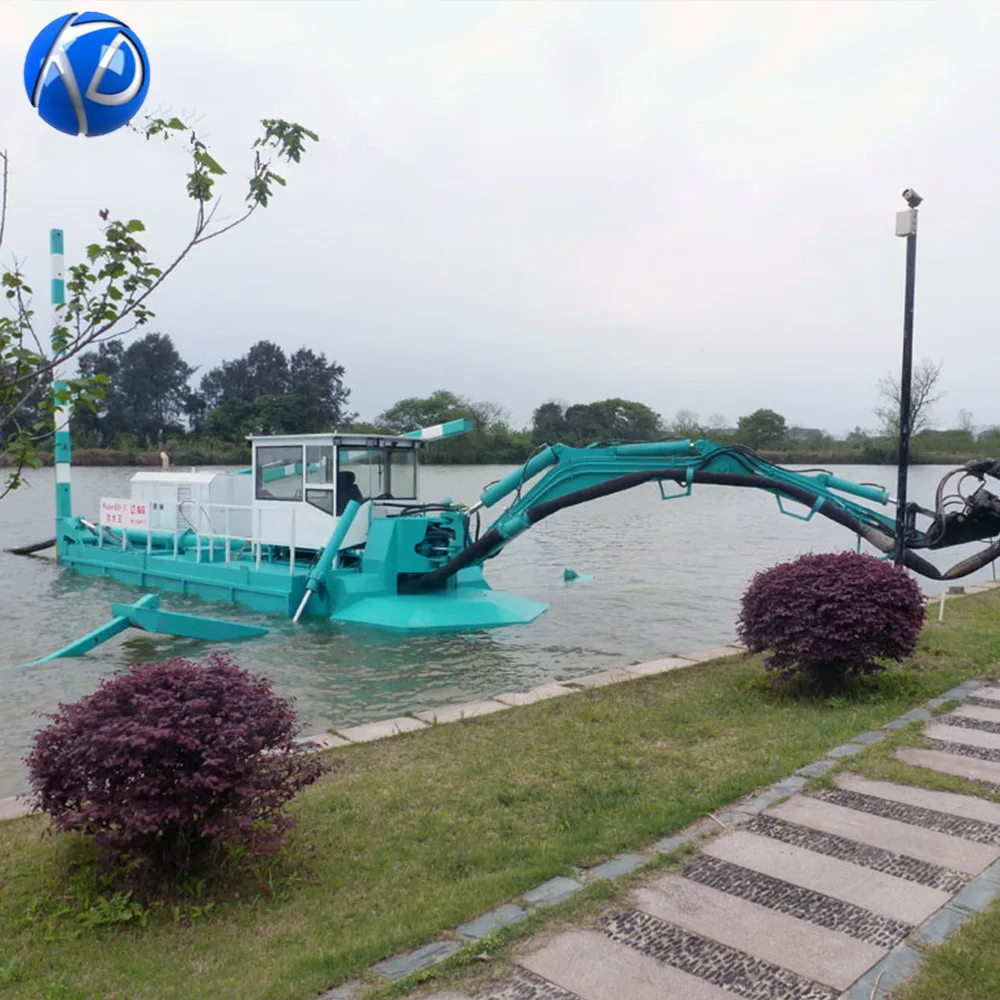

Images in the factory and at the working site
Water KD-I includes functions of cutter suction, digging, grabbing, piling, weeding etc. as a whole, can be used in shallow areas such as, coastal beach, inland lake, city rivers, channel and reservoir, industrial settling pond, can be used for dredging, reclamation, desilting, weeding and piling etc.
Advantages
1. Wide applicability. Can be used for cutter suction, digging, grabbing, piling, weeding, barrier cleaning etc. in water area of closed, narrow, shallow, heavily polluted etc..
2. Strong mobility. No need for crane, can go in and out of the water area easily; Self-propulsion with propellers; stable with spuds and support legs.
3. High automation. Workers with excavator operation skills can operate easily after a little training.
4. Good economics. Using of submersible mud pump cutter compound equipment ensures the slurry density high; Comparing with cabin mud pump, the oil consumption is reduced obviously.
No. | Name | Specification |
1 | Size(L*W*H) | 11*3.3*3.1m |
2 | Weight | 25t |
3 | Engine | Cummins Made In China |
4 | Hydraulic System | Rexroth brand made in Germany |
5 | Excavator |
|
| Swinging angle | 180º |
| Lifting capacity at max. reach | 22kN |
6 | Dredge Pump |
|
Outlet diameter | 250mm | |
Max. dredging depth | 6.5m | |
Max. discharging distance | 1500m | |
Water flow | 400m3/h | |
7 | Optional Equipment | Suction pump, discharge pipe, nozzle, rake, clam shell, vertical pile bucket, steel sheet pile head, maintenance crane, crawler pontoon |
In bulk or as required
Other Related products

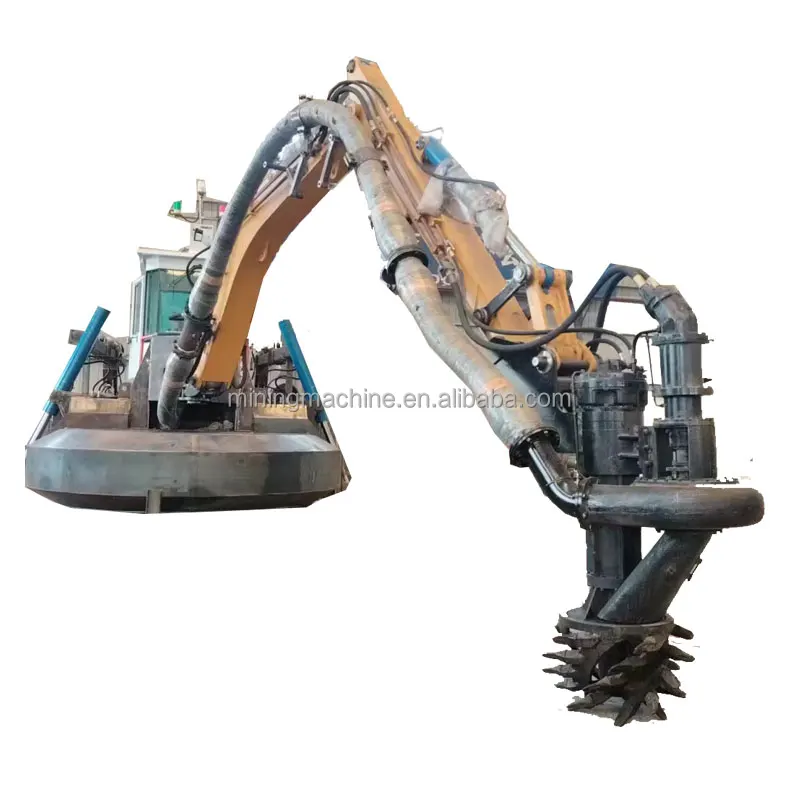

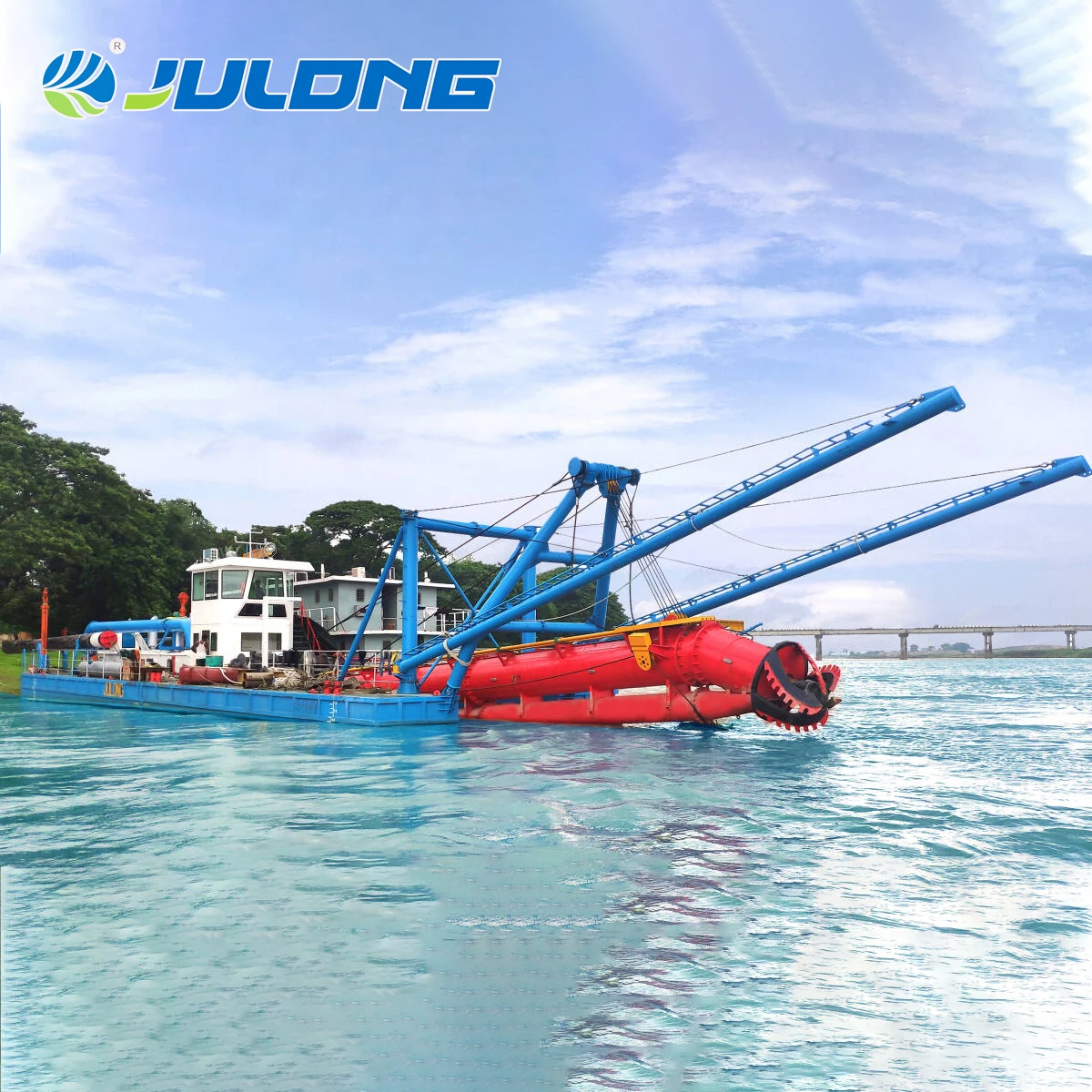

Cutter Suction Dredger
Bucket Chain Sand Dredger
Weed Harvester
Qingzhou Keda Mining Machine Co., Ltd. locates in Qingzhou City, Shandong Province, China.
1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to fields of gold mining, sand pumping and desilting with long time exploring and R&D experience.
2.All our products have been certified by ISO9001 and many of them have been exported to more than fifteen countries and regions such as Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New Guinea, Bangladesh, Sultan, Korea, USA, Russia, India and so on
Customers' Visitors
1. Is our company a direct or indirect producer?
— Our company is a direct producer.
2. What's the main product of our company?
— Our main product is gold extracting equipment.
3. Are our products certified or patented?
— Yes, we only provide certified products.
4. Can we offer good after sale service?
— Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.
Thanks so much for your browse. If you have any questions about our company and products, please feel free to contact us at any time, we will try our best to serve you.
