Заводская цена автобусный POS терминал для городского автобуса Карта оплаты с WIFI/GPRS/4G
- Категория: >>>
- Поставщик: Shenzhen Cardlan Technology Co. Ltd
Сохранить в закладки 1600617656325:
Описание и отзывы
Характеристики
Product application
More than 2022 Years' Manufacturing Experience
Shenzhen Cardlan Technology Co. Ltd was established in 2000 in Shenzhen Longgang District.We specialize in manufacturing high-quality bus POS systems, fare collection POS systems, urban all-in-one card systems, intelligent internet information systems and other RFID systems. Cardlan has done so many kinds of project in foreign countries, such as Myanmar, Cambodia, United Kingdom,Chile, Zimbabwe, Thailand, United States, Tajikistan, Dubai, Russia, Moglia, Ukraine,Qatar...
Cardlan best selling model are at your optional
With NFC
With qr barcode scanner
With wifi
With Relay
With English version
With SDK and API for secondary development
with Cardlan whole software system
Product features
Cardlan Technology Dustproof waterproof IP56 anti impact IK8 bus validator with qr code covering the following areas:
1.Public transport payment:Bus,metro,light rail,ferry etc.
2.Utility payment:Water,electricity,gas,CCTV,telecommunications etc.
3.Financial application:Credit for load,Consumption,encashment,Debit for unload.
4.Tourist consumption:instead of ticket,tourist points etc.

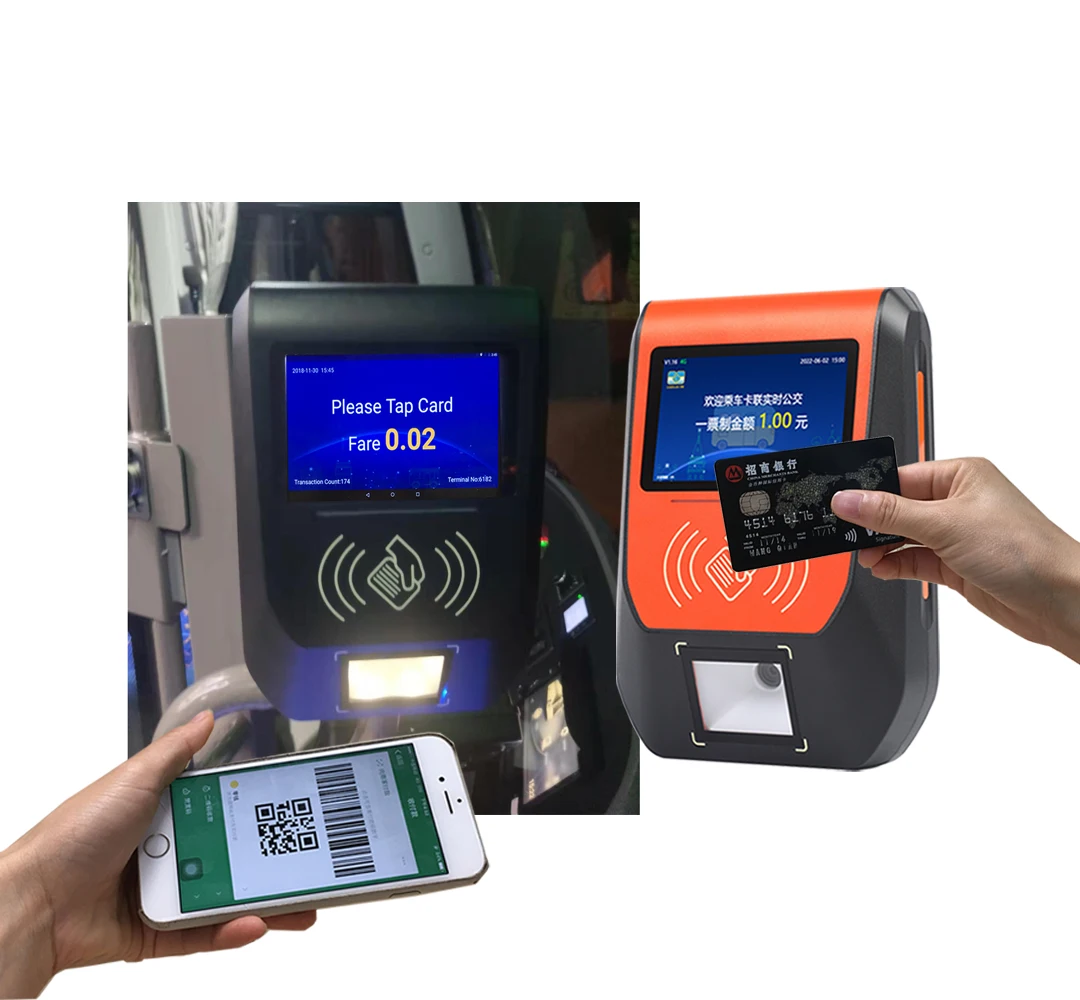

1. Application environment
CL-A0618D smart bus validator can support RFID card, with GPS positioning module and qr code scanner, support 4G, WIFI wireless
communication etc. Can be used for electronic payment or card validation in following field：
* Public transport fare collection
* Scenic spots/amusement park card payment
* Balance inquiry
* Employee shuttle bus card validation
* Safety school bus system
2. Functional features
* Support wireless communication, remote connect to server management software to realize real timetime-revision, black-list
downloading and data collection etc.
* Support data real time uploading or USB local data collection
* Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
* Support consumption details and statistics query, according to card No., time, operator No., etc.
1.Public transport payment:Bus,metro,light rail,ferry etc.
2.Utility payment:Water,electricity,gas,CCTV,telecommunications etc.
3.Financial application:Credit for load,Consumption,encashment,Debit for unload.
4.Tourist consumption:instead of ticket,tourist points etc.
1. Application environment
CL-A0618D smart bus validator can support RFID card, with GPS positioning module and qr code scanner, support 4G, WIFI wireless
communication etc. Can be used for electronic payment or card validation in following field：
* Public transport fare collection
* Scenic spots/amusement park card payment
* Balance inquiry
* Employee shuttle bus card validation
* Safety school bus system
2. Functional features
* Support wireless communication, remote connect to server management software to realize real timetime-revision, black-list
downloading and data collection etc.
* Support data real time uploading or USB local data collection
* Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
* Support consumption details and statistics query, according to card No., time, operator No., etc.

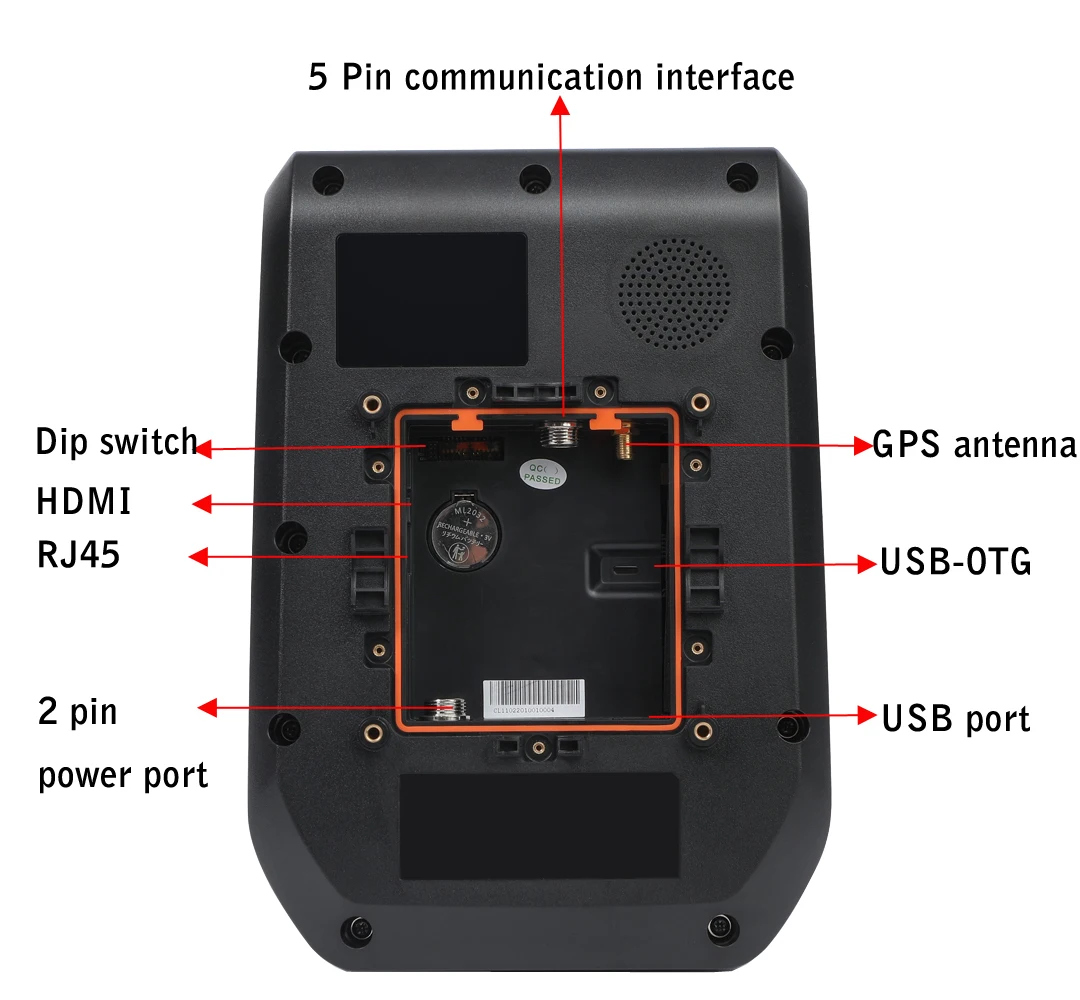

GPS antenna
External GPS sucker antenna
* USB-HOST port
This USB-HOST interface is a USB host device that supports U disk and USB keyboard for upgrading configuration software and downloading related device files. The maximum output is 5V/500mA.
* USB-OTG port
* USB-DEBUG port
* PSAM card slot
CL-A0618D has 4 PSAM slot, support encryption with CPU card payment
* SIM card slot
CL-A0618 has 1 SIM card slot, mainly used for 4G wireless communication, insert SIM card, realize remote data communication.
External GPS sucker antenna
* USB-HOST port
This USB-HOST interface is a USB host device that supports U disk and USB keyboard for upgrading configuration software and downloading related device files. The maximum output is 5V/500mA.
* USB-OTG port
* USB-DEBUG port
* PSAM card slot
CL-A0618D has 4 PSAM slot, support encryption with CPU card payment
* SIM card slot
CL-A0618 has 1 SIM card slot, mainly used for 4G wireless communication, insert SIM card, realize remote data communication.

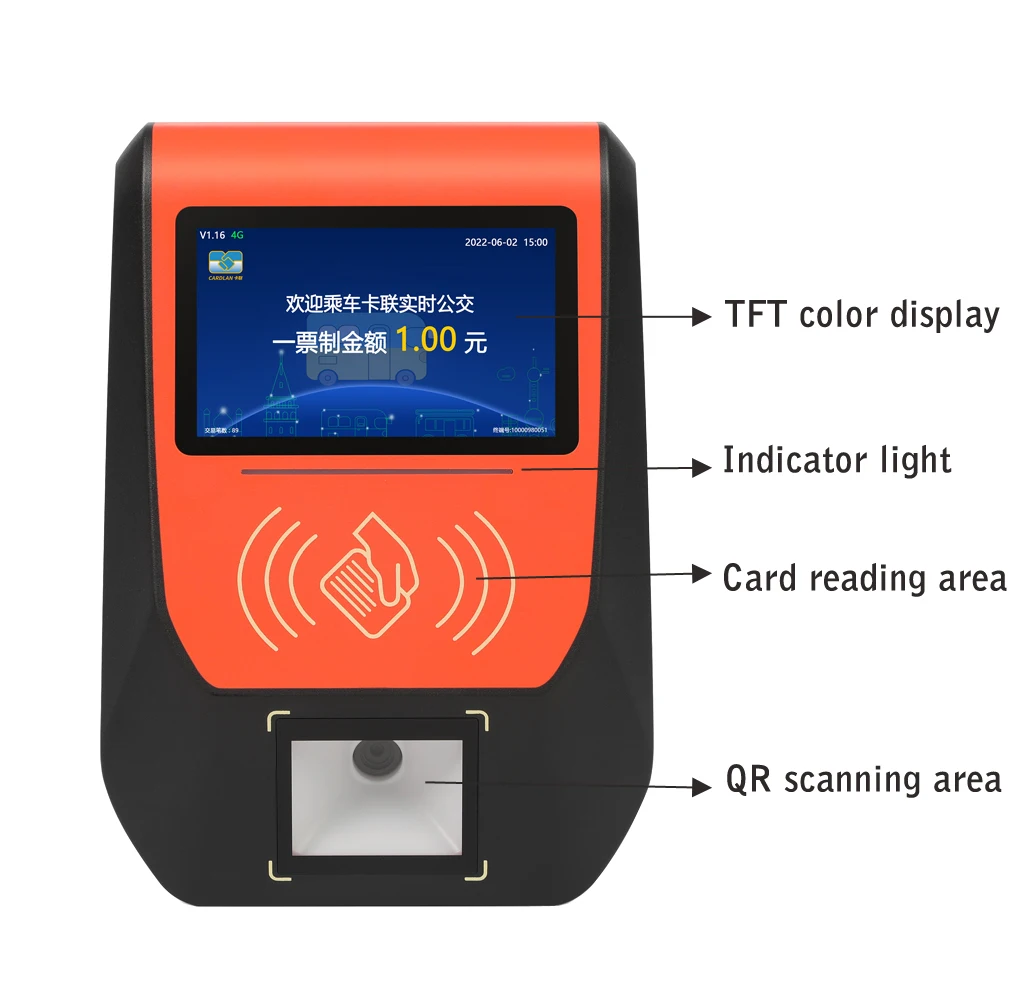

Detail picture
Technical parameter
Title goes here.
1PC CL-A0618B device
Accessories including:
1PC Power cable 2.5M (We also have other length for option)
1PC Fixed U-shaped buckle
1PC U-shaped rear cover
1PC Fixed rubber pad
4 screws
1PC Waterproof sealing cover (Optional)
GPS Antenna (quantity: 1 unit, optional)
Accessories including:
1PC Power cable 2.5M (We also have other length for option)
1PC Fixed U-shaped buckle
1PC U-shaped rear cover
1PC Fixed rubber pad
4 screws
1PC Waterproof sealing cover (Optional)
GPS Antenna (quantity: 1 unit, optional)
Name: | Bus POS terminal with Relay for access control | Dimension: | 240x170x74.7mm |
Model: | CL-A0618 | Housing material: | ABS plastic |
Operating System: | Android 5.1 or Android 10 | Display: | 5 inch LCD display, 720*1280 |
CPU: | Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4 or UNISOC 8581/ eight-core，64BIT ARM Cortex-A53 CPU GE8322 GPU, work frequency at 550 MHz | Working Temperature: | -25℃~65℃ |
Memory: | RAM:DDR3 1G eMMC:16G or 2G, 16G | Sound Prompt: | Buzzer |
Data Capacity: | 5million pcs of detailed data for console storage, unlimited data at 4G storage | Voice Prompt: | Single channel loudspeaker |
Blacklist: | 91,880,000 pcs (download from PC with USB) | Working Voltage: | DC 8V-55V |
RFID Support Type: | ISO-14443 Type A/B | Reading Distance: | 0~40mm |
Working Frequency: | 13.56Mhz | Support Card Type: | Java card , MiFare Classic, MiFare Desfire, Mifare plus card support CPU card |
Communication Interface: | RS232, RS485, USB, TCP/IP | Printing module: | Support external POS58printer (need 5pinaviation plug turn DB9 cable) |
Paper Width: | 58mm | Position way: | GPS positioning |
Working Mode: | Stand-alone or connect to server | Power Consumption: | ≤10 W |
Wireless Communication | Support 4G,3G,WIFI | WIFI | Support 802.11n/b/g standard,150Mbps,2.4Ghz |
Data Collection mode | WIFI/4G wireless collection and USB local collection | Warning Function | Warning when card balance is insufficient or data memory is full |
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer ?
A: We are factory over 22 years in Shenzhen Longgang District.
Q: What is your Payment term?
A:You can pay by T/T,West Union,Paypal etc.
Q: Do you provide samples ?
A:Yes,We can,Please tell me your request,and contact me to buy a sample,I will response you quickly. and we also can offer SDK and API for your secondary development.
Q: What after-sales service do you offer?
A: We offer 24hours online service,door-to-door installation and training service,long-distance remote operation service.
Any questions, please feel free to contact Kathy at below:
Skype : cardlan_03@yahoo.com
Whatsapp : +86 13530321253
Wechat: aglaiahk
Email:kathy@cardlangroup.com
Kathy Wang
A: We are factory over 22 years in Shenzhen Longgang District.
Q: What is your Payment term?
A:You can pay by T/T,West Union,Paypal etc.
Q: Do you provide samples ?
A:Yes,We can,Please tell me your request,and contact me to buy a sample,I will response you quickly. and we also can offer SDK and API for your secondary development.
Q: What after-sales service do you offer?
A: We offer 24hours online service,door-to-door installation and training service,long-distance remote operation service.
Any questions, please feel free to contact Kathy at below:
Skype : cardlan_03@yahoo.com
Whatsapp : +86 13530321253
Wechat: aglaiahk
Email:kathy@cardlangroup.com
Kathy Wang
