350 kva 400kva 500kva three phase transformer with price
Fast delivery time and high quality
Products Description
Three Phase Oil Immersed Small Substation Transformer
DB Transformer offers a complete line of liquidfilled distribution transformers that meet current applicble ANSI, IEEE, CSA, AS, DOE standards. With high voltages up to 44 kV and ratings up to 20 MVA. The subsation transformer designed and produced by DB Transformer can be remotely supervised and controlled by the control system. The layout structure of the transformer can be side-mounted or top-mounted of the high and low voltage bushings.
Click Here To Get Quotation
Substation transformers are widely used in data center, Cryptocurrency Mining, Public Utilities, Power Substation, Solar Farms, Wind Farms, Industry, BESS and other fields.
Technical Data
kVA | Width(mm) | Height(mm) | Depth(mm) | Reference Weight |
800kva | 1060 | 1500 | 1780 | 2050kg |
1000kva | 1085 | 1570 | 1800 | 2450kg |
1250kva | 1160 | 1610 | 1890 | 2900kg |
1600kva | 1190 | 1630 | 1950 | 3400kg |
2000kva | 1260 | 1700 | 2090 | 4100kg |
2500kva | 1150 | 2150 | 2250 | 4750kg |
3000kva | 1900 | 2600 | 2150 | 6500kg |
5000kva | 2500 | 2210 | 3180 | 9500kg |
7500kva | 3660 | 3100 | 5100 | 13600kg |
10000kva | 3830 | 2640 | 2216 | 15800kg |
Standard Feature
*Carbon steel, optional stainless steel tank
*Capacity: 225kva —20MVA
*Primary Voltage: 13800V,23000V,34500V or others
*Secondary Voltage: 208V ,12,470V,132,00V,13,800Vor others
*Bushings: Top-mounted / Side-mounted
*Insulation Fluids: mineral insulating oil, Envirotemp™ FR3™ fluid,
*Standards: ANSI/IEEE,DOE, CSA, AS/NS, IEC, etc
*Capacity: 225kva —20MVA
*Primary Voltage: 13800V,23000V,34500V or others
*Secondary Voltage: 208V ,12,470V,132,00V,13,800Vor others
*Bushings: Top-mounted / Side-mounted
*Insulation Fluids: mineral insulating oil, Envirotemp™ FR3™ fluid,
*Standards: ANSI/IEEE,DOE, CSA, AS/NS, IEC, etc
* Insulating mineral oil
* 60/50 Hertz operation
* Externally operated de-energized tap changer with 2* 2.5% full capacity taps above and below nominal * 65°C average windingrise * HV and LV bushings * HV and LV flange connections * Pressure-vacuum gauge * Liquid level gauge * Liquid temperature gauge *
Pressure test valve * Drain / filter valve with sampling device * Tank lifting lugs * Corrosion resistant nameplate * Hydran
provision (above 7.5 MVA)
Optional Accessories
• High-fire point fluid, such as silicone, hydrocarbon or
vegetable fluids. (up to 10 MVA)
• 55°C 55/65° C average winding rise
• Forced air cooling
• Forced air cooling with 2 stages (from 7.5 MVA and up
to 15 MVA)
• Removable radiators
• Pressure relief device
• Winding temperature device
• Sudden pressure relay with or without seal in
• Devices with alarm contacts
vegetable fluids. (up to 10 MVA)
• 55°C 55/65° C average winding rise
• Forced air cooling
• Forced air cooling with 2 stages (from 7.5 MVA and up
to 15 MVA)
• Removable radiators
• Pressure relief device
• Winding temperature device
• Sudden pressure relay with or without seal in
• Devices with alarm contacts
• Top filter press valve
• HV & LV air terminal compartments
• HV lightning arresters • Current transformers
• Neutral grounding resistor
• HV & LV air terminal compartments
• HV lightning arresters • Current transformers
• Neutral grounding resistor
• Special impedances
• Low losses
• Special environment (i.e: classified areas)
• Special / low sound level
• Retrofit to specific dimensions
• Non-standard loading conditions such as harmonic loading or specified K-factor
• Stainless steel removable radiators
• Galvanized steel removable radiators
• Special paint for marine ambient
• Special paint thickness
• Special colors
• CSA compliance
• Other special features upon request
Transformer Test
TEST
Each transformer must be tested before leaving the factory. The routine tests include:
•Ratio, Polarity, and Phase Relation
•Resistance
•Applied Potential
•Induced Potential
•Loss Test
•Leak Test
•Operation tests of all devices: All electrical and electro-mechanical devices shall be operated both in auto and manual mode for proper sequencing/staging and function.
•Ratio, Polarity, and Phase Relation
•Resistance
•Applied Potential
•Induced Potential
•Loss Test
•Leak Test
•Operation tests of all devices: All electrical and electro-mechanical devices shall be operated both in auto and manual mode for proper sequencing/staging and function.
If you need special tests like short circuits, DB Transformer can do that too.
DESIGN PERFORMANCE TEST
The design performance tests include the following:
*Temperature Rise: Our automated heat run facility ensures that any design changes meet ANSl® and IEEE® temperature rise criteria.
* Audible Sound Level: Ensures compliance with NEMAO requirements.
* Lightning Impulse: To assure superior dielectric performance, this test consists of one reduced wave,two chopped waves and one full ave in sequence,precisely simulating the harshest conditions.
* Other perfomance tests such as short-cicuit capability test,liting and moving devices test can be execuled while specified by the customer.
*Temperature Rise: Our automated heat run facility ensures that any design changes meet ANSl® and IEEE® temperature rise criteria.
* Audible Sound Level: Ensures compliance with NEMAO requirements.
* Lightning Impulse: To assure superior dielectric performance, this test consists of one reduced wave,two chopped waves and one full ave in sequence,precisely simulating the harshest conditions.
* Other perfomance tests such as short-cicuit capability test,liting and moving devices test can be execuled while specified by the customer.
Daelim Transformer Certifications
Daelim three phase oil immerse substation transformer has UL/cUL, CSA, CESI, IEEE certifications.In addition, Daelim's 3-phase pad mounted transformer also has SGS, CSA and other third-party inspection reports.
Company Profile
Daelim Transformer Factory
Daelim is a professional three phase oil immersed small substation transformer manufacturer and supplier in China.
Daelim’s three phase oil immersed small substation transformer has CSA, UL/cUL certificate.Single phase pad mounted transformer is widely used in residential.Primary voltage up to 44kV and capacity from 225kVA to 20000kVA.Design standards conform to ANSI/IEEE, DOE, CSA, NEMA. Daelim transformer has a strict quality control system to ensure the quality, safety and performance of each
Daelim’s three phase oil immersed small substation transformer has CSA, UL/cUL certificate.Single phase pad mounted transformer is widely used in residential.Primary voltage up to 44kV and capacity from 225kVA to 20000kVA.Design standards conform to ANSI/IEEE, DOE, CSA, NEMA. Daelim transformer has a strict quality control system to ensure the quality, safety and performance of each
transformer.
Daelim oil immersed transformer has been exported to North and South American markets such as the United States, Canada, Australia. Daelim subsation transformer is widely used in residential areas, commercial areas, encrypted mining areas, and renewable energy sources such as wind and solar energy, charging piles, etc.
Transformer customization service
Daelim has more than 20 years of experience in exporting transformers, and the team of engineers is particularly professional and proficient in various international standards. No matter which country you are from, the team of engineers can design and produce
according to your requirements and technical parameters.
according to your requirements and technical parameters.
Tansformer solutions
Daelim Transformer not only produces transformers, but also provides the best solution for your power project. Such as mines, factories, renewable energy power generation (wind transformers, solar transformers, tidal transformers, etc.) to provide the best transformer solutions.
High quality and fast delivery
Strong design ability for hgh efficiency, special ambient, low sound level,50 hz and 60 hz ,k-factor rating, etc .6-7 weeks production time.
Local after-sales service
Complete after-sales service and installation teams in Canada, USA, Ecuador, etc.
Recommend Products
Contact Information
Daelim Transformer
Project Manager
Tel: 86-1065002471
Email: alice@daelim-electric.com
Phone&WhatsApp: 86-13121593340
www.daelimtransformer.com
www.daelimbelefic.com
Похожие товары
Коммерческая силовая тренировочная площадка, скамья для тяжелой атлетики, фитнес-оборудование для тренажерного зала
200,00 $ - 250,00 $

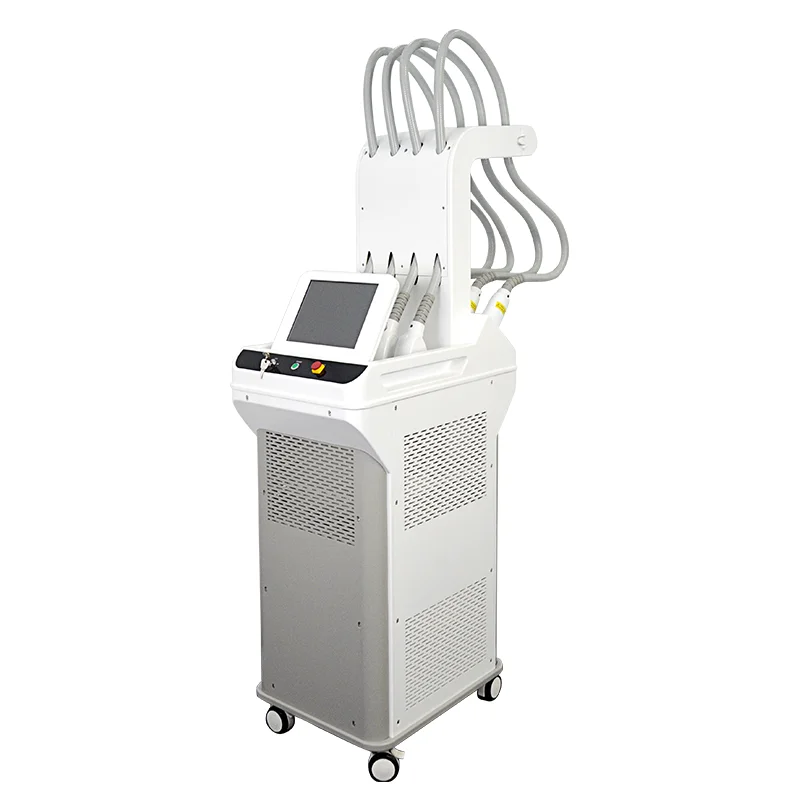

Профессиональный лазерный аппарат lipo 1060nm для похудения неинвазивный умный

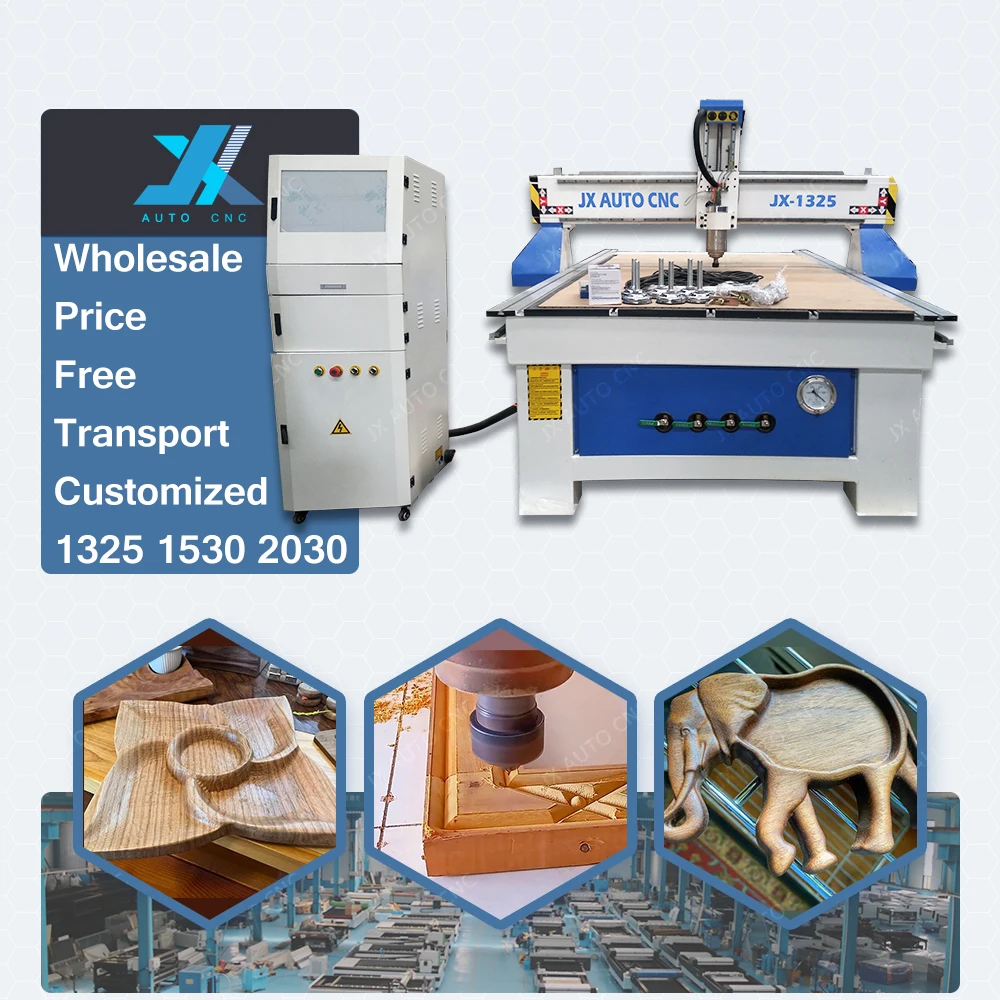

JX деревообрабатывающее оборудование/1325 деревянная дверь гравировальный станок с ЧПУ 3d ЧПУ маршрутизатор с высоким качеством и лучшие услуги

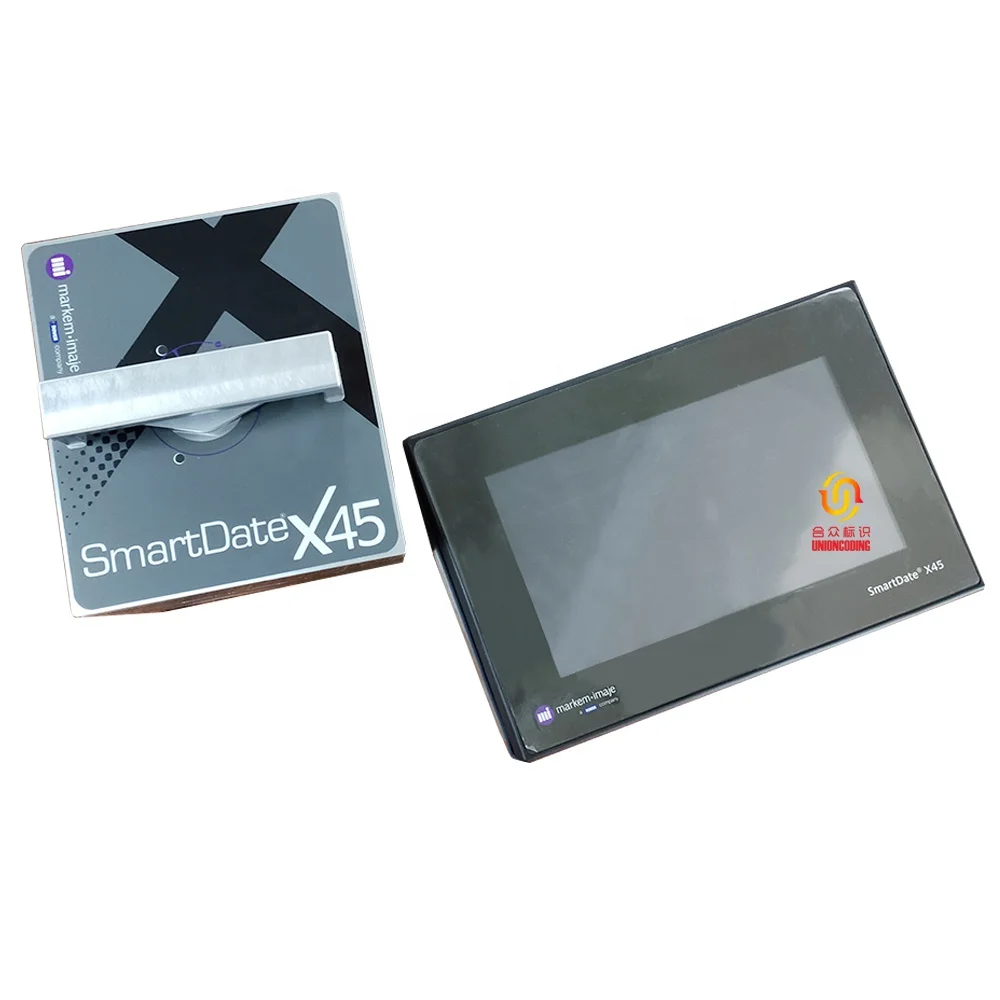

Qr-код маркировочная машина Markem smartdate X45, термотрансферный принтер, использующий ленточный кодер для даты TTO
3 550,00 $ - 3 600,00 $

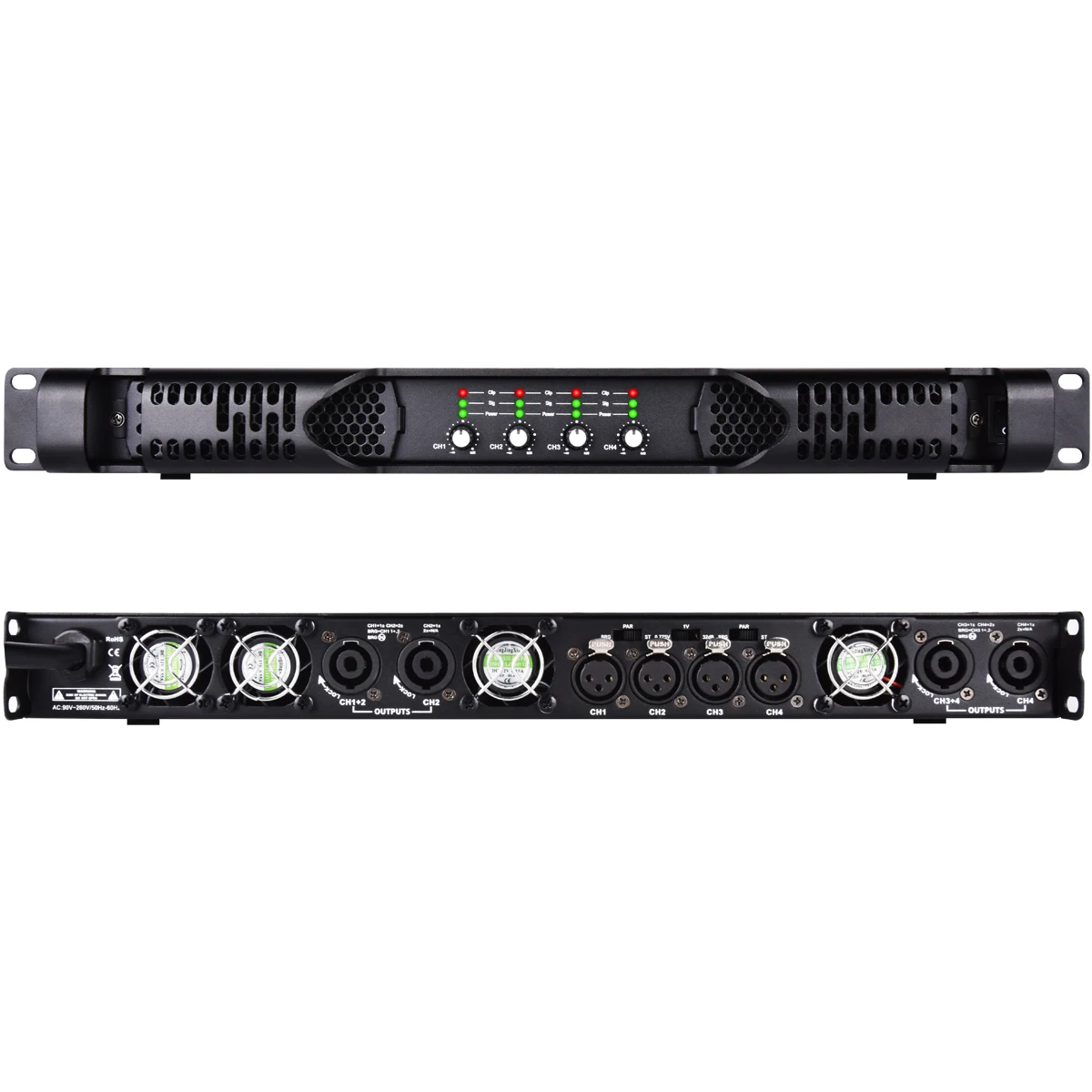

10400 Вт Профессиональный 4-канальный высокомощный цифровой усилитель 9200 функция моста линейный привод акустический 5200 4
897,00 $ - 900,00 $

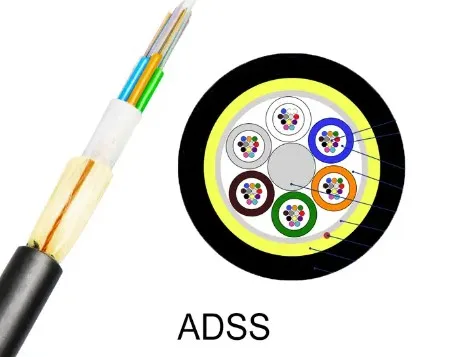

Производитель бронированный оптоволоконный кабель ADSS 12 ядер одномодовый 1 км Цена ADSS волоконно-оптический кабель
0,01 $ - 0,06 $

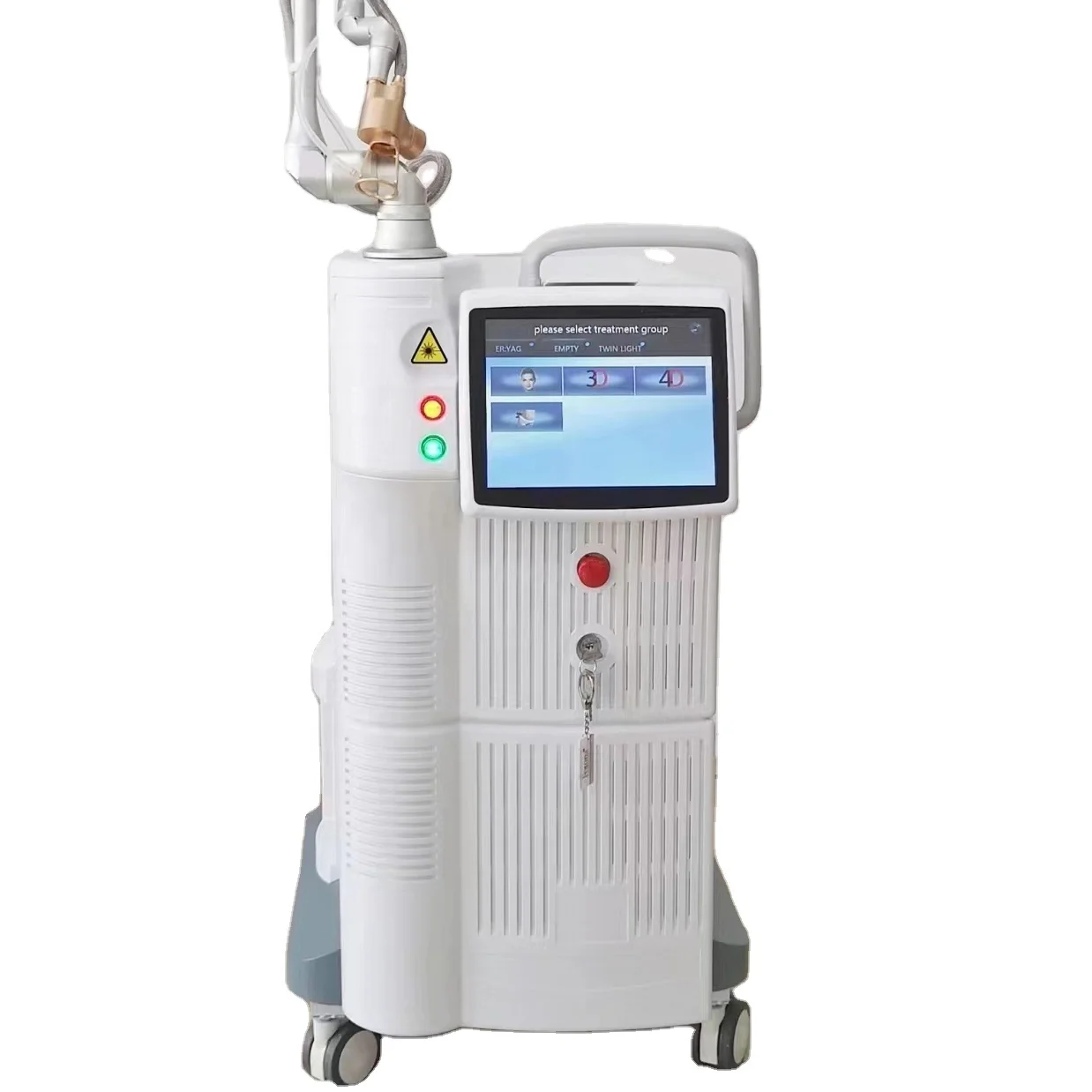

Профессиональное устройство для удаления шрамов и подтяжки кожи, лечение акне, Co2 фракционный лазерный аппарат RF, металлическая трубка, лазерное устройство
