Product Description

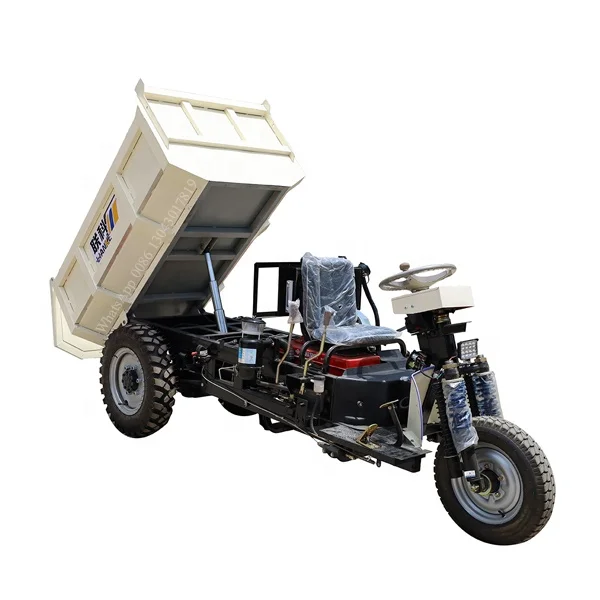

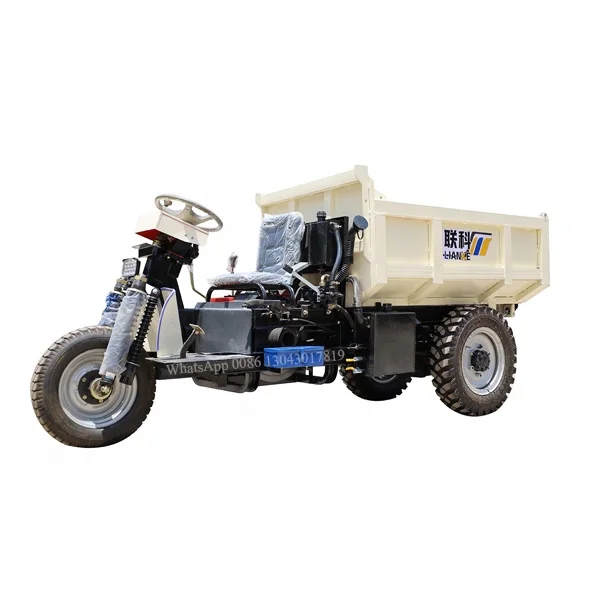

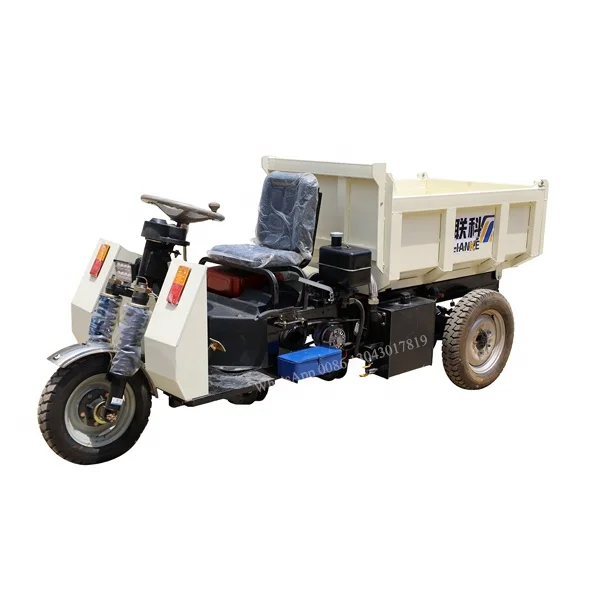

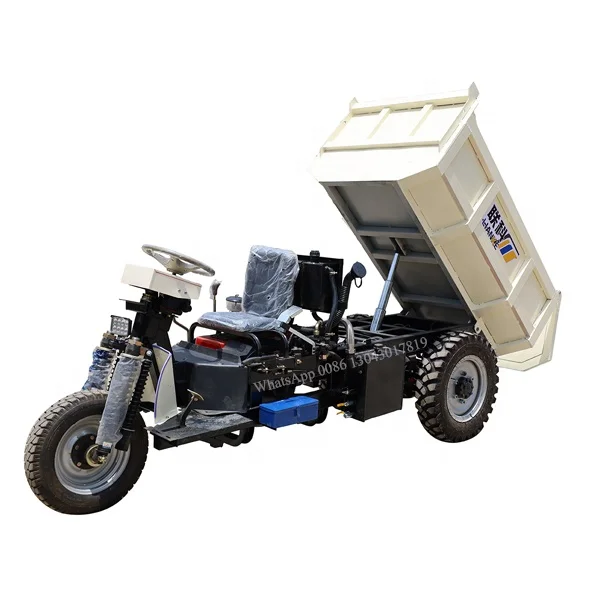

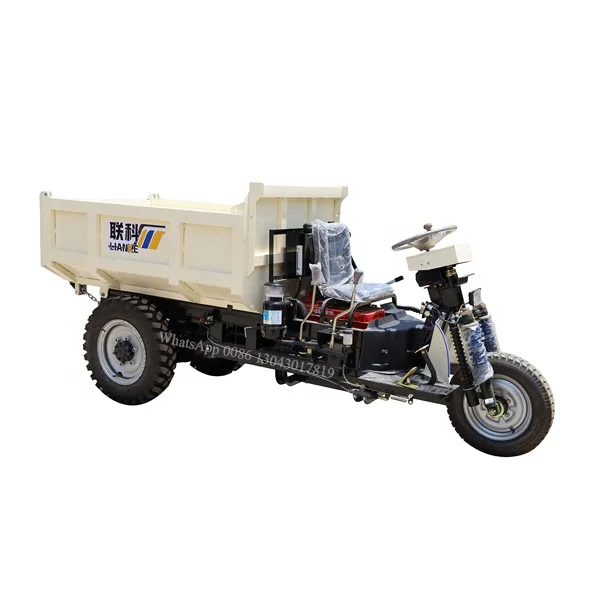

LK135D low price 1 ton 1.5 ton diesel mini dump trucks, diesel tricycles for sale, diesel dump truck prices
1.5 ton mini diesel mini dump trucks are powered by diesel engines, with long working hours, strong power, heavy load, low price, strong adaptability and wide range of use. It can be widely used in mining, industry, construction, municipal engineering, agriculture, forestry, etc.
Specification
item | value |
Condition | New |
Steering | Rack steering wheel |
Market Segement | Construction and mine materials transportation |
Horsepower | 18hp |
Size | 3050*1020*1300mm |
Cargo Tank Dimension | 1450*950*400mm |
Gross Vehicle Weight | 675kg |
Capacity (Load) | 1.5 ton |
Front tire | 4.00-12 |
Rear tire | 5.00-14 |
Start type | Electric starter |
Battery | 1 piece of 12V, 80ah maintenance free battery |
Rear axle type | Weighted fourth-speed gear rear axle, Shifeng Brand |
Front shock absorption type | Single-row big shock absorption |
Filter | Single layer filter |
Exhaust gas treatment device | Included |
Speed | 60km/h |
Brake | oil brake |
Detailed Images
1. Diesel engine
The engine is under the seat and hopper.
We use diesel engine 13.23kw, 18HP, normal brand. And it is equipped with electric starter.
We use diesel engine 13.23kw, 18HP, normal brand. And it is equipped with electric starter.
Battery.
There is one piece of 12V80ah lead acid maintenance free battery fixed in the vehicle frame.
2. Weighted four-speed gear rear axle, Shifeng Brand
2.1 Standard Shifeng heavy-duty 4-speed rear axle, very strong and durable.
With clutch, 4 speed-adjusting gears: 3 forward gears+1 reverse gear, fast speed and strong power.
2.2. Direction and fixing method of ‘U’ shape supporting on rear axle and spring steel plates.
* The present U shape supporting is downwards. And it is totally fixed on the holes reserved on the side of rear axle pipes. So it will not move at all.
* The present U shape supporting is downwards. And it is totally fixed on the holes reserved on the side of rear axle pipes. So it will not move at all.
* Other suppliers still uses upwards U shape supporting which is fixed by screws on the steel plate above spring steel plates.
Hydraulic oil pump and hydraulic cylinder.
3-section strong hydraulic cylinder which can lifting the hopper with fully loaded easily.
very strong and 3mm thick.
The waste gas treatment device is equipped with catalytic enzymes, which can effectively treat the harmful gas generated after combustion, provide a safe working environment, protect the safety and health of personnel, and protect the ecological environment.
After equipped with this, the dump truck can be used both in the open air place and in underground mine or tunnel.
6. Single layer air filter assembly
It adopts filtration of metal + grease.After the air is inhaled, it first passes through the metal filter mesh to filter out
relatively large impurities, etc., and then passes through the grease layer to filter out fine dust.
relatively large impurities, etc., and then passes through the grease layer to filter out fine dust.
7. Oil brake
Oil brake system includes brake pedal, oil tank, main oil pump, brake tubes,oil brake pad and brake pot.
Brake pad: 5.25kg/pc.
Brake pot: 5.05kg/pc.
8. Wheel and tyres.
Front: 4.00-12 Rear: 5.00-14
We use famous brand SF brand big shock absorption as front shock absorption of LK135D diesel dumper. It is very famous strong and durable.
10. Rack steering gear and front led light
It adopts steering wheel with rack steering steering device, which save effort.
The front LED light has 8 lamps.
Packing & Delivery
LCL shipment: packed in one iron frame and iron sheet box.
FCL delivery: loaded in the 20GP(8 sets) or 40HC container(16 sets)
