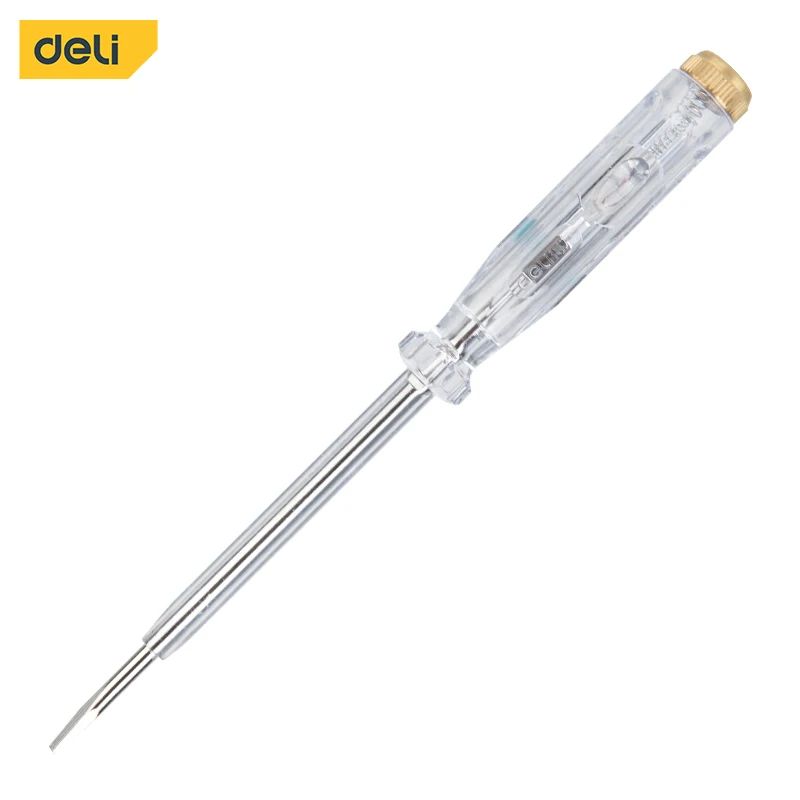

Deli Tools DL8002 100-500V Электрический тестер напряжения отвертка
0,56 $ - 0,70 $
EBC A40L высокая сила тока тестер батарейной емкости заряда и разряда 40A Li Ion LiFePo4 Высокая точность Цифровой Тестер
- Категория: Electrical Instruments >>>
- Поставщик: Hunan XiaoLithium Technology Limited
Сохранить в закладки 1600618528096:
Описание и отзывы
Характеристики
EBC-A40L High Current Power Battery Capacity Tester Charge and Discharge 40A Li-ion LiFePo4 High Accuracy Input | ||||||||
Products Description
110V/220V
Product Description

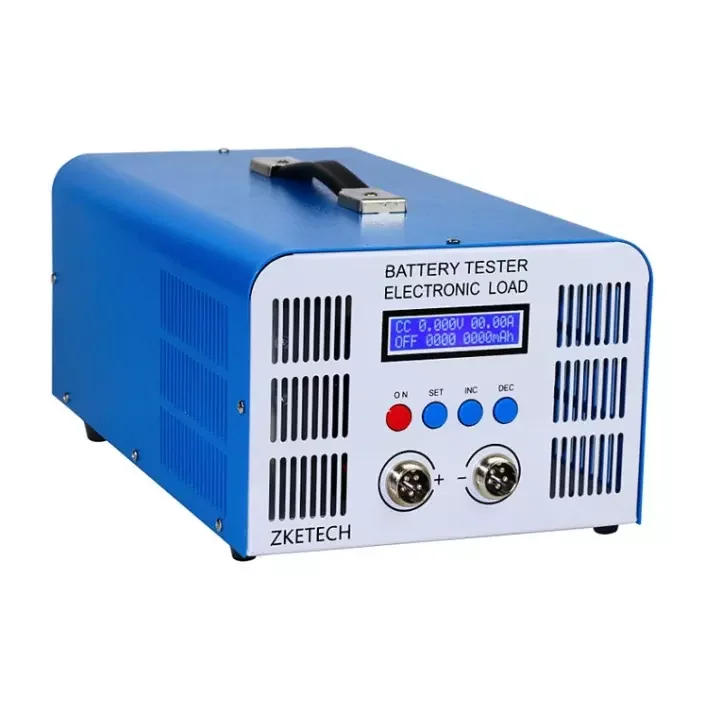

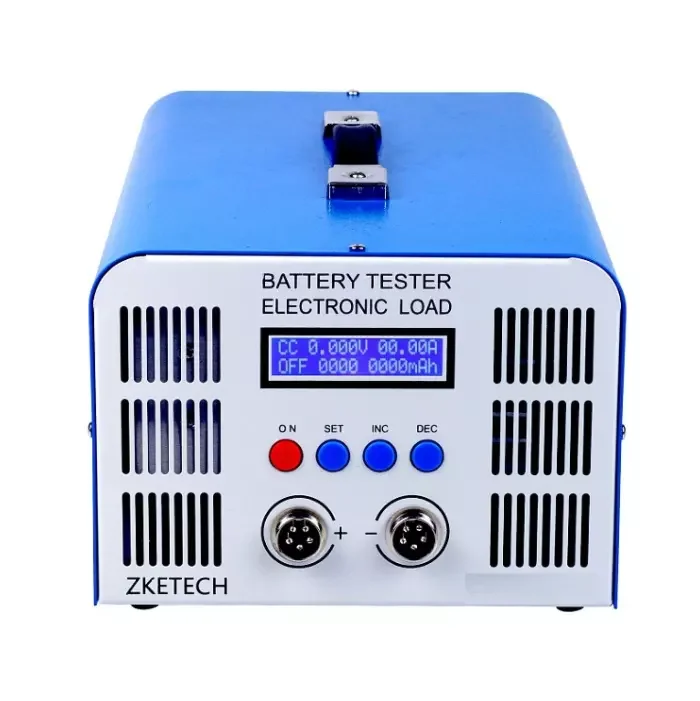

EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online
software with more extensions.
This model default 220V power supply, If need 110V power supply, please contact me. Thank you!
Product Parameter
Model: EBC-A40L
Voltage range: charge 0-5V, discharge 0-5V
Voltage accuracy: 0.2% ± 0.03V

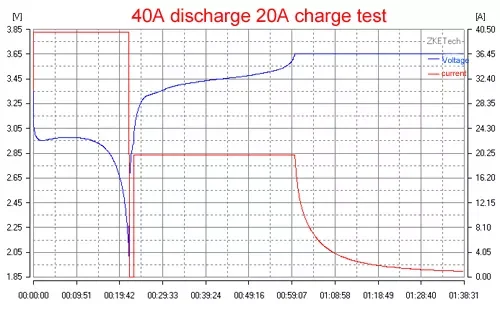

Current range: charge 0.1-40A, discharge 0.1-40A
Current accuracy: 0.2% ± 0.01A
Discharge mode: CC constant current discharge / CP Constant power
Discharge termination: time / voltage is lower than the set limit / Manual
Discharge power: maximum 200W
Charge mode: CV constant current constant voltage charging
Charge termination: constant current is less than the set limit / Manual
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Cooling method: fan active cooling
Equipment Supply: 220VAC

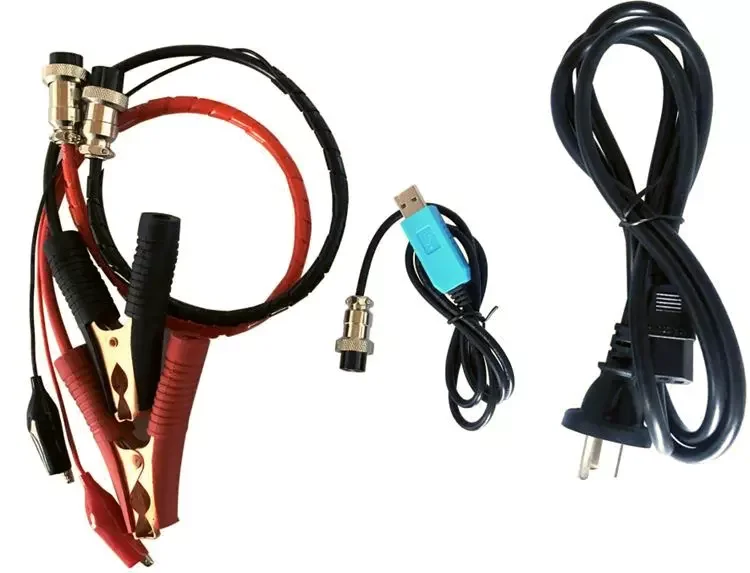

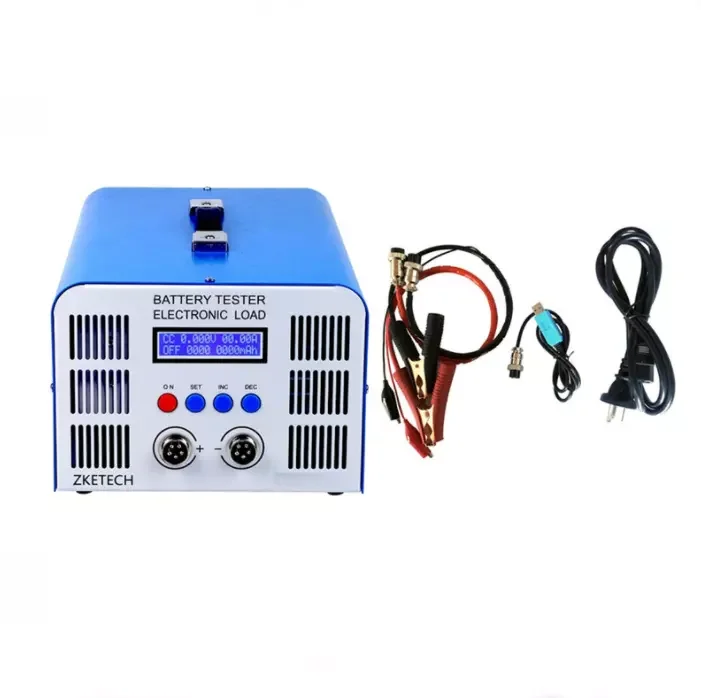

Package Include:
1x tester
1xOnline line
1x test lines
1xpower cord
Product Description
EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online
software with more extensions.
This model default 220V power supply, If need 110V power supply, please contact me. Thank you!
Product Parameter
Model: EBC-A40L
Voltage range: charge 0-5V, discharge 0-5V
Voltage accuracy: 0.2% ± 0.03V
Current range: charge 0.1-40A, discharge 0.1-40A
Current accuracy: 0.2% ± 0.01A
Discharge mode: CC constant current discharge / CP Constant power
Discharge termination: time / voltage is lower than the set limit / Manual
Discharge power: maximum 200W
Charge mode: CV constant current constant voltage charging
Charge termination: constant current is less than the set limit / Manual
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Cooling method: fan active cooling
Equipment Supply: 220VAC
Package Include:
1x tester
1xOnline line
1x test lines
1xpower cord
Recommend Products
Applications
Why Choose Us
Packing & Shipping
About us
Hunan XiaoLithium Technology Limited was located in Changsha City. We focus on designing, researching and developing,
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
manufacturing and selling Battery Management System, Power Equalizer, Spot Welders,Battery Charger and Accessories Of Battery Pack, etc.
These products are widely used on Electric Bikes, Electric Tricycle, Electric Scooter, Sweeper, Logistics Sorting
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Robot, Sightseeing Vehicle,Electric Vehicle, Portable Outdoor Power Supply, Uninterruptible Power Supply, Solar Energy Storage, Peak Shaving Power Station with Energy Storage, etc.
Our company promises: The product quality is safe and reliable,Reasonable price, Fast delivery time and satisfactory after-sales service. Welcome to contact with us!
FAQ
1.What is the common port and separate port? what is the difference?
We take 13S48V16A BMS as an example, common port 16A means your charge cathode and discharge cathode are connected in the same point end(our P-), charge cathode and discharge cathode are used in the common connectionport, so the charge current and discharge current are the same 16A. while the separate port is separately connected by charge cathode (C-) and discharge cathode (P-), so the charge current and discharge current are different, discharge current 16A, charge current 8A.
2.What is the balance function?
The working principle and function are as followings, when your one cell voltage is upto alarm voltage(Li-ion upto 4.18V, Life Po4 upto (3.6V), then the cell Balance starts to work, balance resistance starts discharge with 35ma(when balance discharge starts to work, BMS will starts a little heat up, which is the normal reflection), the cell is in both charging and discharging status, and others which are not reached to alarm voltage(Li-ion 4.18V, Life Po43.6V)are only in charging status, no discharging, when the fast cell voltage is reached to alarm voltage(Li-ion 4.25V, Life Po43.75V)BMS starts off power protection, all the other cells are all in stop of charging, this process will enable your battery charging in balance current, and your battery voltage are in balance status, but when your cell voltage difference are in a big range, then balance can not be functionning well
3.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on battery capacity.
4. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge.Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
5. What current BMS should I choose ?
Take 10S36V as an example: what current BMS you choose is relied on your E-bicycle Motor power and current limitation of controller. eg., choose 16A for below 350W, 25A for below500W, 35A for below 800W, 60A for Below 1000W, higher than 1200W are contact with our service specialist for suggestions, one inall, continue current shall be higher than current limitation in Controller.
6. Whether my BMS damaged?
if you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 0.1V, the fault is displayed that it cannot run far, no power supply at thestart range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Похожие товары

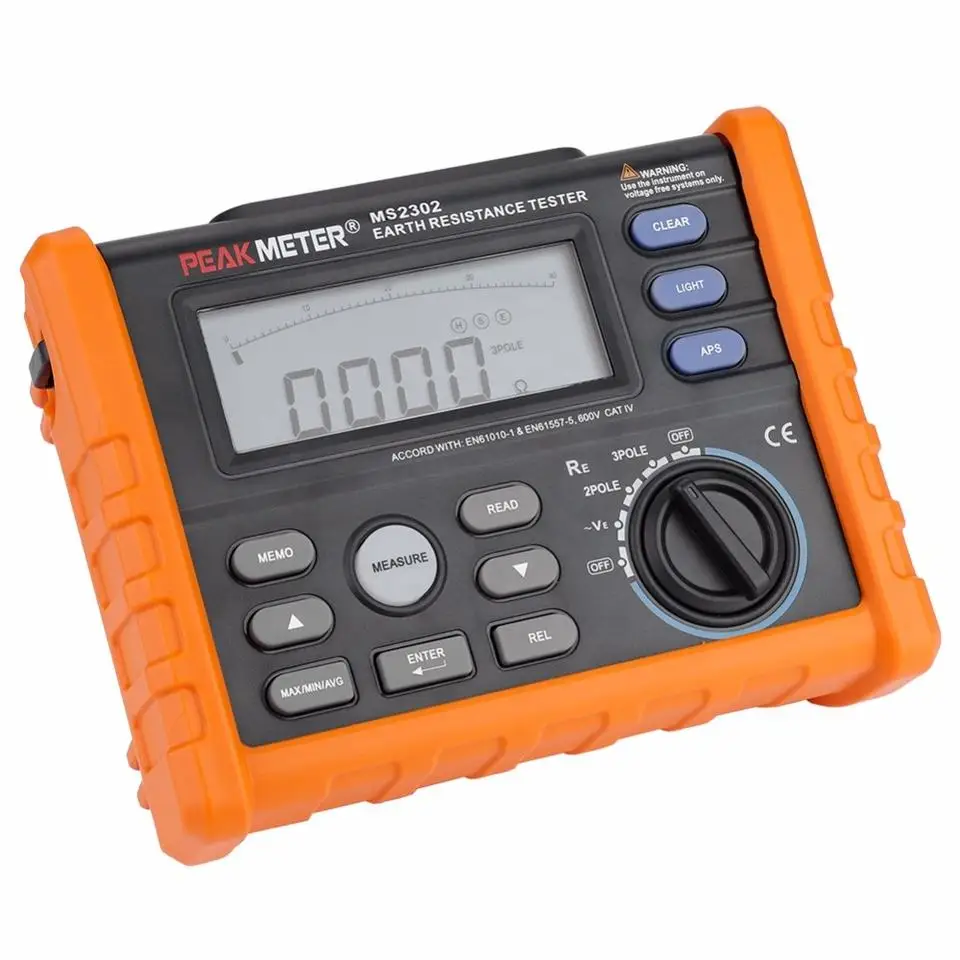

Цифровой тестер сопротивления заземления MS2302

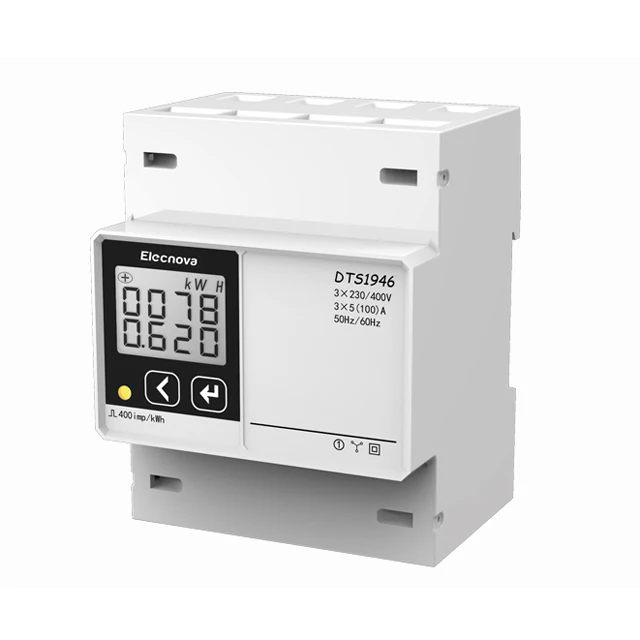

Din rail 3 фазы 100A Многофункциональный возобновляемые источники автомобиля настенный ev зарядки дома счетчик
35,00 $ - 48,00 $

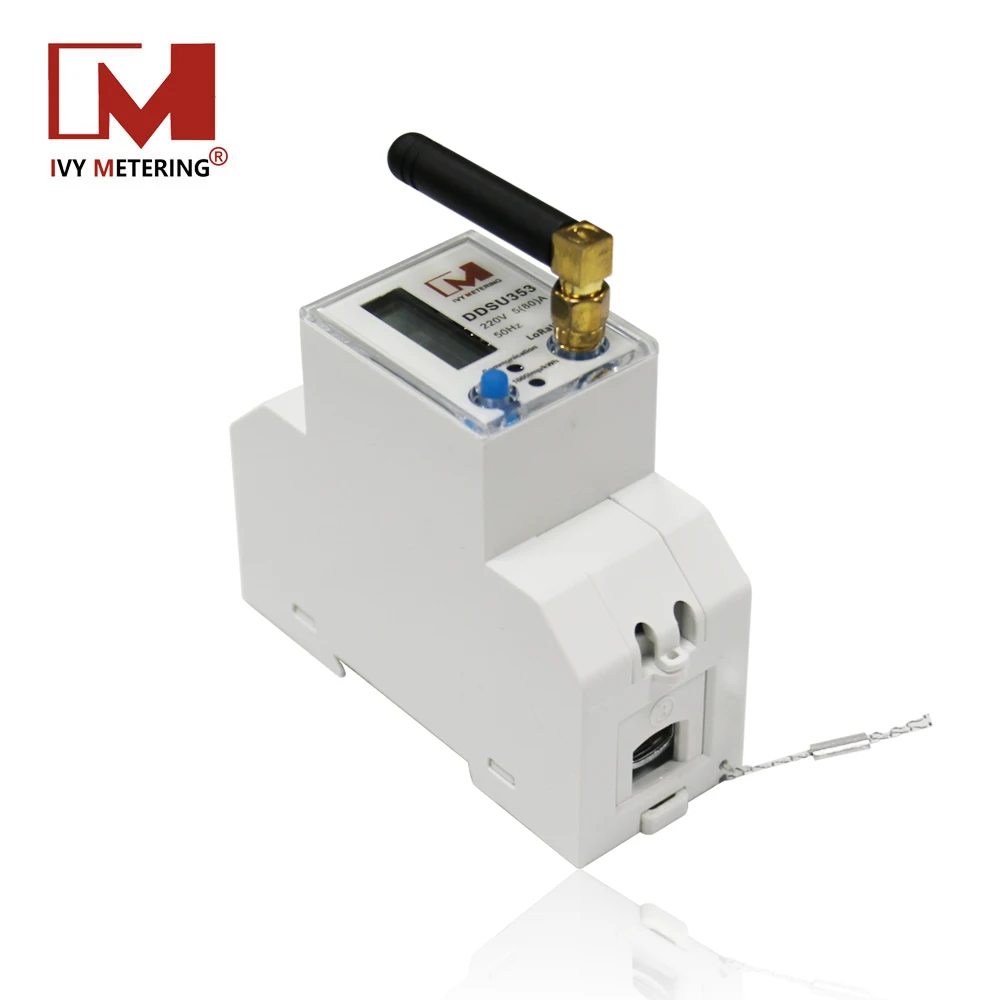

EM114039 LoRaWAN однофазные счетчики электроэнергии для умного дома Lora
AC цифровой преобразователь напряжения тока Вольт Ампер Мощность Вт счетчик энергии 20A 100A ЖК Вольтметр Амперметр тестер Индикатор

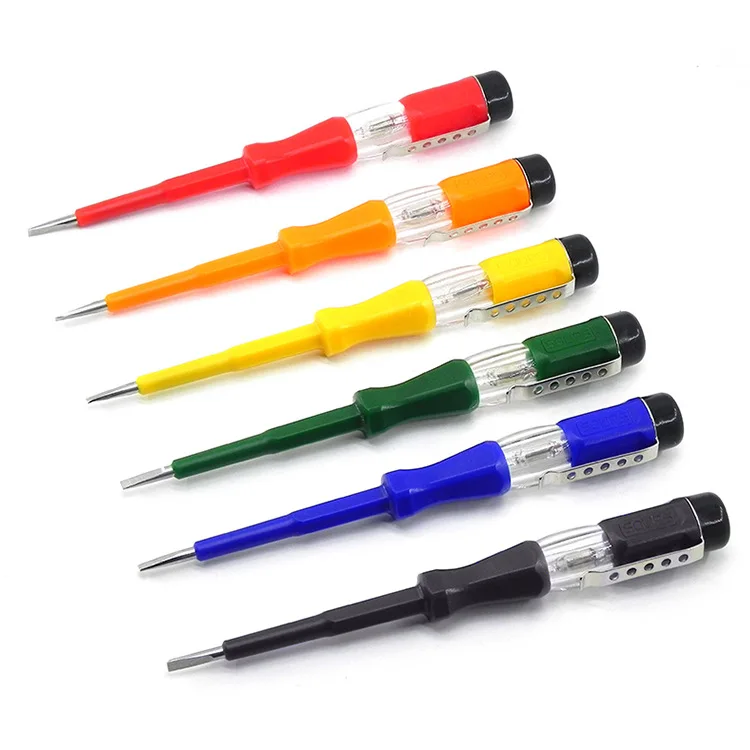

Роникс электрическая испытательное напряжение карандаш многоцветные тестовая ручка тестер Модель RH- 2714 /
0,15 $ - 0,18 $
Hanyoung цифровой регулятор температуры

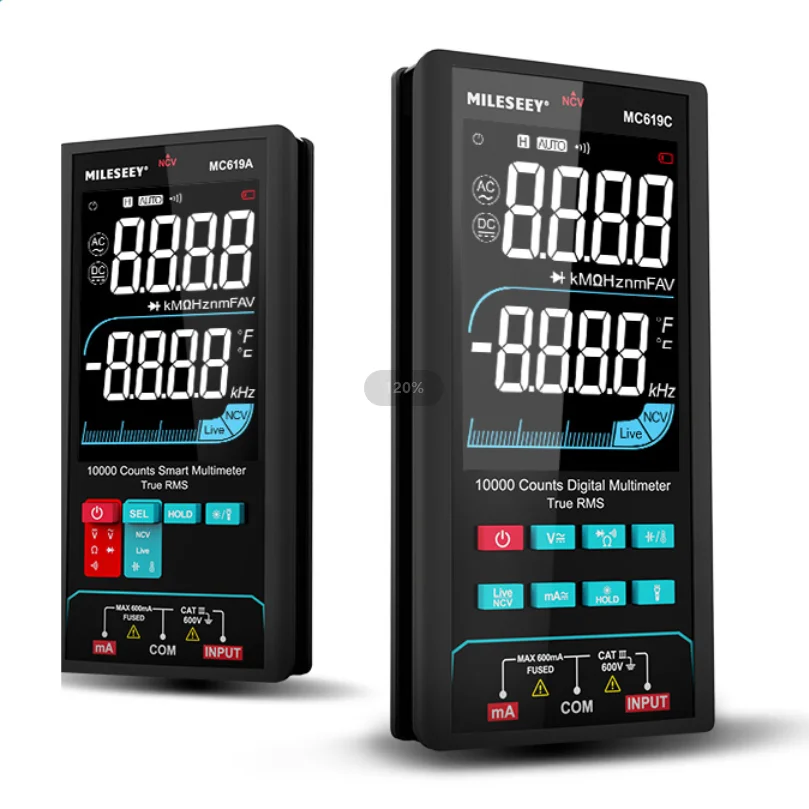

Мультиметр MILESEEY MC619 цифровой, 9999 отсчетов, True RMS, AC/DC, NCV
