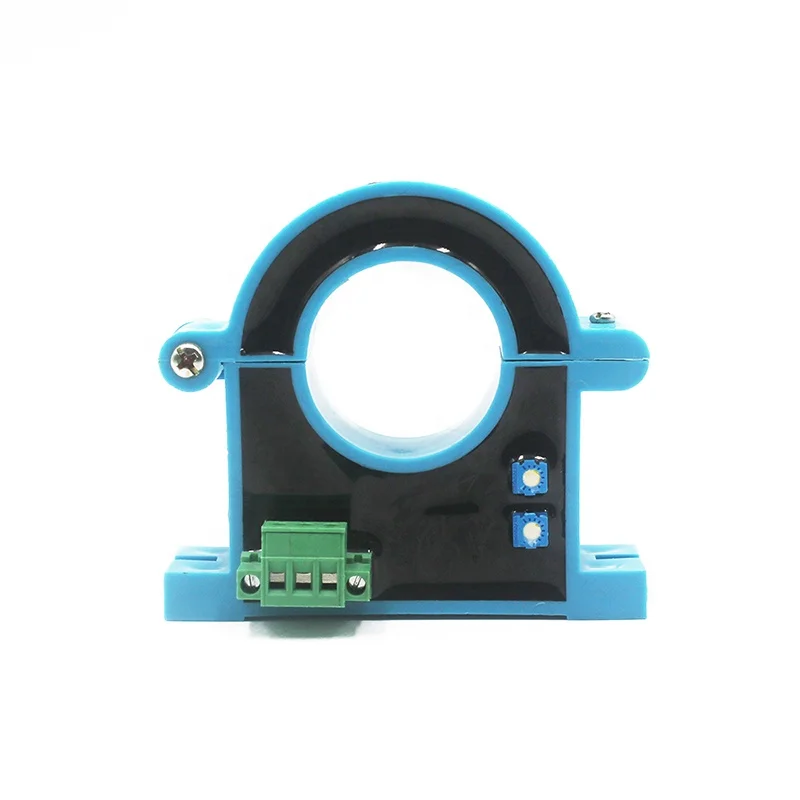

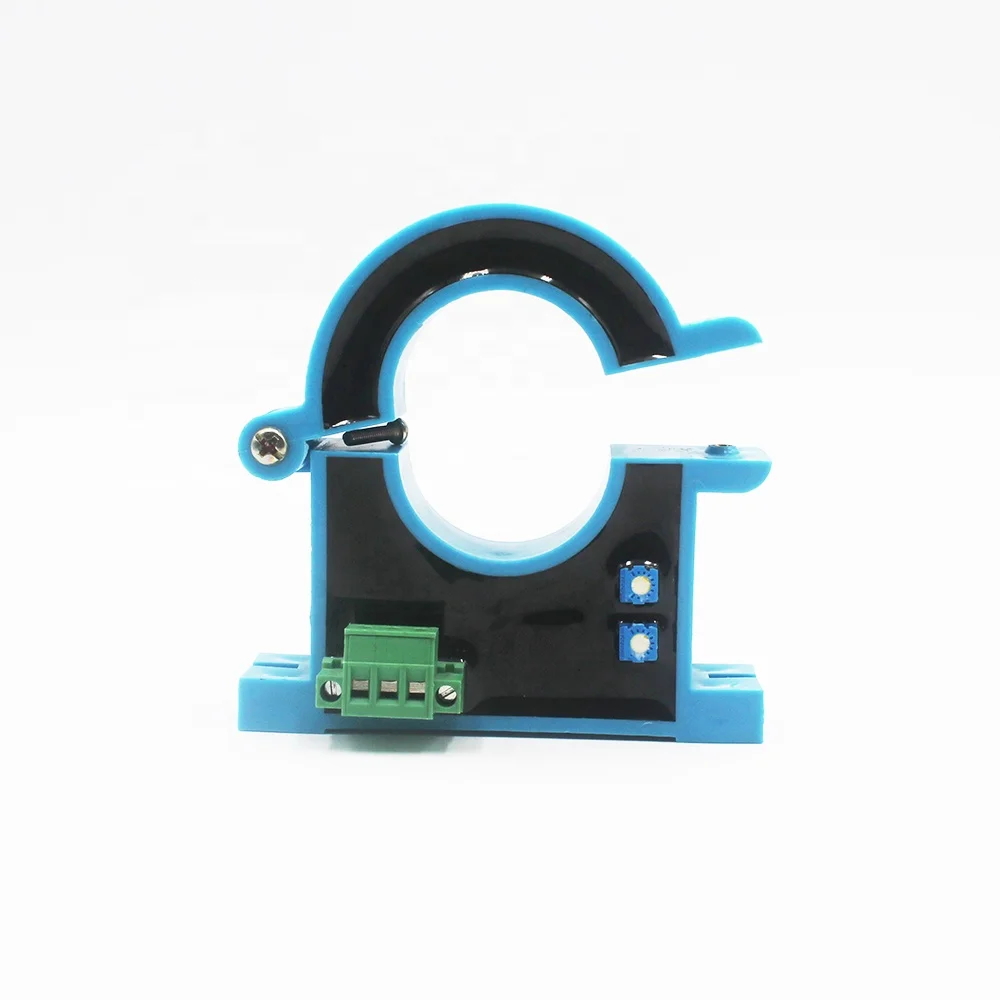

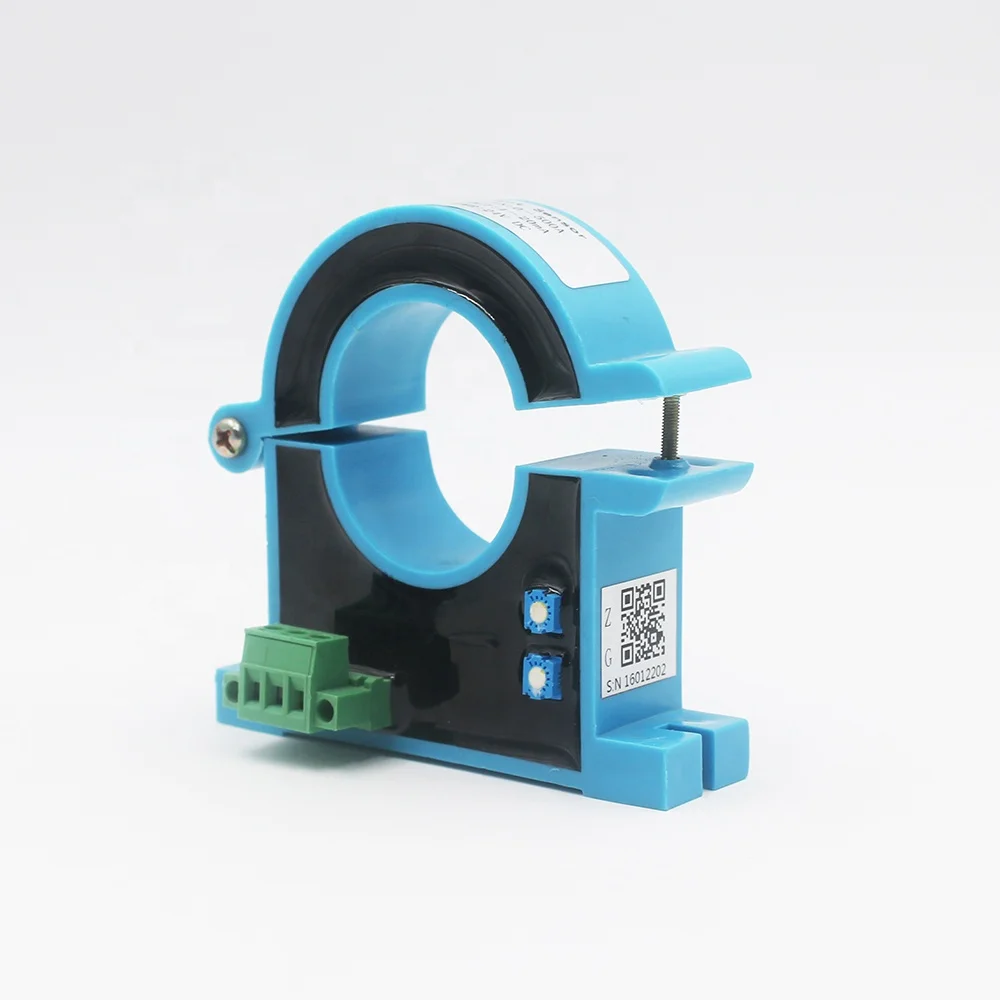

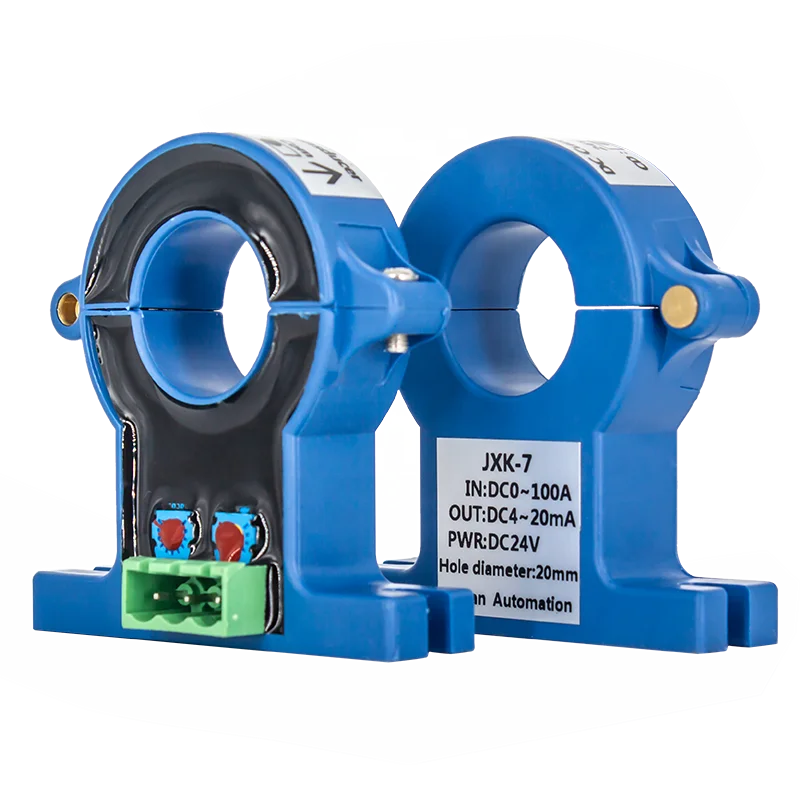

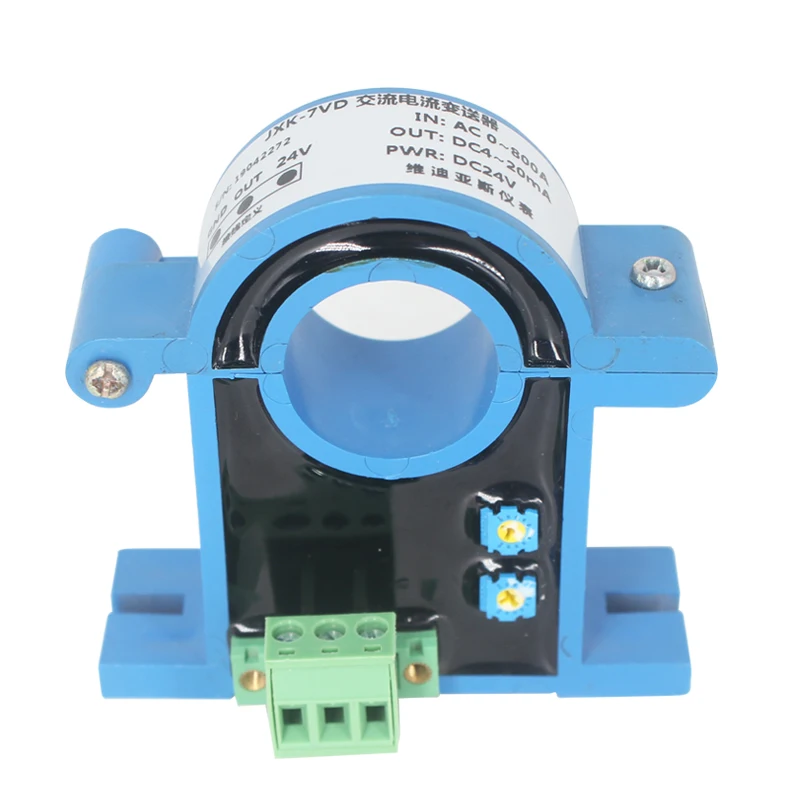

AC0 200A 500A 4 20mA ток передатчик открытых систем разомкнутой цепи датчика тока 25 мм 38 размер отверстия
- Категория: >>>
- Поставщик: Anhui Qidian Automation Technology Co. Ltd.
Сохранить в закладки 1600618592329:
Описание и отзывы
Характеристики
Product Description
<1>. Working Principle: Open loop direct measurement.
<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation,
perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<2>. Product Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Product Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation,
perforation input and no insertion loss.
<4>. Product Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
*Full channel configuration,Parameter customizable
Product Paramenters
Installation | Standard rail+Plane screw fixation |
Original side rated current | 50A;100A;200A;500A; 800A;1000A;customization |
Original side measurement range | 100A-1200A |
Rated output | 5V;DC0~20mA;DC4~20mA;customization |
Auxiliary power supply | DC12V,DC24V,DC±12V,DC±15V |
Load capacity | Voltage output:5mA; Current output:6V; |
Linearity | 0.005 |
Accuracy | 0.01 |
Response time | <200ms |
Temperature drift | ≤500PPM/℃ |
Band width | DC~20KHz |
Consumption of current | ≤25mA |
Working temperature | -10℃~+70℃ |
Storage temperature | -25℃~+85℃ |
Isolation pressure resistance | 2.5kV/50Hz,1Min |
Offset voltage | ≤20mvV |
Zero output | ≤0.15mA |
di/dt follow | >50A/uS |
Product Dimensions
Product Details
Wiring Digram
Selection
--------------------------------------------------------------------------------------------------
A CURRENT TRANSDUCER YOU NEED
FAQ
1.How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.:How about the quality of the magnets?
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you
we will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you
.6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
Of course,if you need we will help you to visit our factory.
7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
