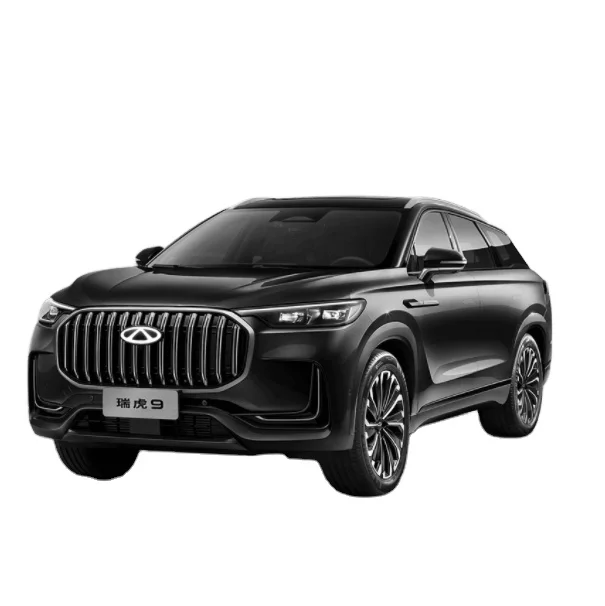

Новый автомобильный двигатель 2,0 т 261hp L4 Chery Tiggo 9 2023 4WD флагман 7 мест внедорожник бензиновый автомобиль топливный
14 100,00 $ - 14 500,00 $
Серводвигатель переменного тока 400 Вт 60ASM400 с кодировщиком швейной машины 60 в
- Категория: >>>
- Поставщик: North Intelligence (Tianjin) Technology Co. Ltd.
Сохранить в закладки 1600619086527:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
400 watt AC servo motor 60ASM400 with encoder sewing machine 60V Features
Economy AC servo motor series is one of kind AC servo motor that has low cost,while working with servo driver like
MCAC606.MCAC706.MCAC808. it has the same performance of AC servo driver but the cost is low to close to stepper system.
Asm Series: The assembling dimension is compatible with Panasonic and Fuji motor. Encoder has two options:2500 or 1250 lines.It has high stability performance.low heat and low noise.This is high cost performance servo product.
MCAC606.MCAC706.MCAC808. it has the same performance of AC servo driver but the cost is low to close to stepper system.
Asm Series: The assembling dimension is compatible with Panasonic and Fuji motor. Encoder has two options:2500 or 1250 lines.It has high stability performance.low heat and low noise.This is high cost performance servo product.
400 watt AC servo motor 60ASM400 with encoder sewing machine 60V Dimension:
MODEL NO | 60ASM100 | 60ASM200 | 60ASM400 | |
Voltage | V | 36 | 36 | 36 |
Rated power | kW | 0.1 | 0.2 | 0.4 |
Rated torque | Nm | 0.318 | 0.637 | 1.27 |
Peak torque | Nm | 0.955 | 1.91 | 3.82 |
Rated speed | RPM | 3000 | 3000 | 3000 |
Rated current | Arms | 4 | 7.6 | 8.4 |
Torque constant | Nm/Arms | 0.0866 | 0.0918 | 0.16 |
Cycles /Revolution | 2500 | 2500 | 2500 | |
Weight | KG | 0.7 | 0.945 | 1.475 |
400 watt AC servo motor 60ASM400 with encoder sewing machine 60V Photo:
Factory
Company Information:
North Intelligence (Tianjin) Co., Ltd was founded in 2017, which is a high-tech enterprise engaged in R&D,manufacture,sales and after-sales service for industrial automation control products. All the products have passed the CE certification. We have more than 2000 square meters factory, more than 110 workers .
Our main products includes digital stepper motors&drivers, closed loop(hybrid) stepper servo motors&drivers ,high/low voltage servo motors &drivers,Integrated step motors and integrated stepper servo motors ,integrated servo motors ,Precision planetary gear boxes and other complimentary mechanical products.
In the last 4 years, North Intelligence has provided solutions and products to many clients from Asia, , North & South America, Australia, Africa and European which can provide fast delivery and warranty for the customers.
Our main products includes digital stepper motors&drivers, closed loop(hybrid) stepper servo motors&drivers ,high/low voltage servo motors &drivers,Integrated step motors and integrated stepper servo motors ,integrated servo motors ,Precision planetary gear boxes and other complimentary mechanical products.
In the last 4 years, North Intelligence has provided solutions and products to many clients from Asia, , North & South America, Australia, Africa and European which can provide fast delivery and warranty for the customers.
Certification:
Successful Project
3D printer
Security System
Packaging Machinery
Engraving machine
Automation equipment
Industrial
Related Products
FAQ
1.Q:Are you factory or trading company ?
A: We manufacture and export, mean industries(factory+trading).
2.Q: What is the MOQ?
A:Some of the goods have stock with our brand . which not have MOQ.OEM or ODM , should discuss According to the actual conditions
3.Q; Can you do the design for us?
A: Yes. We have a professional team having rich experience in design and manufacturing.
4.Q: Can I get a sample?
A:Of course,but you may need to pay sample charge which will be returned after any order signed.
5.Q:What certificates your products have?
A:Most of our products have CC,CE,ISO and RoHS certificates. If you need others such as UL,PSE and so on, we can proceed them too.
6.Q:What's your delivery time?
A:Direct orders it can be within 7-15 days!.OEM/ODM products,15-25 days after confirming order,detail delivery date should be
decided according to production season and order quantity.
7.Q:Which payment method do you accept?
A:We accept T/T,L/C,D/P D/A,Money Gram,Credit
8.Q:About after-sales service?
A:General enquiries are handle within 24 hours .For any question, please contact us immediately, we are going to offer our best
service to you at any times.
2.Q: What is the MOQ?
A:Some of the goods have stock with our brand . which not have MOQ.OEM or ODM , should discuss According to the actual conditions
3.Q; Can you do the design for us?
A: Yes. We have a professional team having rich experience in design and manufacturing.
4.Q: Can I get a sample?
A:Of course,but you may need to pay sample charge which will be returned after any order signed.
5.Q:What certificates your products have?
A:Most of our products have CC,CE,ISO and RoHS certificates. If you need others such as UL,PSE and so on, we can proceed them too.
6.Q:What's your delivery time?
A:Direct orders it can be within 7-15 days!.OEM/ODM products,15-25 days after confirming order,detail delivery date should be
decided according to production season and order quantity.
7.Q:Which payment method do you accept?
A:We accept T/T,L/C,D/P D/A,Money Gram,Credit
8.Q:About after-sales service?
A:General enquiries are handle within 24 hours .For any question, please contact us immediately, we are going to offer our best
service to you at any times.
Похожие товары
Оптовая продажа вьетнамские специи из цельного звездного аниса недорогая цена в продаже-WA: 0084 36 268 8431 -
3,76 $ - 4,32 $

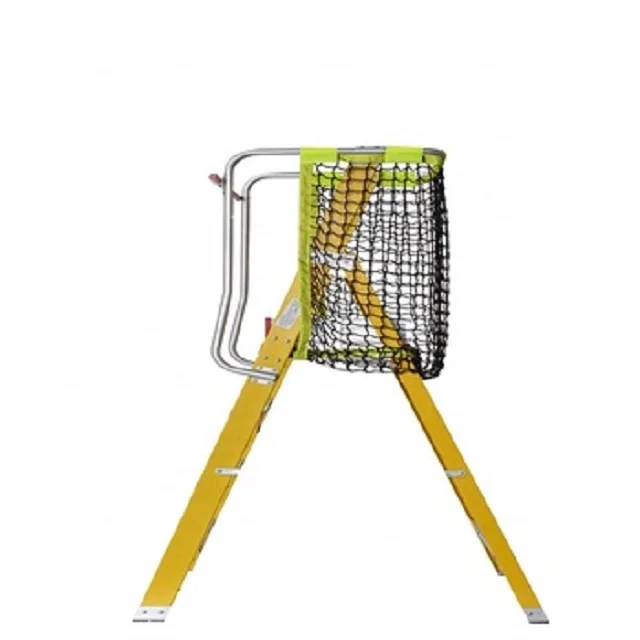

Лидер продаж, нескользящая алюминиевая лестница, шестисекционная лестница, алюминиевая складная лестница
15 шт. новый европейский стиль кастрюля для супа керамическая супница с подносом и ложка суповая миска

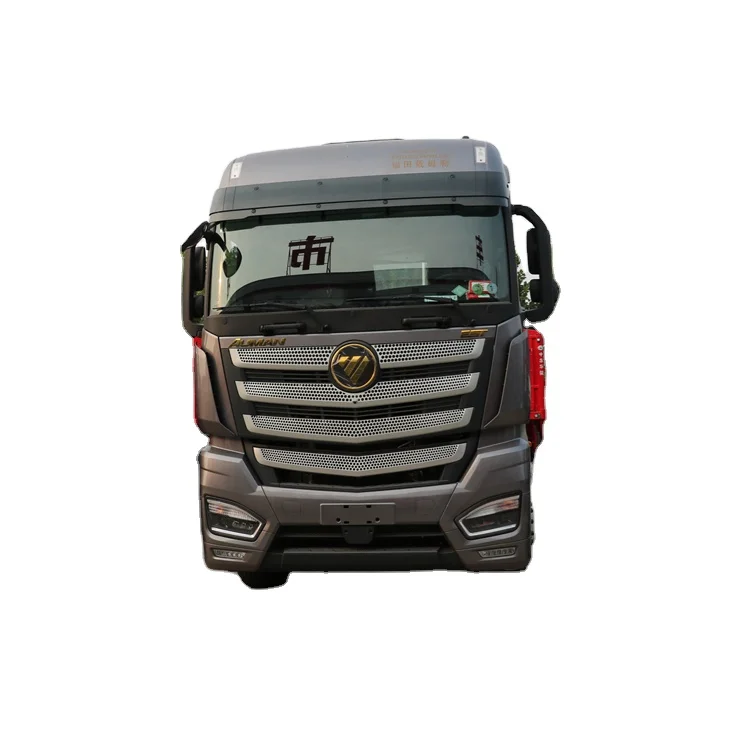

371hp 10 колес трактор грузовик для продажи
6 000,00 $

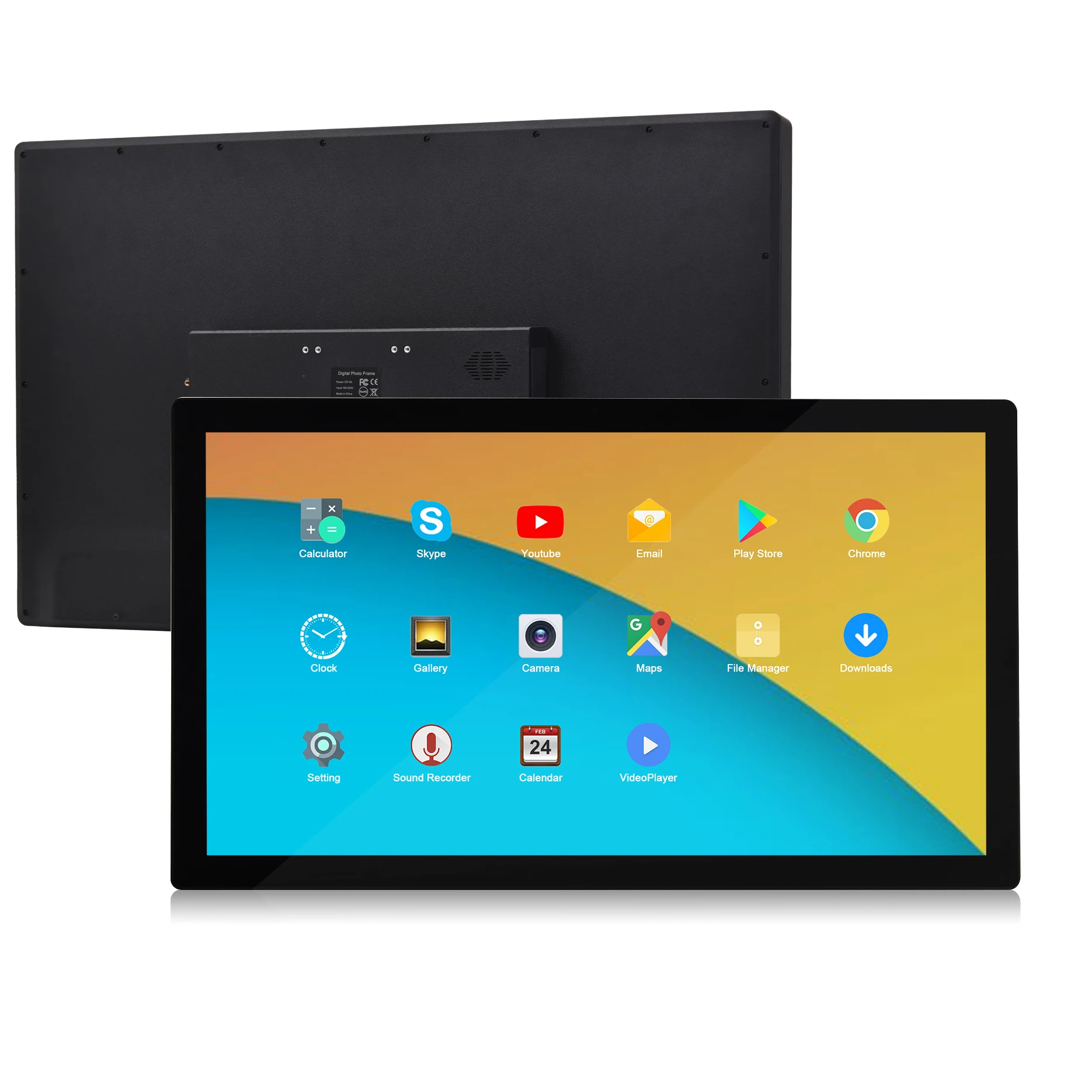

Новый Rk3588 12,0 32 дюймов ЖК-дисплей рекламы Android рекламный монитор сенсорный Android
250,00 $ - 400,00 $

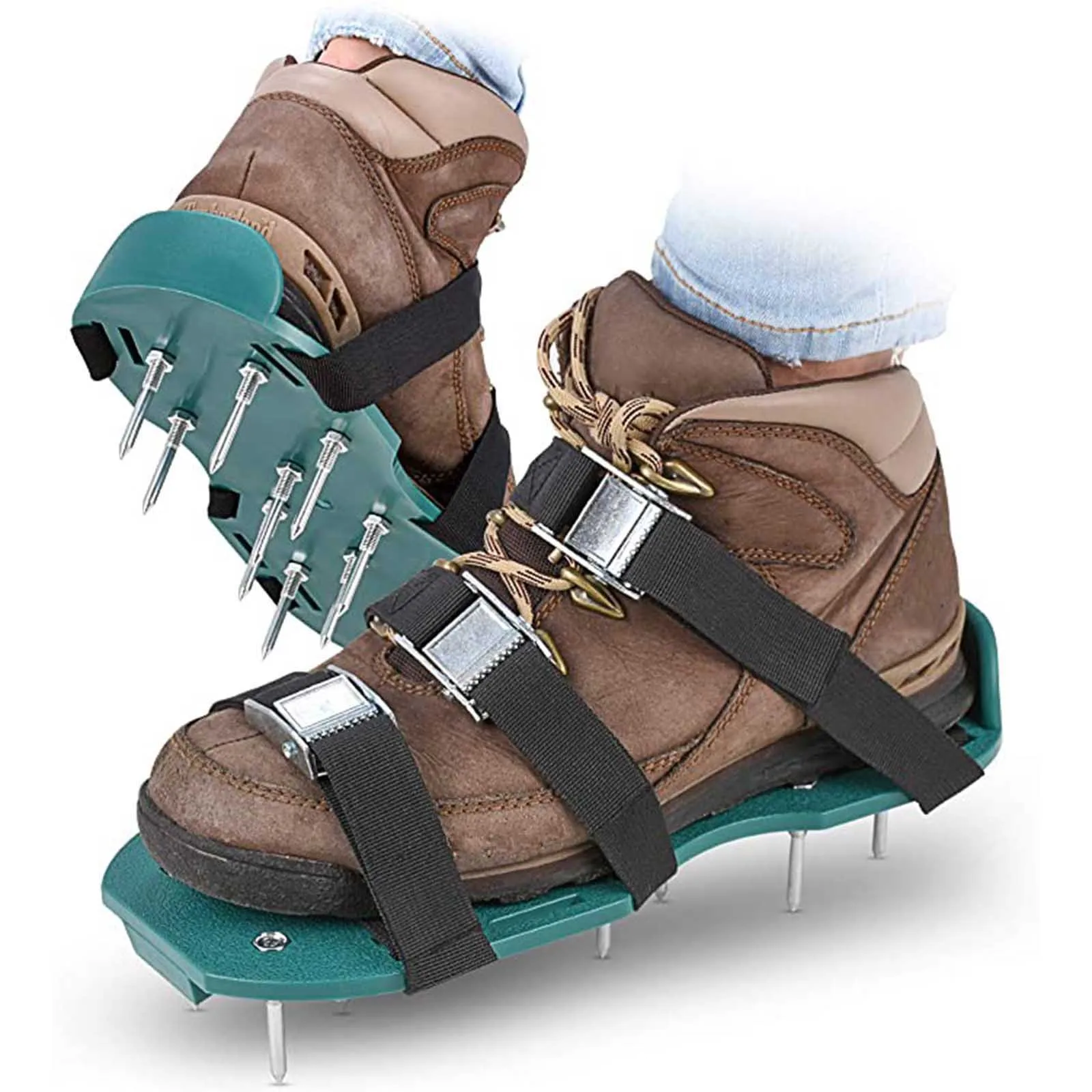

Регулируемые ремни лужайка аэратор сандалии аэрации рыхлая почва; Резиновые сапоги для сада парниковых обувь с шипами культиватор-рыхлитель посева
4,75 $ - 6,00 $

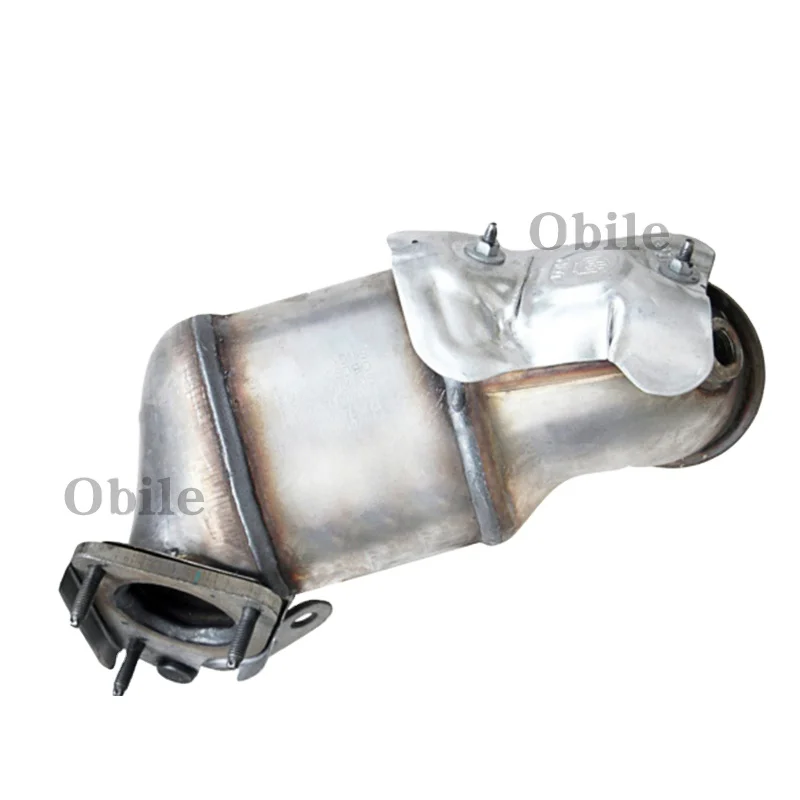

Высокий спрос на импортные товары Buick excelle Новый regal 1,6 T керамический сотовый каталитический нейтрализатор выхлопных газов автомобиля
