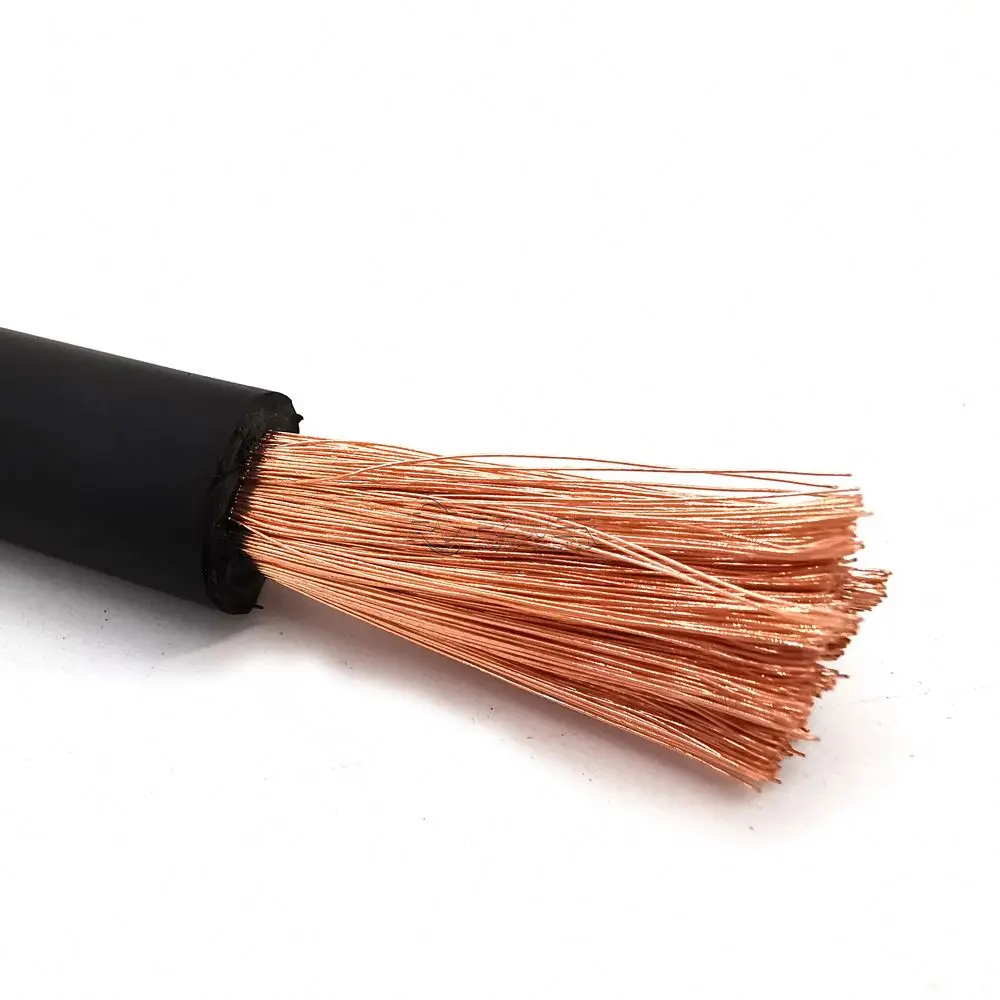

UL3135 силиконовые резиновые Аккумуляторные кабели для автомобилей, Инверторные кабели IEC60245, сварочный кабель
0,94 $ - 0,99 $
Листовой металл 100T 3200 с системой DA66T гидравлический автоматический листогибочный пресс ЧПУ серии WE67Y
- Категория: >>>
- Поставщик: Anhui Harting Machinery Technology Co. Ltd.
Сохранить в закладки 1600619269972:
Описание и отзывы
Характеристики
Product Description

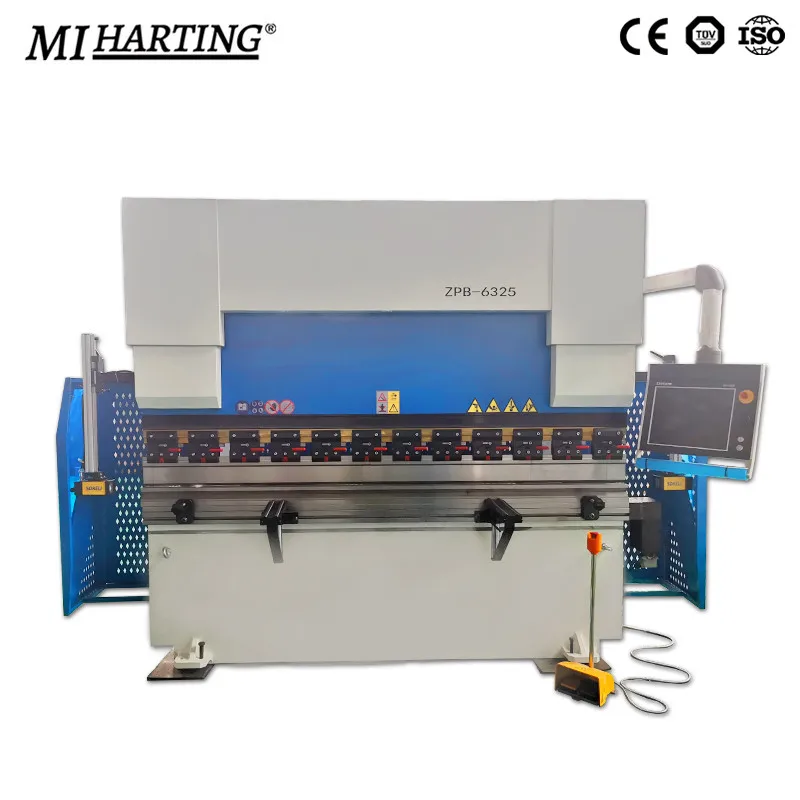

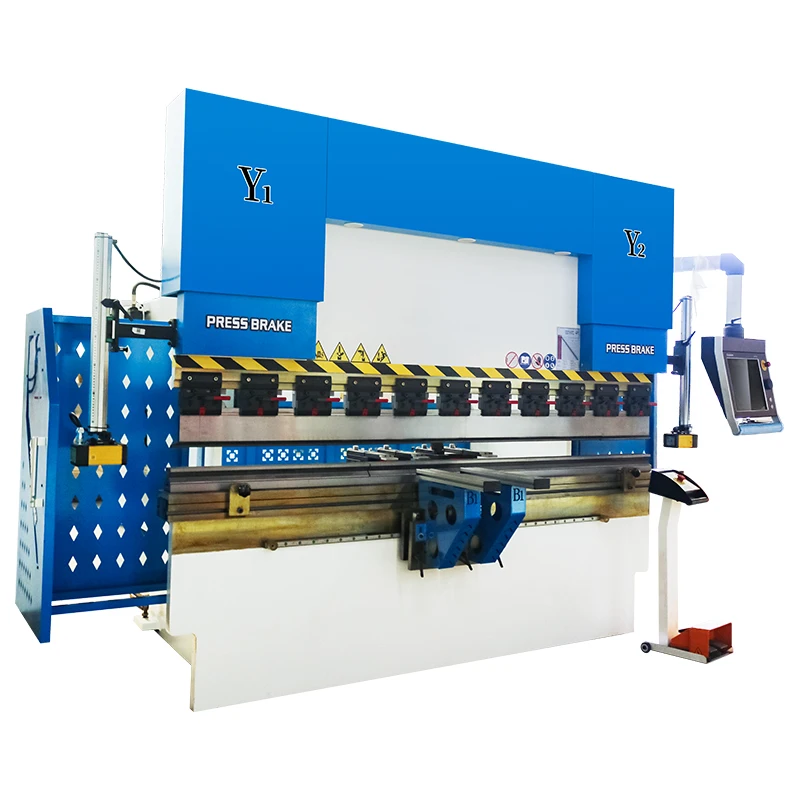

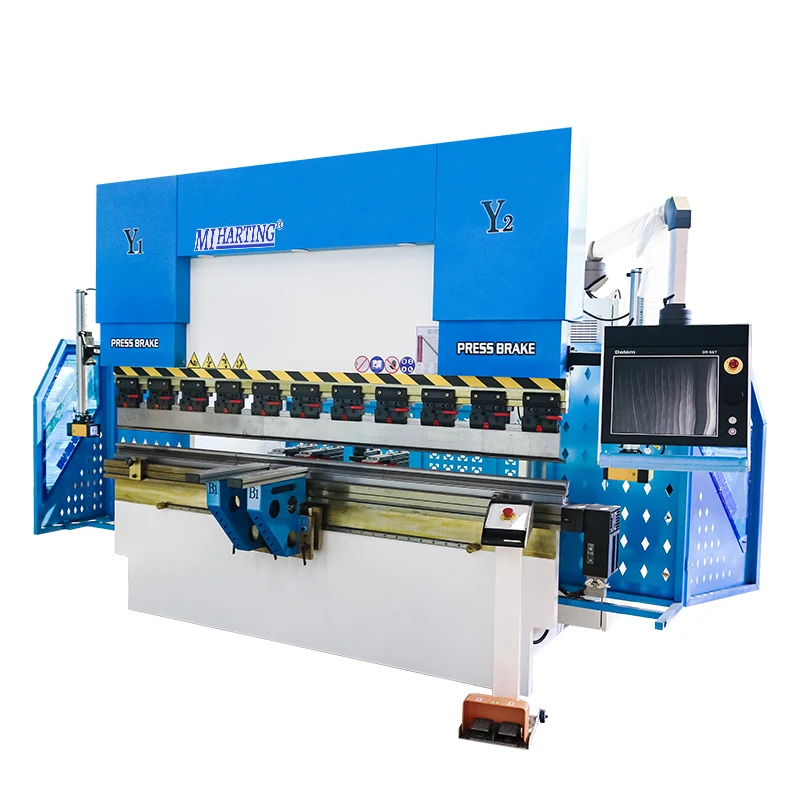

WE67Y-63T2500mm Delem DA66T press brake bending machine for sheet metal products bending High precision bending effects
A press brake is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
A brake can be described by basic parameters, such as the force or tonnage and the working length.Additional parameters include the stroke length, the distance between the frame uprights or side housings, back gauge distance, and work height.
A brake can be described by basic parameters, such as the force or tonnage and the working length.Additional parameters include the stroke length, the distance between the frame uprights or side housings, back gauge distance, and work height.
BRIEF INTRODUCTION:
♦ Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.
♦ Hydraulic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.
♦ Motorize-adjusting device of back gauge and rams stroke,fine adjusting by motor,numerical display.
♦Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.
♦ The CNC system, servo motor , ball screw, liner guider as customer' requirement.
Configurations:(optional)
♦Operation System: Delem 66T system
♦Oil pump(Gear Pump): USA Sunny Brand
♦Hydraulic elements:Germany Rexroth brand
♦Electric parts:France Schneider brand
♦Motor: Siemens brand(Germany)
♦Main Seal:Valqua(Japan)/NOK(Japan)
♦Moulds:From Anhui (China)
♦Ball bearing lead screw and linear guide rall:Taiwan HIWIN brand
♦Double linear guide rail cross-beam and cnc stop block
♦Synchronous wheel and belt
♦Oil connector:Germany EMB brand
All components also can supply according to client's requirement.
♦ Hydraulic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.
♦ Motorize-adjusting device of back gauge and rams stroke,fine adjusting by motor,numerical display.
♦Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.
♦ The CNC system, servo motor , ball screw, liner guider as customer' requirement.
Configurations:(optional)
♦Operation System: Delem 66T system
♦Oil pump(Gear Pump): USA Sunny Brand
♦Hydraulic elements:Germany Rexroth brand
♦Electric parts:France Schneider brand
♦Motor: Siemens brand(Germany)
♦Main Seal:Valqua(Japan)/NOK(Japan)
♦Moulds:From Anhui (China)
♦Ball bearing lead screw and linear guide rall:Taiwan HIWIN brand
♦Double linear guide rail cross-beam and cnc stop block
♦Synchronous wheel and belt
♦Oil connector:Germany EMB brand
All components also can supply according to client's requirement.
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping,etc
Press Brake toolings are made from 42CrMo materials with hardness up to 42 degrees to ensuring die service life

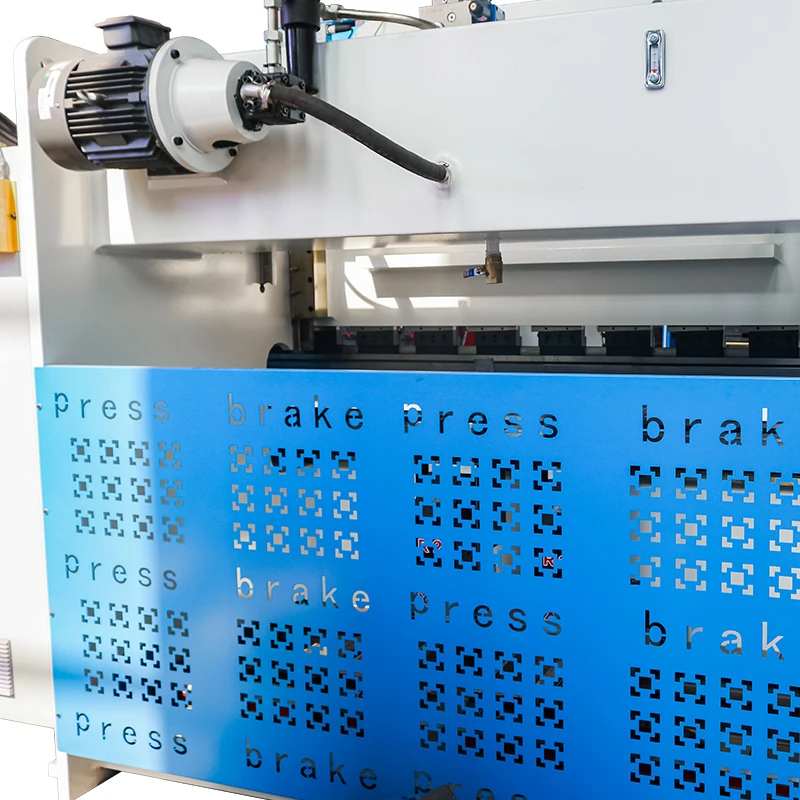

Protective guards on each side can protect the user during operation
Imported ball screw drive, linear guide rail guide, double linear guide construction, to ensure the positioning accuracy.
Multistage stops to increase the positioning range, make the bending more convenient
Multistage stops to increase the positioning range, make the bending more convenient
Foot switch is movable and can stop the machine anytime by the emergency button
German Bosch modular hydraulic system special for press brakes, full loop controlling the synchronization of ram. High frequency
hydraulic system, low failure rate, machine will run fast and stably
hydraulic system, low failure rate, machine will run fast and stably
Good-looking structure and reduce the possibility of oil leakage
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement
anywhere in the world
anywhere in the world
With grating ruler and throat deformation compensation device, it can accurately measure the deformation and feedback compensation
to ensure the bending
to ensure the bending
Double servo motor can make the control speed,position accuracy is very accurate,can convert voltage signal into torque and rotational speed to drive control object
Polished rod and high precision ball screw can improve the accuracy of back gauge
High-precision back gauge device,improving limit accuracy
2D graphical touch screen programming mode
17" high resolution colour TFT
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control's multitasking environment
Sensor bending & correction interface Profile-TL offline software.
17" high resolution colour TFT
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control's multitasking environment
Sensor bending & correction interface Profile-TL offline software.
Specification
Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
Column Distance(mm) | 2490 | 2490 | 3000 | 2490 | 3000 | 2490 | 3000 |
Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 1 |
Bending Capability | 160/6000 | 200/3200 | 200/4000 | 200/6000 | 250/3200 | 250/4000 | 250/6000 |
Nominal Force(KN) | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 |
Worktable Length(mm) | 6000 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 |
Column Distance(mm) | 4100 | 2490 | 3000 | 4600 | 2500 | 3000 | 4600 |
Throat Depth(mm) | 320 | 320 | 320 | 320 | 350 | 350 | 350 |
Ram Stroke(mm) | 200 | 200 | 200 | 200 | 250 | 250 | 200 |
Main Motor Power(KW) | 11 | 11 | 11 | 15 | 15 | 15 | 15 |
Bending Capability | 300/3200 | 300/4000 | 300/6000 | 400/4000 | 400/5000 | 400/6000 | 500/4000 |
Nominal Force(KN) | 3000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 |
Worktable Length(mm) | 3200 | 4000 | 6000 | 4000 | 5000 | 6000 | 4000 |
Column Distance(mm) | 2500 | 3000 | 4600 | 3100 | 3600 | 4600 | 3100 |
Throat Depth(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Ram Stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Main Motor Power(KW) | 18.5 | 18.5 | 18.5 | 22 | 22 | 30 | 30 |
Bending Capability | 500/6000 | 500/8000 | 600/6000 | 600/8000 | 800/6000 | 800/8000 | 1000/6000 |
Nominal Force(KN) | 5000 | 5000 | 6000 | 6000 | 8000 | 8000 | 10000 |
Worktable Length(mm) | 6000 | 8000 | 6000 | 8000 | 6000 | 8000 | 6000 |
Column Distance(mm) | 4600 | 6100 | 4600 | 6100 | 4600 | 6100 | 4600 |
Throat Depth(mm) | 350 | 350 | 400 | 400 | 400 | 400 | 500 |
Ram Stroke(mm) | 250 | 300 | 300 | 300 | 300 | 300 | 400 |
Main Motor Power(KW) | 30 | 30 | 37 | 45 | 45 | 55 | 55 |
Our Team
Cetrtification
Packing & Delivery
Company Profile
MIHARTING is one of Chinese leading manufacturers in the field of sheet metal working machinery with over 15 years experience.We
are specialized in sheet metal processing in China.
We manufacture various kinds of NC and CNC press brake, shearing machine,power press,rolling machine and other related
machines.Our products are shipped to over 50 countries,Annual sales growth of more than 30%.we have got 20 distributors until the
end of the year of 2021.
We have a research and development team with expertise, which can guarantee a high quality of the machines. We have a professional
sales team with passion and confidence,which always offer every client the best service.
MIHARTING is not only a professional manufacturer,but also an expert who share the technology ,We are waiting for you and
expecting to establish the long term cooperation.
are specialized in sheet metal processing in China.
We manufacture various kinds of NC and CNC press brake, shearing machine,power press,rolling machine and other related
machines.Our products are shipped to over 50 countries,Annual sales growth of more than 30%.we have got 20 distributors until the
end of the year of 2021.
We have a research and development team with expertise, which can guarantee a high quality of the machines. We have a professional
sales team with passion and confidence,which always offer every client the best service.
MIHARTING is not only a professional manufacturer,but also an expert who share the technology ,We are waiting for you and
expecting to establish the long term cooperation.
FAQ
1. who are we?
We are based in Anhui, China, start from 2012,sell to Mid East(25.00%),Western Europe(18.00%),Eastern Europe(17.50%),North America(15.30%),Southern Europe(12.30%),Africa(10.80%),South America(7.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Auto duct line,Press Brake,Laser Cutting Machine,Shear machine,Punch machine
4. why should you buy from us not from other suppliers?
We are manufacturer and trading company of metal sheet cutting, bending, shearing, punching, rolling machine tools with
professional technician team and complete factory fabrication solution.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Spanish,Japanese,Russian
We are based in Anhui, China, start from 2012,sell to Mid East(25.00%),Western Europe(18.00%),Eastern Europe(17.50%),North America(15.30%),Southern Europe(12.30%),Africa(10.80%),South America(7.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Auto duct line,Press Brake,Laser Cutting Machine,Shear machine,Punch machine
4. why should you buy from us not from other suppliers?
We are manufacturer and trading company of metal sheet cutting, bending, shearing, punching, rolling machine tools with
professional technician team and complete factory fabrication solution.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Spanish,Japanese,Russian
Похожие товары

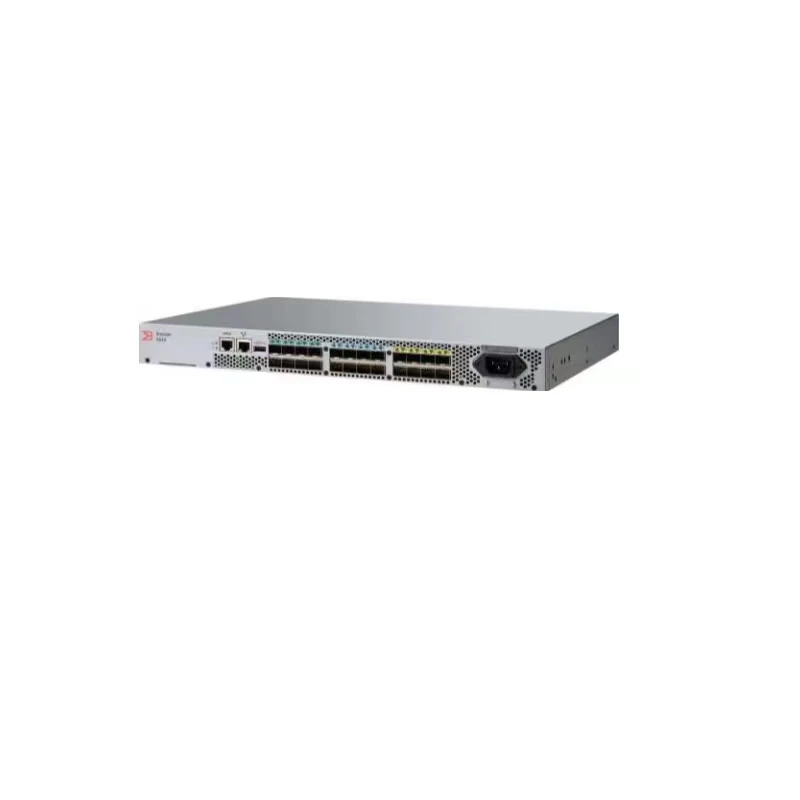

Парча G610 Коммутатор 16 Гбит/s 8 оптоволоконный канал порта-24 x общая Слоты расширения G610BR-G610-8-16G

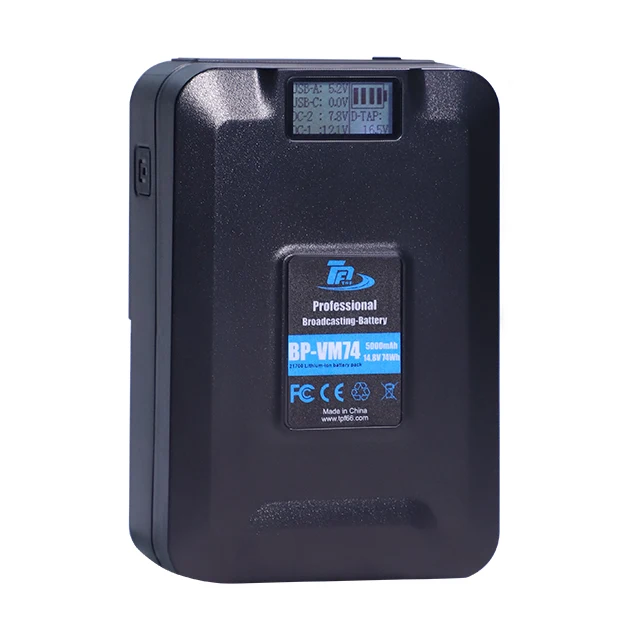

TPF 74Wh V-Mount V-Lock батареи для Sony видеокамера камкордер в форме трансляции Свет Замена кирпич для цифровых зеркальных фотокамер
102,00 $ - 109,00 $

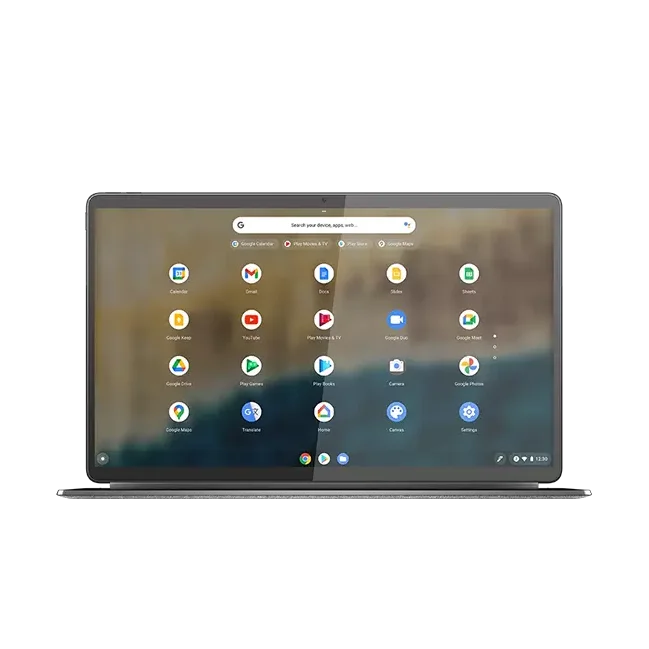

Ноутбук Chromebook Duet 5, 13 дюймов, Intel Celeron ноутбук i5 i7 Chrome OS, ноутбуки для студентов и учебы, планшет
Вакуумный клапан-бабочка Kf40 из нержавеющей стали Ss304 с фланцем Kf
20,00 $ - 25,00 $

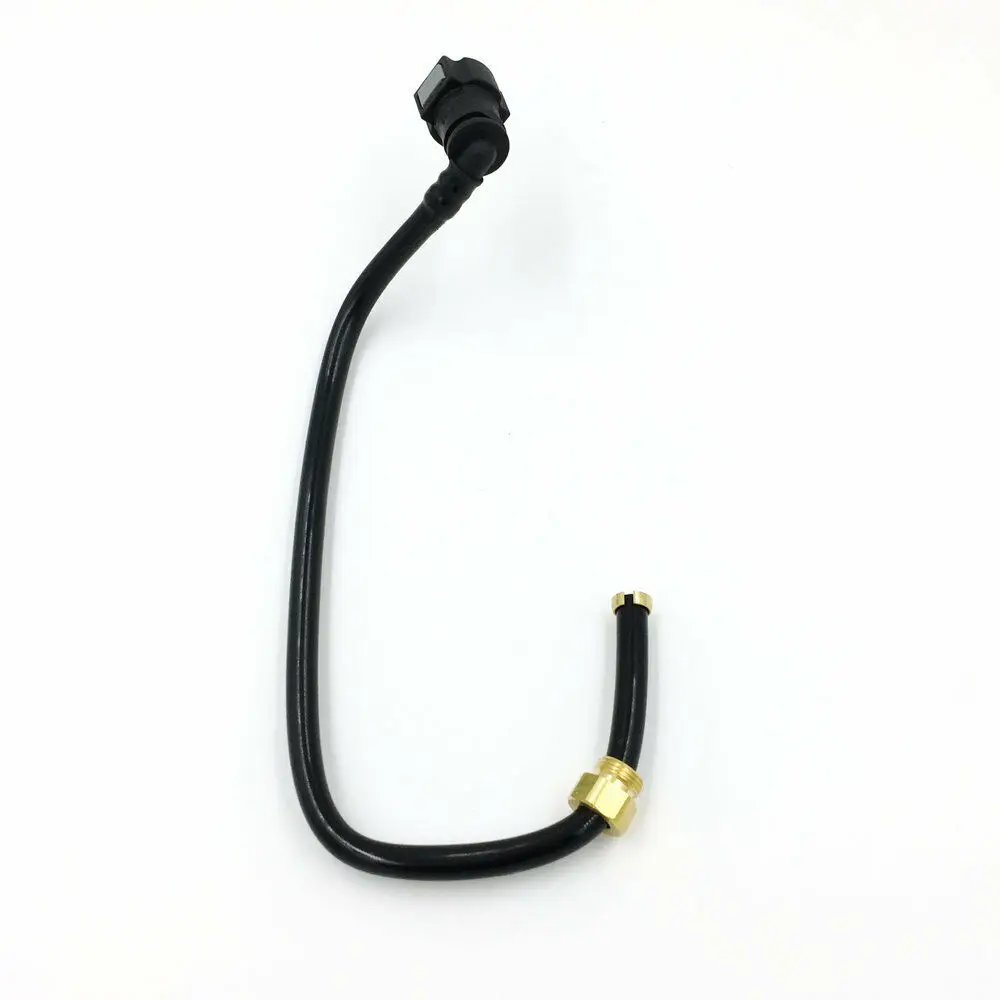

320/07087 топливная труба 3CX 4CX Запчасти для экскаватора-погрузчика

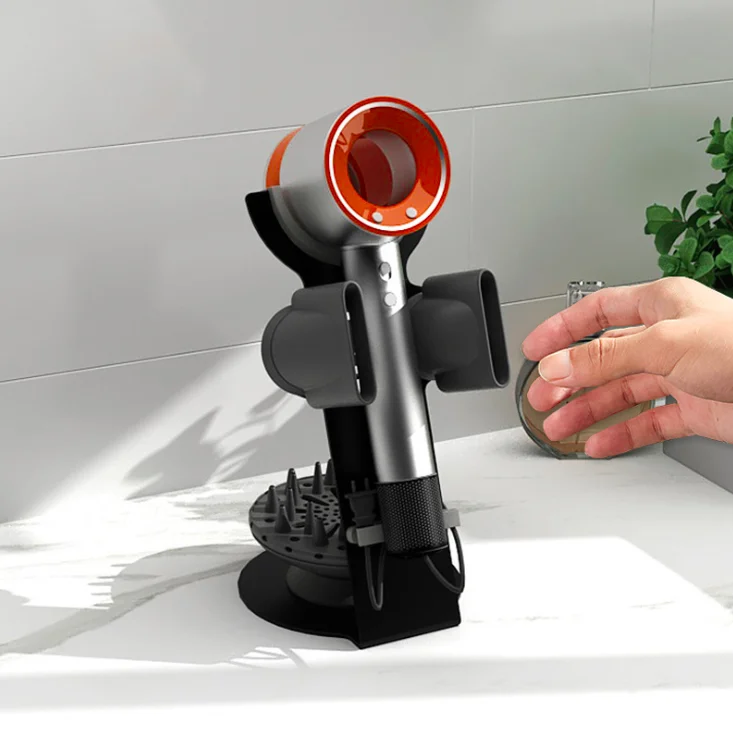

Сушилка для волос Dyson, практичная вертикальная подставка с защитой от падений, для суперпонных аппаратов Dyson, без перфорации

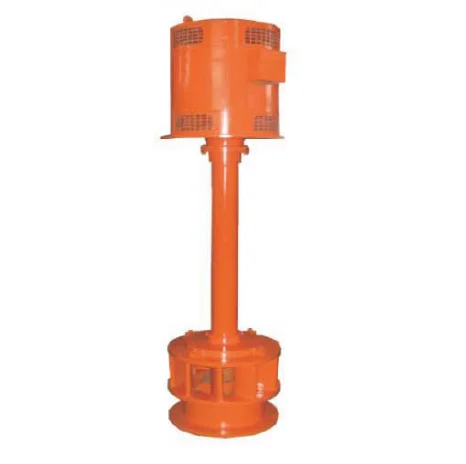

Генераторная турбина kaplan мощностью 5 кВт
