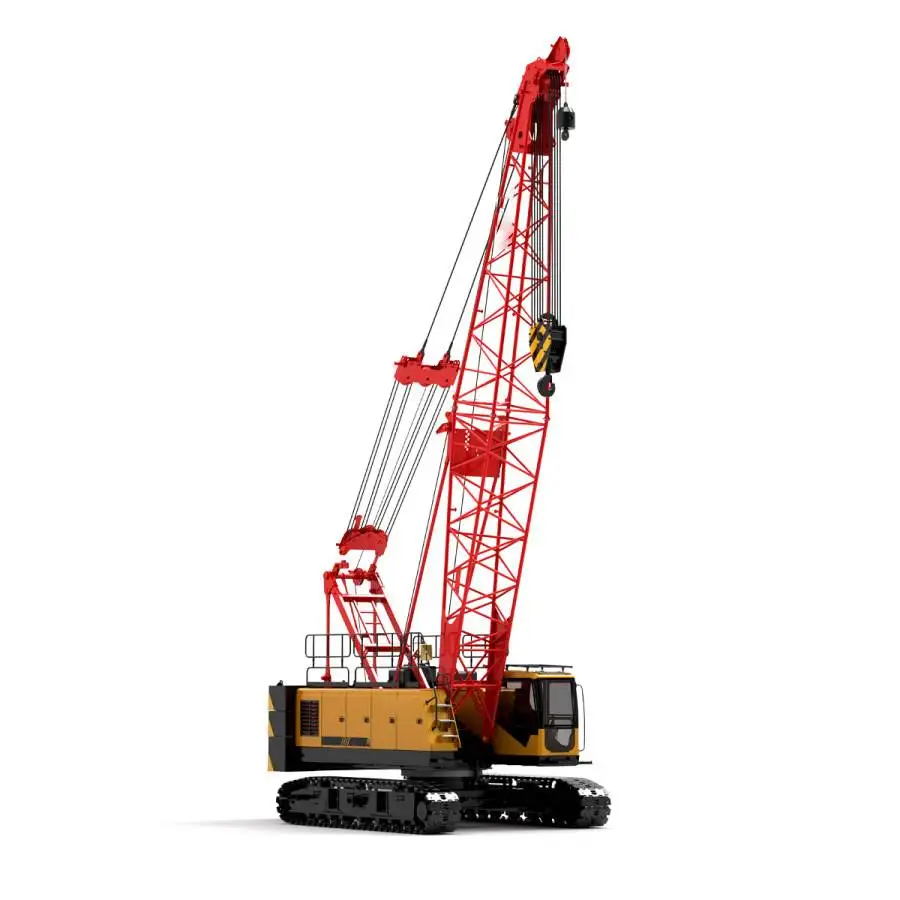

Китайский бренд 60t гидравлический гусеничный кран SCC600A-8 гусеничный кран с стрелой 52 м
10 959 238,00-12 631 963,80 ₽

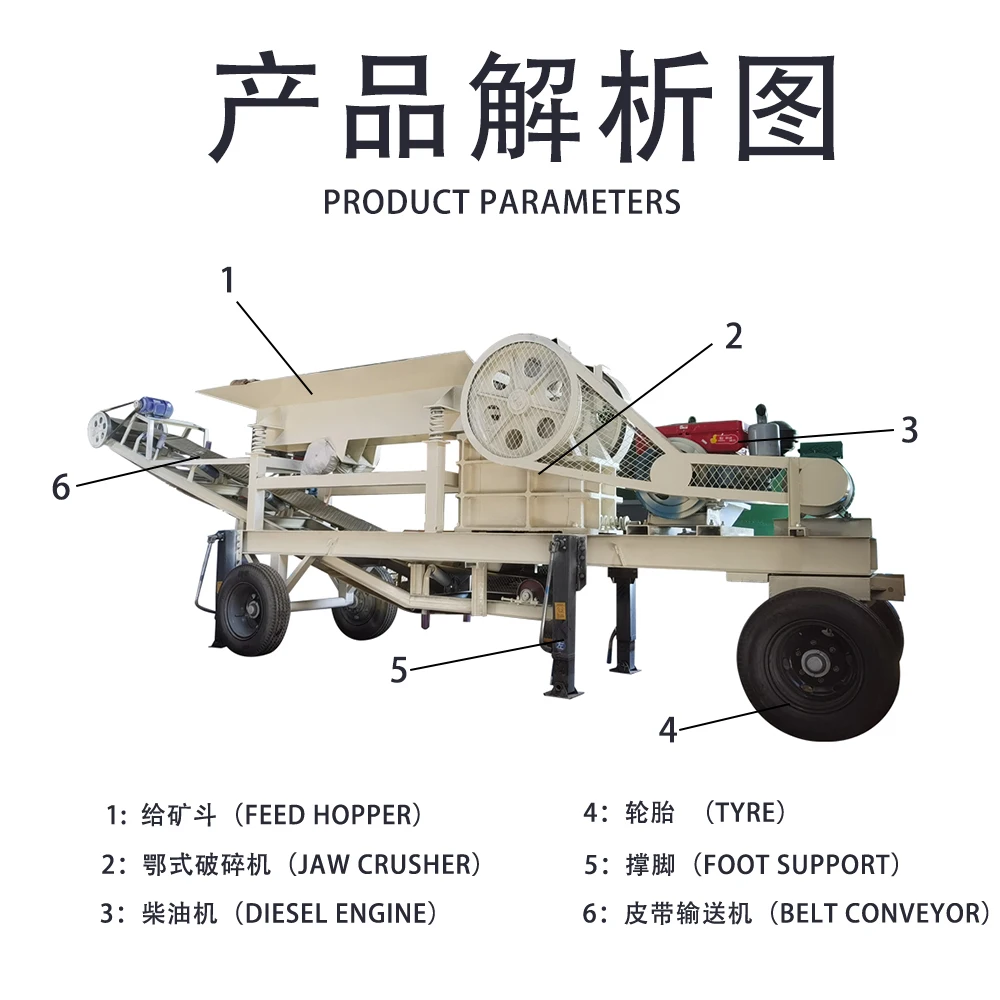

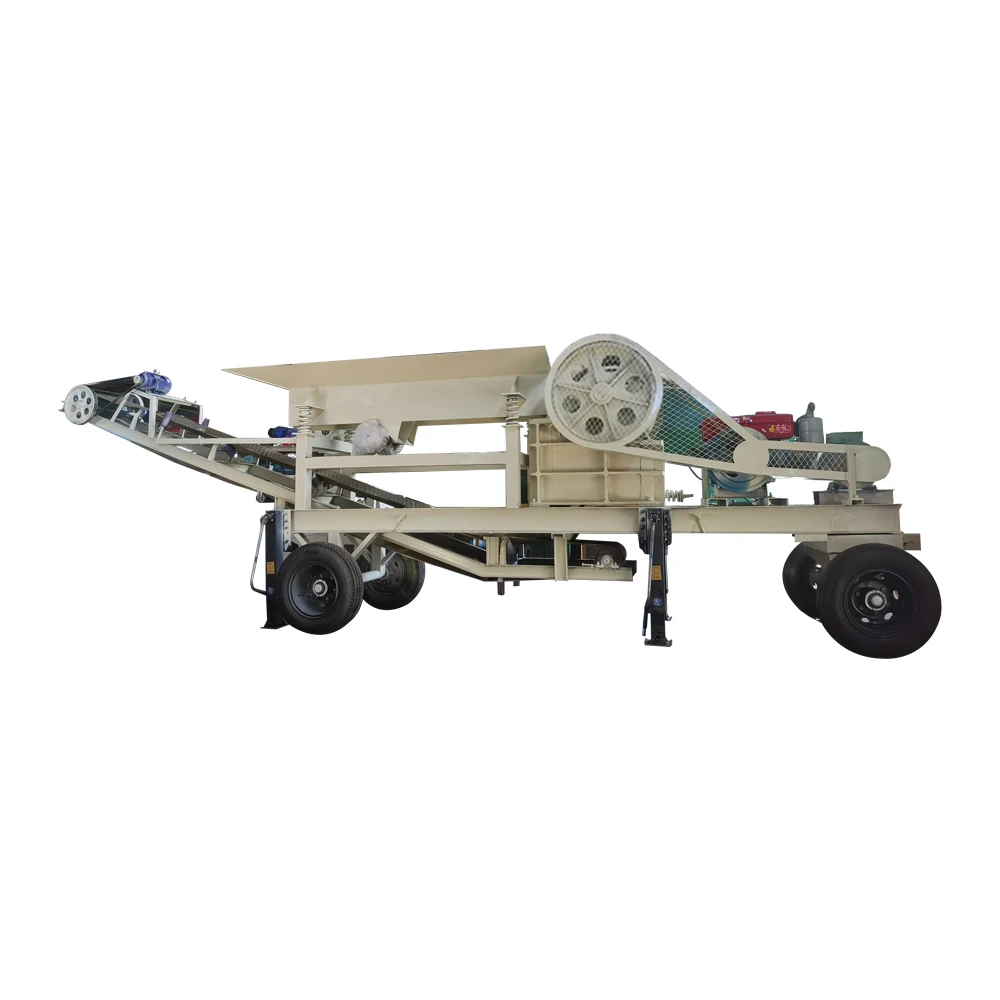

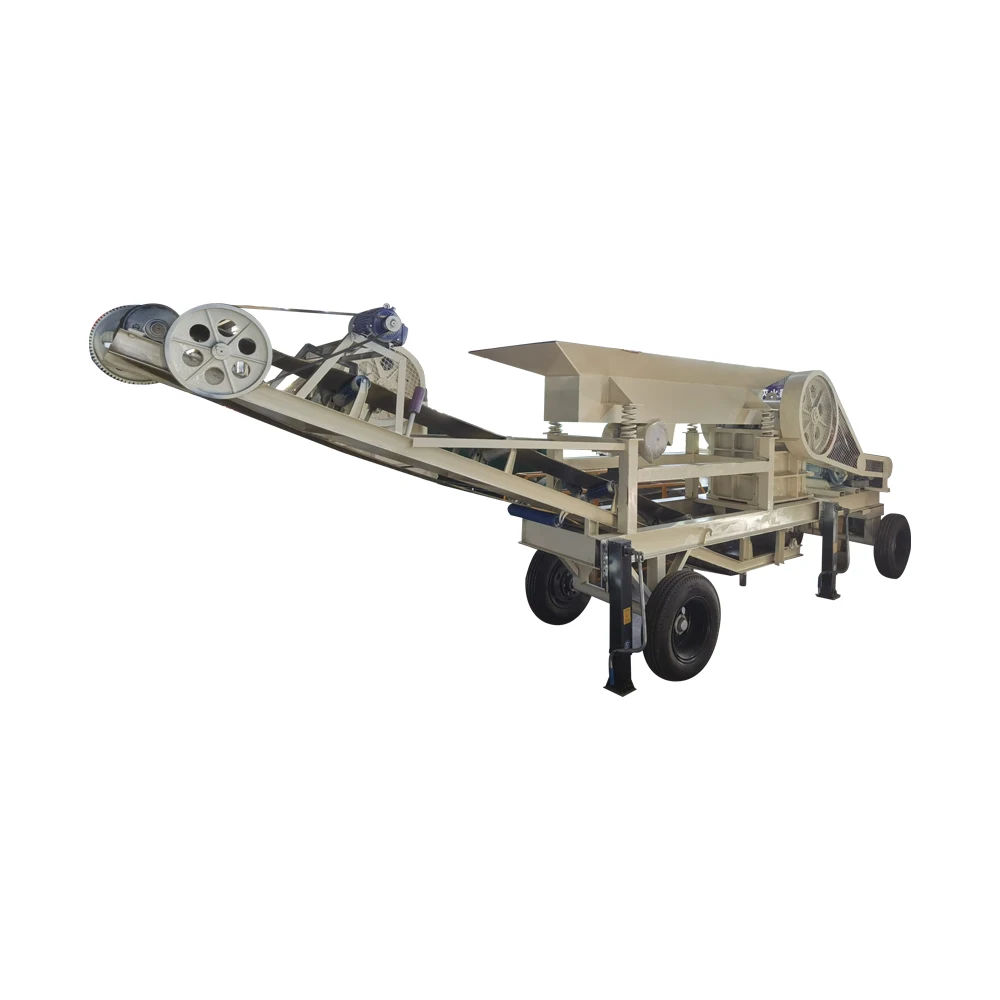

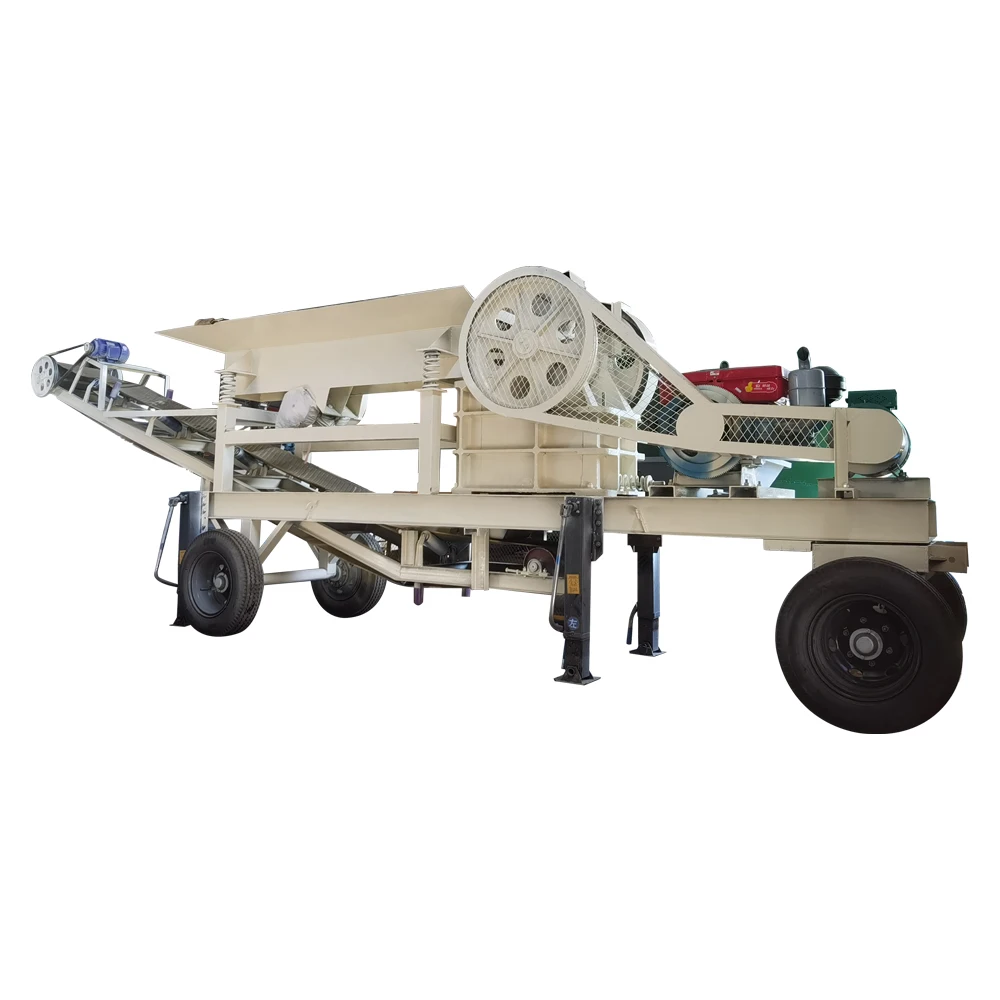

Мобильная 250x400 щековая дробилка в сочетании с вибрационным питателем и ленточным конвейером
- Категория: Construction & Building Machinery >>>
- Поставщик: Ganzhou Jianlong Machinery Equipment Co. Ltd.Ganzhou Ltd.
Сохранить в закладки 1600620222934:
Описание и отзывы
Характеристики
Jaw crusher is combined with the secondary crushing equipment in the whole stone crushing line,like cone crusher and impact crusher. Due to their smaller physical size, jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications. Now it is widely applied in mining, metallurgy,quarry, building waste, smelting,electricity, building material, highway, railway, water conservancy, transportation, chemical industries and other fields.
This small size PE series jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, buildingconstruction, construction wastes etc.
Model | Feeding Mouth Size(mm) | Max Feeding Size(mm) | Adjusting Range | Capacity(t/h) | Rotation Speed(r/min) | Motor Power(KW) | Weight(t) | Dimension L*W*H(mm) | ||||||||
of Output Size(mm) | ||||||||||||||||
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 910*750*990 | ||||||||
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.3 | 1000*870*990 | ||||||||
PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 300*1090*1270 | ||||||||
PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 730*1730*1630 | ||||||||
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 | ||||||||
PE-600*900 | 600*900 | 500 | 75-200 | 60-200 | 250 | 75 | 20 | 2290*2290*2400 | ||||||||
PE-750*1060 | 750*1060 | 630 | 80-140 | 115-330 | 250 | 110 | 29 | 2660*2430*2800 | ||||||||
PE-870*1060 | 870*1060 | 660 | 200-260 | 290-336 | 250 | 110 | 31.5 | 2810*2430*2800 | ||||||||
PE-900*1060 | 900*1060 | 685 | 230-290 | 160-400 | 250 | 110 | 33 | 2870*2420*2940 | ||||||||
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 | ||||||||
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*3876*3330 | ||||||||
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 | ||||||||
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 | ||||||||
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 | ||||||||
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 37 | 7 | 1560*1950*1390 | ||||||||
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 45 | 8.5 | 2140*1660*1500 | ||||||||
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 75 | 11 | 2720*1950*1600 | ||||||||
Note: For different materials, production capacity is different. | ||||||||||||||||
Working principle The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Ganzhou Jianlong Machinery Equipment Co., LTD
Ganzhou Jianlong Machinery equipment Co., Ltd. is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation,separation etc. in China.
Jianlong have a complete service system which can provide customer full service in mining field and after sales service.
By now, Jianlong's equipments and services are exported to over 60 countries,include America, Russia, India, Africa,Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome you visit our factory.

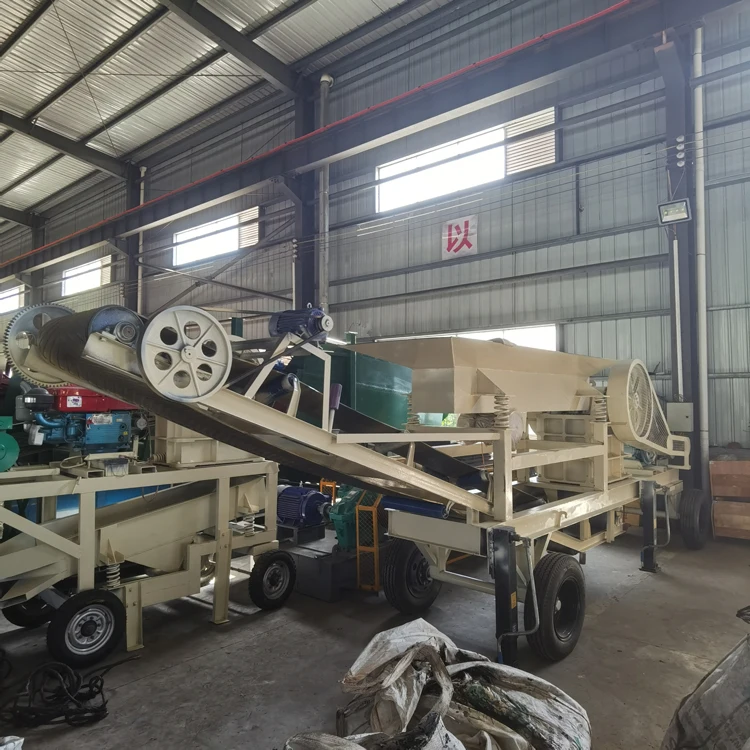

Customer Photos
Successful Cases
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service：
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as wedescribed or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery; Finished product pictures will provide to customers before delivery.
Похожие товары
Гидравлический Молот для экскаватора серии SB, дробилка для экскаватора 28-35 тонн
963 259,34-1 038 243,60 ₽
Оборудование для воздуховодов hvac, машина для производства воздуховодов
1 130 531,92-1 268 964,40 ₽

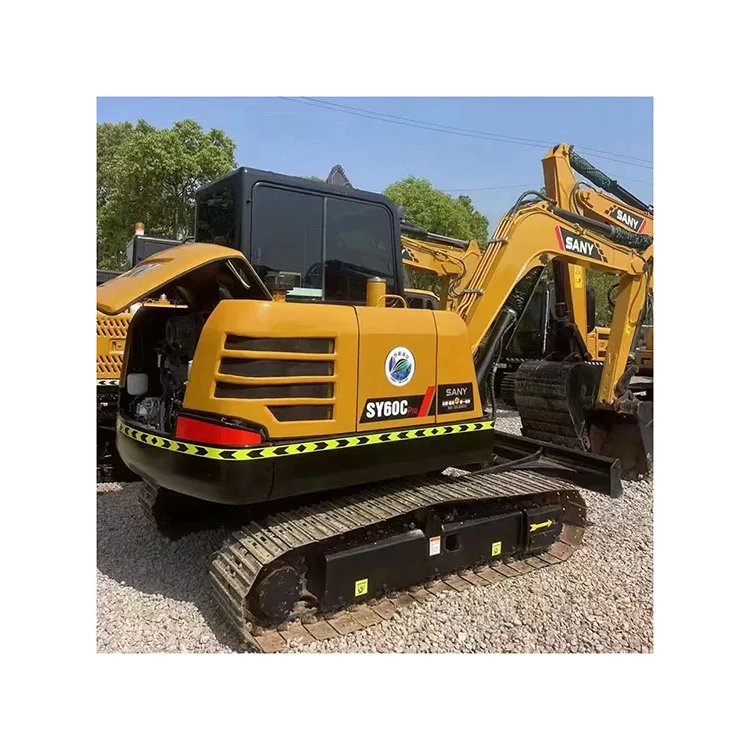

2022 гусеничный экскаватор SANY SY60C SY60
1 038 243,60-1 268 964,40 ₽

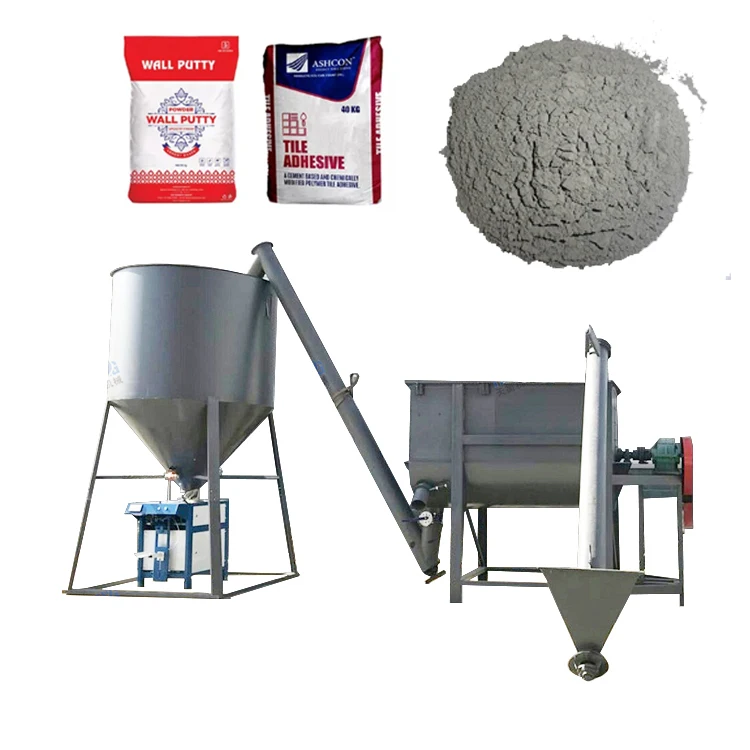

Производственная линия по производству сухого цементного раствора, смесительное оборудование для завода-производителя, смеситель сухого порошка
345 965,84-415 182,08 ₽

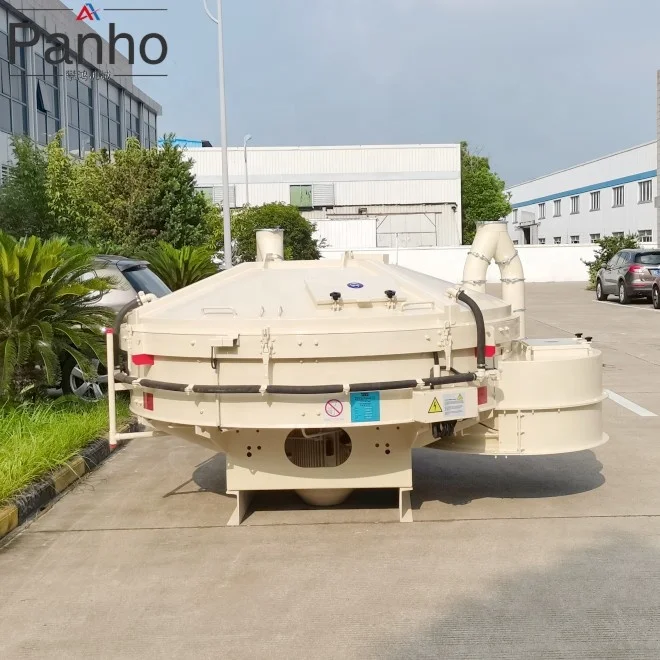

THZ1125/1800kgs китайская Бетономешалка для сборного железобетона и бетонных
34 500,00-36 000,00 $
400 метр воды буровая установка машина глубоководные буровые установки для продажи
692 162,40 ₽

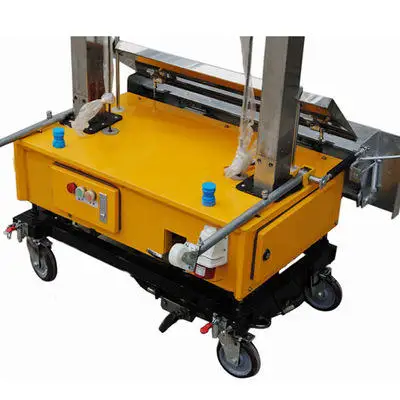

Автоматическая машина для штукатурки стен/машина для штукатурки стен
