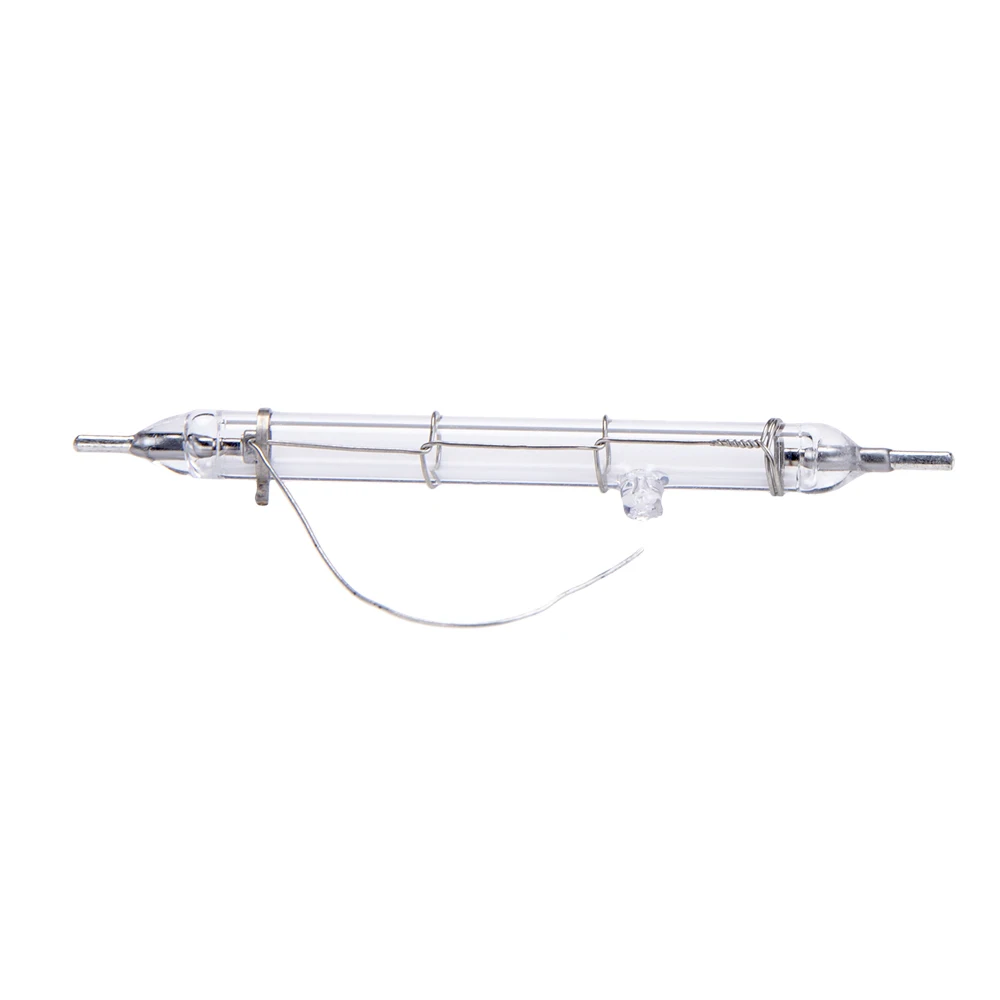

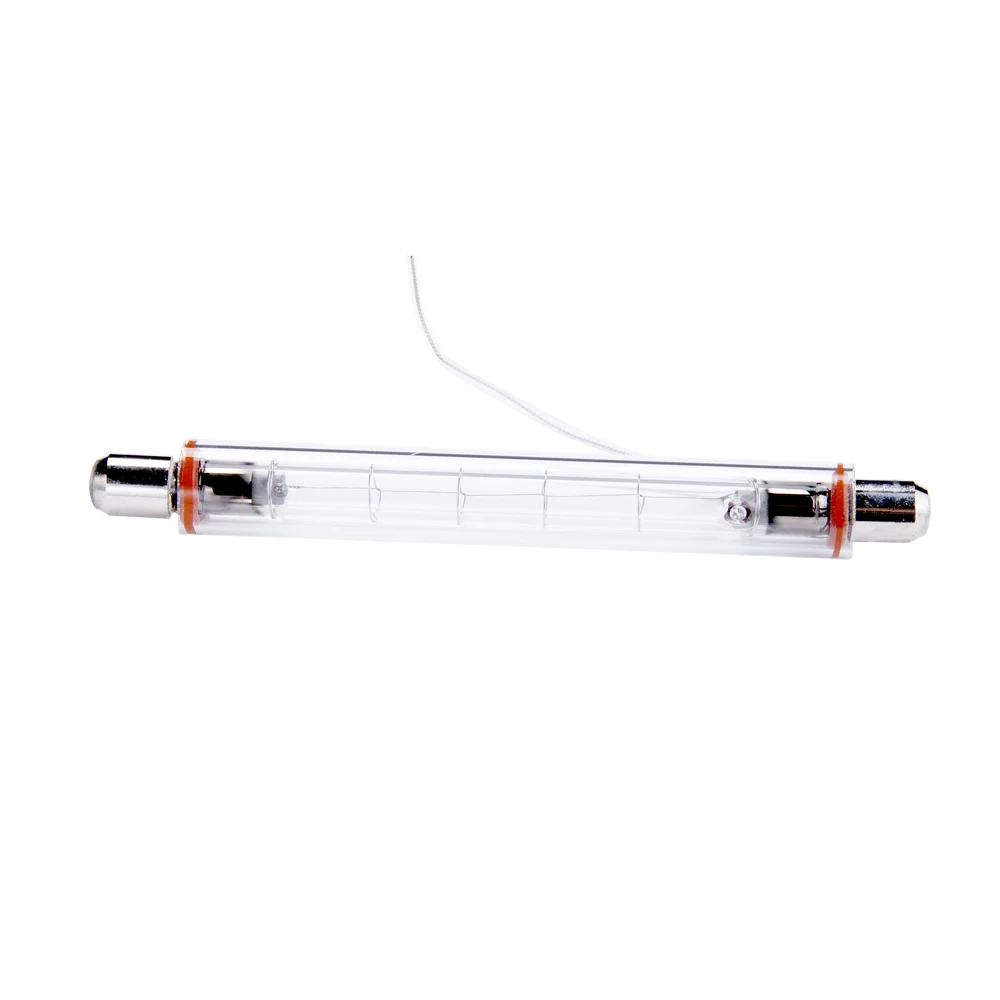

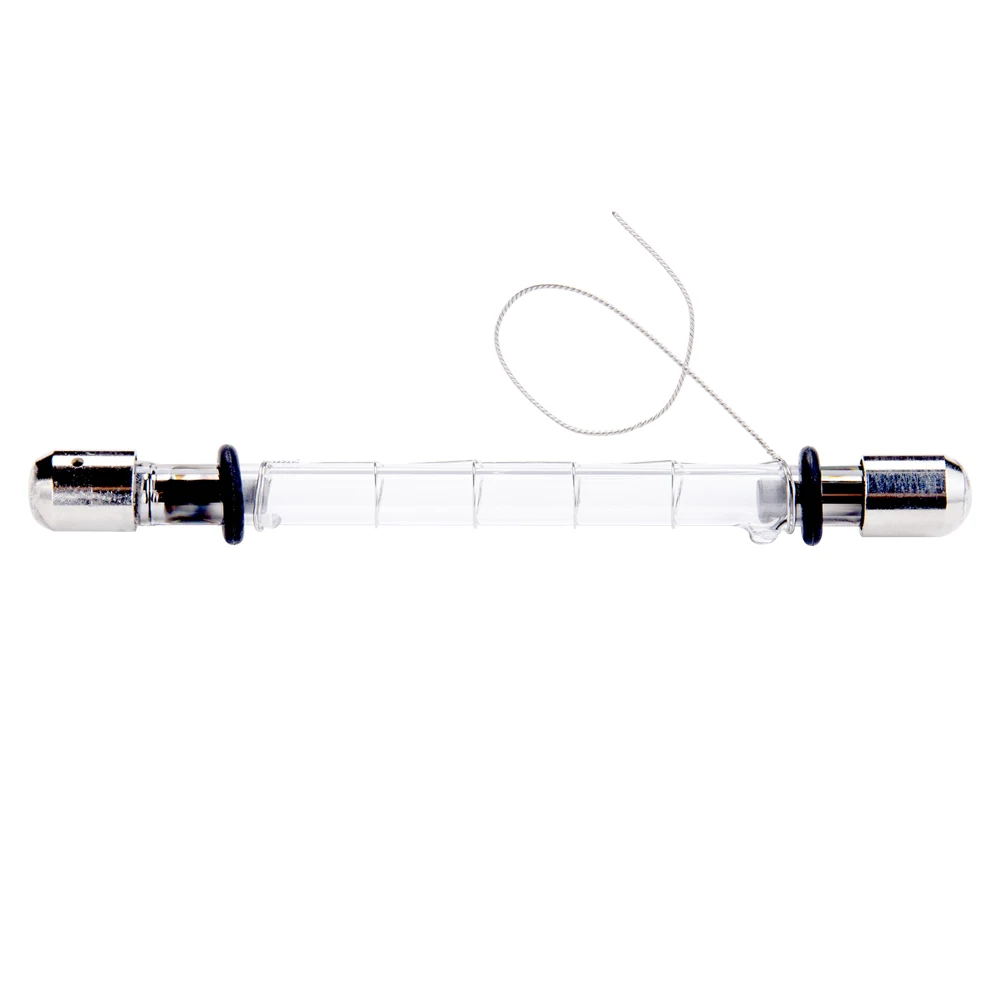

OEM производитель 4 мм 6 80 Вт ксеноновая лампа Ipl линейная форма для

OEM производитель 4 мм 6 80 Вт ксеноновая лампа Ipl линейная форма для

Категория: Xenon Lamps >>>
Поставщик: Shenzhen Hongtai Auspicious Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

One-Stop Solution” Provider Of Xenon flash tubes

ShenZhen HongTai Auspicious Technology. Co.Ltd. provides customized services with 100% performance guarantee based on customer’s demands. Customers can find solutions that fit their specific needs instead of those off-the-shelf products.

We provide :

High performance solutions for our customers from research ,design, devolopment to production.
We work closely with our customers in the research and development as well as continuous innovation of xenon flash lamps and related parts, which enables us to build a solid strategic partnership

We Offer :

A variety of flash tubes (with different specifications, materials, colors, coatings, etc.)

Professional Technology,
High-quality Products with higher energy output and longer life.
We implement strict control over the manufacturing process, and each lamp tube

Product Presentation

Specification of Xenon Flash Tubes for Traffic Strobe Light

Type	Material	Size(mm)	Anode Votage	Flash Energy	Flash Frequency	Life Span
QFM0842	Quartz Tube	8.0(D)20(E)42(G)*45(L)	400~620	70W	1HZ	9 million shots
QFM0740	Quartz Tube	7.0(D)18.5(E)40(G)*45(L)	450~650	60W	1HZ	9 million shots
QFM0845	Quartz Tube	8.0(D)22(E)45(G)*45(L)	400~620	70W	1HZ	9 million shots
QFM0742	Quartz Tube	7.0(D)20(E)42(G)*45(L)	450~650	60W	1HZ	9 million shots
Customize	Quartz Tube	6~10(D)18~22(E)35~45(G)*customize(L)	customize	customize	1HZ	customize

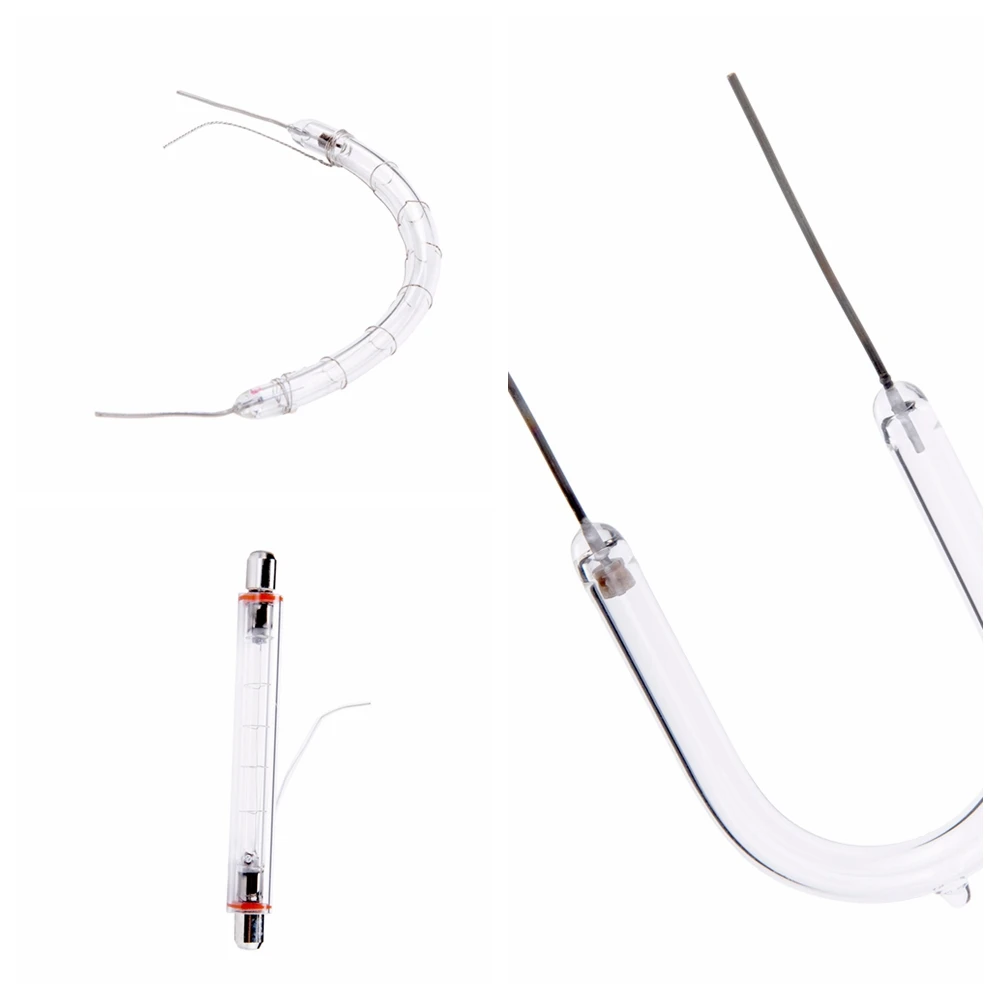

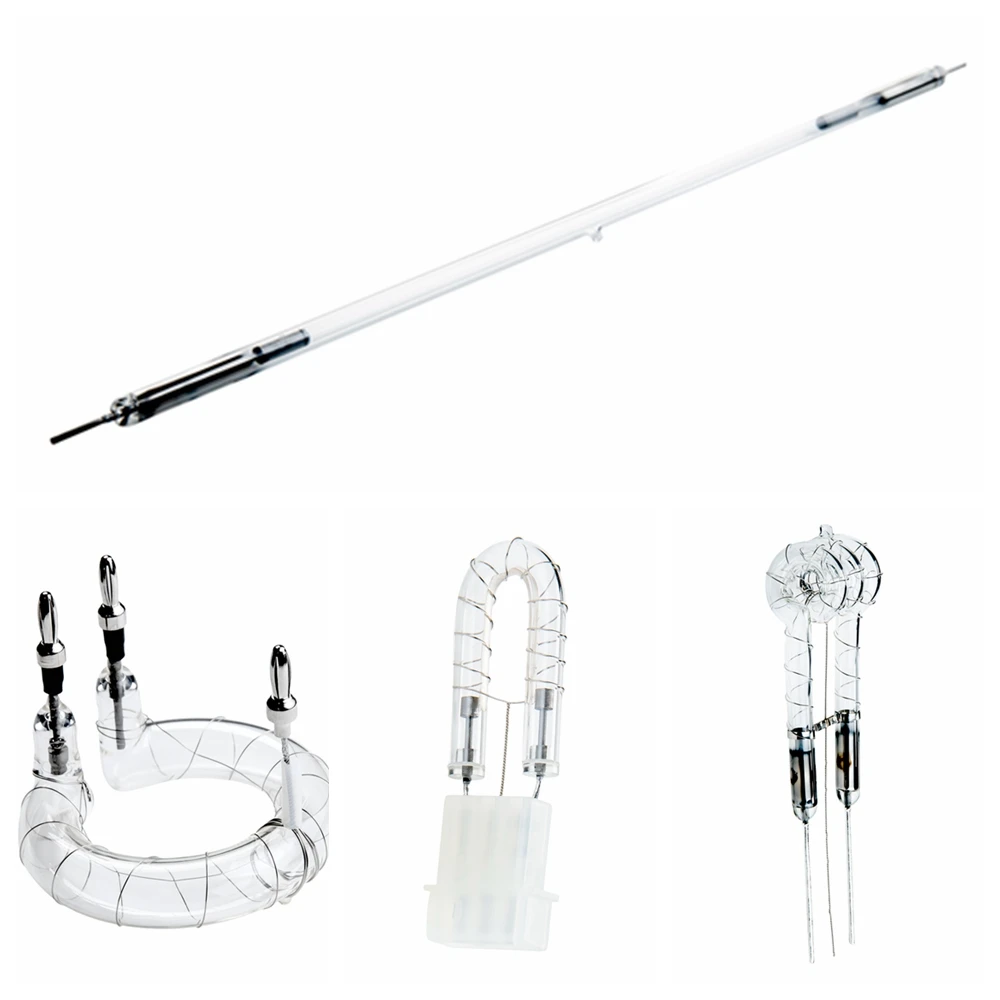

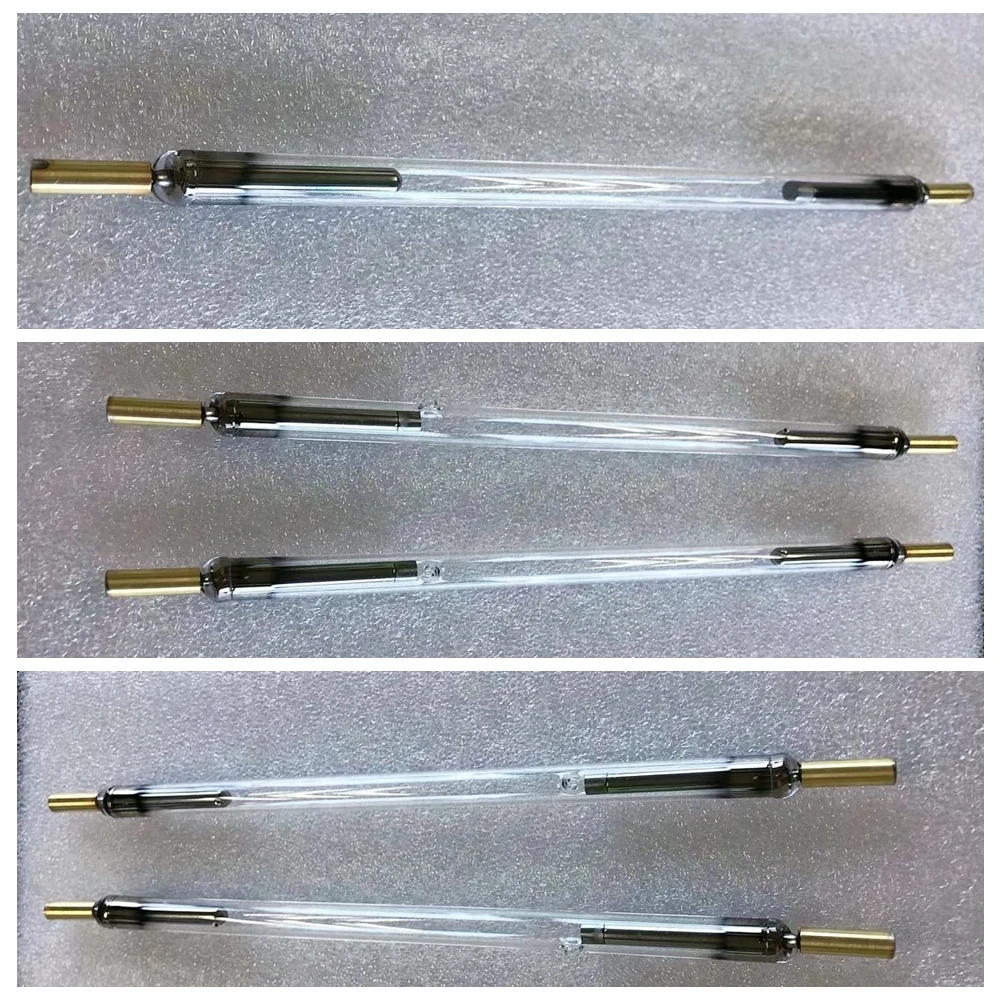

Detailed Images

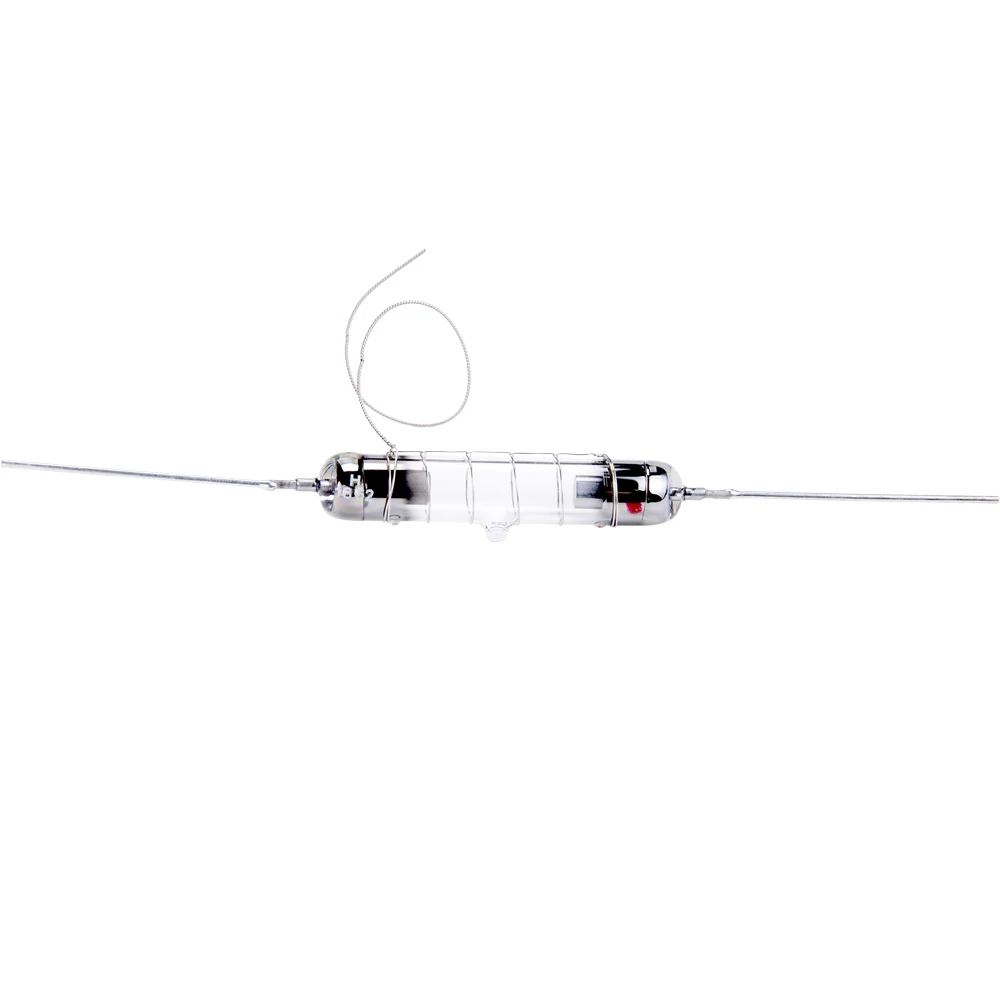

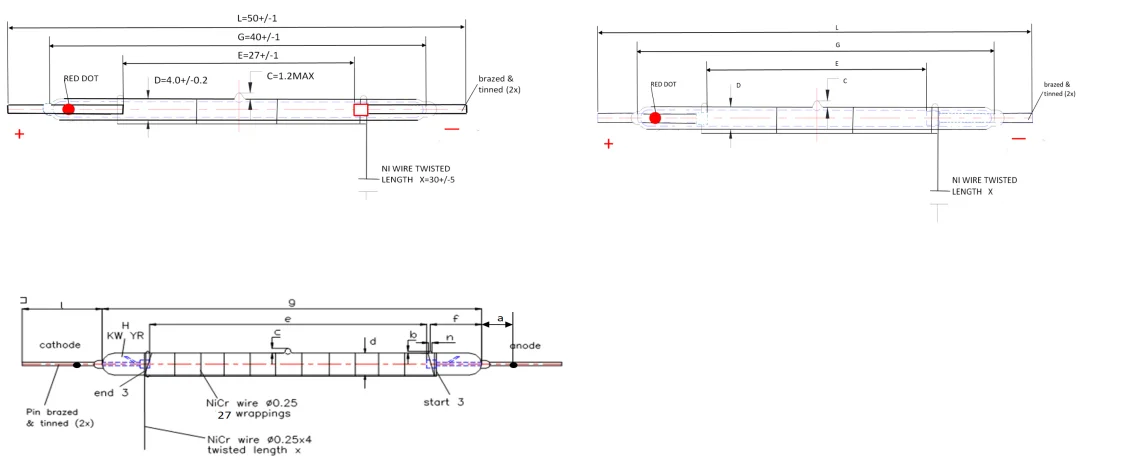

Product detail drawing of Pulsed Xenon Lamps Tube For Warning Beacons

High intensity pulsed light for hair removal and cosmetic skin treatment is now the preferred solution for beauticians and medical
users worldwide . As one of the most important parts , IPL flash lamp plays key role on the safety and treatment results .

IPL flash lamp tubes we offer have the following features:

*Excellent flash to flash reliability

*High quality manufacturing standards
*Consistent spectral output

*High quality raw materials

*Several lamp connectors are available *All lamps are tested after
production Long and consistent lifetime

The xenon lamp contains two electrodes enclosed in a glass bulb filled with xenon gas. High voltage is applied to the electrodes,
which momentarily releases sparks to create light flash. The xenon arc has the advantage of being spectral closer to daylight than
the incandescent source.

Xenon flash tubes emit a high intensity light ideal for a broad range of applications:

Photographic : Both amateur and professional equipment.

Traffic : Warning beacons for traffic control, aircraft, marine craft,emergency vehicles, airport runways and railroads.

Industry : Stroboscopic applications such as automotive timing lights, dynamic
balancing machines, high speed photo copiers and typesetting.

Publicity: Strobes for window displays, psychedelic lighting.
Science: Stroboscopic applications, laser pumping, colorimetry .

Medical Equipments: Endoscopic applications.

Remarks of xenon flash lamp tubes

1.Lead free solder; red dot at anode; without colour corrective coating.

2.our products using lead-free soldering at two leads (RoHS compliance). Please operate the solder iron at 300-450°C, Do not apply soldering iron for more than 10 seconds.

3. Flash tube should operate at nominal anode voltage as specified, Please avoid to operate at minimum anode voltage or maximum anode voltage constantly.

4. Operating environment temperature requirements:-40°C---85°C. 5. Operating humidity requirement: 0%---95%

Company Introduction

ShenZhen HongTai Auspicious Technology. Co.Ltd. is considered a reliable partner for two reasons:
1.Our products can meet the highest standards for quality and environmental protection : flash tubes, trigger coils, reflectors, various lamp holder accessories, lamp control design solutions, power supplies, etc.
2.Our products are widely accepted by countries like: Germany, Italy, Japan, Korea , Mexico, Peru, Russia, Swiss, UK, U.S.A, Vietnam etc.

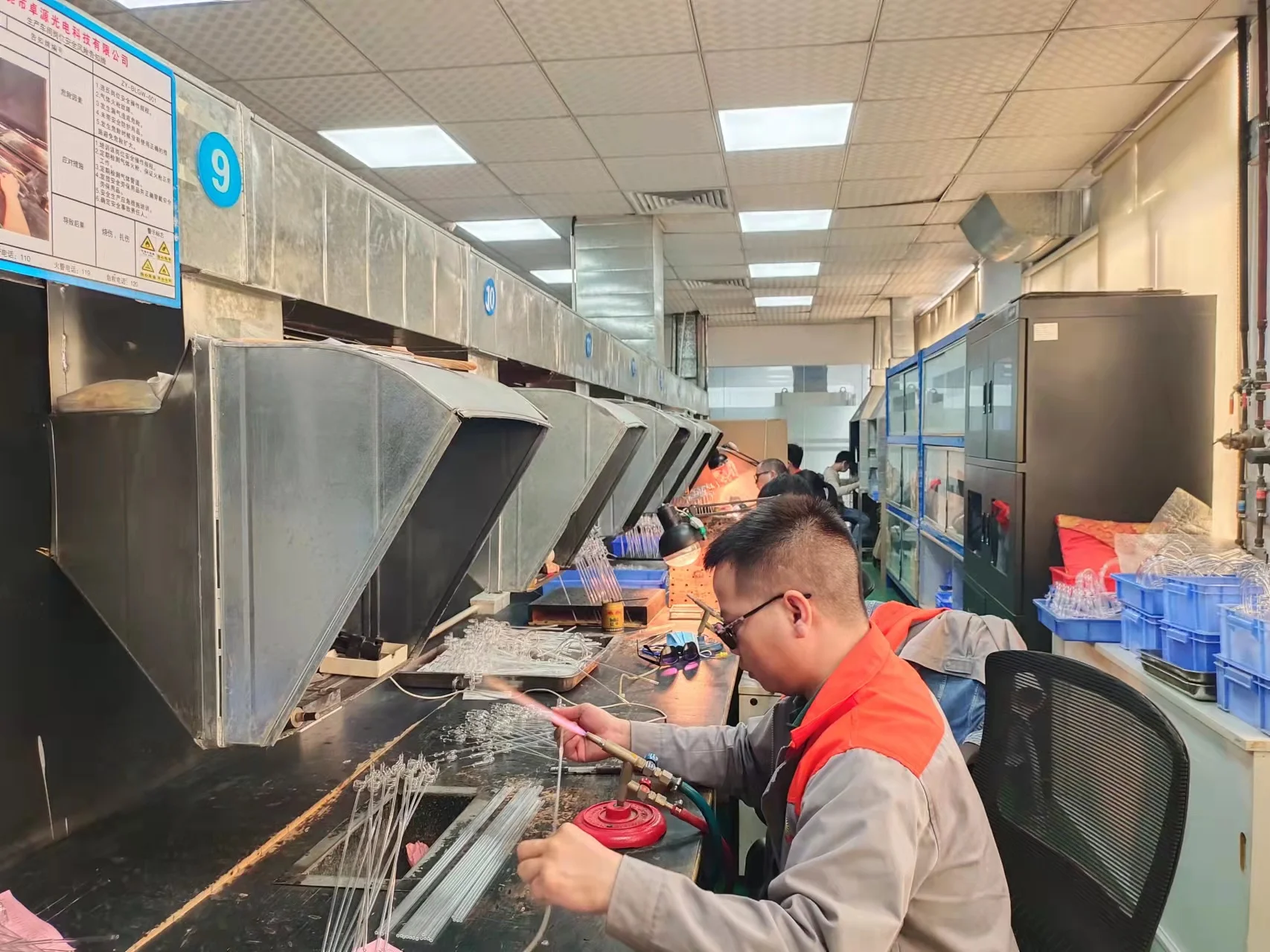

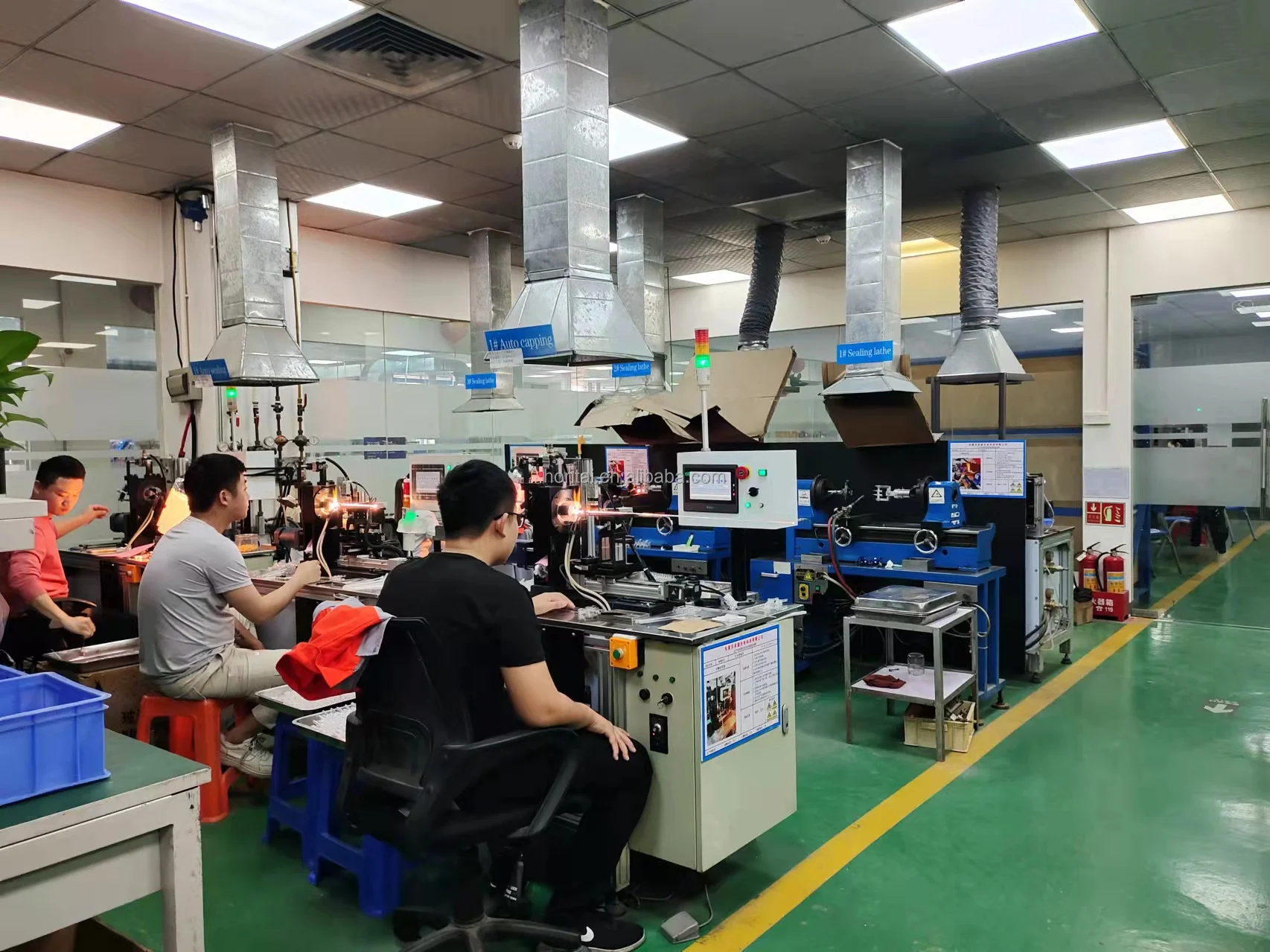

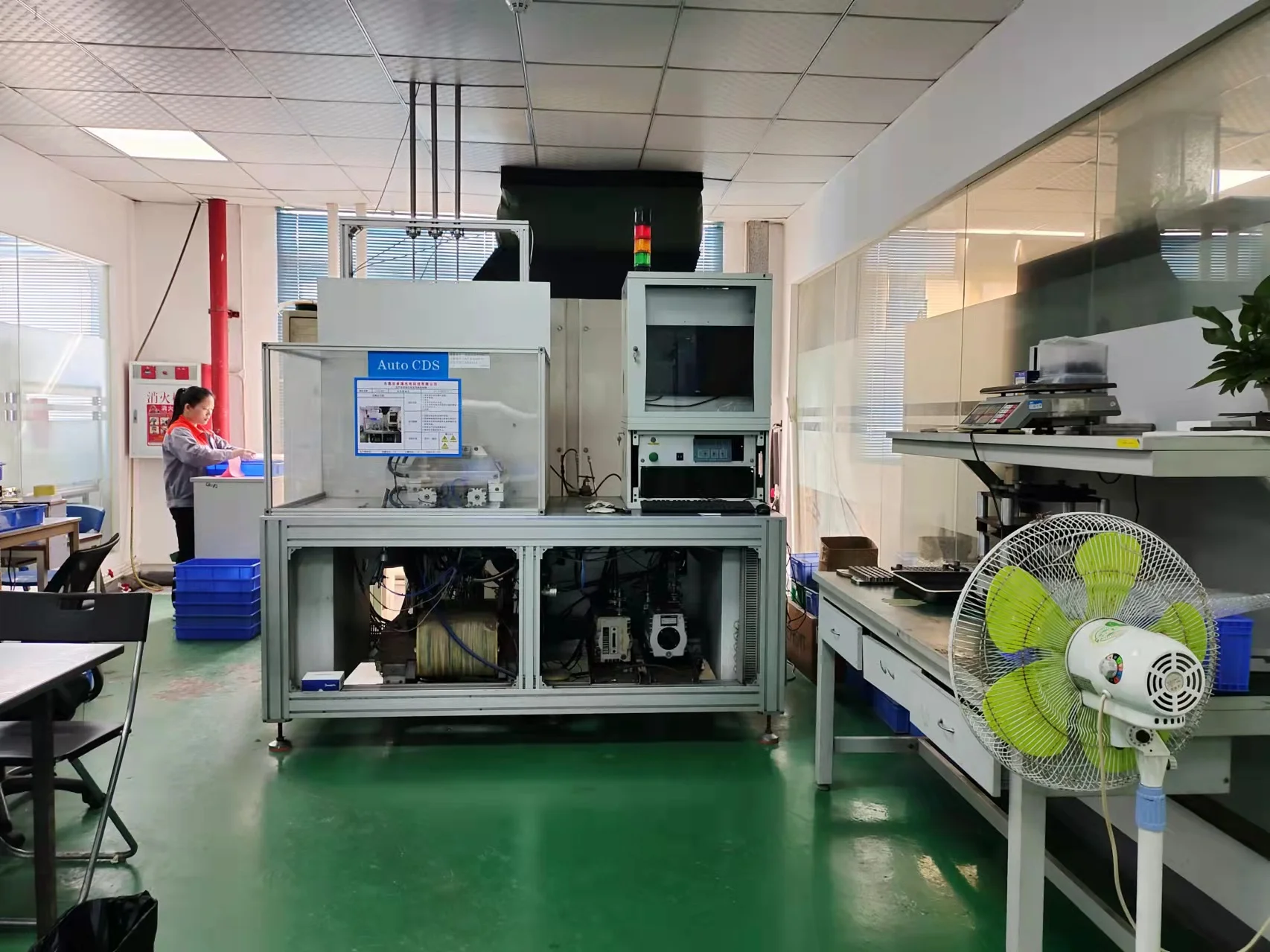

Advantages of Our Factory
* A plant area of 2,000 ㎡
* Factory Certificates: CE,SGS,IS09001and 45001,
*Over 10 years strong R&D TEAM and supply chain management
* Automated production line
* Stable Quality and Stable delivery

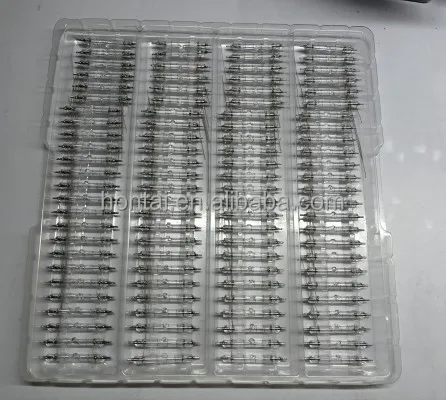

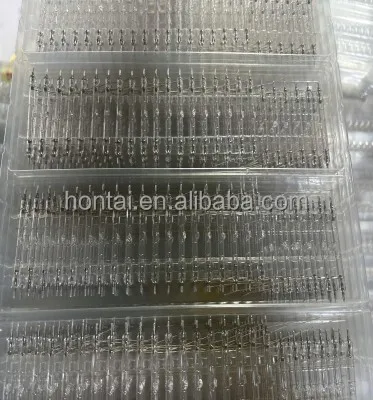

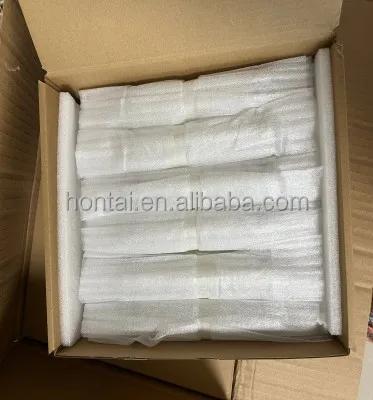

Product packaging
