Оптовая продажа Водонепроницаемая солнечная черепица BIPV солнечные панели
2 846,61-6 642,08 ₽
On Off Grid солнечная энергетическая система установки на крыше солнечной черепицы 5 кВт 10 20 Sangobuild Заводская оптовая цена
- Категория: >>>
- Поставщик: Hangzhou Singer Building Materials Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1600622219129:
Описание и отзывы
Характеристики
Specification
PHYSICAL PARAMETERS | value | |||||
Model | JS87DG | Tile Size | 1260*480mm | |||
Tile Weight | 17kgs | Double Glass | Tempered/3.2mm | |||
Cell Size | 182*91MM（5*12） | Junction Box | ≥ IP67 | |||
Cable | PV 4 mm2 | Cable Connector | MC4 | |||
ELECTRICAL PARAMETERS AT STC | 182mmx182mm | |||||
Cell Type | Monocrystalline | Cell Efficiency | 23.1% | |||
Max Power | 87W/pc | Module Efficiency | 18.4% | |||
Voltage | 13.7V | Current | 6.35A | |||
O.C. Voltage | 16.2 | S.C. Current | 6.75A | |||
PERFORMANCE RATINGS | 87 W/pc | |||||
Color | Black + Customizable | Pressure Rating | 5400 Pa | |||
Fire-proof | Class A | Hail-proof | 25mm/23m/s | |||
Working Temp. | -40℃ ~ 85℃ | Working Humidity | 0-80% | |||
3.2mm Tempered Low Iron | ||||||
CERTIFICATIONS | IP68 Rated | |||||
TUV, CGC, MCS, UL, SII, BIS, INMETRO, SNI, CEC, JET, CARBON FOOTPRINT, etc. | MC4 Compatible | |||||
Advantages
Why Sangobuild Solar Roof Tile?
IT'S A ROOFING TILE!
Sangobuild Solar Panel is a kind of roof tile and a construction material. It not only can generate electricity power, but also
can work as your roof cover to protect your house from rain, wind hail, etc.
It saves your roofing cost. And you don't need to set up mounting racks on the roof to install solar tiles, which could affect the roof beauty to some extent.
EXCELLENT PRODUCT FEATURES

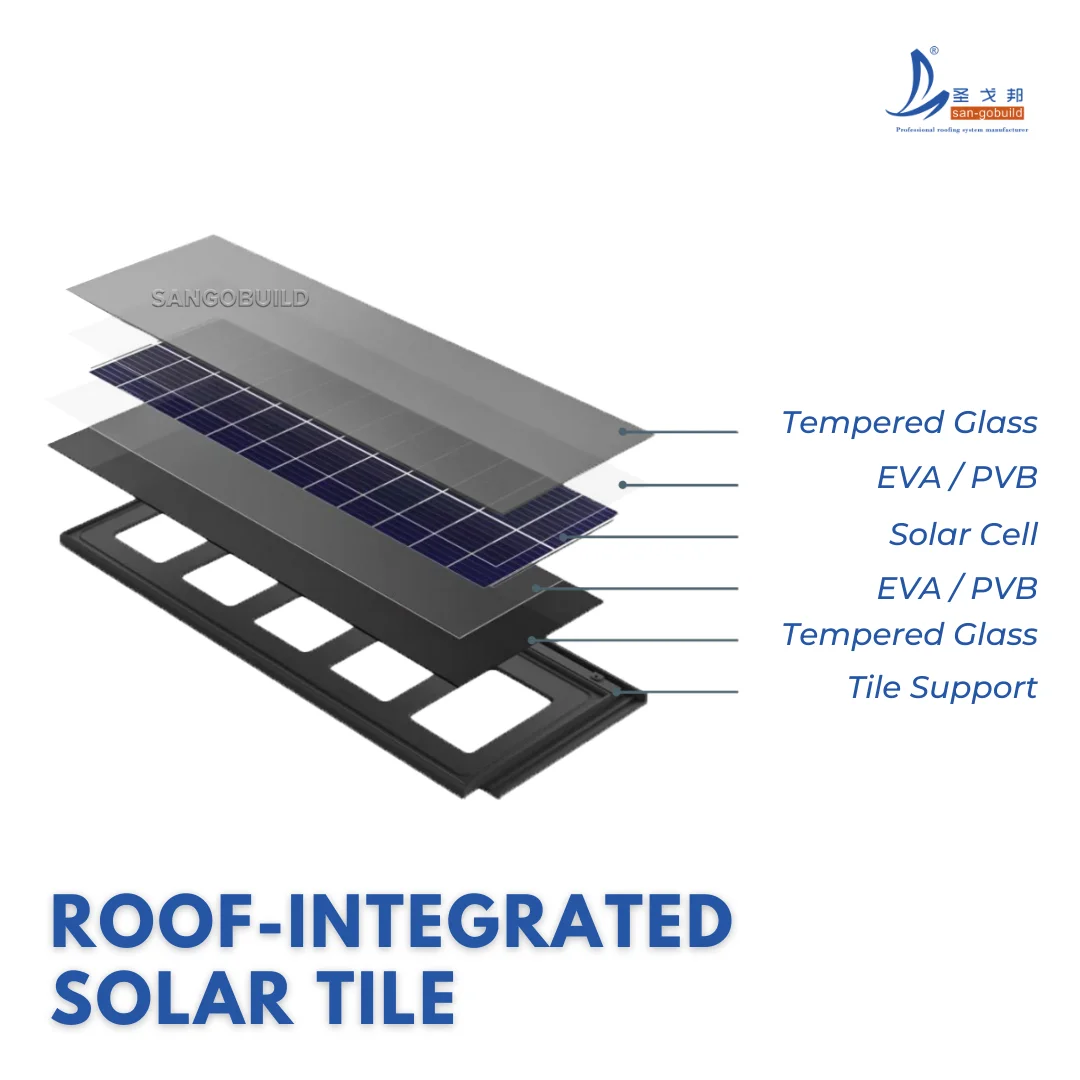

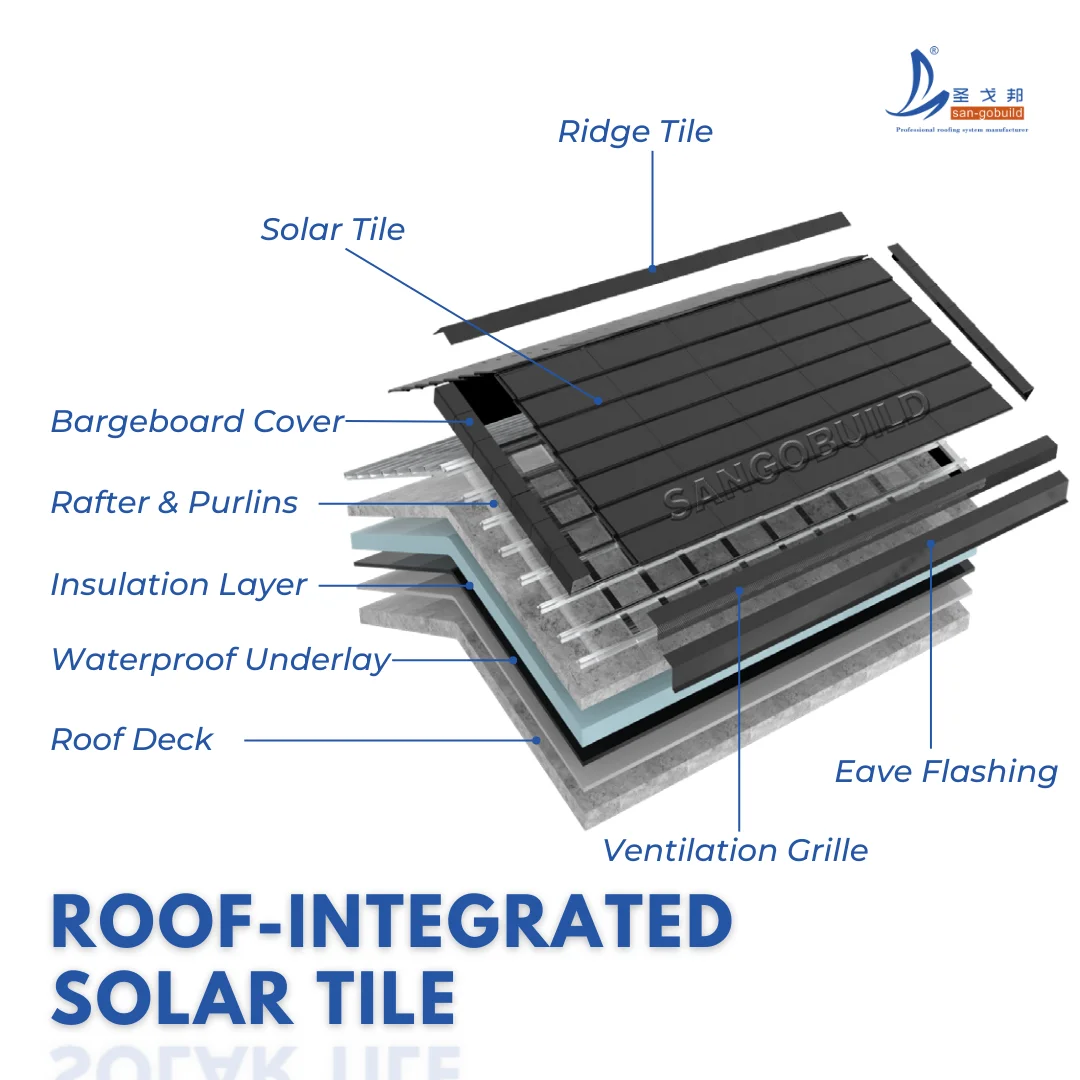

As a Building-Integrated Photovoltaic solar roof tile, our product not only has great electricity power generation features, but also has excellent weathering resistant features.
- High efficient whole roof covering
- Class A waterproofing
- Hail Resistant
- Wind Resistant
- More than 60 years lifespan
- Aesthetically Appealing
PROFESSIONAL TEAM
Our team started the business of solar energy in 1999, and is leading the technology in the industry.
We not only has the most professional team for solar energy, but also has the most professional team for roofing.
We combines the solar panel and the roof tile and make it a new product to save the cost and make your roof more beautiful and functional!
Sangobuild Solar Panel is a kind of roof tile and a construction material. It not only can generate electricity power, but also
can work as your roof cover to protect your house from rain, wind hail, etc.
It saves your roofing cost. And you don't need to set up mounting racks on the roof to install solar tiles, which could affect the roof beauty to some extent.
EXCELLENT PRODUCT FEATURES
As a Building-Integrated Photovoltaic solar roof tile, our product not only has great electricity power generation features, but also has excellent weathering resistant features.
- High efficient whole roof covering
- Class A waterproofing
- Hail Resistant
- Wind Resistant
- More than 60 years lifespan
- Aesthetically Appealing
PROFESSIONAL TEAM
Our team started the business of solar energy in 1999, and is leading the technology in the industry.
We not only has the most professional team for solar energy, but also has the most professional team for roofing.
We combines the solar panel and the roof tile and make it a new product to save the cost and make your roof more beautiful and functional!
