Индивидуальные наружные стены фасады U образные стеклянные стеновые системы
- Категория: >>>
- Поставщик: Dongguan Better Glass Tech Co. Ltd.
Сохранить в закладки 1600623193070:
Описание и отзывы
Характеристики
Production Description

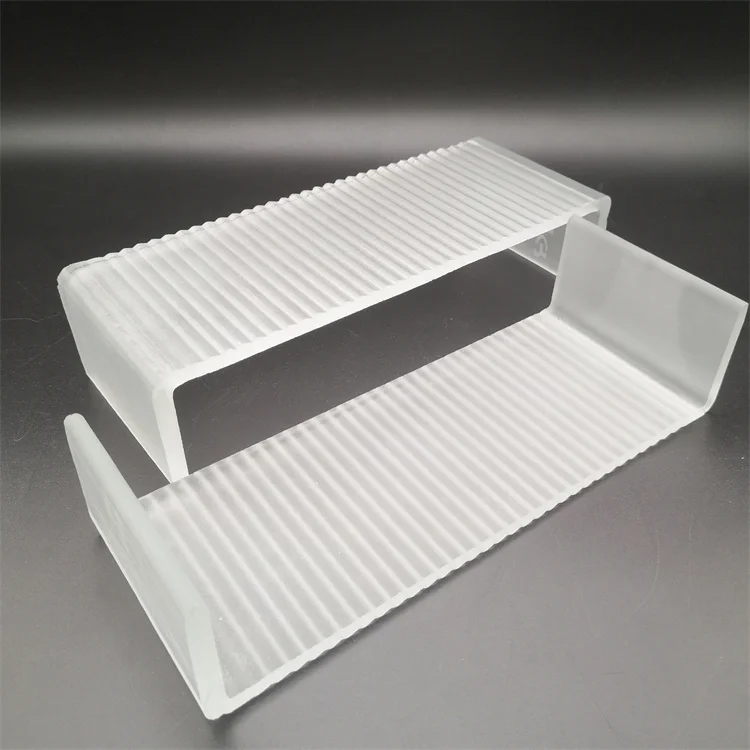

U-profile glass is an new and unique kind of construction glass. Thanks to its U shaped section, its mechanical strength is higher than ordinary plating glass. It has much advantage such as ideal light transmission, good sound insulation, excellent heat insulation, reservation and convenient installation.
U glass product range dimension(mm) | ||||||||||
Type | Channel Width ±2 | Flange height±0.5 | Thickness ±0.5 | Max. Length±3 | Weight(approx.)kg/m | |||||
SQ26 | 260 | 41 | 6 | 6000 | 4.75 | |||||
260 | 60 | 7 | 7000 | 6.50 | ||||||
330 | 41 | 6 | 6000 | 5.60 | ||||||
330 | 60 | 7 | 7000 | 7.70 | ||||||
500 | 41 | 6 | 6000 | 8.40 | ||||||
500 | 60 | 7 | 7000 | 10.20 | ||||||
What's the advantage of U shaped glass?
1. The U glass material is much more lighter than other material for building construction on weight.
2. It makes the light come into the house fully.
3. It's an kind of energy saving glass. With a good performance of soundproof and heat proof.
1. The U glass material is much more lighter than other material for building construction on weight.
2. It makes the light come into the house fully.
3. It's an kind of energy saving glass. With a good performance of soundproof and heat proof.
Company Profile
Our company BTG group has been specializing in the processing of architectural glass for more than 20 years and is rooted in China's famous world manufacturing base in Dongguan City, Guangdong, China.After years of development, it has grown into a large-scale glass manufacturer with customers all over the world. our company is fully equipped, the staff positions are fully and reasonable, the production capacity is stable with quality guaranteed, the certification is complete, and the service is prompt and thoughtful. Company with CE, ISO, CCC, BS6206, SGCC, CSI certificate etc.
Factory Equipment List
Machine Name | Origin | Qty | Years of service | Capacity | Size limit/Feature |
Full-automatic cutting machine | Italy | 3 | 1 | 8000 Sqm/day | Max.3300x8000mm |
Driller | Italy | 4 | 1.5 | 5000Sqm/day | Max.3300x8000mm |
Edging machine | China | 3 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Cleaning machine | China | 4 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Water jet cutting | Germany | 1 | 1 | 1000 Sqm/day | Max.2500x3000mm |
Tempered glass furnace | China | 2 | 1.2 | 6000Sqm/day | Min Radius 750mm |
Laminated dust-free workshop | China | 2 | 1 | 5000Sqm/day | Max.3300x8000mm |
Autoclave machine | China | 1 | 1.3 | 4500Sqm/day | Max.3300x8000mm |
Automatic Insulating Glass gluing line | China | 2 | 1 | 6000Sqm/day | Max.3300x8000mm |
Ceramic glass digital printer | Israel | 1 | 1 | 300Sqm/day | Max.2500x8000mm |
Sewage treatment equipment | China | 3 | 1 | 300 ton/day | Sustainable/Recycle |
Curved glass maching | China | 2 | 1 | 1000Sqm/day | Min. R=750mm |
1. We are one of the biggest glass factory in China with over 20 year glass production experience, have advanced machines and experienced technicians.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
Products Show
U-profile glass can accept design customization, whether it is color or craftsmanship, please tell us the effect you want before placing the order, or we can give a suitable plan according to your project

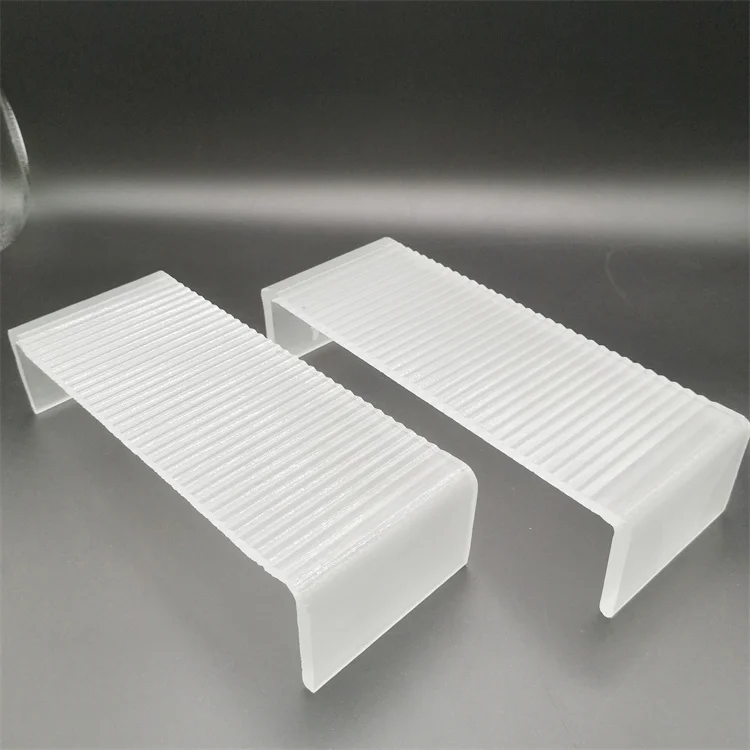

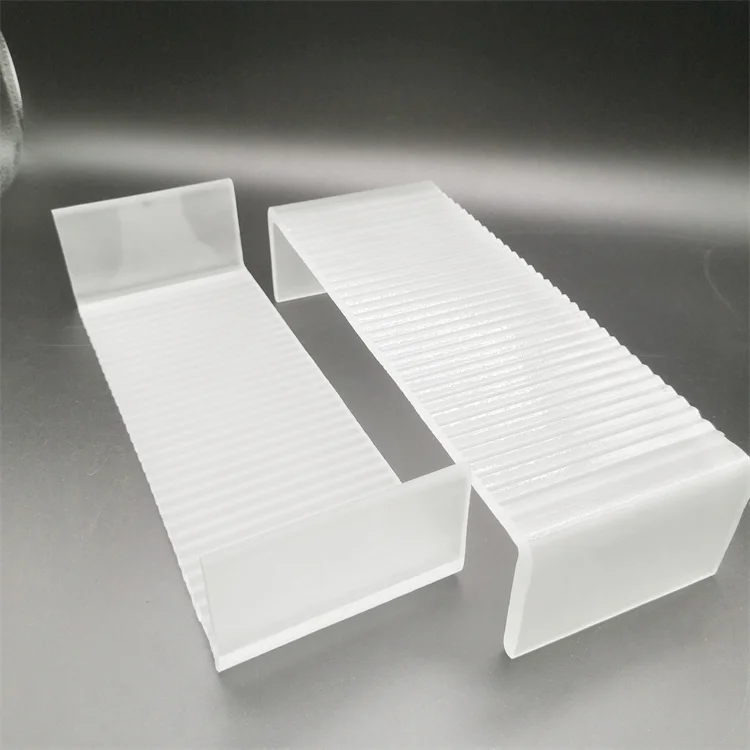

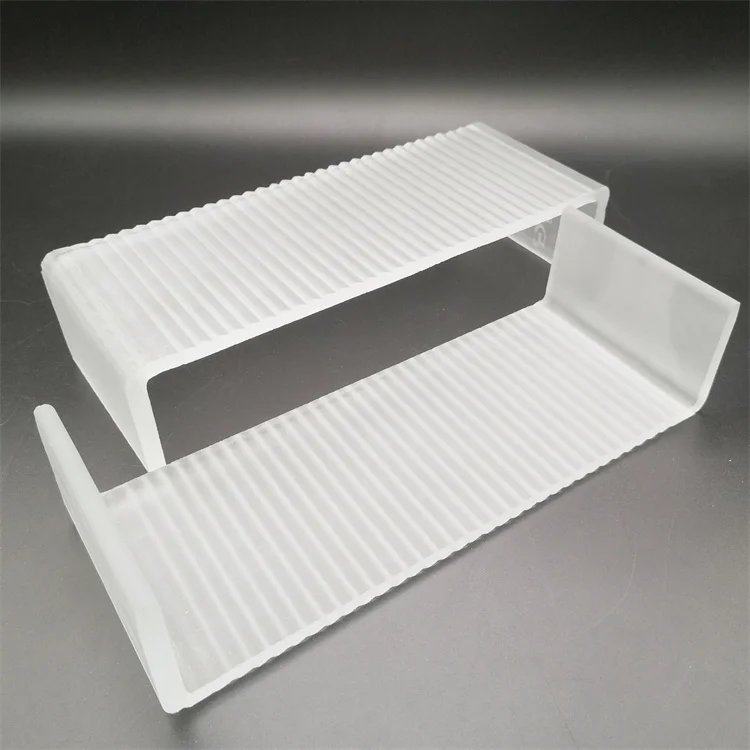

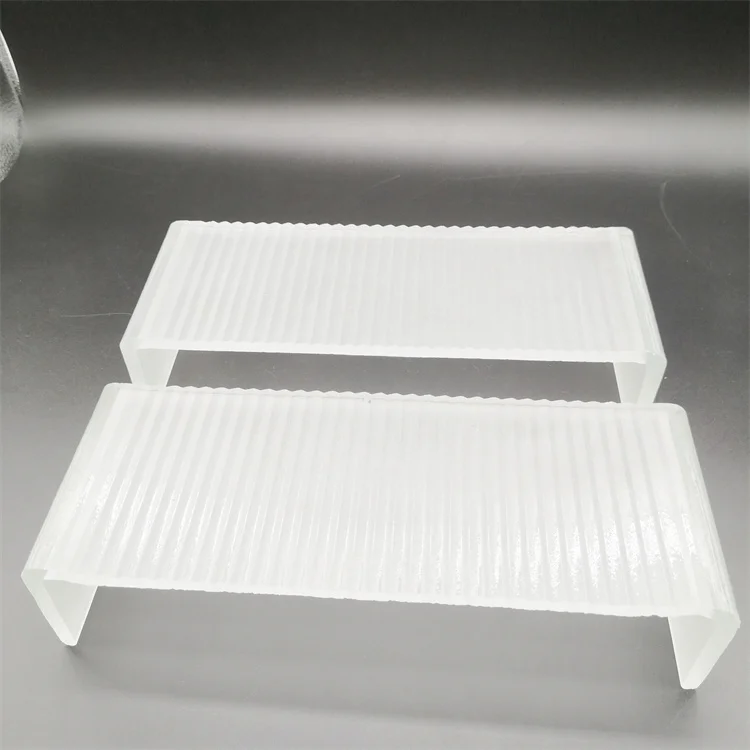

1. Clear Ice pattern U profile glass
2. Ultra clear Ice pattern U profile glass
3. Frosted U profile glass
4. Clear U profile glass
5. Thick Pipples U profile glass
6. Thin pipples U profile glass
BETTER GLASS SQ type U-profile glass is a new type of shaped glass used on the wall system. It is featured by good lighting, heat insulation and preservation, sound insulation and noise protection, high mechanical strength, anti-aging, and lightfastness. With its scroll shape model, it enjoys the spirit of the times, tall and straight, delicate and pretty, easy and smooth in lines. Also, it is convenient to install and has unique decoration results.
Possibilities for the alignement of U-profile glass
Technical data | ||||||||||||
Type | Light transmissions(single) | Heat transmission(double) | Heat transmission(single) | Heat transmission(double) | Sound insulation(single) | Sound insulation(double) | ||||||
SQ Profile U glass(smooth surface) | 89.00% | 81.00% | 4.95W/M2K | 2.39W/M2K | 27.00db | 38.00db | ||||||
Physical and mechanical characteristics | ||||||||
Compression strength | Extension strength | Moh's hardness | Modulus of elasticity | Linear expansion | ||||
700-90ON/mm2 | 30-5ON/mm2 | 6-7 | 60000-70000N/mm2 | 75-85x10-7/oC | ||||
Bending resistance N/MM2 | ||||||||
Customer praise
BTG not only has good products, but also good services. We adhere to the principle of customer first & quality first.
Product Applications
Based on numerous advantages, U profile glass is widely used in areas where required sturdy yet and aesthetics.
1.U profile glass for partition
2. U profile glass for curtain wall
3. U profile glass for curved partition
4. U profile glass for window
5. U profile glass for curved facade
6. Frosted U profile glass for facade
7. Ice pattern U profile glass for partition
8.U profile glass for facade
9. U profile glass for office
Our Certificates
Packing & Delivery
Wooden crates packing option
BTG use 12mm thick recycled hardwood board, no fumigation, hard plastic safety corner,plastic film covering the glass to avoid dirt, with a desiccant inside, to ensure that the glass is dry and not moldy during transportation.
Individual carton packaging options.
BTG use 5mm thick environmentally friendly corrugated boxes, 10mm thick foam board lining, 10mm thick recycled hardwood boards around the four sides of the glass to prevent damage to the edges, free transportation,suitable for retail storage of glass tabletops, shower rooms and other products
L-shaped iron frame packaging.
Welded iron frame, fixed with plastic-steel belt, built-in forklift space, can be quickly loaded and unloaded as a whole, which is convenient for stocking at the construction site.
FAQ
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more quantity, the better price.
Q: Could I have a small sample to verify the quality?
A : Sure, we welcome sample to be tested and checked quality.
Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production lines, and discussing orders in our office.
Q: Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).
Q: How do you control the quality of your products?
We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find little problem, we will replace the glass, to make sure every piece glass go to warehouse is in good condition.
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more quantity, the better price.
Q: Could I have a small sample to verify the quality?
A : Sure, we welcome sample to be tested and checked quality.
Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production lines, and discussing orders in our office.
Q: Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).
Q: How do you control the quality of your products?
We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find little problem, we will replace the glass, to make sure every piece glass go to warehouse is in good condition.
Похожие товары
Гидравлический пресс для отверждения шин/гидравлический пресс для мотоциклетных шин/шинного оборудования

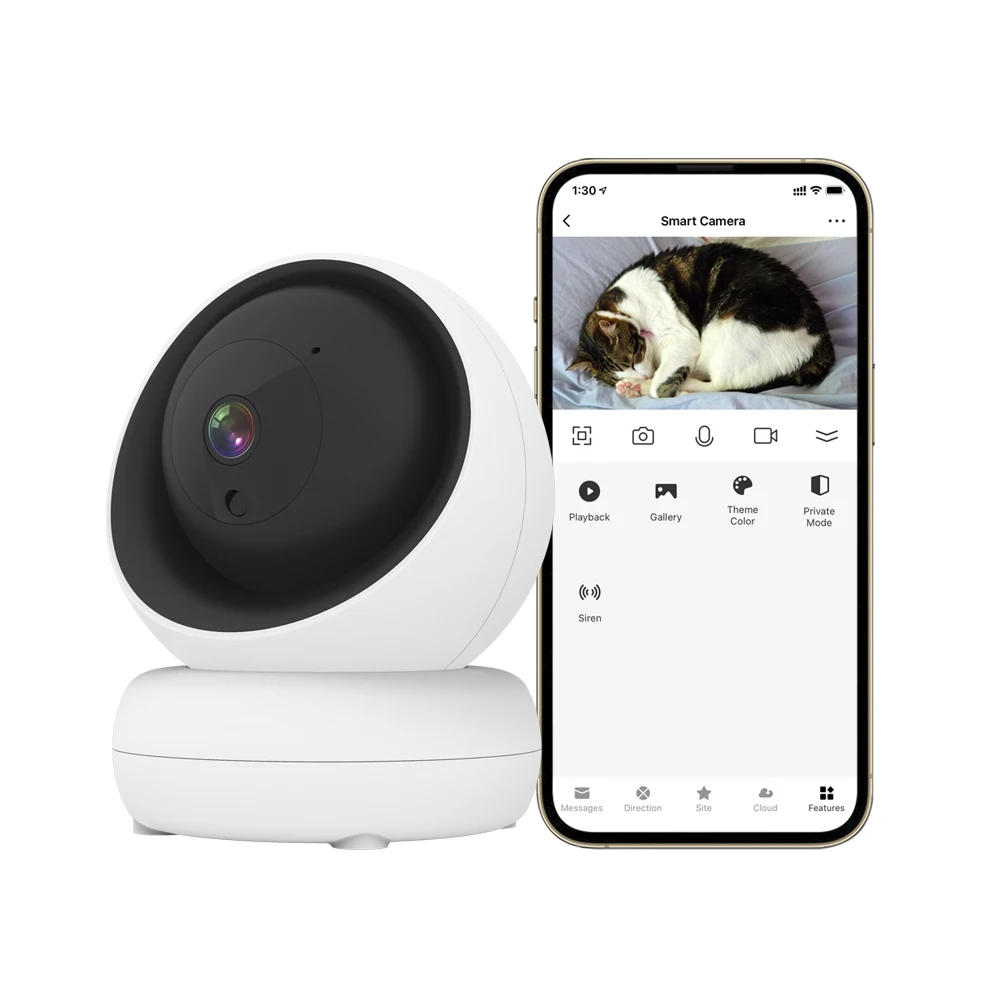

Новый дизайн iCSee 3mp 1296p smart wifi видеоняня камера беспроводная видео Мобильная с облачным хранилищем для домашней
7,99 $ - 12,99 $

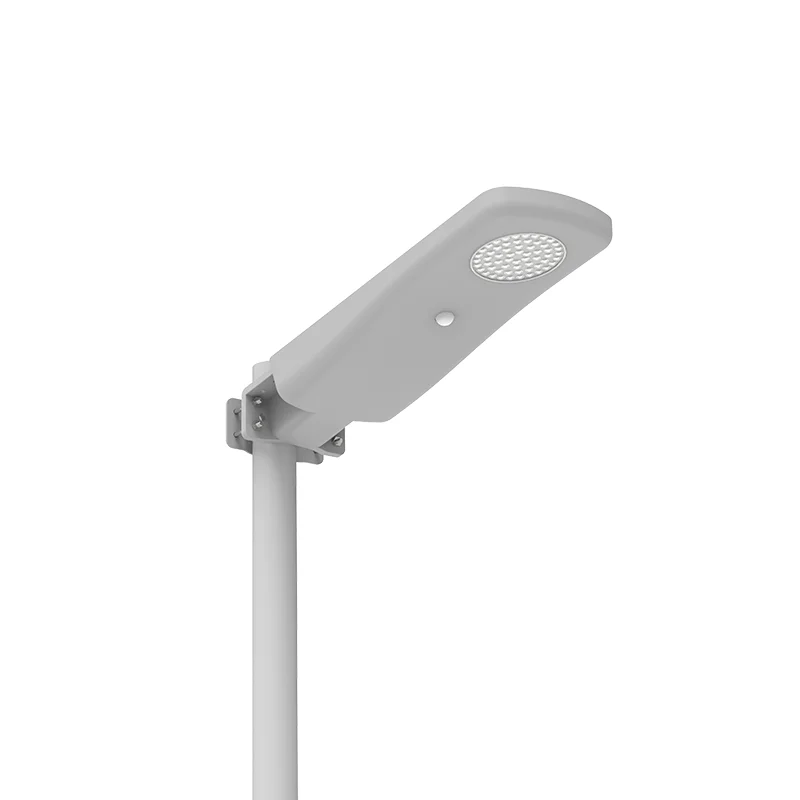

40 Вт двойная Водонепроницаемая гарантия 3 5 лет 1000 Вт Светодиодная лампа Ip65 Focos Solares солнечный уличный свет
4,90 $ - 39,80 $
Новый автомобильный двигатель в сборе EA211 1,5 DCF 4 цилиндра автомобильный двигатель для Bora Jetta Lavida
765,00 $ - 1 114,00 $
MA-0329-001 FD6Q Quad Shield RG-6 Connector

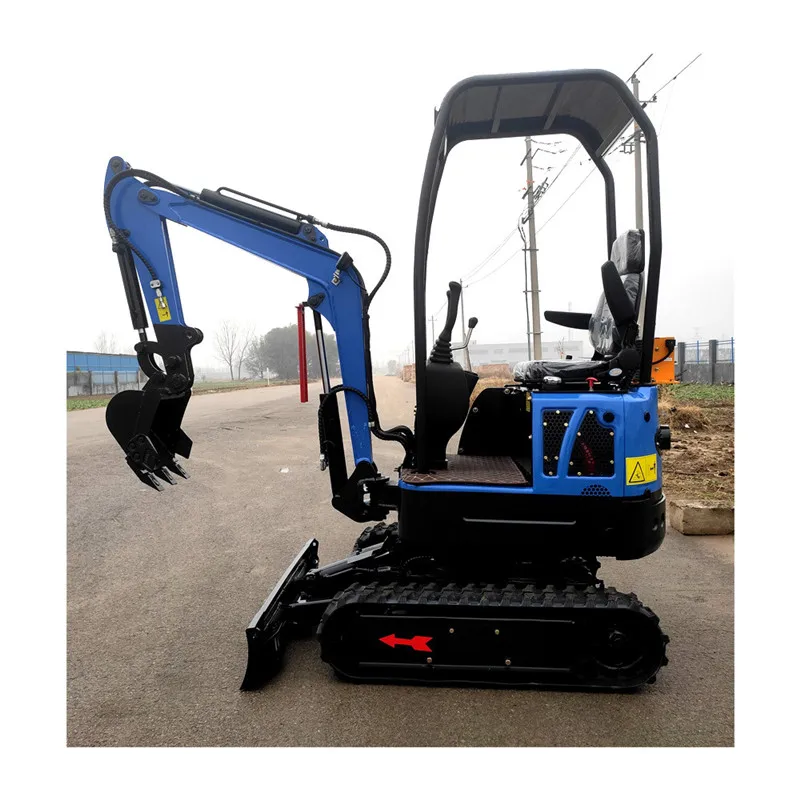

Землеройное оборудование, эскаватор на 1 тонну синего цвета
3 700,00 $

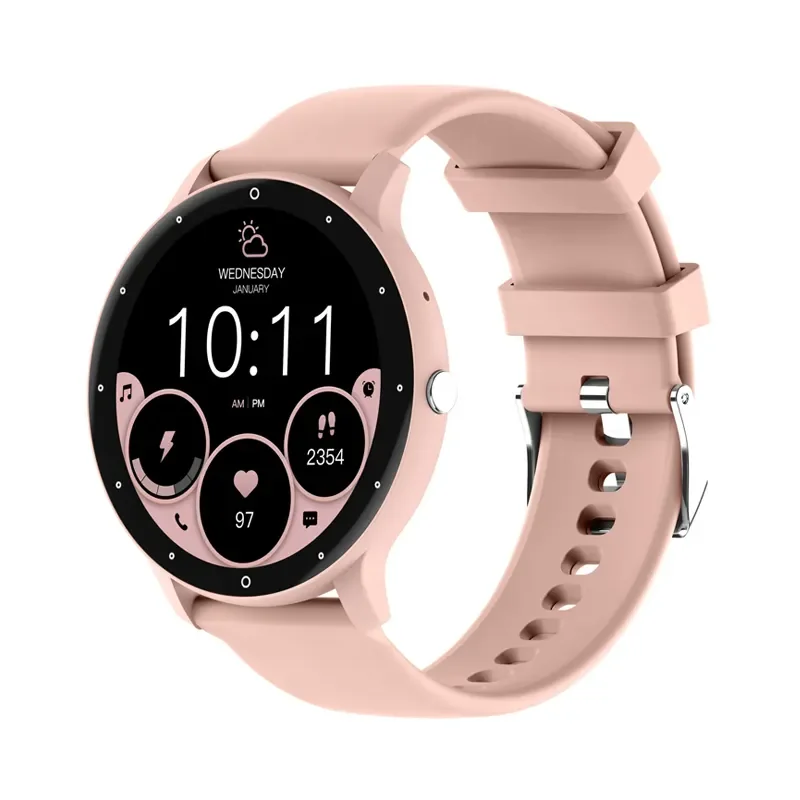

2022 Смарт-часы ZL02P OEM smart watch с логотипом на коробке для часов, Поддержка вызовов, лидер продаж в нидерландских странах
