Оптовая продажа Золотая серебряная медная плавильная печь для металла ювелирных изделий золота
- Категория: >>>
- Поставщик: Jiangxi Province County Mining Machinery Factory
Сохранить в закладки 1600623932176:
Описание и отзывы
Характеристики
Product Description
Product Introduction ▼
We can offer 4 type gold melting furnace,Portable melting furnace,Tilting Melting Furnace,Mini melting furnace, Cabinet type gold melting furnace.
Gold melting Furnane is mostly used to smelt metals: platinum, palladium, rhodium, gold, silver, copper, steel,aluminum, activated carbon gold gray, Sands, electrolysis mud, gold and silver powder, tin ash dross and so on. Especially very popular used in the gold mining processing.
● Portable melting furnace processing capacity can be over 1 kg,it is convenient to move from one place to another place.
● Tilting Melting Furnace requires bigger capacity,
Gold melting Furnane is mostly used to smelt metals: platinum, palladium, rhodium, gold, silver, copper, steel,aluminum, activated carbon gold gray, Sands, electrolysis mud, gold and silver powder, tin ash dross and so on. Especially very popular used in the gold mining processing.
● Portable melting furnace processing capacity can be over 1 kg,it is convenient to move from one place to another place.
● Tilting Melting Furnace requires bigger capacity,
● the mini melting furnace is suitable for small capacity gold melting,
● Cabinet type gold melting furnace is easy operate with 24 hours continuous working.
● Cabinet type gold melting furnace is easy operate with 24 hours continuous working.

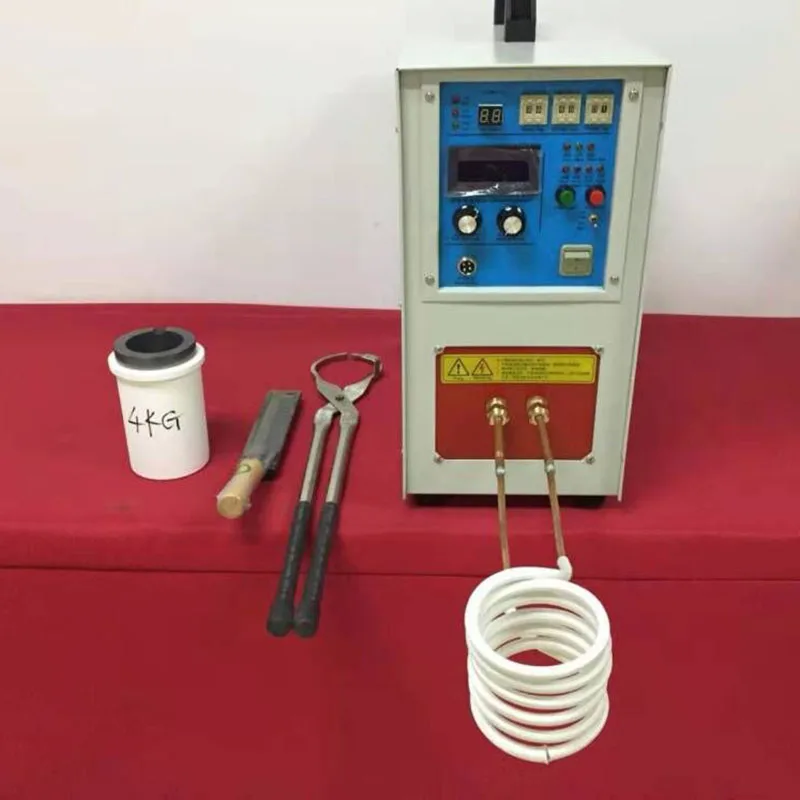

1KG Mini Portable Gold/Silver Melting Furnace
Main Feature ▼
Apply SSR controller, alloy made heating element which has melting point up to 1900℃. High temperature proof ceramic melting chamber, high aluminum protection and other advanced, top quality components, in addition to unique design, all consolidate furnace’s durability and working efficiency over current markets furnaces.
Product Specifications ▼
Max. temperature of machine: 1150℃
Casting color: orange, black, red
Casting color: orange, black, red
Description | 1KG Melting Furnace |
Model | JL-MF-1 |
Input power | 1500W |
Power supply(220V) | 50/60HZ,7A |
Power supply(110V) | 50/60HZ,14A |
Measurement accuracy | ±0.5%FS |
Working environment | 0-50℃,30-85%RH |
Net size | 310*360*370mm |
Packing size | 380*380*420mm |
Net weight | 11KG |
Gross weight | 13KG |

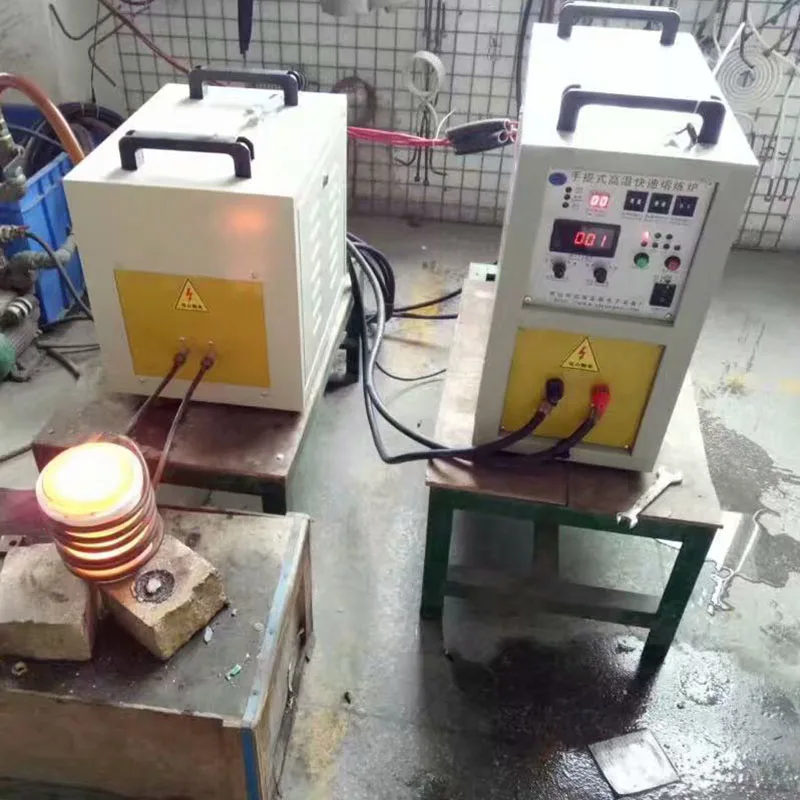

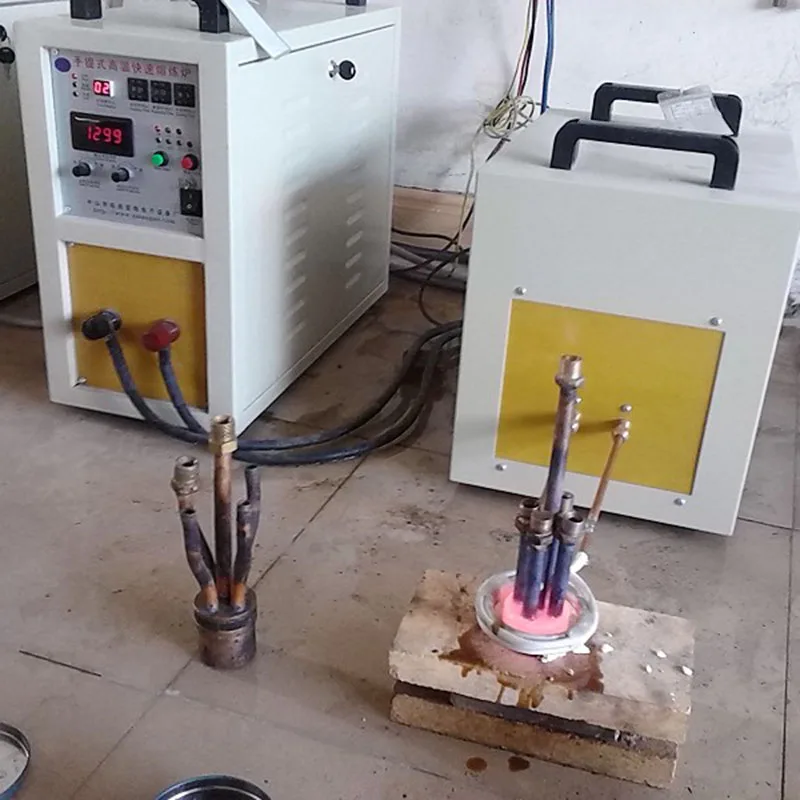

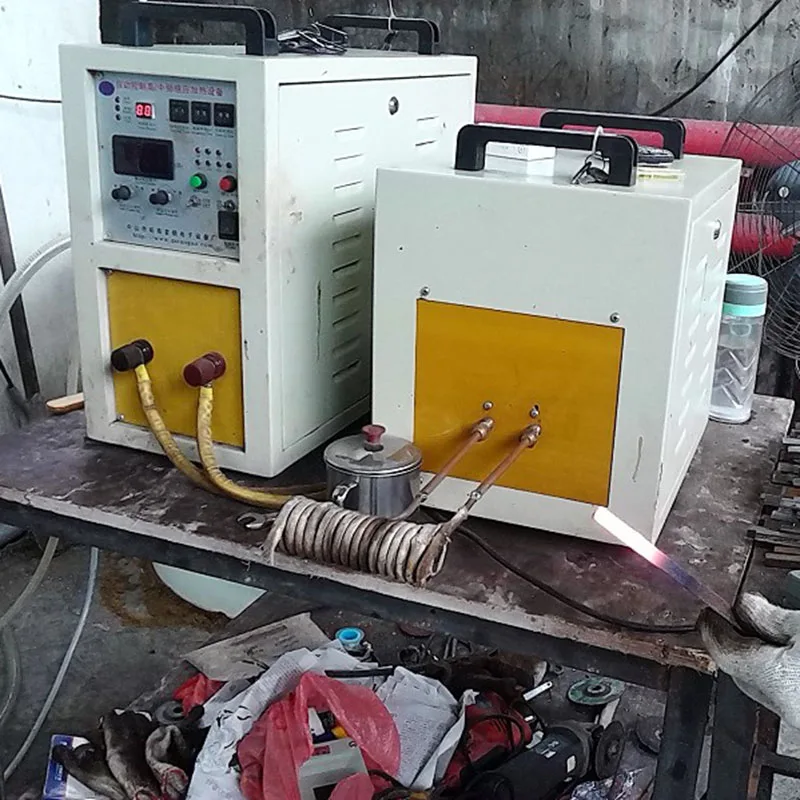

Portable melting machine
Working Principle ▼
The power supply adopts the all-solid-state Siemens IGBT frequency conversion module technology. After the induction heating device outputs a strong variable frequency current, a strong magnetic field is generated through the induction coil. Under the action of the magnetic field, the heated working surface forms a vortex current, thereby rapidly heating the workpiece.
Main Feature ▼
1. Fast heating: the fastest heating is less than 1 second, and the heating speed can be adjusted and controlled.
2. Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.
3. Machine safety is reliable: overcurrent, phase loss, water shortage, overvoltage, short circuit, overheat protection, greatly improving the manufacturability of the equipment.
4. Small footprint: less than 1 square meter, light weight and easy to move.
5. The machine is installed and easy to operate, no need to go to the door for commissioning.
6. It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
7. Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals. very popular with factory laboratory and workshop, because portable induction melting machine is compact and easy to operate, and the price is relatively affordable.
2. Energy saving and environmental protection: The thermal efficiency is over 95%, which is a perfect substitute for thyristor, gas, B, coke and electric furnace.
3. Machine safety is reliable: overcurrent, phase loss, water shortage, overvoltage, short circuit, overheat protection, greatly improving the manufacturability of the equipment.
4. Small footprint: less than 1 square meter, light weight and easy to move.
5. The machine is installed and easy to operate, no need to go to the door for commissioning.
6. It has electromagnetic stirring function to make the melt more uniform, which is beneficial to scumming, reducing impurities, making the melt or casting more bright without shrinkage and shrinkage.
7. Mainly for metals: platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold ash, gold sand, electrolytic mud, gold and silver powder and other metals. very popular with factory laboratory and workshop, because portable induction melting machine is compact and easy to operate, and the price is relatively affordable.
Product Specifications ▼
Model | JXSC-15 | JXSC-25 |
Max Input Power | 15KW | 25KW |
Input current | 33A | 43A |
Input voltage | Single phase 220V 50/60HZ | 3 phase 220V/380V 50/60HZ |
Fluctuating frequency | 30-80KHZ | 20-40KHZ |
Heating time | 1-99 seconds | 1-99 seconds |
Load rate | 0.9 | 0.9 |
Water temperature | ≤45℃ | ≤45℃ |
water pressure | ≥0.15-0.2Mpa | ≥0.15-0.2Mpa |
Water flow | ≥2L/Min | ≥6L/Min |
Dimension | 225*450*480 | 650*250*600 |
Weight | 25KG | 48KG |
Tilting Melting Furnace
Main Feature ▼
1. The intermediate frequency electric furnace adopts Siemens IGBT imported power device, which is more integrated and miniaturized and the effective output power reaches over 95%.
2. easy to replace different weights, different materials, different furnaces to meet various melting requirements; vertical melting furnace, hand-type melting furnace, electric melting furnace, school laboratory melting furnace.
3. using ultra-small medium frequency induction heating power supply, 30% energy saving than traditional thyristor medium frequency!
4. heating and heat transfer is good, temperature is uniform.
5. The medium frequency magnetic field has magnetic stirring effect on the molten metal, which is beneficial to uniform composition and scumming.
6. according to the recommended equipment and the maximum melting amount, each furnace smelting time is 20-30 minutes (in the hot furnace state).
2. easy to replace different weights, different materials, different furnaces to meet various melting requirements; vertical melting furnace, hand-type melting furnace, electric melting furnace, school laboratory melting furnace.
3. using ultra-small medium frequency induction heating power supply, 30% energy saving than traditional thyristor medium frequency!
4. heating and heat transfer is good, temperature is uniform.
5. The medium frequency magnetic field has magnetic stirring effect on the molten metal, which is beneficial to uniform composition and scumming.
6. according to the recommended equipment and the maximum melting amount, each furnace smelting time is 20-30 minutes (in the hot furnace state).
Melting Capacity▼
Model(KW) | MeltingCapacity(kg) | ||||
Material | steel,iron, | gold,sliver, | aluminumalloy, | ||
stainlesssteel | platinum,copper | zincalloy | |||
JXSC-15 | 3 | 10 | 3 | ||
JXSC-25 | 5 | 20 | 5 | ||
JXSC-35 | 10 | 30 | 10 | ||
JXSC-45 | 20 | 50 | 20 | ||
JXSC-70 | 25 | 100 | 25 | ||
JXSC-90 | 40 | 120 | 40 | ||
JXSC-110 | 50 | 150 | 50 | ||
JXSC-160 | 100 | 250 | 100 | ||
Medium frequency▼
Model/Parameter | Output Power (KW) | Output Current (A) | Working voltage (V/HZ) | Output voltage (V) | Frequency (KHZ) | Water Flow (L/Min) | Hydraulic Pressure (Mpa) | Packing Volume (CBM) | Gross weight (KG) |
JXSC-15 | 15 | 18 | 380/50 | 70-550 | 1--20 | 10 | 0.2 | 1 | 170 |
JXSC-25 | 25 | 36 | 380/50 | 70-550 | 1--20 | 10 | 0.2 | 1 | 200 |
JXSC-35 | 35 | 57 | 380/50 | 70-550 | 1--20 | 10 | 0.2 | 1.2 | 200 |
JXSC-45 | 45 | 80 | 380/50 | 70-550 | 1--20 | 15 | 0.2 | 1.5 | 250 |
JXSC-70 | 70 | 110 | 380/50 | 70-550 | 1--20 | 15 | 0.2 | 1.8 | 250 |
JXSC-90 | 90 | 140 | 380/50 | 70-550 | 1--20 | 20 | 0.2 | 2 | 260 |
JXSC-110 | 110 | 160 | 380/50 | 70-550 | 1--20 | 20 | 0.2 | 2.3 | 280 |
JXSC-160 | 160 | 240 | 380/50 | 70-550 | 1--20 | 20 | 0.2 | 3.2 | 410 |
Gold/Silver Melting Furnace
Main Characteristics▼
1. JXSC Series is advanced melting equipment for gold, silver, copper, beryllium and other non ferrous metal melting.
2. Apply IGBT technology, big output power, stable high efficiency.
3. Quick temp rising, electricity saving, low melting cost with high cost efficiency;
4. Security and reliability, the equipments have the secure voltage and it's secure to operate.
5. Cabinet casing, compact design with small size and low weight, easy operation, simple and convenient maintenance.
6. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over heat etc
7. 100% full load, 24 hours continuous working.
8. Adjustable melting temp, digital display, good insulation
9. Melting equipment for gold, silver, copper and other non ferrous metal melting.
10. With various protection as over voltage protection, over current protection, insufficient water protection, over heating protection, safe and reliable.
2. Apply IGBT technology, big output power, stable high efficiency.
3. Quick temp rising, electricity saving, low melting cost with high cost efficiency;
4. Security and reliability, the equipments have the secure voltage and it's secure to operate.
5. Cabinet casing, compact design with small size and low weight, easy operation, simple and convenient maintenance.
6. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over heat etc
7. 100% full load, 24 hours continuous working.
8. Adjustable melting temp, digital display, good insulation
9. Melting equipment for gold, silver, copper and other non ferrous metal melting.
10. With various protection as over voltage protection, over current protection, insufficient water protection, over heating protection, safe and reliable.
Product Specifications ▼
Case Color: Orange, Blue
Melting Capacity: 1KG, 2KG, 2.5KG, 3KG, 4KG, 5KG, 5.5KG, 6KG, 8KG
Frequency: 50/60HZ
Warranty: 1 year
Melting Speed: 3-4.5mins
Melting Capacity: 1KG, 2KG, 2.5KG, 3KG, 4KG, 5KG, 5.5KG, 6KG, 8KG
Frequency: 50/60HZ
Warranty: 1 year
Melting Speed: 3-4.5mins
Model | Capacity | Voltage | Phase | Input Current | Output Current | Weight | Size |
JXSC-1 | 1KG | 220/380V | 1/3 | 14A | 100-400A | 80KG | 610*590*1030mm |
JXSC-2 | 2KG | 220/380V | 1/3 | 15A | 100-400A | 80KG | 610*590*1030mm |
JXSC-3 | 3KG | 220/380V | 3 | 18A | 100-400A | 80KG | 610*590*1030mm |
JXSC-4 | 4KG | 220/380V | 3 | 20A | 200-450A | 80KG | 610*590*1030mm |
JXSC-5 | 5KG | 380V | 3 | 22A | 200-500A | 80KG | 610*590*1030mm |
JXSC-5.5 | 5.5KG | 380V | 3 | 24A | 200-500A | 80KG | 610*590*1030mm |
JXSC-6 | 6KG | 380V | 3 | 26A | 200-550A | 80KG | 610*590*1030mm |
JXSC-8 | 8KG | 380V | 3 | 28A | 200-600A | 80KG | 610*590*1030mm |
Packing and Delivery
◆ Ways of packing
1. Small parts packed in the wooden cases
2. Big parts packed by plastic membrane
3. The whole big machine is loaded in the container
2. Big parts packed by plastic membrane
3. The whole big machine is loaded in the container
◆ Shiping by sea/air freight
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
2. Our mining equipments can be also shipped by air if customers request.
Company Profile
Jiangxi Province County Mining Machinery Factory
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 30 years experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we
made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 100kg per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Похожие товары
Высококачественный этилгексилглицерол OEM/ODM CAS 70445-33-9
Высокое качество внедорожный алюминиевый бампер из нержавеющей стали автомобильный протектор кронштейн Задний Передний автомобильный бампер
400,00 $ - 600,00 $
Продажа от производителя LEO 64035LW-50gm, объектив 35 мм, высокая чувствительность, без охлаждения, протокол видимости GigE, LWIR, тепловизионная камера
4 990,00 $ - 6 500,00 $
Запчасти для трактора SINOTRUK HOWO седло
3 оси УВД шпинделя для ЧПУ деревянный станок
Красная персональная промышленная портативная мини-сумка из ткани Оксфорд

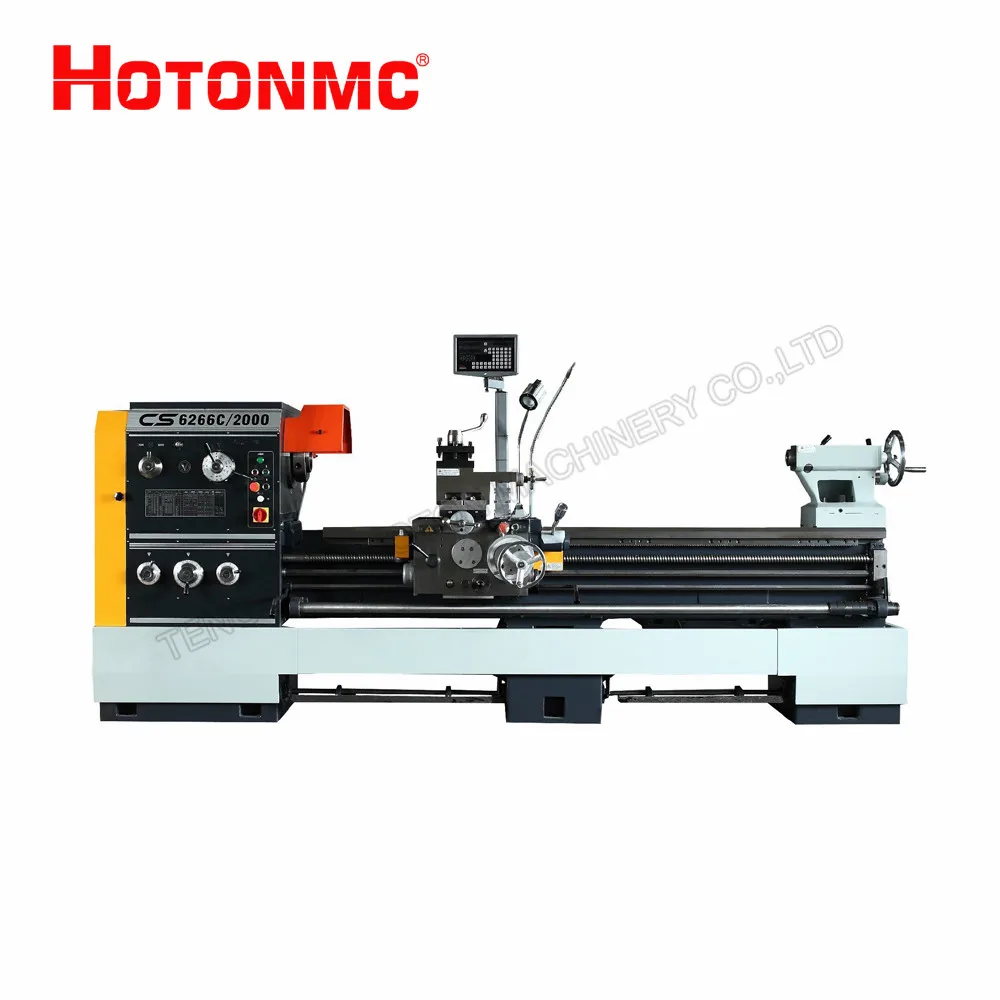

(CS6250C) Высокоточный промышленный токарный станок
