Добывающий эксцентриковый вал гризли Трафаретный Вибрационный питатель с бункером

Сохранить в закладки 1600624175265:


Цена:23 500,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

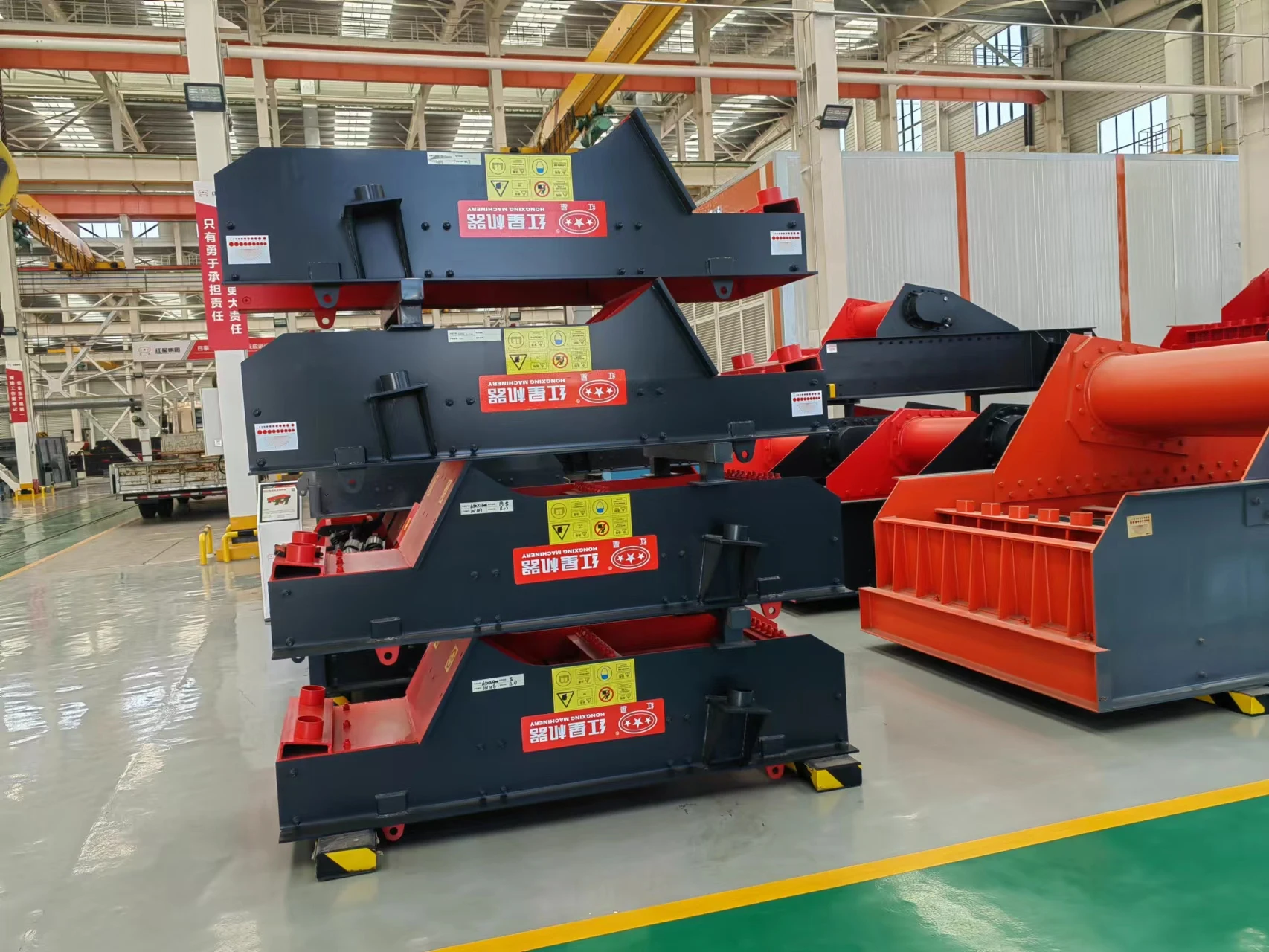

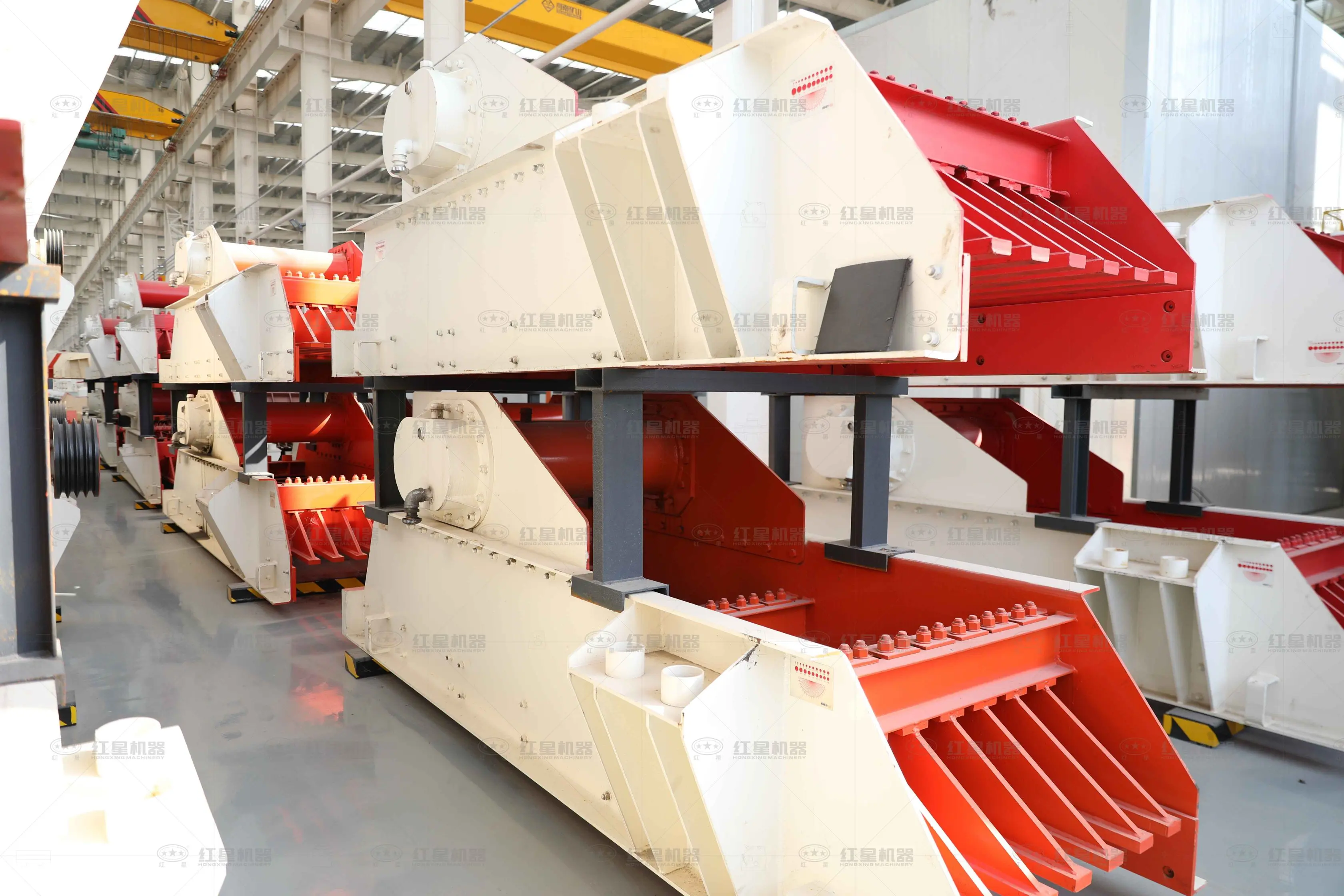

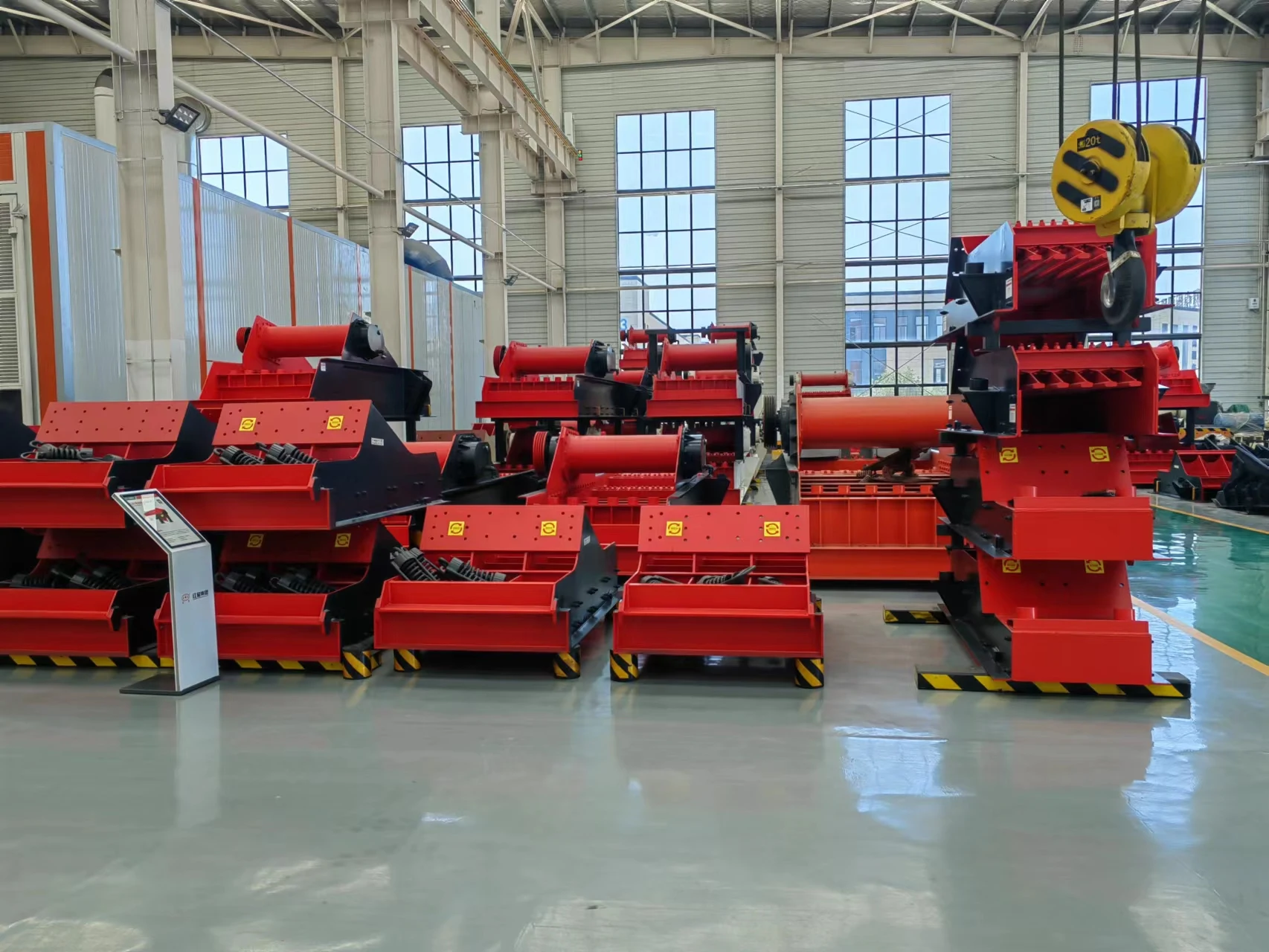

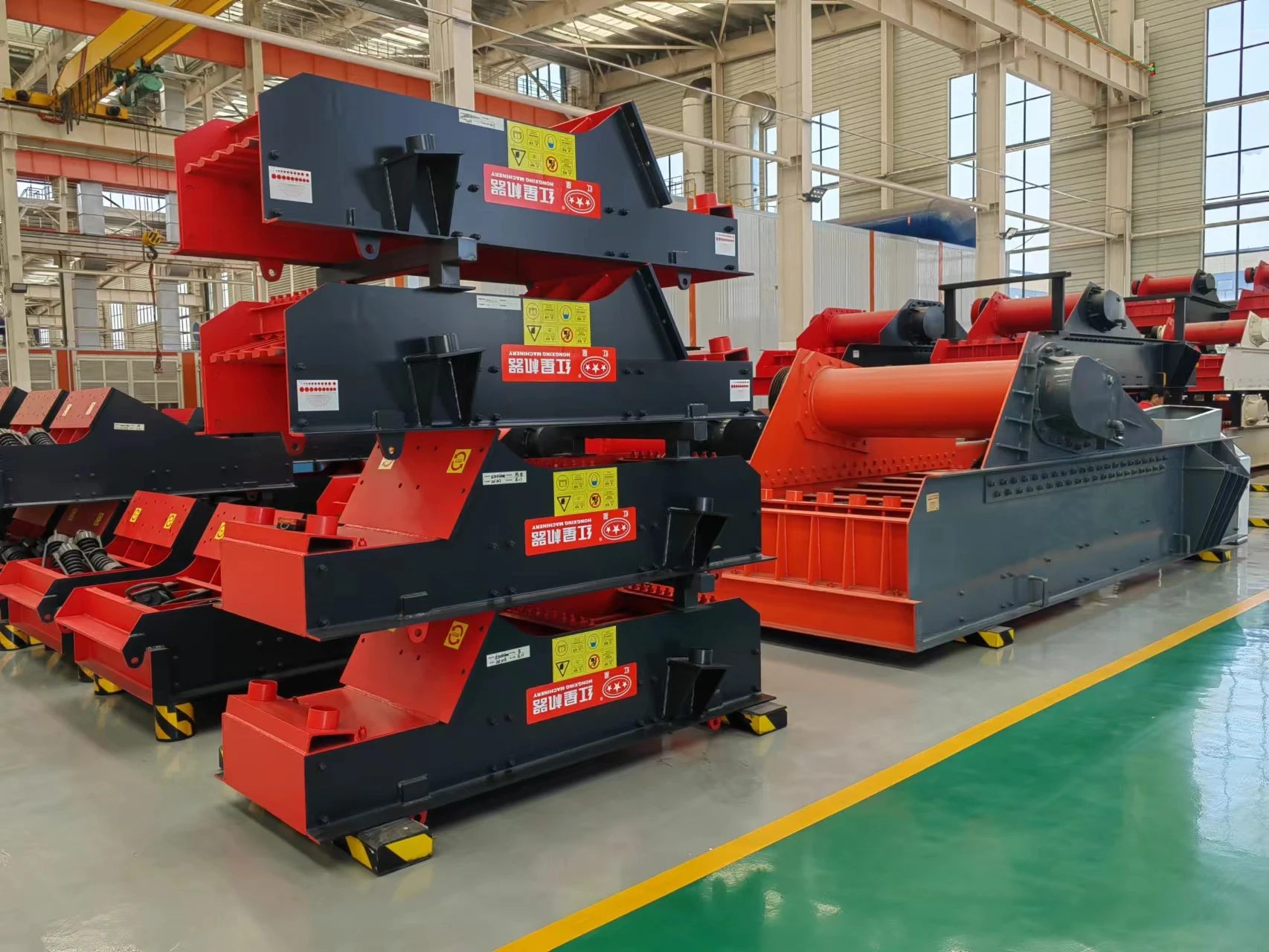

GZD850x3000 vibrating feeder

Vibrating feeder is characterised by smooth vibration, reliable operation and lon service life. It can realize continuous and even material feeding for stone crushing production line and make rough screening for materilas. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, ore specification, buliding materials,chemicals etc.








Specifications




model
Max.feeding size(mm)
Capacity(t/h)
Power(KW)
Trough Size(mm)
Dimensions(mm)
GZD850x3000
400
120-150
3x2KW
850x3000
3110*1800*1600


Working Principle




The motor makes the eccentric block of vibration exciter rotate at high speed through triangle belt. The running eccentric block produces a large centrifugal force, which stimulates the screen box to produce a certain amplitude of circular motion. The materials on the screen are continuously thrown by the impulse from the screen box on the inclined screen surface. When the materials meet the screen surface, the particles smaller than the screen hole are penetrated through the screen, so as to realize the classification.


Advantage


1.Unique design
The special grate bar design can prevent the material from blocking, and play a primary screening of the material, thus increasing the production capacity.
2.The vibration is stable and reliable
The spring device can cushion the vibration of the body, effectively avoid the damage of the body and prolong the service life.
3.High quality motor
The vibration motor is the excitation source, with low noise, low power consumption, good regulation performance and no material flushing phenomenon.




Working Site


ZSW380*95 Vibrating feeder for jaw crusher
The foundation can be steel structure. It is easy to move.




Our company


Henan Hongxing Mining Machinery Co., Ltd., located in Zhengzhou high tech Industrial Zone, is a large-scale joint-stock enterprise integrating scientific research, production and sales. The company has a total area of 350000 square meters, 260000 square meters of standard heavy industrial plants, various metal processing, riveting, assembly equipment more than 600 sets; now the company has more than 2300 employees, more than 360 managers and technicians with medium and high vocational and technical level; the company has successively introduced the excellent technology and technology of the United States, Germany, Japan, Australia and other countries, and established a perfect modernization Testing base, and set up sand and stone machine research institute, grinding machine research institute, mineral processing equipment research institute and building materials equipment research institute. With scientific management methods, continuous improvement of manufacturing technology and innovative manufacturing concept, the company has grown rapidly and become the production and export base of mining machinery in China.
