Product Description

 Pneumatic Refrigerant booster pump is a new type device designed and manufactured by our company, The structural design are compact, TEREK pump adopt aluminum alloy and stainless steel materials ,The Refrigerant booster pump equipment is applicable to pressurizing and transfer Halon and Freon refrigerant medium and other refrigerants , and filling the agent into the fire extinguisher cylinder.

RTD Series are single acting and single stage driven type. This series of pump driven piston diameter is 160 mm.

The TEREK refrigerant booster equipment uses pure compressed air as the driving power source, and uses refrigerant booster pump as the pressure source,. (R12,R22, R134a, R290,R407C, R410A,R500, R502, R600A etc ) HFC-227ea/FM200 , HFC-125, Novec1230 , HFC-236fa , Halon and Freon as the pressurized medium, The output pressure is proportional to the driving gas pressure.

By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will be automatically stops and the output gas pressure is stabilized at the preset pressure.

Therefore, it has the features of explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, light weight, simple operation, reliable performance and wide application range. Used for Refrigerant filling or atmospheric pressure refrigerant pressurization.

Product parameters

Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating , The automatic reciprocating motion of the piston is controlled by a built-in four-way valve.
TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.
Refer to model technical parameters.

System configuration:

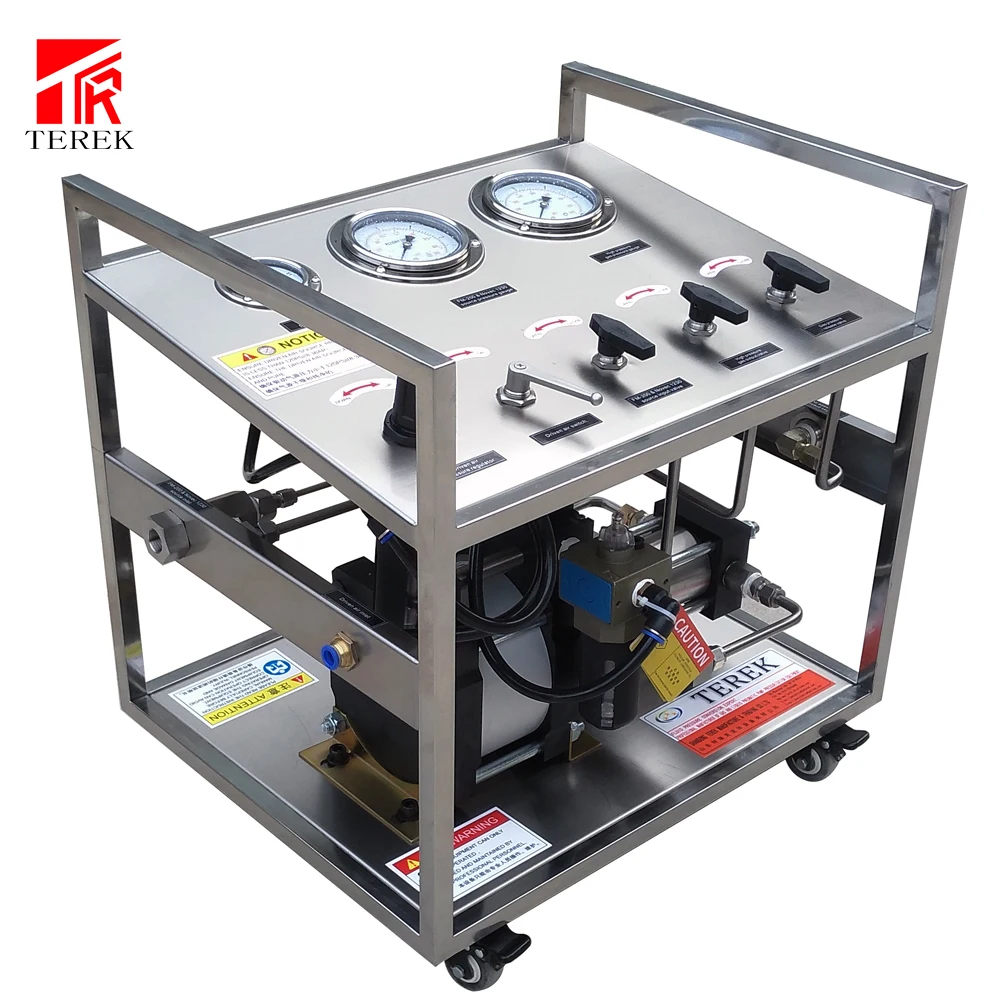

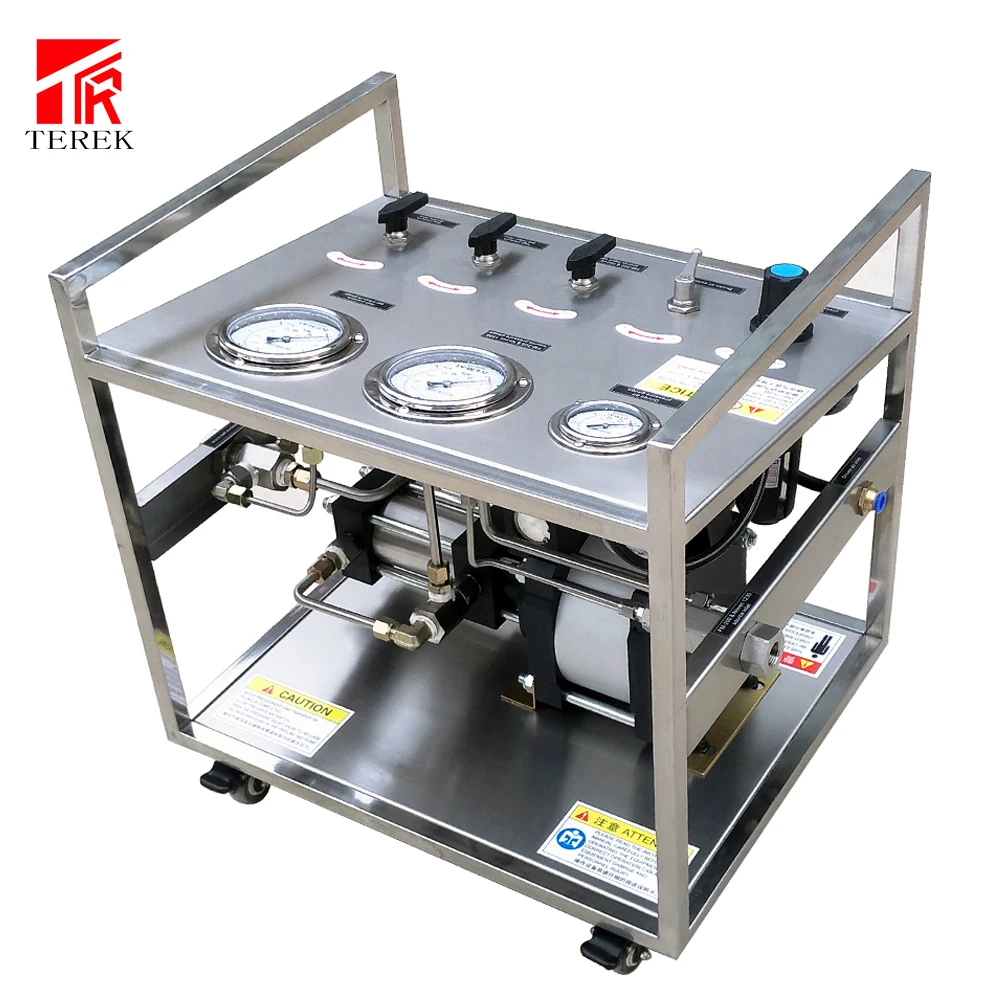

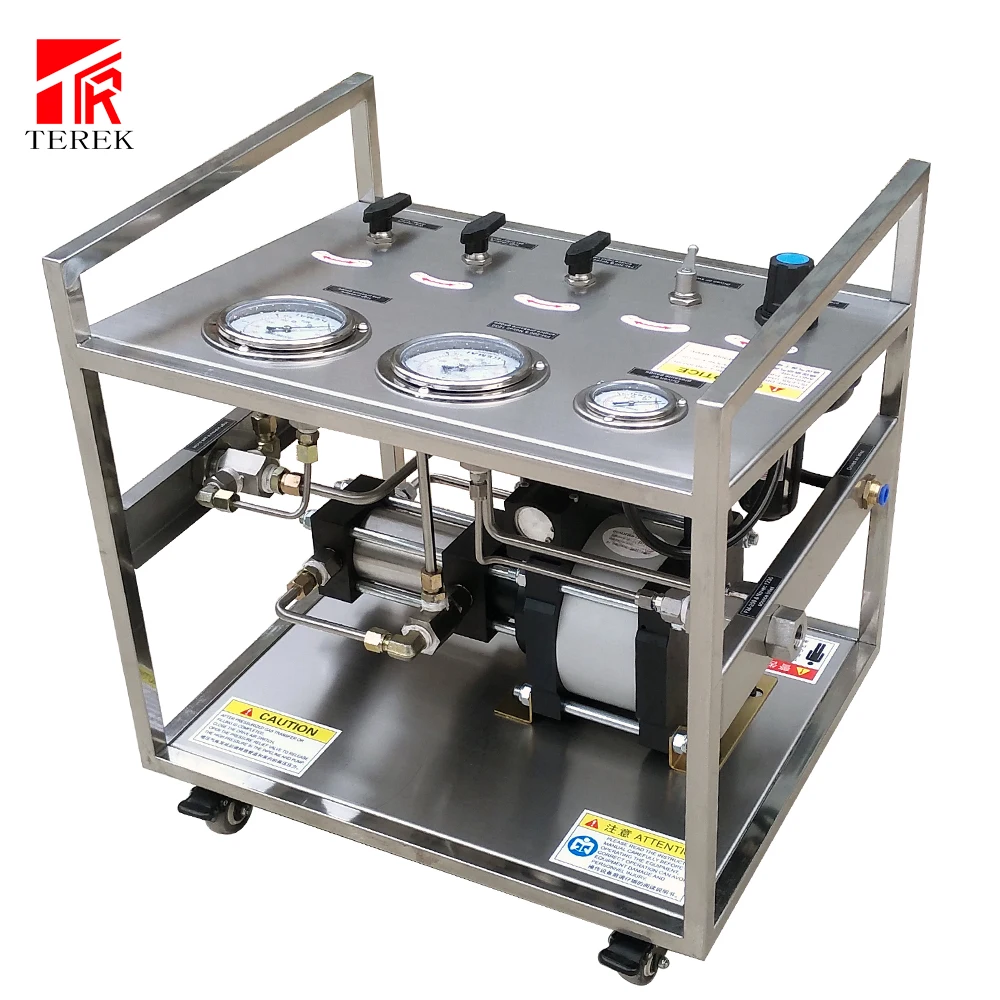

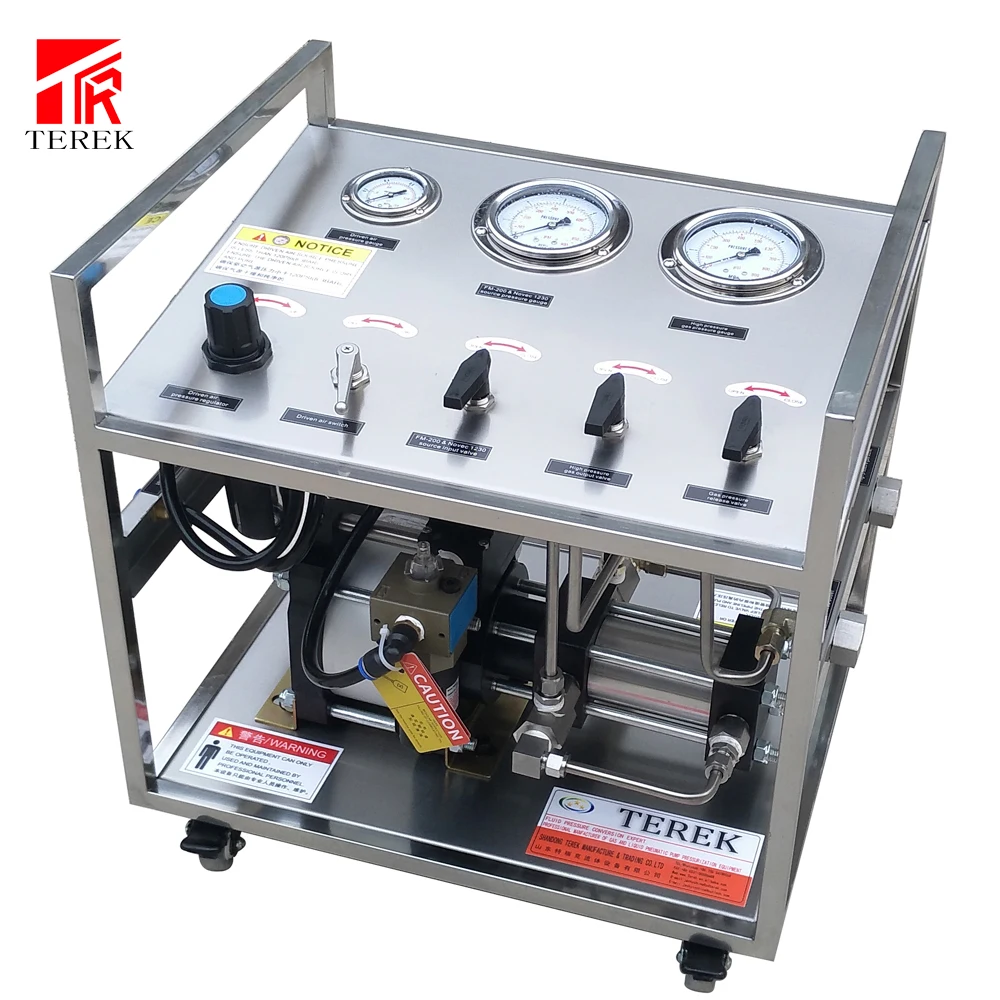

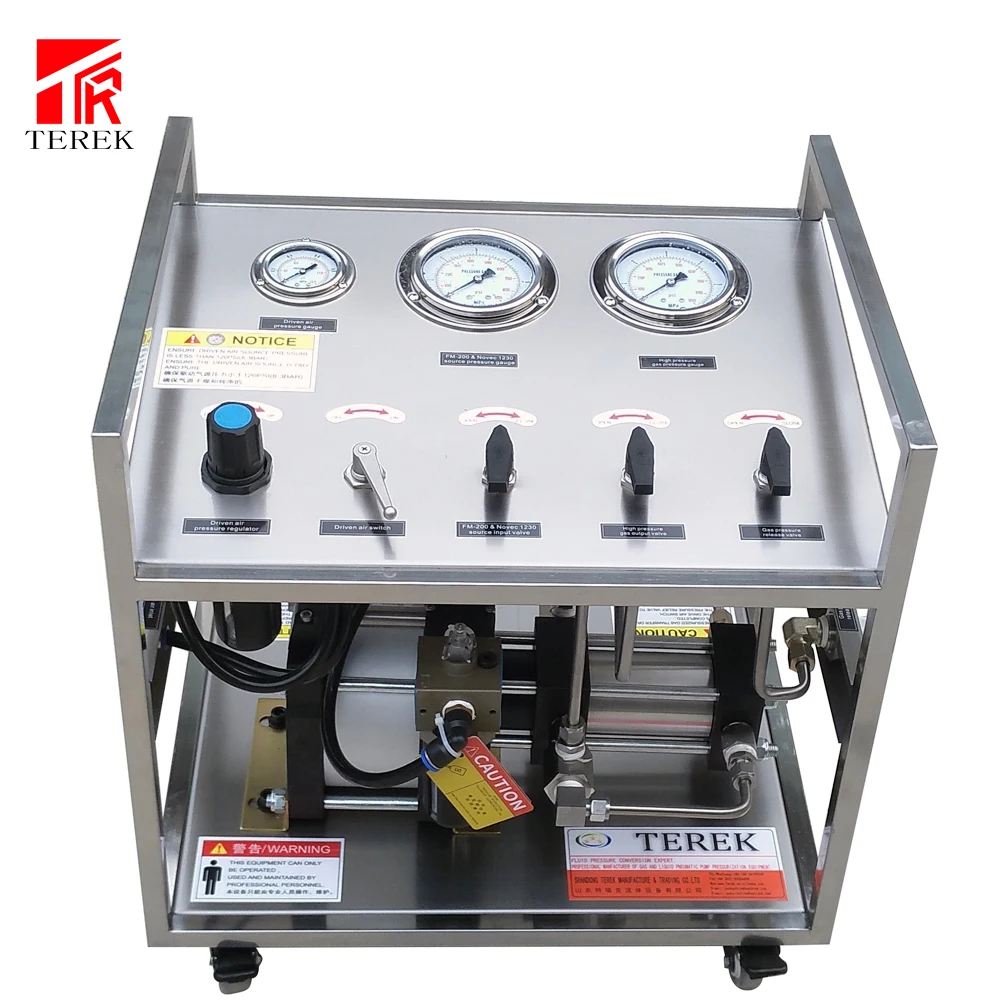

The Refrigerant pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, High quality sealing parts, air drive piston, pressurizing piston, silencer etc. RU-RTD series Refrigerant booster pump control equipment mainly includes one sets of RTD series air-driven Refrigerant booster pump , Air pressure gauge, air filter, Refrigerant inlet filter, Pressure control valves, air pressure regulating valve, Stainless pipelines, Stainless steel frame, high pressure regulator valve, high pressure release valve etc.
In order to ensure the long-term use and stable working efficiency of the equipment, we provide a set of sealing accessories, repair kit, sealing tape, etc .

Detailed Images

Product advantages

1. All pipes and fittings are made of stainless steel to ensure a long life

2. The pump will stop working automatically when the output pressure reaches the preset value,

3. Maintain long working hours with no energy expenditure

4.No dissipated heat during the pressure holding phase

5.No risk for explosion and spark in oil and gas field

6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.

7. The working pressure can be adjusted by adjusting the pressure of the driven air. 8.Easy to install, move, use and maintain

8.Easy to install, move, use and maintain

9.Compressed Air driven - no electricity required (connect to normal air compressor) In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar

Application Fields

It is used to pressurize and filling refrigerant medium, such as R12, R22, HFC 125 and HFC227ea,Halon and Freon,R134a, R290, R400, R407c, R410a, R500, R502, R600A etc .

High pressure outlet pressure up to 80 bar.

High pressure Gas transfer,Recover and filling .

The pump can be also used for the recovery and perfusion of new type environment-friendly refrigerant.

Packaging & Shipping

Our Services

1. We'd like to provide our professional advice regarding machines, materials, packing and market for this product.

2. We'd like to customize special machine according to customer's request.

3. We'd like to help our customers for booking ship as customer request.

5. Operation manual will be provided after shipment.

6. We provide one year warranty.

7. Free wearing parts will be sent together with the machine .

8. Working video of the machine will be sent to you accordingly to your need.

All equipment and accessories are guaranteed for one year. Our sales staff and technical department provide permanent technical advice and operation guidance. If you have any questions about the operation of the equipment, please turn off the air source and equipment, check the instructions in time or contact the sales and service personnel. Thanks.

Equipment inventory and workshop

Company Information

TEREK Company focus on high pressure fluid transfer all the time and supply perfect high pressure fluid transfer solution and service, Supplying high-quality product and service is the eternal aim of TEREK.
As the experienced manufacturer of industrial booster pump. The technology of air driven booster pump and pressurization system reach to a good level. Can pressurize almost any liquid, Such as oil,water ,corrosive liquid and chemical liquid applications. High quality seals, long service life available.
Based on the high quality of our products, reasonable prices and excellent after-sales service, we have gained a high reputation in this field of fluid pressure control equipment.
