1 мм 2 3 4 5 10 50 титановый сплав пластина лист цена за
1 250,00 $ - 2 500,00 $
Купите суперэластичный металлический Нитинол лист от
- Категория: Titanium Sheets >>>
- Поставщик: Baoji Hanz Material Technology Co. Ltd.
Сохранить в закладки 1600624863612:
Описание и отзывы
Характеристики
Buy superelastic nitinol metal nitinol sheet from suppliers

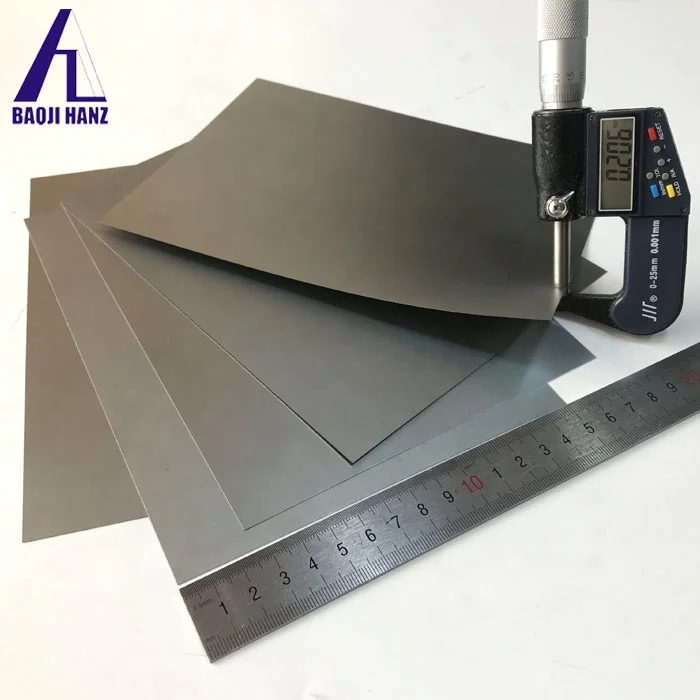

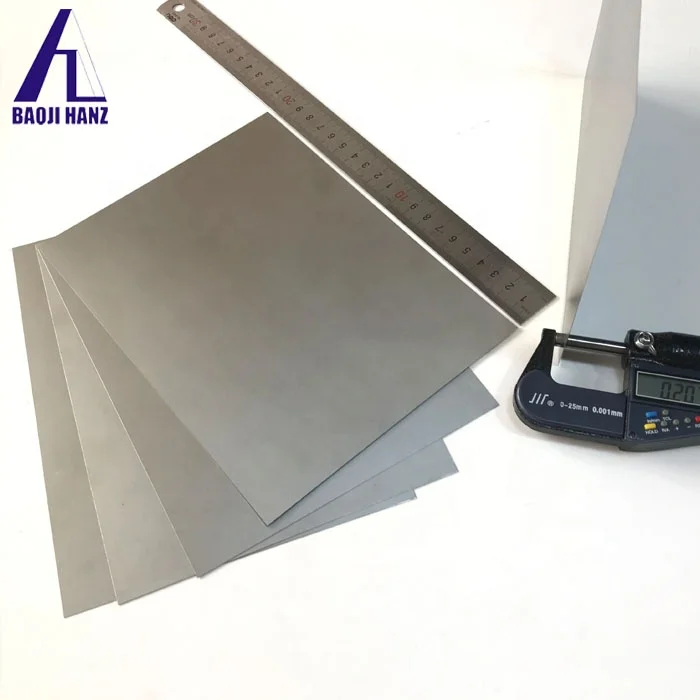

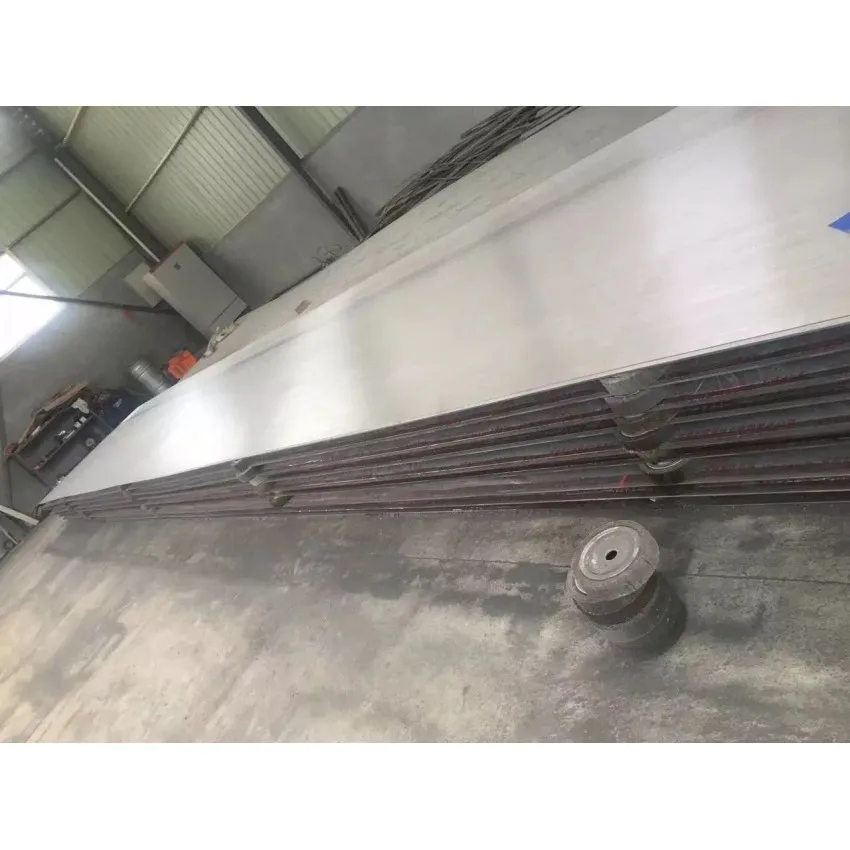

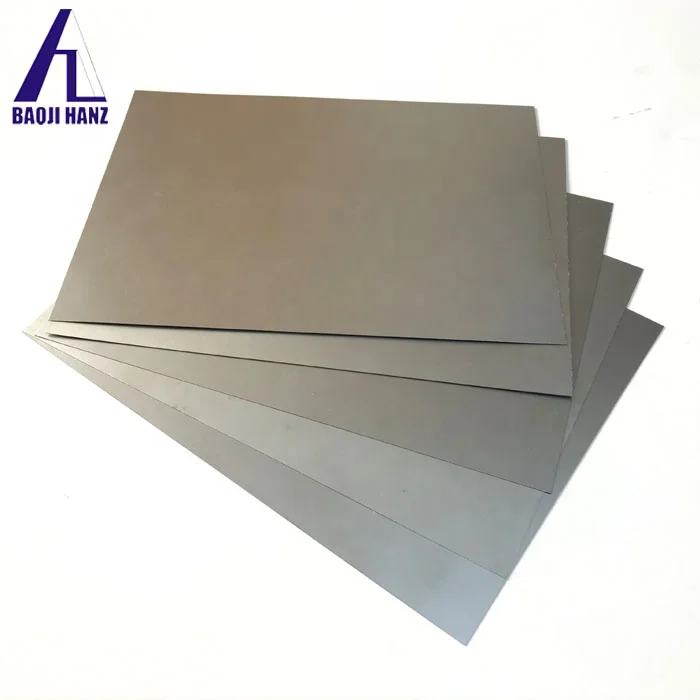

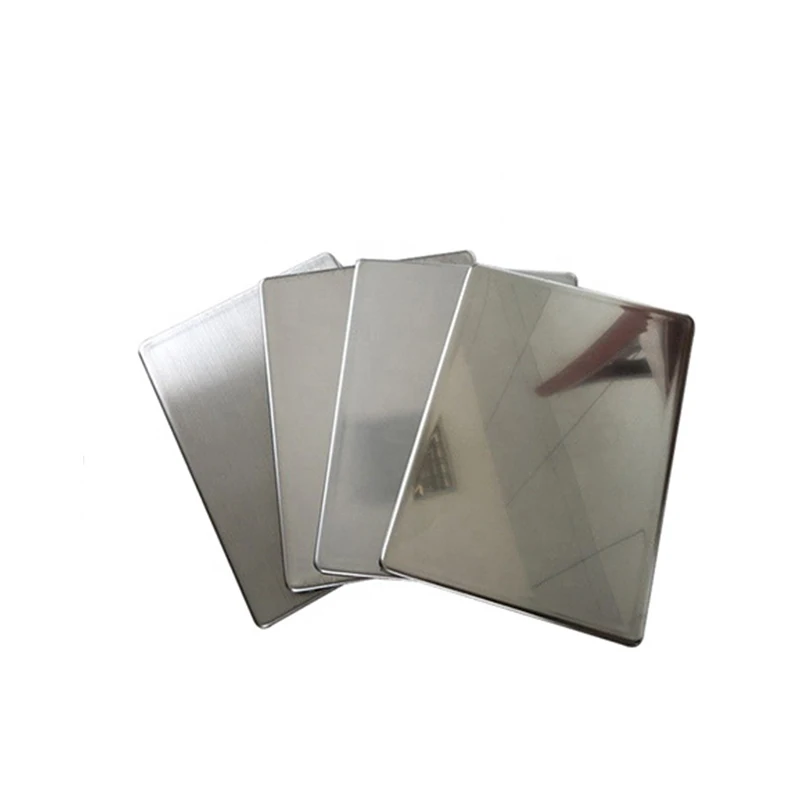

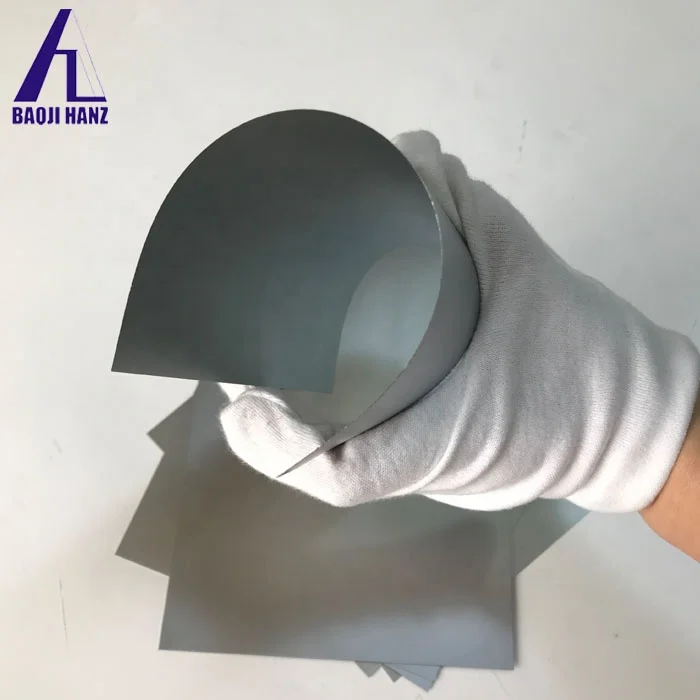

Detailed Images
Where to buy nitinol metal sheet from supplier with good quality
Product Description
Where to buy nitinol metal sheet from supplier with good quality
| Name | Grade | Transformation Temperature AF | Form | Standard |
Shape Memory Nitinol Alloy | Ti-Ni-01 | 20 °C~ 40 °C | Wire, bar, plate
| Customer specified or Industry standard |
Ti-Ni-02 | 45 °C~ 90 °C | |||
Superelastic Nitinol Alloy | TiNi-SS | -5 °C~ 5 °C | ||
Low Temperature Superelastic Nitinol Alloy | TN3 | -5°C~ -15°C -20°C~ -30°C | ||
TNC | ||||
Medical Nitinol Alloy | TiNi-SS | 33 ± 3 °C |
| ASTM F2063 |
Narrow Hysteresis Nitinol Alloy | Ti-Ni-Cu | As-Ms ≤ 5 °C |
Wire, bar | |
Wide Hysteresis Nitinol Alloy | Ti-Ni-Fe | As-Ms ≤ 150 °C |
Where to buy nitinol metal sheet from supplier with good quality
1.Size: Where to buy nitinol metal sheet from supplier with good quality
Sheet: Thickness 0.3-10.0mm Width≤400mm Length≤2500mm
Wire:Dia0.05-6.0mm
Bar:Dia3.0mm—20mm
Where to buy nitinol metal sheet from supplier with good quality
2.Surface State Options:
♣ Black oxide surface
♣ As cleaned surface
♣ Medical grade polished surface
♣ Centerless ground surface
Where to buy nitinol metal sheet from supplier with good quality
3. Chemical composition: Where to buy nitinol metal sheet from supplier with good quality
Ni: 55.4% --56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05
Where to buy nitinol metal sheet from supplier with good quality
4.Application
cell phone antenna, children's toys, experimental materials, glasses leg, women bra, Women's Sports Central,arch wires, instruments, and medical equipment, such as surgical stitching wire,
birth control loop and other areas of high-quality memory alloy wire.
Where to buy nitinol metal sheet from supplier with good quality ASTM F2063 polished nitinol dental implant wire
5.Standard: Where to buy nitinol metal sheet from supplier with good quality
ASTM F2063-05 Customer specified or Industry Standard
Alloy | Chemical composition | Af (Fully annealed) | Min. elongation to failure [%] | Max. Residual elongation after 6% strain [%] | Main Applications | |
Superelastic Ni-Ti alloy | TiNi-SS | Ti-50.8at% | -5°C ± 5°C. | 10 | 0.1 | Eyeglass Frames, Cellular Phone Antennae, Bra Underwire |
TN3 TNC | TiNiVAl TiNiCr | -40°C ~50°C | 10 | 0.1 | ||
Body temperature Ni-Ti alloy | TiNi-YY | Ti-50.7at%Ni | Functional Af=33 ± 3 | 15 | 0.1 | Implantable devices,Bone staples Vascular Stents |
Ti-Ni-01 | 55.6~55.8 wt%Ni | 20 - 40 | 15 | 0.1 | Guide wires, Stents Orthodontic Arches | |
High temperature Ni-Ti alloy | Ti-Ni-02 | 54.8~55.5wt%Ni | 45 - 95 | 10 | 0.1 | Implantable active devices, Surgical tools, Thermostats Coffeepots |
TiNiCu | TiNiCu | As-Ms ≤ 5 | 10 | 0.1 | ||
Company Information
Where to buy nitinol metal sheet from supplier with good quality
Where to buy nitinol metal sheet from supplier with good quality
Baoji Hanz Advantage
- 1. Ability to customize;
- 2. Has items in stock;
- 3. Short lead time;
- 4. Exported to many counrises before;
- 5. Has a factory
Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing all shapes of tungsten, molybdenum, tantalum, niobium , titanium, nickel products and other alloy.
Where to buy nitinol metal sheet from supplier with good quality
Our Certifications
Packaging & Shipping
Where to buy nitinol metal sheet from supplier with good quality
Shipping
Various Mode of Transportation for You :
- 1. Air transportation
- 2. Sea transportation
- 3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.
Where to buy nitinol metal sheet from supplier with good quality
Packing
- 1. Packaging with moisture-proof paper.
- 2. Packaging with Kraft paper.
- 3. Packaging with foam plastics in all side of wooden case.
- 4. Packing products in wooden case.
Buyers Feedback
Where to buy nitinol metal sheet from supplier with good quality
Related product
Where to buy nitinol metal sheet from supplier with good quality
 Nitinol bar |  Nitinol wire |
Nitionl tube |
Nitinol spring |
FAQ
- Q:Are you a factory or trading company?
A:We are a factory, and also a company for trading. - Q:What is the MOQ ?
A:When size is stocked, we can supply 1kgs and even 1 meter, if size not stock, MOQ should be 3 kgs. - Q:How can I get some samples?
A: We are honored to offer you samples, when size in stock, we can supply sample for you, sample cost and shipping cost should be paid. - Q: How long it will take to get the samples ?A: We will send the samples within 7 days after the payment arrived. 5-7 workdays for delivery, so it will take 15 workdays (longest), the samples will arrived at your door.
- Q:How does your factory do regarding quality control?
A:Quality is priority. Hanz people always attach great importance to quality controlling from the very beginning to the very end.
Payment terms
- Sample order: west-union, Paypal, Escrow and T/T 100% are accepted.
- Big order: T/T100%, full payment advanced, L/C are accepted.
Where to buy nitinol metal sheet from supplier with good quality
Our Service
- 1. Competitive price.
- 2. Our strengths over other suppliers.
- 3. Reliable quality on the base of the same price.
- 4. 100% Timely delivery as your as your requirements.
- 5. Professional service to cut much purchasing costs down.
- 6. We offer discount for old customers
- 7. We do our best to meet the requirements of customers.
- 8. Faced with problems related with products,please feel free to contact us.
We will try our best to help you.
Contact us
Baoji Hanz Material Technology Co.Ltd.
Sales :Cici Lee
T: +86- 0917- 3258886
F: +86- 0917- 3258889
E: hztech05(@)hanztech.cn
V: 280561654
Thanks for your visit to our website, quotation will be sent if you kindly contact us!
if you are interested in our products, welcome to contact us.
Where to buy nitinol metal sheet from supplier with good quality
