Светодиодная печатная плата с линейным оптическим объективом SMD 2835 3030 L280 * W24mm 24 светодиода DC, линейный объектив PCBA PMMA
296,72 ₽

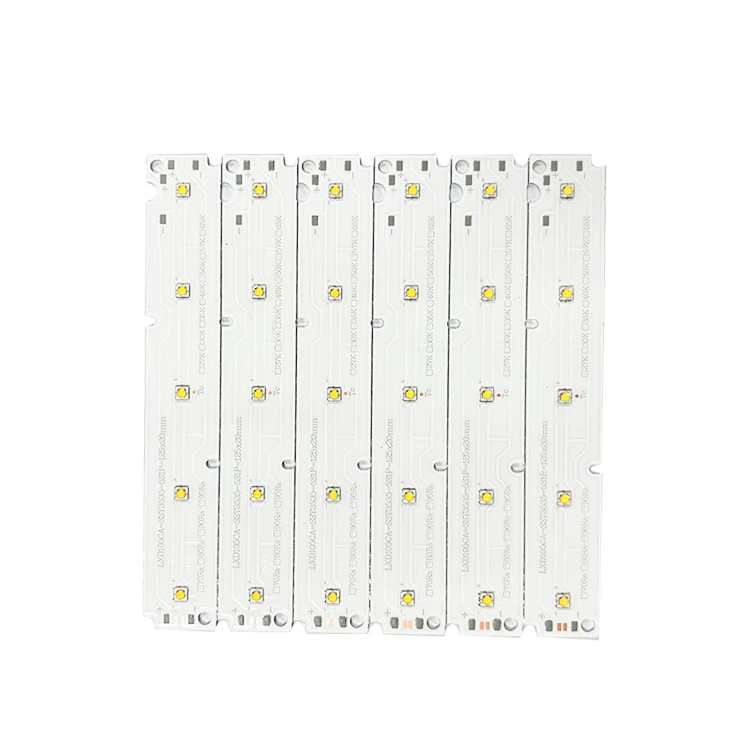

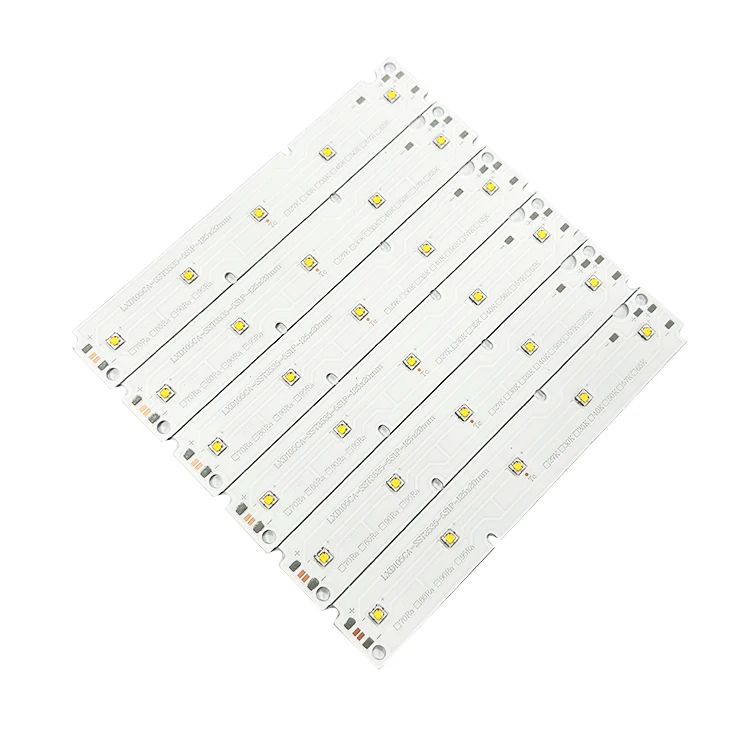

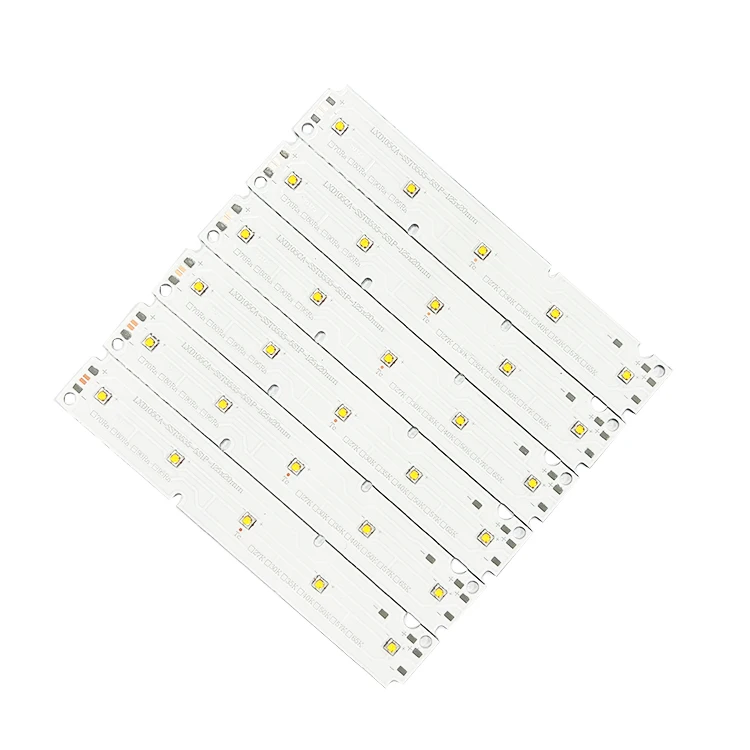

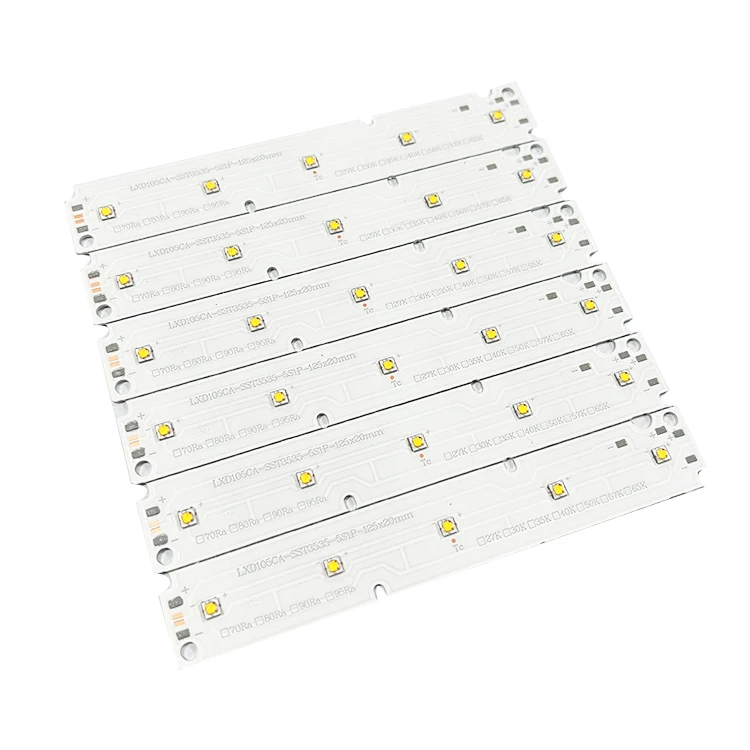

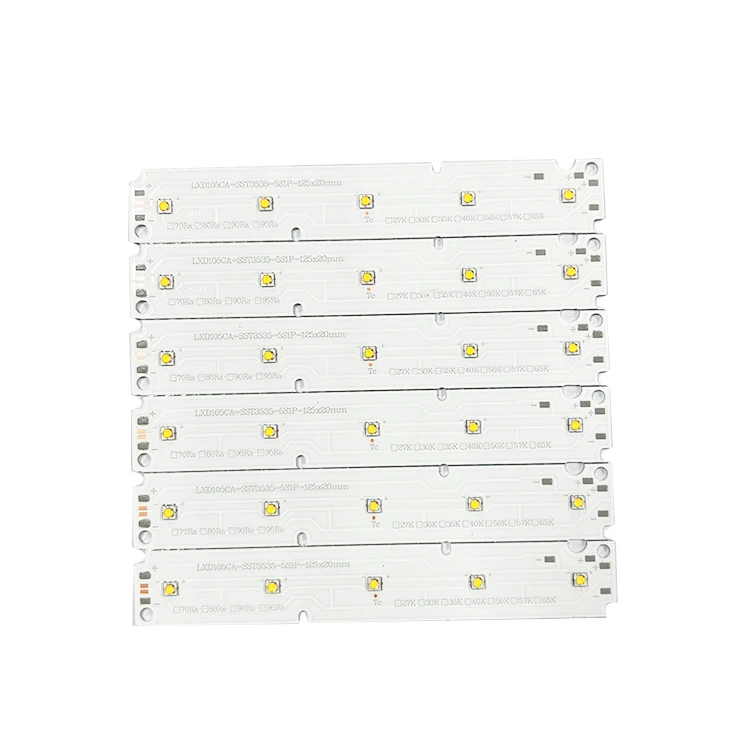

Индивидуальное Внутреннее освещение smd 3535 светодиодные модули линейный световой модуль
- Категория: >>>
- Поставщик: Guangzhou Guangyou Electronics Co. Ltd.
Сохранить в закладки 1600624996997:
Описание и отзывы
Характеристики
Product Description
Our service: | ||||
1. 1 to 32 layers of blank PCB manufacturing; | ||||
2. LED PCB circuit customization; | ||||
3. LED PCB clone; | ||||
4. Procurement of components; | ||||
5. LED PCB assembly PCBA; | ||||
6. Customized development plan; | ||||
7. PCB/PCBA testing. | ||||
LED PCB Board PCBA Setup: | ||||
1. PCB material: we use | ||||
a) Advanced aluminum grades, such as 3003 5052 6063; | ||||
b) High thermal conductivity, such as 1.5 / 2 / 3 W/mK; | ||||
c) fr4 monolayer and multilayer. | ||||
2. LED brand: Epistar/cree/Samsung/lumileds; | ||||
3. LED color: RGB, WHITE, RGBW, 380NM UV, 450NM Blue, 630nm red, 660nm deep red, 730nm far red; | ||||
4. LED package: 2835 5730 5050 5630 3030 3535 etc. | ||||
LED circuit PCB board PCBA application: | ||||
1. Commercial led lights: bulbs, downlights, ceiling lights. | ||||
2. High-power lights: led street lights, led flood lights, led high bay lights, led work lights. | ||||
3. Special lights: traffic lights, led garden lights for plant growth; UV printer led lights, UV medical lights, UV beauty lights. | ||||
4. Smart lights: wifi/bluetooth lights, rgb/rgbw/cct dimmable remote control lights. | ||||
5. Customized led lights. | ||||
Quotation requirements: | ||||
Please send us the Gerber file and Bom list, if you don't have the file and need our design, please send us the following information: | ||||
1. PCB size | ||||
2. PCB material: aluminum/fr4 (layer) | ||||
3.Soldermask Color & Silkscreen Color | ||||
4. PCB thickness (1/1.2/1.6/2mm) | ||||
5.PCB copper (1oz 2oz 3oz) | ||||
6. LED Brand & LED Model | ||||
7. Watt&Voltage&Current | ||||
8. LED board function and application | ||||
9. Order Quantity | ||||
10. Your logo |
Specification
More Different Types of Products Can Also be Customized!
Application range:
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Recommend Products
Company Profile
Guangzhou Guangyou Electronic Co., Ltd
Guangzhou Guangyou Electronics Co., Ltd. is a high-tech enterprise specializing in the R&D, lamination, production and sales of LED heat-dissipating metal substrates. It has modern professional workshops and introduced a full set of advanced production equipment. It has more than 100 employees and has a line of The professional team of board production and strong production technology, our company has complete inspection equipment and strict quality inspection department to monitor the product quality in the whole process.
Products are widely used in LED lighting, car lights, stage lighting, high-power power supplies, home appliances, indoor and outdoor consumer electronics lighting. High heat dissipation metal substrate, copper substrate, single and double-sided composite board mainly solve the problem of PCB heat dissipation. LED high heat dissipation, high quality, high efficiency and high stability have become the unremitting goal of every Guangyou people. Creating value for customers is our company's service tenet.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
FAQ
Q. What services can you provide?
We are an OEM PCB and PCBA manufacturer since 2004, we can provide turnkey solutions
including RD PCB fabrication, SMT and in-case assembly PCBA, functional testing and other value-added services.
including RD PCB fabrication, SMT and in-case assembly PCBA, functional testing and other value-added services.
Q. If you want to get our quotation, what documents do you need to prepare?
The PCB board needs to prepare Gerber files, including RS-274X, ODB++,
DXF, PCB, PCBDOC and other formats. For PCBA (PCB with soldered components), in addition to the PCB file, you need to prepare a
BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
DXF, PCB, PCBDOC and other formats. For PCBA (PCB with soldered components), in addition to the PCB file, you need to prepare a
BOM list (component list), Pick and Place file (txt format), physical sample drawing or 3D PDF version file, etc.
Q: Do you have MOQ restrictions?
We do not have any restrictions on MOQ. Both samples and mass production can be supported.
Q. How to keep our product information and design documents confidential?
We are willing to sign the NDA effect according to local laws on the client side and promise to keep client data highly confidential.
Q. How long does it take for PCB and PCBA quotation?
PCB quotation can be completed within 2 hours PCBA depends on components Quantities, if simple, can be done in 6 hours, if complex, 12-36 hours.
*Please note the following details will speed up the evaluation:
Material:
Plate thickness:
Copper Thickness:
Surface treatment:
Solder Mask Color:
Solder Mask Color:
Silkscreen Color:
Q. How is the delivery?
Usually, for sample orders, our lead time is about 5 days. For small quantities, our lead time is about 7 days. For mass production batches, our lead time is about 10 days. But it depends on the actual situation when we receive your order. If your order is urgent, please contact us directly, we will prioritize and do our best to give you a satisfactory delivery time.
Q. How do we guarantee that you receive quality products?
For PCB, we will use Flying Probe Test, E-test, etc. For PCBA, we need you to provide us with a method or test fixture for functional testing. Before that, our inspectors will use microscopes and X-rays to check for IC foot soldering or poor soldering etc.
Q. Do we accept payment terms?
For sample orders or small quantities, we recommend you to use Pay-pal and Western Union. For mass production, we recommend you to use T/T.
Похожие товары

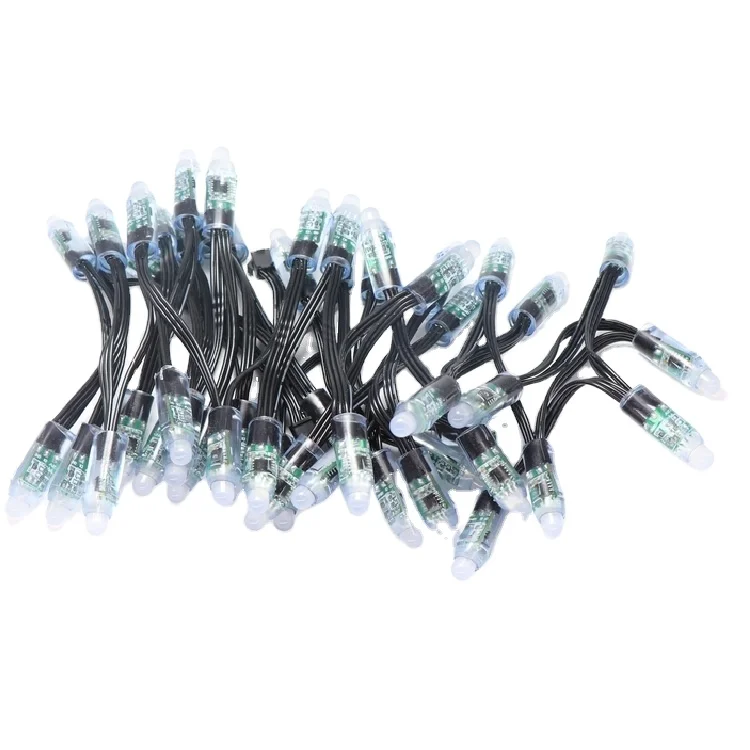

RGB pixel ws2811 ws2811 xconnect пуля RGB pixel light ws2811 перманентные Праздничные огни pixel light connector
Пиксельный свет водонепроницаемый ws2811 xconnect светодиодный светильник ucs2904 12 В наружные и внутренние светодиодные Рождественские огни

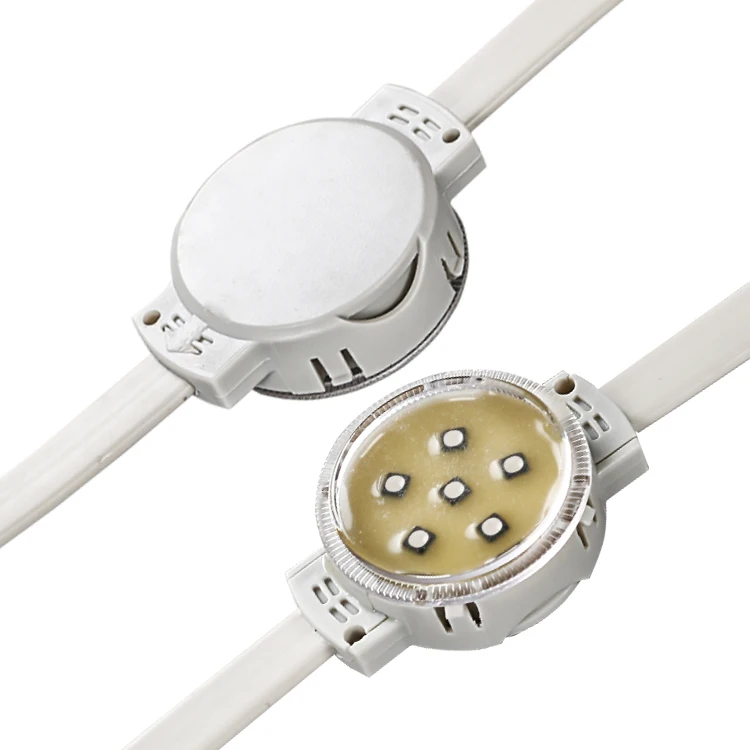

IP65 водонепроницаемый адресуемый Светодиодный точечный светильник уличный 50 мм RGB smd3535 пиксель 24 В светодиодный точечный свет
