Лидер продаж Калибровочная проволока 4 0 ММ стальная с алюминиевым покрытием для OPGW/верхнего проводника

Лидер продаж Калибровочная проволока 4 0 ММ стальная с алюминиевым покрытием для OPGW/верхнего проводника

Категория: >>>
Поставщик: Zhejiang Wansheng Yunhe Steel Cable Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Profile

The factory was set up in 1958. Registered ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD in 2006. Nowadays it has became an enterprise which specially produce brand “Yunhe” metal product series in metallurgical industry. Also it is national key supporting hightech enterprise. We now have a registered capital of 200 million RMB and covering an area of 30 thousand square meters. Our company has attained ISO9001 quality management system certification and ISO 14001 quality system certification. We are well recognized and praised by numerous customers both home and abroad because of our first-class quality, in-time delivery and high-efficiency service.

Products Description

Aluminum-Clad steel wire
Nominal Diameter			Area	Min Tensile Strength	Calculated Breaking Load	Min Coating Thickness	Max D.C Resistance at 20 degree	Weight
mm	AWG	Mm2	Mpa	KN	mm	Ohm/KM	Kg/Km
2.052	12	3.307	1340	4.5	0.103	25.64	21.80
2.304	11	4.169	1340	5.6	0.115	20.34	27.49
2.589	10	5.260	1340	7.1	0.130	16.12	34.66
2.904	9	6.633	1340	8.9	0.145	12.78	43.65
3.264	8	8.367	1340	11.2	0.163	10.14	55.14
3.477	7	9.495	1310	12.4	0.174	8.93	62.57
3.665	7	10.55	1280	13.5	0.183	8.04	69.48
3.934	6	12.16	1240	15.1	0.197	6.93	80.13
4.115	6	13.30	1210	16.0	0.206	6.38	87.62
4.392	5	15.15	1170	17.7	0.220	5.60	99.84
4.620	5	16.76	1140	19.1	0.231	5.06	110.50
4.775	4	17.91	1100	19.7	0.239	4.73	118.0
5.189	4	21.15	1070	22.6	0.259	4.01	139.34

Aluminum-Clad steel wire

Suitable for different electrical and mechanical properties before stranding. Applied to reinforced core of aluminum stranded wire

and aluminum clad steel wire of all aluminum clad steel strand.

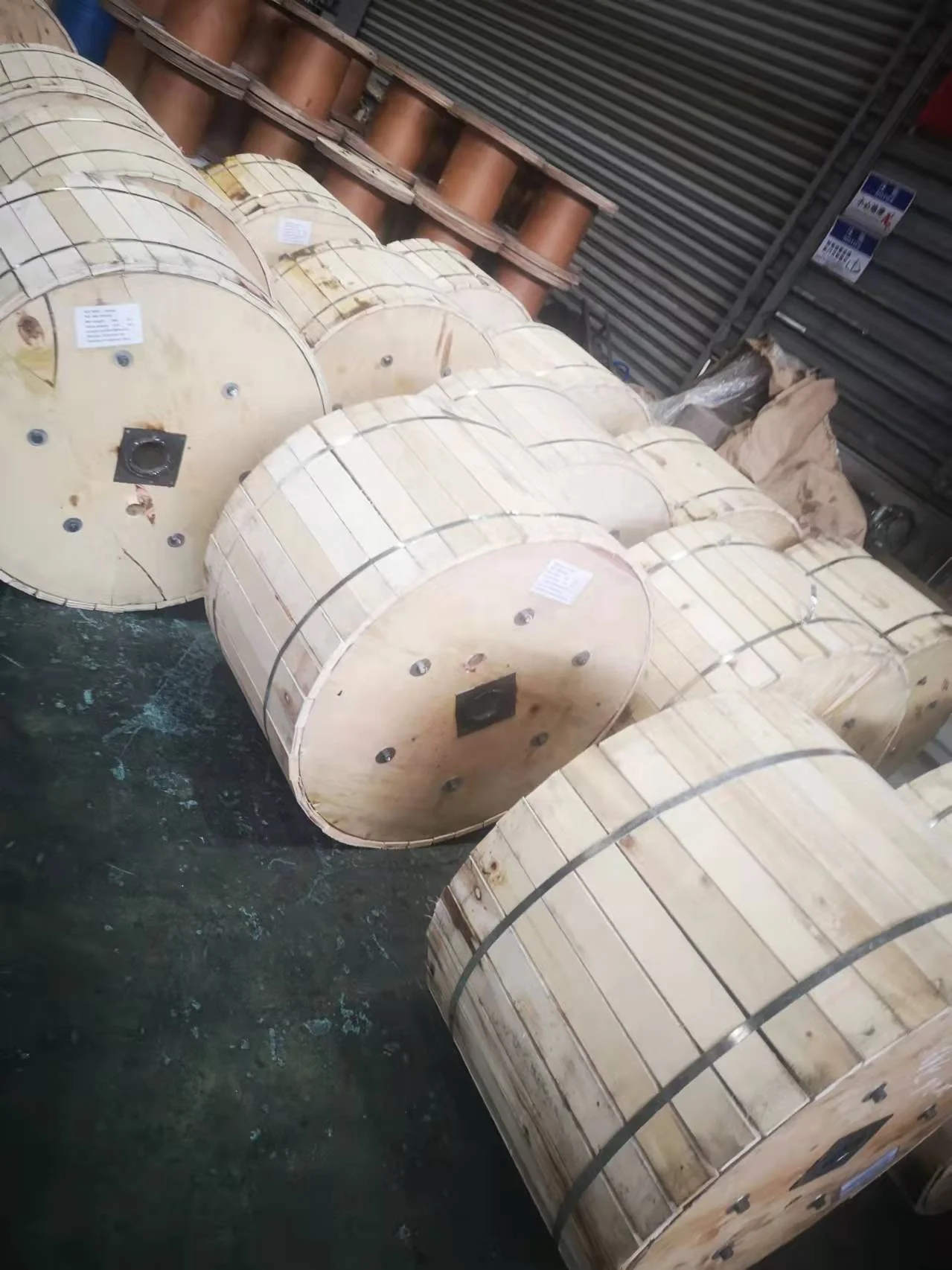

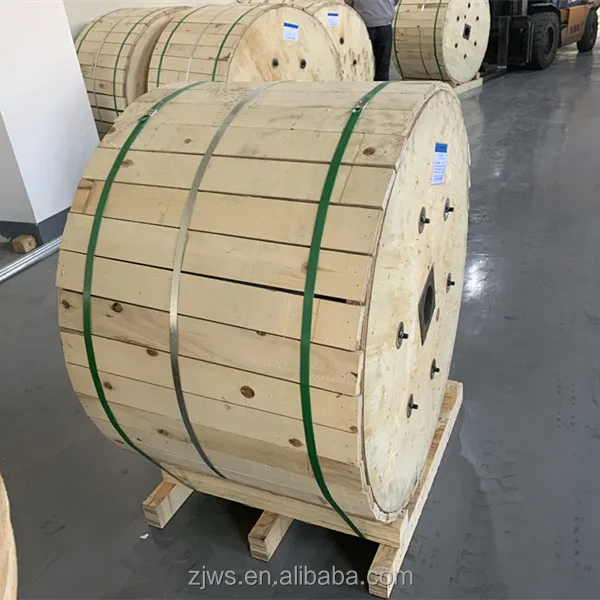

Product packaging

Certifications

Shipping Process

Exhibition

Our Team

FAQ

Q: Are you trading company or manufacturer?

A: We are factory, manufaturer.

Q: How long is your delivery time?

A: Generally it is 5-15 days according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Why Wansheng is your best choice?

1. We have shown remarkable growth as leading manufacturer and exporter of Steel Products which are used in various industries .

2. Advantages: We offer competitive price with best service.

3. We have exported to USA, Canada, Singapore, Australia, Vietnam, Thailand, Indonesia, Malaysia, Italy, Sweden, Colombia, Chile, Mexico, Brazil, Peru, Ghana, South Africa, Middle East countries, etc. So we are rich in export experience and specialize in steel products.

4. Our company is engaged in steel area over 59 years, we understand the performance and application scope.

5. Shipment of goods - More than 30 countries worldwide.

6. Every process will be checked by responsible QC, which insures every product's quality.

7. We have win reputation based on ourselves factory.
