Машина для смешивания гипсовой Штукатурки машина распыления цементной штукатурки изоляция заземление инъекция легкого бетона

Описание и отзывы

Характеристики

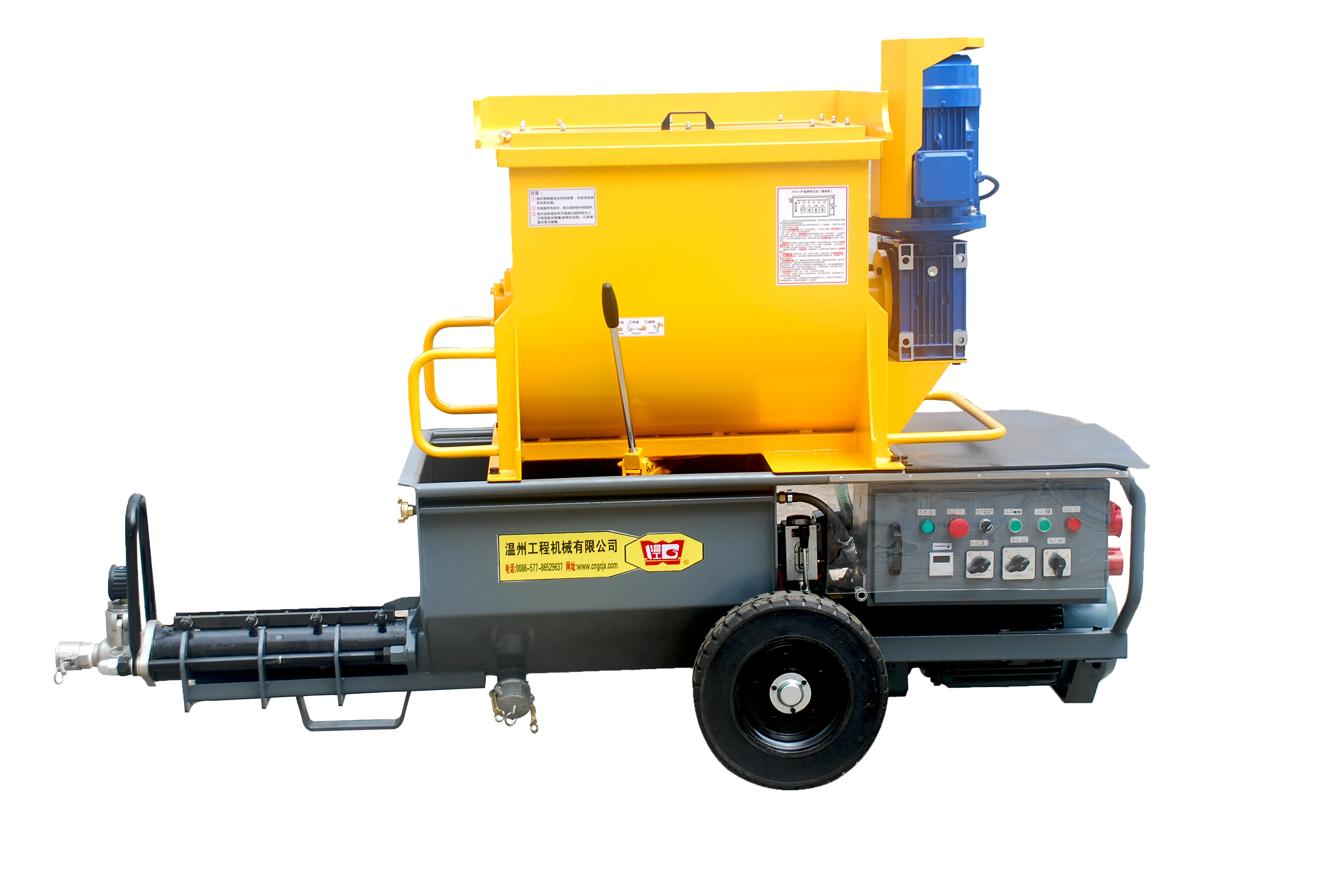

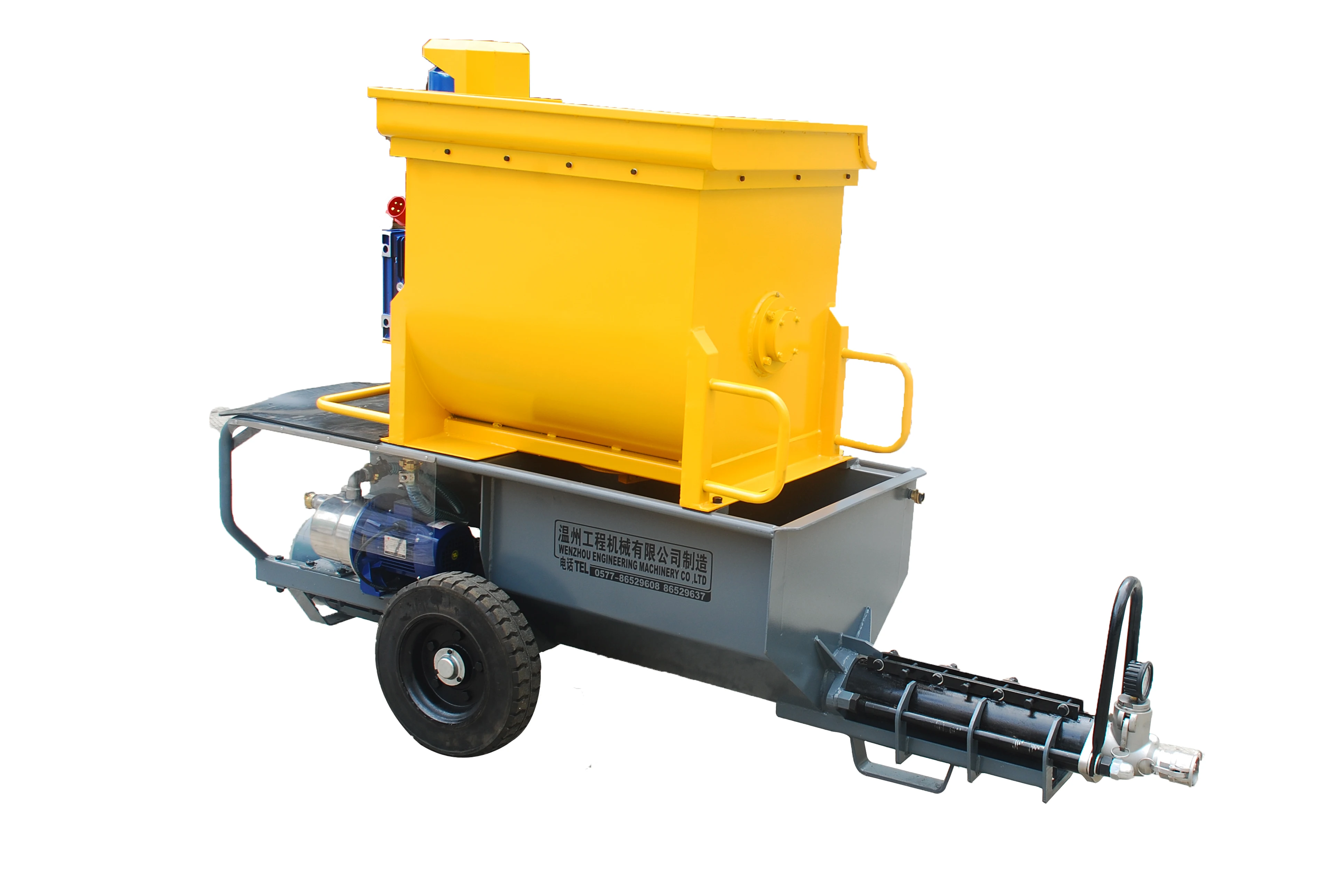

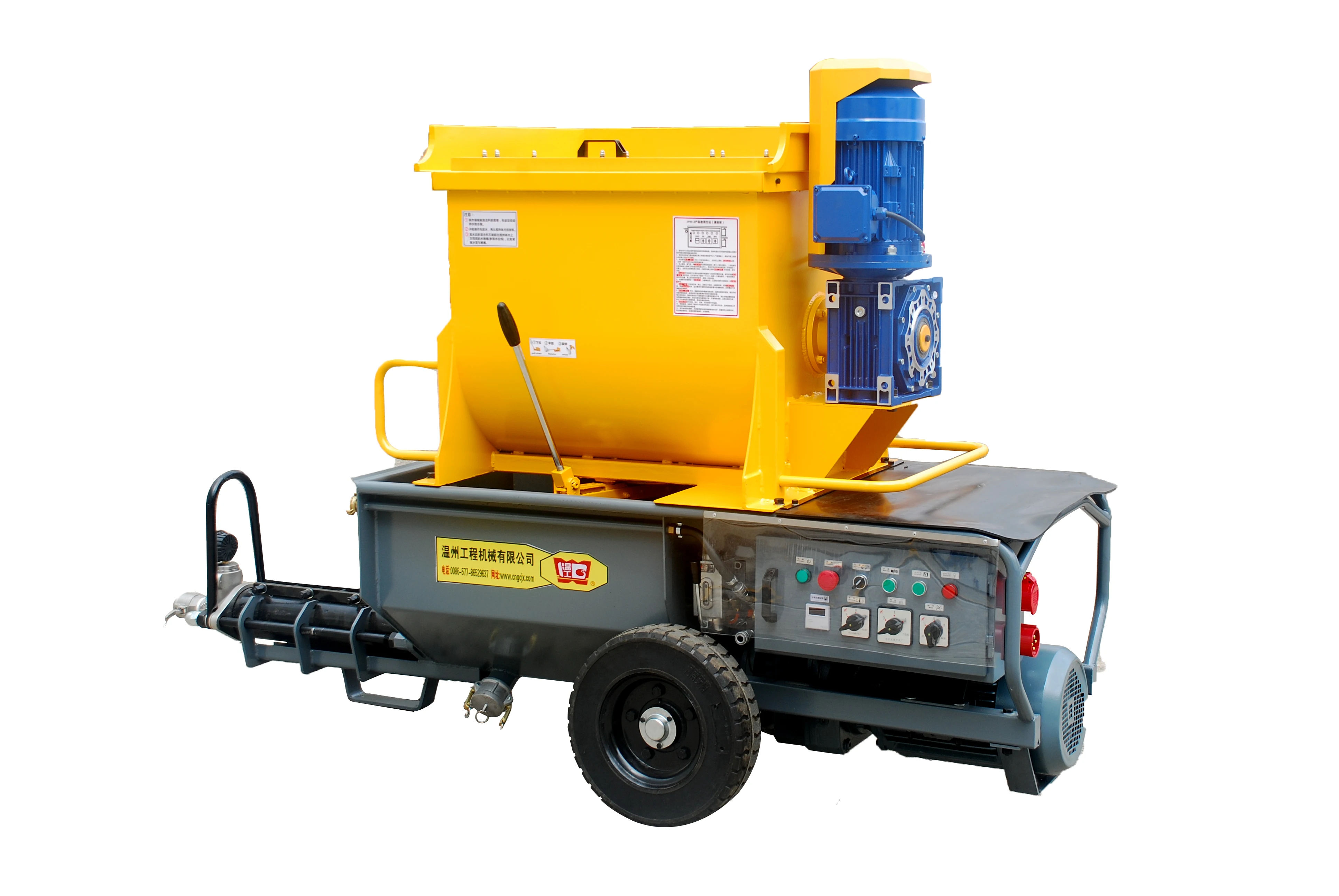

JP90-Z gypsum plaster mixing machine

"Wall goe" development and technology team, improve the JP90Z light steel wall spraying machine recenly. Made a technical upgrade to make the machine more prominent advantages, overall performance, which is well used in the domestic assembly-type construction industry, and played an unparalleled role, which is highly appreciated by users, as the pride of similar products.

When applying grout, it’s imperative that the correct equipment is used in order to fill all gaps and penetrate into all vacant spaces to give the finished product the required strength, durability and waterproofing qualities.  The correct application of grout is also essential.

Some typical grouting applications are:

·         Waterproofing

·         Floor restoration

·         Metal door and window frames

·        Sealing joints

·         Connecting prefabricated concrete sections

·         Filling voids and eliminating holes in concrete blocks

·         Tiling

·         Levelling sidewalk slabs

·         Manhole and sewer linings

Grout typically comprises a mixture of cement, sand, water with other materials such as fine gravel and accelerating mixtures added on occasion, and it can be a tricky substance to work with unless you have the correct equipment.

Technical parameters of JP90-Z   automatic spraying machine

Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.

***Highlights 1***

The use of cam structure mixer open the door technology (Patent No. ZL2017.Z131397.0)

Advantages: high sealing, easy opening and closing, self-cleaning edge mortar.

***Highlights 2***

 large diameter mixer outlet

Advantages: to achieve an instant memory capacity of 260 liters of mixed mortar displacement

***Highlight 3***:

Application of mini remote sensing controller

Advantages: long-range sensitivity, suitable for messy long-distance control of mechanical work at any time.

***Highlights 4***

 a slurry leak-proof seal applications (Patent No. ZL2012.2.0227665.2)

Advantages: Establish an firewall which will protect the pump motor when the motor back to hopper

***Highlights 5***

 design double helical compulsory mixer blade

Advantages: The mixed slurry can produce a strong radial flow and axial flow, the contact surface between the mixed components, good encapsulation, and high-speed mixing slurry.

***Highlights 6***

 set the screw pump decomposition mechanism

Advantages: no tools at the construction site, the rotor can be directly seperatedly from the stator on machine.

***Highlights 7***

configuration solid rubber wheels

Advantages: eliminate the troubles caused by the tire puncture in the construction site,

***Highlights 8***

accurate and simple water supply measurement unit

Advantages: Intuitive and easy to adjust water demand.

***Highlights 9***

set stirring body multi-directional screw pressure spray watering device

Advantages: From the peripheral edge of the stirring body at different angles to the stirring blade firing spiral pressurized water, stirring the body is not sticky slurry, energy saving materials, easy to clean.

***Highlights ten***

Set the cylinder action visible cover

Advantages: The opening and closing the feeding door by the cylinder to complete, intuitive mixing slurry mixing process.

***Highlights Eleven***

Set up a safety net mesh packer

Advantages: Operators in the state of rapid mechanical operation can be guaranteed.

***Highlights 12***

Configuration 100L of specific mixing motor

Advantages: Enough torque for better mixing of highly viscous stock.

 ***Highlights 13***

set double-headed cross-shaft coupling axis

Advantages: Significantly enhance the degree of freedom spray machine screw pump.

***Highlights 14***

mixing body center design

Advantages: Sprayer built-in structure of the working state is intuitive, easy to maintain.

***Highlights fifteen***

advanced electronic control procedures

 Advantages: to achieve the firstly connect, secondly release,firstly off, secondly anti-pump program electronic control methods to improve mechanical efficiency.
