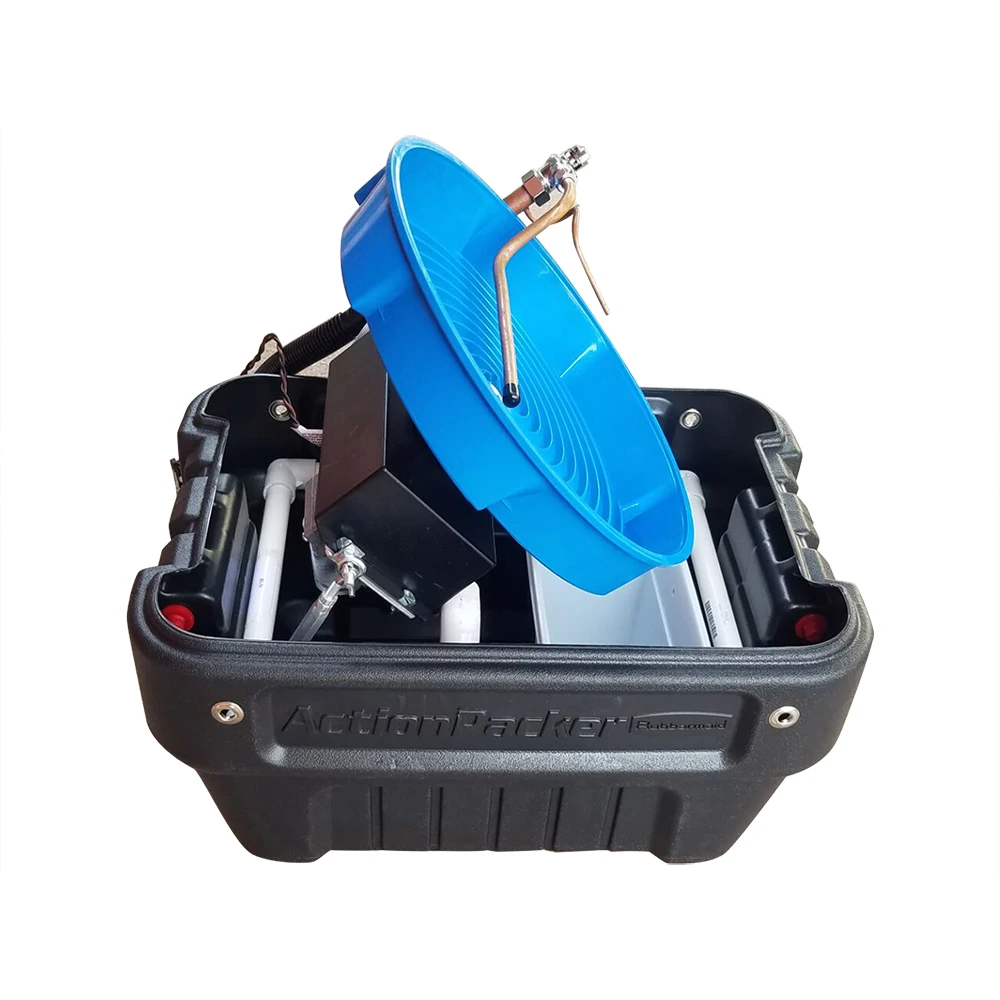

Оборудование для мойки золота, оборудование для золотодобычи, минеральный сепаратор, спиральная машина для панорамирования золота
345 619,84 ₽ - 1 274 473,16 ₽
Колесо концентратор добыча золота панорамирование мини золото стиральная машина
- Категория: >>>
- Поставщик: Jiangxi Province County Mining Machinery Factory
Сохранить в закладки 1600627157601:
Описание и отзывы
Характеристики
Product Description
Instruction

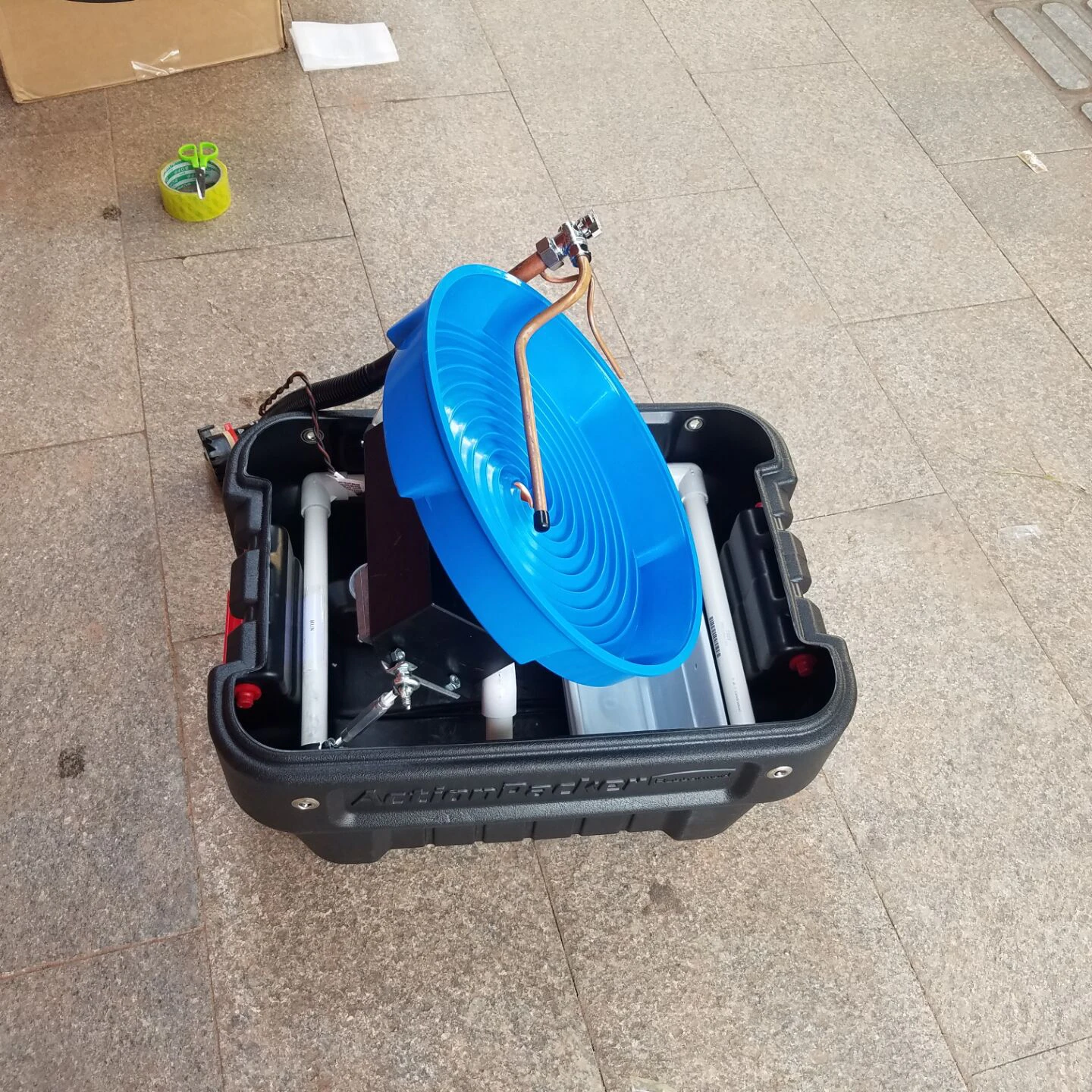

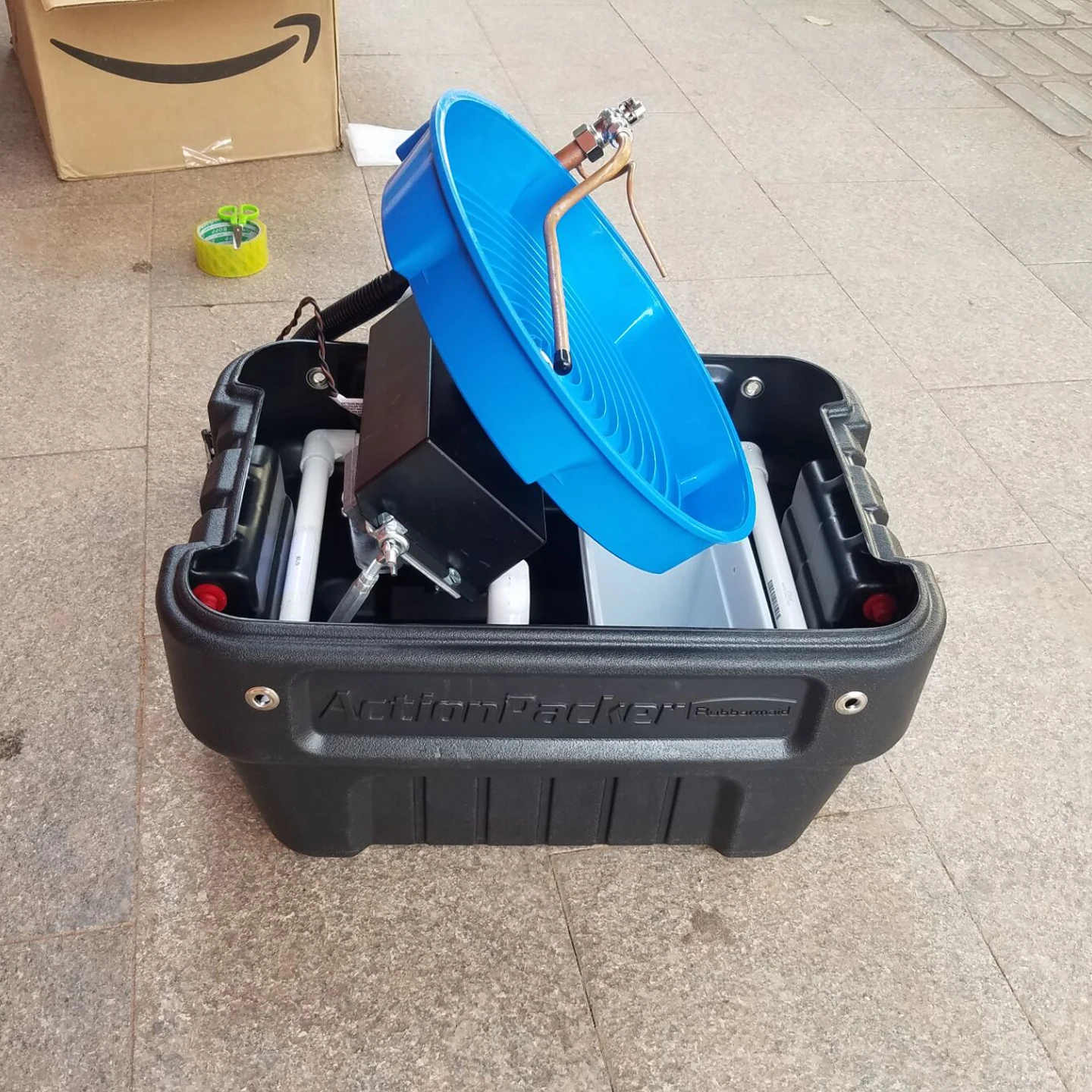

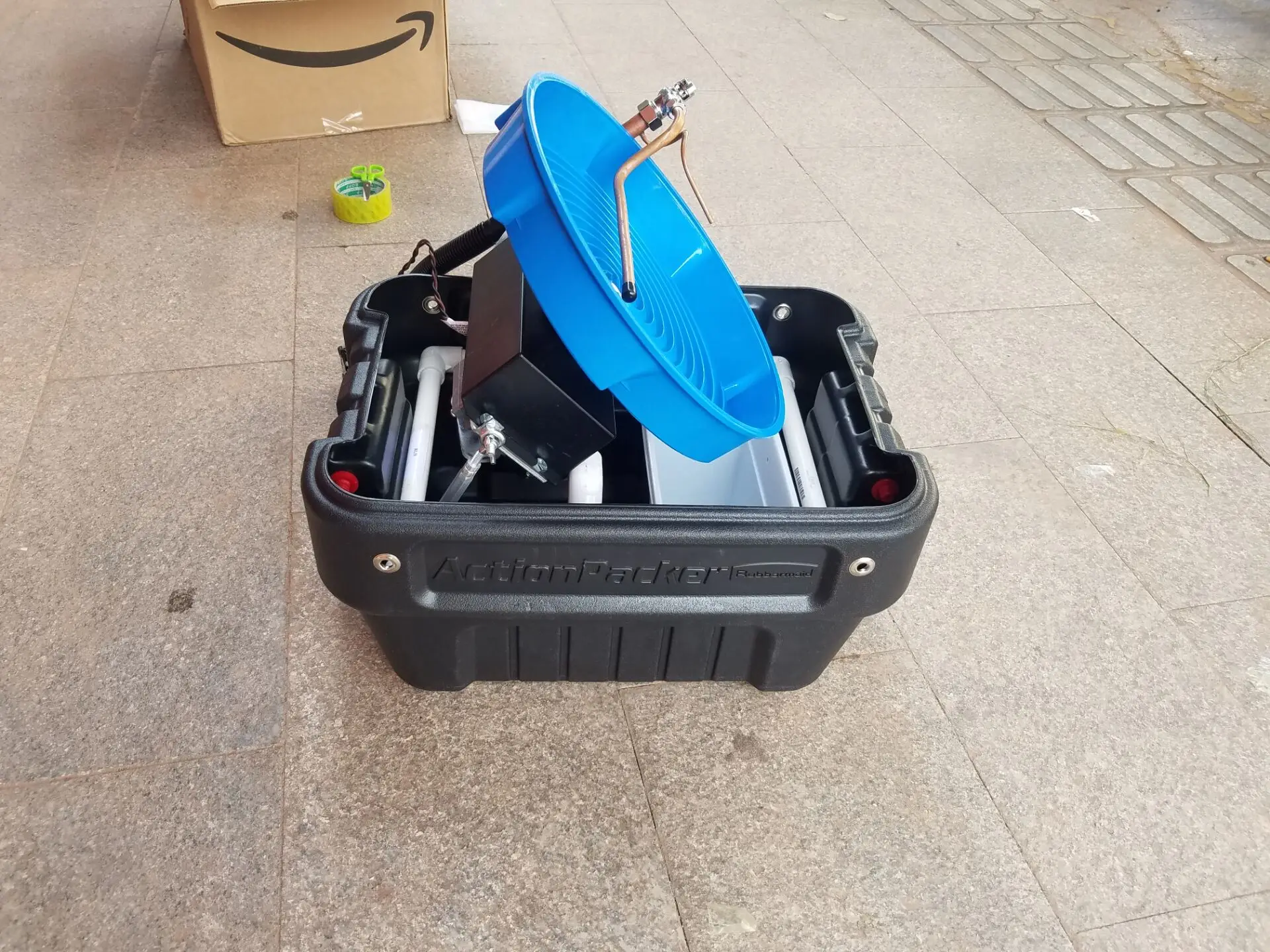

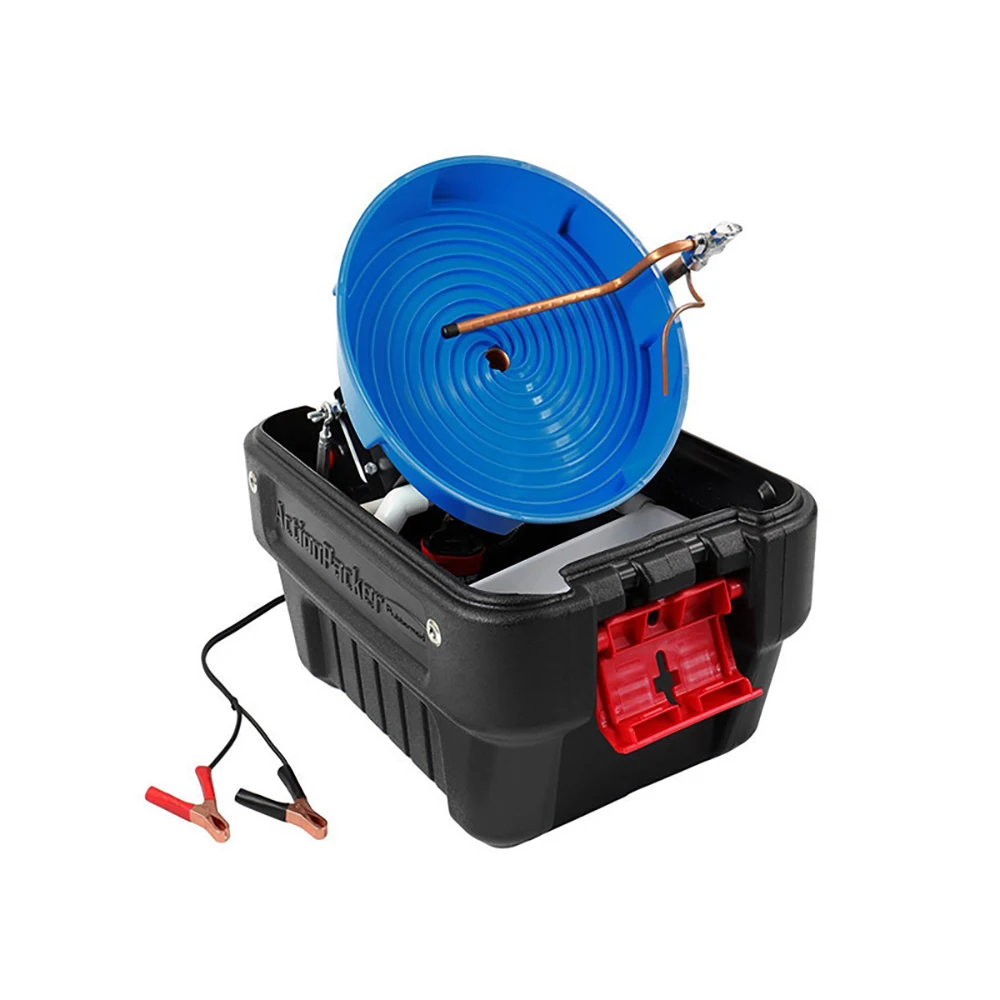

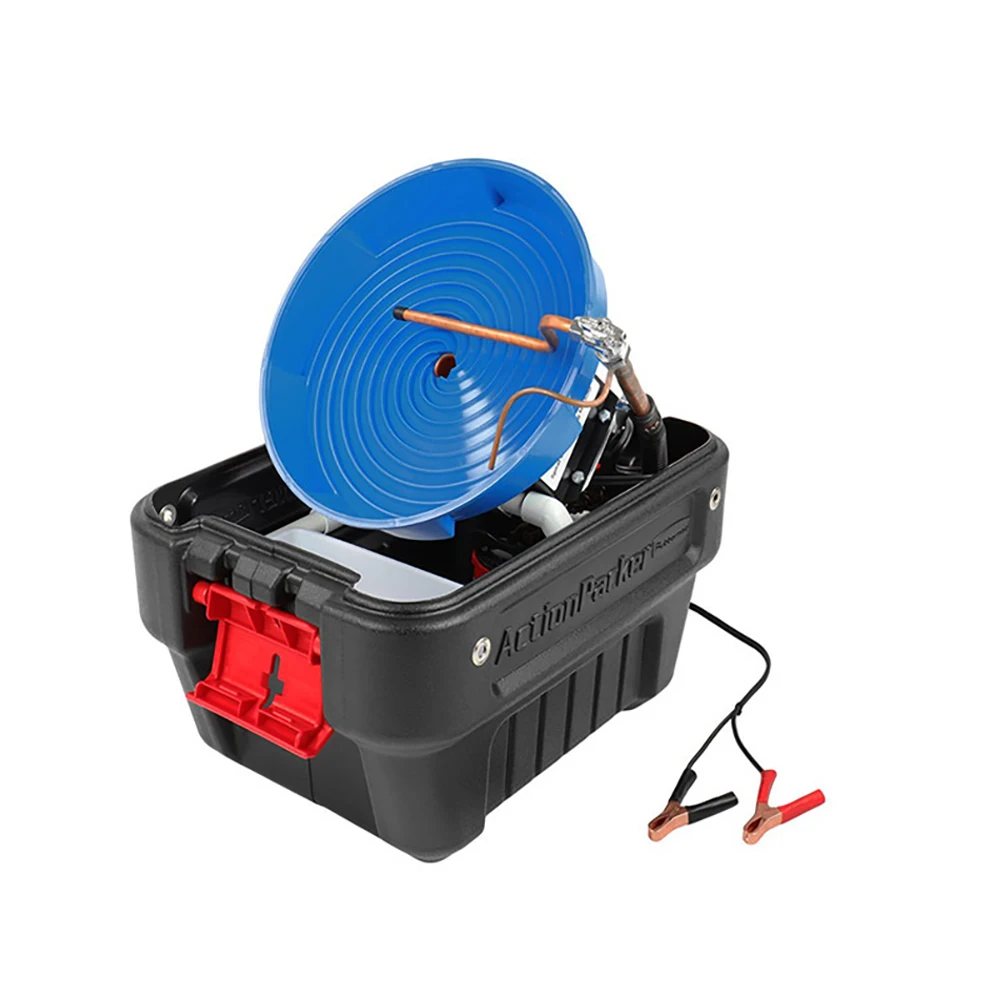

The spiral gold washing machine is mainly used for the selection and separation of placer gold, which can completely replace manual gold shaking. The equipment is small in size and weight, fast in heavy sand processing, very time-saving and labor-saving, and has a strong ability to separate fine-grained gold.
Features
● The spiral gold washing machine is light weight and fully self-contained,weighing approximately 10 pounds.The dimensions are 20” L×15”W×12”H,powered by a 120 volt battery(not include in the packing list)
● The spiral gold washing machine will run all day on approximately 3 gallons of water,it recycles the water losing only what is discarded with the tailings and evaporation.
● The spiral gold washing machine is equipped with the most advanced spiral wheel on the market.The computer designed concentrate agitators.Built into the wheel makes is the most advance gold recovery wheel on the market!It is the only wheel that will agitate the concentrate during the processing.This agitation increase the gold recovery by at least 30 percents.

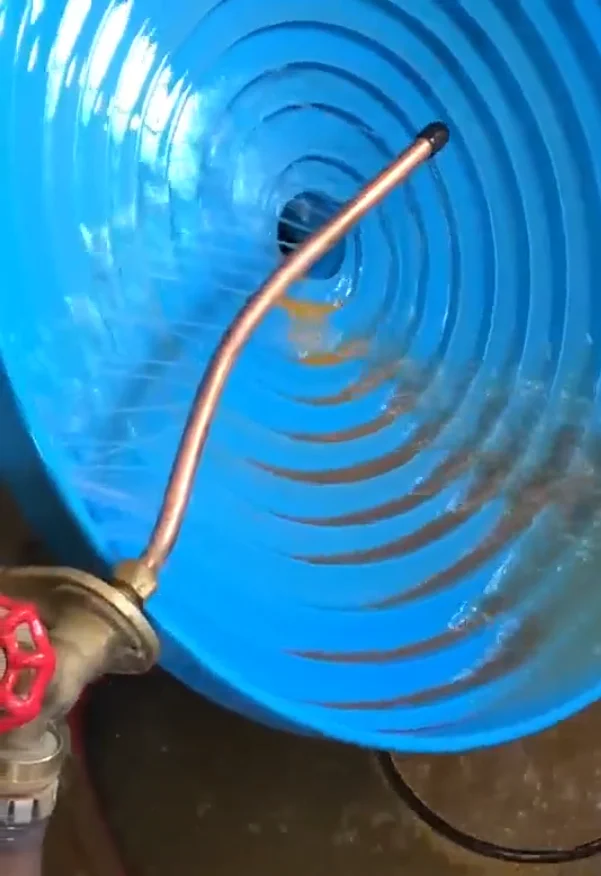

● The spiral gold washing machine computer designed pan has 7 spiral leads.It runs approximately 12 revolutions per minute,the optimum speed for the highest gold recovery Panning machine is equip with an advance design injection molded pan.It has deeper recesses.They are located at the beginning of each riffle for better agitation of your concentrate.

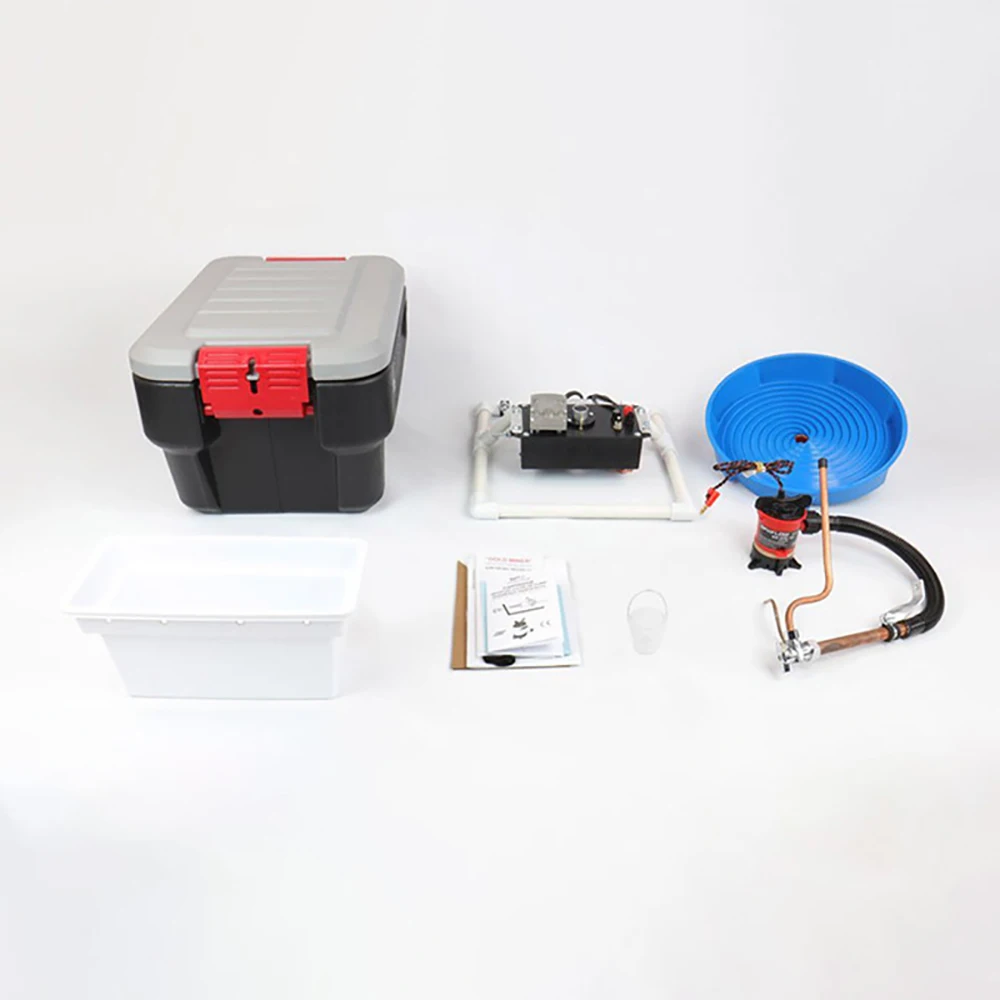

Set up

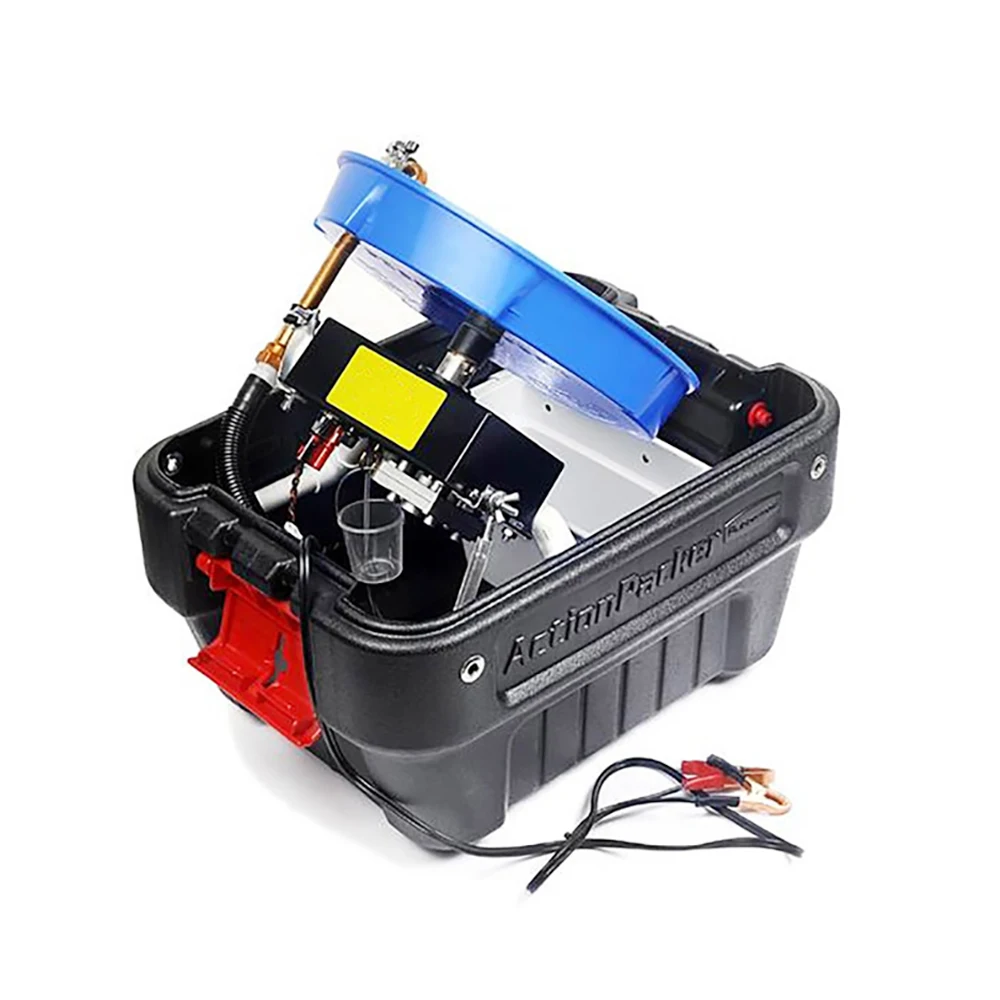

1. The drive unit is attached as a sliding frame, making set-up easier
2. Install spiral pan and rotate until wheel engages drive notch
3. Slide the entire drive unit with the pan attached forward until it reaches the stop points on frame
4. Gently move the "micro-adjuster"that is attached to the frame upwards.Attach the loop end of "micro-adjuster"to the gear box bracket.tighten wing nut.
5. Place nylon filter over the bottom of the pump and secure with the rubber band 6. Install the spray bat assembly with pump attached, to the back of the drive unit using the wing nut provided.The spray bar should be set level across the spiral pan approx. 1/2" to 1"inch from the surface of the pan.
7. Adjust the smaller jet tube by gently bending so that it points at the inside wall of the spiral pan at approximately five o'clock position and half way up the side wall.
8. Fill the carrying case with water to just under the frame. (using approximately 3 gallons of water). Add 4 or 5 drops of jet dry anti-spotting agent to water. This wetting agent will prevent super find gold from floating out of the catch up.
9. Hang catch up hook located on back of drive unit.Turn on and adjust flow of water(without splash) from spray bar using water valve.
10. Make sure the power switch is in the off position. Plug pump unit into the power supply located on the drive unit making sure that the colors match (Red to Red and Black to Black).
Preparing
1. We recommend that you classify your concentrate with a #8 or #12 classifier to start with, then go finer if needed for panning all black sand

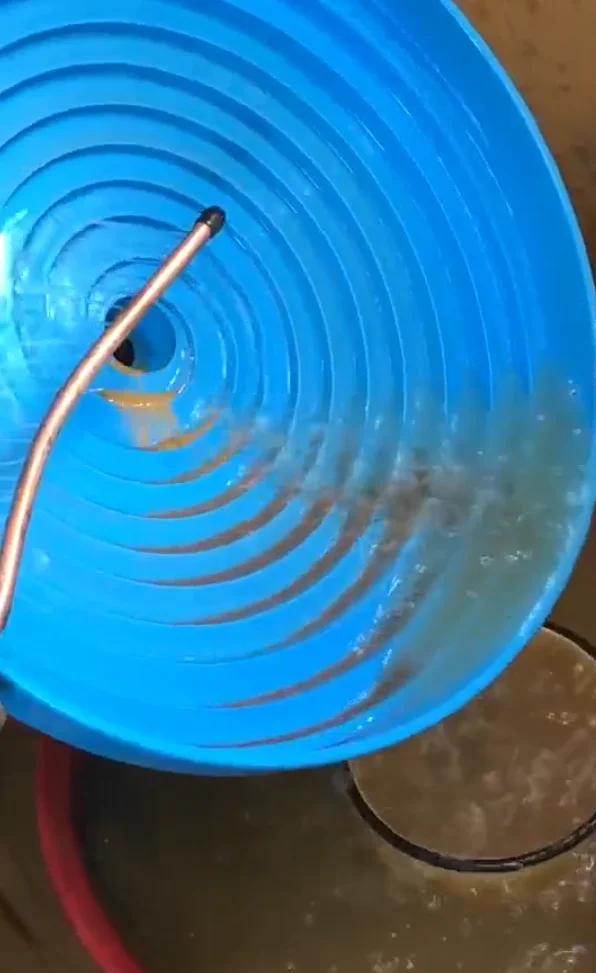

2. Add concentrate (approx 3-to 4 oz every 15 to 30 seconds) to the wheel at the seven o'clock position.Watch for
black sand to rise up the wheel. Speck of black sand should be no closer than 2 inches from the center hole of the wheel.When properly adjusted only clean gold will be recovered in the catch cup.
black sand to rise up the wheel. Speck of black sand should be no closer than 2 inches from the center hole of the wheel.When properly adjusted only clean gold will be recovered in the catch cup.
3. For removal of the tailing container to empty it.Simply slide the frame by gently pulling back at both "T's" on either slide of the frame near the tailings container.After it is empty and back in,simply slide the frame up until it stops.This whole process should take less than a minute.
Packing and Delivery

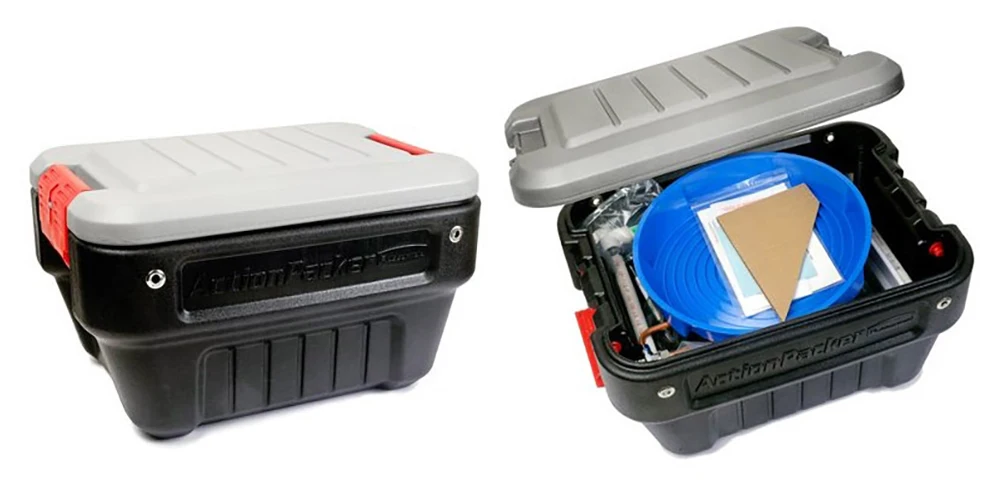

Ways of packing |
1. Small parts packed in the wooden cases |
2. Big parts packed by plastic membrane |
3. The whole big machine is loaded in the container |
Company Profile
Jiangxi Province County Mining Machinery Factory
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 30 years experiences,providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand /Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
