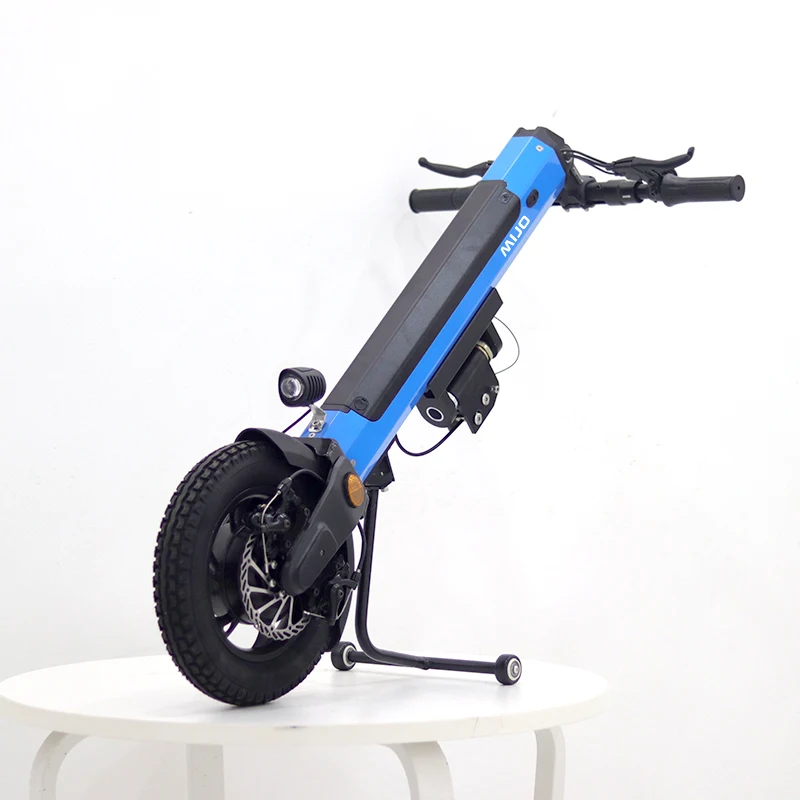

Электрический ручной велосипед для инвалидных колясок Mijo MT01, ручной велосипед 36 В 350 Вт, силовой вспомогательный складной руль cnebike
580,00 $ - 770,00 $

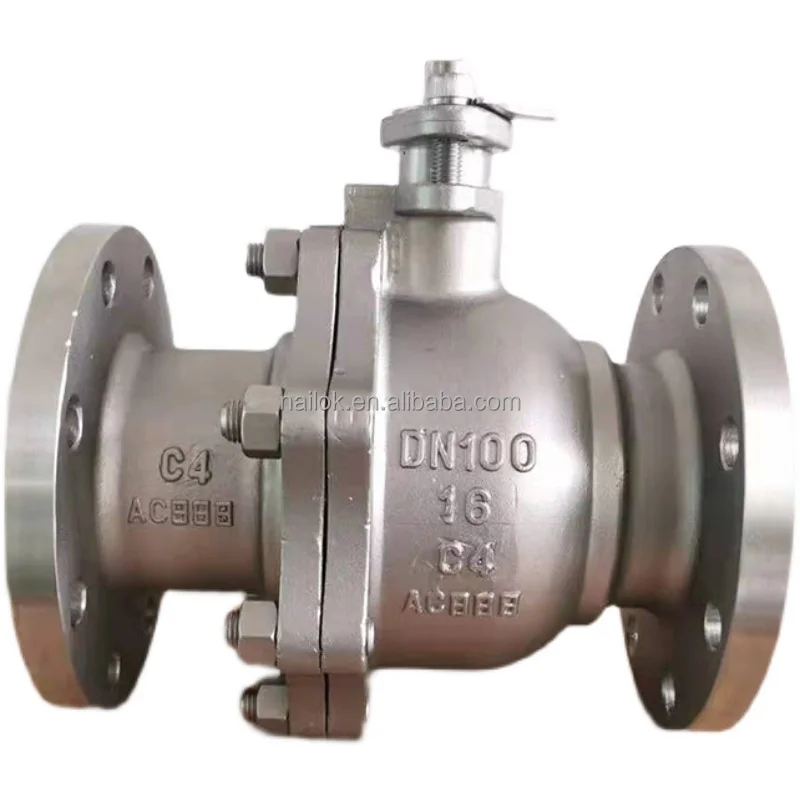

Фланцевый шаровой кран HC276/C4/C5/CW12MW/CZ100 из сплава Hastelloy Хлорированный щелочной авиационный морской химический бронзовый DN80
- Категория: >>>
- Поставщик: Shanghai Nai Lok Industrial Co. Ltd.
Сохранить в закладки 1600627402234:
Описание и отзывы
Характеристики
Product Description
Ball valves are used to cut off or connect the medium in the pipeline, as well as to regulate and control the fluid. As a
professional manufacturer of customized valves, we can provide you with all kinds of floating and trunnion mounted ball valves.
Ball valves mainly feature compact structure and reliable sealing. The sealing surface and spherical surface are often closed,
which means it's not easy to be eroded by medium and easy to operate and maintain. NAI LOK is a professional ball valve supplier
and valve manufacturing company that has different types of ball valves for sale. We are good at making cast hand operated valve
and forged ball valve with various special alloys, which are suitable for general working media such as water, solvent, acid and
natural gas, as well as suitable for bad working.
professional manufacturer of customized valves, we can provide you with all kinds of floating and trunnion mounted ball valves.
Ball valves mainly feature compact structure and reliable sealing. The sealing surface and spherical surface are often closed,
which means it's not easy to be eroded by medium and easy to operate and maintain. NAI LOK is a professional ball valve supplier
and valve manufacturing company that has different types of ball valves for sale. We are good at making cast hand operated valve
and forged ball valve with various special alloys, which are suitable for general working media such as water, solvent, acid and
natural gas, as well as suitable for bad working.
Specification
Manual Ball Valve Advantages
1. Soft seated ball valve or metal seated ball valves for high temperature
2. Full bore and reduced bore ball valve
3. Fire-safe and anti-static device
4. Double block and bleed function
5. Grease injection for seat and stem
6. Blowout-proof stem
7. Self cavity pressure relief
8. Gland locking device
9. Anti-leakage packing and packing box
10. ISO 5211 mounting pad
1. Soft seated ball valve or metal seated ball valves for high temperature
2. Full bore and reduced bore ball valve
3. Fire-safe and anti-static device
4. Double block and bleed function
5. Grease injection for seat and stem
6. Blowout-proof stem
7. Self cavity pressure relief
8. Gland locking device
9. Anti-leakage packing and packing box
10. ISO 5211 mounting pad
Hand Ball Valve Specification
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Pressure rating: CLASS 150LB~2500LB, 1.0MPa~42.0MPa, JIS 10K~40K
Size range: NPS 3/8"~48", DN8~DN1200
End connections: flange, wafer, threaded, butt weld, socket weld
Operation: handle lever operated ball valve, gear operated ball valve, pneumatic operated ball valve, hydraulic actuator, electric
actuator
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Pressure rating: CLASS 150LB~2500LB, 1.0MPa~42.0MPa, JIS 10K~40K
Size range: NPS 3/8"~48", DN8~DN1200
End connections: flange, wafer, threaded, butt weld, socket weld
Operation: handle lever operated ball valve, gear operated ball valve, pneumatic operated ball valve, hydraulic actuator, electric
actuator
Item | Valve | ||
Type | Ball Valve | ||
Certification | CE, TS, ISO9001, ISO18001, ISO14001 | ||
Brand | NAI LOK | ||
Model number | Q41F-1500LB | ||
Power | Manual | ||
Port Size | 2"-6" | ||
Structure | Ball,Floating | ||
Pressure | High perssure, High Temperature, | ||
Temperature | 180-480 | ||
Medium | Water,Steam,Oil | ||
Connection form | Flanged | ||
Body material | Casting | ||
Seal material | Gasket |
