Product Description

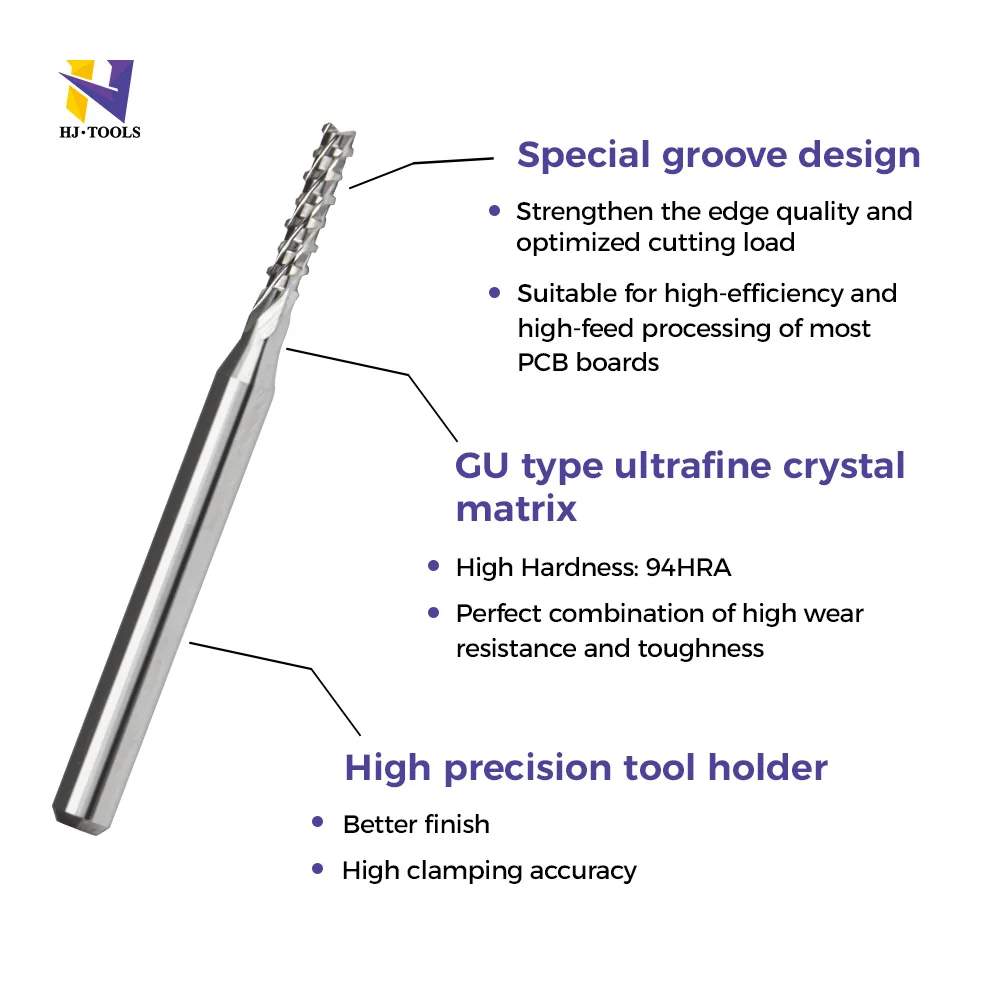

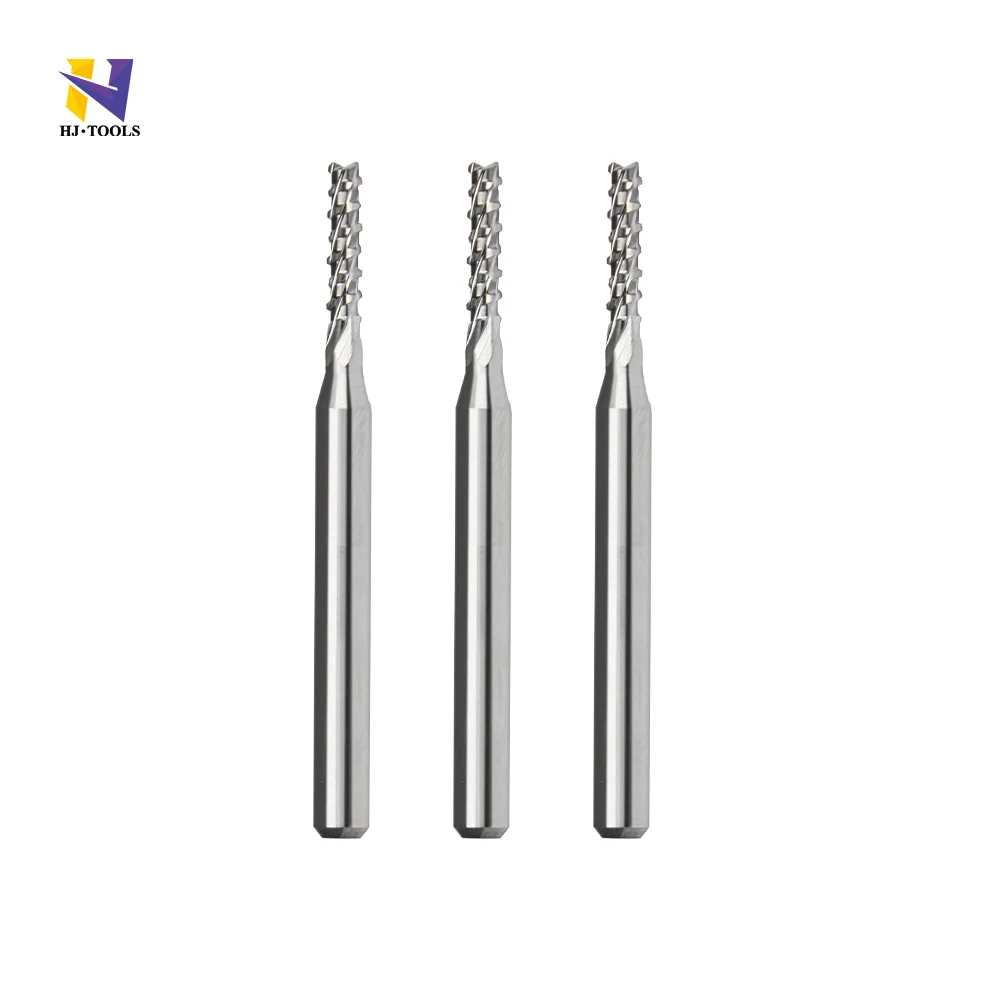

RCB series suitable for contouring on most general printed circuit boards and High-Tg printed circuit boards,high dimensional accuracy,high feed speed andexcellent surface quality.
Product Name | RCB router bit |
Material | Tungsten carbide |
Shank Dia | 3.175mm |
Over length | 38.10mm |
Mill Dia | 0.8-3.175mm |
Flute Length | 7.0-12.0mm |
Used | Routing machine |
Dimension | Parameters | ||||
Mill Dia (mm) | Flute Length (mm) | Spindle Speed (Krpm) | Table Feed (mm/s) | ||
0.8 | 5.5 | 40-48 | 3-5 | ||
1.0 | 7.0 | 40-45 | 5-7 | ||
1.2 | 8.0 | 38-43 | 9-11 | ||
1.5 | 8.0 | 28-33 | 11-16 | ||
1.6 | 8.0 | 28-33 | 11-16 | ||
1.8 | 9.0 | 27-32 | 11-16 | ||
2.0 | 9.0 | 24-29 | 11-16 | ||
2.4 | 10.0 | 22-26 | 16-20 | ||
3.175 | 10.0 | 18-22 | 16-20 | ||
RCF0.6x4.5F Increased the quality of the edge
Name | PCB diamond tooth milling cutter |
Specifications | RCB2.4*10.0 |
Processing material | Lianmao IT180 |
Processing parameter | S=28krpm, F=24mm/s |
Cutting method | Internal slot milling |
Test background | Comparative test of our RCB milling cutter and competing milling cutters |
Cutting effect | Our milling cutter RCB2.4*10.0. When processing IT180, processing to 35M, the quality of the edge has a qualitative improvement compared with the competitive product milling cutters. |
Fish tail type is standard router. Flat-end and drill types can be provided upon the requirement.
Up draft type is supplied as standard. Down draft can be provided upon the requirement.
Ring Setting
Company Profile
HJ Carbide is a high-tech enterprise integrating R&D, production and sales. Expert in the ultrafine cemented carbide research and development.
We specialized in designing and manufacturing of precision cutting tools, including cemented carbide rods, Solid Carbide end mill cutter, carbide drill bits, carbide turning inserts and some special precision cutting tools.
Our company is based on our firm commitment to providing the premium cutting tools and highest levels of customer service for global customers in the aerospace, automotive, medical, mold making and 3C industries who are looking
for comprehensive cutting tool solutions.
Coupled with a range of advanced manufacturing equipment, streamlined processes and testing devices, our team of seasoned professionals is large enough to produce the cutting tools to an exceptionally high standard. All our cutting tool products are ISO9001 and OHSAS18001 compliant. The reliable quality of products is highly appreciated by our customers worldwide.
Whether you are a distributor looking for cooperative partner or an end user looking for custom cutting tools for your specific machining applications, We are a trustworthy source for you.
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:
1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
A: Yes, We are a professional cutting tools manufacturer and has its own factory based in Xiamen. We produce in-house the carbide rods, end mills, drill bits, indexable inserts, etc.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We enter new cutting tool area with skilled personnel who have worked in industry-renowned companies for years, which found a basis for our future growth.
3) We have launched the new brand “HONGJIANG” for cutting tools and seek for partner globally. Now it is the right time to cooperate with us and take an advanced position in our sales network.
Q: What is your brand positioning?
A:
1). Quality positioning: HONGJIANG brand aims at establishing itself as a leading brand and competing in a global market by supplying premium quality products.
2). Price positioning: We provide our products with the same quality as those international brands at more reasonable prices.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
Похожие товары

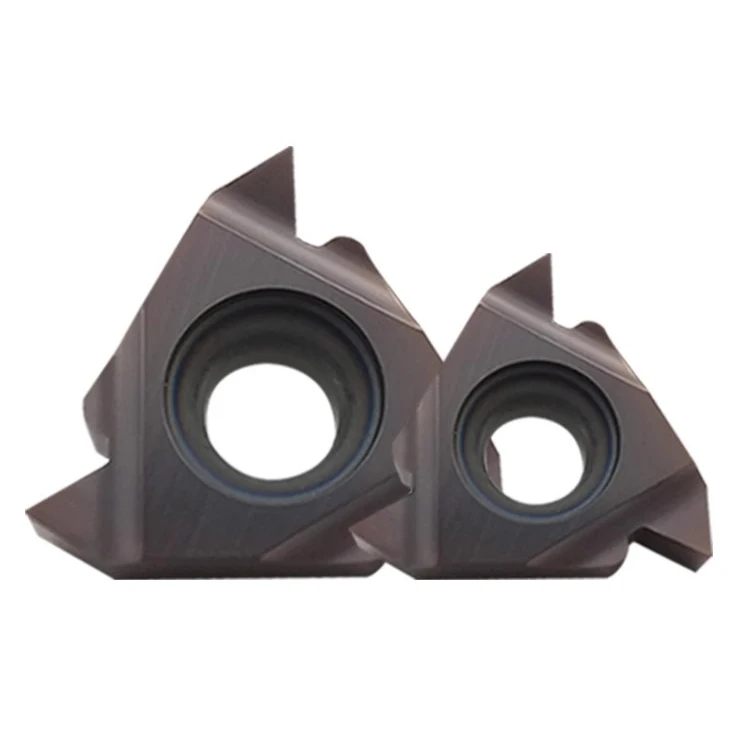

Резьбовые вставки 11er 11ir 16er 16ir 22er 27er 27ir 16acme 14acme 12acme 10acme 8acme 29 градусов
83,03-106,75 ₽
Внешний токарный держатель с ЧПУ Mtjnr Mtjnl Mtjnr2020k16
308,39-461,39 ₽

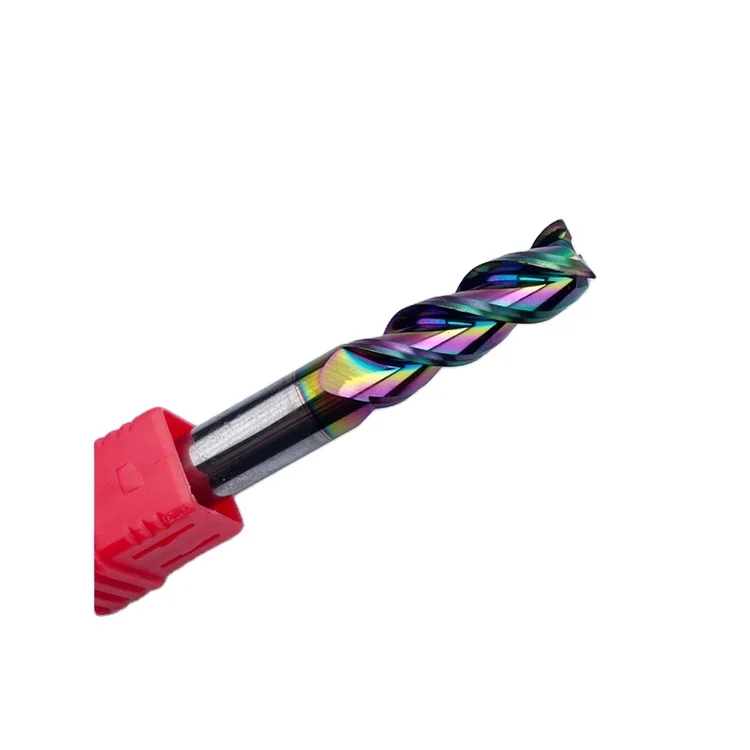

Прямая продажа от производителя цветной U-образный слот для черновой обработки дюймовая квадратная торцевая фреза из карбида вольфрама с покрытием Dlc
220,62-225,36 ₽

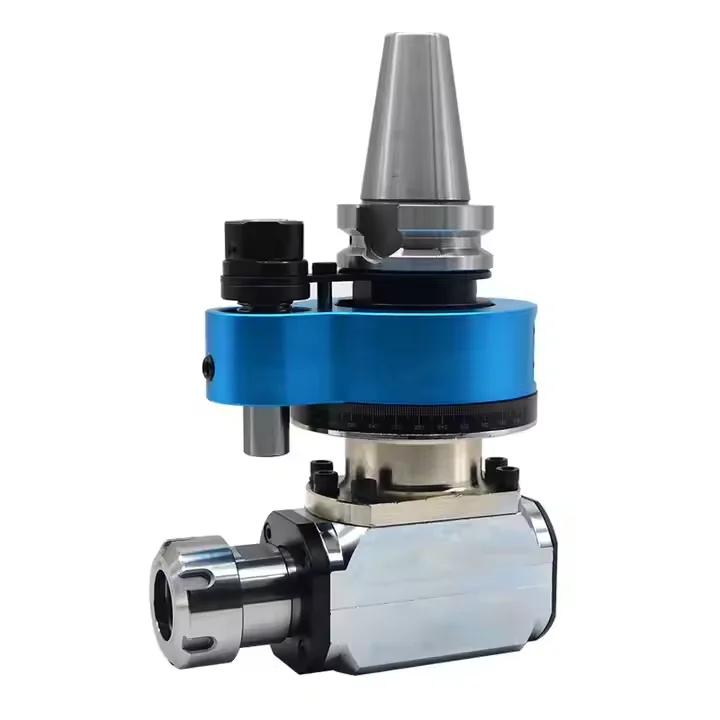

Заводская поставка AG90 BT30 ER25C cnc Угловая головка Регулируемая
