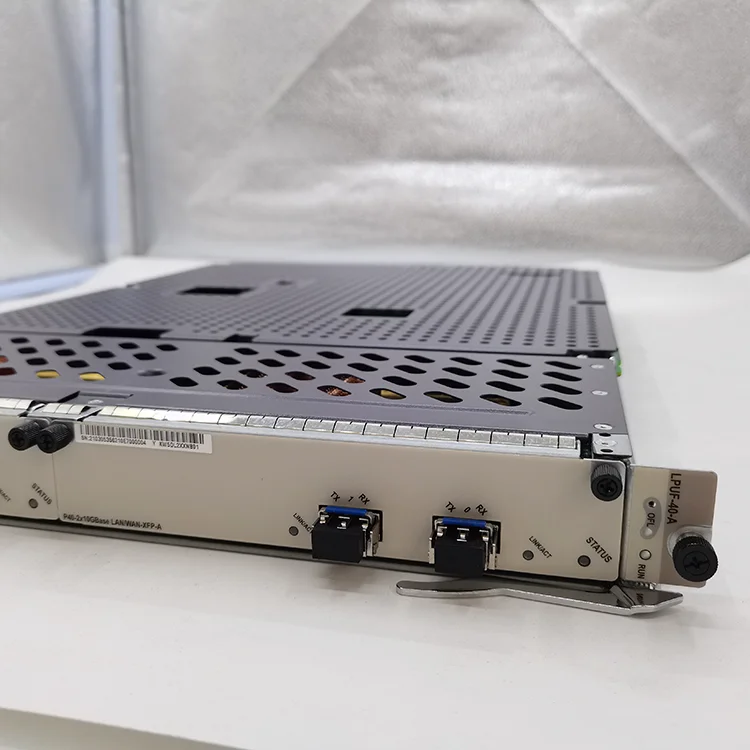

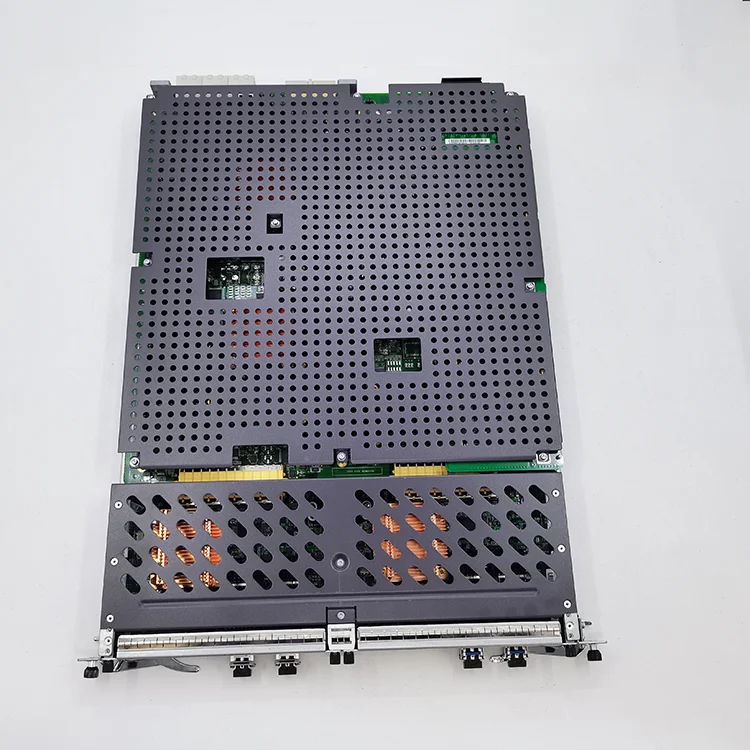

HUAWEI LPUF 40 A с P40 2x10GBase LAN/WAN XFP A 2103053562 KW5DL2XXNB01 для AntiDDoS8000

HUAWEI LPUF 40 A с P40 2x10GBase LAN/WAN XFP A 2103053562 KW5DL2XXNB01 для AntiDDoS8000

Категория: >>>
Поставщик: Hunan Rongjia Yizhao Information Technology Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

The LPUF-40-A is hot swappable and provides two 1/2-width slots, each of which holds one FPIC. It supports the following functions: 1. Forwards packets at the line speed of 40 Gbit/s. 2. Enhances networking flexibility and provides low-cost and customized solutions. 3. Supports mixed insertion between different FPICs.

NOTICE:

The LPUF-40-A backplane does not support the hot swap of FPICs.

The sum of the LPUF-40-A subcard performance cannot exceed 40G. Each slot supports a maximum of 20-Gbit/s bandwidth.

Product Specification

Item	Description
Silkscreen of the board name	LPUF-40-A E8KE-X-LPUF-40-A
Dimensions (W x D x H)	400 mm x 520 mm x 41 mm
Typical power consumption	280 W
Maximum power consumption	290 W
Typical heat consumption	955.4 BTU/hour
Maximum heat consumption	989.5 BTU/hour
Board weight	6.6 kg

Item	Specifications
Board silkscreen name	P40-2x10GBase LAN/WAN-XFP
Dimensions (width x depth x height)	180 mm x 145 mm x 40 mm
Typical power consumption	12 W
Maximum power consumption	12 W
Typical heat consumption	40.9 BTU/hour
Maximum heat consumption	40.9 BTU/hour
Board weight	0.6 kg

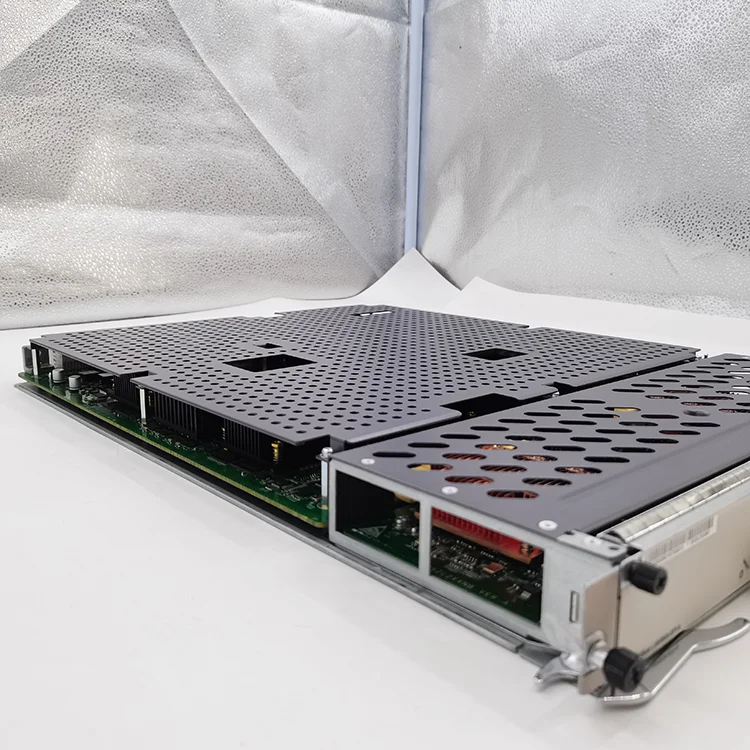

Product Picture

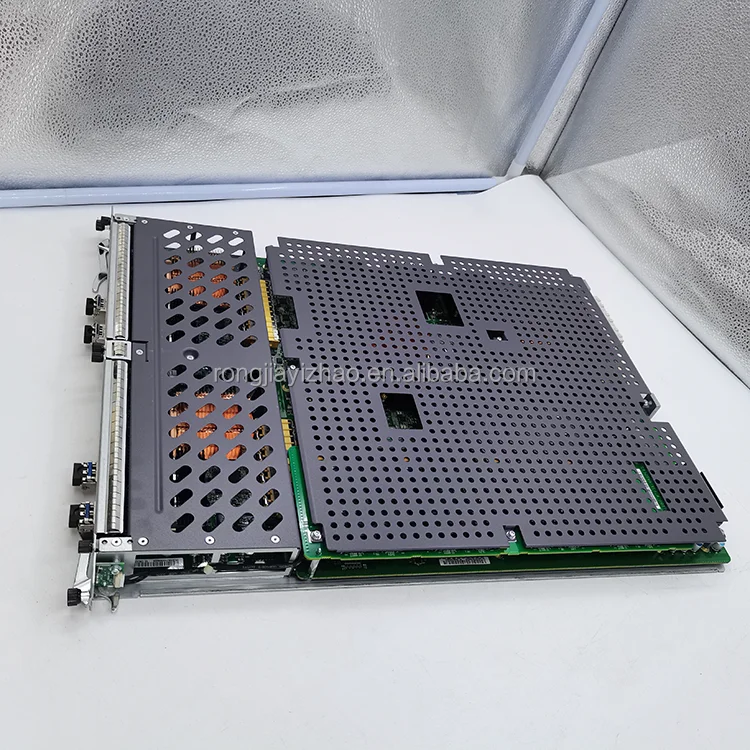

LPUF-40-A -1 .png

LPUF-40-A -3 .png

LPUF-40-A -5 .png

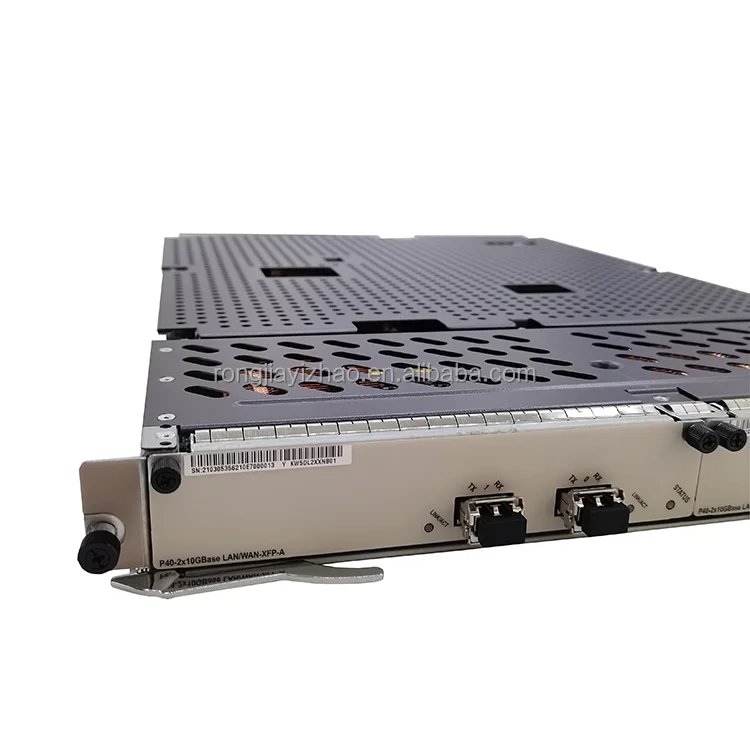

LPUF-40-A -6 .png

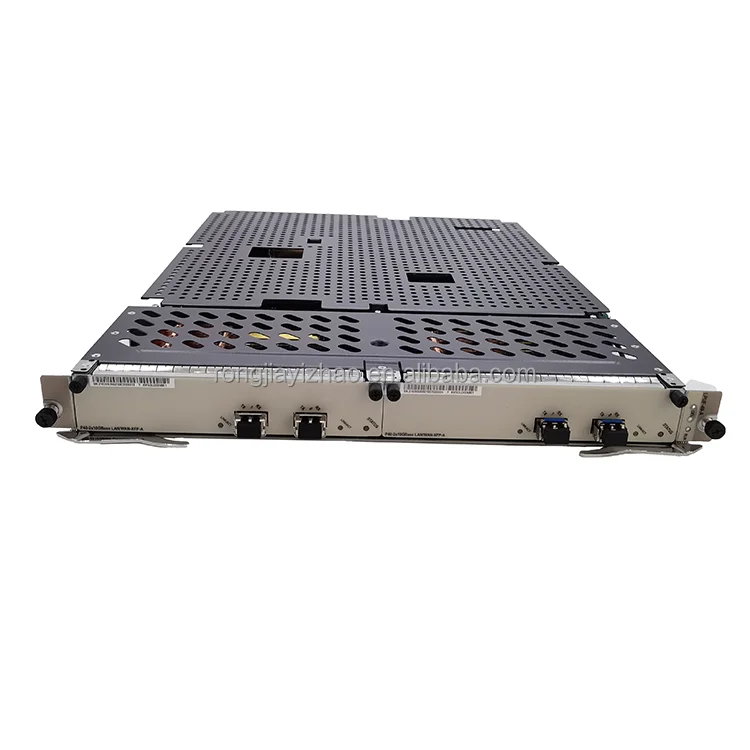

LPUF-40-A -7 .png
