Диагностический сканер для автомобиля
44 084,52 ₽ - 52 901,43 ₽

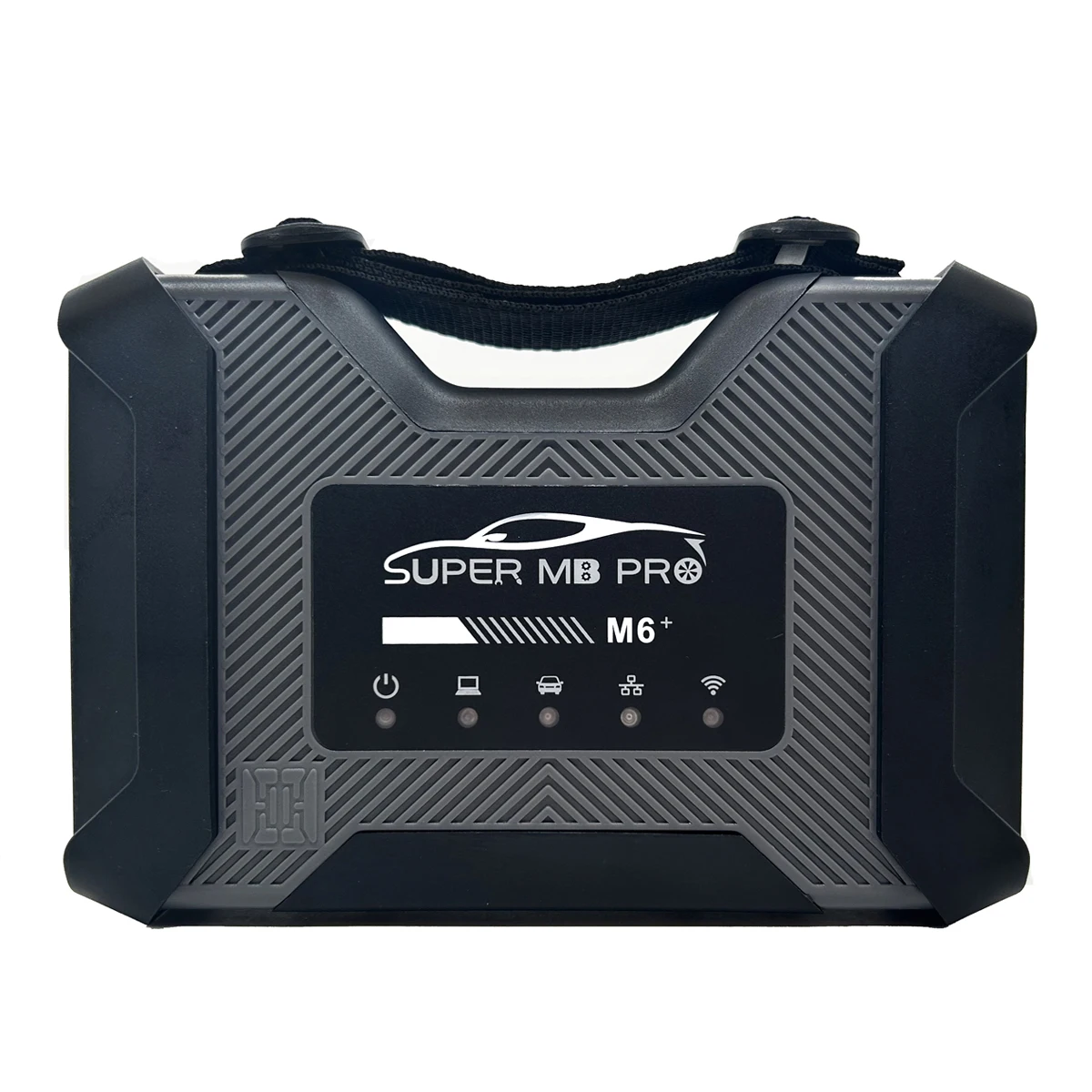

Беспроводной диагностический кабель SUPER MB PRO M6 для Benz с мультиплексором кабелем Lan и 16 контактным OBD2
- Категория: >>>
- Поставщик: Shenzhen Jiushu Technology Co. Ltd.
Сохранить в закладки 1600629866488:
Описание и отзывы
Характеристики

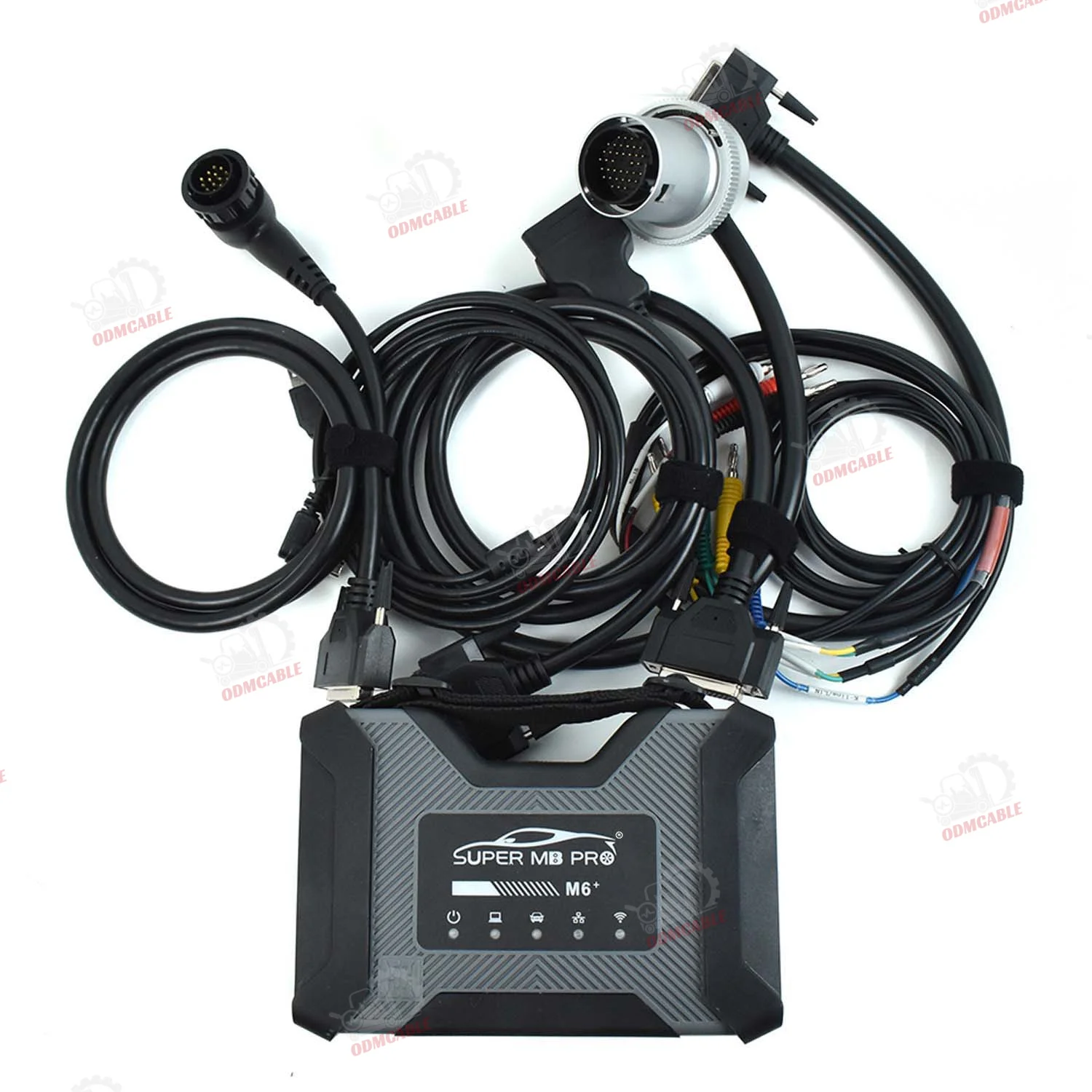

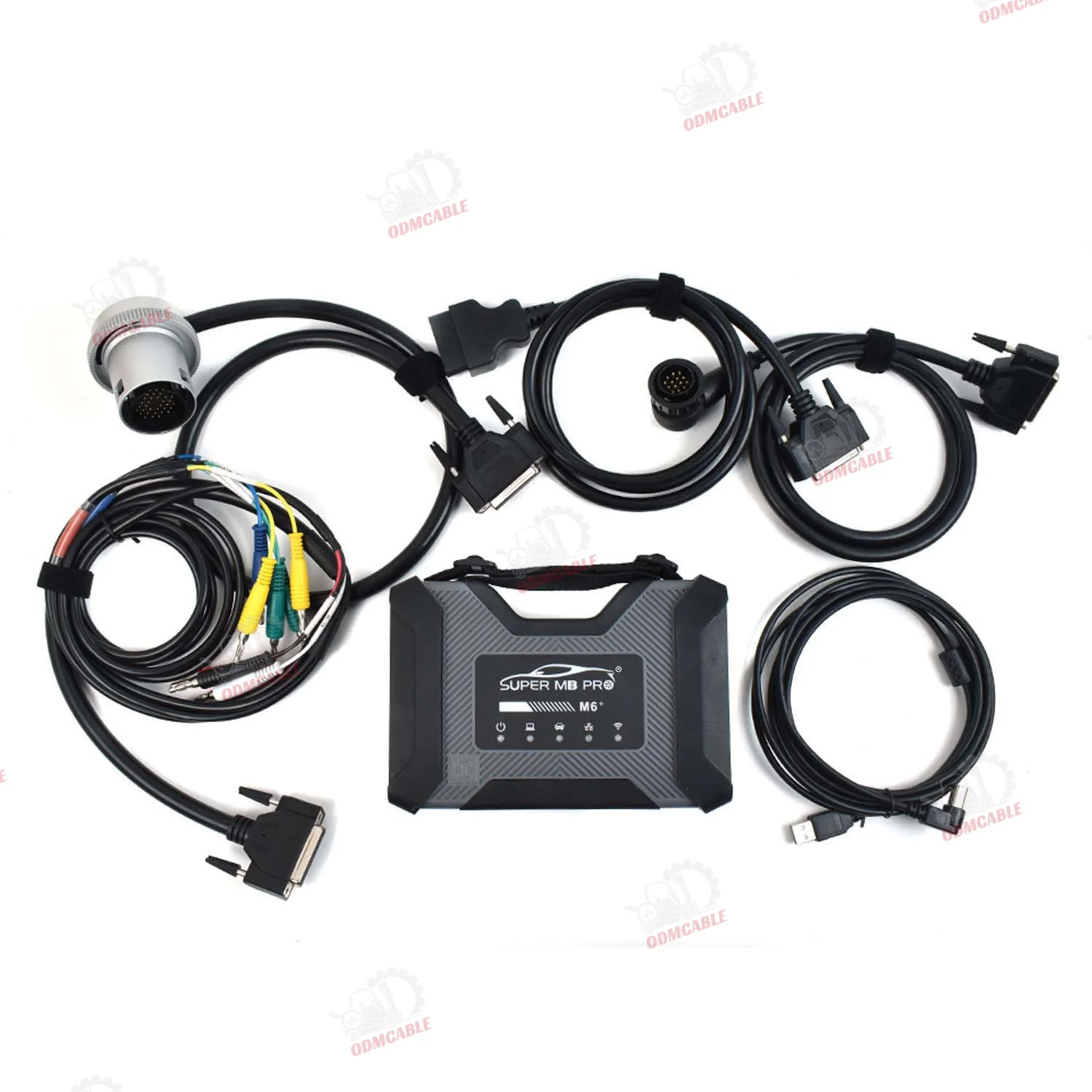

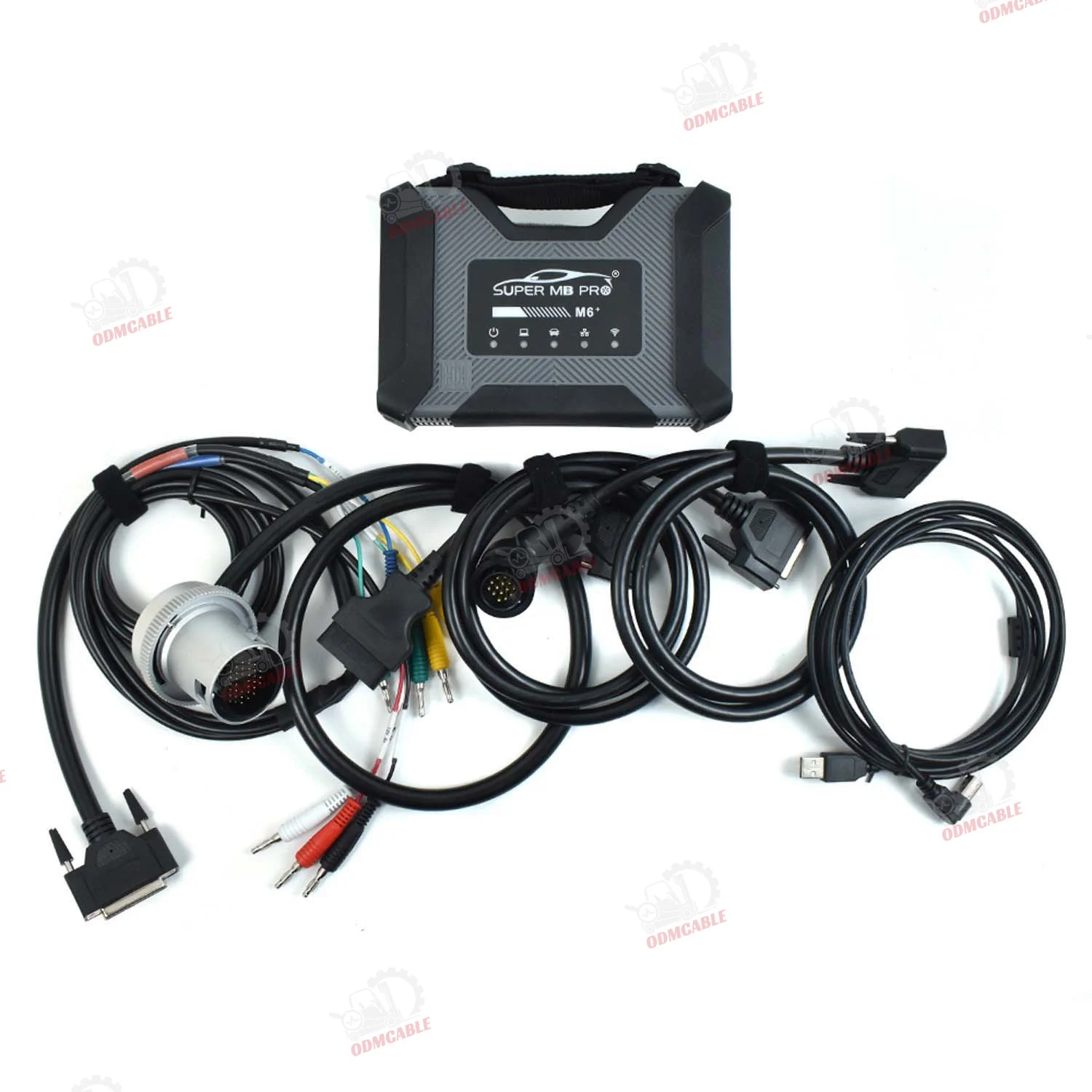

SUPER MB PRO M6 Wireless Star Diagnosis for Benz with Multiplexer+USB Cable+OBD2 16pin Main Test Cable Car Truck diagnostic Tool
package list
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable
1pc x SUPER MB PRO M6 + Main Unit
1pc x OBD2 16pin Cable
1pc xUSB cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable
M6+ PLUS Features:
1.100% compatible with software.
2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.
3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the
product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned
computers and tablets with network ports.)
4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the
M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection
services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways
greatly improve the product flexibility.
Super MB Pro M6+ Connection Instructions

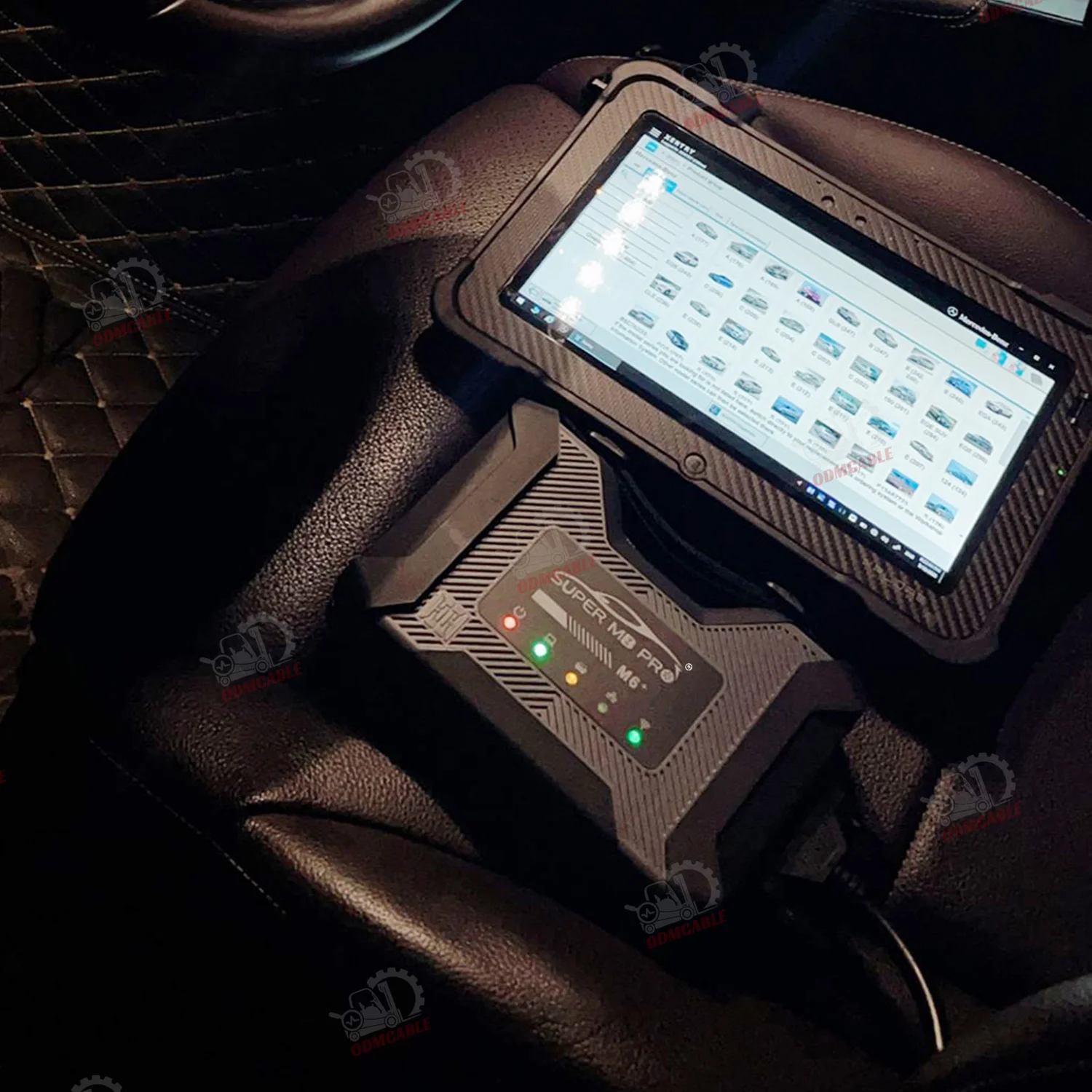

(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light
① on the host is always on, and the system indicator
② is flashing during startup. After startup,
② is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port
⑦ of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on
the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection
property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add
multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network,
④ the indicator light will be on.
1.100% compatible with software.
2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.
3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the
product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned
computers and tablets with network ports.)
4.M6+ supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the
M6+ to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection
services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways
greatly improve the product flexibility.
Super MB Pro M6+ Connection Instructions
(1)Connect the M6+ hardware box to the car diagnostic interface via the test line. The red indicator light
① on the host is always on, and the system indicator
② is flashing during startup. After startup,
② is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port
⑦ of the M6+ hardware box to the USB port of the computer or tablet via a USB cable, and a new network connection will appear on
the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection
property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Preferred DNS: 169.254.255.255, click “Advanced”, add
multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network,
④ the indicator light will be on.
(3) Wireless connection:
You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you
will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is
always on, the wired light is off, no setting is required, the password is 123456789.
(4) After opening the BEN-Z software lock on the computer side, the original diagnostic test software can be used normally.
(5) For remote C-end operation, please consult us.
You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you
will find a M6+ DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is
always on, the wired light is off, no setting is required, the password is 123456789.
(4) After opening the BEN-Z software lock on the computer side, the original diagnostic test software can be used normally.
(5) For remote C-end operation, please consult us.
Похожие товары

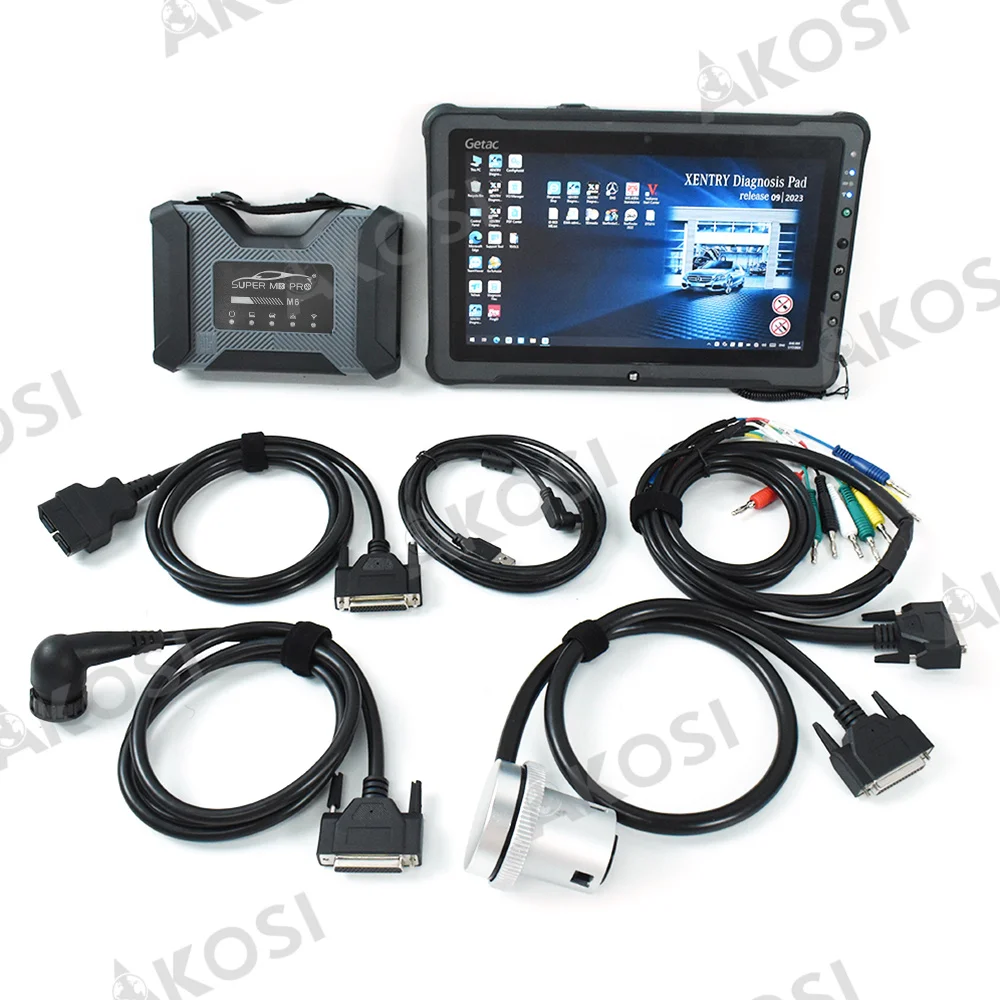

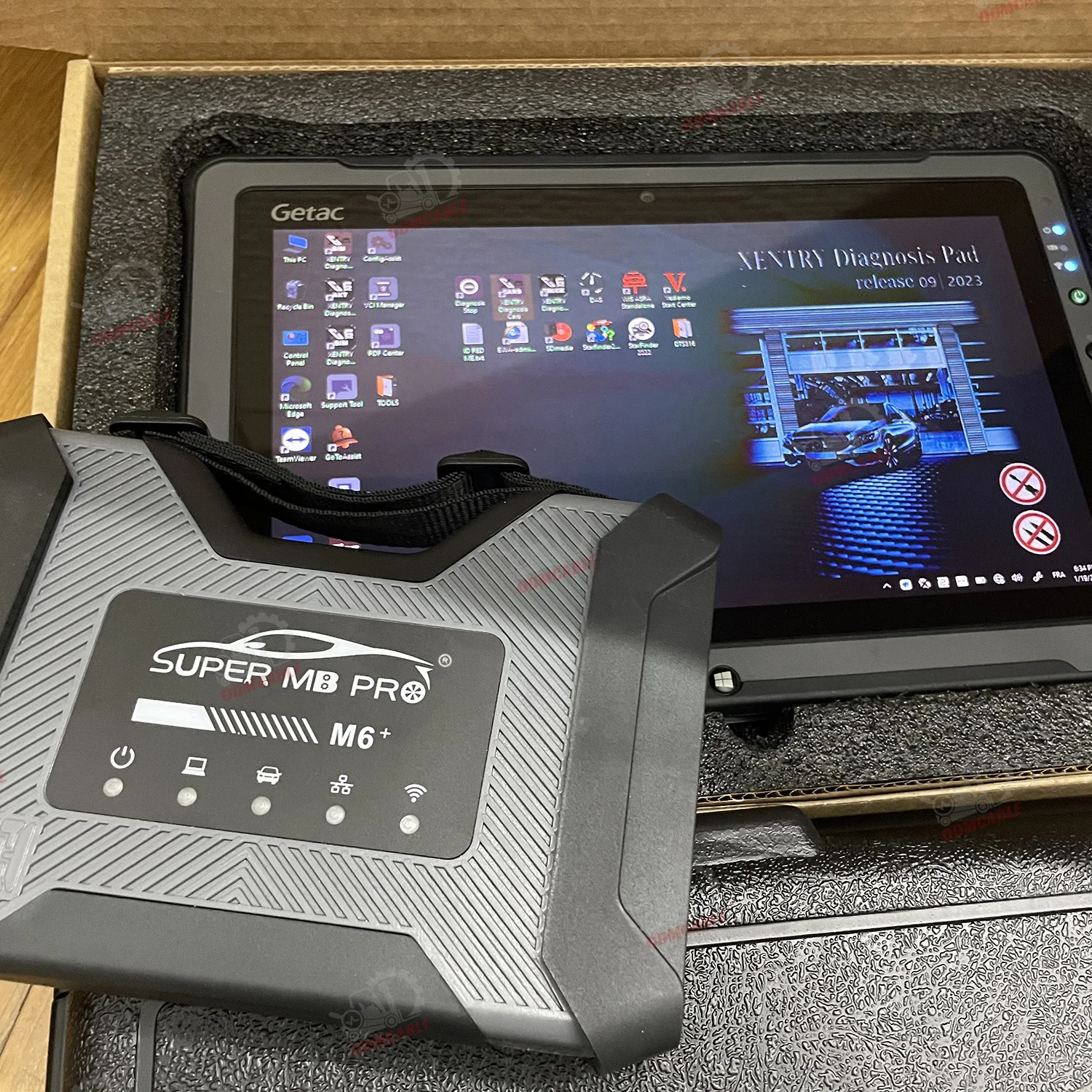

Super MB Pro M6 plus + для автомобиля Benz инструмент диагностики грузовиков полный DOIP V2023.12 SSD F110 планшет I5 поколения
77 147,91 ₽ - 102 386,30 ₽
Новейшая Диагностика для mb star c6 xentry диагностического программного обеспечения Benz 20 6 Xentry DAS и планшета F110
88 169,04 ₽ - 110 211,30 ₽

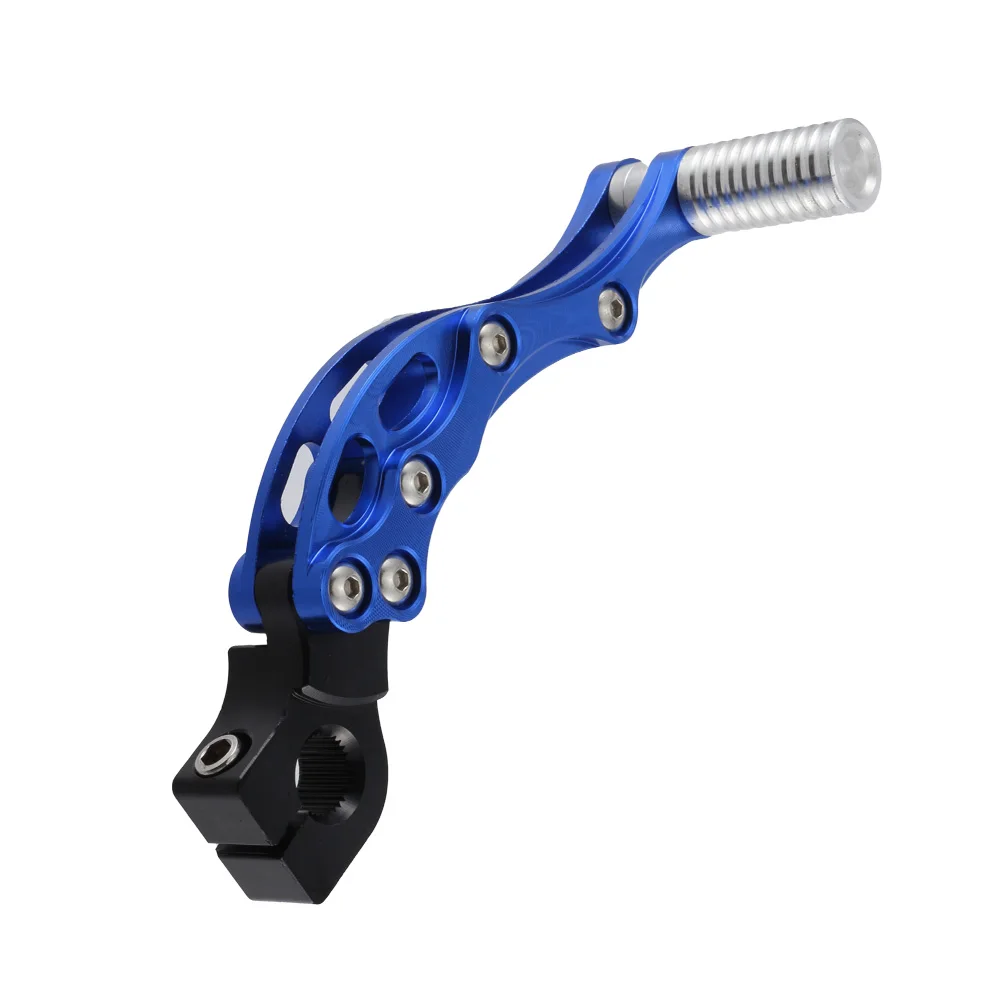

Рычаг зажигания двигателя мотоцикла

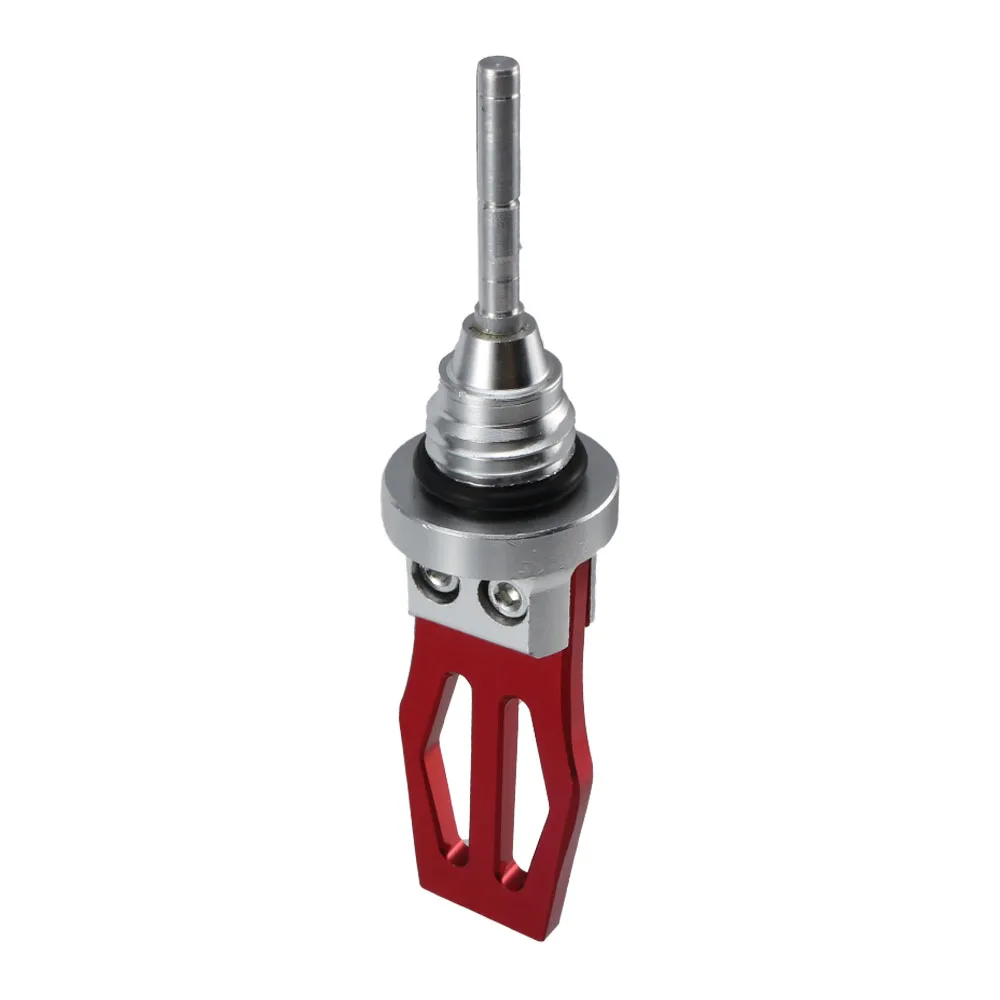

Измеритель уровня масла для мотоцикла измеритель квадроцикл 110 125CC универсальный модифицированный аксессуар запасных частей
152,10 ₽
Супер MB Star M6 + Pro автомобильный диагностический инструмент с DOIP работа программным обеспечением для автомобилей грузовиков
48 491,87 ₽ - 49 483,78 ₽
Двунаправленный диагностический сканер X431 PRO
39 565,86 ₽ - 50 586,99 ₽

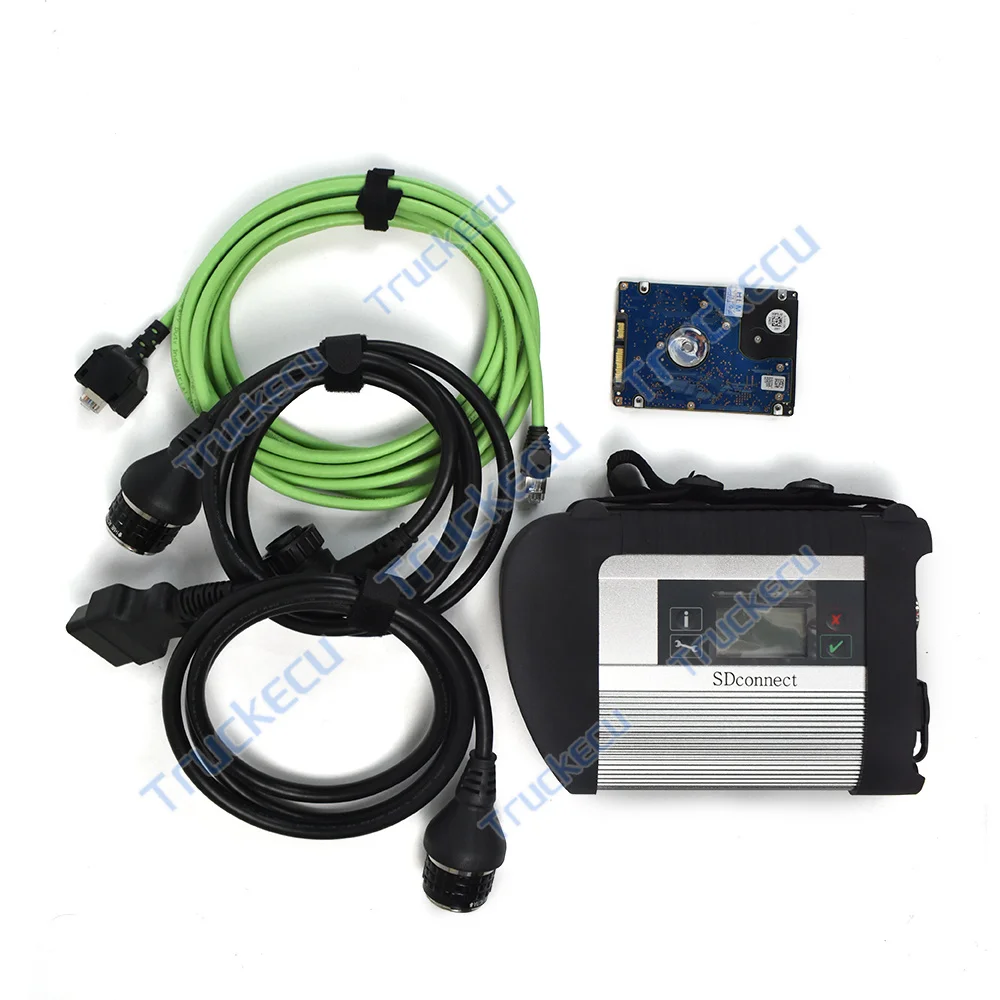

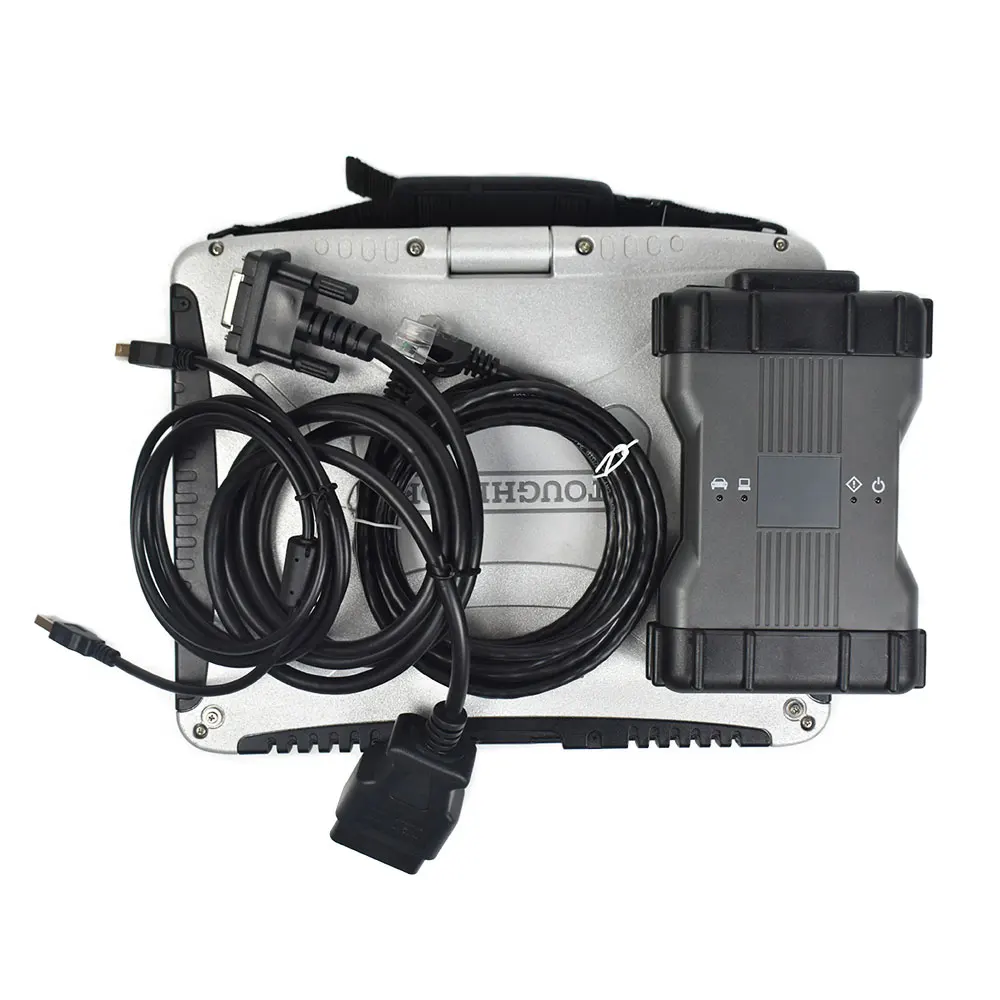

Cf19 ноутбук для автомобиля диагностический инструмент SD Connect C6 DOIP wifi pk c4 c5 мультиплексор xentry das wis ep MB STAR vci
