YONGLI RLT 30 30 Вт 50 ручная сборка rofin Металл rf co2 лазерная трубка для удаления winkle фракционный лазер
- Категория: >>>
- Поставщик: Jilin Yongli Laser Technology Co. Ltd.Jilin Ltd.
Сохранить в закладки 1600630225839:
Описание и отзывы
Характеристики
YONGLI RLT-30 30W 50W rofin metal rf co2 laser tube for winkle removal fractional laser co2
Products Description
High Stability RLT Series RF CO2 Lasers
Compact RF CO2 laser tubes with more than 30 or 60 Watts of average power for high-speed marking, cutting, and 3D printing applications are available with multiple wavelength options to process a broad range of materials. A unique 60 Watt fan-cooled model is available for OEMs and system integrators seeking an economical and efficient 60 Watt CO2 laser source.
Technical Parameters
Model NO. | RLT-30/RLT-60 |
Wavelength | 10.6μm(Customizable 9.3μm) |
Optical Output Power | 30W/60W |
Beam Mode | TEM00 |
Power stability | ±5% |
Mode quality | M2<1.2 |
Beam Divergence (mrad, full angle) | ≤7.5±0.5 |
Beam Size | 1.8±0.2mm |
Beam divergence angle | 7.5±0.5m Radian full angle |
Polarization | >100 to 1 (fixed linear, parallel to width) |
Operating frequency and duty cycle | 0-25kHz, 0 to 100% DC |

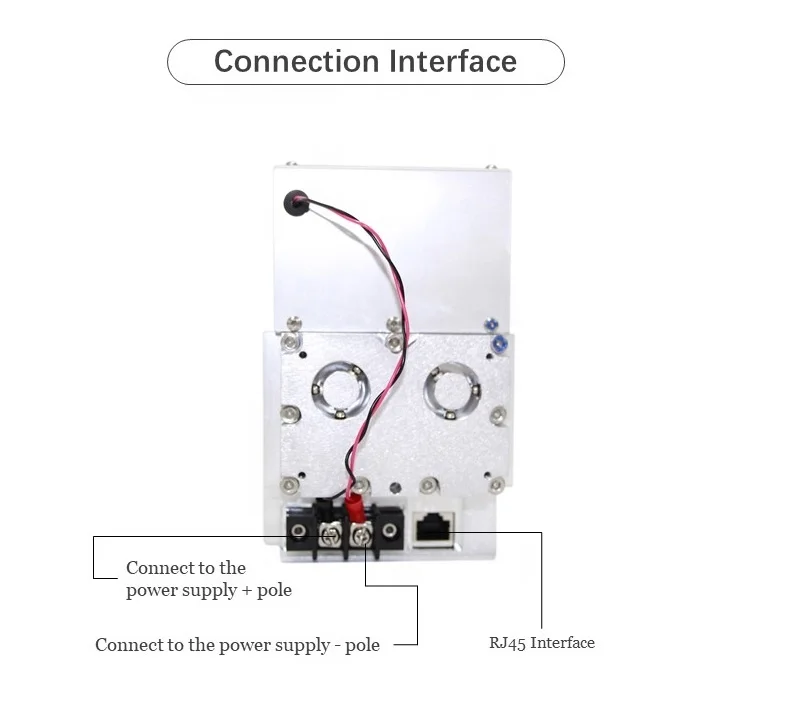

Input voltage | DC48V±2%/20A |
Working Life expectancy | 40,000 Hours |
Warranty | 24 Months |
Heat load | <575w |
Cooling Method | Air Cooling/ Water Cooling(6L/M) |
Maximum case temperature | <60ºC(140ºF) |
Ambient temperature at work | 5~40ºC(41~104ºF) |
Operating Altitude | <2000m(6,500ft.) |
Operating Humidity | Non-condensing |
Shipping and storage environments | -10~60ºC(14~140ºF), Non-condensing |
Weight | 6.2KG/10.5KG |
Size(L×W×H) | 357×92.5×142mm(14.1×3.64×5.59in.)/530x92x154mm |
Product Details

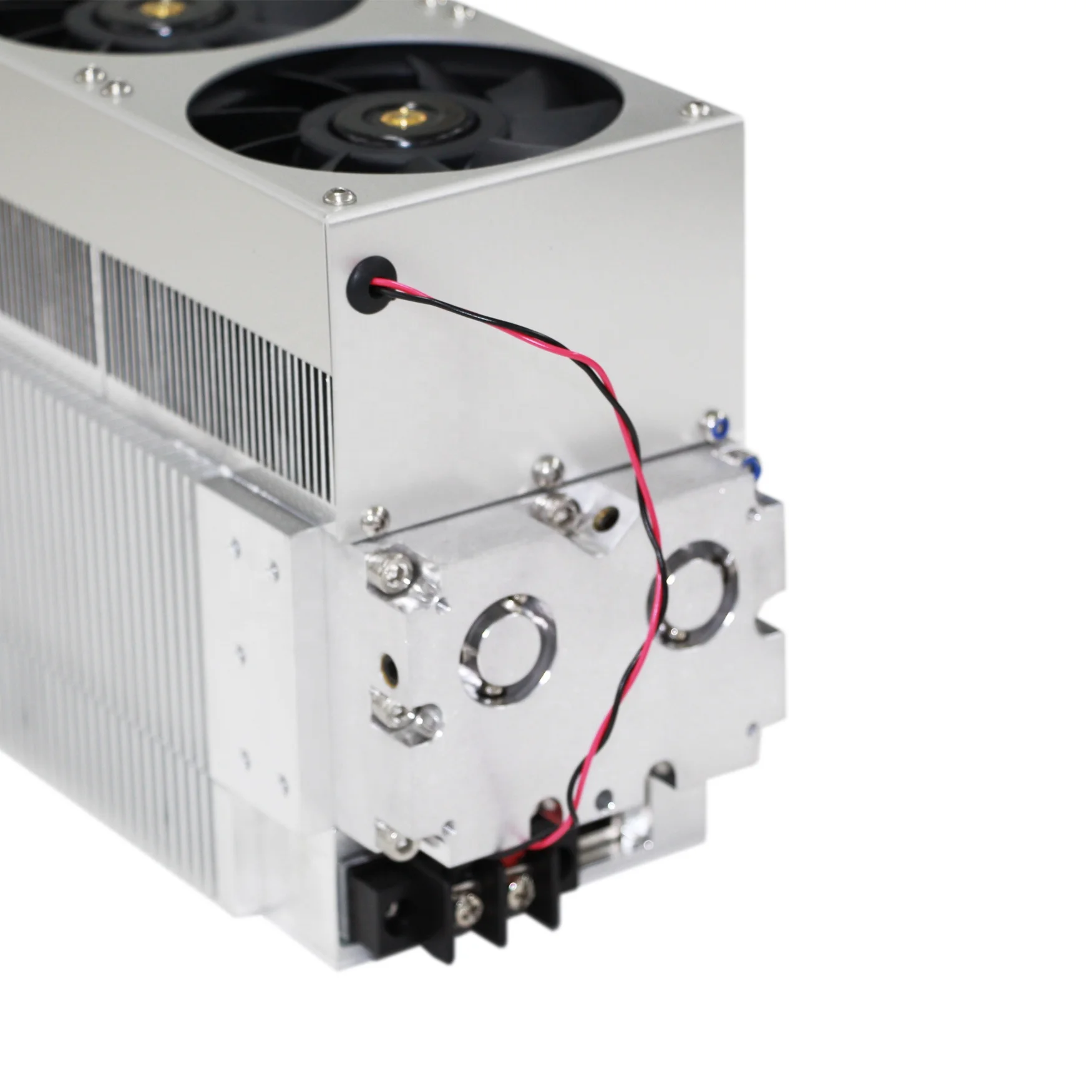

RLT-30 30W RF LASER TUBE
Working substance: mainly a mixed gas composed of carbon dioxide, helium, nitrogen, etc. Excitation source: RF power is used as excitation source.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
One of the primary differences and technological advancements that is incorporated in this design is the resonator. Latest release is model RLT-30/RLT-60 with 30/60 Watts and 9.3 µm wavelength.

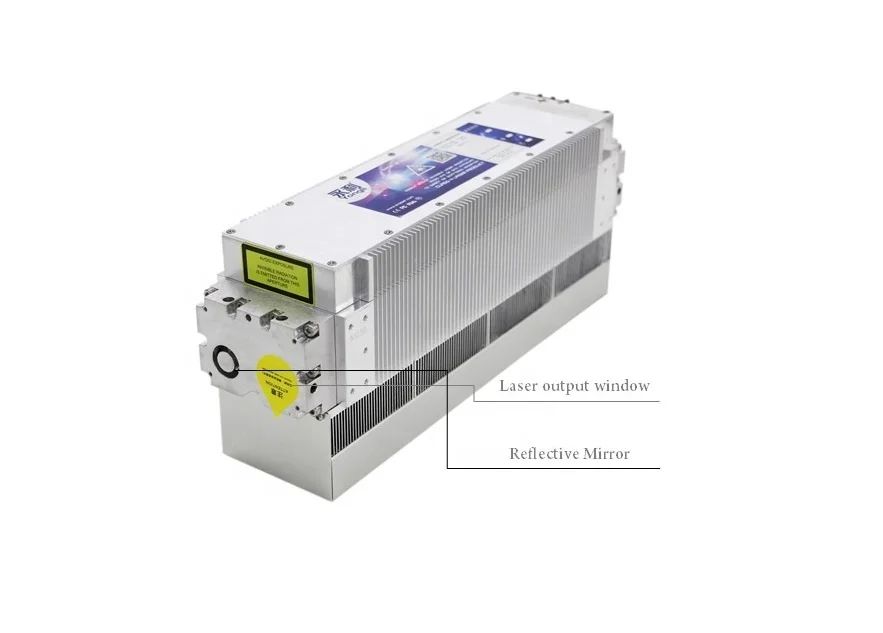

Simplify Integration YongLi RF Co2 Laser Metal Tube
Spot size (beam): CO2 radio frequency tube laser marking machine has a fine spot of 0.07mm, which is more than 3 times finer than glass tube, high precision, small thermal diffusion area, and can engrave/cut very fine works; CO2 glass tube laser The marking machine has a coarse light spot of 0.25mm, poor accuracy, unstable light output (uneven light intensity, sometimes no light), large heat diffusion area, melting and blackening of the cutting edge, and poor engraving accuracy.
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability

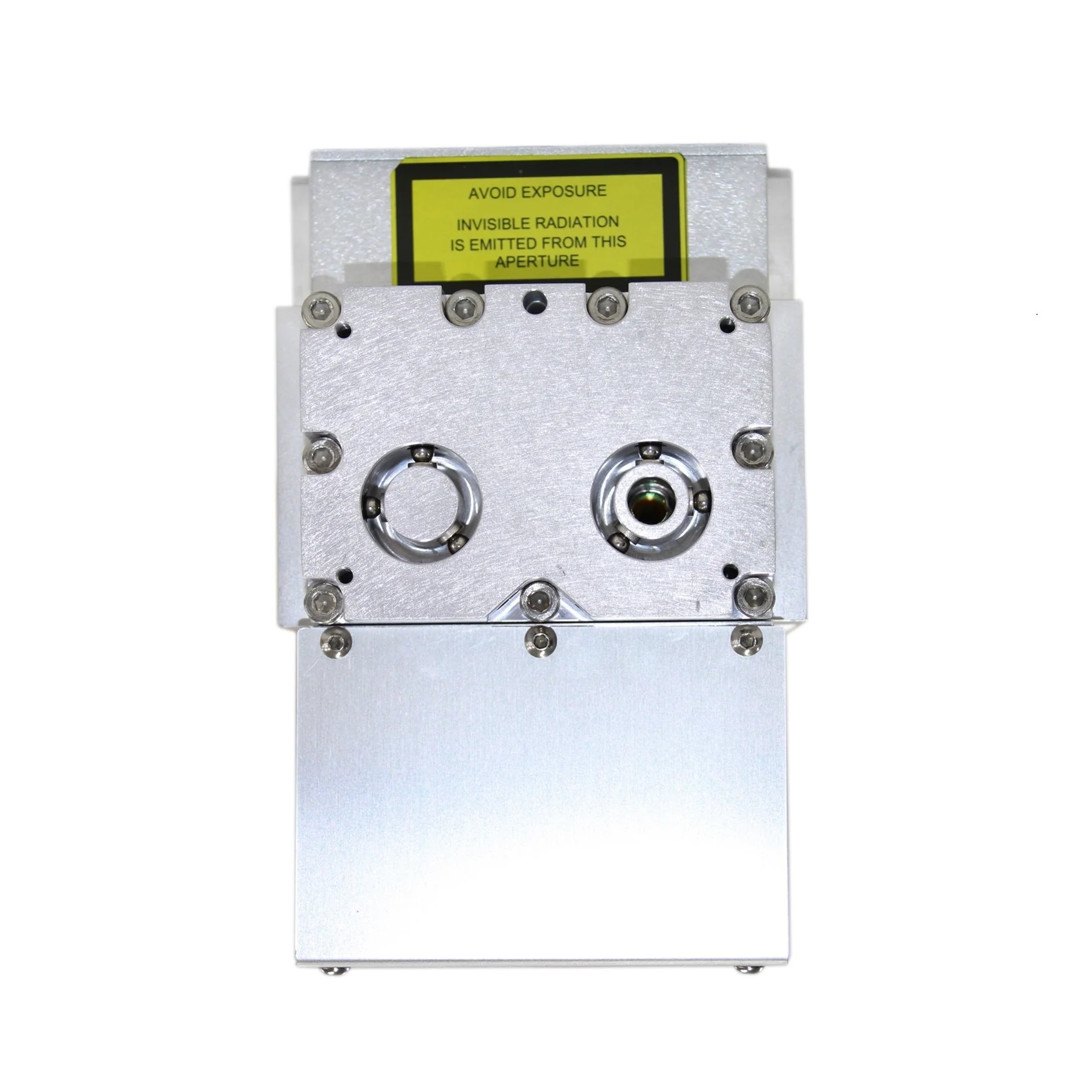

The RLT-30’s/RLT-60’s resonator is a Z-folded (2-fold) resonator. This allows for a smaller package design when compared with other 30/60 Watt CO2 RF laser tubes and is the shortest (folded) resonator in the 30 – 60 watt CO2 laser class, but has a remarkably long (unfolded) resonator length, resulting in high stability.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
Manufacturing Technique
World-Class Top Standards of RF Laser Manufacturing
7*24 hours Automaticly intelligent aging workshop
360 hours Processing, More than 20 procedures, 8 inspections
Verify raw materials Assembly inspection Semi-finished product inspection
High and low temperature test and inspection
Simulated Transportation Vibration Inspection
Production line delivery inspection
Degassing equipment
Constant high temperature and high vacuum degassing for 120 hours
Guaranteed working substance purity ISO9001 standard
customized equipment--international leading level
Vacuum system
The ultra-high vacuum exhaust system exhausts for 72 hours, and the vacuum degree can reach 1.0*10^(-6)Pa
Non-standard customized equipment, the technology has reached the international leading level Internationally leading Linde gas
Machining workshop
Machined parts - the tolerance is controlled within 0.02mm, the key dimension is less than 0.01mm, and the surface finish is less than Ra6.3, which improves the fit between the accessories. Although the cost is increased, the quality of the product is reliably guaranteed .
Application

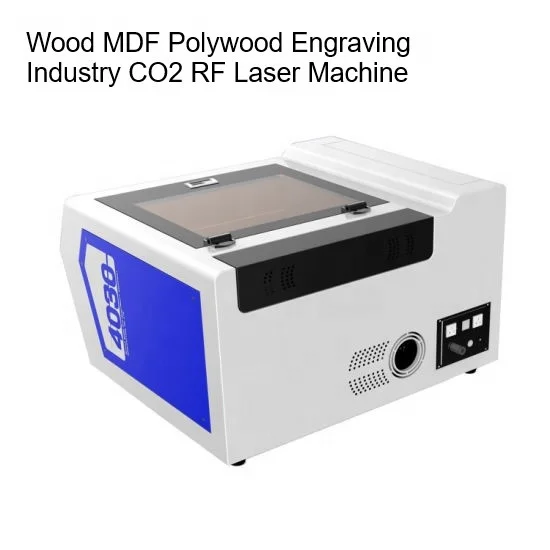

RF Tube For CO2 Laser Cutting Engraving Machine
-Achieve high speed static or dynamic online marking code
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly
RF metal tube is a small size and compact device, maintenance free, high output beam quality (more than 3 times finer than glass tube, power stability, long service life, and can be reused after inflation.
RF lasers generate a smaller spot size out of the output window of the laser. The smaller the spot size, the finer the engraving detail. For high precision engraving, this smaller spot size makes a difference. There are many applications where this advantage in quality will not make itself apparent.
Co2 Laser Engraving or Cutting Process requires fast scanning back and forth. The response speed of RF tube is fast-1600mm / s, so for engraving or cutting, it is the best choice.
For CO2 Laser Marking Machine
-Achieve high speed static or dynamic marking effect.
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
Co2 laser marker adopts world famous YONGLI RF Laser Metal Tube quite suitable for users requiring highest precision and fastest speed batch production, tags, nameplate, logos.
RF Laser Tube For Fractional Medical Treatment System
-CO2 Fractional Laser Scare Removal Skin Resurfacing Device
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
Advanced fractional CO2 Laser, it has best beam quality with RF Laser METAL TUBE. For skin resurfacing&rejuvenation with less down time, RF Metal tube from YONGLI guarantees its stable and minimized beam size for minimized PIH and Downtime
Certifications
7 Manufacturing Patented Technology
RF Power Technology
Ultra-high vacuum technology
Discharge cell polishing technology
RF Power Automatic Tuning and Matching Technology
Z-shaped optical path design inside the cavity Overall Design of Ceramic Resonator
Proportion Design of Working Substances
7 Product Designed Patented Technology
High heat dissipation folded RF CO2 laser
CO2 RF laser charging and exhausting equipment RF-excited carbon dioxide laser electrode fixture
RF-excited gas laser pre-ionization device
Electrode structure of carbon dioxide laser excited by radio frequency
RF-excited carbon dioxide laser spot shaping lens RF Laser
CE\\RoHS\\REACH\\FCC APPROVED
The manufacturer YONGLI confirms that our electrical or electronic equipment (including the underlying components) is free of hazardous substances.
The CE certifies indicate that YongLi RF laser tube has met EU consumer safety, health, or environmental requirements.
Packing & Shipping
Standard export packing & Extremely Fast Shipping
Every RF laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a hard carton case which is reinforced with tapes on the top and bottom.
All our RF laser tubes are protected well during the long trip by sea or by train. We can transport RF laser tube by sea/air freight or express by DHL EMS UPS etc. Or according to your requirement.
Company Profile
Jilin Yongli Laser Technology Co., Ltd., the original laser branch of Jilin University, founded in1986, located at the birthplace of Chinese first laser - Changchun，focused on researching and producing co2 laser tubes,RF co2 laser source, co2 laser power supplies, co2 laser power meters, focus lens, laser reflective mirrors,fiber laser source etc.
Yongli has more than 2,000 ㎡ optical production level ultra-clean workshop. R & D Center was established in 2007, led by researchers, senior engineers, senior technicians, already has a number of leading laser devices scientific research.
Our company has settled down into Changchun Hi-Tech zone's Optoelectronics and Intelligent Equipment Manufacturing Industrial Park, built the co2 laser tube production line and realize the uniformity, stability and batches trackable in mass production, estimated production is 200,000pcs.
Our company is a scientific and technological enterprise and research and development are the focuses of our work. We aim to develop products to meet the market requirements in the future, and contribute to the laser industry for our motherland.
Yongli has more than 2,000 ㎡ optical production level ultra-clean workshop. R & D Center was established in 2007, led by researchers, senior engineers, senior technicians, already has a number of leading laser devices scientific research.
Our company has settled down into Changchun Hi-Tech zone's Optoelectronics and Intelligent Equipment Manufacturing Industrial Park, built the co2 laser tube production line and realize the uniformity, stability and batches trackable in mass production, estimated production is 200,000pcs.
Our company is a scientific and technological enterprise and research and development are the focuses of our work. We aim to develop products to meet the market requirements in the future, and contribute to the laser industry for our motherland.
All of Yongli's products are manufactured under the ISO9001:2015 quality control system,and approved by CE, FCC, ROHS,and REACH.
Until now, Yongli has gained more than 50 patents concerned about co2 laser tubes and other spare parts.
Until now, Yongli has gained more than 50 patents concerned about co2 laser tubes and other spare parts.
Expos
Every year,our company attend more than 15 international expos concerned about optics and lasers. Such as the :
-LASER World of PHOTONICS CHINA
-LASER-World of Photonics -HELD IN GEMERNY
-Media Expo Mumbai
-Future Print- held in Brazil
-EXPOPUBLICITAS-held in Mexico
-CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
-LASER-World of Photonics -HELD IN GEMERNY
-Media Expo Mumbai
-Future Print- held in Brazil
-EXPOPUBLICITAS-held in Mexico
-CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
···············
FAQ
1. who are we?
We are based in Jilin, China, start from 2005,sell to North America(25.00%),South America(20.00%),Southeast Asia(20.00%),Eastern Europe(10.00%),Domestic Market(10.00%),Africa(5.00%),South Asia(3.00%),Oceania(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Laser Source,Laser Tube,Power Supply,Laser Accessories,Fiber Laser Marking Machine
4. why should you buy from us not from other suppliers?
1. More than 30 Years CO2 laser tube design and development experience.
2. Full laser accessories.
3. With own R & D Center
4. All products passed the ISO, CE, FCC, RoHS certificate
5. Stable core suppliers of the most large laser machine manufac.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
We are based in Jilin, China, start from 2005,sell to North America(25.00%),South America(20.00%),Southeast Asia(20.00%),Eastern Europe(10.00%),Domestic Market(10.00%),Africa(5.00%),South Asia(3.00%),Oceania(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Laser Source,Laser Tube,Power Supply,Laser Accessories,Fiber Laser Marking Machine
4. why should you buy from us not from other suppliers?
1. More than 30 Years CO2 laser tube design and development experience.
2. Full laser accessories.
3. With own R & D Center
4. All products passed the ISO, CE, FCC, RoHS certificate
5. Stable core suppliers of the most large laser machine manufac.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian,Korean,Hindi
