Rimdin 51 2 В 5 кВт 10 20 штабелируемые литий-ионные батареи lifepo4 все в одном с инвертором 48 домашняя система хранения солнечной энергии
69 955,68 ₽ - 75 438,10 ₽
5 кВтч 10 15 20 lifepo4 батарея все в одном коробка аккумуляторных батарей для хранения энергии литий ионный аккумулятор 48 В 200 ач 280 Ач LiFePO4
- Категория: >>>
- Поставщик: Shenzhen Eel Battery Co. Ltd.
Сохранить в закладки 1600630295280:
Описание и отзывы
Характеристики
This item is battery box,bms and other necessary stuffs to build a battery pack,not including battery cells.Bms with bluetooth module and RS485 cable.
Shipping is DDP service including all tax duty fees.
Products Description

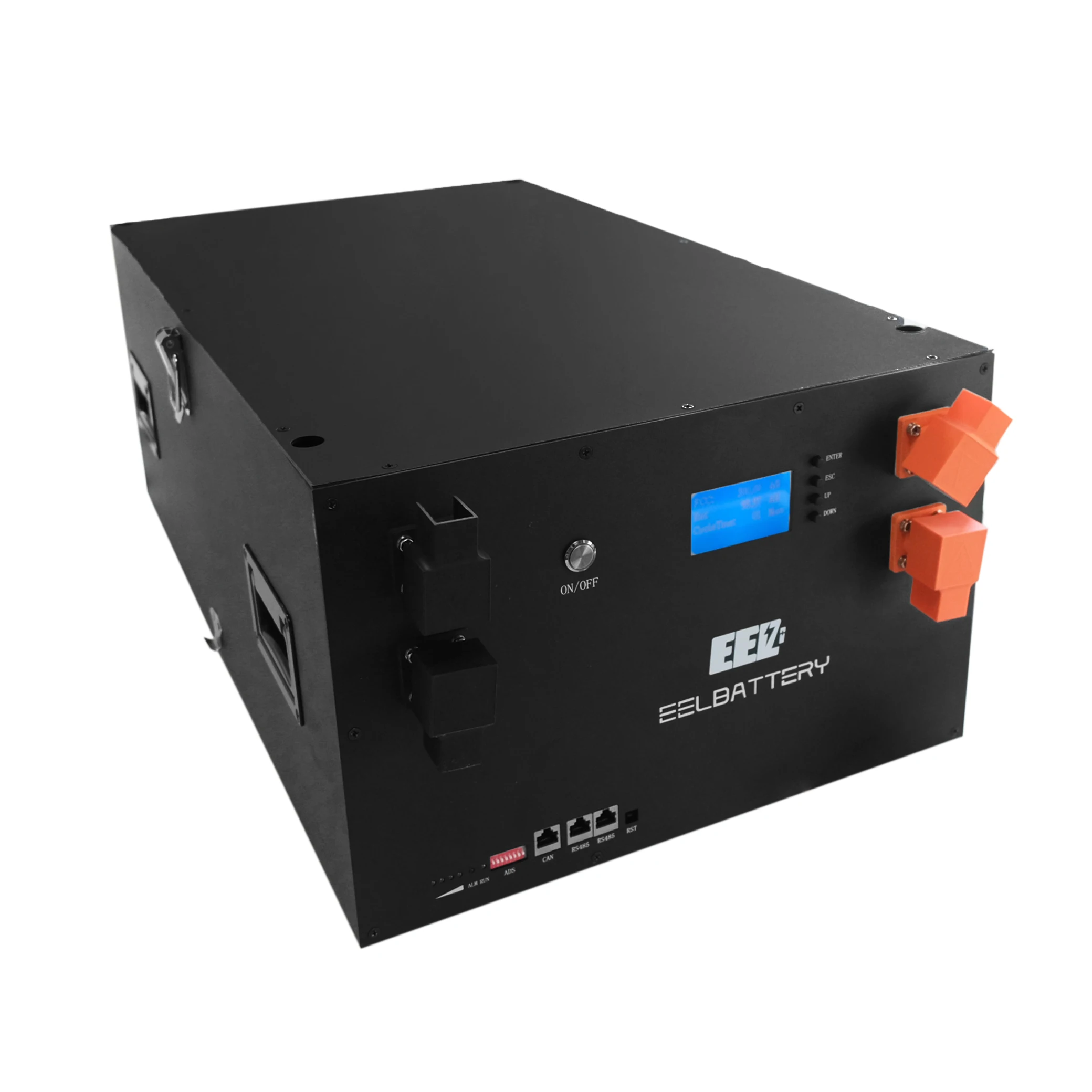

Product Name | Mars 16S 48v 280Ah LiFePO4 battery box kits | ||
Specifications | EEL-MARS-LFP 16S1P 51.2v 280Ah | ||
Nominal Voltage | 51.2v | ||
Nominal Capacity (25°C , 0.2C) | 280Ah | ||
Weight (Approximate) | 26kg | ||
Cell Model | CATL/Lishen/REPT/EV-E 280Ah/302Ah/304Ah new cell | ||
Dimension L*W*H | L68*W41*H26cm | ||
Communication Interface | Canbus&RS485 protocol compatible | ||
Standard Discharge 25°C | Max. cont. current | 200A | |
Max.10sec.pulse | 380A | ||
Cut-off Voltage | 40V | ||
Standard Charge | Charge Voltage | 58.4V | |
Float | 55.2V | ||
Current | 140A@25±2℃(recommended) | ||
Max charge curent | 200A | ||
Working Temperature | Discharge -30 to 60℃; Charge -20 to 60℃ | ||
SOC Range | 5%-100% | ||

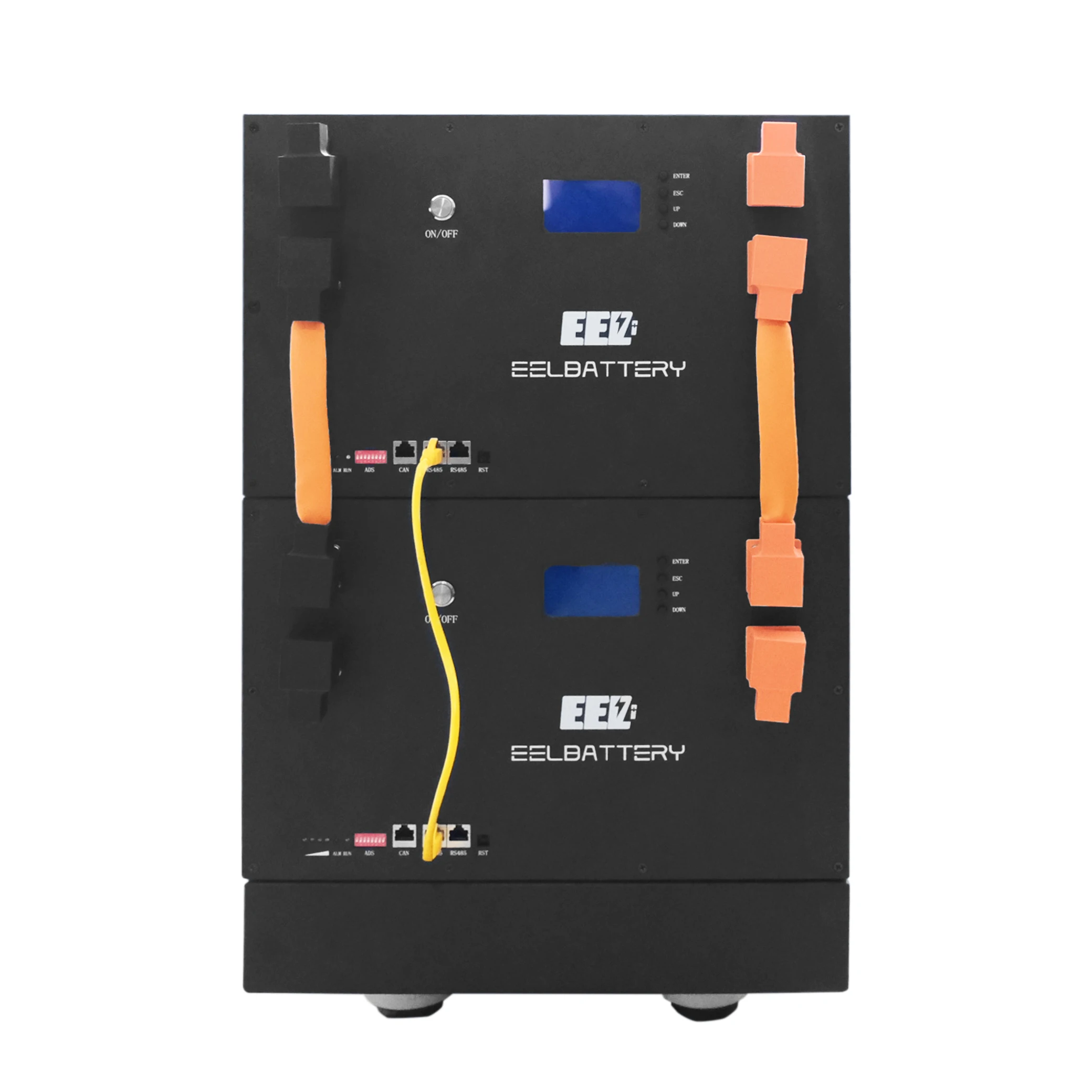

Battery box and bms are all with screws fixation,it's easy to check battery pack condition anytime,bms support 15 parallels.

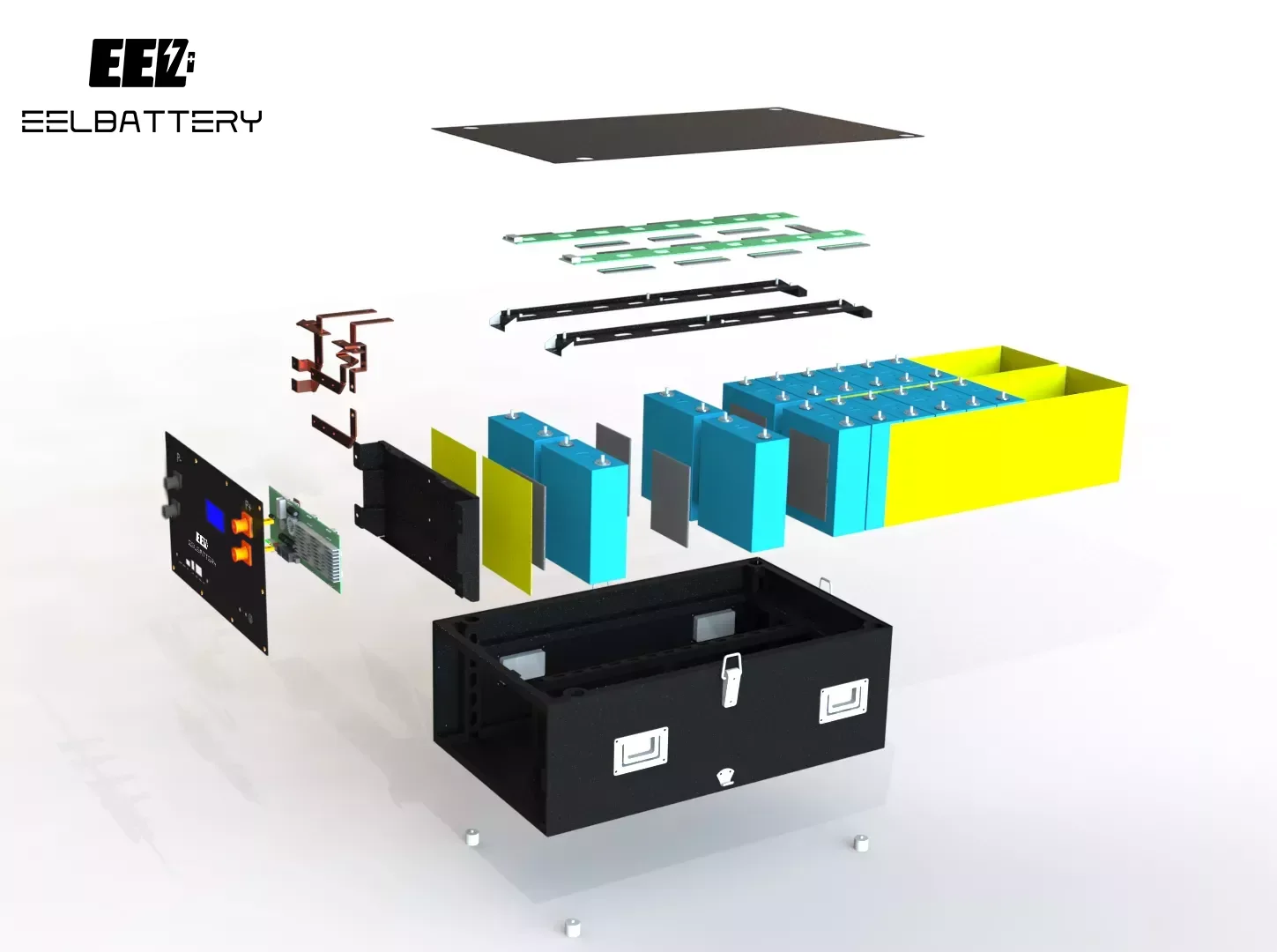

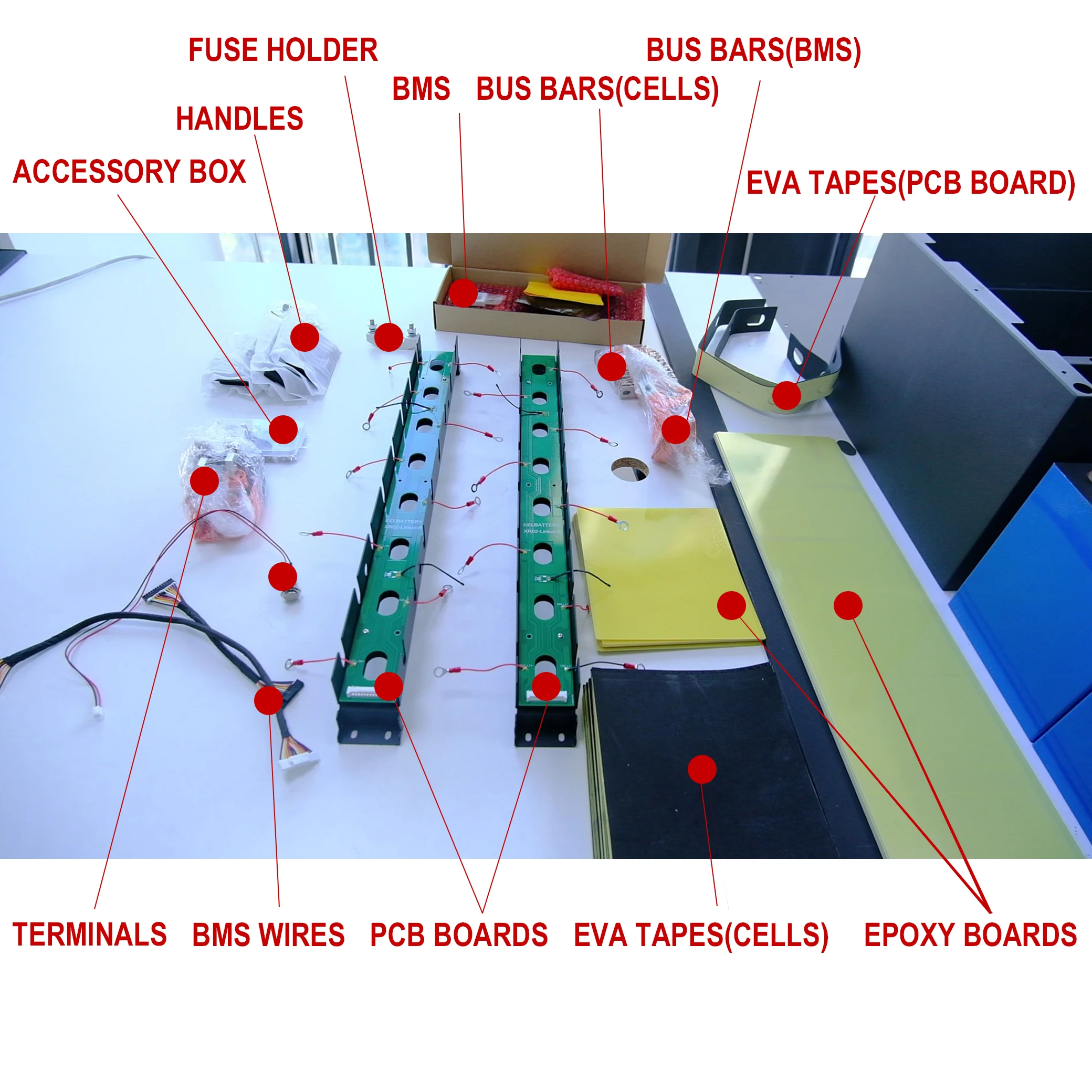

Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)1 * 48V (100A/150A/ 200A)16S LiFePO4 battery BMS
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock

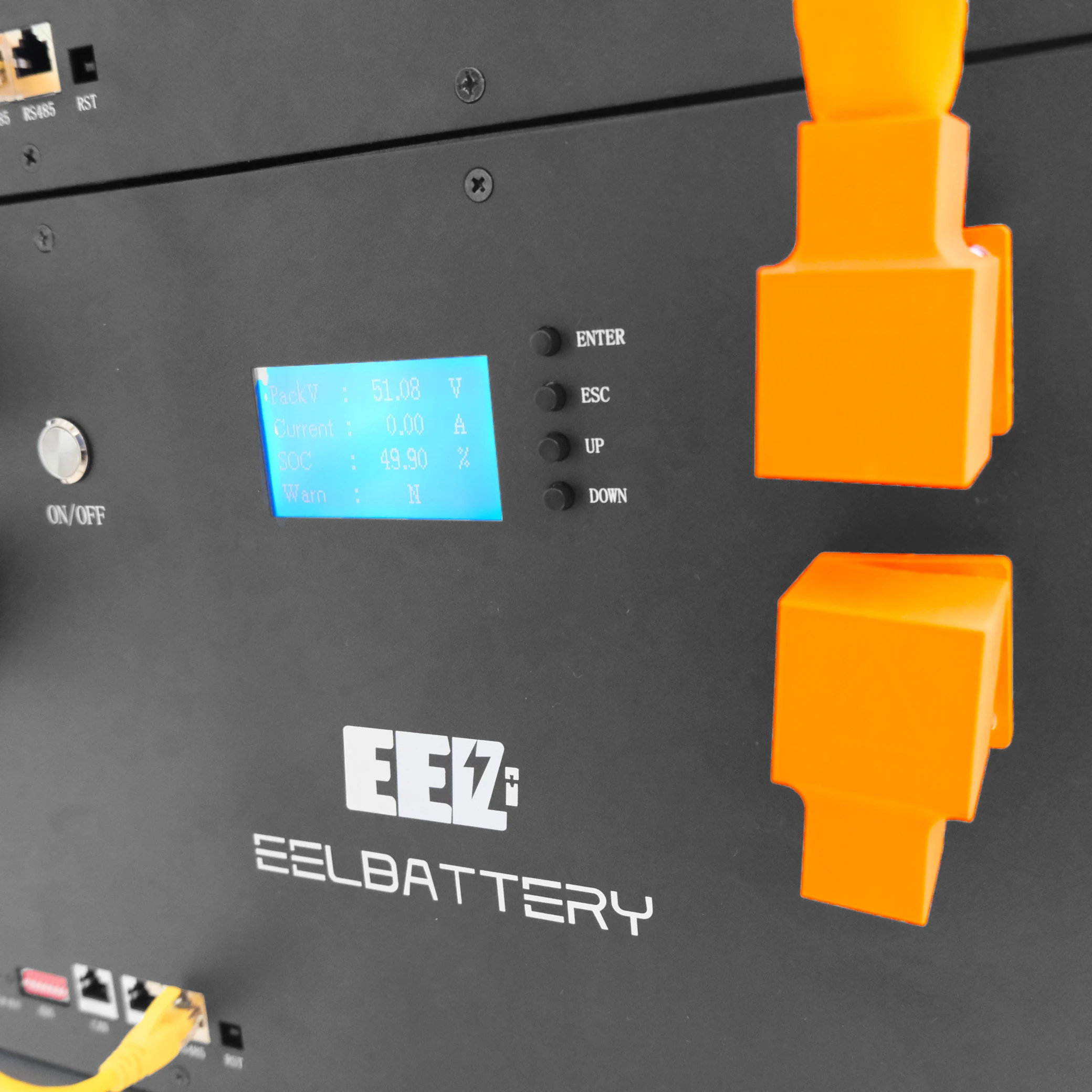

1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper busbars (BMS connection)
15 * Flexible busbars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Advantages
Company Profile
Shenzhen EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical
device. Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
Application
Recommend Products
Q&A
Q:What BMS is in the 48V battery box?
A: We use the 100/150/200A BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: Yes, the BMS is USD$200(200Amp), we can deduct this price for you if you just want the battery box.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes,we accept customizing the logo, but need larger quantity(>10 sets), if you need sample first, welcome to contact us.
Q:Does the 48V kit contain batteries?
A: Not including battery cells, see above packing list.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions.You can also contact us anytime if need help.
Season Wong
Skype:Seasonwong1688
Email:season@eelbattery.com
As a sale engineer more than 8years in lithium battery field.
Похожие товары
5 кВт инвертор с 10 15 литиевая батарея все в одном солнечная энергетическая система домашняя хранения энергии
131 578,08 ₽ - 219 296,80 ₽

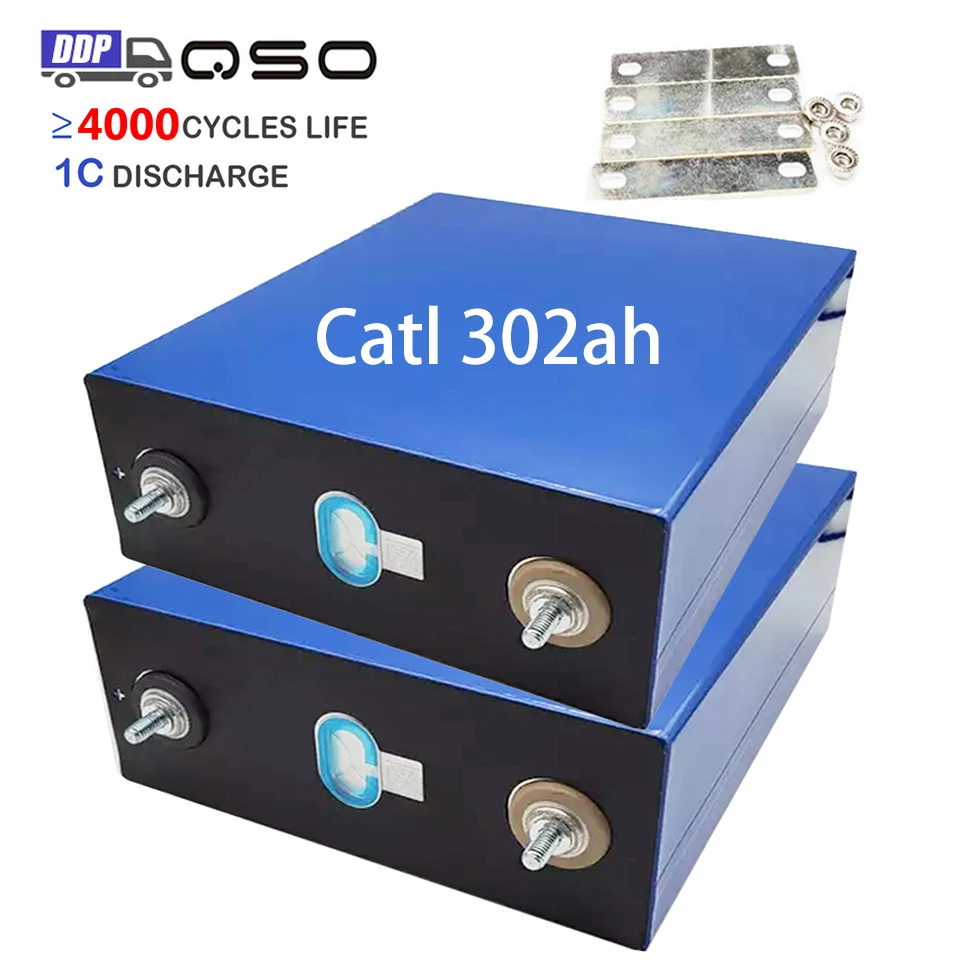

Catl 302Ah 3 2 V 300Ah 3.2V300Ah 3.2V302Ah 3.2V304Ah 3.2V320Ah 320Ah calt 302 Ah 280Ah Lifepo4 литий-ионные батареи
